Page 2

The WIZ

OPERATING & MAINTENANCE

INTRODUCTION INSTRUCTIONS

READ THIS BOOK

This operator’s book has important information for the use and safe operation of this machine. Read this book carefully before starting the machine. Keep this book and tell all operators to read the book. If you do not follow the instructions, you can cause an injury or damage equipment, furniture or buildings.

For new books write to: Pacific

2259 S. Sheridan Muskegon, MI 49442-6252

Carefully inspect all components to ensure that there is no concealed freight damage. If such damage is discovered, file a “CONCEALED DAMAGE REPORT” immediately with the delivering carrier.

The contents of this manual are based on the latest product information available at the time of publication. Pacific reserves the right to make changes or improvements to its machines without notice.

FOR YOUR CONVENIENCE, RECORD THE FOLLOWING INFORMATION:

MODEL_______________________________

SERIAL NUMBER_______________________

PART NUMBER _________________________

DATE PURCHASED ______________________

Page 3

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE

WARNING: to reduce risk of fire, electric shock, or injury:

1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.

2. Do not use outdoors or on wet surfaces.

3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.

4. Use only as described in this manual. Use only manufacturer's attachments.

5. Do not use with damaged cord or plug. If appliance should not work as it should, has been dropped or damaged, left outdoors, or dropped into water, return it to service center.

6. Do not pull or carry by cord, use cord as handle, close a door on cord or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord

8. Do not handle plug or appliance with wet hands.

9. Do not put any objects into opening. Do not use with any opening blocked: keep free of dust, lint, hair and anything that may reduce airflow.

10. Keep hair, loose cl othing, fingers and all parts of the body away from openings and moving parts.

11. Turn off all controls before unplugging.

12. Use extra care when vacuuming on stairs.

13. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.

14. Connect to a properly grounded outlet only.

15. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

16. Do not use without dust bag and/or filters in place.

17. Do not use this vacuum for pick-up of wet debris; this vacuum is for dry pick-up only.

Grounding Instructions

This machine must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This machine is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING - Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the machine - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This machine is for use on a nominal 120-volt circuit, and has a grounded plug that looks like the plug illustrated in figure A. A temporary adapter that looks like the adapter illustrated in figures B and C may be used to connect this plug to a 2-pole receptacle as shown in figure B if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet (figure A) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.

NOTE: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code

EXTENSION CORDS

Use only three-wire 16/3 or larger gauge approved extension cords that have three-prong grounding type plugs and three-pole receptacles that accept the appliance’s plug. Replace or repair any damaged cords or plugs.

When servicing, refer to authorized person only. Use only identical replacement parts.

NOTE: Do not use adapters shown in figures B & C in Canada

Page 4

ASSEMBLY AND OPERATION

Unpack your vacuum from its carton and inspect the machine, hose assembly and tools for any damage. If there is damage to any component, file a claim with the carrier immediately.

Assembly

This machine requires little assembly before operation. However, the following steps must be taken to ensure proper operation.

1. Install a filter bag into the tank. To do this, release the hook located on each side of the machine’s tank and motor assembly. Lift the cover off and set it aside. Install the filter bag by pushing its opening over the vacuum hose adapter. Be sure the filter bag follows the perimeter of the tank; the center area must remain clear for replacement of the cover with motor assembly. Replace the cover and fasten both hooks.

2. Insert the vacuum hose assembly securely into the adapter. Then attach the wand and selected tool. The wand and tools attach by simply pushing them together.

Operation

The Model shown in this manual is intended for commercial use and is to be used for only dry pick-up applications.

Tools

Four tools are provided with the vacuum: the combination floor assembly, upholstery tool, crevice tool and dusting brush. Each is used by inserting them directly into the free end of the vacuum hose/wand.

The combination floor assembly tool can be utilized either with or without bristles. The levers located on top of the tool actuate the bristles.

Servicing

Warning: Always unplug your vacuum before performing any service. Severe personal injury could result if the electrical power is not disconnected.

1. Vacuum Filter Bag: When full, remove the paper filter

bag and install a new one. If the optional cloth filter bag is being used, it must be emptied when full and checked for any rips or holes. Replace if necessary.

2. Power Cord: Check the cord for cuts or nicks. If damaged, have the cord replaced at a factory authorized service center.

1. Before use, be sure a filter bag has been properly installed in the machine (reference assembly instructions).

2. Attach the hose assembly, wand and selected tools.

3. Plug the power cord into a 115-volt, 60 cycle, grounded outlet.

4. Turn the power switch on; the vacuum motor will start. The switch is located on the handle.

5. The vacuum suction is adjustable through an opening located on the bent wand section of the hose assembly. For maximum pick-up the opening must be closed, for reduced suction expose the opening.

3. Casters: Remove any strings or debris that may restrict the free movement of the casters. Wipe the treads clean.

4. Tools: Inspect the tools to ensure there is no obstruction of airflow. Remove any debris if found.

5. Motor Filter Bag: This vacuum has a cloth filter bag that protects the motor assembly. This filter will require periodic cleaning; remove any dust and debris by vacuuming with a different vacuum cleaner.

6. Vacuum Motor Maintenance: Have the vacuum motor inspected annually by a factory authorized service technician. If the carbon brushes are worn, they should be replaced. This service will prolong the life of the vacuum motor.

Page 5

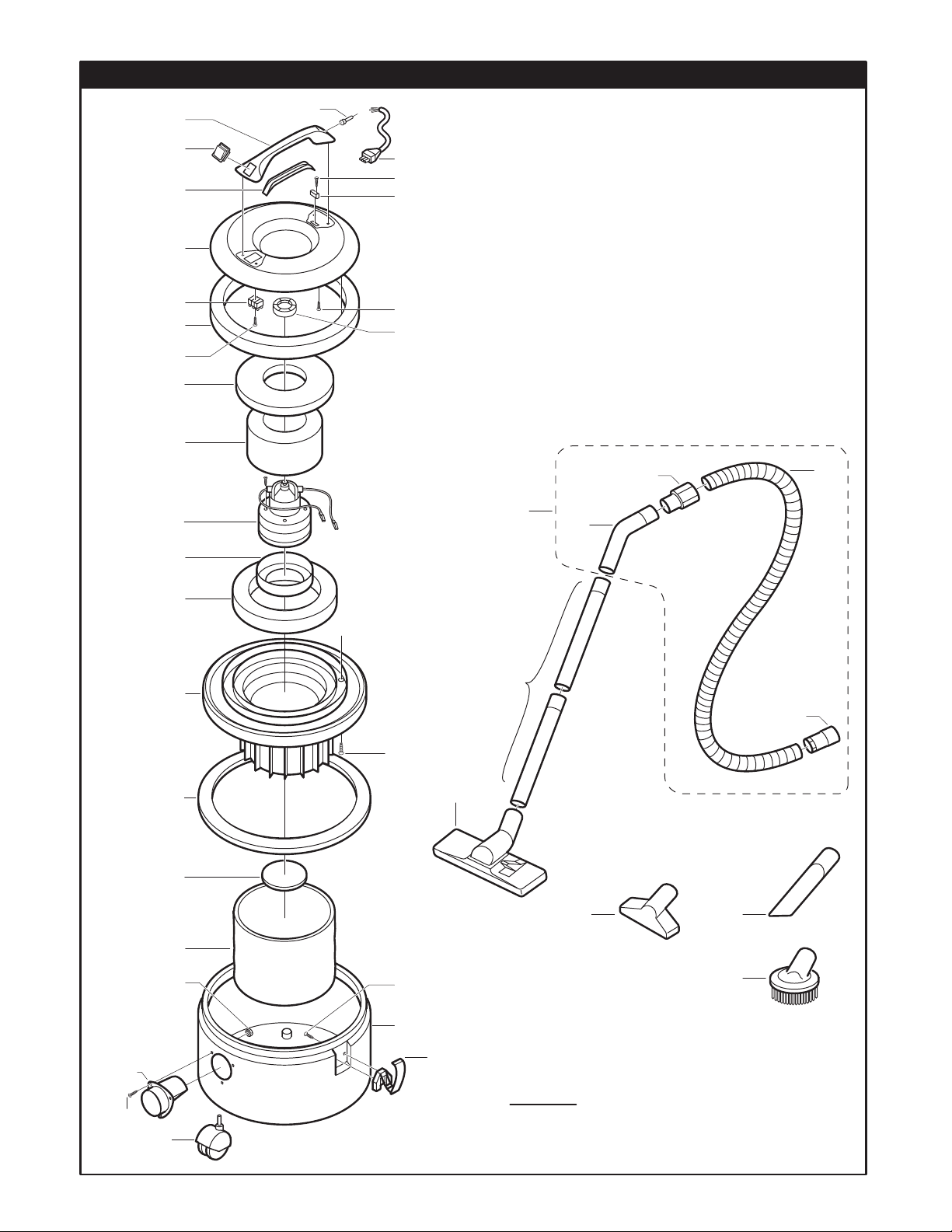

The Wiz

¥ ¥

9 10

3 16

Not Shown:

41. Included: Part Number 600643, Paper Bag Filters-Pkg. of 10

Page 6

The WIZ

ITEM # PART # DESCRIPTION QTY

Machine

1 603940 Handle 1 2 602341 Cover-Handle 1 3 964142 Screw 4 4 608010 Switch 1 5 607540 Cable Retainer 1 6 908081 Cord Assembly 1 7 911203 Terminal Board 1 8 964021 Screw 1

9 964021 Screw 2 10 607541 Retainer 1 11 601541 Motor Cap 1 12 604840 Insulation-Sound 1 13 604841 Insulation-Sound 1 14 604842 Insulation-Sound 1 15 604843 Insulation-Sound 1 16 603440 Gasket-Motor Exhaust 1 17 605240 Vacuum Motor 115V 1 18 603410 Vac. Motor Gasket 1 19 602342 Cover-Tank 1

*20 603443 Gasket-Cover 1

21 604844 Insulation-Sound 1 22 964143 Screw 6 23 600642 Filter Bag-Motor 1 24 608641 ABS Tank 1 25 604540 Hook 2 26 964144 Screw 4 27 600241 Adaptor-Vac.Hose 1 28 924065 Self-Locking Nut 2 29 964145 Screw 2 30 609740 Caster 4

Hose Assembly & Tools

31 600209 Adapter-Hose to Tank 1 32 604140 Hose-Vacuum 1 33 600243 Adapter-Hose to Wand 1 34 609041 Tube-Bent Wand Top 1 35 609812 Tube-Straight Wand 2 36 608840 Combination Floor Tool Asm. 1 37 608818 Upholstery Tool 1 38 608815 Crevice Tool 1 39 608814 Dusting Brush 1 40 604141 Vacuum Hose Assembly 1 41 600643 Paper Bag Filters-Pkg.of 10 1

*Indicates part number change since last revision.

Page 7

WARRANTY POLICY

PACIFIC LIMITED WARRANTY

The Pacific WIZ Vacuum has been manufactured, tested and inspected in accordance with specific engineering requirements and is WARRANTED to be free from defects in workmanship and materials as follows:

One (1) year parts & labor - All components unless excluded below.

This warranty extends to the original user/purchaser and only when used, operated and maintained in accordance with Pacific Operating and Maintenance instructions.

This warranty does not apply to the following wear parts and accessories of the machine including:

Part Number Part Name 908081 604140 604141 600642 600643 608840 608818 608815 608814

Nor does it apply to damage or failure caused by improper use, abuse or neglect. Warranty credit or replacement of return parts including motors, pumps, etc., is subject to incoming inspection of those items.

To secure repair under this warranty, the following procedure should be taken:

• The inoperative machine or warranted parts must be delivered to the authorized dealer with shipping and delivery charges prepaid.

If unable to locate the Dealer, you may contact Pacific at the address listed herein for the location of the nearest Pacific repair center or agent or for other instructions pertaining to your warranty difficulty.

Cord Assembly Hose - Vacuum Vacuum Hose Asm Filter Bag, Motor Paper Bag Filters Floor Tool Asm. Upholstery Tool Crevice Tool Dusting Brush

• Upon compliance with the above warranty procedure, all warranted repairs would be completed at no additional charge or cost to the

user.

• Only Pacific or its authorized dealers and agents may make no charge warranty repairs on this product. All others do so at their own

risk.

This warranty limits Pacific’s liability to the repair of the product and/or warranted parts replacement and does not include incidental or consequential damages arising from the use of a Pacific machine whether defective or not.

This warranty is in lieu of all other expressed or implied warranties and is extended to the original purchaser/user.

2259 Sheridan

Muskegon, Michigan 49442

Ph: (800) 968-1332 Fax: (231) 773-1642

10/01

www.nextwaveofclean.com

605640
