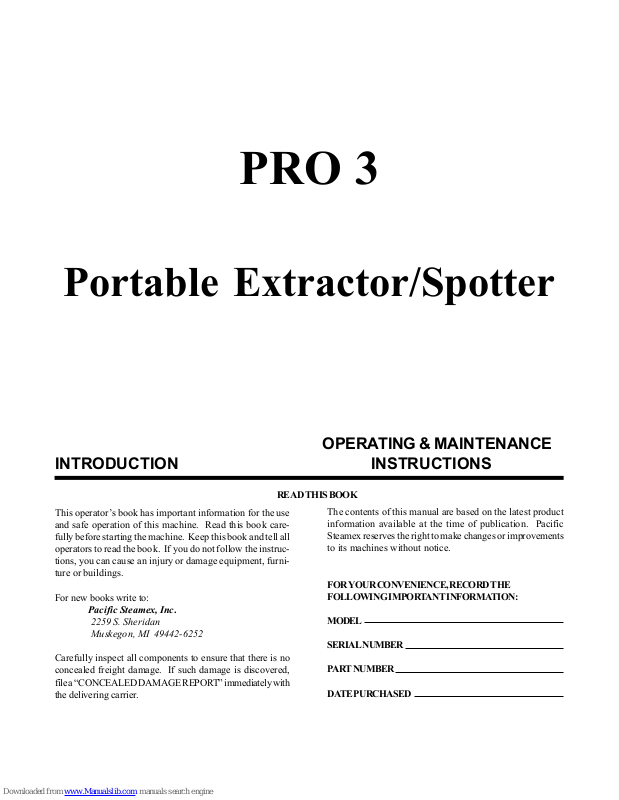

Pacific PRO 3 Maintenance Manual

PRO 3

Portable Extractor/Spotter

OPERATING & MAINTENANCE

INTRODUCTION INSTRUCTIONS

READ THIS BOOK

This operator’s book has important information for the use
and safe operation of this machine. Read this book care­fully before starting the machine. Keep this book and tell all
operators to read the book. If you do not follow the instruc­tions, you can cause an injury or damage equipment, furni­ture or buildings.

For new books write to:
Pacific Steamex, Inc.

2259 S. Sheridan
Muskegon, MI 49442-6252

Carefully inspect all components to ensure that there is no
concealed freight damage. If such damage is discovered,
file a “CONCEALED DAMAGE REPORT” immediately with
the delivering carrier.

The contents of this manual are based on the latest product
information available at the time of publication. Pacific
Steamex reserves the right to make changes or improvements
to its machines without notice.

FOR YOUR CONVENIENCE, RECORD THE
FOLLOWING IMPORTANT INFORMATION:

MODEL

SERIAL NUMBER

PART NUMBER

DATE PURCHASED

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS

BEFORE USING THIS APPLIANCE!

WARNING! To reduce the risk of fire, electric shock, or injury:

1. Unplug from outlet when not in use and before servicing.

2. Do not use outdoors. Protect the machine from rain.

3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.

4. Use only as described in this manual.

5. Never use this machine to pick up volatile or explosive materials!

6. Do not use this machine for pick up of dust or dry debris.

7. Do not use with damaged cord or plug. If appliance should not work as it should, has been dropped or
damaged, left outdoors, or dropped into water, return it to service center.

8. Do not pull or carry by cord, use cord as handle, close a door on cord or pull cord around sharp
edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord

10. Do not handle plug or appliance with wet hands. Do not immerse. Keep the machine in a dry building.

11. Do not put any objects into opening. Do not use with any opening blocked: keep free of dust, lint,
hair and anything that may reduce airflow.

12. Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts.

13. Turn off all controls before unplugging.

14. Do not use in areas where flammable or combustible liquids such as gasoline may be present.

15. Connect to a properly grounded outlet only.

16. Do not use water that is hotter than 82°C (180°F).

17. To prevent damage to the solution system, do not store in freezing temperatures without proper maintenance.

Grounding Instructions

This machine must be grounded. If it should malfunction or break down,
grounding provides a path of least resistance for electric current to reduce the
risk of electric shock. This machine is equipped with a cord having an equip­ment-grounding conductor and grounding plug. The plug must be inserted
into an appropriate outlet that is properly installed and grounded in accor­dance with all local codes and ordinances.

WARNING - Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualified electrician or
service person if you are in doubt as to whether the outlet is properly grounded.
Do not modify the plug provided with the machine - if it will not fit the outlet,
have a proper outlet installed by a qualified electrician.

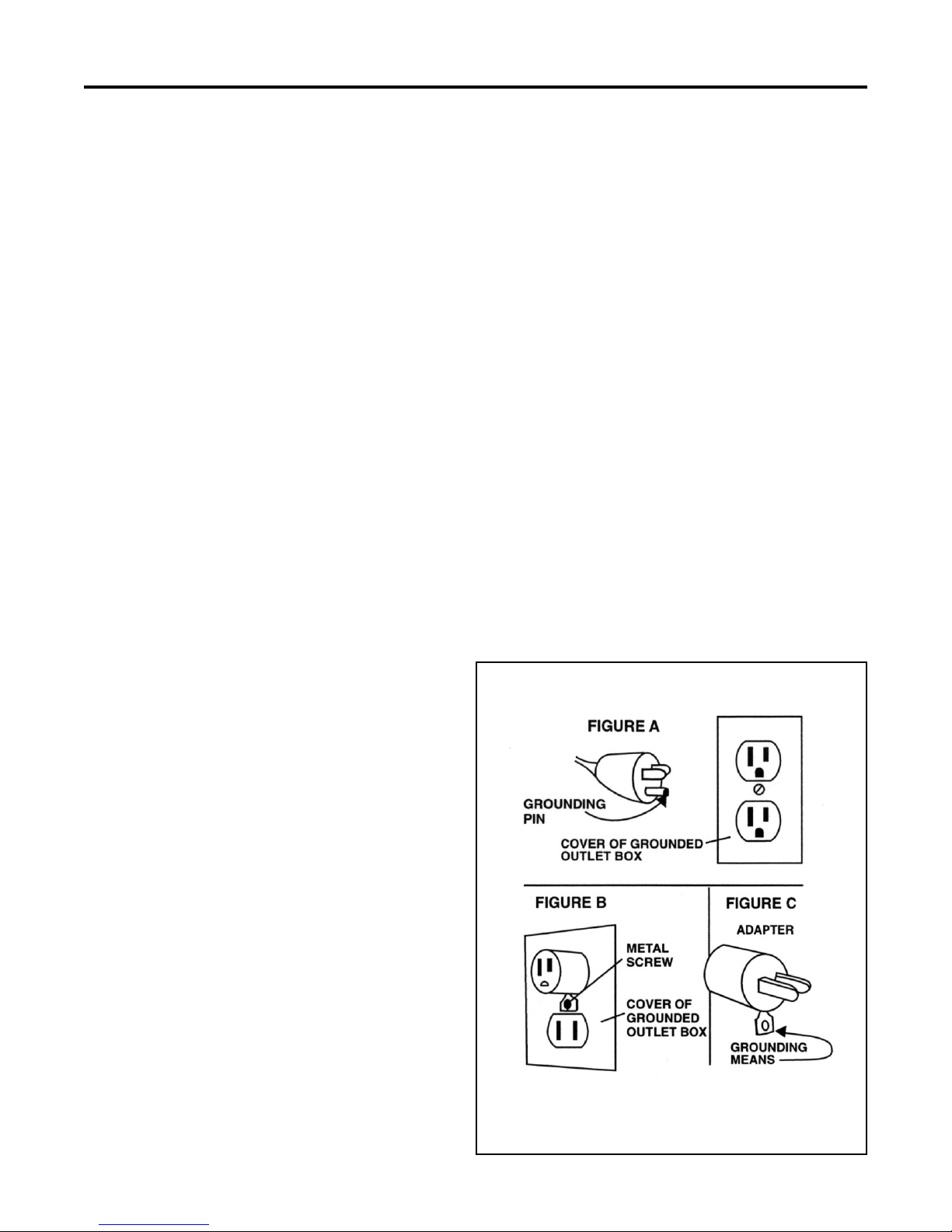

This machine is for use on a nominal 120-volt circuit, and has a grounded
plug that looks like the plug illustrated in figure A. A temporary adapter that
looks like the adapter illustrated in figures B and C may be used to connect
this plug to a 2-pole receptacle as shown in figure B if a properly grounded
outlet is not available. The temporary adapter should be used only until a
properly grounded outlet (figure A) can be installed by a qualified electri­cian. The green colored rigid ear, lug, or the like extending from the adapter
must be connected to a permanent ground such as a properly grounded outlet
box cover. Whenever the adapter is used, it must be held in place by a metal
screw.

NOTE: In Canada, the use of a temporary adapter is not permitted by the
Canadian Electrical Code

EXTENSION CORDS

Use only three-wire 14/3 or larger gauge approved extension cords
that have three-prong grounding type plugs and three-pole recep­tacles that accept the appliance’s plug. Replace or repair any dam­aged cords or plugs.

When servicing, refer to authorized person only. Use only identical replace­ment parts.

NOTE: Do not use adapters shown in figures B & C in Canada

OPERATING INSTRUCTIONS

WARNING! For the safe operation of this machine follow
the instructions given in this booklet and the training given
by your supervisor. Failure to do so can result in personal
injury and/or damage to machine and property!

DO NOT OPERATE MACHINE IN AN EXPLOSIVE
ENVIRONMENT!

NEVER USE THIS MACHINE TO PICK UP VOLATILE
OR EXPLOSIVE MATERIALS!

The model shown in this manual is intended for commercial
use.

DO NOT OPERATE MACHINE IN AN EXPLOSIVE
ENVIRONMENT!

ASSEMBLY & OPERATION

1. This machine separates into two parts. The top half is
the recovery tank and the lower portion is the solution
tank.

9. Place tool head on the surface to be cleaned, squeeze
the solution valve lever on the tool assembly to start
the flow of cleaning solution. Pull the tool towards you
to begin the cleaning process.

10. To transport the machine, slide the metal handle out
and raise the front of the machine. Roll it on its’ wheels
to the next cleaning area. The machine may be trans­ported with solution in the tanks.

11. To empty the recovery tank, unhook the clamp on the
front of the machine, grasp the handle on the recovery
tank and slide the tank slightly forward and up. Pour the
content of the tank into an appropriate drain.

12. Once the cleaning operation has been completed both
tanks should be flushed out with water. To empty the
solution tank, pump the solution out through the tool
or optional drain hose. DO NOT ATTEMPT TO POUR.

13. When not in use, wrap the solution and vacuum hoses
around the machine body. The power cord should be
coiled and secured with the velcro strap on top of the
machine to avoid damage.

2. To fill the solution tank with water you must first re­move the recovery tank: release the clamp located at the
front of the machine, then grasp the recovery tank handle
and pull slightly forward and up.

3. Looking down at the solution tank, you will see a white
filter screen assembly held in place with two screws.
Pour up to 2 gallons of water and cleaning chemical
through the screen to fill the tank. Powdered chemical
must be premixed with water before pouring into the
solution tank.

4. To reattach the tanks, place the recovery tank on top of
the solution tank. Slide it to the rear so that the male and
female latches engage. Then lock the tanks in place by
securing the clamp at the front of the machine.

5. Attach the solution hose male quick connect fitting to
the brass female fitting located at the center of the power
panel at the front of the machine.

6. Attach the vacuum hose to the vacuum inlet port on the
recovery tank.

7. Plug the power cord into a grounded wall socket.

MAINTENANCE

1. ALWAYS turn the machine power switch OFF and UN­PLUG the power cord from the electrical outlet before
doing any clean up or repairs, also when the machine is
left unattended.

2. White Solution Filter: This filter assembly is mounted
on the solution tank. To clean remove the two mounting
screws and lift out. Then flush with warm water to re­move debris and reinstall.

3. Vacuum Filter: This black sponge like filter is 2 inches in
diameter and is mounted on the solution tank directly
under the solution filter. To clean flush with warm water.
DO NOT reinstall until dry.

8. Turn the machine power switch to the ON position.
This will activate the pump and vacuum motors.

3

PRO 3

4

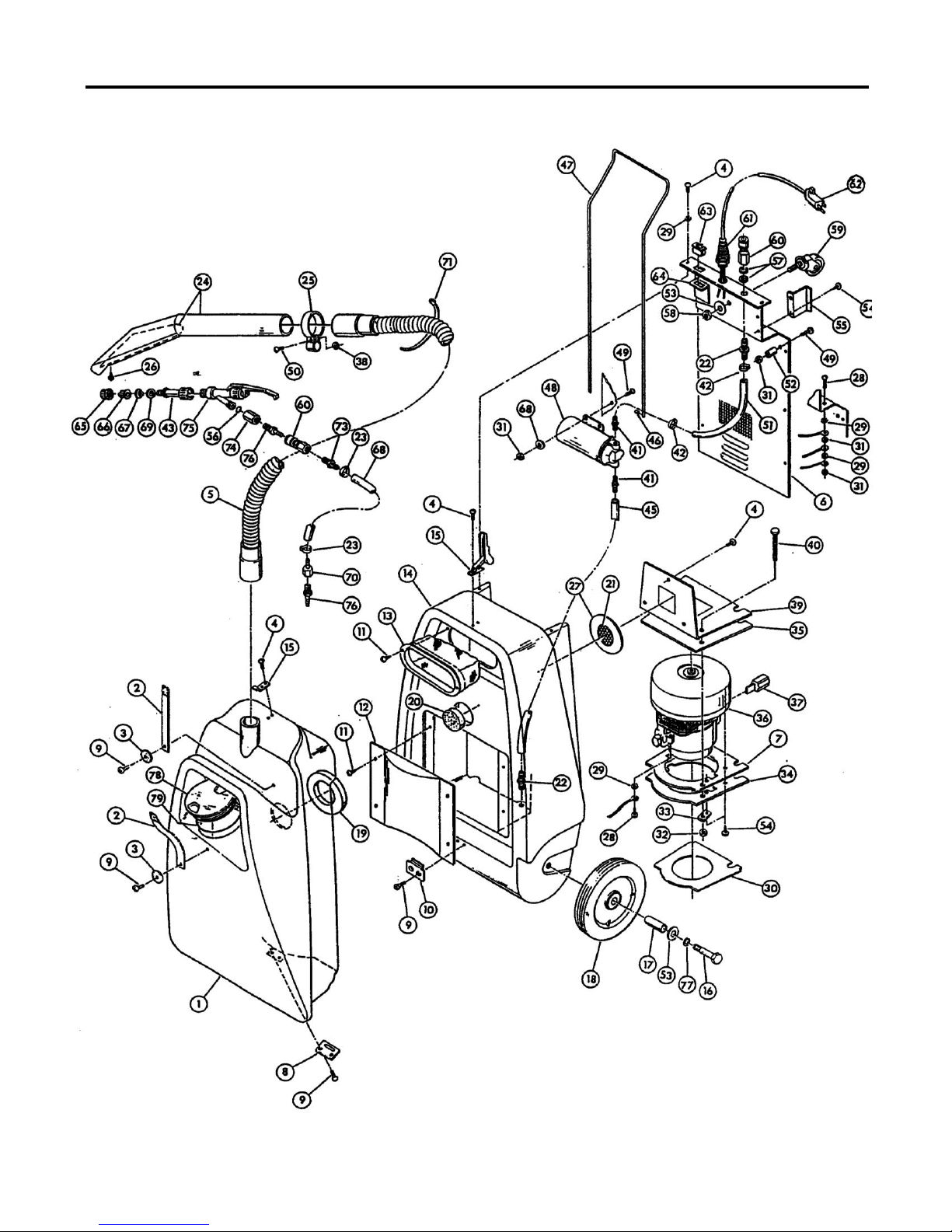

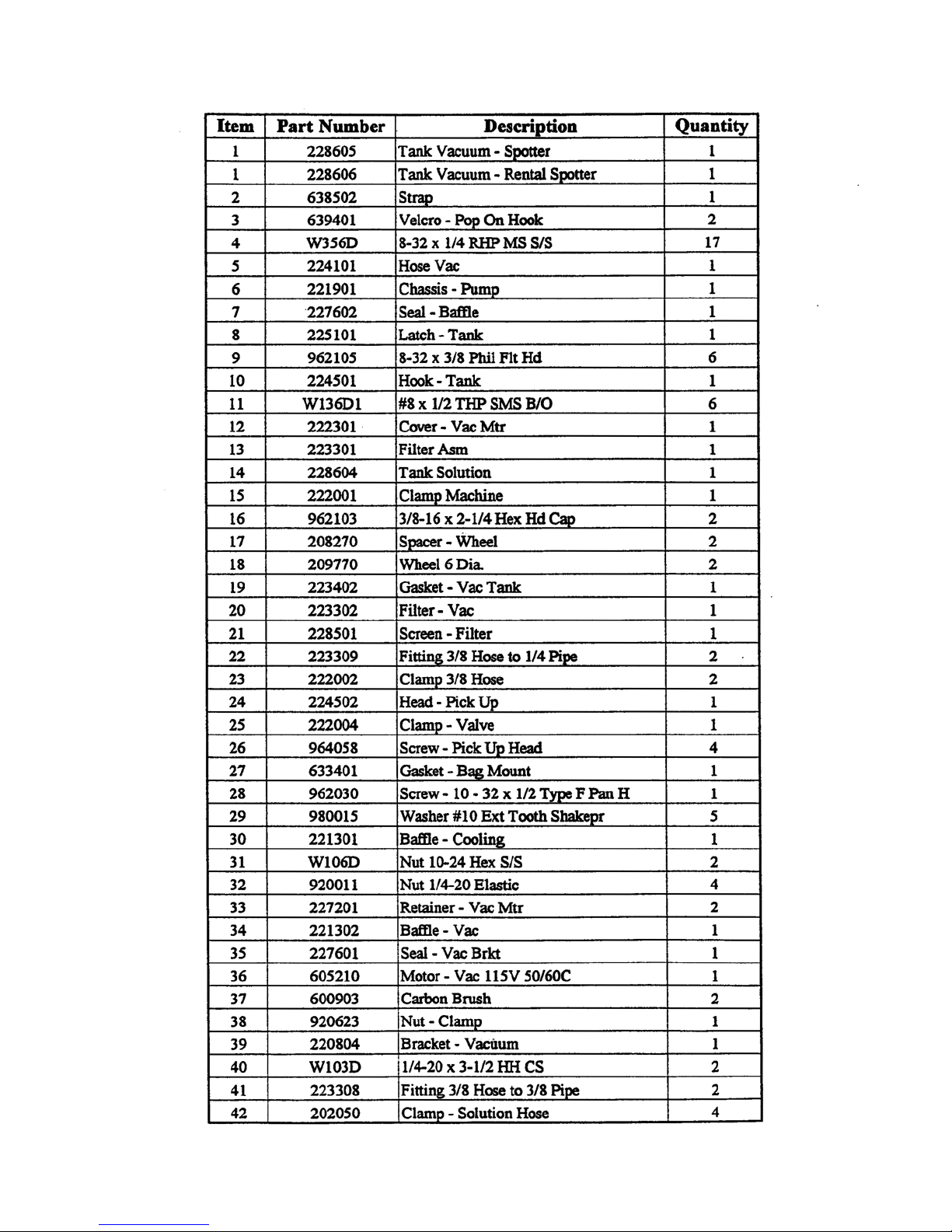

PRO 3 PARTS LIST

5

PRO 3

6

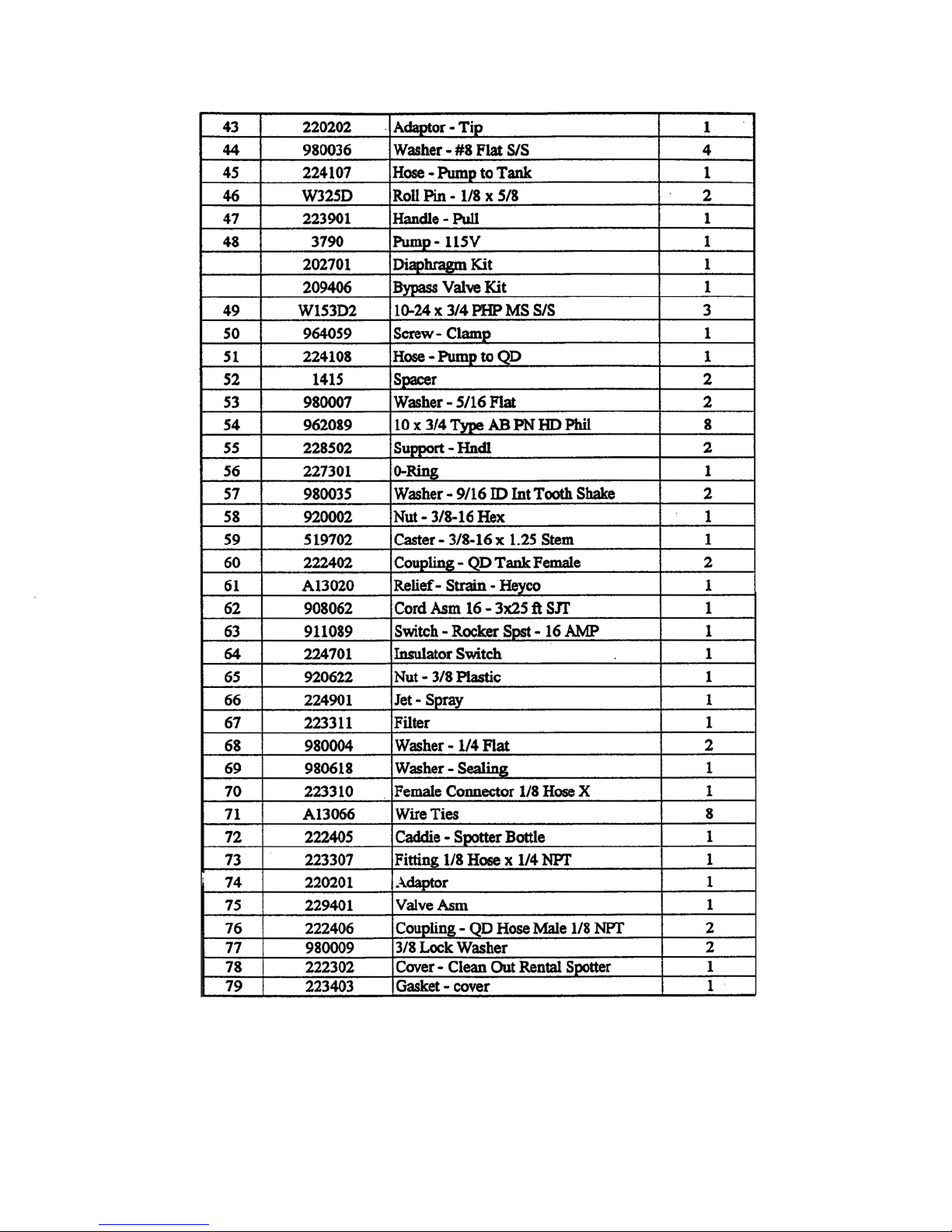

PRO 3 PARTS LIST

7

WARRANTY POLICY

PRO 3 Spotter

The Pacific Pro 3 has been manufactured, tested and inspected in accordance with specific engineering requirements and is
WARRANTED to be free from defects in workmanship and materials as follows:

Five (5) years parts, One (1) year labor – Rotational molded tanks.
One (1) year parts & labor – All other components unless excluded below.

This warranty extends to the original user/purchaser and only when used, operated and maintained in accordance with Pacific’s
Operating and Maintenance instructions.

This warranty does not apply to certain wear parts of the machine such as electrical cords, carbon motor brushes, floor
brushes, hoses, tools, etc., nor does it apply to damage or failure caused by improper use, abuse or neglect. Warranty credit
or replacement of return parts including motors, tools, etc., is subject to incoming inspection of those items.

To secure repair under this warranty, the following procedure should be taken:

• The inoperative machine or warranted parts must be delivered to the authorized dealer with shipping and delivery charges

prepaid. If unable to locate the Dealer, you may contact Pacific at the address listed herein for the location of the nearest
Pacific repair center or agent or for other instructions pertaining to your warranty difficulty.

• Upon compliance with the above warranty procedure, all warranted repairs would be completed at no additional charge or

cost to the user.

• Only Pacific or its authorized dealers and agents may make no charge warranty repairs on this product. All others do so at

their own risk.

This warranty limits Pacific liability to the repair of the product and/or warranted parts replacement and does not include
incidental or consequential damages arising from the use of a Pacific machine whether defective or not.

This warranty is in lieu of all other expressed or implied warranties and is extended to the original purchaser/user.

Ph: [phone] • [phone] • F ax [phone]

03/03 225601

2259 S. Sheridan • Muskegon, MI 49442

www.pacificfloorcare .com
