FLOORMASTER 18B

OPERATING & MAINTENANCE

INTRODUCTION INSTRUCTIONS

READ THIS BOOK

This operator’s book has important information for
the use and safe operation of this machine. Read

this book carefully before starting the machine.

Keep this book and tell all operators to read the book.
If you do not follow the instructions, you can cause
an injury or damage equipment, furniture or build­ings.

For new books write to:

Pacific

2259 S. Sheridan
Muskegon, MI 49442-6252

Carefully inspect all components to ensure that there
is no concealed freight damage. If such damage is
discovered, file a “CONCEALED DAMAGE RE­PORT” immediately with the delivering carrier.

The contents of this manual are based on the latest
product information available at the time of publica­tion. Pacific Steamex reserves the right to make
changes or improvements to its machines without
notice.

FOR YOUR CONVENIENCE, RECORD THE
FOLLOWING IMPORTANT INFORMATION:

MODEL

SERIAL NUMBER

PART NUMBER

DATE PURCHASED

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS

SYMBOLS USED ON THE MACHINE

MACHINE PREPARATION

1. UNPACKING THE MACHINE

2. BATTERY INSTALLATION

3. CONNECTING THE BATTERY CHARGER

4. CHARGING THE BATTERIES

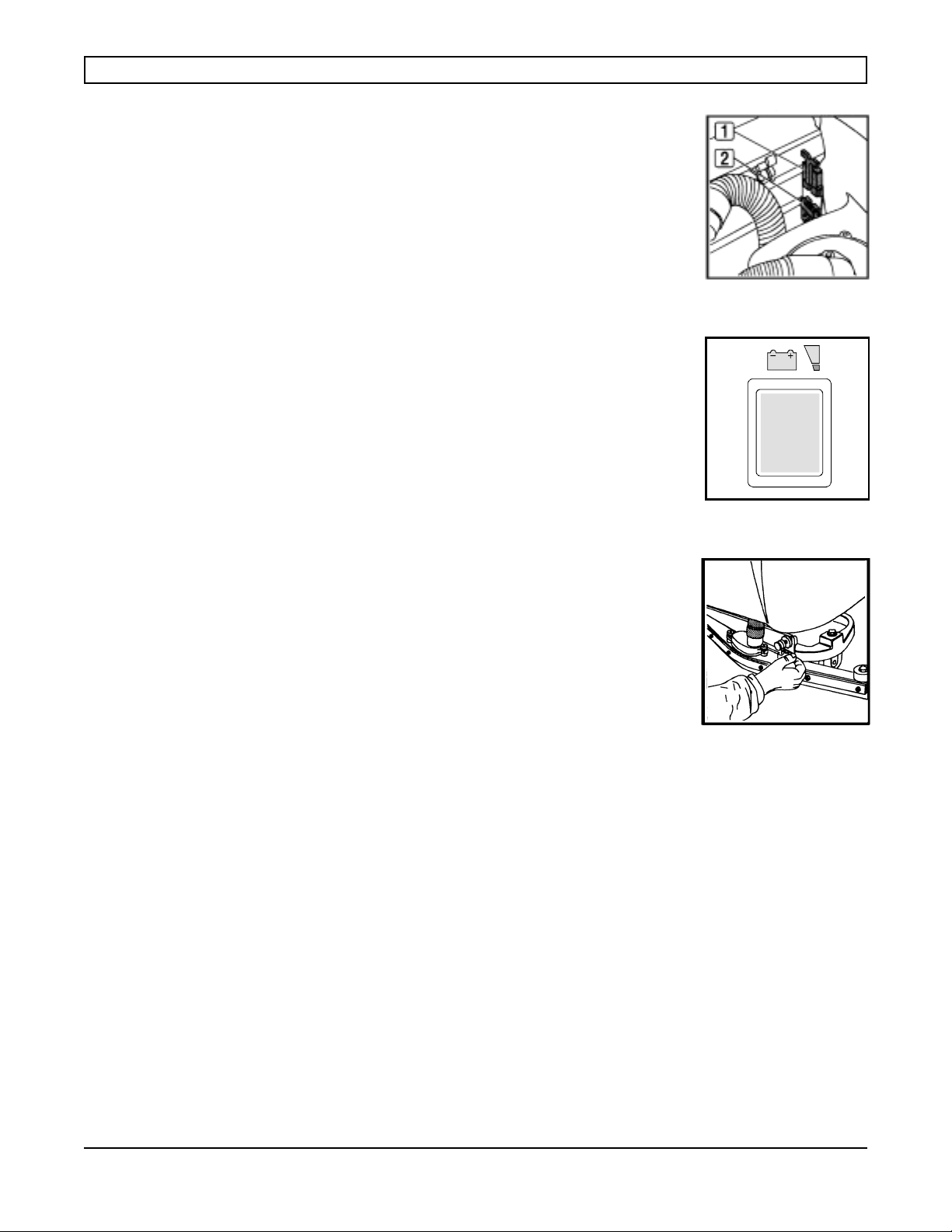

5. CONNECTING THE BATTERY CONNECTOR

6. BATTERY INDICATOR

7. SQUEEGEE ASSEMBLY

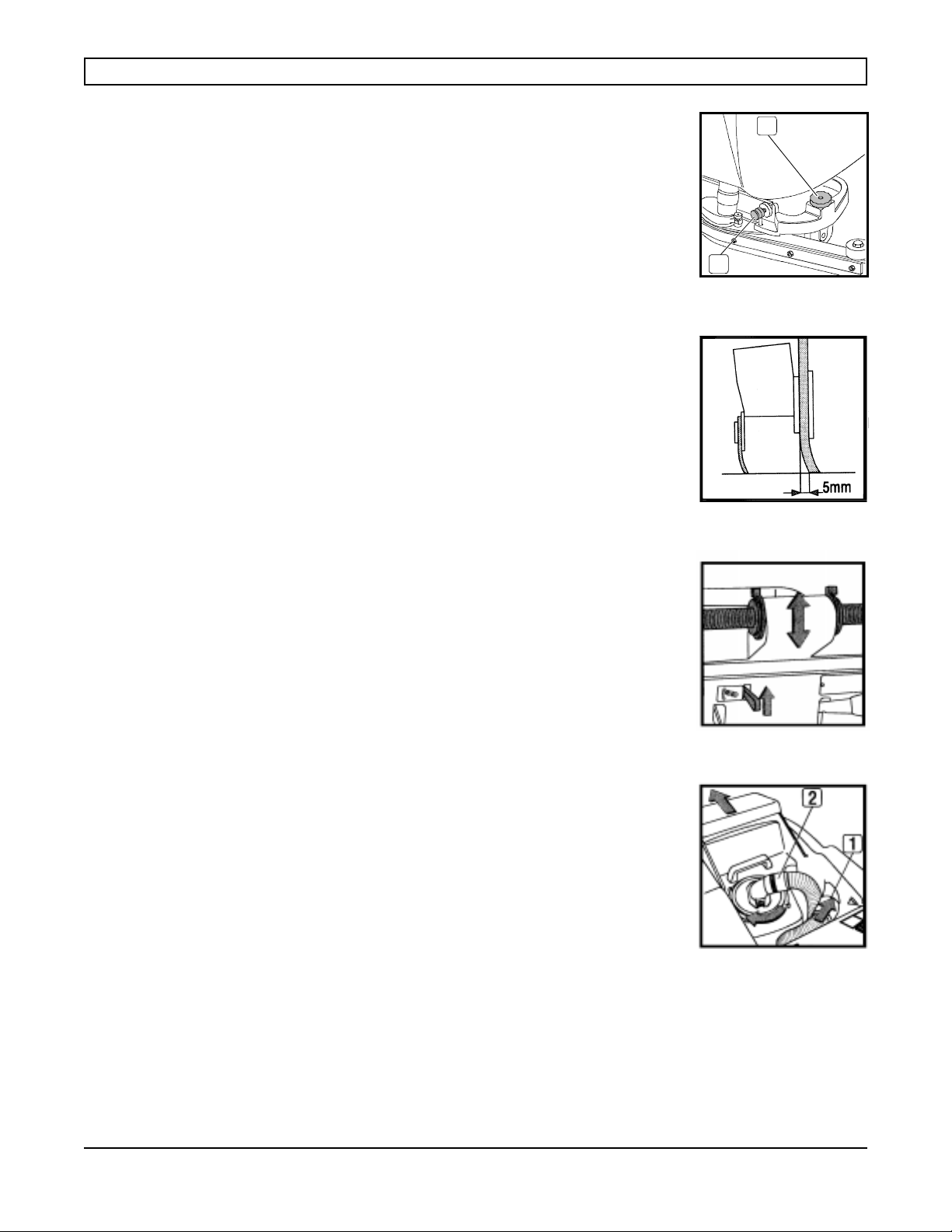

8. ADJUSTING THE SQUEEGEE HEIGHT

9. ADJUSTING THE SQUEEGEE INCLINATION

10. HEIGHT HANDLE BAR

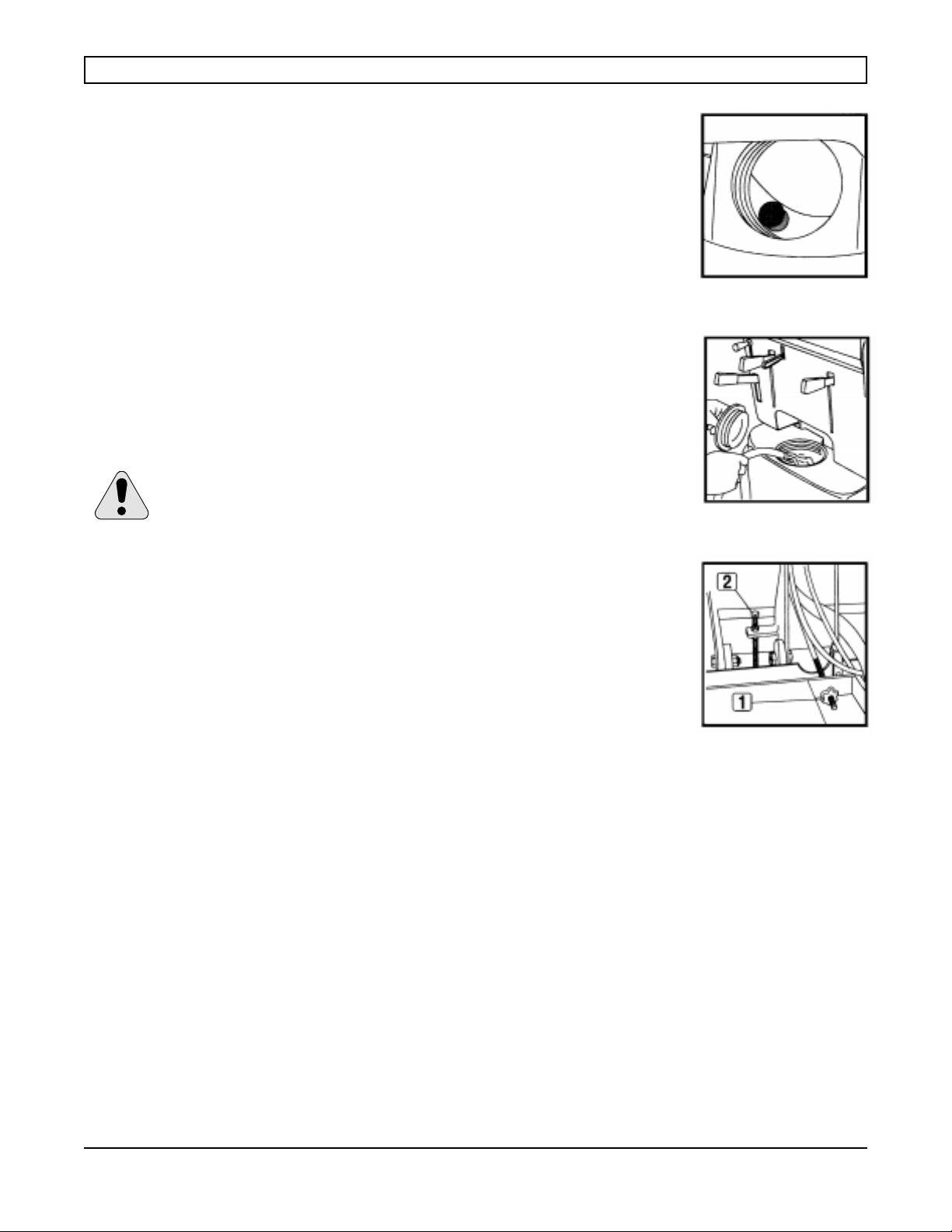

11. RECOVERY TANK

12. SOLUTION TANK

13. SOLUTION WATER

14. ADJUSTING THE BRUSHES

OPERATION

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

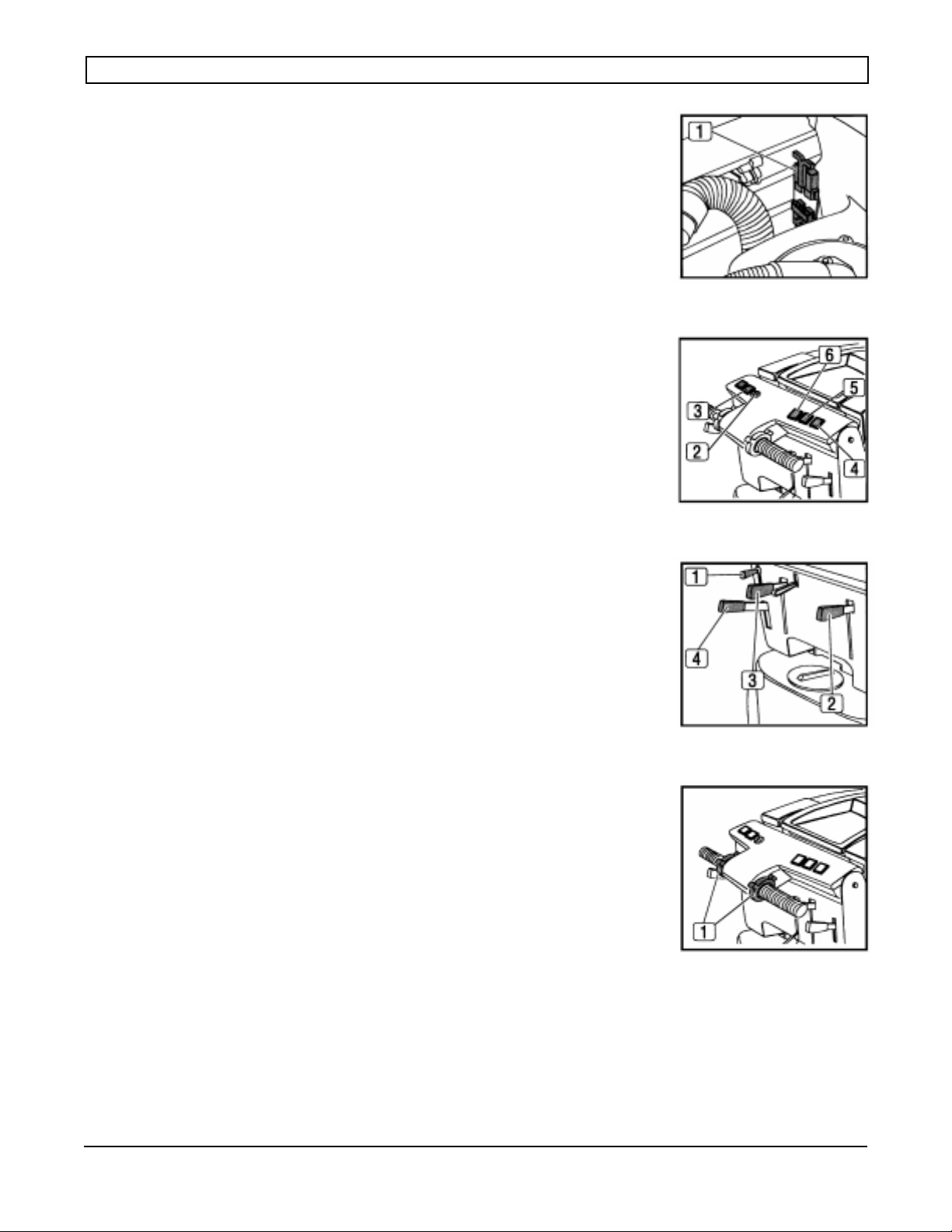

OPERATING
DEVICE TOO FULL
MOVEMENT

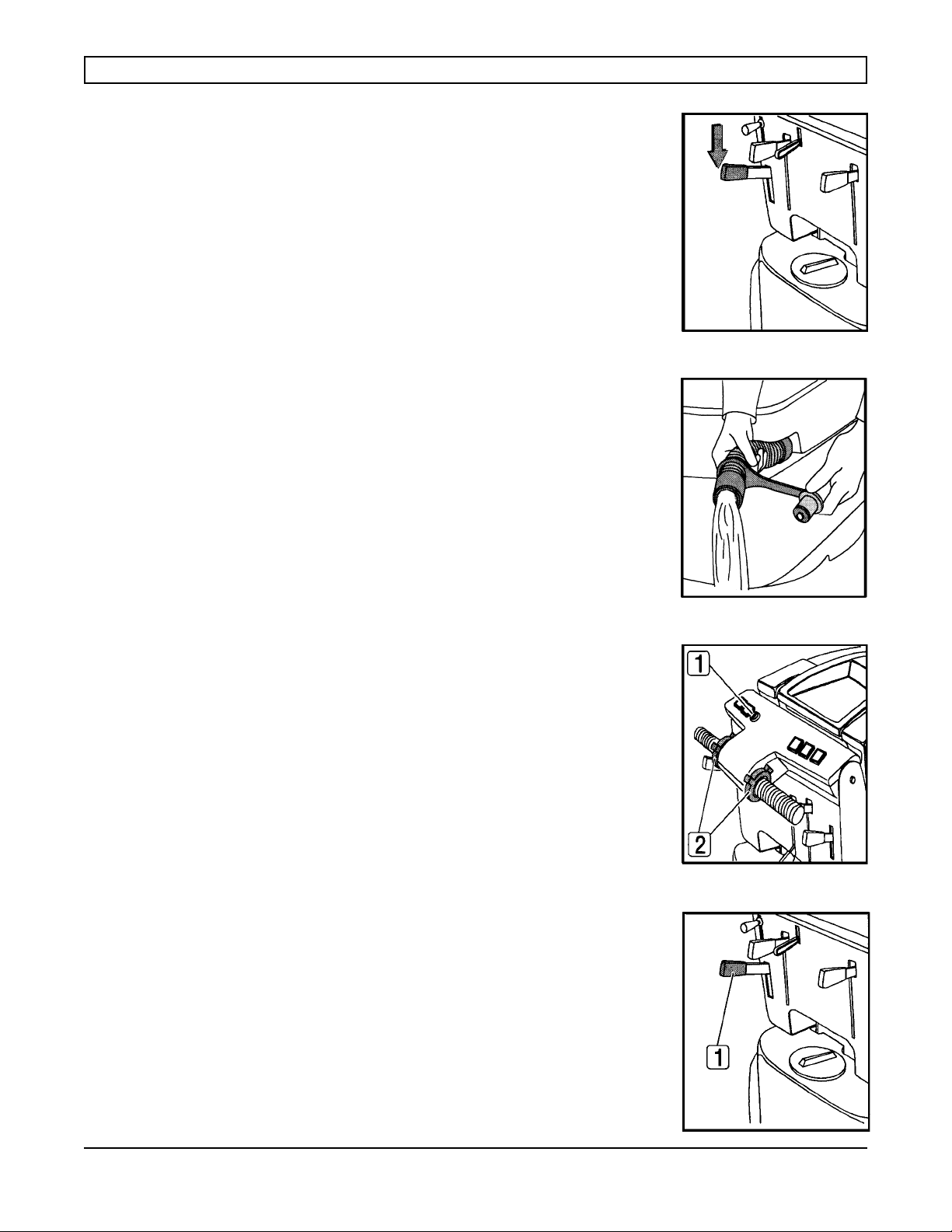

BRAKE

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

UPON COMPLETION OF THE WORK

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

3

4

6

7

8

9

10

11

12

13

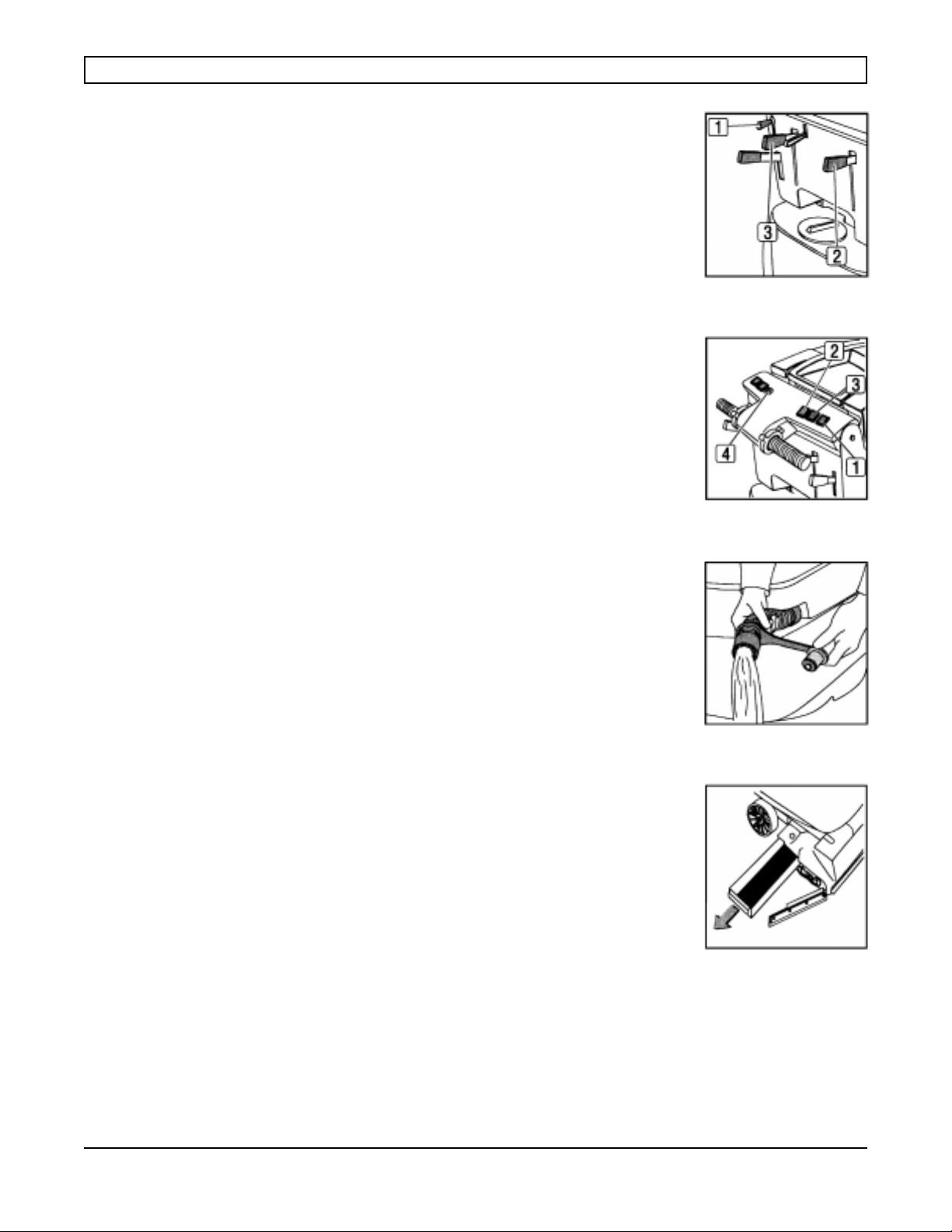

DAILY MAINTENANCE

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

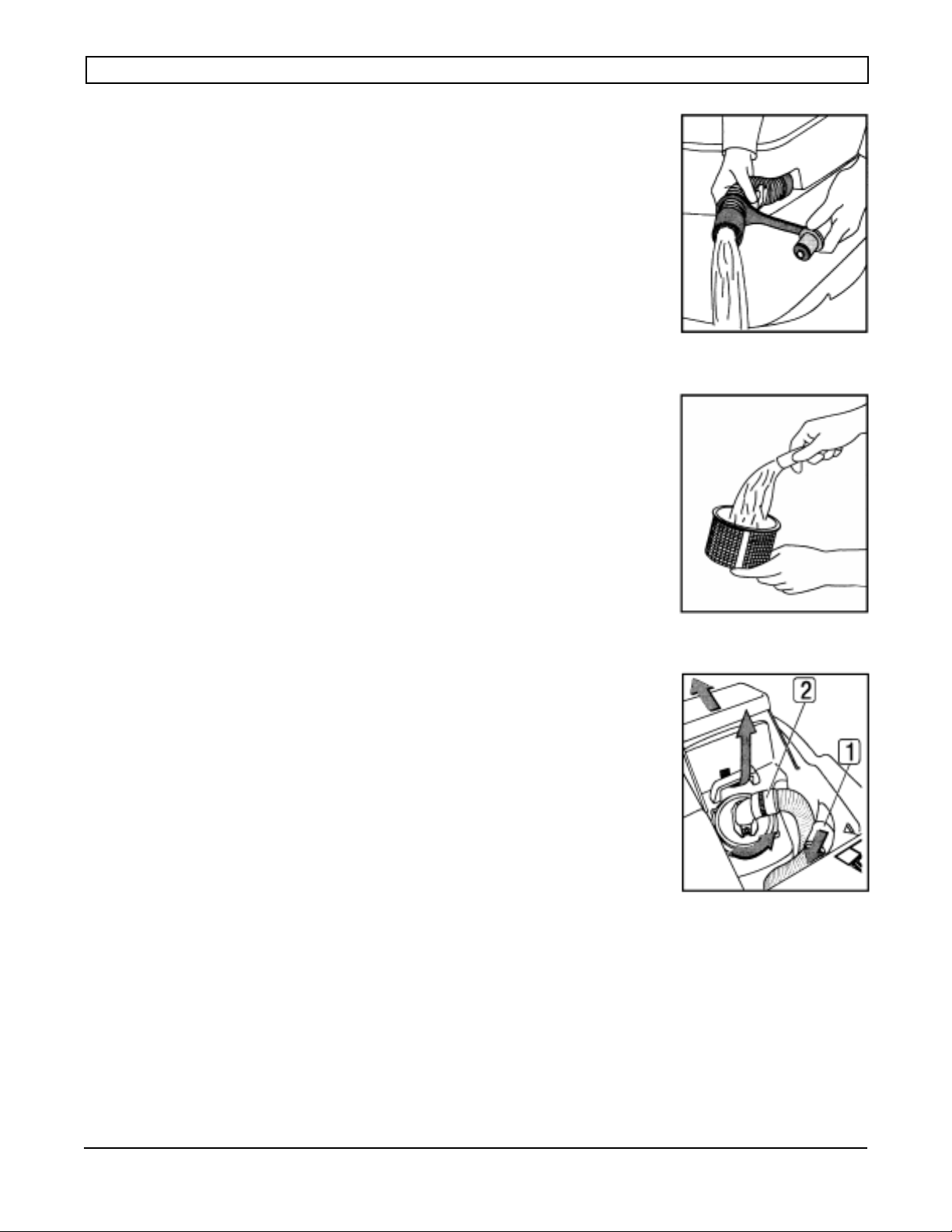

CLEANING THE RECOVERY TANK
CLEANING THE SOLUTION TANK FILTER

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

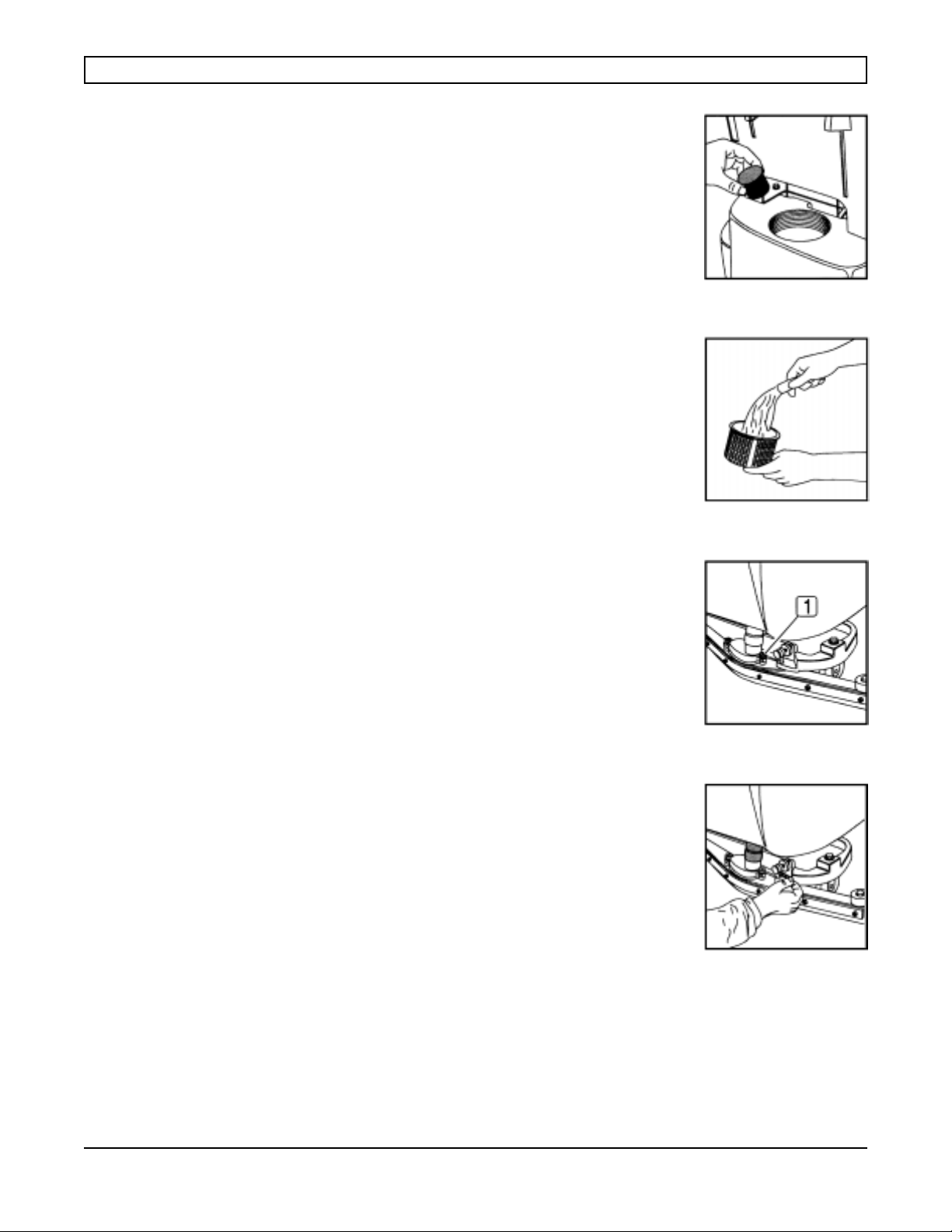

CLEANING THE VACUUM FILTER

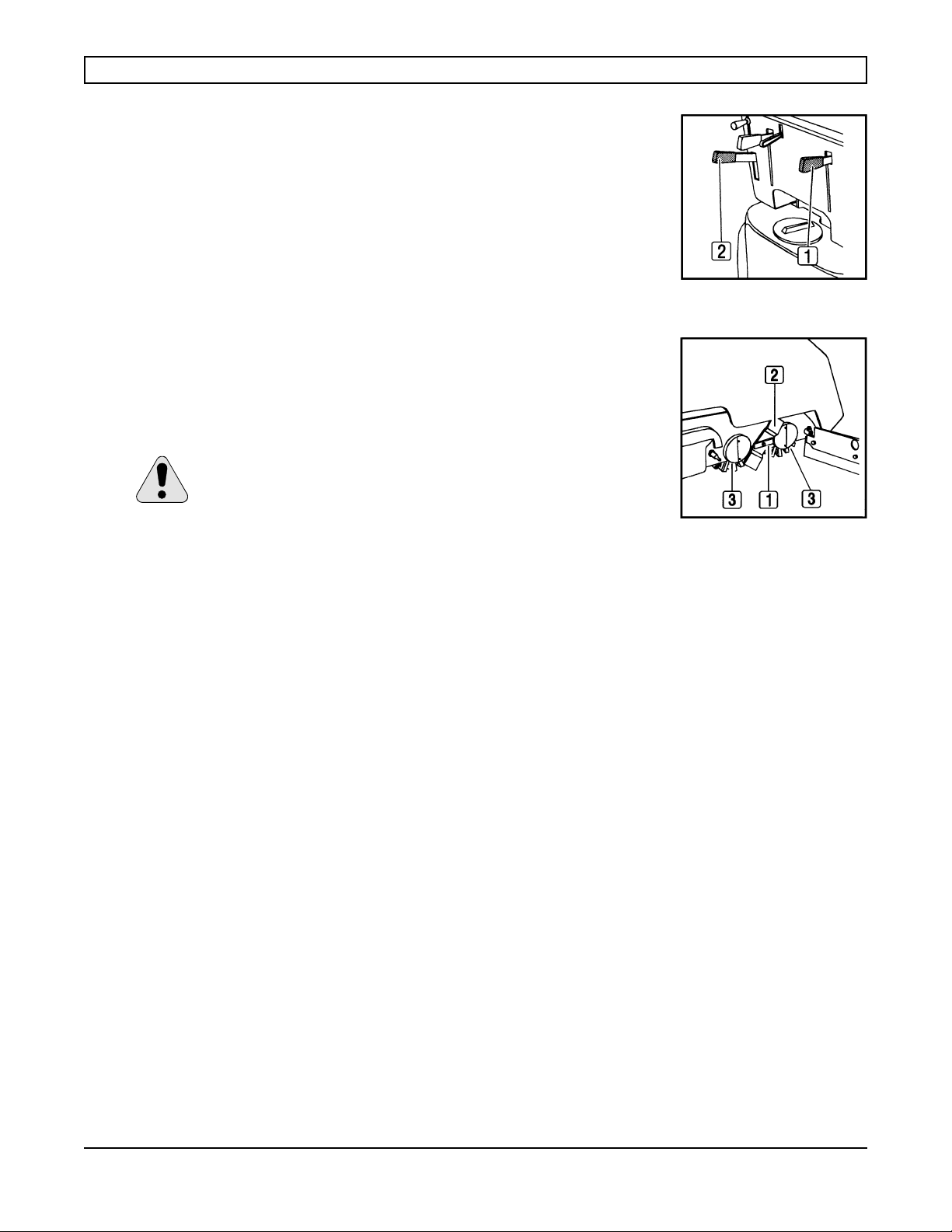

CLEANING THE SQUEEGEE
REPLACING THE SQUEEGEE BLADES
DISASSEMBLY OF THE BRUSH

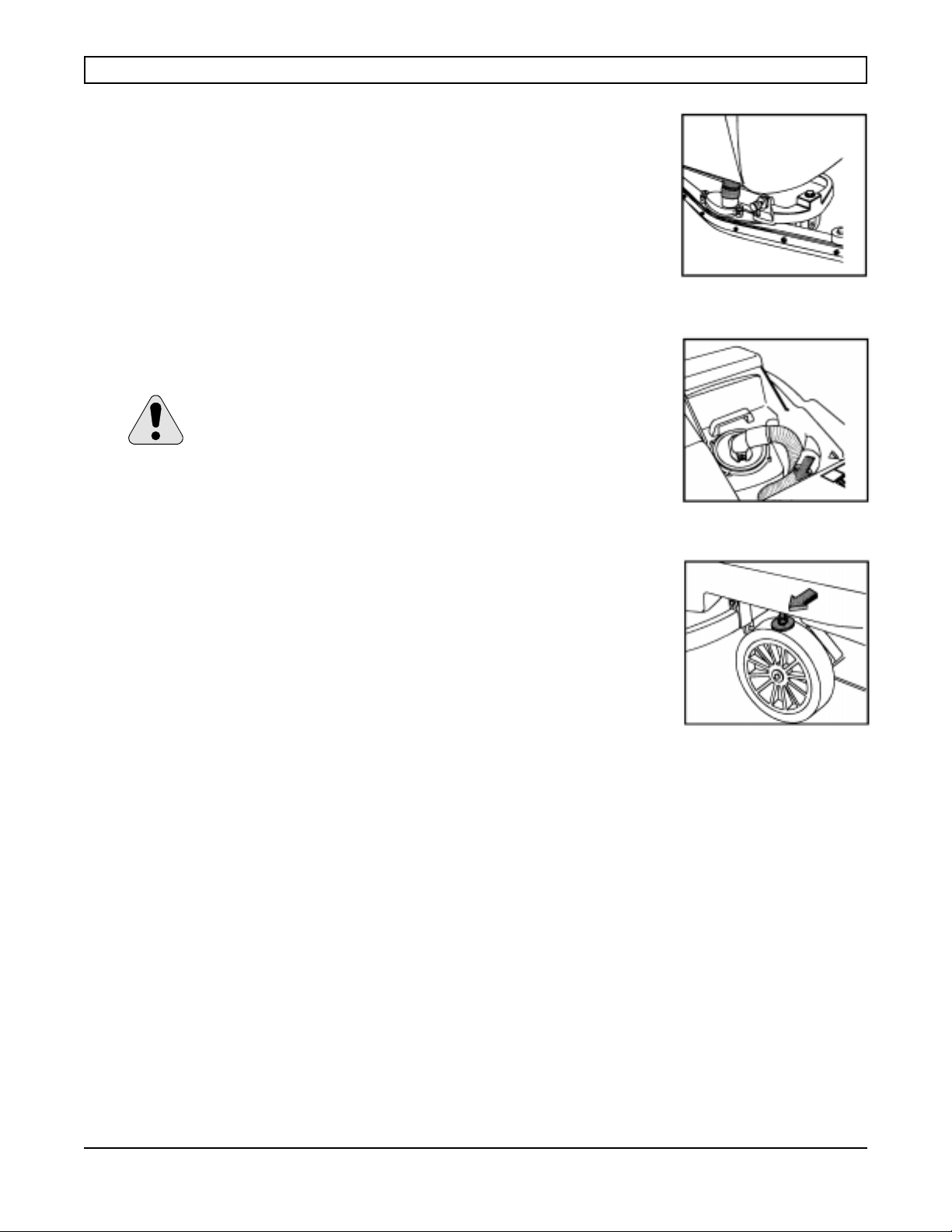

WEEKLY MAINTENANCE

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

CLEANING THE SQUEEGEE HOSE

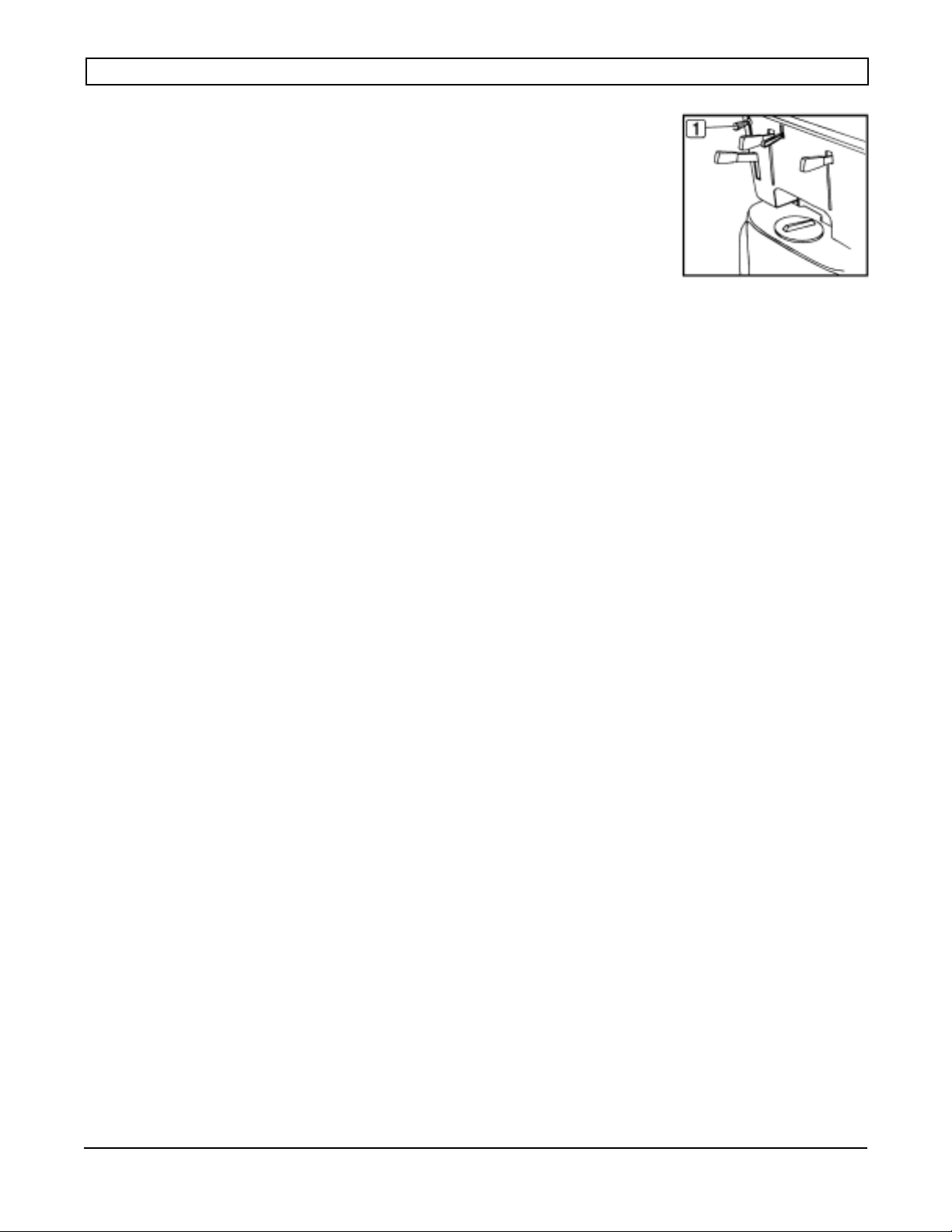

CHECK BRAKE

TROUBLE SHOOTING GUIDE

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

INSUFFICIENT WATER ONTO THE BRUSH
THE MACHINE DOES NOT CLEAN SATISFACTORILY
THE SQUEEGEE DOES NOT DRY THE FLOOR WELL
EXCESSIVE FOAM PRODUCTION

WARRANTY POLICY

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

14

15

16

17

18

20

2

IMPORTANT SAFETY INSTRUCTIONS

READ AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS BEFORE OPERATING
THIS MACHINE!

WARNING: To reduce the risk of fire, electric shock or injury:

1. You must have training in the operation of the machine before using it. READ THE
INSTRUCTION BOOK. If you do not understand any instruction, ask your supervisor.

2. Make sure all labels, decals, warnings, cautions and instructions are fastened to the machine.

3. Read the labels carefully on the machine. Do not cover them for any reason and replace them
if damaged.

4. Do not operate this machine unless it is completely assembled, inspect the machine carefully
before operation.

5. Pay close attention to other people and especially children while operating this machine.

6. Be a careful driver, do not strike shelving or scaffolding, especially where there is a danger of
falling objects.

7. Machines can cause an explosion when operated near flammable materials and vapors. Do
not use this machine with or near fuels, grain dust, solvents, thinners, or other flammable
materials.

8. In case of fire, use a powder extinguisher. Do not use water.

9. Do not use this machine as a means of transport.

10. Do not use acid solutions that could damage the machine.

11. Adjust your speed to the conditions of the floor.

12. Do not turn the machine on a ramp. Do not stop and leave the machine on a ramp or incline.

13. When the machine is parked, take out the key and set the parking brake.

14. During any maintenance operation disconnect the power supply from the machine.

15. Lead acid batteries generate gases that can cause an explosion. Read the instruction manual
supplied with the battery charger. Keep sparks and flames away from batteries.
NO SMOKING. Charge the batteries only in an area with good ventilation.

16. Do not use a charger if the power cord is damaged.

17. Always wear eye protection and protective clothing when working near batteries. Remove all
jewelry. Do not put tools or other metal across the battery terminals, or the tops of the batter­ies.

18. Check the level of the electrolyte every time you charge the batteries. If the level is low, add
distilled water only.

19. Maintenance and repairs must be performed by authorized Service Centers only. Make ad­justments according to the specifications given in the service manual for this machine.

20. Keep the electrical parts of the machine dry. Do not wash the machine with direct water jets or
high pressure, nor with corrosive material. For storage, keep the machine in a dry building.

21. Water solutions or cleaning materials used with this type of machine can leave wet areas on
the floor surface. These areas can cause a dangerous condition for the operator or other per­sons. Always put CAUTION signs near the area you are cleaning.

22. Do not reach under shrouds with fingers, hands, or toes when machine is running.

3

SYMBOLS USED ON THE MACHINE

Symbol for the water valve:
Indicates the solenoid valve switch.

Symbol indicating the raised or lowered position of the brush base:
Indicates the lever for lifting the brush base.

Symbol for the brush:
Indicates the brush motor switch.

Symbol for the vacuum motor:
Indicates the vacuum motor switch.

Symbol indicating the raised or lowered position of the squeegee:
Indicates the squeegee lever position.

Symbol indicating the charge levels of the batteries:
It is necessary to recharge the batteries when the green light begins to blink

Symbol for the brakes:
It is used on top of the emergency and parking brake lever.

Indicates the drain pipe of the recovery tank.

4

SYMBOLS USED ON THE MACHINE

Indication of the maximum recommended temperature for the solution water (50°C or
122°F): It is located near the fill hole of the solution tank.

Symbol indicating the adjustment lever for the handle bar height.

Symbol for the key switch.

Symbol for the coupling:
Indicates the anchor points and the load direction.

This symbol serves as a reminder for the operaor to read the manual.

The WARNING symbol:
Carefully read the sections preceded by this symbol, this is for the safety of the
operator and of the machine.

5

MACHINE PREPARATION

1. UNPACKING THE MACHINE

1. Use a fork truck to move the machine when packaged.

2. Take off the outer package

3. The machine is fixed on the pallet with wooden wedges that block the wheels.

4. Take the wedges off.

5. Using a ramp, pull the machine down from the pallet, pushing it in reverse

motion. Avoid violent blows to the base.

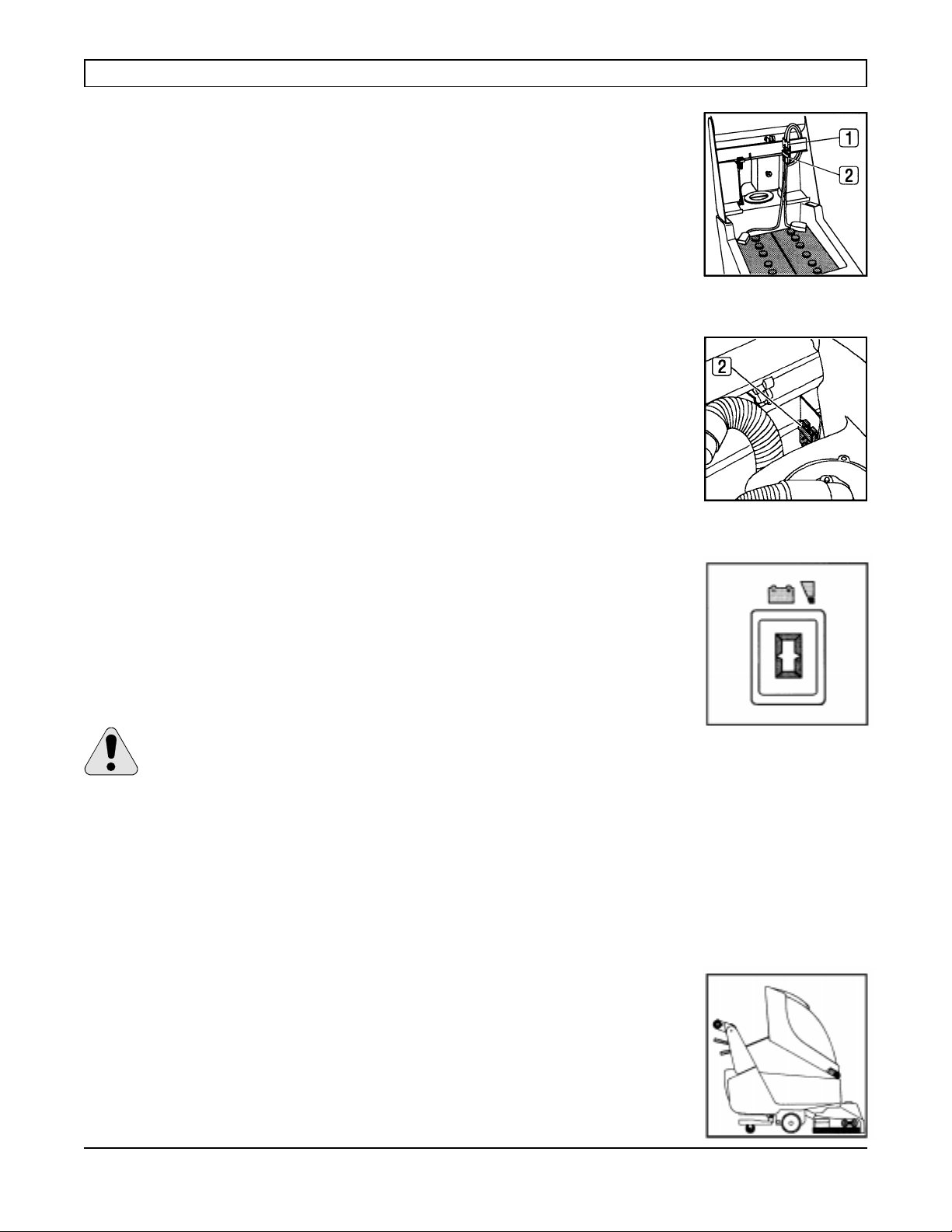

2. BATTERY INSTALLATION

The two 12 volt 145 A/H batteries fit in the compartment under the recovery tank.
Recommended Batteries: Crown Battery Manufacturing Company Part #711
Trojan Battery Company Part #30XHS
East Penn Manufacturing Company Part #8KFS

For battery maintenance and charging, follow the instructions
provided by the battery supplier.

Installation Instructions:

1. Lift the recovery tank forward.

2. Detach the squeegee hose (1) from the recovery tank.

3. Take off the vacuum plug (2) by rotating it counterclockwise.

4. Take the recovery tank off.

5. Place the batteries in their compartment.
