Swimming Pool Heat Pump
User manual
MODEL :
KS8R
KS12R
KS15R
KS20R
1
www.pac-direct.com
Page 2
Introduction
Congratulations for buying a reversible heat pump for your swimming
pool.
This machine was installed in accordance with the current norms and
it is now ready to be used.
In order that you might be fully satisfied with this machine, you’ll find
below a few remarks :
- The Heat pump heats the swimming pool water only if the
filtration pump is working.
- At the beginning of the season or when the outside
temperature is low, you must increase the daily filtration time so
that the Heat pump can overcome thermal losses of the
swimming pool which are more important at that period.
- An isothermic cover is strongly advised.
- Finally we would like to draw your attention to the fact that to
expect a period of freezing, you must carry out the wintering of the
heat pump, or make your filtration work 24h/24.
Please read completely this manual.
2
www.pac-direct.com
Page 3
Summary
Safety instructions ........................................................................................... p4
Technical characteristics.................................................................................... p4
Principle of working.......................................................................................... p5
Using when it’s cold..........................................................................................p5
Checking before and after starting ..................................................................... p6
Instructions .......................................................................................................... p6
Regular operations of maintenance ................................................................. p10
Error messages and how to solve them............................................................. p11
Problems/solutions .......................................................................................... p12
Safety Instructions
Never cover (risk of overheating). Keep out of reach of children, and do not to let
them play nearby, inform them of the dangers of this machine.
Never introduce a stick or your fingers into the protective grille of the ventilation.
Never clean the machine with the water jet.
Never disconnect the machine when it’s working ; for any intervention even of
cleaning, stop the machine, by pressing first on the key OFF; in the event of an
emergency, cut off the current to the unit.
Principle of working
3
www.pac-direct.com
Page 4
The Heat pump uses the free heat contained in the outside air to
transmit it to the swimming pool water.
The ventilator located in the heat pump has the air circulated on the
radiator with gilds.
When the Heat pump heats the swimming pool, the air blown is fresher
than the outside air.
In the contrary, when the heat pump cools the swimming pool, the air
blown is heater that the outside air.
You can regulate the temperature to which you want to heat your
swimming pool.
Careful : Increase the required temperature does not increase the
heating power (example: your swimming pool is at 18°C; if you want
28°C, don’t post 35°C to reach more quickly 28°C).
Using when it’s cold
Outside temperatures lower than 7°C.
When the outside temperature decreases and that the air becomes
wet, you might observe a thin layer of white frost on the gilds of the
radiator. This is normal (*).
To avoid a strong thickness of white frost which would prevent the air
to circulate through the gilds of the radiator, the Heat pump launches
regularly and automatically an operation of defrosting which is
accompanied with the stopping of the compressor during a few
minutes.
In addition the Heat pump is regulated in factory to stop as soon as the
outside temperature becomes lower than 7°C, to start again at 12°C.
You can choose your own adjustments for the two temperatures (if you
want to heat your swimming pool late in the season), by using the
procedure described at the paragraph “Adjustments”, or by calling
your retailer.
(*) the fluid which circulates in the Heat pump thanks to a compressor, is, at the
time of the passage in this radiator at an high negative temperature (same principle
used in your freezer).
Checking before and after starting
4
www.pac-direct.com
Page 5
Before starting:
Your machine is tested and regulated in factory, however it is advised
to carry out the following controls before starting :
- electric connections correctly carried out
- installation carried out according to our
recommendations
- correct connection of arrival and exit water pipes
according to the written indications
(For more details on the rules of establishments refer to the
document: Of INSTALLATION AND MAINTENANCE)
- no foreign things on the machine or fixed on the gilds of
the radiator
After starting: Ensure that operation
is regular; if high vibrations occur, stop the Heat pump and call your
fitter.
Instructions
Careful :
The first pressure on the key ON/OFF gives the authorization of
starting the Heat pump; the latter will start within a variable time:
shortest within 1 second and longest within 4 minutes.
From its starting the heat pump heats or cools the swimming pool
water, and will automatically stop when the required temperature has
been reached; don’t stop its operation unnecessarily.
If you have to stop the Heat pump operation (for example to pass
from the heating mode to the cooling mode), you will observe that the
Heat pump will start again after 4 minutes.
5
www.pac-direct.com
Page 6

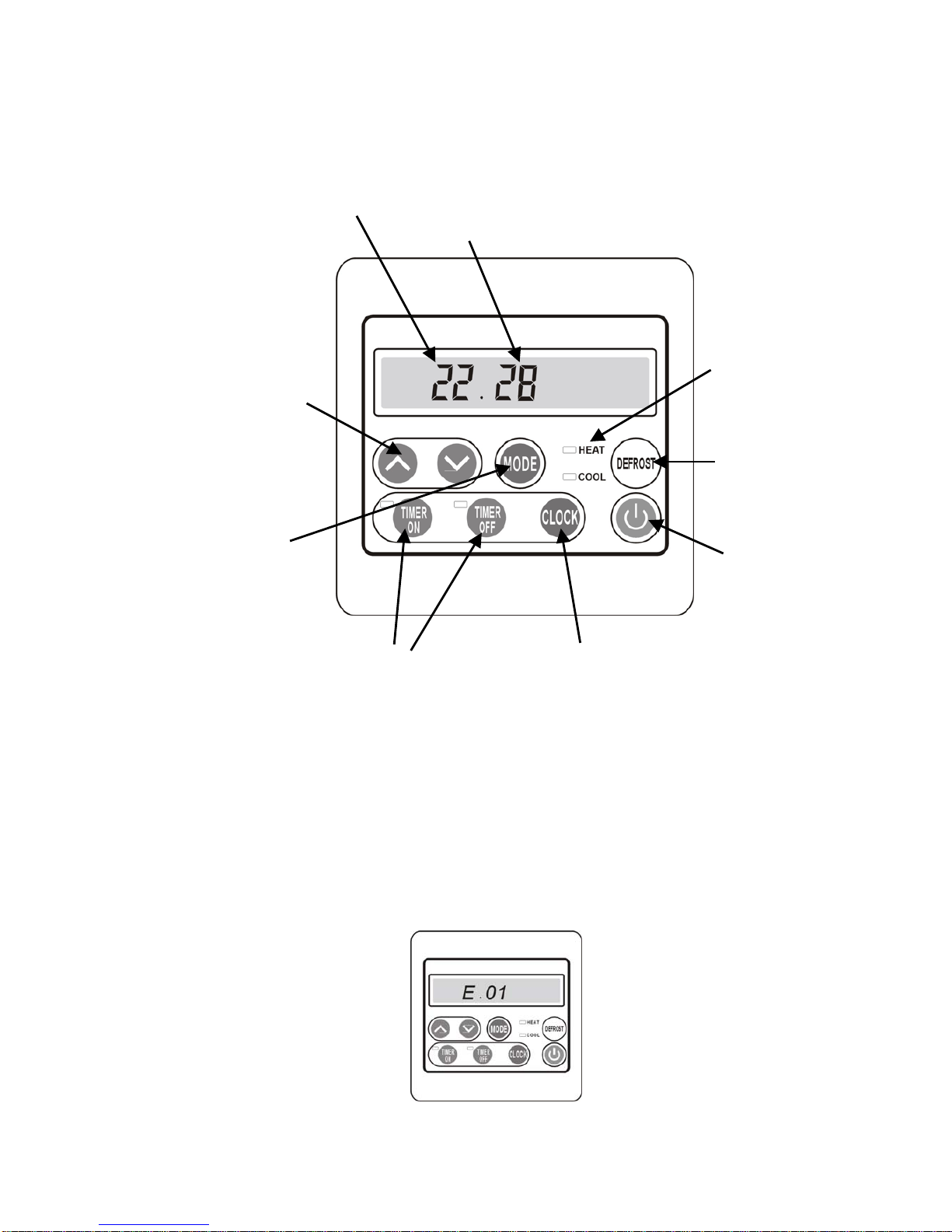

Description of the order and display panel :
Two figures on the left : temperature of the
swimming pool
Heating display
Cooling display
Or two figures on the right : desired temperature
To adjust the current hour and
functionning timetable
-Adjustment of the
temperature desired
-Adjustment of the stop
temperature in cold period
-Adjustment of the start and
stop hour
Choosing the heating o
r
the cooling mode
On / off
Defrost forced
To adjust the
hour
Error messages :
The Heat pump is equipped with regulation and safety components; when a
regulation component is defective or a safety is activated, a message is
posted like it’s illustrated below; see the explanation of these messages in
the paragraph “Error codes ”.
6
www.pac-direct.com
Page 7

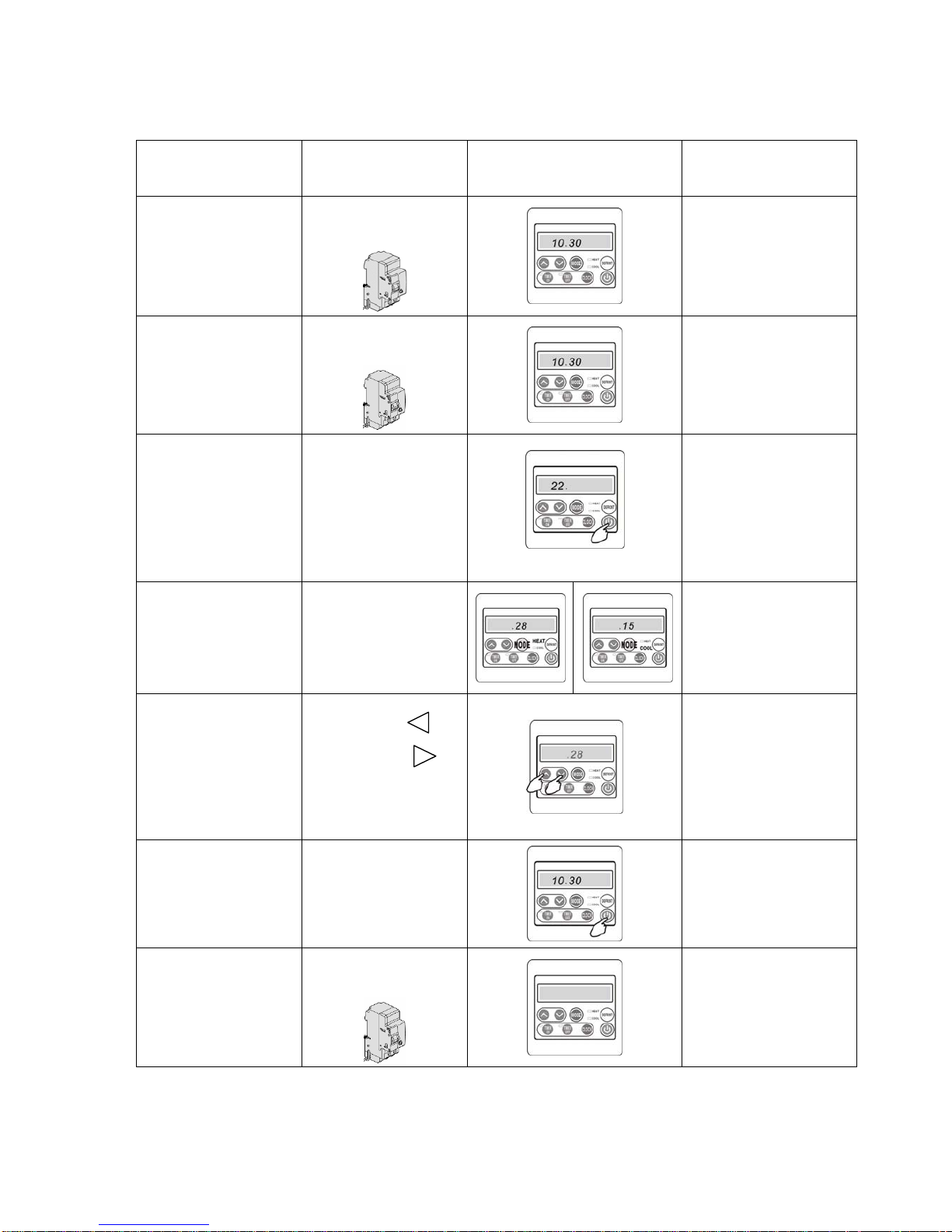

Procedure of use
Action External appliance
or button of heat
pump
Display Heat pump answer
Put the heat pump
under tension
Engage the circuit
breaker of the heat
pump
Indicates the current
hour
Put in circulation the
swimming pool water
into the pipes
Engage the circuit
breaker of pump of
filtration
Indicates the current
hour
Start
Press the button
ON/OFF
Start between 1 second
and 4 minutes in the last
active mode (heating or
cooling)
Go from heating mode
to cooling mode or
inversely from cooling
to heating
Press the button
MODE
Stop for 4 minutes,
reverse of cycle and
restart in a new mode
Set the wished
temperature into the
swimming pool
Up
and
Down
adjustable from 10°C to
35°C
The heat pump heats or
cools until the required
temperature
Stop
Press the button
ON/OFF
Immediate stop and wait
Switch off
Engage the circuit
breaker of pump of
filtration
Complete stop
7
www.pac-direct.com
Page 8
Adjustments

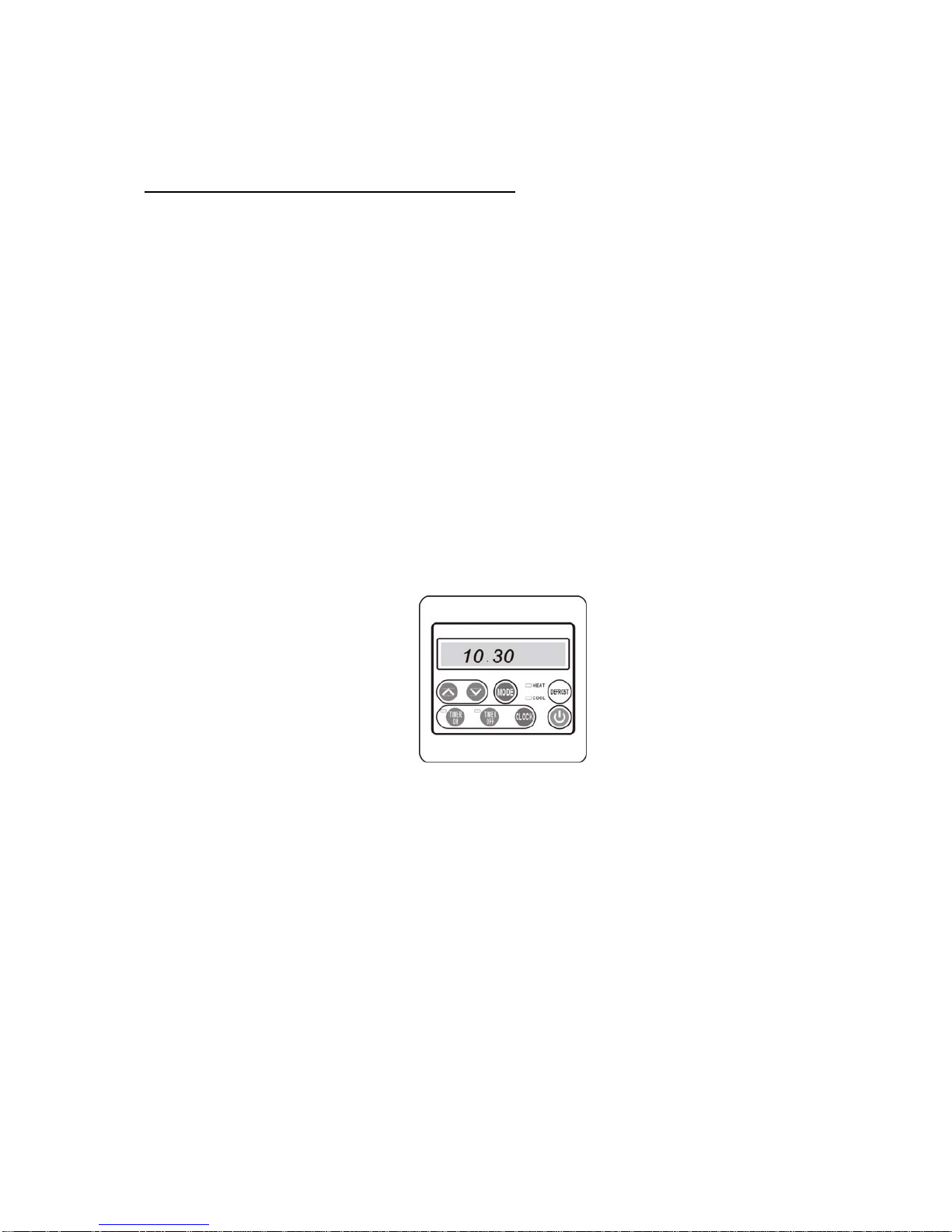

Adjustment of operation timetable(timer):
1). While heat pump stops, press “clock” key to enter the set of o’clock.
Press on the keys “”to increase or decrease hour numbers. Press
“clock”key again to enter the adjustment mode of the minute. Press
“clock”key once more to confirm the setting.
2). Press “Timer on”to enter timer setting to start the unit. Press “”key
adjust hour number; Press “Timer on” again to adjust minute number. Press
“Timer on” once more to confirm the setting.
3). Press “Time r off” to enter ti mer setting to st op the unit. Press “”key
adjust hour number; Press “Timer on” again to adjust minute number. Press
“Timer on” once more to confirm the setting.
4). You can timer to start and stop the unit at the same time.
8
www.pac-direct.com
Page 9
8 - Regular operations of maintenance
Washing the sand filter of your filtration installation :
Stop the Heat pump
Wintering :
Stop and put the heat pump out of tension
Stop and put the filtration pump out of tension
Close the 2 isolating valves nearest of the Heat pump
Entirely unscrew the 2 connections on the Heat pump and have
each pipe slip to make leave the openings coming out from the heat
pump ; the Heat pump gets empty, wait for the complete emptying.
(THE EXCHANGER MIGHT BURST IF IT HAS NOT EMPTIED
COMPLETEY)
Put back each pipe to its place and screw again the connections to
entirely close again (to avoid little animal’s entry ) Remark :
supplement the draining of your filtration installation or call your
fitter (all your installation must be protected against the freezing)
Maintenance :
Make sure that nothing comes to block the gilds radiator, if it’s
necessary clean it with a soft brush (no water jet under pressure)
Make sure that the gilds are right, rectilinear, if it’s necessary
rectify them with a fine comb
Make sure that the flue of the condensates is not blocked
9
www.pac-direct.com
Page 10
9 – Error codes and how to solve them :
This table explains the error codes caused by a defective
regulating component or by a security operation. You have to call your
retailer.
Screen and state
of the heat water
pump
Component Possible cause Intervention of your retailer
E 1
The heat pump
continues running
Water temp sensor
Sensor disconnected,
non supplied or
defective
Check the connections, the wires, change
it or replace the electronic card
E 2
The compressor stops
and after the fan stops
too
Ambient air
temperature sensor
Sensor disconnected,
non supplied or
defective
Check the connections, the wires, change
it or replace the electronic card
E 3
The heat pump
continues running
Oultlet compressor
temperature sensor
Sensor disconnected,
non supplied or
defective
Check the connections, the wires, change
it or replace the electronic card
E 4
Compressor and fan
stop
Defrosting system
The defrosting is
incomplete and the
automatism decides to
stop the heat pump
Increase lightly the water flow going into
the heat pump; the effect is to increase the
temperature of the refrigerant in the
evaporator.
E 5
Magnetic ammeter
The compressor stops 3
times in 24h because of
intensity excess in the
compressor
Environment problem
See DIRECTIONS FOR
INSTALLATION AND MAINTENANCE
E 6
Compressor and fan
stop
Oultlet compressor
temperature sensor
Oultlet compressor
temperature detected
up to 105°C more than 3
times in 24h
Environment problem
See DIRECTIONS FOR
INSTALLATION AND MAINTENANCE
E 7
Compressor and fan
stop
Magnetic circuit
breaker
Electric current leak
from the compressor,
from the fan or from an
electrovalve; electric
safety system of the heat
pump
Switch off the current and call an
electrician for repairing or replacing the
defective component
Flow switch
Flow switch
disconnected, non
supplied or defective
Check the connections, the wires, change
it or replace the electronic card
E 9
Pressure controller
High pressure
Pressure controller is
disconnected, or
defective.
Or increasing in
pressure in the
refrigerant circuit
Call a refrigerating engineer who will do
the necessary controls of the circuit
pressure
E A
Pressure controller
Low pressure
Pressure controller is
disconnected, or
defective.
Call a refrigerating engineer who will do
the necessary controls of the circuit
pressure
Or lack of gas in the
refrigerant circuit.
10
www.pac-direct.com
Page 11
10-Problems / solutions :
The difficulties met the most often can be solved by reading the table below.
If nothing corresponds to the list, or if the solutions applied do not solve the problem, refer to
DIRECTIONS FOR
INSTALLATION AND MAINTENANCE or contact your retailer.
Difficulty Observation Probable cause Explanation / Solution
Extinct screen No power
Check that the circuit breaker
of the table is engaged in the
technical room
Extinct screen and heat
pump supplied in power
The power supply is
defective
Call your retailer
Extinct screen, filtration is
working
The in and out pipes of the
heat pump are reversed or
the flow switch is not
sufficient
Check on the heat pump that
the in and out pipes are not
reversed. Check the filtration
pump works or is not defused
The heat pump does
not start
Normal, lit screen
The ambient temperature
has decreased below 5°C
The heat pump will start again
above 7°C
Water is running
below the heat pump
The water comes from the
bottom of the heat pump
Drain of the condensates
not installed or stopped :
black, plastic conduit
prolonged with a flexible
pipe of evacuation
It’s natural : these condensates
are caused by condensation of
the humid air on the gilds of
the evaporator
The heat pump works
The rising in temperature is more or less rapid according to
the volume of the swimming pool and to the climatic
conditions. An isothermic cover will improve the
performances in heating
The temperature of
the swimming pool is
increasing very slowly
The layer of the white frost
is thin
The outside temperature
is low and the air is humid
See the paragrah 5 of this
manuel
White frost or ice
appears outside on the
gilds of the evaporator
The layer of the white frost
is thick (the blades of the
ventilator may rub on the
ice much thicker inside)
Outside temperature very
low and air very humid
The automatic de-icing is not
sufficient ; stop the heat pump
for the operations of wintering
The heat pump emits
noises of vibration or
sheet
It’s not horizontal or not
well fixed ; the pipes may
have moved into the pump
during the transport or
the installation
The vibrations can be
located or the heat pump is
not stable
Call your retailer
11
www.pac-direct.com
Loading...
