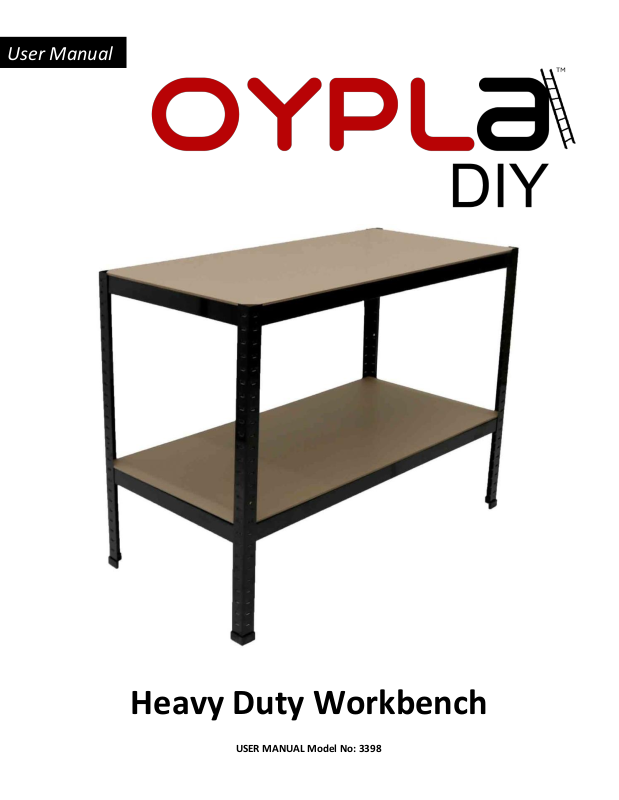

Page 1
User Manual
USER MANUAL Model No: 3398
Heavy Duty Workbench
Page 2
Safety Instructions
Notice: Ensure you read and fully understand instructions before use
While every attempt is made to ensure the highest degree of protection in all equipment, we cannot
guarantee freedom from injury. The user assumes all risk of injury due to use. All merchandise is sold on
this condition, which no representative of the company can waive or change.
• This product is not a toy and should only be used for its designated purpose.
• Make sure that the racking platforms are secure before applying any weight to the
product.
• This product can be used both indoors and outdoors.
• Leaving the product outside exposed to weather, especially direct sun, rain and salt air,
will speed the weathering process. This can be slowed by removing the product from
these conditions, or covering it with a suitable cover.
• Do not carry out alterations or modifications to this product.
• Do not discard any of the packaging until you have checked that you have all the
parts and fittings required.
• When adjusting the height of the shelves, be sure that the shelving is securely held in
place after adjusting the height to avoid it falling due to damage.
• Never exceed the maximum load capacity of 150kg per shelf or it may result in product
failure or personal injury.
• Clean only with a damp cloth. Do not use strong industrial cleaning substances or
abrasive materials as these will damage the product.
• If the product is damaged or has any defects, please contact cservice@oypla.com
USER MANUAL Model No: 3398
Please retain a copy of all instructions for future consultation.
Page 3
Parts List:
If you are missing any of the below parts please contact cservice@oypla.com
Please be aware that you will be referring to this parts list throughout the assembly process.
Operating Instructions
USER MANUAL Model No: 3398
Page 4
USER MANUAL Model No: 3398
2. Push a side adjustment bar into the corner support bar
using the metal flaps on the side adjustment bar. Ensure
that the metal flaps are held in place correctly. Repeat
this for the other side. After both sides are in place,
repeat the first step and attach that to the end of the side
adjustment bars. See the image to the left.
1. Lay an end adjustment bar on the ground, ensuring the metal flaps are pointing upwards. After this, slide
and secure a corner support bar into the metal flaps (seen in the image on the top left). Once done, put a
plastic foot onto the bottom of the corner support bar. Repeat this on the opposite side (seen in the image
on the top right).
3. Once the workbench frame has been completed, slide the remaining end and side adjustment bars onto
the outside of the created frame. Once the adjustment bars are secure, place the wooden shelves onto the
created shelving layers. Be sure that the wooden shelves are level once you’ve put them down to avoid items
sliding across the shelf when they’ve been placed on it. The bottom shelf isn’t necessary for the heavy duty
workbench to be completed, however it is useful to store tools and other large items.
