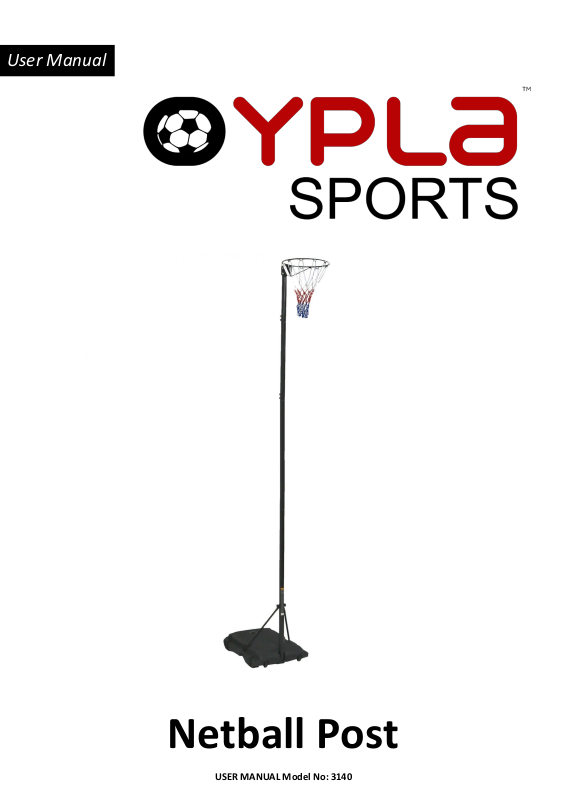

Page 1
User Manual
USER MANUAL Model No: 3140
Netball Post
Page 2
This product is not a toy, and is only to be used for its designated purpose.
Never carry out any alterations or modifications to this product.
This product is intended for outdoor use only.
After filling the base platform with a weighted substance, ensure that the plug is
in correctly. Do not fill until the weighted substance is blocking the plughole.
Do not hang off the metal ring/pull the net post. Doing so, will cause the netball
net post to fall down and could possibly break the product or injure you and/or
others.
Clean only with a damp cloth. Do not use strong industrial cleaning substances or
abrasive materials. As these will damage the product.
An adult should asses the area that the netball net will be erected, to ensure there
are no hazards.
Do not discard any of the packaging until you have checked that you have all parts
and fittings as required.
Do not attempt to use the product without filling the base.
The height of the post should only be adjusted by an adult
The surface beneath the base must be smooth and free of gravel or other sharp
objects.
Not suitable for use in severe weather conditions.
If product is damaged or has any defects, please contact cservice@oypla.com.
Safety Instructions
Notice: Ensure you read and fully understand instructions before use
While every attempt is made to ensure the highest degree of protection in all equipment, we cannot
guarantee freedom from injury. The user assumes all risk of injury due to use. All merchandise is sold
on this condition, which no representative of the company can waive or change.
USER MANUAL Model No: 3140
Page 3
Assembly Instructions
Parts List:
If you are missing any of the below parts please contact cservice@oypla.com
Please be aware that you will be referring to this parts list throughout the assembly process.
USER MANUAL Model No: 3140
Page 4
USER MANUAL Model No: 3140
Page 5
USER MANUAL Model No: 3140
Assembly Steps:
1. Base Assembly
Align one of the wheels (6) into the slot in
the base (9). Have another person hold the
bottom pole (3) in place and thread the
axle (10) through the holes in the base and
the second wheel.
2. Base Supports
Align the pole supports (4) with the holes on the
base and attach with four bolts (D) – do not fully
tighten. Align the support poles with the bottom
pole and secure with a bolt (B). Tighten all bolts
once the supports are in the correct position.
3. Base Setup
Have another person hold the base securely and
then fill with either sand or water.
Page 6
USER MANUAL Model No: 3140
4. Pole Assembly
Slot the centre pole (2) over the bottom pole,
ensuring the screw holes are aligned. Secure
using two bolts (A).
5. Pole Assembly
Slot the adjustable centre pole (5) over the centre
pole, ensuring the screw holes are aligned. Insert
two adjuster knobs and tighten to secure into
place.
Page 7
Please retain a copy of all instructions for future
consultation.
Imported into the EU by Oypla.com LLP, Uxbridge, UB8 2FX
7. Final Assembly & Adjustment
Hook the net (8) over the loops. Slot the top pole
into the adjustable centre pole, ensuring the
screw holes are aligned. Insert two adjuster
knobs and tighten to secure into place.
To adjust the height of the netball stand, loosen
the adjuster knobs and slide the poles to the
desired height. Re-tighten once the height is set.
6. Hoop Assembly
Line up the plate of the hoop (7) with the slots on
the top pole (1). Secure using four bolts (C).
USER MANUAL Model No: 3140
