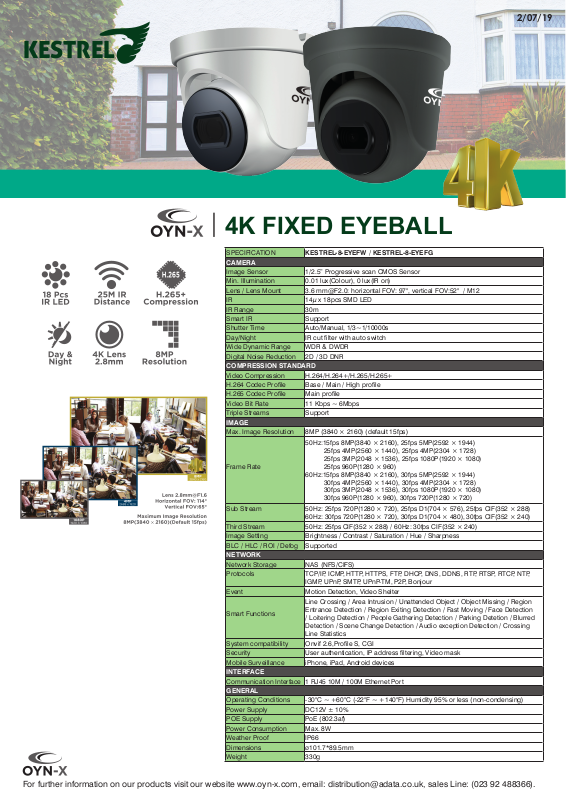

OYN-X KESTREL-8-EYEFW Technical data

KESTREL

4K FIXED EYEBALL

SPECIFICATION KESTREL-8-EYEFW / KESTREL-8-EYEFG

CAMERA

Image Sensor 1/2.5” Progressive scan CMOS Sensor
Min. Illumination 0.01 lux(Colour), 0 lux(IR on)
Lens / Lens Mount 3.6 [email protected]: horizontal FOV: 97°, vertical FOV:52° / M12
IR 14µ x 18pcs SMD LED
IR Range 30m
Smart IR Support
Shutter Time Auto/Manual, 1/3~1/10000s
Day/Night IR cut lter with auto switch
Wide Dynamic Range WDR & DWDR
Digital Noise Reduction 2D / 3D DNR

COMPRESSION STANDARD

Video Compression H.264/H.264+/H.265/H.265+

H.264 Codec Prole Base / Main / High prole
H.265 Codec Prole Main prole

Video Bit Rate 11 Kbps ~ 6Mbps
Triple Streams Support


Max. Image Resolution 8MP (3840 × 2160) (default 15fps)

50Hz:15fps 8MP(3840 × 2160), 25fps 5MP(2592 × 1944)
25fps 4MP(2560 × 1440), 25fps 4MP(2304 × 1728)

Frame Rate

Sub Stream 50Hz: 25fps 720P(1280 × 720), 25fps D1(704 × 576), 25fps CIF(352 × 288)

Third Stream 50Hz: 25fps CIF(352 × 288) / 60Hz: 30fps CIF(352 × 240)
Image Setting Brightness / Contrast / Saturation / Hue / Sharpness
BLC / HLC / ROI / Defog Supported

NETWORK

Network Storage NAS (NFS/CIFS)
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,

Event Motion Detection, Video Shelter

Smart Functions

System compatibility Onvif 2.6,Prole S, CGI
Security User authentication, IP address ltering, Video mask
Mobile Surveillance iPhone, iPad, Android devices

INTERFACE

Communication Interface 1 RJ45 10M / 100M Ethernet Port

GENERAL

Operating Conditions -30°C ~ +60°C (-22°F ~ +140°F) Humidity 95% or less (non-condensing)
Power Supply DC12V ± 10%
POE Supply PoE (802.3af)
Power Consumption Max. 8W
Weather Proof IP66
Dimensions ø101.7*89.5mm
Weight 330g

25fps 3MP(2048 × 1536), 25fps 1080P(1920 × 1080)
25fps 960P(1280 × 960)
60Hz:15fps 8MP(3840 × 2160), 30fps 5MP(2592 × 1944)
30fps 4MP(2560 × 1440), 30fps 4MP(2304 × 1728)
30fps 3MP(2048 × 1536), 30fps 1080P(1920 × 1080)
30fps 960P(1280 × 960), 30fps 720P(1280 × 720)

60Hz: 30fps 720P(1280 × 720), 30fps D1(704 × 480), 30fps CIF(352 × 240)

IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour

Line Crossing / Area Intrusion / Unattended Object / Object Missing / Region
Entrance Detection / Region Exiting Detection / Fast Moving / Face Detection
/ Loitering Detection / People Gathering Detection / Parking Detetion / Blurred
Detection / Scene Change Detection / Audio exception Detection / Crossing
Line Statistics

2/07/19

For further information on our products visit our website www.oyn-x.com, email: [email protected], sales Line: (023 92 488366).
