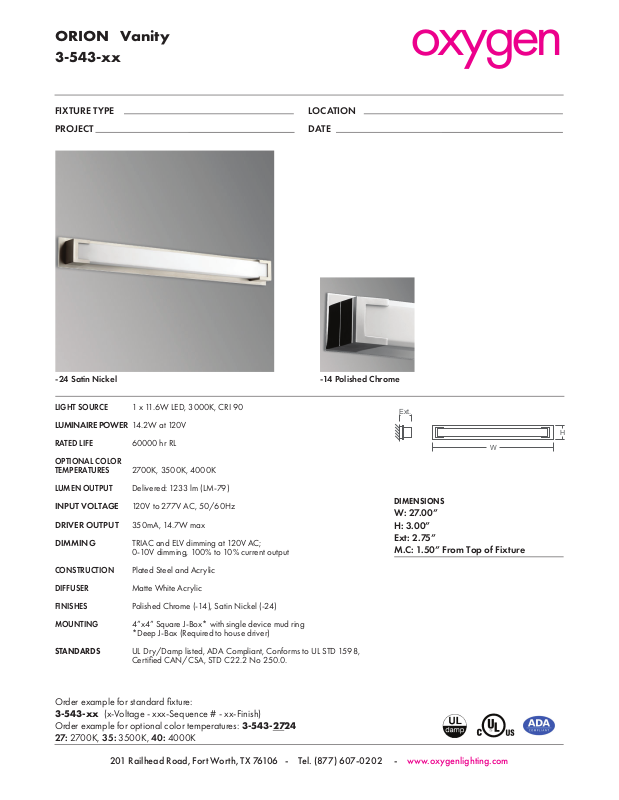

ORION Vanity
3-543-xx
FIXTURE TYPE LOCATION
PROJECT DATE
oxygen
-24 Satin Nickel
LIGHT SOURCE
LUMINAIRE POWER
RATED LIFE
OPTIONAL COLOR
TEMPERATURES
LUMEN OUTPUT
INPUT VOLTAGE
DRIVER OUTPUT
DIMMING
CONSTRUCTION
DIFFUSER
FINISHES
MOUNTING
STANDARDS
-14 Polished Chrome
1 x 11.6W LED, 3000K, CRI 90
14.2W at 120V
60000 hr RL
2700K, 3500K, 4000K
Delivered: 1233 lm (LM-79)
120V to 277V AC, 50/60Hz
350mA, 14.7W max
TRIAC and ELV dimming at 120V AC;
0-10V dimming, 100% to 10% current output
Plated Steel and Acrylic
Matte White Acrylic
Polished Chrome (-14), Satin Nickel (-24)
4”x4” Square J-Box* with single device mud ring
*Deep J-Box (Required to house driver)
UL Dry/Damp listed, ADA Compliant, Conforms to UL STD 1598,
Certifi ed CAN/CSA, STD C22.2 No 250.0.
Ext.
H
W
DIMENSIONS
W: 27.00”
H: 3.00”
Ext: 2.75”
M.C: 1.50” From Top of Fixture
Order example for standard fi xture:
3-543-xx (x-Voltage - xxx-Sequence # - xx-Finish)
Order example for optional color temperatures: 3-543-2724
27: 2700K, 35: 3500K, 40: 4000K
201 Railhead Road, Fort Worth, TX 76106 - Tel. (877) 607-0202 -
www.oxygenlighting.com
