OWON HDS User Manual

Download

HDS Series Handheld Digital Storage

Oscilloscope & Multimeter

■HDS1022M

■HDS2062M

User Manual

www.owon.com.hk

www.owon.com.cn

Mar. 2012 edition Ver1.3

Copy Right in this Manual © Lilliput Company. All rights have been reserved.

The Lilliput’s products are under the protection of the patent rights in America and other countries,

including ones which have already obtained the patent rights and those which are applying for. The

information in this manual will replace all that in the materials published originally.

The information in this manual was correct at the time of printing. However, OWON will continue to

improve products and reserves the rights to changes specification at any time without notice.

OWON is the registered trademark of the Lilliput Company.

Headquarter: Fujian Lilliput Optoelectronics Technology Co.,Ltd.: The mansion of

optoelectronics hengsan road, Lantian industrial zone ,Zhangzhou,Fujian,China

Tel:+86-596-2130430 Fax:+86-596-2109272

Web : www.owon.com.hk. Mail: Business Consulting: sales@owon.com.hk

Sale service: service@owon.com.hk

Branch: Xiamen Lilliput Technology Co.,Ltd.: the 5th floor, B Area, Chuangxin Mansion, Software

Park, ZhenZhuWan,

Tel:+86-592-2575666 Fax:+86-592-2575669

Web :

www.owon.com.cn Mail: sales@owon.com.cn

Huandao RD, Xiamen, Fujian, China

General Warranty

The Lilliput warrants that the product will be free from defects in materials and workmanship for a period of three years from the date of purchase of the product by the original purchaser from the Lilliput company. And the warranty period of accessories such as probe, battery, adapter is one year. This warranty only applies to the original purchaser and is not transferable to the third party. If the product proves defective during the warranty period, Lilliput either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product. Parts, modules and replacement products used by Lilliput for warranty work may be new or reconditioned to like new performance. All replaced parts, modules and products become the property of Lilliput.

In order to obtain service under this warranty, Customer must notify Lilliput of the defect before the expiration of the warranty period. Customer shall be responsible for packaging and shipping the defective product to the service center designated by Lilliput, and with a copy of customer proof of purchase.

This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. Lilliput shall not be obligated to furnish service under this warranty a) to repair damage resulting from attempts by personnel other than Lilliput representatives to install, repair or service the product; b) to repair damage resulting from improper use or connection to incompatible equipment; c) to repair any damage or malfunction caused by the use of non-Lilliput supplies; or d) to service a product that has been modified or integrated with other products when the effect of such modification or integration increases the time or difficulty of servicing the product.

Please contact the nearest Lilliput’s Sales and Service Offices for services or a complete copy of the warranty statement.

Excepting the after-sales services provided in this summary or the applicable warranty

statements, Lilliput will not offer any guarantee for maintenance definitely declared or

hinted, including but not limited to the implied guarantee for marketability and

special-purpose acceptability. Lilliput should not take any responsibilities for any indirect,

special or consequent damages.

OWON HDS Series Handheld DSO & DMM Contents

Table of Contents

Chapter Page

1.DECLARATION OF CONFORMITY·················································· 1

1.1 Declaration of Conformity ·······································································································1

1.2 Package Contents ······················································································································1

2.SAFETY INFORMATION····································································· 2

2.1 Safety Terms and Symbols ·······································································································2

2.1.1 Safety Symbols···············································································································2

2.1.2 Safety Terms.··················································································································2

2.2 General Safety Information ·····································································································2

3. GENERAL CHARACTERISTICS OF THE HDS SERIES

OSCILLOSCOPE······················································································ 5

4.PERFORMING THE GENERAL INSPECTION ······························ 6

4.1 Performing the General Inspection ·························································································6

4.1.1 Check whether there is any Damage on it Due to Transportation····························6

4.1.2 Make a Check on Accessories·····················································································6

4.1.3 Make a Check on the Complete Instrument································································6

5.INPUT CONNECTIONS······································································· 7

5.1 Input Connections ·····················································································································7

5.2 Description for Front Panel and Keys·····················································································8

6.USING THE SCOPE··········································································· 10

6.1 About this Chapter··················································································································10

OWON HDS Series Handheld DSO & DMM Contents

6.2 Power-Up the Oscilloscope·····································································································10

6.3 Oscilloscope Operation Window····························································································10

6.4 Navigating a Menu ··················································································································12

6.5 Manually Setting the Vertical System, Horizontal System and Trigger Position ·············13

6.6 Resetting the Oscilloscope ······································································································16

6.7 Input Connections ···················································································································17

6.8 Displaying an Unknown Signal with Auto Set······································································17

6.9 Automatic Zero-returning of Trigger Horizontal Position and Trigger Level Position ···17

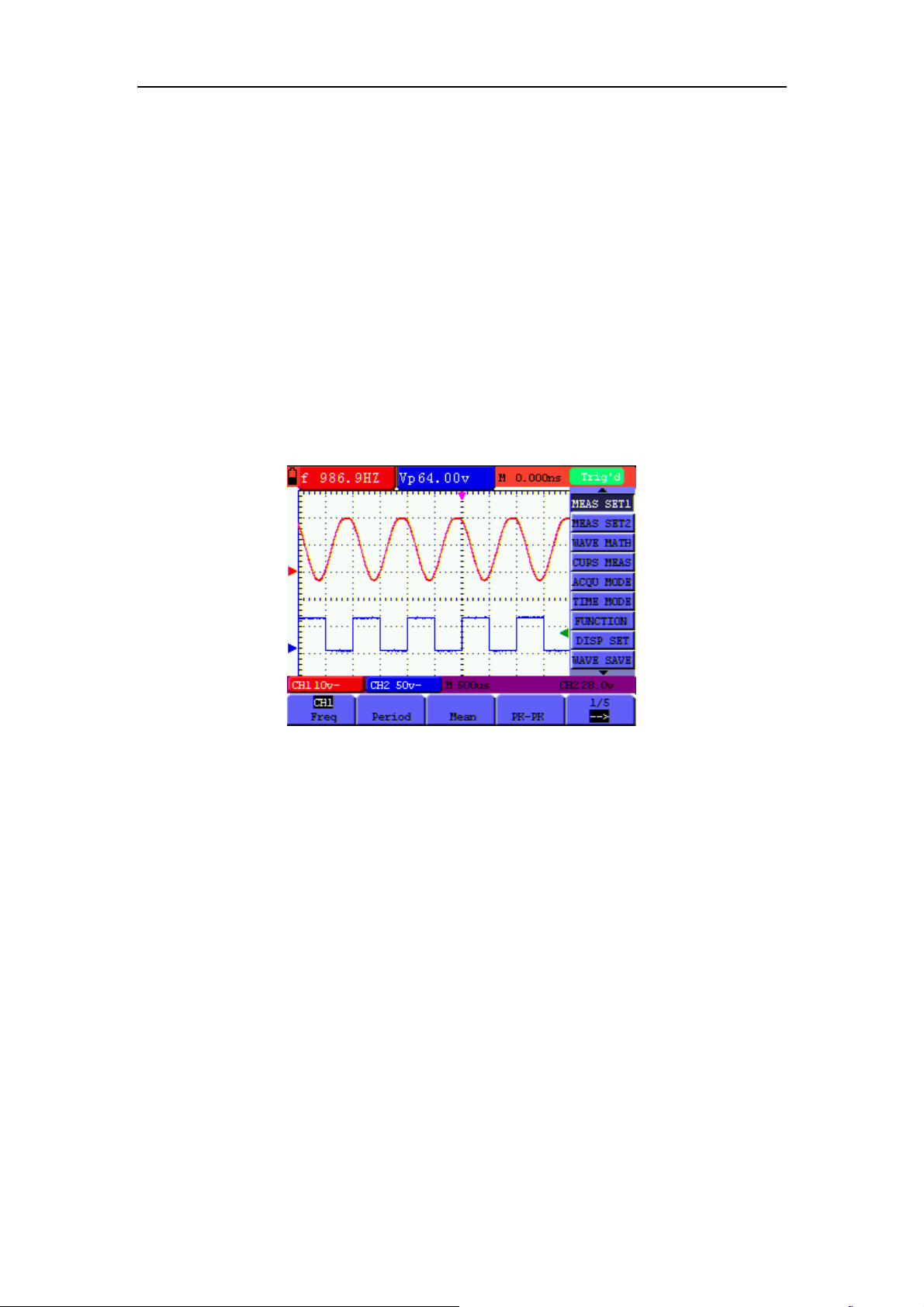

6.10 Automatic Measurements·····································································································17

6.11 Freezing the Screen···············································································································18

6.12 Using Average for Smoothing Waveforms··········································································19

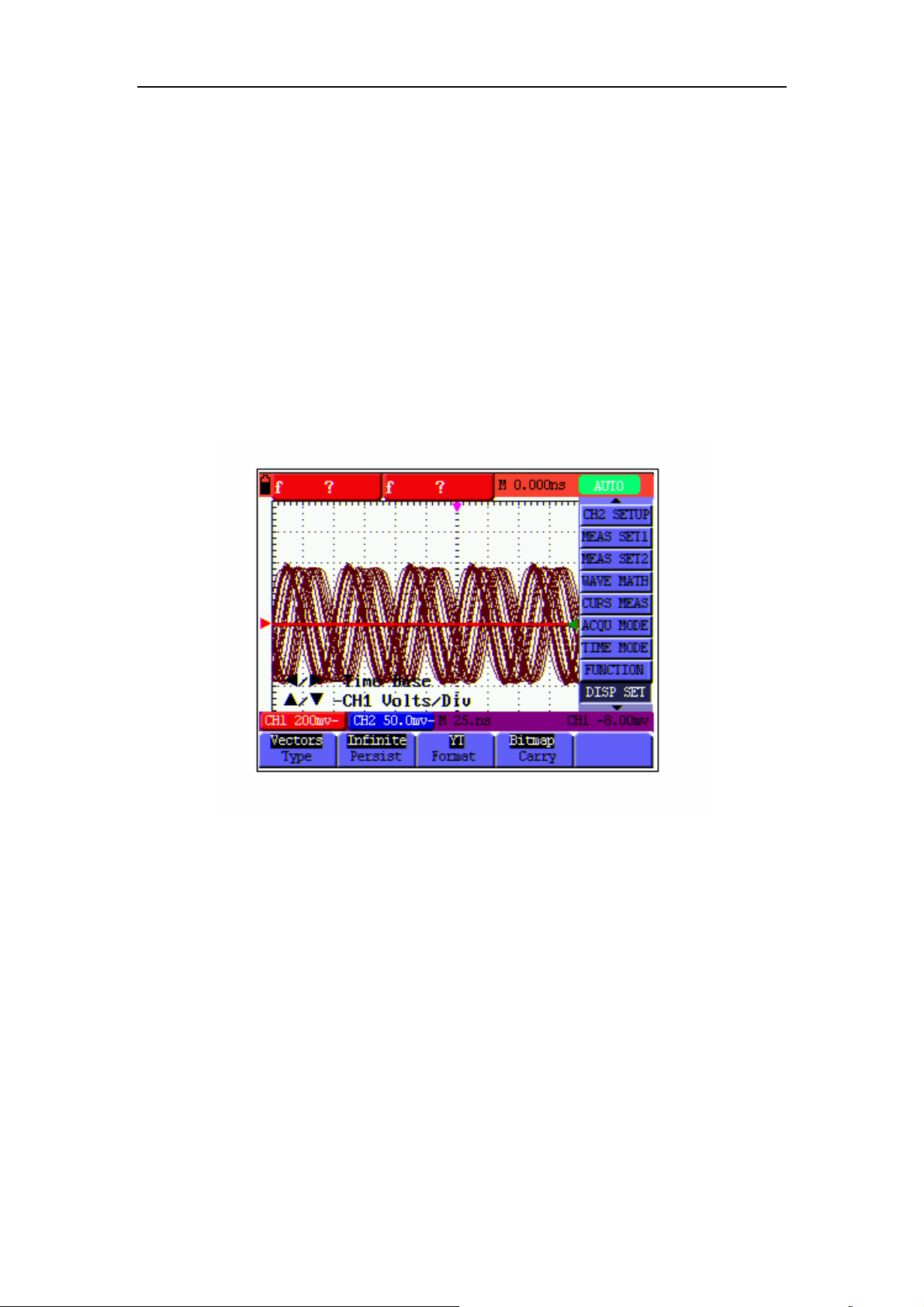

6.13 Using Persistence to Display Waveforms············································································20

6.14 Using Peak Detection to Display Glitches ···········································································20

6.15 Selecting AC-coupling···········································································································22

6.16 Reversing the Polarity of the Displayed Waveform···························································22

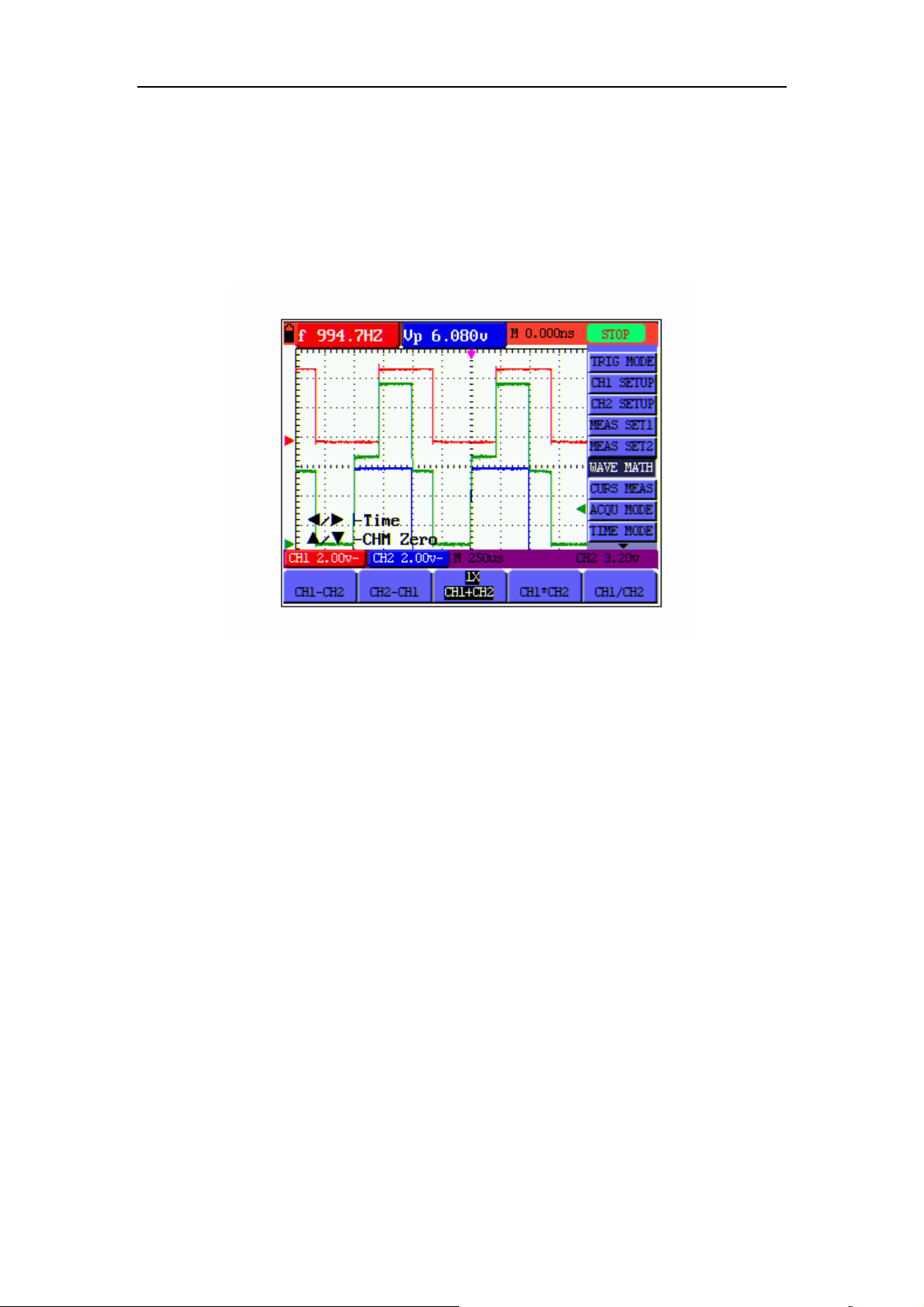

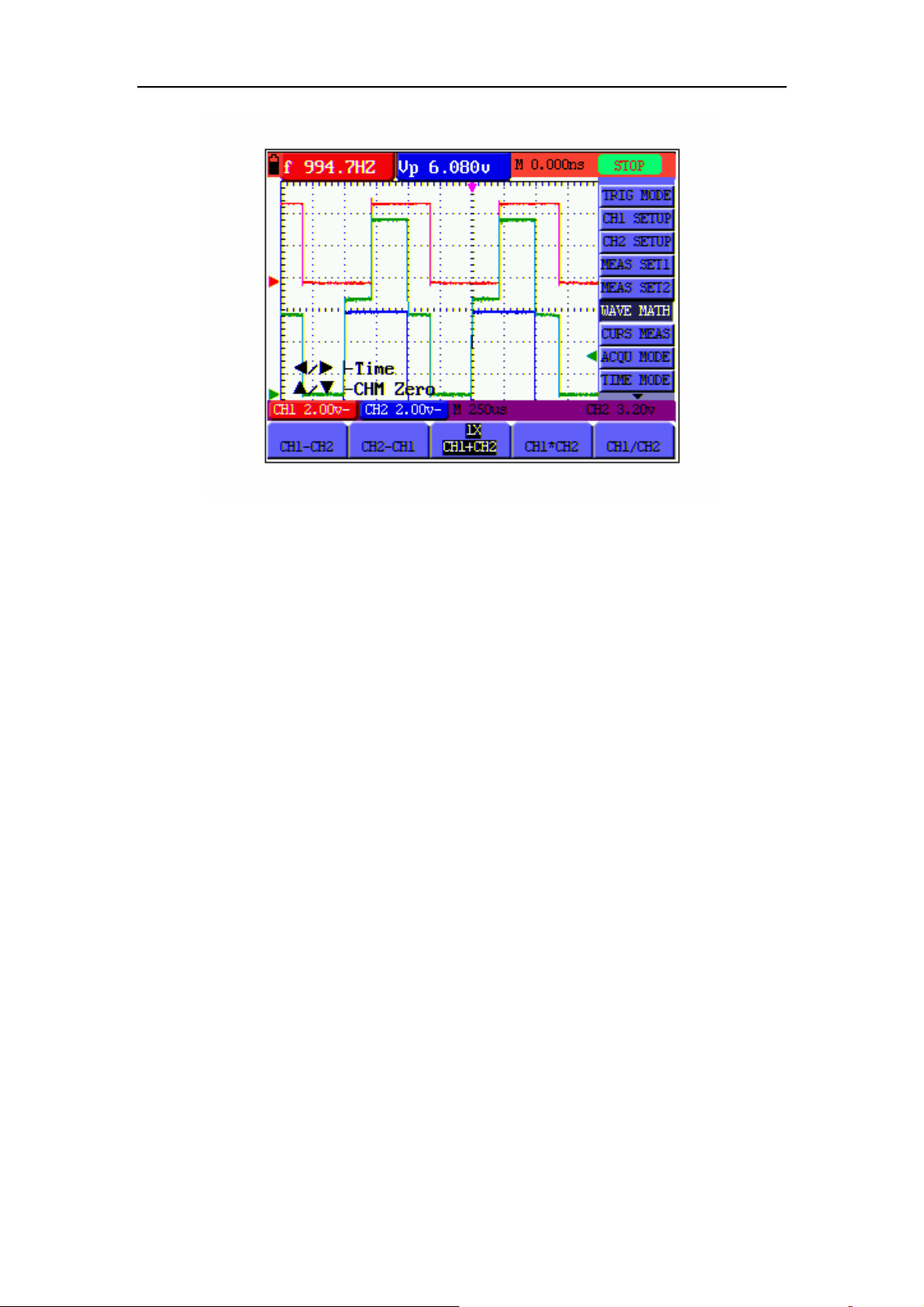

6.17 Using Waveform Mathematics Functions···········································································23

7.USING THE MULTIMETER······························································· 25

7.1 About this Chapter··················································································································25

7.2 Making Meter Connections····································································································25

7.3 Multimeter Operation Window ·····························································································25

7.4 Making Multimeter Measurements·······················································································26

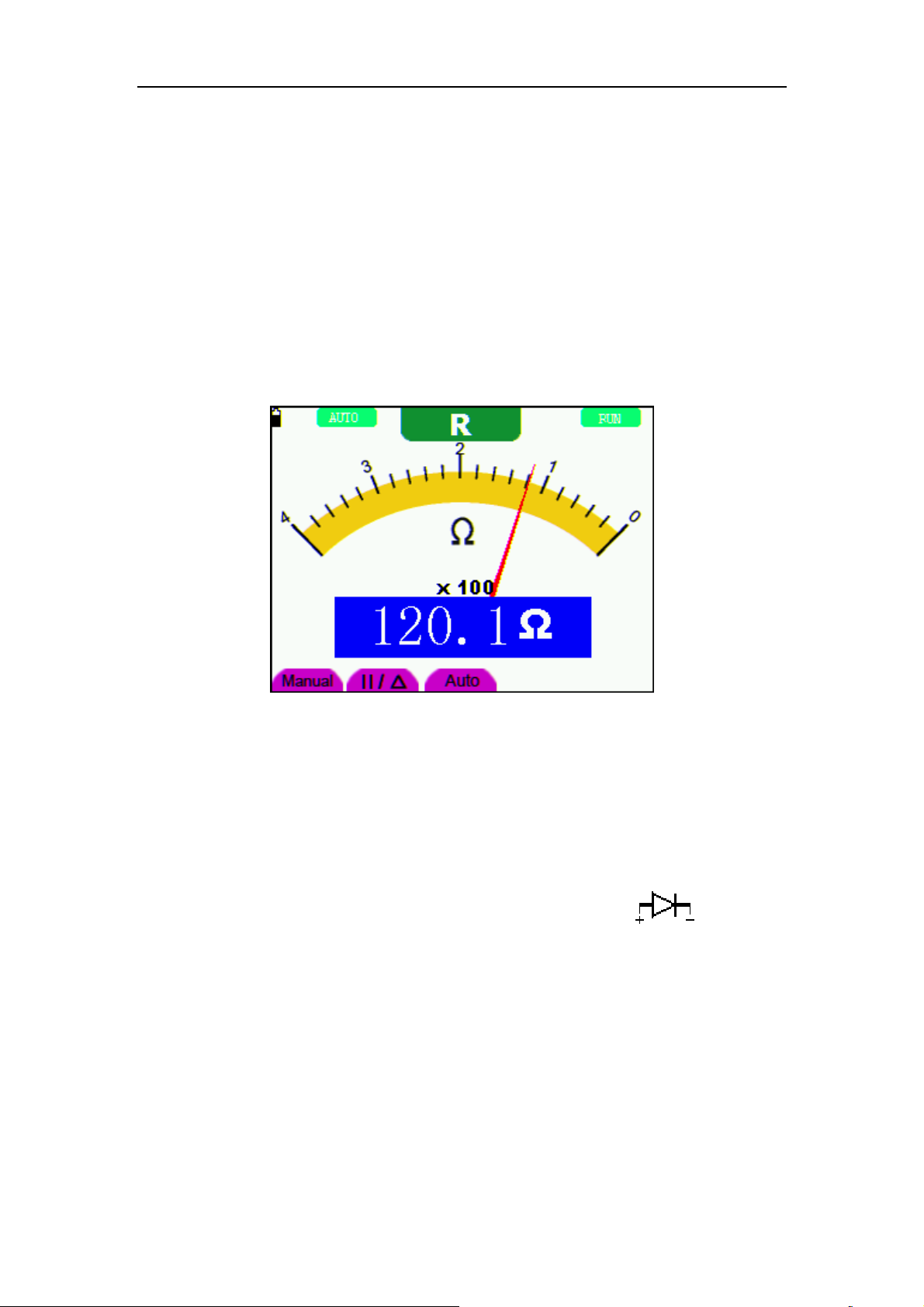

7.4.1 Measuring Resistance Values ····················································································27

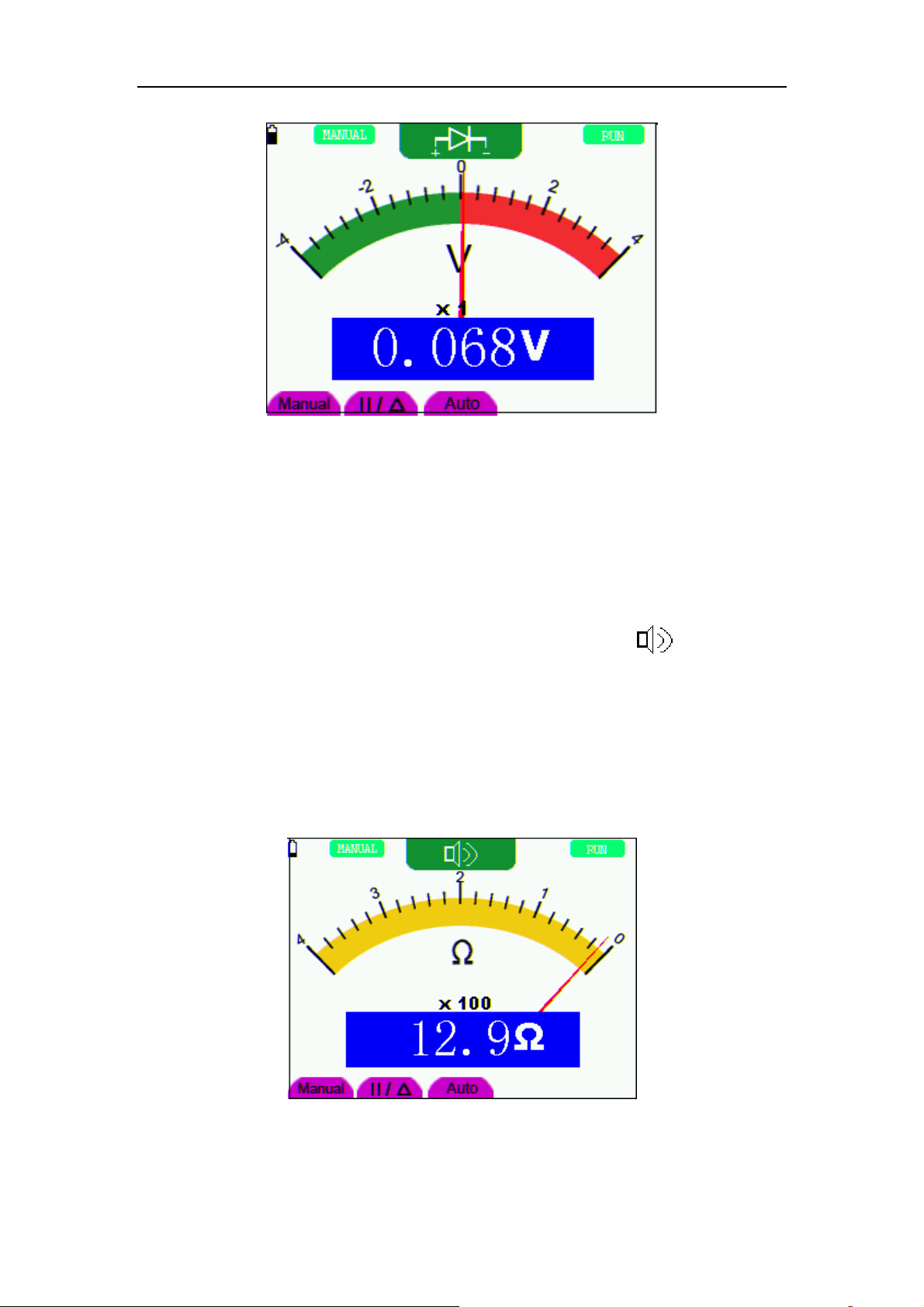

7.4.2 Making a Diode Measurement····················································································27

7.4.3 On-off Test·····················································································································28

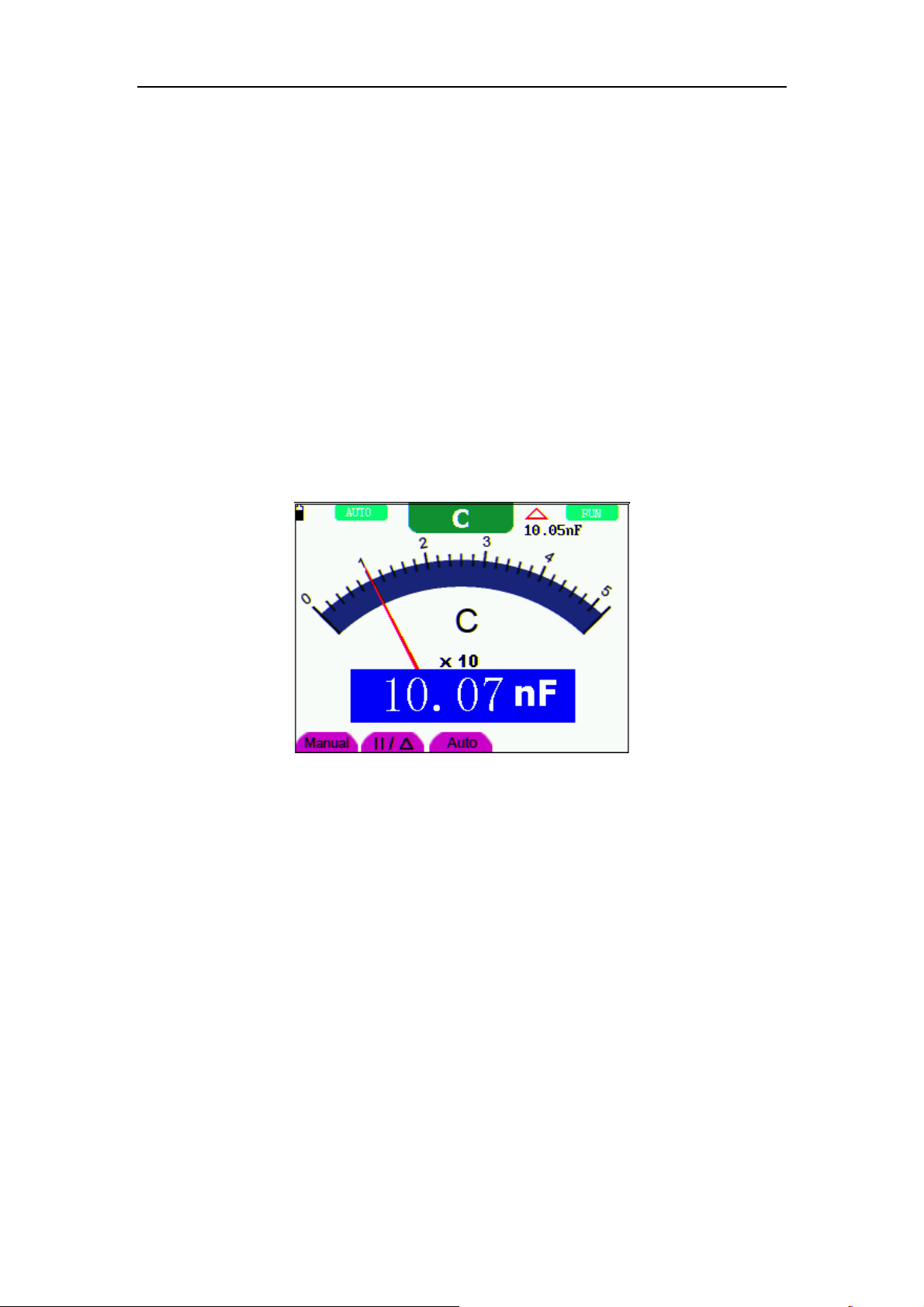

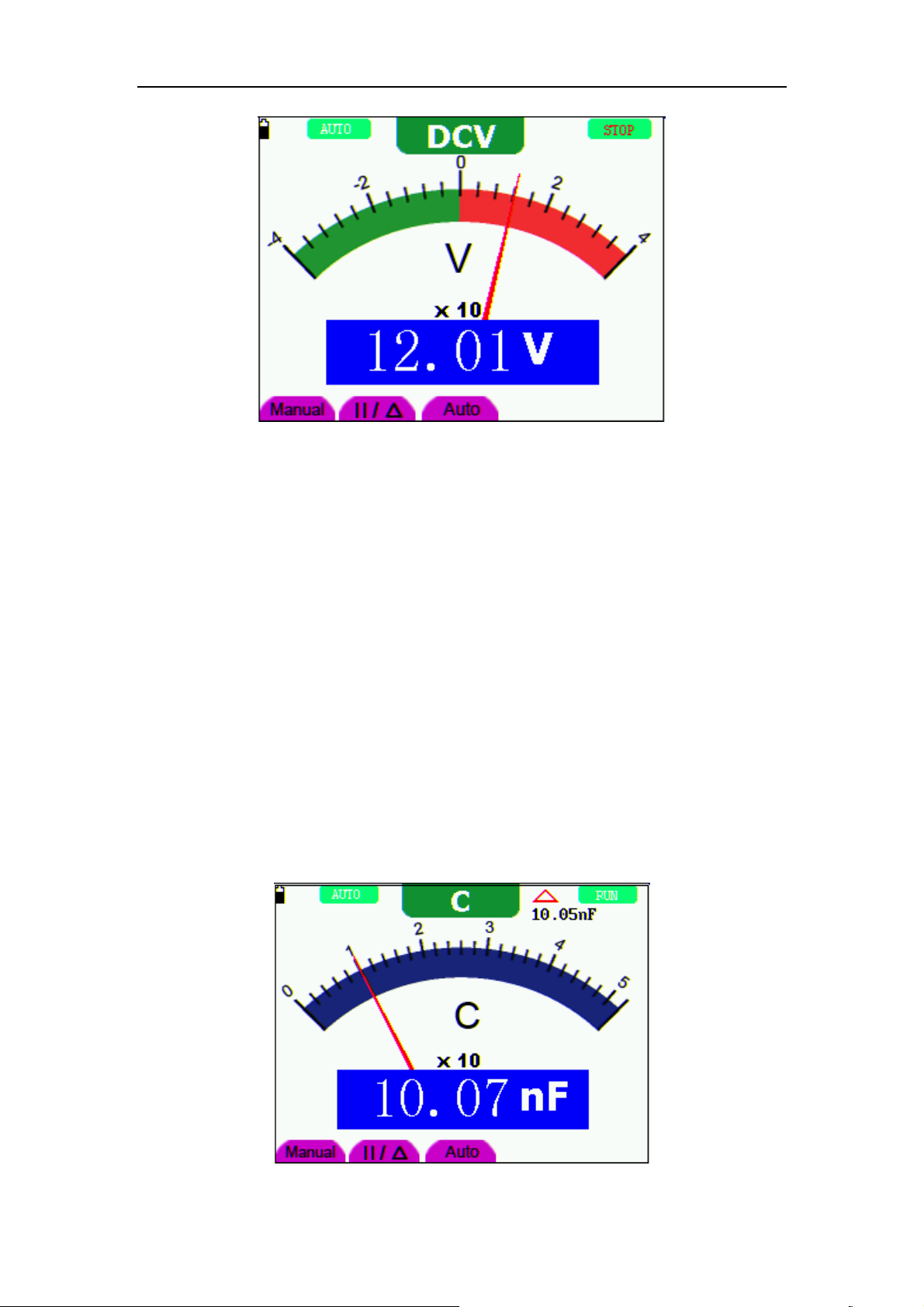

7.4.4 Making a Capacitance Measurement········································································29

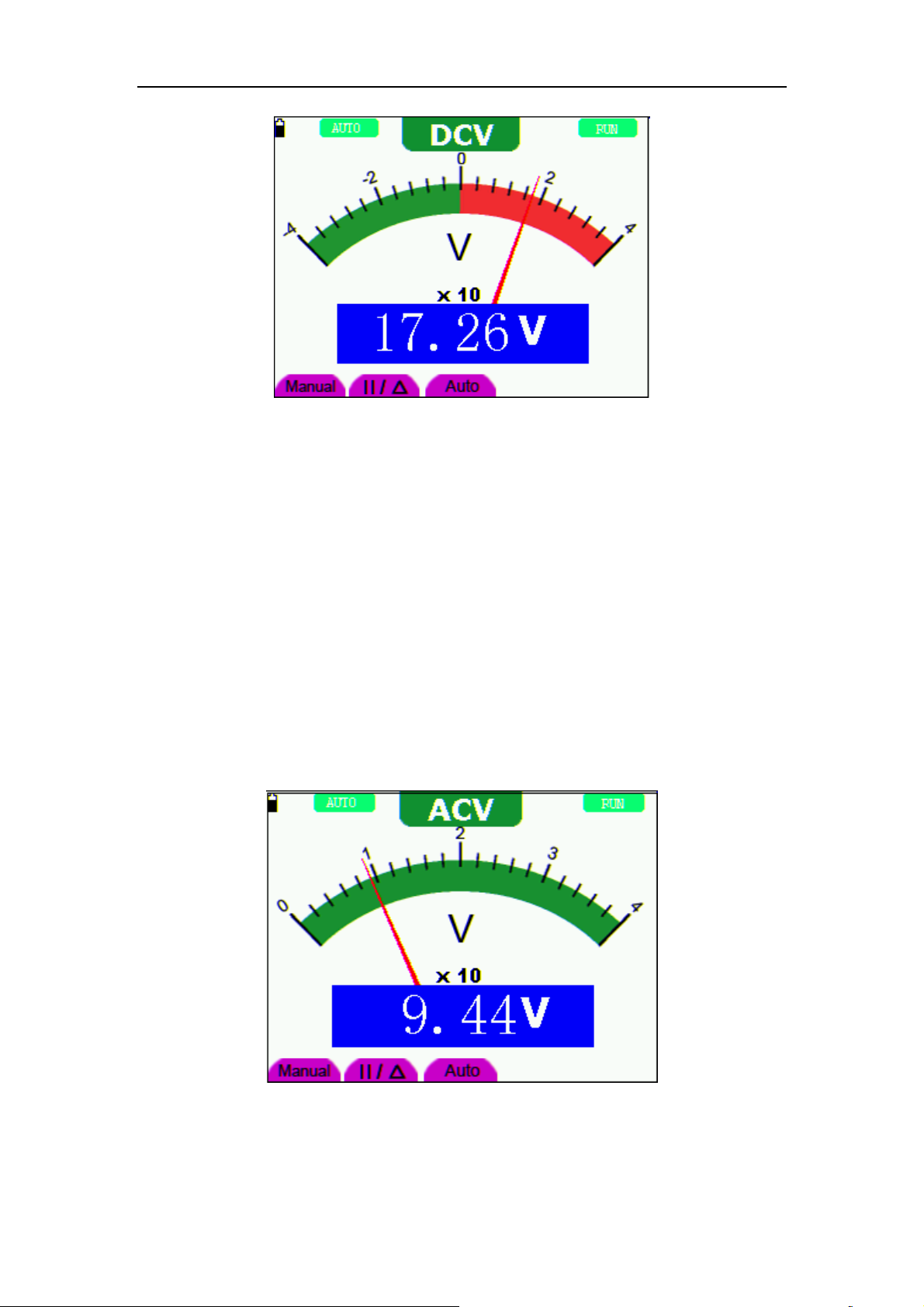

7.4.5 Making a DC Voltage Measurement ··········································································29

7.4.6 Making a AC Voltage Measurement···········································································30

7.4.7 Making a DC Current Measurement··········································································31

OWON HDS Series Handheld DSO & DMM Contents

7.4.8 Making an AC Current Measurement········································································32

7.5 Freezing the Readings·············································································································33

7.6 Taking a Relative Measurement·····························································································34

7.7 Selecting Automatic/Manual Range Adjustment ·································································35

8.ADVANCED FUNCTION OF OSCILLOSCOPE······················· ３６

8.1 About this Chapter··············································································································３６

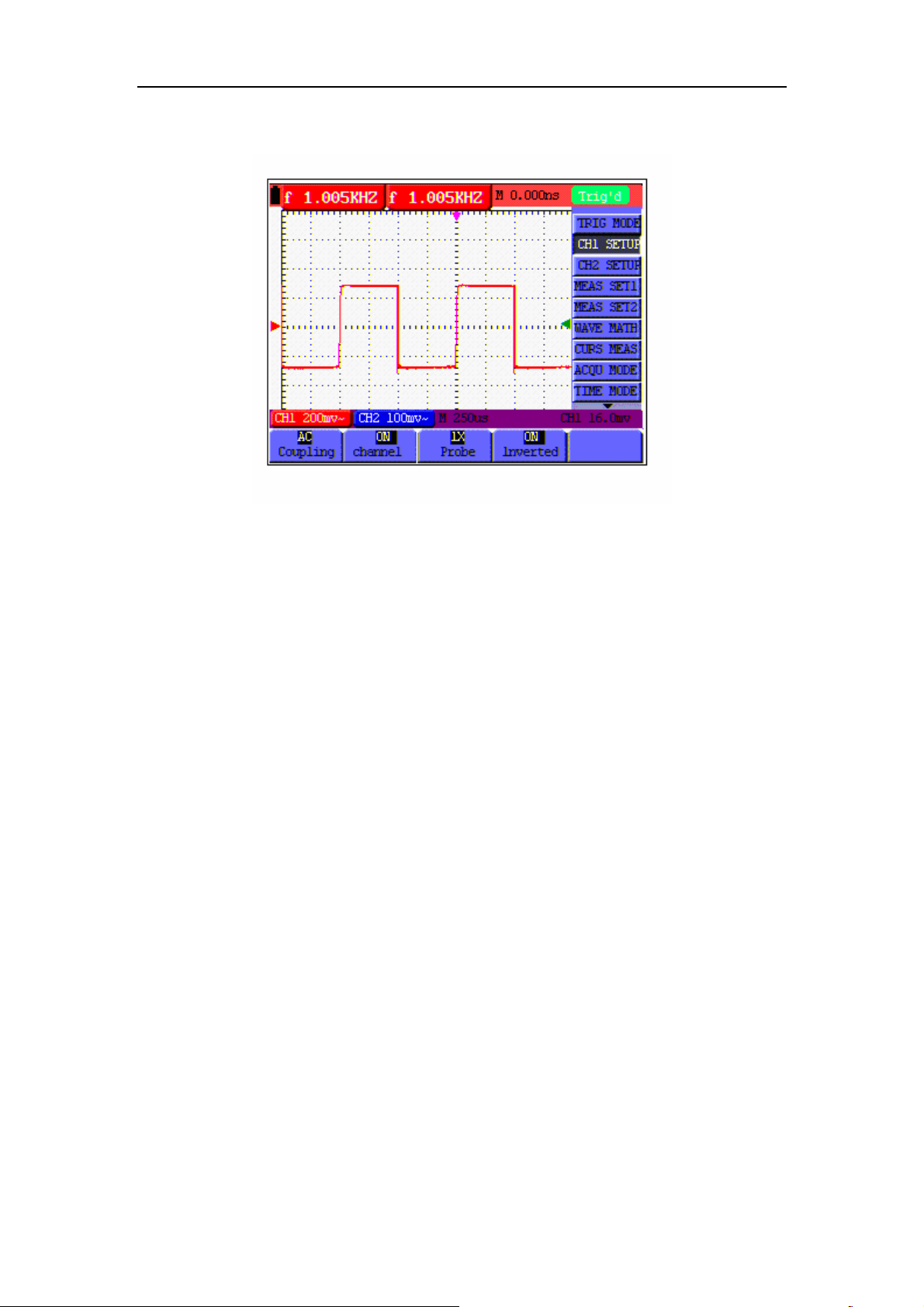

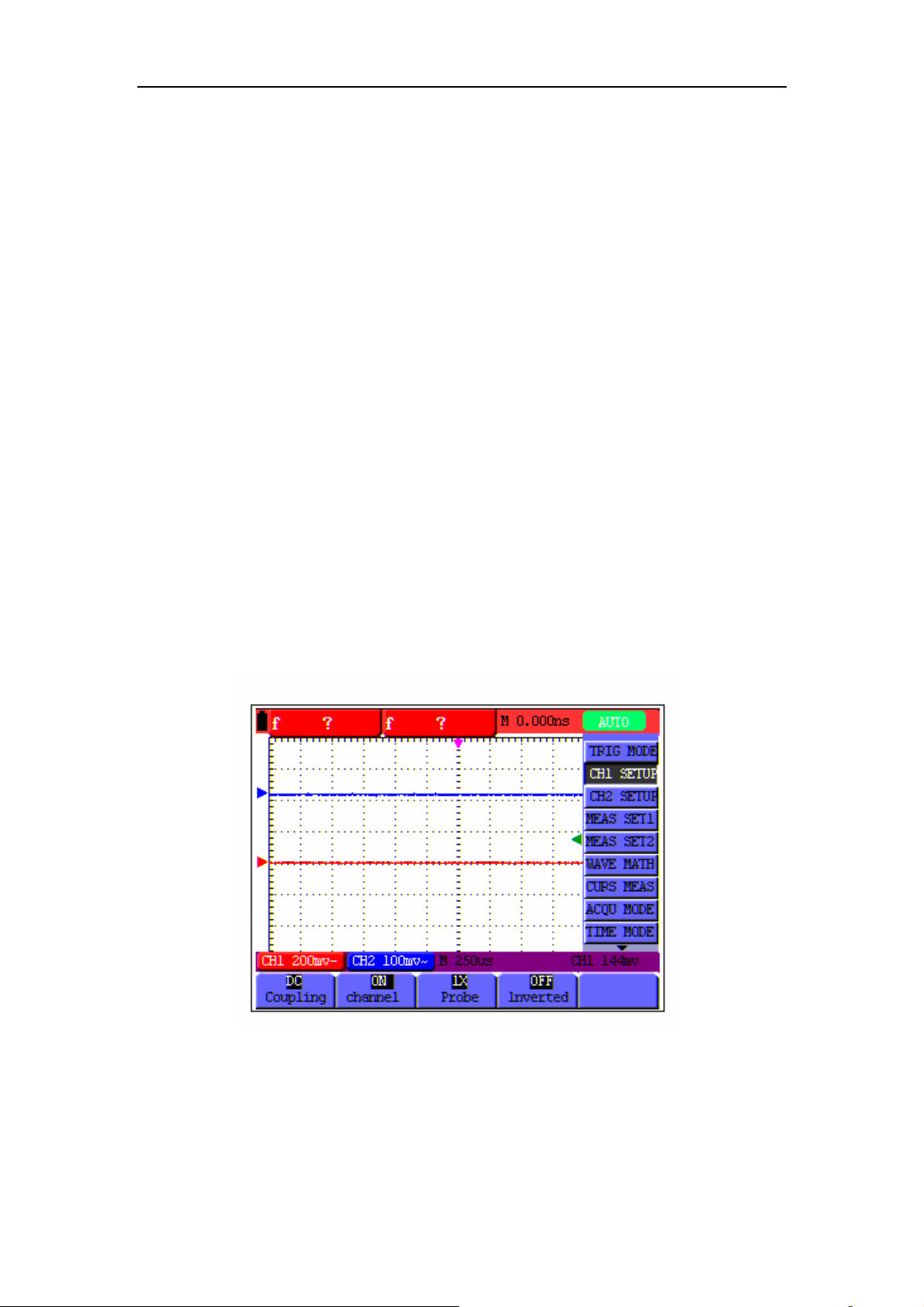

8.2 Setting the Vertical CH1 and CH2·····················································································３６

8.2.1 Setting the Channel Coupling·················································································３７

8.2.2 Make Open and Close Settings on Channel·························································３８

8.2.3 Adjusting the Probe Scale·······················································································３８

8.2.4 Setting of Inverted Waveform·················································································３８

8.3 Make the Math Function Menu Setting ············································································３９

8.4 Setting the Trigger System ·································································································４０

8.5 Triggering Control ··············································································································４１

8.5.1 Edge Triggering········································································································４１

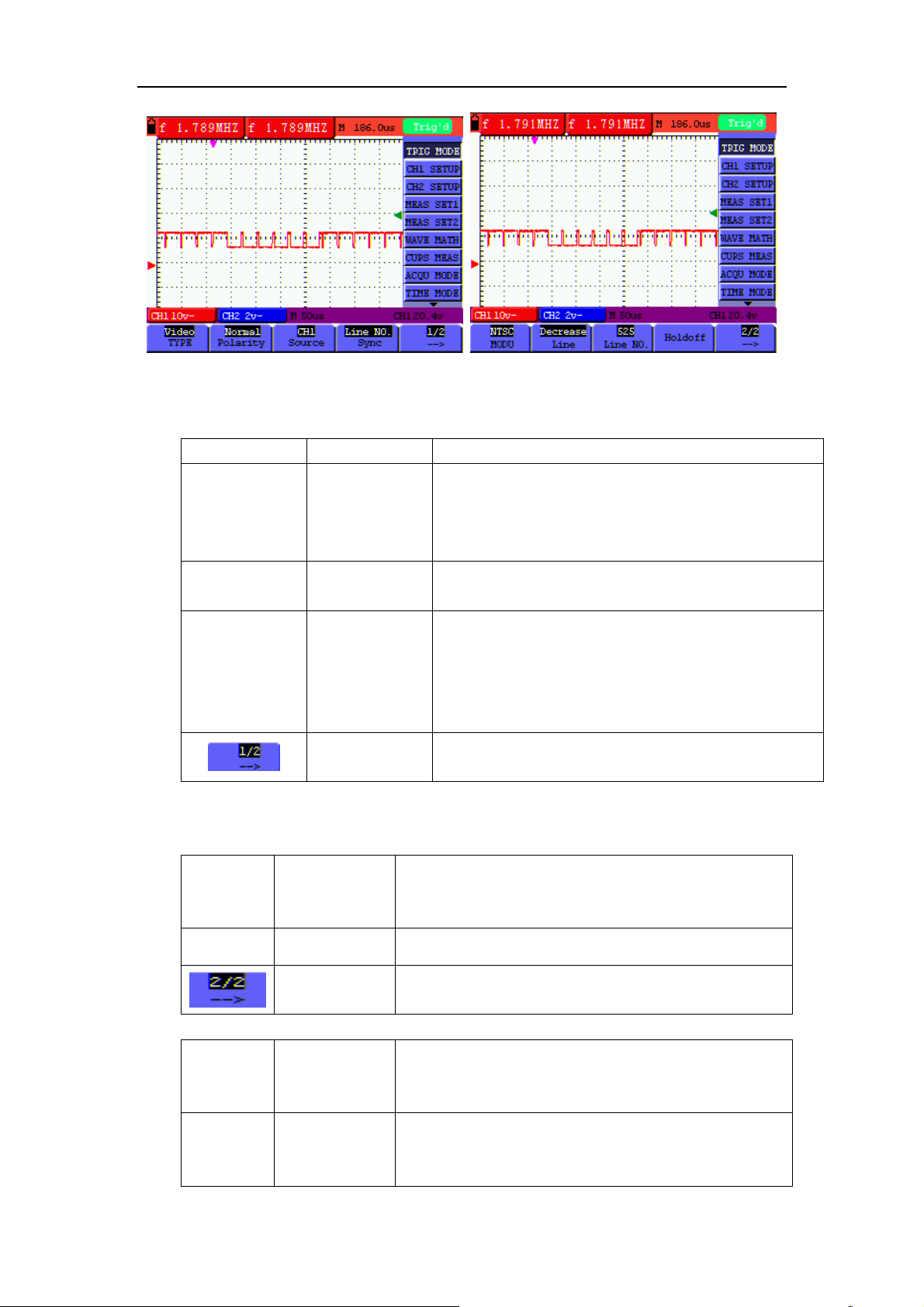

8.5.2 Video Triggering ·······································································································４２

8.6 Acquiring Mode Setting······································································································４５

8.7 Display Setting·····················································································································４５

8.7.1 Display Style·············································································································４５

8.7.2 Persistence···············································································································４６

8.7.3 XY Mode····················································································································４６

8.8 Waveform Saving Setups····································································································４７

8.9 Function Setting Menu ·······································································································４８

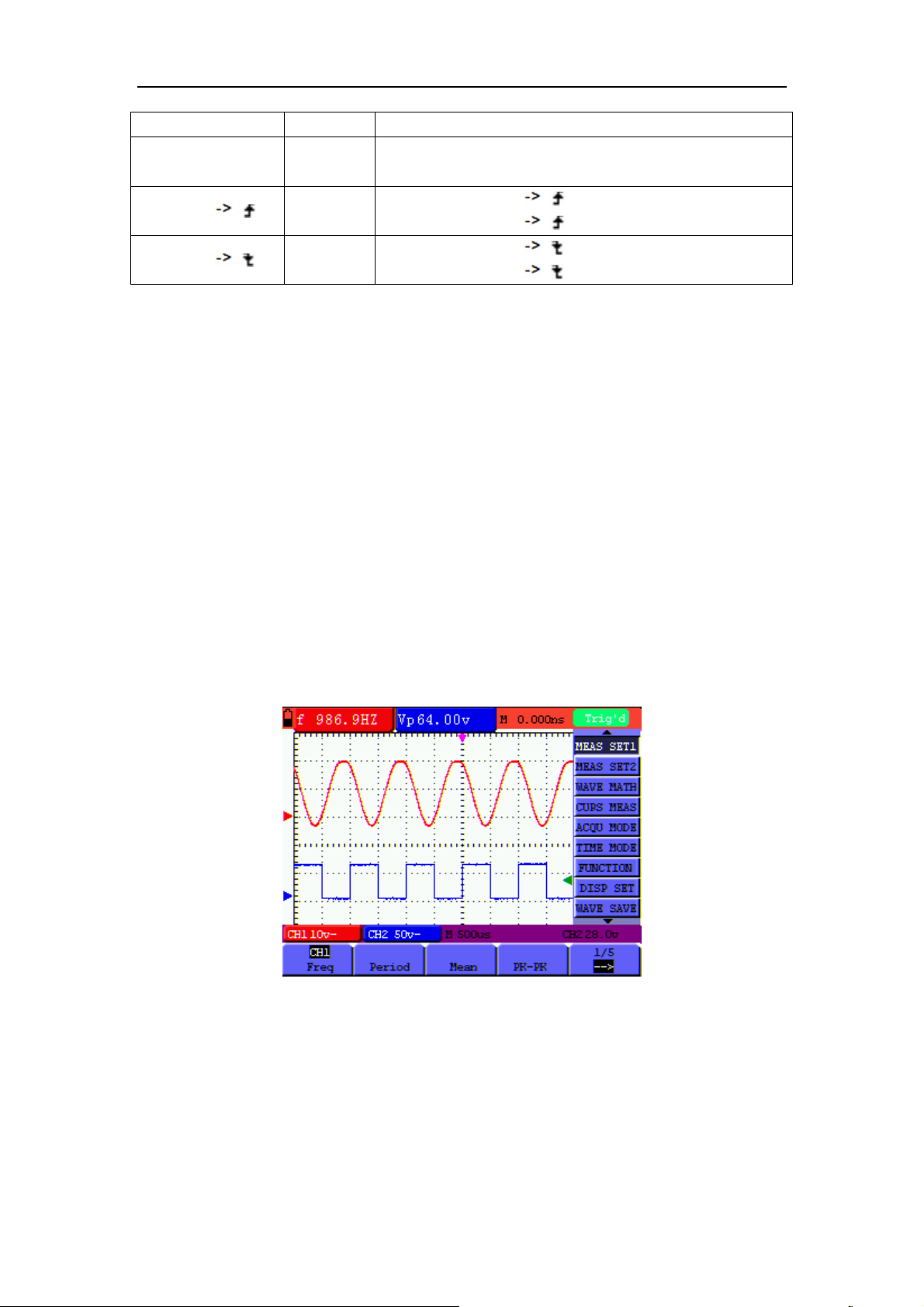

8.10 Making Automatic Measurements···················································································４９

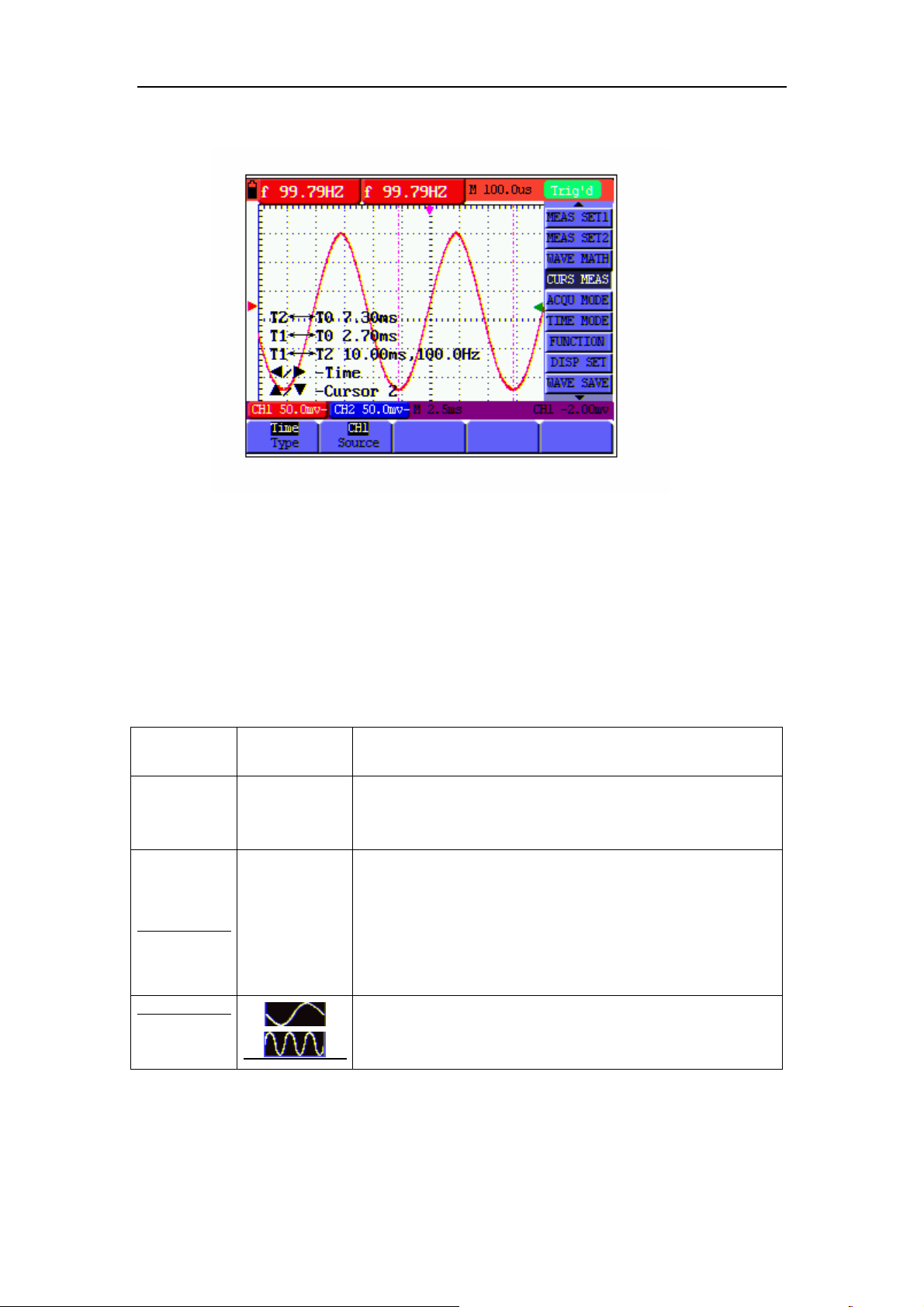

8.11 Setting the Cursor Measurements····················································································５１

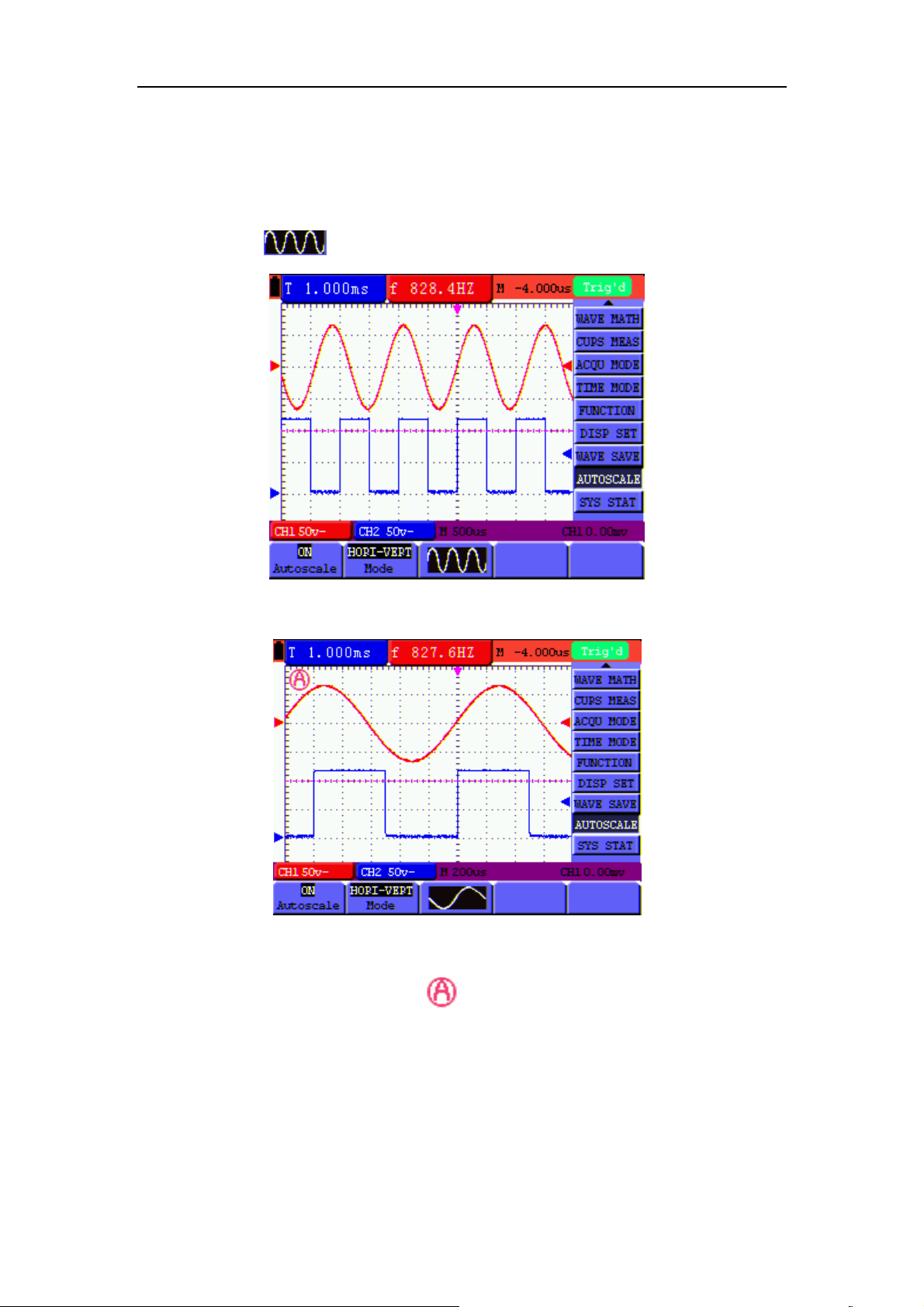

8.12 Autoscale ····························································································································５３

FIGURE 52: AUTOSCALE HORIZONTAL- VERTICAL

MULTI-PERIOD WAVEFORMS·····················································５４

OWON HDS Series Handheld DSO & DMM Contents

8.13 System State Menu············································································································５５

8.14 Setting of Time Base Mode ·······························································································５６

8.15 Data Transmission·············································································································５７

9.TROUBLE SHOOTING······································································ 58

10.APPENDIX·························································································· 59

10.1 Appendix a Specifications·····································································································59

10.1.1 Oscilloscope ···············································································································59

10.1.2 Meter ···························································································································61

10.1.3 General Specifications·······························································································62

10.2 Appendix B: Maintenance and Cleaning ············································································63

10.2.1 Common Maintenance······························································································63

10.2.2 Storage of Oscilloscope·····························································································64

10.2.3 Replacing the Lithium Battery Unit···········································································64

OWON HDS Series Handheld DSO & DMM 1-Declaration of Conformity

1.Declaration of Conformity

1.1 Declaration of Conformity

HDS Series Handheld Digital Storage Oscilloscope & Multimeter

Manufacturer: Fujian Lilliput Optoelectronic Technology Co., Ltd.

Statement of Conformity Base on the result using appropriate standards, the product is in conformity with Electromagnetic Compatibility Directive 2004/108/EC Low Voltage Directive 2006/95/EC

Sample tests Standards used: EN61010-1：2001（2nd edition） Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory use-part 1:General Requirements

EN61326-1：2006 Electrical Equipment for Measurement, Control and Laboratory use-EMC Requirements-part 1. General Requirements

EN61000-3-2：2006 Electromagnetic Compatibility(EMC)-part 3:Limits-Section 2:Limits for Harmonic Current Emissions (Equipment Input Current less than/equal to 16A per phase)

EN61000-3-3：2008 Electromagnetic Compatibility (EMC)-part 3:Limits-Section 3 Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply systems for Equipment with Rated Current less than or equal to 16A

The tests have been performed in typical configuration. This conformity is indicated by the symbol CE, i.e."Conformite Europeenne".

OWON HDS Series Handheld DSO & DMM 1-Declaration of Conformity

1.2 Package Contents

See the picture below. This picture is only for your reference. If any discrepancy

found between certain picture and product, please look the actual product.

# Description Standard Optional

1 Oscilloscope and Battery ●

2 Battery Charger ●

3 Oscilloscope Probe x 2 (grey) ● 4 Multimeter test lead x 2 (black and red) ●

5 Extension module for big current measurement ●

6 Module for small capacitance measurement ●

7 Probe adjustment tools ●

USB communication cable or RS-232C

communication cable

9 User Manual ●

10 CD-ROM (software) ●

11 Hard carrying case ●

12 Soft carrying case ●

5v output cable with a frequency of 1 kHz as the

test-signal(Only for the HDS1022M .)

●

figure 1: Digital Oscilloscope Parts

OWON HDS Series Handheld DSO & DMM 2-Safety Information

gh Voltage

2.Safety Information

In order to ensure the correct using and the best efficient service, please carefully read this user’s

manual.

2.1 Safety Terms and Symbols

2.1.1 Safety Symbols

These symbols may appear in this manual or on the instrument.

Warning: “Warning” identifies conditions and actions that pose hazards

to the users.

Caution: “Caution” identifies conditions and actions that may damage the product or

other properties.

DANGER:

Refer to the

Manual

Protective

Conductor

Terminal

Chassis Ground

Earth (ground)

Terminal

2.1.2 Safety Terms.

The following terms may appear on the instrument:

Danger: The term “Danger” is used in this manual to indicate that when you read this

mark, personal injury may be caused to you immediately.

Warning: The term “Warning” is used in this manual to indicate that when you read this

mark, personal injury may not be caused to you immediately, but you need to

be cautionary.

Notice: The term “Notice” is used in this manual to indicate that damages may be

caused on this product or other properties.

2.2 General Safety Information

Carefully read the following safety information in order to avoid any personal injury and damage

on this product or any products connected with it. This product can only be used in the specified

OWON HDS Series Handheld DSO & DMM 2-Safety Information

applications to prevent any possible dangers.

Warning:

To avoid fire or electrical shock, please use proper power adapter. Use only the power

adapter appointed by the manufacturer and subject to approval of being used in the user’s

country.

War ning:

The two channels of the oscilloscope are non-isolated electrically. The channels should adopt

common basis during measuring. To prevent short circuits, the 2 probe ground must not be

connected to 2 different non-isolated DC level.

War ning:

The channels should adopt common basis during measuring. To prevent short circuits, the 2

probe ground must not be connected to 2 different non-isolated DC level. The diagram of the

oscilloscope ground wire connection:

It is not allowed to measure AC power when charging the oscilloscope with adapter.

Warning:

To avoid fire or electrical shock if a test tool input is connected to more 42V peak (30Vrms)

or on circuits of more than 4800VA:

● Use only insulated voltage probes, test leads and adapter supplied with the test tool, or

indicated by OWON as suitable for the Oscilloscope & Multimeter.

● Before use, inspect voltage probes, test leads and accessories for mechanical damage and

replace when damaged.

● Remove all probes, test leads and accessories that are not in use.

● Always connect the power adapter first to the AC outlet before connecting it to the

Oscilloscope & Multimeter.

● Do not apply voltages that differ more than 400 V from earth ground to any input when

measuring in a CAT Ⅱ environment.

● Do not apply voltages that differ more than 400 V from each other to the isolated inputs

when measuring in a CAT Ⅱ environment.

● Do not apply input voltages above the rating of the instrument Use caution when using

1:1 test leads because the probe tip voltage will be directly transmitted to the

Oscilloscope & Multimeter.

OWON HDS Series Handheld DSO & DMM 2-Safety Information

● Do not use exposed metal BNC or banana plug connectors.

● Do not insert metal objects into connectors.

● Always use the Oscilloscope & Multimeter only in the manner specified.

● Voltage ratings that are mentioned in the warning are giver as limits for “working

voltage”. The represent V ac rms (50-60Hz) for AC sine wave applications and as V dc for DC applications. Overvoltage Category Ⅱ refers to local level , which is applicable

for appliances and portable equipment .

Only qualified technical personnel are permitted to perform maintenance.

Pay attention to the nominal values of all terminals: To avoid fire or electric shock, please keep

a watchful eye on all nominal values and marks specified for this product. Before any connection

performed on this product, carefully read the user’s manual of the product for further information

of nominal values.

No operation is allowed without the instrument cover plate: If the cover plate or panel has

been removed, do not perform any operation on this product.

No touch is allowed on bare conductors: When the product is powered on, do not touch any bare

joints or parts of the scope meter.

Operation is prohibited in case of any undetermined failure: When in doubt any damage on

this product, consult the qualified personnel for checking on it.

Keep ventilation in good condition: Refer to the user manual for detail installation instructions

in order to fix this product correctly and provide it with good ventilation conditions.

No operation is allowed under a humid environment.

No operation is allowed under an explosive environment.

Keep clean and dry on the product surface.

The method which stipulated according to the factory does not use the equipment, possibly can

damage the protection which the equipment provides.

OWON HDS Series Handheld DSO & DMM 3-General Characteristics

3. General Characteristics of the HDS

Series Oscilloscope

 Record length of 6,000 points for each channel;  Reading-out with the cursor;  Twenty automatic measurement functions;  Autoscale function;  Color liquid crystal display of high resolution and high contrast with

adjustable back light;

 Storage and call-out of waveforms;  Automatic setting function provided capable of fast setting;  Multiple-waveform calculation function;  Implementation of detecting the average and peak values of the waveform;  Edge and video triggering function;  RS232 or USB communication ports;  Multiple Language User Interface

OWON HDS Series Handheld DSO & DMM 4-Performing the General Inspection

4.Performing the General Inspection

4.1 Performing the General Inspection

When you have got a new HDS series oscilloscope, it is suggested that you should perform a

general inspection on the instrument according to the following steps.

4.1.1 Check whether there is any Damage on it Due to Transportation

If the packing boxes or foam cushions are found in serous damage, keep them in a proper place till

the complete instrument and accessories have passed the electrical and mechanical tests.

4.1.2 Make a Check on Accessories

The accessory list has been described in the picture of Digital Oscilloscope Parts of this manual.

You can make a check and find whether there is any accessory loss with reference to the

Appendix. In case of any accessory loss or damage, consult the OWON dealer responsible for

such a business or the local office of OWON.

4.1.3 Make a Check on the Complete Instrument

If the instrument is damaged in its appearance or it fails in normal operation or performance test,

consult the OWON dealer responsible for such a business or the local office of OWON. If the

instrument is damaged due to transportation, keep the packing in a proper place and consult the

transportation department and the OWON dealer responsible for such business, who will provide

an instrument replacement or maintenance.

OWON HDS Series Handheld DSO & DMM 5-Input Connections

5.Input Connections

5.1 Input Connections

See the following figure 2:

figure 2

Description:

1. The power adapter is supplied for AC power supply and battery recharging.

2. Multimeter test lead.

3. Multimeter input jacks, including three circular banana jacks and tow square jacks.

The three circular jacks are used for voltage, current and resistance inputs, while

the two square jacks are used for capacitance inputs.

OWON HDS Series Handheld DSO & DMM 5-Input Connections

4. Oscilloscope probes.

5. Oscilloscope channel inputs: the upper one is for Channel 1 (CHI1), while the lower one is for

Channel 2 (CH2).

5.2 Description for Front Panel and Keys

See the following figure 3:

figure 3

Description:

1. Power adapter jack.

2. Serial port.

3. USB jack.

OWON HDS Series Handheld DSO & DMM 5-Input Connections

4. Backlight switch .

5. POWER: Power switch.

6. A: Multimeter current measurement key.

7. V: Multimeter voltage measurement key.

8. R: Multimeter resistance, triode, On/Off and capacitance measurement key.

9. OSC ◄: Oscilloscope left-direction adjustment key.

10. OSC ►: Oscilloscope right-direction adjustment key.

11. OSC OPTION: Oscilloscope setting key. z With the combination application of the four keys OSC ◄, OSC ►, OSC ▲ and OSC ▼, the

users can make the following settings circularly by pressing OSC OPTION. The settings

include: Voltage Unit Scale of Channel 1 (CH1 VOL); Voltage Unit Scale of Channel 2 (CH2

VOL); Primary Time base (TIME BASE), zero point position of channel 1(CH1 ZERO), zero

point position of channel 2(CH2 ZERO), trigger horizontal position (TIME) and trigger level

position (TRIG).

z When performing Waveform Calculation, the users can also adjust and calculate the Display

Multiplying Factor of waveform (CHM VOL) and the vertical display position (CHM ZERO).

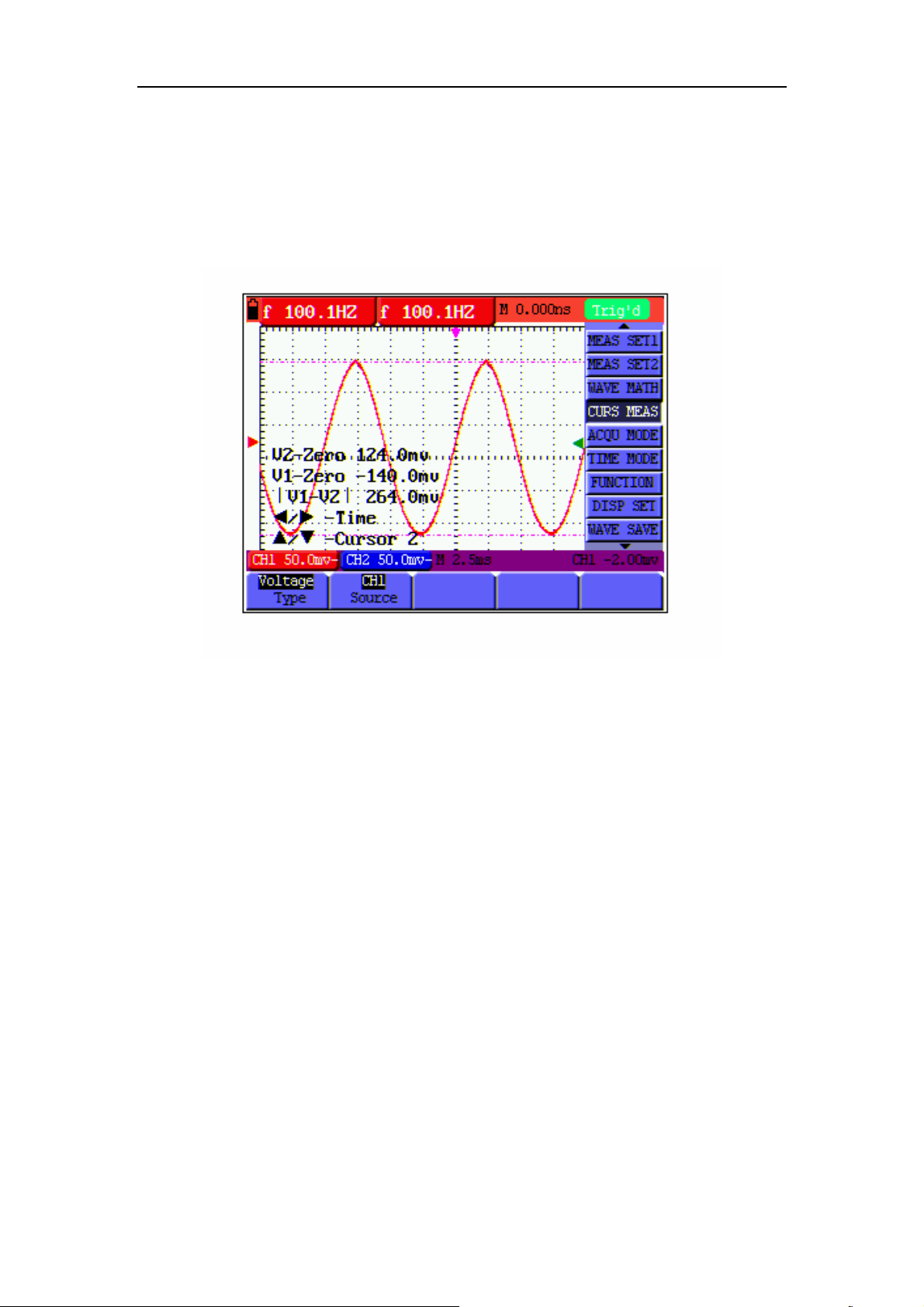

z In cursor measurement mode, the users can adjust the positions of Cursor 1 (V1 or T1) and

Cursor 2 (V2 or T2).

12. OSC ▼: Oscilloscope display downward adjustment key.

13. OSC ▲: Oscilloscope display upward adjustment key.

14. OSC/DMM: Operation mode switching key between oscilloscope and multimeter.

15. AUTO SET: z Under the Multimeter Mode, when performing the current or voltage measurement, you can

make a measurement switch between AC and DC with this key pressed; when performing the

resistance measurement, you can select resistance, diode, On/Off or capacitance measurement

circularly with this key.

z While this key is used for auto setting under the oscilloscope operation mode.

16. RUN/STOP: key for running or stopping the operation.

17. MENU ▼: Choose the lower item on the menu list.

18. MENU: Show / Hide the menu

19. MENU ▲: Choose the upper item on the menu list.

20. F1～F5: Switch or Adjust options for each menu.

21. the 5v output port with a frequency of 1 kHz as the test-signal.(only for the HDS1022M )

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

6.Using the Scope

6.1 About this Chapter

This chapter provides a step-by-step introduction to the scope functions. The introduction does not

cover all of the capabilities of the scope functions but gives basic examples to show how to use the

menus and perform basic operations.

6.2 Power-Up the Oscilloscope

Connect oscilloscope to AC power via a power adapter as shown in Figure 1. (The oscilloscope

may still work with built-in Li-ion battery even without AC power supply)

Turn the oscilloscope on by pressing down the power on/off key POW.

The instrument then performs self checking after power on. A greeting window and a sentence “press any key to continue……” will display on the screen when the system finishes self

checking.

The users can press any key to enter the measuring function.

The oscilloscope is powered up in its last setup configuration.

6.3 Oscilloscope Operation Window

See the following figure 4:

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

figure 4: Oscilloscope Operation Window

Description:

1. Battery electric quantity indicating symbols, including , , and .

2. Auto measurement window 1, in which “f ”means frequency, “T” means cycle, “V” means

the average value, “Vp” the peak-peak value ,“Vk” the root-mean-square value,. “MAX” the

maximum amplitude value, “MIN” the minimum amplitude value, “VT” the Voltage value of the waveform‟s flat top value, “VB” the Voltage value of the waveform’s flat base, “AMP”

the amplitude value, “OS” the overshoot value, “PS” the Preshoot value, “RT” the rise time

value, “FT” the fall time value, “NW” the +width value, “PW” the -Width value, “+D” the

+Duty value, “-D” the -Duty value, “PD” the DelayA

DelayA

B value.

B value and “ND” the

3. Auto measurement window 2.

4. The pointer indicates the horizontal triggering position.

5. This reading gives the Time Difference between the horizontal triggering position and the

screen centerline. It reads zero when the pointer is in the center of the screen.

6. The trigger state indicates the following information.

Auto: The oscilloscope is working in the automatic mode and displaying the waveform

under the non-trigger state.

Trig’d: The oscilloscope has detected a trigger and collecting the information generated

after the trigger.

Ready: All pre-triggered data have been captured and the oscilloscope has been ready to

receive trigger signals.

Scan: The oscilloscope can gather and display the waveform data continuously in scanning

mode.

Stop: The oscilloscope has stopped collecting the waveform data.

7. The green pointer shows the trigger voltage level.

8. A hidden-style menu: With the MENU key pressed, you can view or hide the menu.

9. Menu setting options: There are different setting options for different menus.

10. It reads the value of trigger voltage level.

11. The display shows the trigger signal source.

12. The reading gives the value of primary time base.

13. These graphics present the coupling modes of channel 2(CH2). The graphic “～” indicates

AC, the graphic “－” indicates DC.

14. This reading shows the vertical Voltage Unit Scale of CH2.

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

15. These graphics show the coupling mode of CH1, among which the graphic “～” express

indicates AC, the graphic “－” indicates DC.

16. This reading shows the vertical Voltage Unit Scale of CH1.

17. The blue pointer gives the grounding datum point of the waveform on CH2, which is the zero

position of CH2. No display of this pointer indicates that the channel has not been opened.

18. OSC OPTION operation prompt: There are different prompts for different OSC OPTION

operations.

19. The red pointer gives the grounding datum point of the waveform on CH1, which is the zero

position of CH1. No display of this pointer indicates that the channel has not been opened.

20. Waveform display area. Red waveform represent CH1, blue waveform represent CH2.

6.4 Navigating a Menu

The following example shows how to use the tool’s menus to select a function, as shown in the

following figure.

1. Press the MENU key to display the Function Menu on the right of the screen and the

corresponding optional settings on the bottom. Press MENU again will hide the Function

Menu.

2. Press the MENU ▲ or MENU ▼ key to select different function menus.

3. Choose one key from F1 to F5 and press it to change function setting.

See the following figure 5:

figure 5: the Tool’s Menus

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

6.5 Manually Setting the Vertical System, Horizontal System and Trigger Position

With the combination application of the four keys OSC ◄, OSC ►, OSC ▲ and OSC ▼, the

users can make the following settings circularly by pressing OSC OPTION. The settings include:

Voltage Unit Scale of Channel 1 (CH1 VOL); Voltage Unit Scale of Channel 2 (CH2 VOL);

Primary Time base (TIME BASE), zero point position of channel 1(CH1 ZERO), zero point

position of channel 2(CH2 ZERO), trigger horizontal position (TIME) and trigger level position

(TRIG).

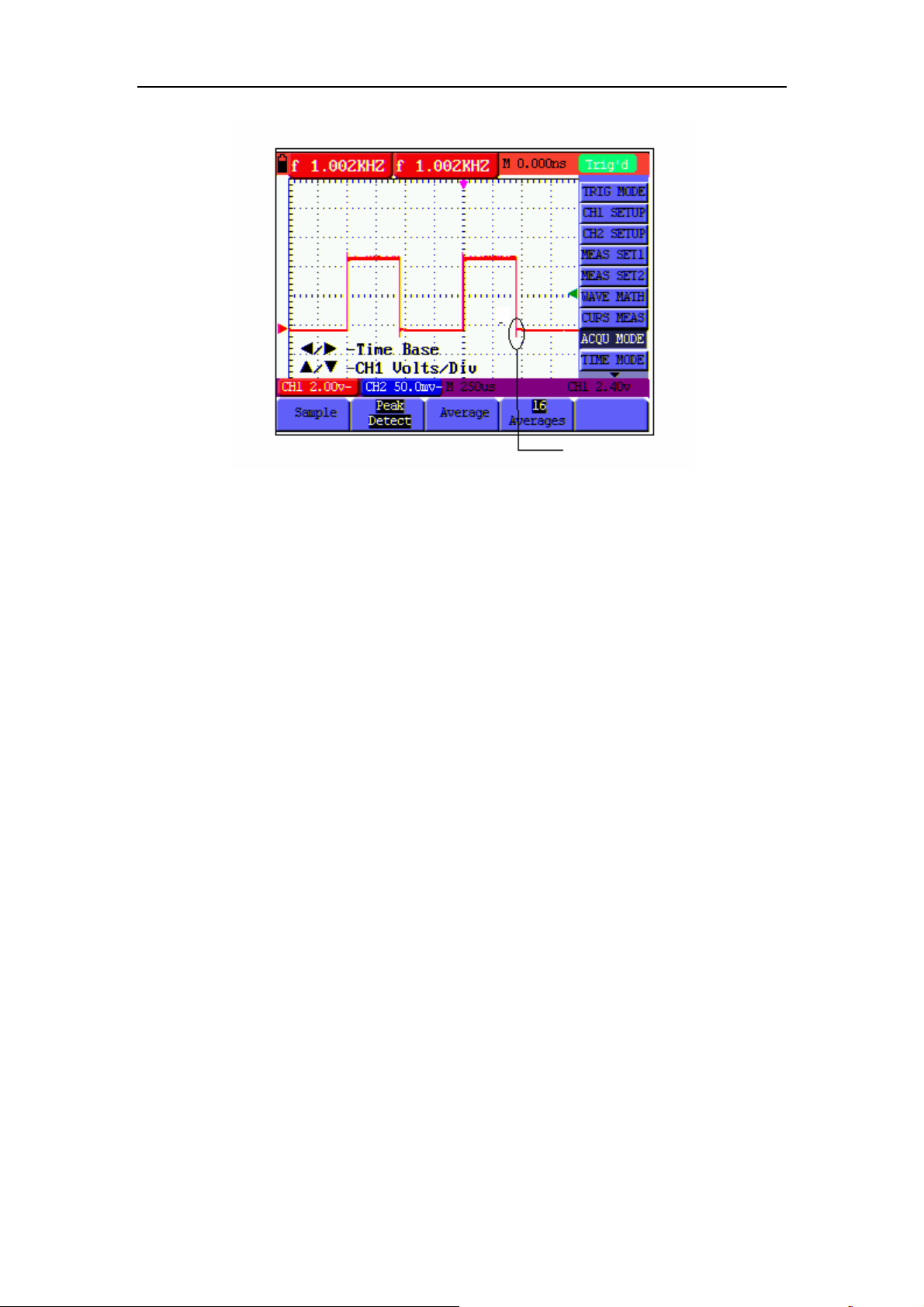

The following example shows how to use OSC OPTION key to make a setting.

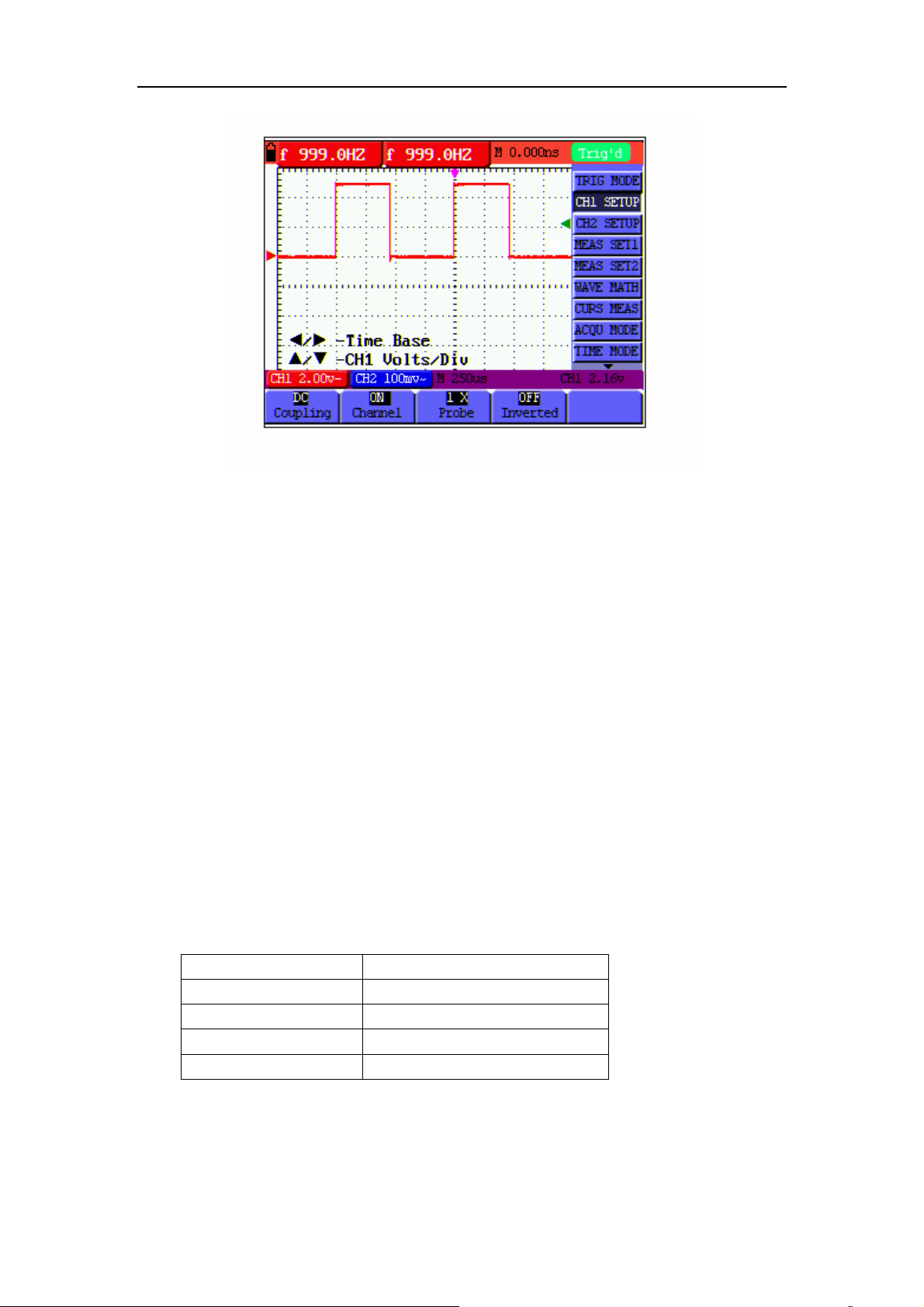

1. Press once the OSC OPTION key; the following is displayed at the bottom left side of the

screen, as shown in the figure below.

◄/► – Time Base

▲/▼ – CH1 Volts/Div

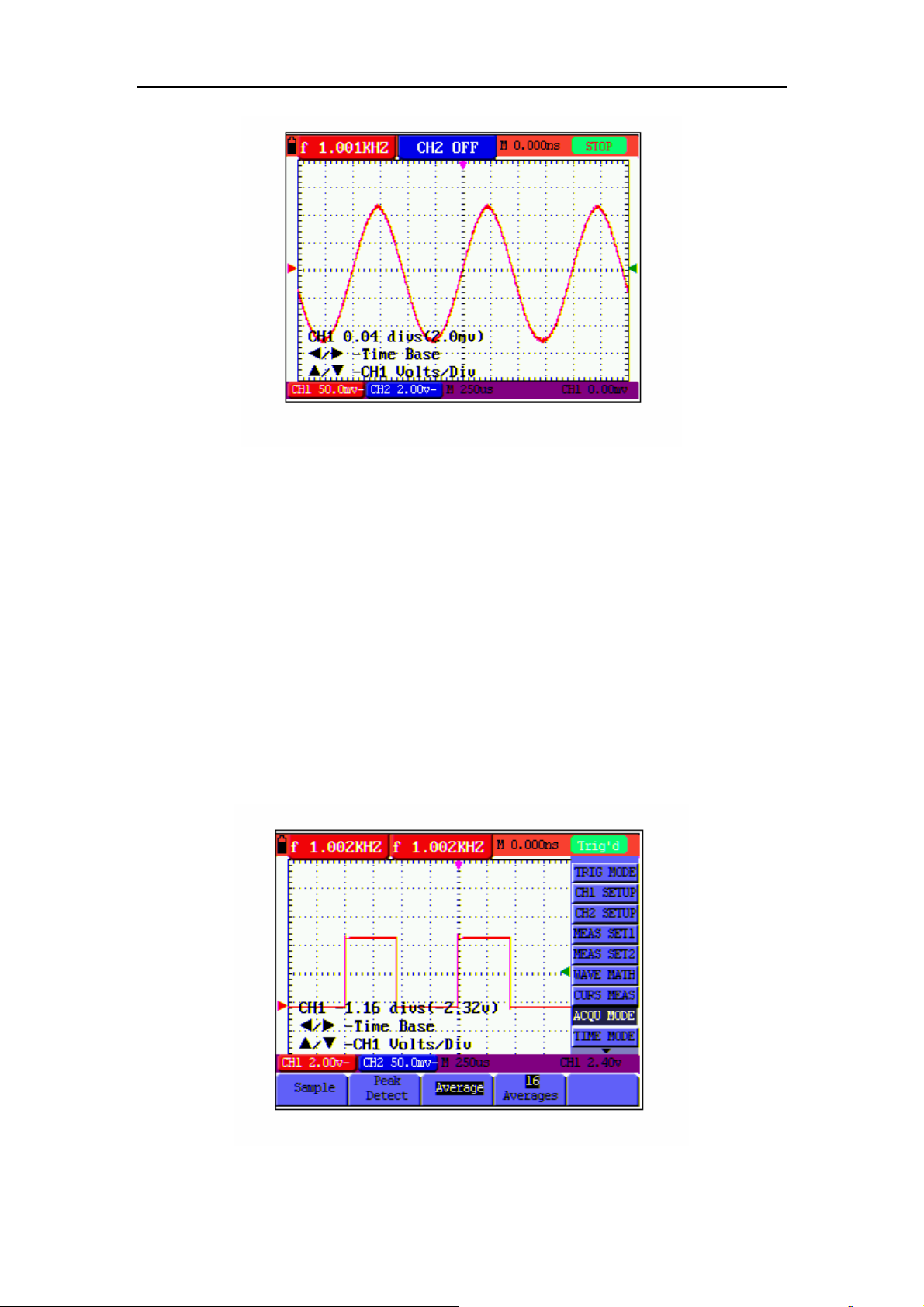

See the following figure 6:

figure 6: Voltage Unit Scale of Channel 1

2. Press the key OSC ▲ or OSC ▼ to adjust the vertical scale of Channel 1 and press OSC

◄or OSC ► to adjust the horizontal time scale.

3. Press OSC OPTION once again, the following display is visible at bottom left side of the

screen, as shown in the following figure.

◄/► – Time Base

▲/▼ – CH2 Volts/Div

See the following figure 7:

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

figure 7: Voltage Unit Scale of Channel 2

4. Press the OSC ▲ or OSC ▼ key to adjust the vertical scale of Channel 2 and press the

OSC◄ or OSC ► key to adjust the horizontal time scale.

5. Press the OSC OPTION key one more time, and the following display is visible at the

bottom left side of the screen, shown as the following figure.

◄/► – Time

▲/▼– CH1 Zero

See the following figure 8:

figure 8: Zero Point Position of Channel 1

6. Press OSC ▲ or OSC ▼ key to adjust the zero position of Channel 1 in vertical direction

and press OSC ◄ or OSC ► key to adjust the horizontal position.

7. Again, press OSC OPTION key and the following appears at the bottom left side of the

screen, shown as the following figure.

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

◄/► – Time

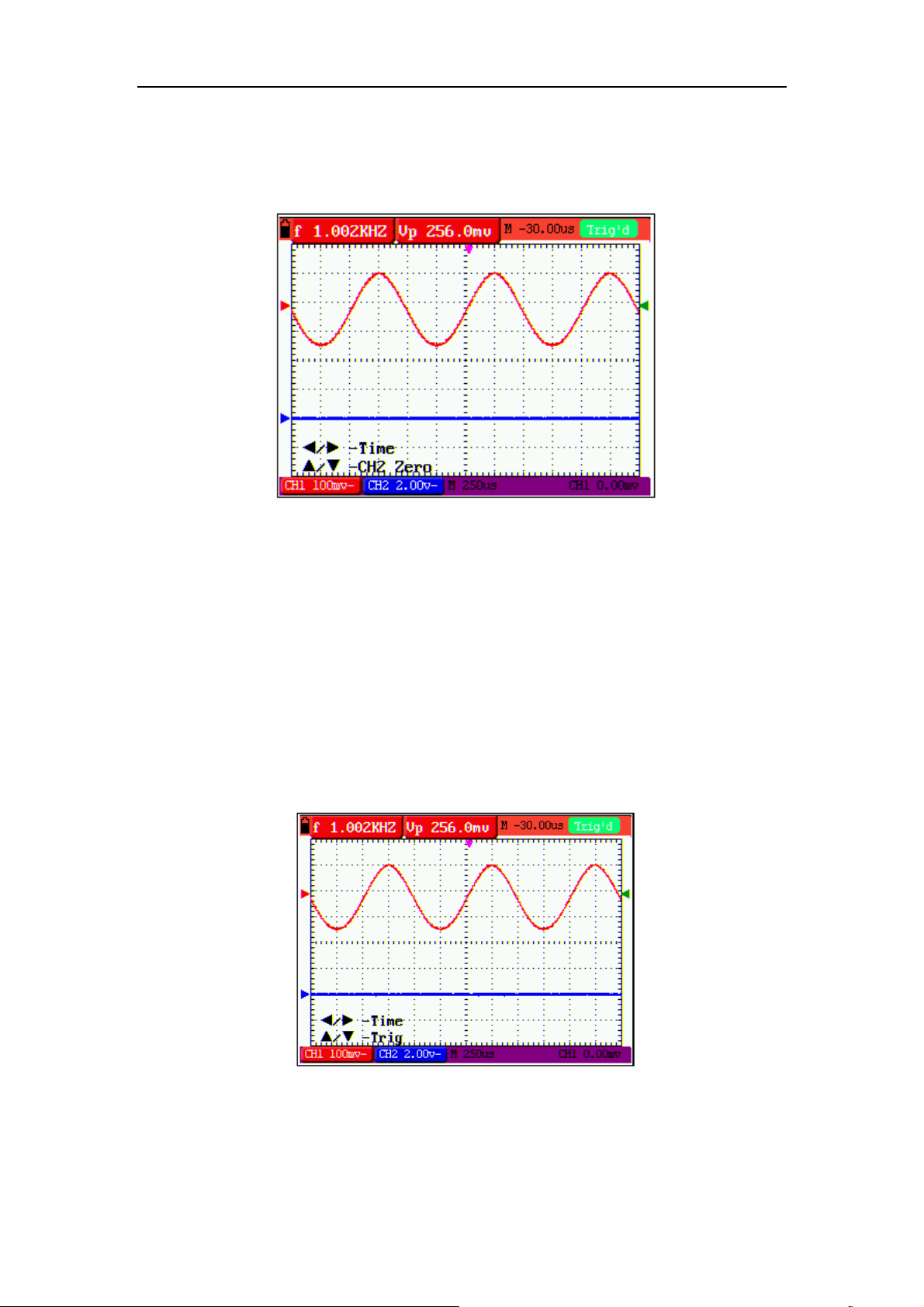

▲/▼ – CH2 Zero See the following figure 9:

figure 9: Zero Point Position of Channel 2

8. Press the OSC ▲ or OSC ▼ key to adjust the zero position of Channel 2 in the vertical

direction and press OSC ◄ or OSC ► key to adjust the horizontal position.

9. Press OSC OPTION key once more and the following appears at the bottom left of the

screen, shown as the following figure.

◄/► – Time

▲/▼ – Trig See the following figure 10:

figure 10: Trigger Level Position

10. Press the OSC ▲ or OSC ▼ key to adjust the trigger position of Channel 2 and press OSC

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

◄ or OSC ► key to adjust the horizontal position.

11. Press the OSC OPTION key again and return back to step 1.

Term interpretation

z Vertical scale factor: It stands for the voltage amplitude represented by a division in the

vertical direction of the display area, through the adjustment of which you can amplify or

attenuate the signal and thus regulate the signal amplitude into the expected measurement

range.

z Vertical zero position: It is referred to as the grounding datum point, through the adjustment

of which you can regulate the display position of the waveform on the screen.

z Primary time base: It means the time values represented by a division in the horizontal

direction of the display area.

z Trigger horizontal position: It means the time deviation between the actual trigger point and

the screen central line, which will be displayed as 0 at the center point of the screen.

z Trigger level position: It represents the voltage deviation between the actual trigger level and

the zero position of the triggering signal source channel.

6.6 Resetting the Oscilloscope

If you want to reset the Oscilloscope to the factory settings, do the following:

1. Press MENU key and the function menu appears on the right side of the screen

2. Press the MENU ▲ or MENU ▼ key to select function setting and three options are visible

at the bottom of the screen.

3. Press F1 key to select the factory settings. The oscilloscope is set to be the factory settings.

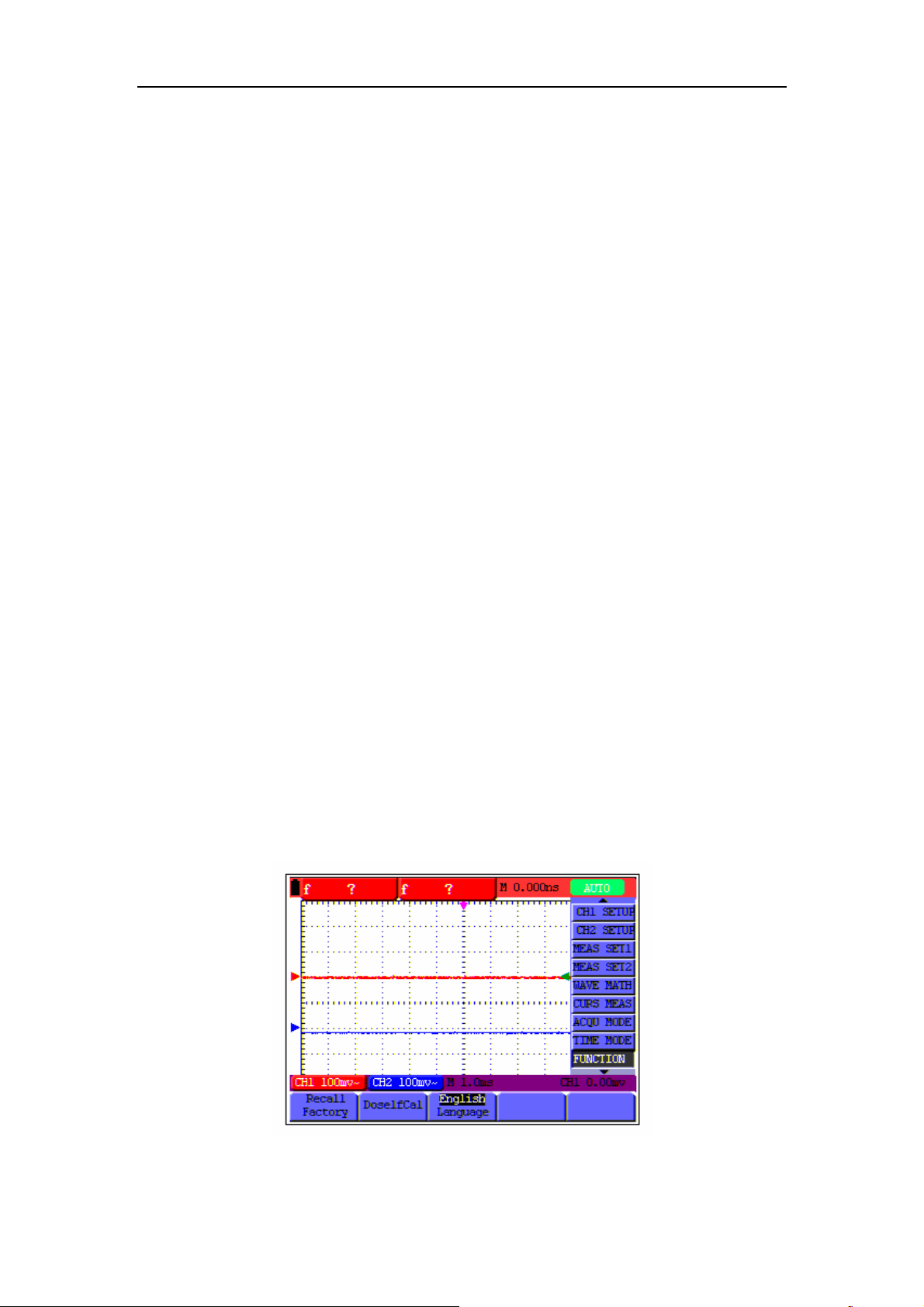

See the following figure 11:

figure 11: Reset the Oscilloscope

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

6.7 Input Connections

See figure 2.

Look at the bottom and the right of the Oscilloscope. The Oscilloscope has seven signal inputs:

two safety BNC jack inputs (CH1 and CH2) for scope measurements, three safety 4-mm banana

jack inputs for Multimeter R, V and A measurements, and two quadratic jack inputs for

Multimeter capacitance measurements.

Isolated input allows independent floating measurements between Multimeters and Scopes.

6.8 Displaying an Unknown Signal with Auto Set

The Auto-Set feature lets the Oscilloscope display and measure unknown signals automatically.

This function optimizes the position, range, time base, triggering and assures a stable display of

virtually any waveform. . This feature is especially useful for quickly checking several signals.

To enable the Auto-Set feature, do the following:

1. Connect the test probe to the tested signals.

2. Press the AUTO SET key and the Oscilloscope is under the automatic measurement

condition. The tested signals appear on the screen.

6.9 Automatic Zero-returning of Trigger Horizontal Position and Trigger Level Position

When we adjust the trigger horizontal position and trigger level position to be maximal to make it off the screen center remotely, then we perform the following steps to make trigger horizontal position and trigger level position return to zero automatically.

1. Press OSC ◄ key and OSC ► key simultaneously, the trigger horizontal position

automatically returns to zero.

2. Press OSC ▲key and OSC ▼key simultaneously, the trigger level position automatically

returns to zero.

6.10 Automatic Measurements

The Oscilloscope offers 20 types of automatic scope measurements. Your can display two numeric

readings: measurement 1 and measurement 2. These readings are selectable independently, and

the measurements can be done on the input CH1 or input CH2 waveform.

To choose a frequency for CHI1, do the following:

1. Press MENU key and the function menu appears on the right side of the screen.

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

2. Press MENU ▲ or MENU ▼ key to select measurement 1. Five items selectable are

visible at the bottom of the screen.

3. Press F1 key and select Freq CH1 from the mean square root value item. The

measurement 1 window turns its color into red and shows the frequency for input CH1.

To choose a Peak-Peak measurement for Input CH2, do the following:

1. Press MENU key and the function menu is displayed on the right side of the screen.

2. Press MENU ▲ or MENU ▼ key and select measurement 2, with 5 items selectable

displayed at the bottom of the screen.

3. Press F4 key to select PK-PK CH2 from Peak-Peak item. The measurement 2 window

turns its color to be blue and shows the peak-peak value for input CH2.

See the following figure 12:

figure 12: Automatic Scope Measurements

6.11 Freezing the Screen

You can freeze the screen (all readings and waveforms)

1. Press the RUN/STOP key to freeze the screen and STOP appears at top right side of the

screen.

2. Press the RUN/STOP key once more to resume your measurement.

See the following figure 13:

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

figure 13: Freezing the Screen

6.12 Using Average for Smoothing Waveforms

To smooth the waveform, do the following:

1. Press the MENU key and the function menu appears on the right side of the screen.

2. Press MENU ▲ or MENU ▼ key to select ACQU mode, with four items selectable

displayed at the bottom of the screen.

3. Press the F3 key to select Average Factors, then, press F4 key to jump to Averaging 16

item. This averages the outcomes of 16 acquisitions and shows the final averaging result on

the screen, shown as the following figures. See the following figure 14:

figure 14: Average Factor Sampling Mode

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

6.13 Using Persistence to Display Waveforms

You can use Persistence to observe dynamic signals.

1. Press MENU key and the function menu appears on the right side of the screen.

2. Press MENU ▲ or MENU ▼ key to select DISP SET. Four items selectable are displayed

at the bottom of the screen.

3. Press F2 key to select Persist 1 sec, 2 sec, and 5 sec, infinite or close. In this case, jump to

Infinite and the observed dynamic is kept on the screen continuously. When the item Close

is selected, the Persistence function is closed.

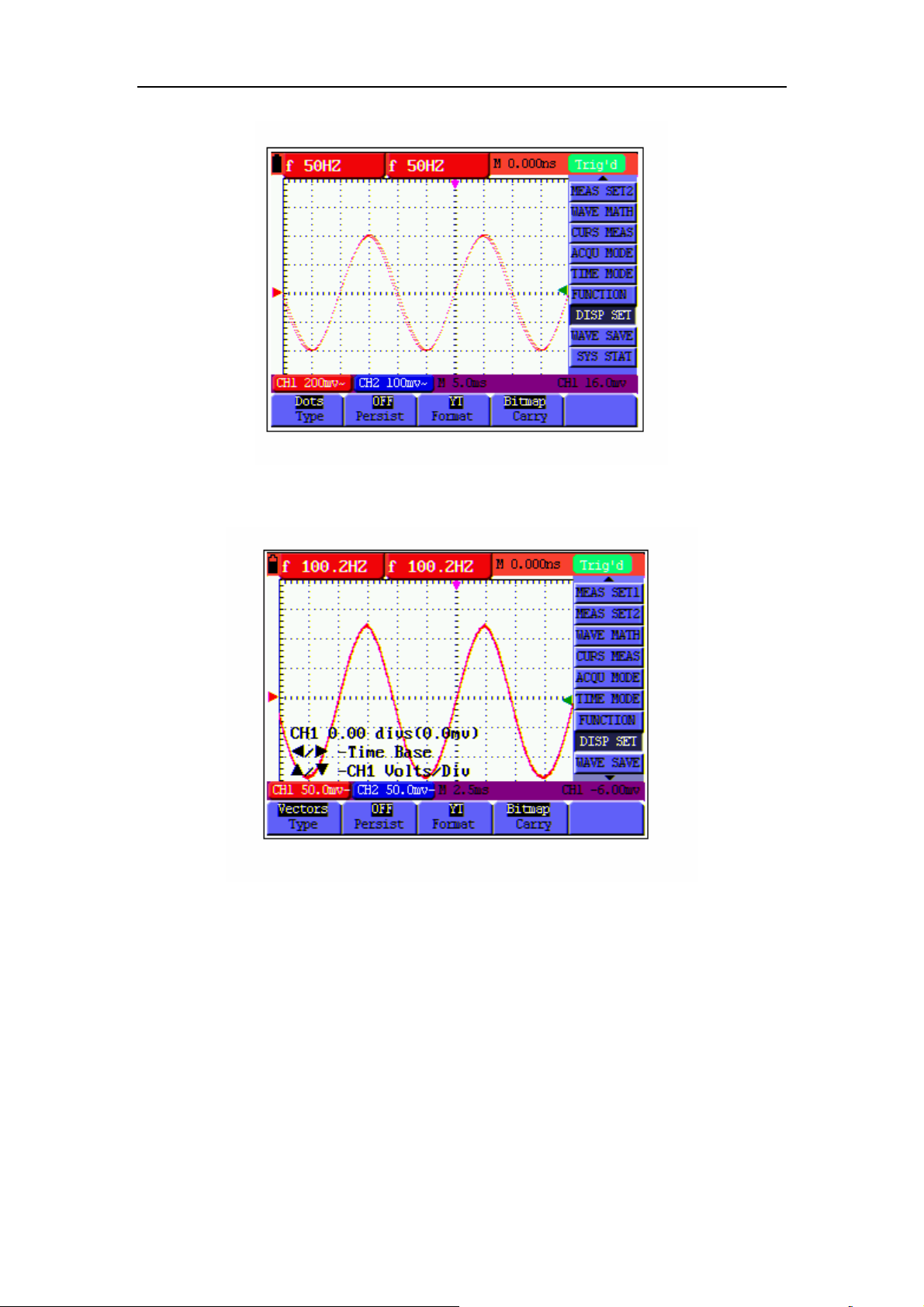

Look at the display, a screen like the following figure 15 can be shown.

figure 15: Persistence to Observe Dynamic Signals

6.14 Using Peak Detection to Display Glitches

You can use this function to display events (glitches or other asynchronous waveforms) of 50 ns

or wider.

1. Press MENU key and the function menu appears at the right side of the screen.

2. Press MENU ▲ or MENU ▼ key to select the ACQU MODE. Four items selectable are

displayed at the bottom of the screen.

3. Press F2 key and jump to Glitch Detect. In this case, you can test the glitch.

Now, you can see a screen that looks like the following figure 16.

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

figure 16: Peak Detection

Term interpretation

Collecting mode: The oscilloscope transforms the collected analog data into a digital form after

they are gathered in the following three different modes, such as sampling, peak value detection

and averaging values.

Sampling: The oscilloscope takes samples from the signal at a equal time interval to reconstruct

the waveform in this mode, by which the analog signal can be expressed correctly in most cases,

yet, the rapid changes can not be collected between two sampling time intervals, causing the

confusion and loss the narrow pulse in the signal probably.

Peak value detection: The oscilloscope takes samples from the maximum and minimum of

signals in each sampling interval and shows the waveform with the sampled data in this mode,

thus, by which the oscilloscope may collect the possibly lost narrow pulse in the sampling mode

but the noise is obvious.

Averaging values: the oscilloscope collects several waveforms and average over them, and

displays the averaged waveform in this mode, by which the random noise can be reduced.

Duration time: When a new waveform is displayed, the previous waveform shown on the screen

does not disappear immediately only to be displayed for a period of time, that is, the duration time,

by setting which, the waveform can be displayed more continuously and thus a display similar to

that shown by the analog oscilloscope can be achieved.

Roll scan mode: The oscilloscope updates the waveform sampling points by scrolling display

through a screen from left to right in this mode, which is only applicable to the primary time base

setting of above 50ms.

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

6.15 Selecting AC-coupling

After a reset, the Oscilloscope is dc-coupled so that ac and dc voltages appear on the screen, Use

ac-coupling when you wish to observe a small ac signal that rides on a dc signal. To select

ac-coupling, do the following:

1. Press MENU key and the function menu appears at the right side of the screen.

2. Press MENU ▲ or MENU ▼ key to select the CH1 Setting. Four items selectable are

visible at the bottom of the screen.

3. Press the F1 key and jump to AC. The bottom left side of the screen displays the

ac-coupling icon.

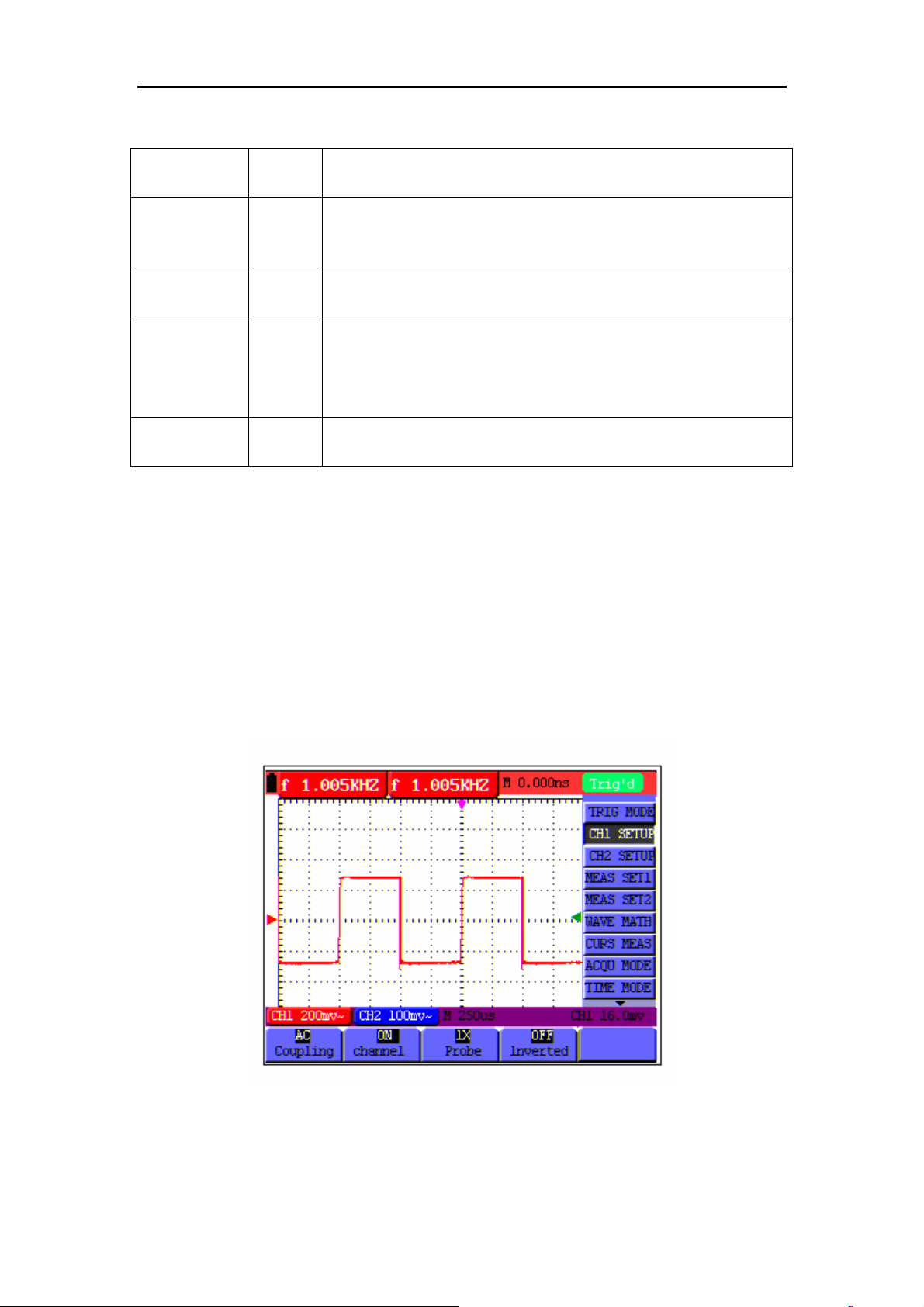

Now, you can see a screen that looks like the following figure 17.

figure 17: AC-Coupling

6.16 Reversing the Polarity of the Displayed Waveform

To invert the input CH1 waveform, do the following:

1. Press the MENU key and the function menu appears at the right side of the screen.

2. Press the MENU ▲ or MENU ▼ key to select CH1 setting. Four items selectable are

displayed at the bottom of the screen.

3. Press F4 key to jump to Inverted. The inverted waveform of CHI1 is displayed on the

screen.

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

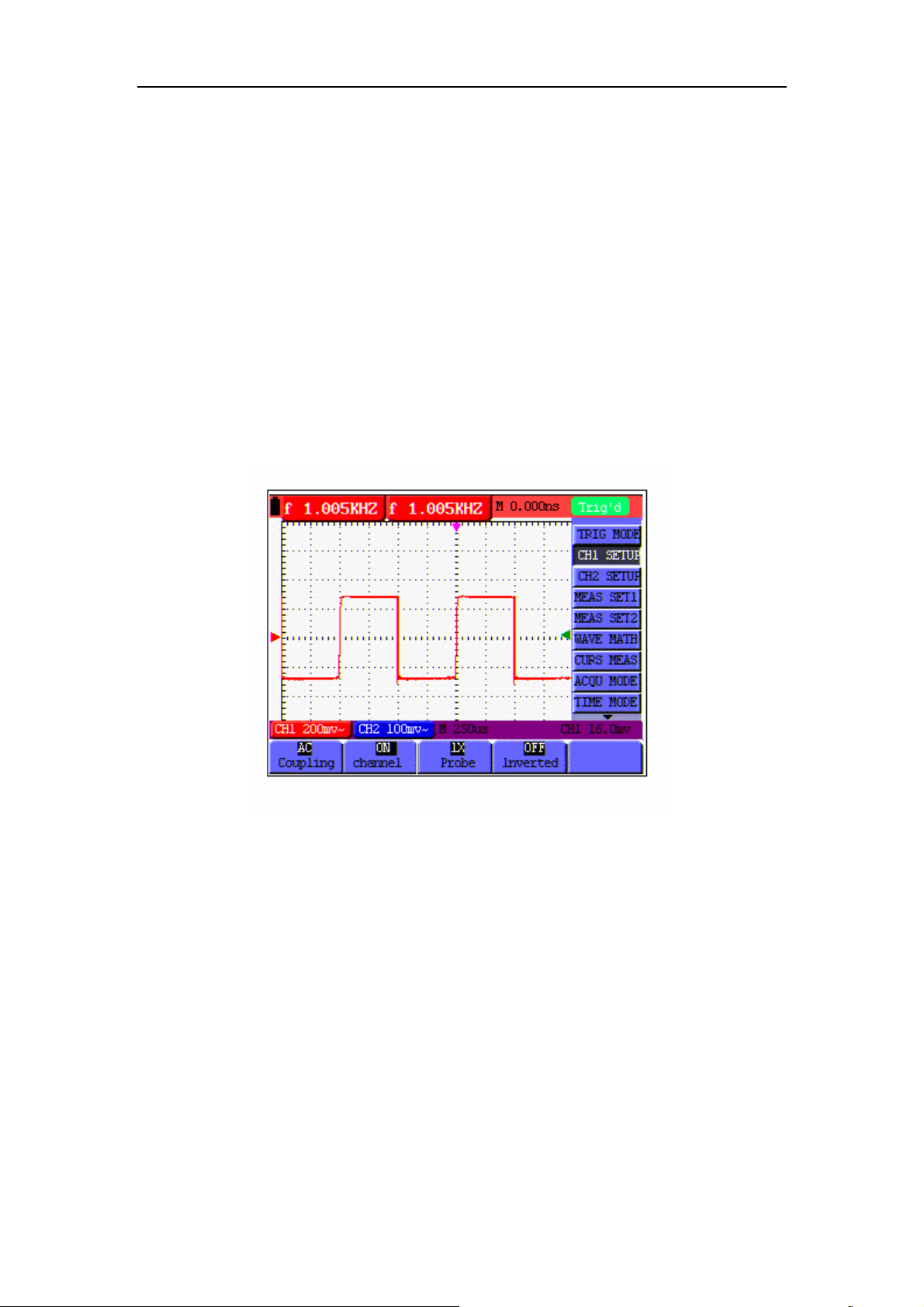

Now, you can see a screen that looks like the following figure 18.

figure 18: Inverted On

6.17 Using Waveform Mathematics Functions

When adding (CH1 + CH2), subtracting (CH1 – CH2, CH2 – CH1), multiplying (CH1 * CH2) or dividing （CH1 / CH2） the input waveforms of CHI and CH2, the Oscilloscope will display the

mathematical result waveform M and the input waveforms of CH1 and CH2 on the screen. The

Mathematics functions perform a point-to-point calculation on the waveforms CH1 and CH2.

To use a Mathematics function, do the following:

1. Press the MENU key and the function menu is displayed at the right side of the screen.

2. Press the MENU ▲ or MENU ▼ key to select the Waveform Calculation. Five items

selectable appears at the bottom of the screen.

3. Press F3 key to select CH1+CH2 and the calculated waveform M (green) appears on the

screen. Again, press the F3 key to close Waveform Calculation.

4. In this case, press the OSC OPTION key and the following is visible at the bottom left side

of the screen.

◄/► Time

▲/▼ CHM Zero

Then, press the OSC ▲ or OSC ▼ key to adjust the vertical position of the calculated

waveform M displayed on the screen.

5. Press the OSC OPTION key and the following appears at the bottom left side of the

screen.

OWON HDS Series Handheld DSO & DMM 6-Using the Scope

◄/► Time Base

▲/▼CHM Volts/Div

Press the OSC ▲ or OSC ▼ key to adjust the displayed amplitude of the calculated

waveform M.

Now, you can see a screen that looks like the following figure 19.

figure 19: Waveform Mathematics

OWON HDS Series Handheld DSO & DMM 7-Using the Multimeter

7.Using the Multimeter

7.1 About this Chapter

This chapter provides a step-by-step introduction to the multi-meter functions of the test tool

hereafter. The introduction gives basic examples to show how to use the menus and perform basic

operations.

7.2 Making Meter Connections

Use the three 4-mm safety banana jack inputs for the Meter functions: COM, V/Ω, mA.

Two quadratic capacitance jacks: CX

See figure 2 for the connections.

7.3 Multimeter Operation Window

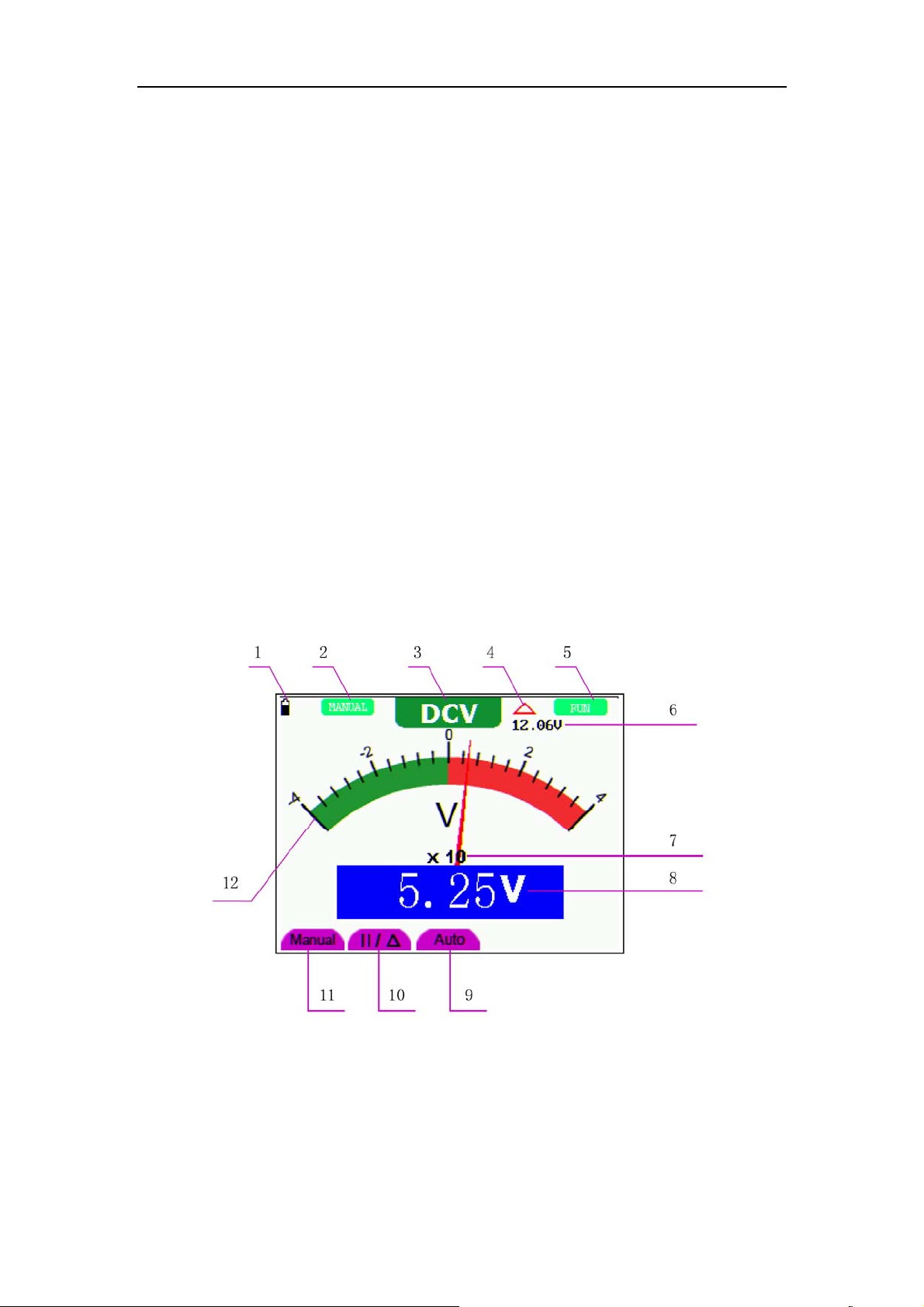

figure 20: Multimeter Operation Window

Description

1. Battery electric quantity indictor.

2. Manual/Auto range indictors, among which the MANUAL means measuring range in manual

OWON HDS Series Handheld DSO & DMM 7-Using the Multimeter

operation mode and Auto refers to the measuring range in automatic operation mode.

3. Measurement mode indicators:

DCV: Direct voltage measurement

ACV: Alternating voltage measurement

DCA: Direct current measurement

ACA: Alternating current measurement

R: Resistance measurement

: Diode measurement

: On/Off measurement

C: Capacitance measurement

4. The relative magnitude measurement indicator.

5. Running state indicators, among which RUN expresses continuous update and STOP

represents the screen locking.

6. The reference value of the relative magnitude measurement.

7. The multiplying power of the dial indication. To multiply the reading of dial pointer by

multiplying power will get the measurement result.

8. The mail reading of measurement

9. Automatic control measuring range.

10. Absolute/ relative magnitude measuring control: The sign “||” expresses the absolute

magnitude measuring control and “ ”△ represents the relative magnitude measuring control.

Manually measuring range control.

11. Manual measurement control.

12. Test lead indicated the scale of test reading, different test modes display different colors.

7.4 Making Multimeter Measurements

Press DMM/OSC key, the oscilloscope will switch to the multimeter measure, the screen will display the multimeter windows, at the same time, prompt to correctly insert testing pen of the multimeter, at this time, then press any key to enter into multimeter measure.

OWON HDS Series Handheld DSO & DMM 7-Using the Multimeter

7.4.1 Measuring Resistance Values

To measure a resistance, do the following:

1. Press the R key and R appear at the top of the screen.

2. Insert the black lead into the COM banana jack input and the red lead into the V/Ω banana

jack input.

3. Connect the red and black test leads to the resistor. The resistor value readings are shown on

the screen in Ohm.

Now, you can see a screen that looks like the following figure 21.

figure 21: Resistance Measurement

7.4.2 Making a Diode Measurement

To make a measurement on the diode, do the following:

1. Press the R key and R appear at the top of the screen.

2. Press AUTO SET key till the following is displayed on the screen

3. Insert the black lead into the COM banana jack input and the red lead into the V/Ω banana

jack input.

4. Connect the red and black leads to the resistor and the diode resistor readings are displayed

on the screen in V.

Now, you can see a screen that looks like the following figure 22.

OWON HDS Series Handheld DSO & DMM 7-Using the Multimeter

figure 22: Diode Measurement

7.4.3 On-off Test

To perform an On-off test, do the following:

1. Press the R key and R appears on the top of the screen.

2. Press the AUTO SET key till the following is shown on the screen.

3. Insert the black lead into the COM banana jack input and the red lead into the V/Ω banana

jack input.

4. Connect the red and black leads to the test point. If the resistance value of the tested point is

less than 50Ω, you will hear beep sound from the test tool.

Now, you can see a screen that looks like the following figure 23.

figure 23: On-off Test

OWON HDS Series Handheld DSO & DMM 7-Using the Multimeter

7.4.4 Making a Capacitance Measurement

To measure a capacitance, do the following:

1. Press the R key and R appears on the top of the screen

2. Press the AUTO SET key till C appears at the top of the screen.

3. Insert the measured capacitance into the quadratic jack and the screen shows the

capacitance reading.

Notice: when measured value is less than 5 nF capacitance, please use small

capacitance measurer of this multimeter and use relative value measuring mode to improve measuring precision. It will take about 30seconds if capacitance measurement is large than 40uF.

Now, you can see a screen that looks like the following figure 24.

figure 24: Capacitance Measurement

7.4.5 Making a DC Voltage Measurement

To measure a DC voltage, do the following:

1. Press the V key and DCV appears at the top of the screen.

2. Insert the black lead into the COM banana jack input and the red lead into the V/Ω banana

jack input.

3. Connect the red and black leads to the measured point and the measured point voltage value

is displayed on the screen.

Now, you can see a screen that looks like the following figure 25.

OWON HDS Series Handheld DSO & DMM 7-Using the Multimeter

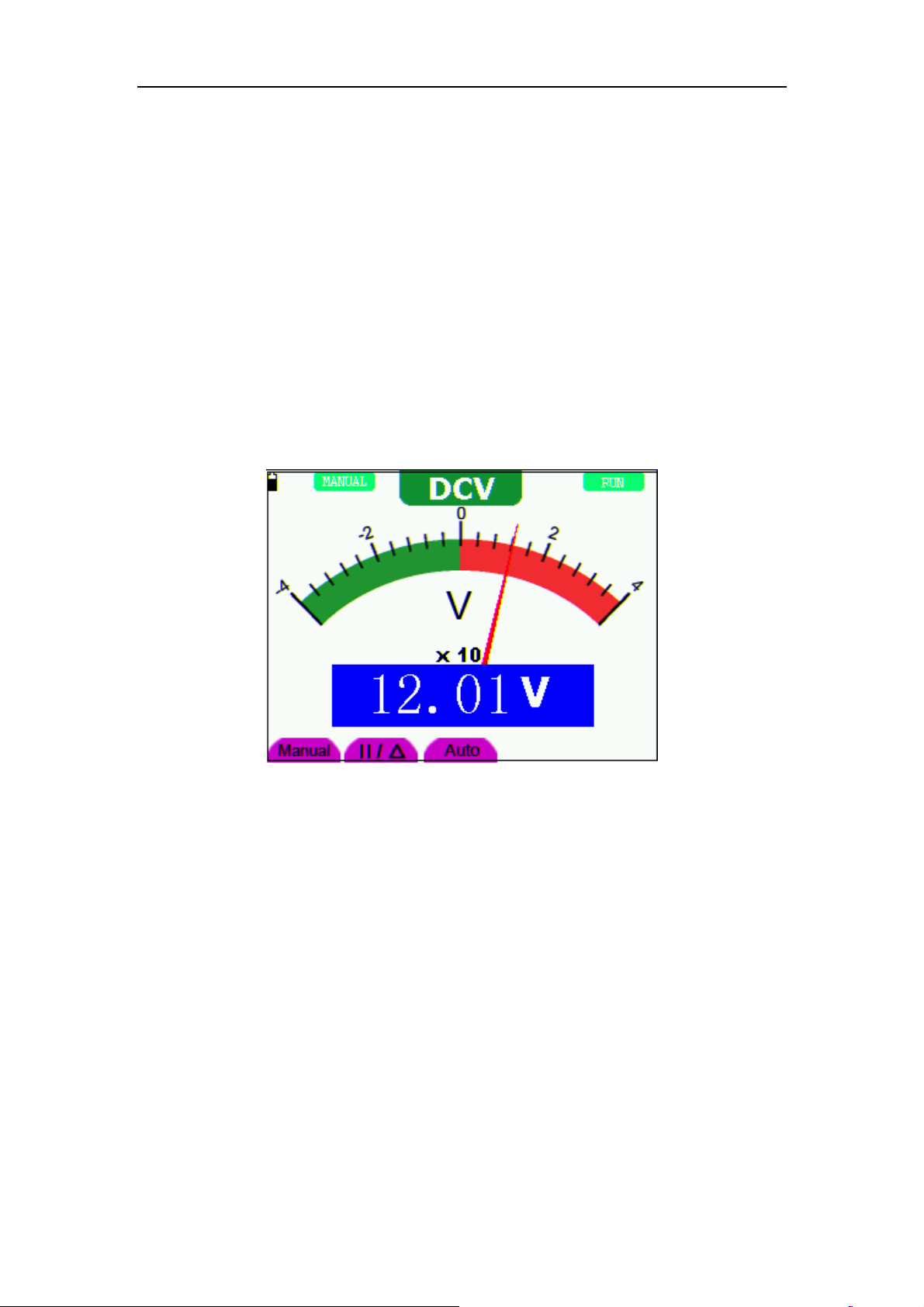

figure 25: DC Voltage Measurement

7.4.6 Making a AC Voltage Measurement

To measure the AC voltage, do the following:

1. Press the V key and DCV appears at the top of the screen.

2. Press the AUTO SET key and ACV appears at the top of the screen.

3. Insert the black lead into the COM banana jack input and the red lead into the V/Ω banana

jack input.

4. Connect the red and black leads to the measured points and the AC voltage values of

measured points will be displayed on the screen.

Look at the display, you can see a screen that looks like the following figure 26.

figure 26: AC Voltage Measurement

OWON HDS Series Handheld DSO & DMM 7-Using the Multimeter

7.4.7 Making a DC Current Measurement

To measure a DC current which is less than 400 mA , do the following:

1. Press the A key and DCA appears at the top of the screen. The unit on the main reading

screen is mA. mA and 20A will display on the right bottom of screen, press F4 or F5 to

switch the measurement between mA and 20A. 400mA is acquiescently.

2. Insert the black lead into the COM banana jack input and the red lead into the mA banana jack input.

3. Connect the red and black leads to the measured points and the DC current values of measured points will be displayed on the screen.

Look at the display, you can see a screen that looks like the following figure 27.

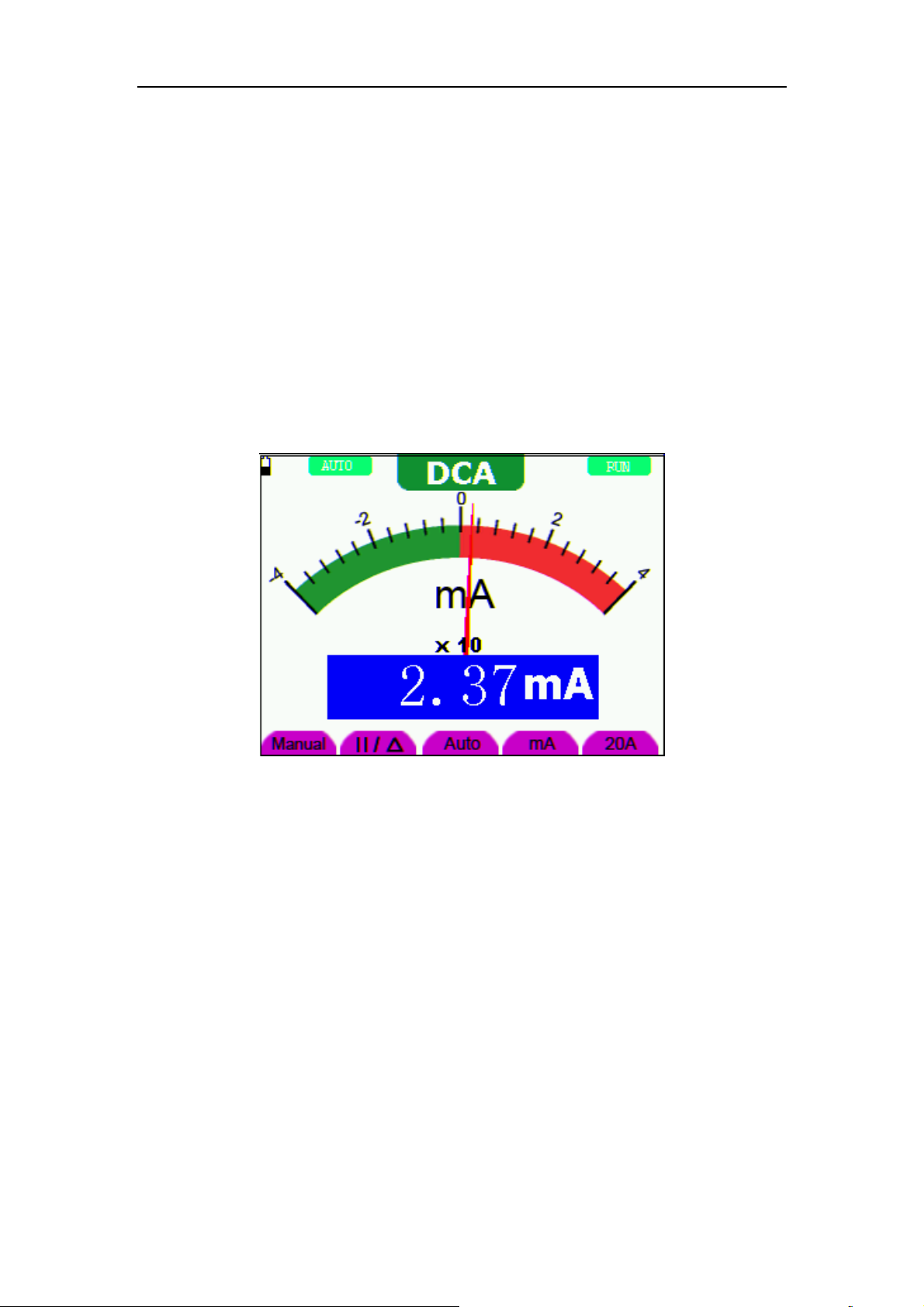

figure 27: DC Current Measurement for 400 mA

To measure a DC current which is larger than 400 mA, do the following:

1. Press the A key and DCA appears at the top of the screen. The unit on the main reading

screen is mA..

2. Press F5 key change to 20A measurement, the unit on the main reading screen is A.

3. Plug current extended module in current measure jack, then plug the probe in the module

4. Connect the red and black leads to the measured point and the DC current value of the

measured point will be displayed on the screen.

5. Press F4 return to 400 mA measure.

Look at the display, you can see a screen that looks like the following figure 28.

OWON HDS Series Handheld DSO & DMM 7-Using the Multimeter

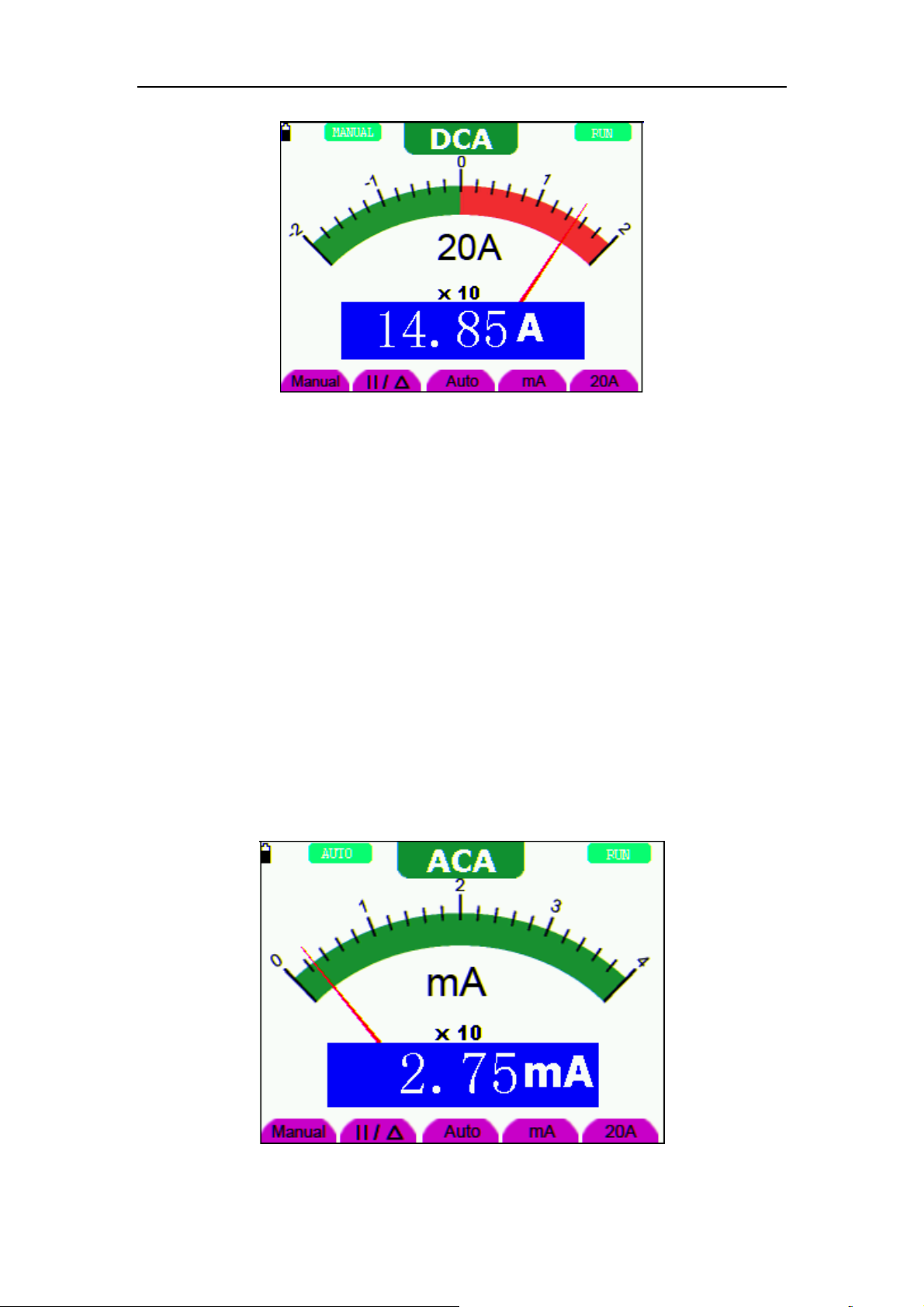

figure 28: DC Current Measurement for 20A

7.4.8 Making an AC Current Measurement

To measure an AC current which is less than 400 mA, do the following:

1. Press the A key and DCA appears at the top of the screen. The unit on the main reading

screen is mA. mA and 20A will display on the right bottom of screen, press F4 or F5 to

switch the measurement between mA and 20A. 400mA is acquiescently.

2. Press the AUTO SET key once and ACA is visible at the top of the screen..

3. Insert the black lead into the COM banana jack input and the red lead into the mA banana

jack input.

4. Connect the red and black leads to the measured point and the AC current value of the

measured point will be displayed on the screen.

Look at the display, you can see a screen that looks like the following figure 29.

figure 29: AC Current Measurement for 400 mA

OWON HDS Series Handheld DSO & DMM 7-Using the Multimeter

To measure an AC current which is larger than 400 mA, do the following:

1. Press the A key once and DCA is visible on the top of the screen.

2. Press F5 to select 20A measure, the unit of main reading window is A.

3. Press the AUTO SET key once and ACA is visible on the top of the screen.

4. Plug current extended module in current measure jack, then plug the probe in the module.

5. Connect the red and black leads to the measured point and the AC current value of the

measured point will be displayed on the screen.

6. Press F4 return to 400mA measure.

Look at the display, you can see a screen that looks like the following figure 30.

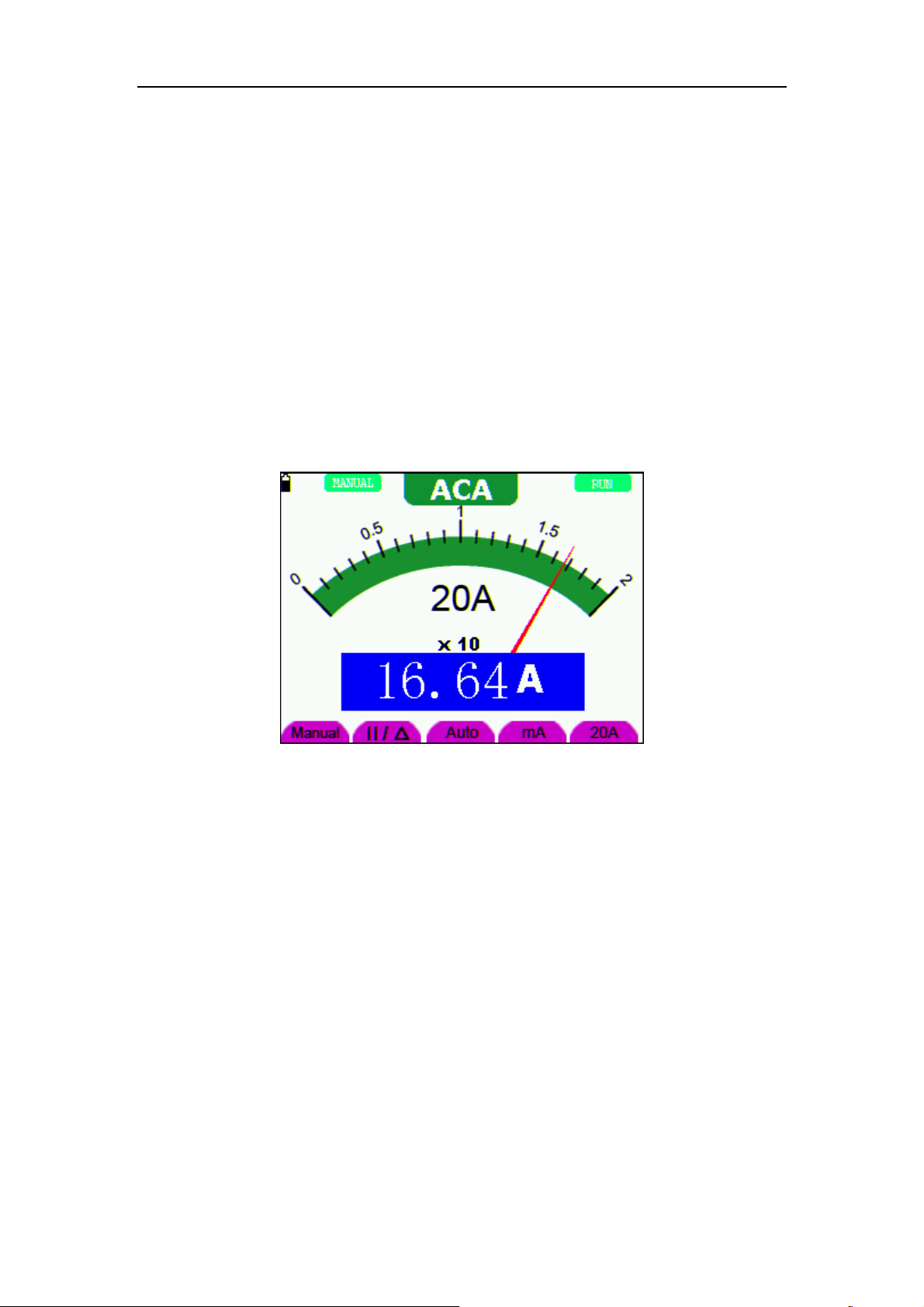

figure 30: AC Current Measurement for 20A

7.5 Freezing the Readings

You can freeze the displayed readings at any time.

1. Press the RUN /STOP key to freeze the screen and STOP will be displayed at the top right

of the screen.

2. Again, press the RUN /STOP key, you can resume your measurement.

Look at the display, you can see a screen that looks like the following figure 31.

OWON HDS Series Handheld DSO & DMM 7-Using the Multimeter

figure 31: Freezing the Readings

7.6 Taking a Relative Measurement

A currently measured result relative to the defined reference value is displayed in a relative

measurement.

The following example shows how to take a relative measurement. At first, it is required to

acquire a reference value.

1. Press R key and R is displayed on the top side of the screen.

2. Press the AUTO SET key till C appears at the top of the screen.

Plug capacitance extended module in capacitance measure jack.

4. When the reading leveling off, press F2 key and △ is displayed on the top side of the screen.

The saved reference value is displayed below △.

5. Plug capacitance, the displayed major reading on the screen is actual the capacitance value.

Look at the display, you can see a screen that looks like the following figure 32.

figure 32: Relative Measurement

OWON HDS Series Handheld DSO & DMM 7-Using the Multimeter

7.7 Selecting Automatic/Manual Range Adjustment

The defaulted range mode of the instrument is automatic range. To switch to the manual range,

perform the following steps:

1. Press F1 key and MANUAL is displayed on the top left side of the screen to enter the

manual range mode.

2. Under the manual range mode, the measuring range is increased by a stage when pressing F1

key each time, and when reaching the highest stage, it jumps to the lowest stage by pressing

F1 key once again. To multiply the reading of dial pointer by multiplying power and the unit

of main reading on the screen will get the measurement result.

3. Press F3 key and AUTO is displayed on the top left side of the screen to switch back to the

automatic range mode.

Look at the display, you can see a screen that looks like the following figure 33.

figure 33: Automatic/Manual Range Adjustment

Attention: capacitance measurement without manual range mode.

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

8.Advanced Function of Oscilloscope

8.1 About this Chapter

This chapter will detail the oscilloscope function of the test tool.

8.2 Setting the Vertical CH1 and CH2

Each channel has its own independent vertical menu and each item can be set respectively based

on the specific channel.

To make vertical CH1 and CH2 settings, do the following:

1. Press the MENU key and the function menu appears at the right of the screen.

2. Press the MENU ▲ or MENU ▼ key to jump to CH1 Setting and 4 options appears at the

bottom of the screen.

3. Select and press key from F1 through F4 keys to make different settings.

Now, you can find a screen that looks like the following figure 34.

figure 34: Setting the Vertical

３６

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

The following Table describes the Vertical Channel menu:

Function

Coupling

Channel

Setting

Ground

OFF

The DC component in the input signal is blocked..

The AC and DC components of the input signal are allowed.

Input signal is interrupted.

Close the channel.

Open the channel.

Description

Probe

10X

100X

Select one according the probe attenuation factor to ensure a correct

vertical scale reading.

1000X

Inverted

OFF

Waveform is displayed normally.

Open the Invert function of the waveform setting.

8.2.1 Setting the Channel Coupling

With CH1 taken for example, the measured signal is a sine wave signal containing a DC offset.

Press F1 Coupling first and then AC to make an ac coupling setting. The DC component

contained in the tested signal is blocked.

Press F1 Coupling first and then DC to make a DC coupling setting. Both dc and ac components

contained in the tested signal are permitted.

The waveform is displayed as the following figure 35, figure 36.

figure 35: AC Coupling

３７

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

figure 36: DC Coupling

8.2.2 Make Open and Close Settings on Channel

Take CH1 as an example.

Press F2 Channel key first, then press OFF to make a Close setting on CH1.

Press F2 Channel key first, then press ON to make an Open setting on CH1.

8.2.3 Adjusting the Probe Scale

It is necessary to adjust the probe attenuation scale factor correspondingly in the channel operation

menu in order to comply with the probe attenuation scale. If it is a 10:1 probe, the scale of the

input channel of the oscilloscope should be selected as 10X to avoid any error occurring in the

displayed scale factor information and tested data.

Press F3 Probe to jump to the relative probe.

Table: Probe attenuation factor and the corresponding menu setting

Probe attenuation factor Corresponding Menu Setting

1:1 1X

10:1 10X

100:1 100X

1000:1 1000X

8.2.4 Setting of Inverted Waveform

Inverted waveform: The displayed signal reverses 180 degrees relatively to the ground potential.

３８

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

Press F4 Invert to start Invert; again press F4 Invert to close Invert.

8.3 Make the Math Function Menu Setting

The MATH functions in showing the result of adding, subtracting, multiplying or dividing

calculation on CH1 and CH2 channel waveforms. Also, the result of arithmetic operation can be

measured with grid or cursor. The amplitude of the calculated waveform can be adjusted with

CHM VOL, which is displayed in the scale factor form. The amplitude ranges from 0.001 through 10 and steps in the 1-2-5 form, that is, it can be expressed as 0.001X, 0.002X, 0.005X…10X. The

position of the calculated waveform can be adjusted up and down with the CHM ZERO key used.

The corresponding operation function table

Setting Description

CH1-CH2 CH1 waveform minus CH2 waveform.

CH2-CH1 CH2 waveform minus CH1 waveform

CH1+CH2 Add CH1 waveform into CH2 waveform.

CH1*CH2 Multiply CH1 waveform and CH2 waveform.

CH1/CH2 Divide CH1 waveform by CH2 waveform.

To perform the CH1+CH2 waveform calculation, do the following:

1. Press the MENU key and the function menu appears at the right of the screen.

2. Press the MENU ▲ or MENU ▼ key to select MATH and 5 options are displayed at the

bottom of the screen.

3. Press the F3 CH1+CH2 key and the obtained waveform M appears on the screen. Again,

press the F3 key and Close the waveform M.

4. Press the OSC OPTION key and the following is displayed on the screen:

◄/► – Time Base

▲/▼ –CH Math Volts/Div

5. Press the OSC ▲ or OSC ▼ key to adjust the amplitude of the waveform M.

6. Again, press the OSC OPTION key twice and the screen shows the following:

◄/► – Time

▲/▼ – CHM Zero

7. Press the OSC ▲ or OSC ▼ key to adjust the position of the waveform M.

Now, look at the display and you will find a screen that looks like the following figure 37.

３９

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

figure 37: Waveform Mathematics

8.4 Setting the Trigger System

The Trigger defines the time when the acquisition of data and display of waveform start. If it is set

correctly, the trigger can turn an unstable display into a significant waveform.

When starting the acquisition of data, the oscilloscope collects sufficient data to draw the

waveform at the left side of the triggering point. With waiting for the triggering condition, the

oscilloscope is gathering data continuously. After a trigger is detected, the oscilloscope gathers

enough data continuously to draw the waveform at the right side of the triggering point.

To make a trigger mode setting, do the following:

1. Press the MENU key and the function menu appears at the right of the screen.

2. Press the MENU ▲ or MENU ▼ key to select TRIG MODE and five items selectable are

displayed at the bottom of the screen.

3. Select and press one from F1 through F5 key to make a different setting.

4. Press the OSC OPTION key and the following is shown on the screen:

◄/► – Time

▲/▼ – Trig

5. Press the OSC ▲ or OSC ▼ key to adjust the trigger level position.

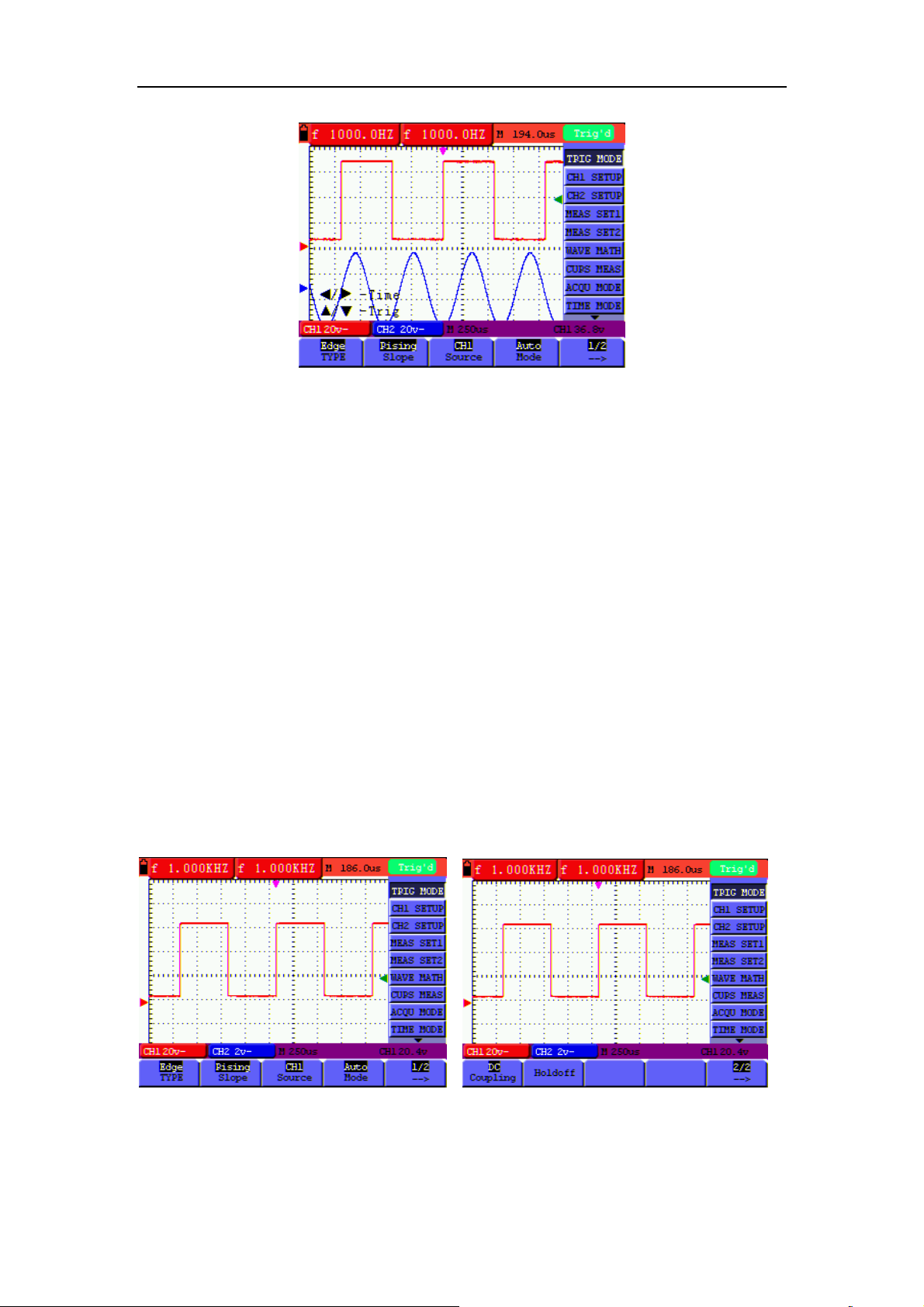

Now, look at the display, you can see a screen in the following figure38.

４０

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

figure 38: Edge Trigger

8.5 Triggering Control

There are two triggering modes including Edge triggering and Video triggering. Each trigger

mode is set by different function menu.

Edge triggering: It occurs when the trigger input passes through a given level along the specified

direction.

Video triggering: Perform video field trigger or line trigger on the standard video signals.

The following describes the Edge triggering and Video triggering menus respectively.

8.5.1 Edge Triggering

The Edge triggering is a mode by which trigger occurs at the triggering threshold value of the

input signal edge. With the Edge triggering selected, the trigger happens on the rise or fall edge of the input signal, shown as the following figure39，figure40.

figure 39：Edge Trigger（Page1） figure 40：Edge Trigger（Page 2）

The Edge triggering menu is described in the following table.

４１

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

Function menu Settings Description

Slope

Source

Mode

Rising

Falling

CH1

CH2

Auto

Normal

Single

Triggering on the rise edge of the signal.

Triggering on the fall edge of the signal.

CH1 is used as the trigger source.

CH2 is used as the trigger source.

Acquisition of waveforms is possible even if there is no

triggering condition detected.

Acquisition of waveforms can only be done when the

triggering condition is satisfied.

The sampling is performed on a waveform when one trigger is

detected, then stop sampling. .

To next menu

With this mode selected, the DC component is prevented

from passing-though.

All components are allowed.

The HF part of the signal is prohibited and only the LF

component is allowed.

The LF part of the signal is prohibited and only the HF

Coupling

HF Ric

LF Ric

component is allowed.

Holdoff To go to holdoff menu

Back to previous menu

8.5.2 Video Triggering

With Video triggering selected, the oscilloscope performs the NTSC, PAL or SECAM standard

video signals field , line ,odd field, even field or line num trigger.

Figure 41,figure 42 is the Video Odd Field Trigger, figure 43,figure 44 is the Video Line trigger.

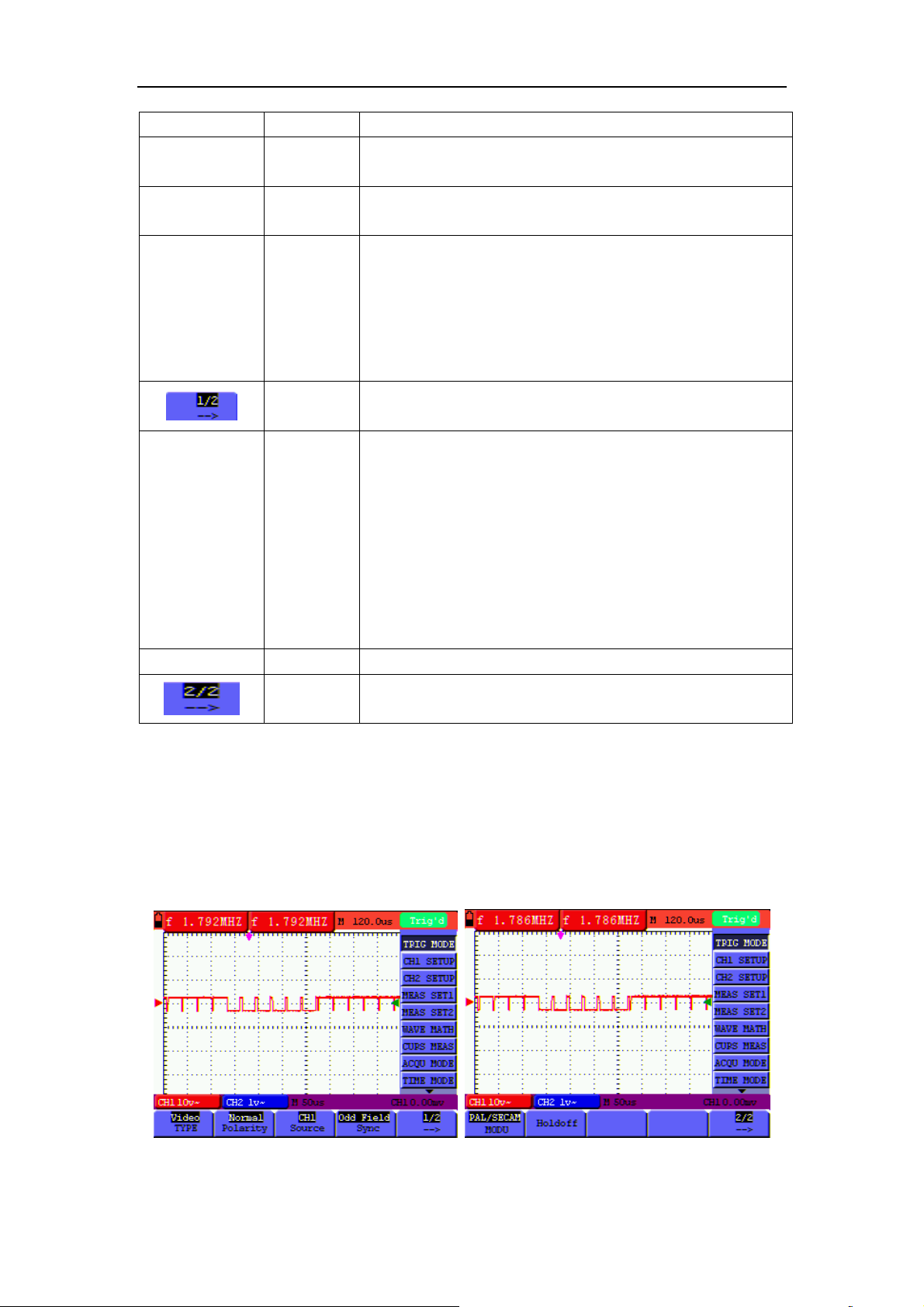

figure 41: Video Odd Field Trigger（Page1） figure 42: Video Odd Field Trigger（Page2）

４２

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

figure 43: Video Designed Line trigger(Page1) figure 44: Video Designed Line trigger(Page2)

The Video triggering menu is described in the following table(First page):

Function menu Settings Description

Polarity

Source

Sync

Normal

Inverted

CH1

CH2

Line

Field

Odd Field

Even Field

Designed Line

Applicable to the video signal in which the black level is

of low level.

Applicable to the video signal of which the black level is

of high level.

Select CH1 as the trigger source.

Select CH2 as the trigger source..

Make a video line trigger synchronization setting.

Make a video field trigger synchronization setting.

Make a video odd field trigger synchronization setting.

Make a video even field trigger synchronization setting.

Make a video designed line synchronization setting.

To next menu

The Video triggering menu (Second page):

1.when the sync is Line, Field, Odd Field, Even Field, the second page menu is shown as

bellow.

NTSC

Format

Video format setting

PAL/SECAM

Holdoff To go to holdoff menu

Back to previous menu

2. when the sync is Designed Line, the second page menu is shown as bellow.

NTSC

Format

Video format setting

PAL/SECAM

increase

Set the line value to increase

Line

decrease

Set the line value to decrease

４３

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

Line No. Set and Show the line valve

Holdoff To go to holdoff menu

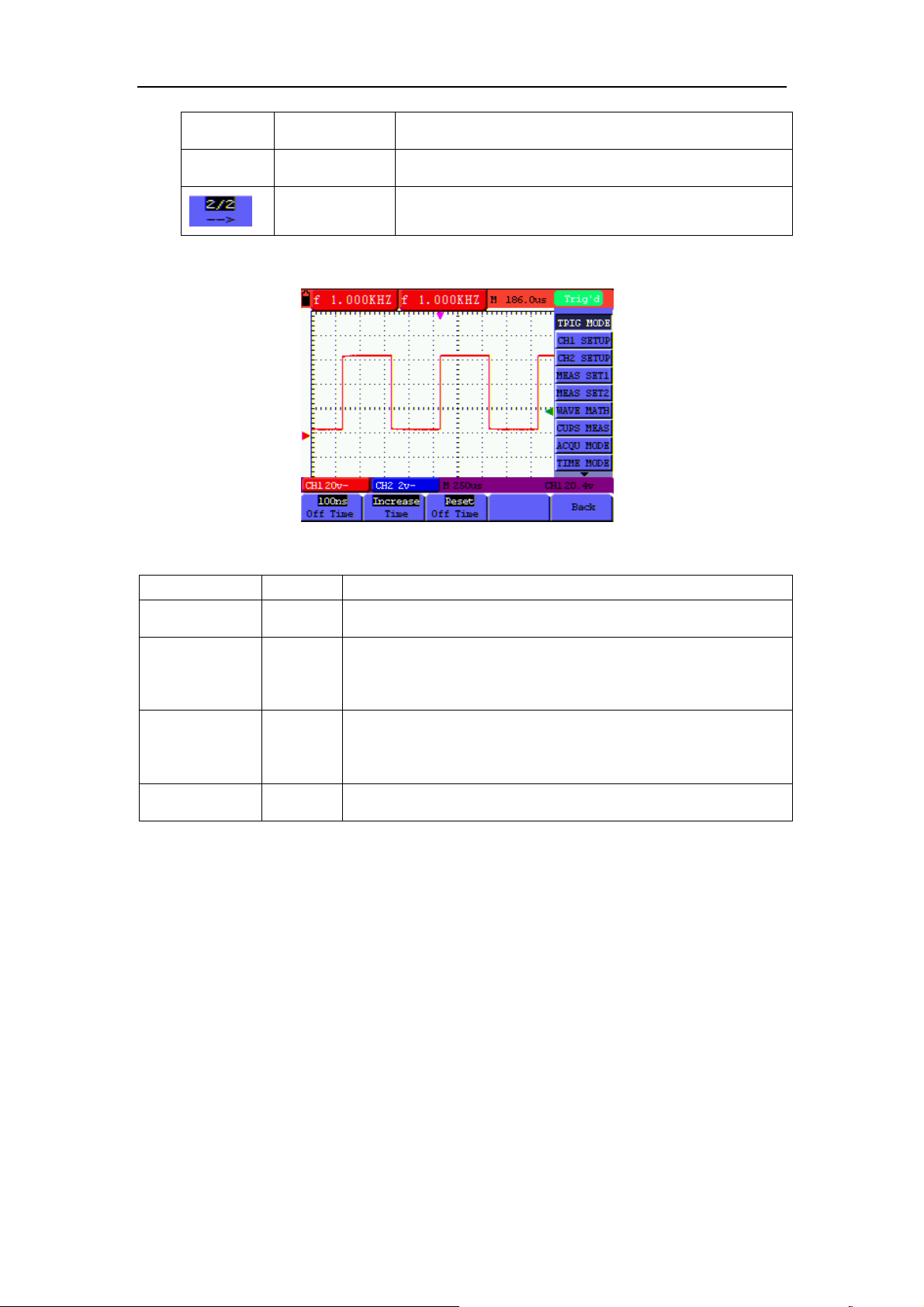

When you go to the holdoff menu, you can see a screen in the following figure45.

Back to previous menu

figure45:Trigger Holdoff

the Holdoff menu is described in the following table:

Function menu Settings Description

Off Time Set time slot before another trigger event

increase

Set the off time to increase

Time

Reset

decrease

Set the off time to decrease

Reset Holdoff time to100ns

Off Time

Back

Note:

Trigger Holdoff can stabilize complex waveform, such as the pulse range. Holdoff time is the

oscilloscope’s waiting period before starting a new trigger. During Holdoff, oscilloscope will not

trigger until Holdoff ends.

Term interpretation

Trigger modes: There are three kinds of trigger modes available for this oscilloscope, they are

auto, normal and single shot.

Automatic trigger mode: The oscilloscope can acquire the waveform without any triggering

condition detected in this mode, in which it will be triggered compulsively when waiting for a

specified period of time without any triggering condition ignited When an invalid trigger is enforced，the oscilloscope can not keep the waveform in phase.

Back to previous menu

Normal trigger mode: In this mode, the oscilloscope cannot acquire the waveform till it is

triggered. When there is not any trigger, the oscilloscope will display the origin waveform without

４４

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

new waveforms captured.

Single shot mode: In this mode, the oscilloscope will detect a trigger and capture a waveform at

each time when the customer presses the RUN/STOP key.

Holdoff: Set time slot before another trigger event.

8.6 Acquiring Mode Setting

The Acquiring Mode menu is described in the list shown as below.

Function menu Settings Description

Sample

Peak Detect

Average

Averages 4, 16, 64

or 128

Normal sampling mode. Use to capture maximal and minimal samples. Finding highest and lowest points over adjacent interveals. Use to reduce random noises, four options are available as followed. Four options, indicating the number of averages.

8.7 Display Setting

The Display Setting menu is described in the following table.

Function menu Settings Description

Type

Persist

Format

Carry

Vectors

Dots

OFF

Infinite

Bitmap

Vectors

8.7.1 Display Style

The adjacent sampling points are joined by vector form. Only displaying sampling points captured..

Options for setting the persistence time for each sampling point.

Show waveform as voltage against time. Show

waveform as CH1(X) against CH2(Y)

Transmit data in bitmap. Transmit data in vector.

The display style includes Vector and Dot displays, shown as the following figure 46, figure 47.

４５

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

figure 46: Dot Style

figure 47: Vector Style

8.7.2 Persistence

With Persistence function selected, the displayed saved original data gradually decay in color and

the new data are bright in color; with infinite persistence mode selected, the recorded points will

be kept on the screen till the controlled value is changed.

8.7.3 XY Mode

This mode is only applicable to CH1 and CH2. With the XY mode selected, CH1 is displayed on

４６

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

the horizontal axis and CH2 is on the vertical axis; when the oscilloscope is under the sampling

mode in which no trigger is found, the data appear in light spots.

Operations for various control keys are shown as below:

■ The CH1 VOL and CH1 ZERO for CH1 are used to set the horizontal scale and position.

■ The CH2 VOL and CH2 ZERO for CH2 are used to set the vertical scale and position

continuously.

The following functions do not work in the XY display mode:

■ Reference or digital value waveform

■ Cursor

■ Time base control

■ Trigger control

8.8 Waveform Saving Setups

The oscilloscope can save 4 waveforms, which can be displayed on the screen with the present

waveform. The recalled waveform saved in the memory cannot be adjusted,

The waveform saving /recalling menu is described in the following list.

Function

Source

WAVE

Save Action to save selected waveform to selected location.

CH(X)

X=A,B,C,D

To save a waveform on CH1 in address A, do the following:

1. Press the MENU key and the function menu appears at the right of the screen.

2. Press the MENU ▲ or MENU ▼ key to select the Waveform Saving. Four items

selectable are displayed at the bottom of the screen.

Setups Description

CH1

CH2

MATH

A , B

C , D

OFF

Source of wave form to be saved.

Available sources:CH1,CH2,MATH

Location where selected waveform to be saved or recalled.

Turn Display on/off for selected and stored waveform.

3. Press the F1 key to select the signal source CH1.

4. Press the F2 key to select the address A.

5. Press the F3 key to save the waveform on CHI1 in address A.

To display the saved waveform on the screen, do the following:

４７

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

6. Press the F4 key to select Start for the address A. The waveform saved in address A will be

displayed on the screen in green color.

The display color is green, and the zero point of waveform k, voltage and time is purple

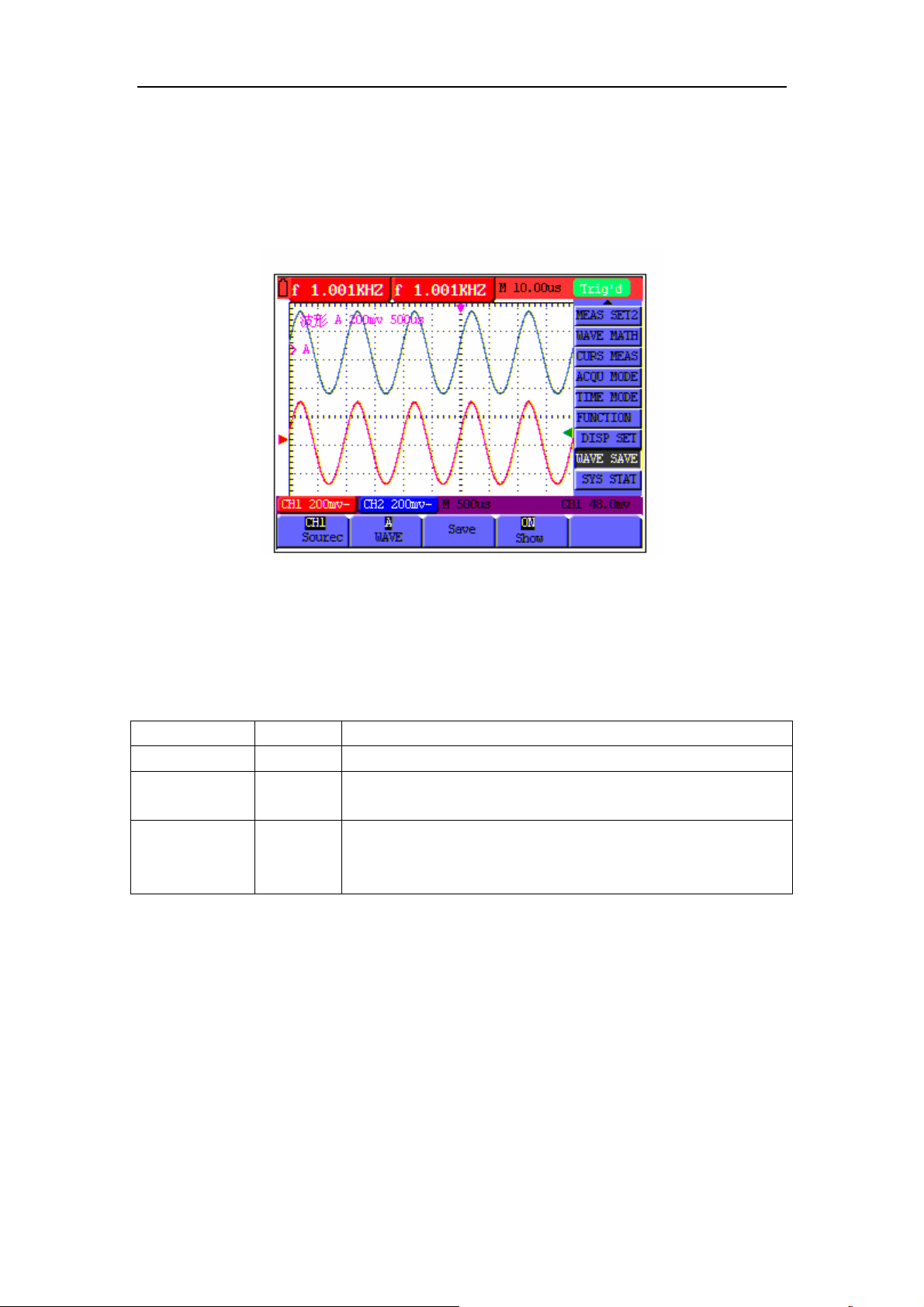

Now, you can see a screen that looks like the following figure 48.

figure 48: Waveform Saving

8.9 Function Setting Menu

The function setting menu is described in the following list.

Function menu Setting Description

Recall Factory Reset system settings to factory default .

Auto

Calibration

Language

Self-correcting:

The self-correcting program can improve the accuracy of the oscilloscope under the ambient

temperature to the maximum. If the ambient temperature variation is equal to or larger than 5

Celsius degrees, the self-correcting program should be performed to gain the maximum accuracy.

Carry out internal Calibration according to pre-set procedures.

Chinese

English … Support multi-languages, choose you preferred system language.

Before the self-correcting program is performed, the probe or lead should be disconnected with the

input connector, then, select the F2 key Self-correcting item. After confirming that everything is

ready, press the F2 key “Self-correcting” key and enter into the self-correcting program.

４８

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

8.10 Making Automatic Measurements

The oscilloscope can perform 20 types automatic measurements such as frequency, cycle, average

value, peak-to-peak value , root mean square value,

Overshoot, Preshoot, RiseTime, Fall Time, +Width, -Width, +Duty, -Duty, DelayA B and DelayA B . And gives two kinds of measurement results simultaneously

on the screen.

The function menu for automatic measurements is described in the following list.

Function menu Settings Description

Freq

Period

Mean

Peak-Peak

Cyc RMS

Vmax

Vmin

Vtop

Vbase

Vamp

Overshoot

Preshoot

RiseTime

Fall Time

+Width

-Width

+Duty

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

CH2

CH1

Measure the frequency of CH1

Measure the frequency of CH2

Measure the Period of CH1.

Measure the Period of CH2

Measure the average value of CHI.

Measure the average value of CH2.

Measure the peak-to-peak value of CH1.

Measure the peak-to-peak value of CH2.

Measure root mean square (RMS) value of CH1.

Measure root mean square (RMS) value of CH2.

Measure the

Measure the Measure the Vbase of CH2

Measure the

Measure the Measure the -Width of CH2 Measure the +Duty of CH1

Vmax, Vmin, Vtop, Vbase, Vamp,

Vmax of CH1 Vmax of CH2 Vmin of CH1 Vmin of CH2 Vtop of CH1 Vtop of CH2 Vbase of CH1

Vamp of CH1 Vamp of CH2 Overshoot of CH1 Overshoot of CH2 Preshoot of CH1 Preshoot of CH2 RiseTime of CH1 RiseTime of CH2 Fall Time of CH1 Fall Time of CH2 +Width of CH1 +Width of CH2

-Width of CH1

４９

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

CH2

-Duty

DelayA B

To measure the frequency of CH1 with Measurement 1 and the peak-to-peak of CH2 with

Measurement 2, do the following:

1. Press the MENU key and the function menu is shown at the right of the screen.

2. Press the MENU ▲ or MENU ▼ key to select Measurement 1. Five options appear at the

bottom of the screen.

3. Press the F1 key to select the frequency measurement as CH1. The measurement window 1

on the screen turns into one red in color and shows the frequency of CH1.

4. Press the MENU ▲ or MENU ▼ key to select Measurement 2. Five options appear at the

bottom of the screen.

CH1

CH2

CH1

CH2

CH1

CH2

Measure the

Measure the Measure the DelayA B of CH2

+Duty of CH2

-Duty of CH1

-Duty of CH2 DelayA B of CH1 DelayA B of CH2 DelayA B of CH1

5. Press the F4 key to jump to the peak-to-peak measurement as CH2. The measurement

window on the screen turns into one blue in color and shows the peak-to-peak value of

CH2.

Now, you can see a screen that looks like the following figure 49.

figure 49: Automatic Measurements

Term interpretation Vpp: Peak-to-Peak Voltage. Vmax: The maximum amplitude. The most positive peak voltage measured over the

entire waveform. Vmin: The minimum amplitude. The most negative peak voltage measured over the entire waveform.

５０

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

Vamp: Voltage between Vtop and Vbase of a waveform Vtop: Voltage of the waveform’s flat top, useful for square/pulse waveforms. Vbase: Voltage of the waveform’s flat base, useful for square/pulse waveforms. Overshoot: Defined as (Vmax-Vtop)/Vamp, useful for square and pulse waveforms. Preshoot: Defined as (Vmin-Vbase)/Vamp, useful for square and pulse waveforms. Average: The arithmetic mean over the entire waveform. Vrms: The true Root Mean Square voltage over the entire waveform.

Rise Time: Time that the leading edge of the first pulse in the waveform takes to rise

from 10% to 90% of its amplitude. Fall Time: Time that the falling edge of the first pulse in the waveform takes to fall from 90% to 10% of its amplitude.

+Width: The width of the first positive pulse in 50% amplitude points.

-Width: The width of the first negative pulse in the 50% amplitude points. Delay 1→2 : The delay between the two channels at the rising edge. Delay 1→2 : The delay between the two channels at the falling edge. +Duty: +Duty Cycle, defined as +Width/Period

-Duty: -Duty Cycle, defined as -Width/Period.

8.11 Setting the Cursor Measurements

This oscilloscope allows you to make manual cursor measurements on time and voltage. The

signal sources include Channel 1(CH1), Channel 2 (CH2).

The cursor measurement menus are listed and described in the following table.

Function menus Settings Description

OFF

Type

Source CH1, CH2

To make a voltage measurement on CH1, doing the following:

1. Press the MENU key and the function menus are displayed at the right of the screen.

2. Press the MENU ▲ or MENU ▼ key to select Cursor Measurement. Two options are

shown at the bottom of the screen.

3. Press F1 key to select the measurement type Voltage. Two purple crossing dashed

lines V1 and V2 are shown on the screen.

Voltage

Time

Close the cursor measurement.

Display the voltage measurement cursor and menu.

Display the time measurement cursor and menu.

Select the waveform channel on which the cursor

measurement will be performed.

4. Press the F2 key to select the measured channel CH1.

5. Press and hold the OSC OPTION key till the ▲/▼ CURSOR V1 is visible on the screen.

At this time, adjust OSC ▲ or OSC ▼ and you can see that the dashed line V1 is moving

up and down while the measured voltage value of V1 relative to the zero position of CH1

appears on the screen.

５１

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

6. Press and hold the OSC OPTION key till ▲/▼ CURSOR V2 appears on the screen. Now,

adjust the OSC ▲ or OSC ▼ and you can observe the dashed line V2 moving ▲ and ▼

while the measured voltage value of V2 relative to the zero position of CH1 is displayed on

the screen. Also, the absolute values of V1 and V2 can be shown on the screen.

Now, you can see a screen that looks like the following figure 50.

figure 50: Use the Cursor for a Voltage Measurement

To use the cursor for a time measurement on CH1, do the following:

1. Press the MENU key and the function menus are displayed at the right of the screen.

2. Press the MENU ▲ or MENU ▼ key to select Cursor measurement key. Two key labels

selectable are shown at the bottom of the screen.

3. Press the F1 key to the measurement type Time. Two vertical dashed lines T1 and T2

appear on the screen.

4. Press the F2 key and jump to the measured channel CH1.

5. Press and hold the OSC OPTION key till the ▲/▼ CURSOR T1 appears on the screen.

Then, adjust the OSC ▲ or OSC ▼ and you can observe the dashed line moving left and

right. At the same time, the time value of T1 relative to the screen middle point position

will be displayed on the screen.

6. Keep pressing on the OSC OPTION key till the ▲/▼ CURSOR T2 is displayed on the

screen. Then, adjust the OSC ▲ or OSC ▼ and you can find that the dashed line T2 is

moving right and left while the time value of T1 relative to the screen middle point

position appears on the screen. You can also observe the absolute time values and

frequencies of T1 and T2.

５２

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

Now, you can see a screen that looks like the following figure 51.

figure 51: Use the Cursor for a Time Measurement

8.12 Autoscale

The function is applied to follow-up signals automatically even if the signals change at any time.

Autoscale enables the instrument to set up trigger mode, voltage division and time scale

automatically according to the type, amplitude and frequency of the signals.

The menu is as follows:

Function

menus

Autoscale

Mode

Settings Description

OFF

Vertical

Horizontal

HORI—VERT

Turn off Autoscale

Turn on Autoscale

Only adjust vertical scale according to input signal.

Only adjust horizontal scale according to input signal.

Adjust both vertical and horizontal scales according to

input signal.

Display only one or two cycles in waveform.

Display Multi-cycles in waveform.

If you want to measure voltage of Channel 1, you can do as the follows:

1. Press MENU, the function menu will appear on the right of the screen.

2. Press MENU ▲ or MENU ▼ and choose Autoscale, three options will show at the

５３

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

bottom of the screen.

3. Press F1 and choose ON.

4. Press F2 and choose Hori- Vert.

5. Press F3 and

figure 52: Autoscale Horizontal- Vertical multi-period waveforms

displays on the screen as figure 52:

figure 53: Autoscale Horizontal- Vertical mono-period waveform

Note:

1. Entering into Autoscale function and

flicker will be on the top left corner. (flicker

every 0.5 second)

2. At the mode of Autoscale, the oscilloscope can self-estimate “Trigger mode” (Edge, Video,

and Alternate) and “Type” (Edge, Video). If now, you press “Trigger mode” or “Type”, the

forbidden information will display on the screen.

3. At the mode of XY and STOP status, pressing AUTO SET to enter into Autoscale, DSO

５４

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

switches to YT mode and AUTO status.

4. At the mode of Autoscale, DSO is always in the state of DC coupling and AUTO triggering.

In this case, the forbidden information will be showing when making Triggering or Coupling

settings.

5. At the mode of Autoscale, if adjust the vertical position, voltage division, trigger level or

time scale of CH1 or CH2, the oscilloscope will turn off Autoscale function and if press

AUTOSET again, the oscilloscope will enter into Autoscale.

6. Turn off the submenu at the Autoscale menu, the Autoscale is off and turn on the submenu

still enters into the function.

7. When video triggering, the horizontal time scale is 50us. If one channel is showing edge

signal, the other channel is showing video one, the time scale refers to 50us as video one as

standard.

8. While the Autoscale is working, below settings will be made forcibly:

(1) The unit will switch from non-main time base to main time base status.

(2) The unit will switch to Peak detection menu while in the state of Average sampling mode.

8.13 System State Menu

The system state menu is used to display information about the present horizontal system, vertical

system, trigger system and others. The operation steps are shown as below.

1. Press the MENU key and the function menu is displayed at the right of the screen.

2. Press the MENU ▲ or MENU ▼ key to select the System State. Four options appear at the

bottom of the screen.

3. Sequentially press key F1 through F4 key and the corresponding state information will be

shown on the screen.

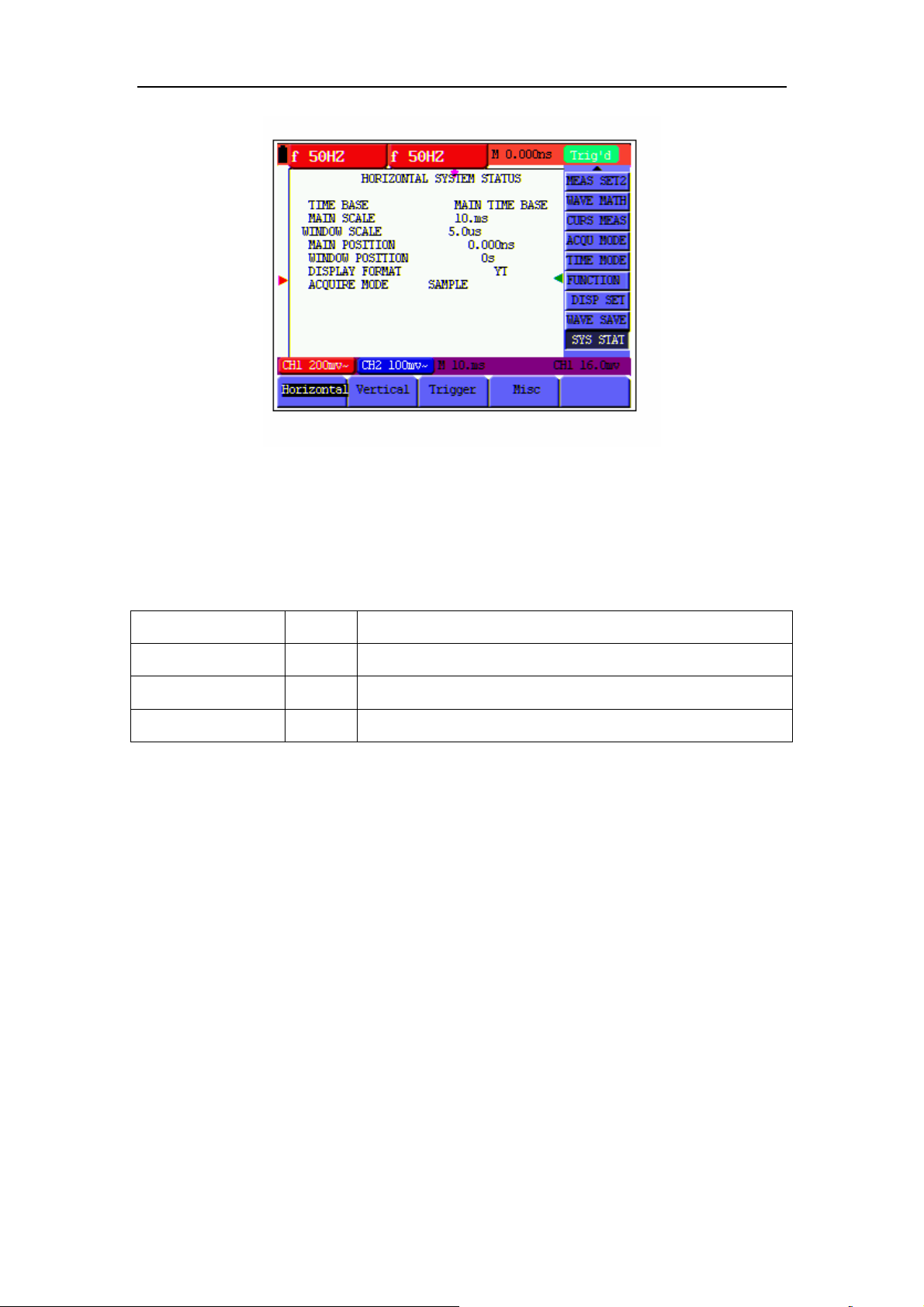

The screen that looks like the following figure 54 will be displayed.

５５

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

figure 54:

System State

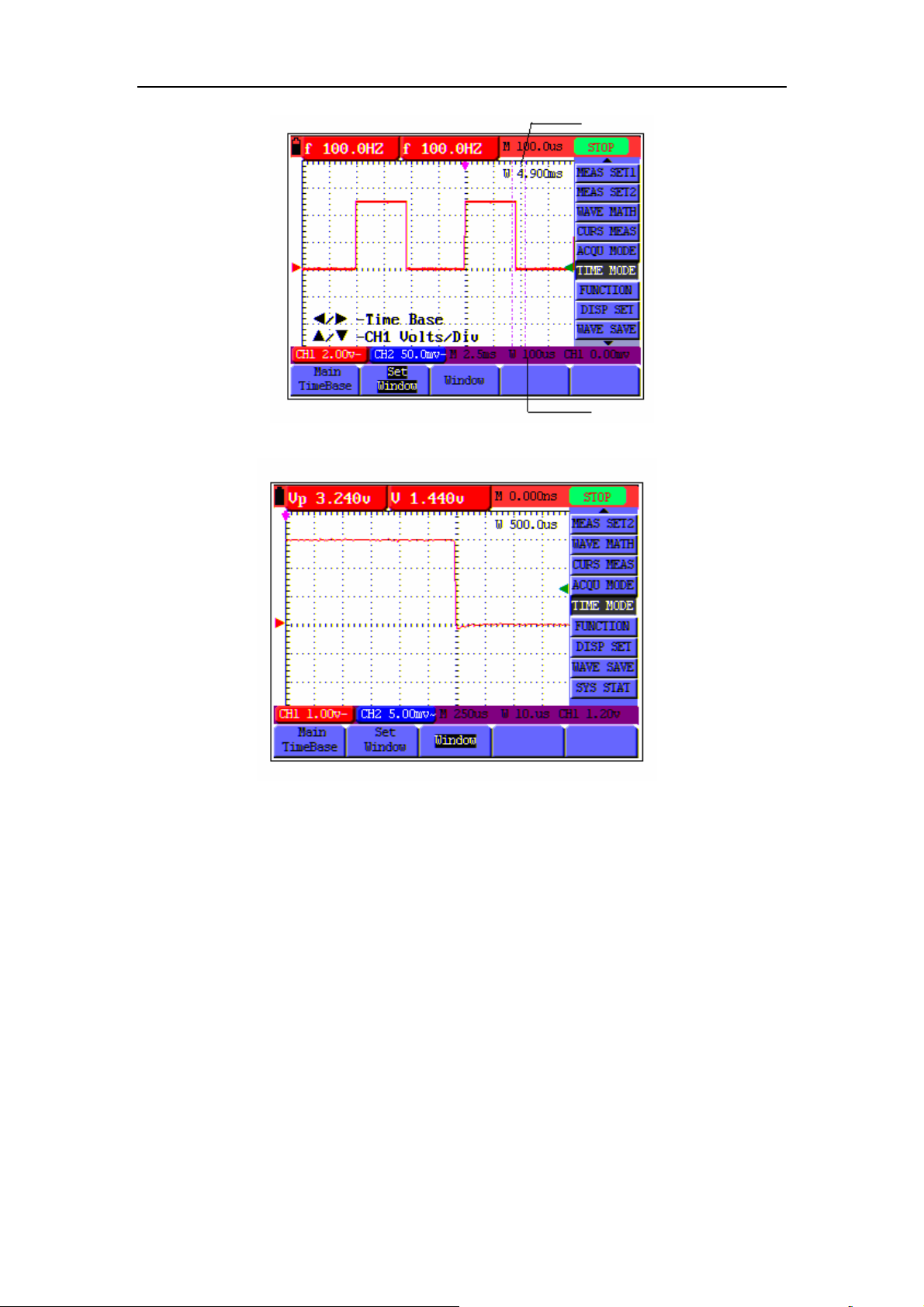

8.14 Setting of Time Base Mode

The time base mode menu is explained as the following table.

Function menu Setting Explanation

Main TimeBase Horizontal main time base is used to wave display

Zone Window Use two cursors to define a window area

Window Expand the defined window to full-screen display

For the operation of window extension, please execute the following steps:

1. Press MENU key, display the function menu on the right side of the screen.

2. Press MENU ▲ or MENU ▼ key to select time base mode, display three options at the

bottom.

3. Press F2 key to select window setting.

4. Press OSC OPTION key, pop up TIME BASE, at this time, then press OSC ◄ and OSC

► key to adjust the time base window area defined by two cursors, the window size will vary.

5. Press OSC OPTION key and call TIME, at this time, press OSC ◄ and OSC ► to adjust

the window position defined by two cursors, the window position is the time difference of the window center to main time base’s horizontal pointer.

6. Press F3 key, select window extension, the defined window extends into the full-screen

display.

The screen that looks like the following figure 55, 56 will be displayed.

５６

OWON HDS Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

figure 55: Window Setting

figure 56: Window Extension

8.15 Data Transmission

For the operation of data transmission, please execute the following steps:

1. Press MENU key, display the function menu on the right side of the screen.

2. Press MENU ▲ or MENU ▼ key to select display setting mode, display four options at the

bottom.

3. Press F4 key, and select the Bitmap or Vectors for data transmission.

4. Use a data line to connect the oscilloscope and the PC .

5. Open the OWON software that had been installed completely.

6. Setting the parameter under the use’s manual, and then starts data transmission.

５７

OWON HDS Series Handheld DSO & DMM 9-Trouble Shooting

9.Trouble Shooting

1. The oscilloscope does not power up.

It may be caused by the dead battery. At this time, the oscilloscope will not start even if it is

power through the battery charger. However, don’t switch on the oscilloscope till waiting for

15 minutes. If the oscilloscope still cannot start, please contact OWON for service.

2. The oscilloscope stops working only after operating for several seconds.

Probably the battery is dead; Check the battery symbol at the upper right of the screen. The symbol indicates that the battery has been run out of power and must be charged.

3. The measurement type displays ERR when you switch to the Multimeter

mode.

Probably you do not select the measuring mode. In this case, push down any key of the three

keys V, A or R. Thus, the relative measuring mode will be shown on the screen. If the ERR is

still displayed, restart the oscilloscope.

4. The measured voltage amplitude value is 10 times larger or smaller than the

real value under the oscilloscope mode.

Check whether the channel attenuation level matches the actual probe attenuation ratio.

5. The waveform is displayed on the screen but is not stable under the

oscilloscope mode.

z Check whether the signal item in the trigger mode menu matches the actually used signal

channel.

z Check on the trigger mode: The edge trigger mode is applicable to the universal single

and the video trigger mode applicable to the video signal. Only when the proper trigger

mode is applied, can the waveform be in stable.

z Try to change the trigger coupling into the HF rejection and LF rejection to filter the HF

or LF noise trigger by the interference.

6. There is no display on the screen when you push down RUN/STOP key

under the oscilloscope mode.

Check whether the trigger mode in the trigger mode menu is in normal or single shot and

whether the trigger level is out of the waveform range.

In such condition, adjust and make the trigger level in the middle or select the non-auto

trigger mode. Additionally, press the AUTO SET key and complete the above setting

7. When select the average sampling in the sampling mode or select a longer

display time in the display mode under the oscilloscope, the display speed is slow.

It is normal in the above case.

OWON HDS Series Handheld DSO & DMM 10-Appendix

10.Appendix

10.1 Appendix a Specifications

10.1.1 Oscilloscope

Only if another instructions are provided, are all technical specifications applicable to the probe

with the 10X attenuation switch setting and the HDS series digital type oscilloscope. In order to be

up to these specifications, the oscilloscope should meet the following requirement.

■ The instrument should operate continuously for more than 30 minutes under the specified

operating temperature.

■ If the operating temperature range of variation is up to or larger than 5 Celsius degrees, the

system function menu must be opened to make the system perform a “self- calibration”

procedure.

Except those specifications marked with the word Typical, all specifications can be up to.

Sampling

Normal sampling

Sampling modes

Sampling rate

Input

Input coupling DC, AC,Groud Input impedance 1MΩ±2% connected in parallel with 20pF±5pF

Probe attenuation coefficient 1X, 10X, 100X, 1000X

Max. Input voltage 400V (peak) Channel delay time（typical） 150ps

Horizontal

Sampling rate range

Waveform interpolation （sin x）/x

Record length 6K points on each channel

Scanning speed range （S/div） Sampling rate and relay ±100ppm(any time interval which is equal to or larger than 1ms)

Peak detection

Average value

100 MSa/s -----HDS1022M

250 MSa/s -----HDS2062M

10S/s～100MS/s -----HDS1022M 10S/s～250MS/s -----HDS2062M

5ns/div～100s/div, stepping in the “1-2.5-5” mode. ----HDS1022M 5ns/div～100s/div, stepping in the “1-2-5” mode. -----HDS2062M

OWON HDS Series Handheld DSO & DMM 10-Appendix

time accuracy Time interval ( △

T)measurement accuracy （full bandwidth）

Vertical

Single: ±(1 sampling interval time+100ppm×reading+0.6ns) >average 16 : ± (1 sampling interval time +100ppm ×

reading+0.4ns)

Analog digital converter（A/D）

Sensitivity range （V/div） 5mV/div～5V/div（at the input BNC） Displacement range ±50V(500mV～5V),±2V(5mV～200mV)

Analog bandwidth

Single bandwidth Full bandwidth Low frequency response （ AD coupling, -3dB）

Rise time（typical one at the BNC）

DC gain accuracy ±5%

DC measurement accuracy（average value sampling mode）

Trigger

Trigger sensitivity （Edge triggering）

Triggering lever range ±6 divisions from the screen center

DC coupling CH1 and CH2: 1div(DC～full bandwidth)

AC coupling

With the resolution of 8 bits, make sampling on both

channels synchronously.

20M-----HDS1022M

60M-----HDS2062M

≥5Hz（at the BNC ）

≤17.5ns-----HDS1022M ≤5.8ns------HDS2062M

The voltage difference (△V) between any two points on

the waveform after averaging the captured waveforms more than16: ±(5% reading + 0.05 divisions).

Same as the DC coupling when it is equal to or

larger than 50Hz.

Triggering level accuracy

(typical) which is applicable

to the signal with rise and

fall time equal to or longer

than 20ns

Trigger displacement 655 divisions for pre-triggering and 4 divisions for post- triggering

±0.3 divisions

Trigger Holdoff range 100ns~10s

Make a 50% level setting

(Typical)

Trigger sensitivity (Video

triggering and typical mode)

Signal system and line/field

frequency (Video triggering

mode)

Operation with the input signal frequency equal to or larger than

50Hz.

2 divisions of peak-to-peak value

Support the NTSC, PAL and SECAM broadcasting systems of any

field or line frequency.

OWON HDS Series Handheld DSO & DMM 10-Appendix

Measurement

Cursor measurement Voltage difference (△V) and time difference (△T) between cursors

Peak-to-peak value, average value, root mean square value, frequency ,

Auto measurement

Probe

1X position 10X position

Bandwidth Up to 6 MHz (DC) Up to full bandwidth (DC)

Attenuation rate 1: 1 10: 1 Compensation range 15pf～35pf Input resistance 1MΩ±2％ 10MΩ±2％ Input impendence 85pf～115pf 14.5pf～17.5pf Input voltage ＜200 V DC+Peak AC ＜600 V DC+Peak AC

period ， Vmax, Vmin ， Vtop, Vbase, Vamp, Overshoot, Preshoot,

RiseTime, Fall Time, +Width, -Width, +Duty, -Duty, DelayA

DelayA

B .

B and

10.1.2 Meter

Voltage (VDC)

Input Impedance: 10MΩ.

Max. Input Voltage: 1000V (DC or AC peak-to-peak value)

Range Accuracy Resolution

400.0mv 100uV

4.000V 1mV

40.00V 10mV

400.0V

Voltage (VAC)

Input Impedance: 10MΩ.

Max. Input Voltage: 750V(AC, virtual value)

Frequency range: from 40Hz to 400Hz.

Display: Virtual value of the sine wave

±1%±1 digit

100mV

Range Accuracy Resolution

4.000V 1mV

40.00V 10mV

400.0V

±1%±3 digits

100mV

OWON HDS Series Handheld DSO & DMM 10-Appendix

Direct Current (DC)

Range Accuracy Resolution

40.00mA ±1%±1 digit 10uA

400.0mA ±1.5%±1 digit 100uA

20A ±3%±3 digits 10mA

Alternating Current (AC)

Range Accuracy Resolution

40.00mA ±1.5%±3 digit 10uA

400.0mA ±2%±1 digit 100uA

20A ±5%±3 digits 10mA

Resistance

Range Accuracy Resolution

400.0 Ω ±1%±3 digits 0.1Ω

4.000KΩ 1Ω

40.00KΩ 10Ω

400.0KΩ 100Ω

4.000MΩ

40.00MΩ ±1.5%±3 digits 10KΩ

±1%±1 digit

1KΩ

Capacitance

Range Accuracy Resolution

51.20nF 10pF

512.0nF 100pF

5.120uF 1nF

51.20uF 10nF

100uF

Diode

Voltage reading: 0 V ～1.5 V.

On-off Test

You can a beep sound when the on-resistance is less than 50Ω.

±3%±3 digits

10.1.3 General Specifications

Basic parameter

100nF

Mechanical dimension 18 cm×11.5cm×4cm Weight 645 g Power consumption ＜ 6 W

OWON HDS Series Handheld DSO & DMM 10-Appendix

Display type 3.8" color liquid crystal display

Display resolution 320 (horizontal) ×240 (vertical) pixels

Display color 4096 colors

Power Adapter

Power supply

100-240 V AC 50/60Hz

Power output 8.5 VDC

Current output 1500 mA

Battery:7.4V built-in Li-ion Battery

Working environment

Temperature

Operation

Used battery 0 to 50 °C(32 to 122 °F)

Power adapter 0 to 40 °C(32 to 104 °F)

Storage. -20 to +60 °C(-4 to +140 °F)

Temperature

Operation:

0 to 10 °C(32 to 50 °F) no condensation

10 to 30 °C(50 to 86 °F) 95 %

30 to 40 °C(86 to 104 °F) 75 %

40 to 50 °C(104 to 122 °F) 45 %

storage

-20 to +60 °C(-4 to +140 °F). no condensation

10.2 Appendix B: Maintenance and Cleaning

10.2.1 Common Maintenance

Do not store or place the instrument in locations where the liquid crystal display (LCD) may be

directly exposed to the sunshine for a long time.

Be careful: Do not make spraying agent, liquid and solvent touch with probes to avoid the

instrument or probe being damaged.

OWON HDS Series Handheld DSO & DMM 10-Appendix

Cleaning

Inspect the instrument and the probe frequently in accordance with operating conditions. Clean the

outer surface of the instrument according to the following steps:

1. Wipe off the floating dust outside of the instrument and the probe by using soft cloth.

When cleaning the LCD, do not scuff the transparent LCD protective screen.

2. Wipe the instrument in power off status by soft cloth that is moist but not dripping. It is

allowed to be cleaned by soft detergent or fresh water. Do not use any abrasive chemical

detergent to avoid the instrument or the probe being damaged.

Warning: Before repowering and reuse, please confirm that the instrument has been

dried out so as to avoid electrical short circuit and personal injury caused by moisture.

10.2.2 Storage of Oscilloscope

If the test tool is to be stored for a long time, it is required to charge the lithium battery before

storage.

Charging the oscilloscope

The lithium battery is possibly not charged when delivery. To make the battery with enough

electric quantity, it must be charged for 4 hours (the test tool must be turned off during charging).

The battery can supply power for 4 hours after being charged completely.

When supplying power by using the battery, a battery indicator is displayed on the top of the

screen to show the consumption condition of electric quantity. The symbols that are possibly

appear include minutes. To charge the battery and power the instrument, connect the oscilloscope using a power

adapter according to Figure 1 to charge the battery. The charging speed can be increased by

turning off the test tool.

Notice

To avoid superheat of battery during charging, the environment temperature is not allowed to

exceed the permissible value given in technical specification.

Note:

No hazard will occur even connecting the charger for a long time, e.g. during a whole weekend.

The instrument can automatically switch to slowly charging status.

, , and , where shows that the battery can only be used for about 5

10.2.3 Replacing the Lithium Battery Unit

It is usually not required to replace the battery unit. But when it is required to replace it, only

qualified personnel can carry out this operation, and only use the same specification lithium

battery.

OWON HDS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1.1 Declaration of Conformity

1.2 Package Contents

2.Safety Information

2.1 Safety Terms and Symbols

2.1.1 Safety Symbols

2.1.2 Safety Terms.

2.2 General Safety Information

4.Performing the General Inspection

4.1 Performing the General Inspection
