Owon AG1022, AG1012 User Manual

Dual-Channel Arbitrary

Waveform Generator

User Manual

 AG1022
 AG1012

WWW.OWON.COM

May 2015 edition V2.3

Copyright © Lilliput Company. All rights reserved.

The Lilliput's products are under the protection of the patent rights, including ones which have already

obtained the patent rights and those which are applying for. The information in this manual will

replace all that in the materials published originally.

The information in this manual was correct at the time of printing. However, Lilliput will continue to
improve products and reserves the rights to change specification at any time without notice.

is the registered trademark of the Lilliput Company.

Fujian Lilliput Optoelectronics Technology Co., Ltd.

No. 19, Heming Road
Lantian Industrial Zone, Zhangzhou 363005 P.R. China

Tel: [phone] Fax: [phone]

Web:

www.owon.com E-mail: [email protected]

General Warranty

Lilliput warrants that the product will be free from defects in materials and workmanship
for a period of 3 years (1 year for accessories) from the date of purchase of the product
by the original purchaser from the Lilliput Company. This warranty only applies to the
original purchaser and is not transferable to the third party. If the product proves
defective during the warranty period, Lilliput either will repair the defective product
without charge for parts and labor, or will provide a replacement in exchange for the
defective product. Parts, modules and replacement products used by Lilliput for warranty
work may be new or reconditioned to like new performance. All replaced parts, modules
and products become the property of Lilliput.

In order to obtain service under this warranty, Customer must notify Lilliput of the defect
before the expiration of the warranty period. Customer shall be responsible for
packaging and shipping the defective product to the service center designated by Lilliput,
and with a copy of customer proof of purchase.

This warranty shall not apply to any defect, failure or damage caused by improper use or
improper or inadequate maintenance and care. Lilliput shall not be obligated to furnish
service under this warranty a) to repair damage resulting from attempts by personnel
other than Lilliput representatives to install, repair or service the product; b) to repair
damage resulting from improper use or connection to incompatible equipment; c) to
repair any damage or malfunction caused by the use of non-Lilliput supplies; or d) to
service a product that has been modified or integrated with other products when the
effect of such modification or integration increases the time or difficulty of servicing the
product.

Please contact the nearest Lilliput's Sales and Service Offices for services or a complete
copy of the warranty statement.

For better after-sales service, please visit www.owon.com and register the purchased
product online.

Excepting the after-sales services provided in this summary or the applicable warranty statements,

Lilliput will not offer any guarantee for maintenance definitely declared or hinted, including but not

limited to the implied guarantee for marketability and special-purpose acceptability. Lilliput should

not take any responsibilities for any indirect, special or consequent damages.

i

Table of Contents

1.General Safety Requirements ..................................................................................... 1

2.Safety Terms and Symbols ......................................................................................... 2

3.General Characteristics ............................................................................................. 3

4.Quick Start ................................................................................................................ 4

Front/Rear Panel and User Interface ................................................................................... 5

Front Panel ............................................................................................................................................... 5

Rear Panel ................................................................................................................................................ 6

User Interface ........................................................................................................................................... 7

General Inspection .............................................................................................................. 8

Foot Stool Adjustment ........................................................................................................ 8

Power-On Check ................................................................................................................. 8

AC Power Input Setting ............................................................................................................................ 8

Power On .................................................................................................................................................. 9

5.Front Panel Operation ............................................................................................ 10

To set channels .................................................................................................................. 11

To set signals ..................................................................................................................... 12

To Output Sine Signals ............................................................................................................................ 12

To Set the Frequency/Period ............................................................................................................................... 12

To Set the Amplitude ........................................................................................................................................... 13

To Set the Offset .................................................................................................................................................. 13

To Set the High Level ............................................................................................................................................ 13

To Set the Low Level ............................................................................................................................................ 13

To Output Square Signals ....................................................................................................................... 13

To Set the Duty Cycle ........................................................................................................................................... 14

To Output Ramp Signals ......................................................................................................................... 15

To Set the Symmetry ............................................................................................................................................ 15

To Output Pulse Signals .......................................................................................................................... 16

To Set the Pulse Width / Duty Cycle .................................................................................................................... 17

To Output Noise Signals ......................................................................................................................... 17

To Output Arbitrary Signals .................................................................................................................... 18

To Select the Built-in Waveform........................................................................................................................... 19

The User-Definable Waveform ............................................................................................................................. 20

To Output DC .......................................................................................................................................... 21

To recall wave file ................................................................................................................................... 22

Use SDS Series oscilloscope manufactured by OWON to cut wave: .................................................................... 22

Use waveform generators to recall wave: ............................................................................................................ 22

To Save and Recall ............................................................................................................. 24

ii

To Use USB Storage ................................................................................................................................ 24

To Edit the File Name ............................................................................................................................. 24

To Set the Utility Function .................................................................................................. 25

To Set Display Parameter ....................................................................................................................... 25

To Set the Bright .................................................................................................................................................. 25

To Set the Separator ............................................................................................................................................ 25

To Set the Screen Saver ........................................................................................................................................ 25

To Set Output Parameter ....................................................................................................................... 26

To Set the Output Load ........................................................................................................................................ 26

To Set the Phase Deviation .................................................................................................................................. 26

To Set the System ................................................................................................................................... 26

Language Setting.................................................................................................................................................. 26

Power On Setting ................................................................................................................................................. 26

To Return to Default Setting................................................................................................................................. 27

To Set the Beep .................................................................................................................................................... 27

View System Information .................................................................................................................................... 28

To Set the Clock Source ........................................................................................................................................ 28

To Use the Power Amplifier (Optional) ............................................................................... 28

To Use Built-in Help ........................................................................................................... 28

6.Communication with PC ......................................................................................... 29

7.SCPI ....................................................................................................................... 30

8.Troubleshooting ...................................................................................................... 30

9.Technical Specifications .......................................................................................... 31

10.Appendix ............................................................................................................... 34

Appendix A: Enclosure ....................................................................................................... 34

Appendix B: General Care and Cleaning .............................................................................. 34

1.General Safety Requirements

1

1. General Safety Requirements

Before any operations, please read the following safety precautions to avoid any
possible bodily injury and prevent this product or any other products connected from
damage. In order to avoid any contingent danger, this product is only used within the
range specified.

Check AC power input setting according to the standards in your own country (see page 8,
AC Power Input Setting).

Only the qualified technicians can implement the maintenance.

To avoid Fire or Personal Injury:

 Use Proper Power Cord. Use only the power cord supplied with the product and

certified to use in your country.

 Product Grounded. This instrument is grounded through the power cord grounding

conductor. To avoid electric shock, the grounding conductor must be grounded. The
product must be grounded properly before any connection with its input or output
terminal.

 Check all Terminal Ratings. To avoid fire or shock hazard, check all ratings and

markers of this product. Refer to the user's manual for more information about
ratings before connecting to the instrument.

 Do not operate without covers. Do not operate the instrument with covers or panels

removed.

 Use Proper Fuse. Use only the specified type and rating fuse for this instrument.
 Avoid exposed circuit. Do not touch exposed junctions and components when the

instrument is powered.

 Do not operate if in any doubt. If you suspect damage occurs to the instrument,

have it inspected by qualified service personnel before further operations.

 Use your instrument in a well-ventilated area. Make sure the instrument installed

with proper ventilation, refer to the user manual for more details.

 Do not operate in wet conditions.
 Do not operate in an explosive atmosphere.
 Keep product surfaces clean and dry.

2.Safety Terms and Symbols

2

2. Safety Terms and Symbols

Safety Terms

Terms in this Manual. The following terms may appear in this manual:

Warning: Warning indicates the conditions or practices that could result in

injury or loss of life.

Caution: Caution indicates the conditions or practices that could result in

damage to this product or other property.

Terms on the Product. The following terms may appear on this product:

Danger: It indicates an injury or hazard may immediately happen.

Warning: It indicates an injury or hazard may be accessible potentially.

Caution: It indicates a potential damage to the instrument or other property might occur.

Safety Symbols

Symbols on the Product. The following symbol may appear on the product:

Hazardous Voltage

Refer to Manual

Protective Earth Terminal

Chassis Ground

Test Ground

3.General Characteristics

3

3. General Characterist ics

These products are dual-channel multi-function generator which combines Arbitrary
Waveform Generation and Function Generation. The product introduces Direct Digital
Synthesizer (DDS) technology to provide stable, precise, pure and low distortion signal.
The user-friendly interface design and panel layout bring exceptional user experience.
Support USB storage device. Provide more alternative solutions for users.

Features and benefits:

 3.9 inch high resolution (480 × 320 pixels) TFT LCD display;
 Advanced DDS technology, Max.25 MHz frequency output;
 Max. Sample rate: 125 MSa/s, Frequency resolution: 1 μHz;
 Vertical resolution: 14 bits, up to 8k waveform record length;
 Abundant waveform output: 5 basic waveforms and 45 built-in arbitrary waveforms

output;

 Exponential rise, Exponential fall, Sin(x)/x, Staircase, etc. 45 built-in waveforms and

user defined arbitrary waveform;

 Standard interface: USB port, USB (type B) connector.

4.Quick Start

4

4. Quick Start

This chapter will deal with the following topics mainly:

 Front/Rear Panel Overview
 User Interface Overview
 How to Implement General Inspection
 How to Adjust the Foot Stools
 How to Implement Power-On Check

4.Quick Start

5

Front/Rear Panel and User Interface

Front Panel

①

②

③

④

⑥

⑱

⑬

⑮ ⑭

⑯

⑲

⑩

⑪

⑦
⑧

⑨

⑫

⑤

⑰

Figure 4-1 Front panel overview (AG1022 shown)

①

LCD

Display the user interface

②

Menu selection
buttons

Include 5 buttons: F1 - F5, activate the corresponding menu

③

Number keys

Input parameters, include: number, point and plus/minus
sign

④

Knob

Change the current highlighted number, also can be used to
select file location or switch the character of the soft

keyboard when entering file name.

Press this knob to enter Channel Copy menu.

⑤

Direction key

Move the cursor of the focused parameter or select the file

locations

⑥

Save button

Store/recall the user-defined arbitrary waveform data

⑦

Utility button

Set the auxiliary system function.

⑧

Help button

View the build-in help information

⑨

CH2 Output Control

Turn on/off the output of CH2. The backlight will be lighted
when CH2 is tuned on.

4.Quick Start

6

⑩

CH2 Output

Output signal of CH2

⑪

Foot stool

Make the instrument to be tilted for ease of operation

⑫

CH1 Output Control

Turn on/off the output of CH1. The backlight will be lighted
when CH1 is tuned on.

⑬

CH1 Output

Output signal of CH1

⑭

C H 1/2 button

Switch channel displayed on the screen between CH1 and
CH2.

⑮

DC button

Enter DC settings screen of current channel

⑯

Both button Display the editable parameters of both channels. When the

function is enabled, the backlight of the button turns on.

⑰

USB port

Connect with an external USB device, such as connect a USB
device to the instrument.

⑱

Waveform selection

buttons

Include: Sine , Square , Ramp , Pulse ,

Noise and Arbitrary waveform. When a

waveform is selected, the backlight of the button turns on.

⑲

Power button

Turn on/off the generator

Rear Panel

①

④

③

②

⑤⑥

⑦

⑧

Figure 4-2 Rear panel overview

①

Power socket

AC input connector

②

Fuse

The rating is 250 V，F2AL.

③

Power switch

Switch between 110 V and 220 V.

4.Quick Start

7

④

USB (type B)
connector

This can be used to connect a USB type B controller.

Connect with an external device, such as connected to a PC

and controlled via PC software.

⑤

Ref Clk connector

To accept an external clock signal.

⑥

Ref Clk Out

connector

To synchronize generators. Output a clock signal generated

by the crystal inside the generator. (See page 28, To Set the

Clock Source)

⑦

P-Output
connector

Signal output for the Power Amplifier.
See page 28,

To Use the Power Amplifier (Optional)

⑧

P-Input connector Signal input for the Power Amplifier.

See page 28,

To Use the Power Amplifier (Optional)

User Interface

④

⑨
⑧

③

⑦

②

①

⑥

⑤

⑩

⑪

Figure 4-3 User interface (take Sine for instance)

①

Current channel

②

Parameter 1, display parameter and edit the focused parameter

③

Current signal type or mode

④

The setting menu of current signal or mode

⑤

Parameter 3, display parameter and edit the focused parameter

⑥

Parameter 2, display parameter and edit the focused parameter

⑦

Display current waveform

⑧

Offset/low level, depends on the highlighted menu item on the right

4.Quick Start

8

⑨

Amplitude/high level, depends on the highlighted menu item on the right

⑩

Frequency/period, depends on the highlighted menu item on the right

⑪

Load, High Z represents high resistance

General Inspection

After you get a new Waveform Generator, it is recommended that you should make a
check on the instrument according to the following steps:

1. Check whether there is any damage caused by transportation.

If it is found that the packaging carton or the foamed plastic protection cushion has
suffered serious damage, do not throw it away first till the complete device and its
accessories succeed in the electrical and mechanical property tests.

2. Check the Accessories

The supplied accessories have been already described in the Appendix A: Enclosure
of this Manual. You can check whether there is any loss of accessories with reference
to this description. If it is found that there is any accessory lost or damaged, please
get in touch with the distributor of Lilliput responsible for this service or the Lilliput's
local offices.

3. Check the Complete Instrument

If it is found that there is damage to the appearance of the instrument, or the
instrument can not work normally, or fails in the performance test, please get in
touch with the Lilliput's distributor responsible for this business or the Lilliput's local
offices. If there is damage to the instrument caused by the transportation, please
keep the package. With the transportation department or the Lilliput's distributor
responsible for this business informed about it, a repairing or replacement of the
instrument will be arranged by the Lilliput.

Foot Stool Adjustment

Unfold the foot stools on the bottom of the generator, as ⑪ in Figure 4-1.

Power-On Check

AC Power Input Setting

Adopt 100 - 120 VAC or 220 - 240 VAC power source. Users should regulate the voltage
scale of the Power Switch according to the standards in their own country (see Figure 4-2)
at the rear panel.

To change the voltage scale of the instrument, do the following steps:

(1) Turn off the power button at the front panel and remove the power cord.
(2) Regulate the Power Switch to the desired voltage scale.

4.Quick Start

9

Power On

(1) Connect the instrument to the AC supply using the supplied power cord.

Warning:
To avoid electric shock, the instrument must be grounded properly.

(2) Press down the power button at the front panel, the screen shows the boot screen.

5.Front Panel Operation

10

5. Front Panel Operation

This chapter will deal with the following topics mainly:

 How to Set Channels
 How to Output Sine Signals
 How to Output Square Signals
 How to Output Ramp Signals
 How to Output Pulse Signals
 How to Output Noise Signals
 How to Output Arbitrary Signals
 How to Output DC
 How to Save and Recall
 How to Set the Utility Function
 How to Use Built-in Help

5.Front Panel Operation

11

To set channels

 To Switch Channels for Display

Press CH1/2 button to switch channel displayed on the screen between CH1 and CH2.

 To Display/Edit Both Channels

Press Both button to display the parameters of both channels.

To switch channel: Press CH1/2 to switch the editable channel.

To select waveform: Press Waveform selection buttons to select waveform of current

channel.

To select parameter: Press F2 - F5 to choose the Parameter 1 to Parameter 4;

Press it again to switch the current parameter such as Frequency/Period.

To edit parameter: Turn the knob to change the value of cursor position. Press /
direction key to move the cursor. (The number keys can not be used to input.)

CH1

Waveform

Parameter 1

Parameter 4

CH2

Waveform

Parameter 1

Parameter 2

Parameter 3

Parameter 2

Parameter

3

Figure 5-1: The User Interfac e of Both button

 To Turn On/Off Output of Channels

Press CH1 or CH2 to turn on/off output of the corresponding channel. The indicator will

be lighted when the corresponding channel is tuned on.

 Channel Copy

(1) In signal output interface, press the knob on the front panel to enter Channel Copy

menu.

(2) Press F1 to select From CH2 To CH1, or press F2 to select From CH1 To CH2.

5.Front Panel Operation

12

To set signals

The following describes how to set and output Sine, Square, Ramp, Pulse, Noise, Arbitrary
signals and DC.

To Output Sine Signals

Press button to call the user interface of Sine signal, the Sine waveform
parameters can be set by operating the Sine setting menu on the right.

The parameters of Sine waveform are: Frequency/Period, Amplitude/High Level,
Offset/Low Level. You can operate the menu by using the menu selection buttons on the
right.

Channel

Setting menu
of Sine signal

Amplitude

Load

Offset

Current signal

Frequency

Parameter 3

Parameter 2

Parameter 1

Sine

Figure 5-2: The User Interface of Sine Signal

To Set the Frequency/Period

Press F1 button, the chosen menu item is highlighted, the focused parameter is
displayed in Parameter 1. Press F1 button to switch between Frequency/Period.

Two methods to change the chosen parameter:

 Turn the knob to change the value of cursor position. Press / direction key to

move the cursor.

 Press a number key in the front panel, an input box will pop up; keep going to input

the value. Press direction key to delete the last number. Press F1 - F3 to
choose the unit, or press F4 to go to next page and choose other units. Press
F5 to cancel the input.

AG1022：The frequency range is 1 μHz - 25 MHz; the period range is 40 ns - 1 Ms.
AG1012：The frequency range is 1 μHz - 10 MHz; the period range is 100 ns - 1 Ms.

5.Front Panel Operation

13

Figure 5-3: Set the frequency using number keys

To Set the Amplitude

Press F2 , confirm whether the "Ampl" menu item is highlighted; if not, press F2 to

switch into "Ampl". In Parameter 2, a cursor appears under the value of amplitude. Use
the knob or the number keys to set the desired value.

To Set the Offset

Press F3 , confirm whether the "Offset" menu item is highlighted; if not, press F3

to switch into "Offset". In Parameter 3, a cursor appears under the value of offset. Use
the knob or the number keys to set the desired value.

To Set the High Level

Press F2 , confirm whether the "Hi_Level" menu item is highlighted; if not, press
F2 to switch into "Hi_Level". In Parameter 2, a cursor appears under the value of

amplitude. Use the knob or the number keys to set the desired value.

To Set the Low Level

Press F3 , confirm whether the "Lo_Level" menu item is highlighted; if not, press
F3 to switch into "Lo_Level". In Parameter 3, a cursor appears under the value of

offset. Use the knob or the number keys to set the desired value.

To Output Square Signals

Press button to call the user interface of Square signal, the Square waveform
parameters can be set by operating the Square setting menu on the right.

The parameters of Square waveform are: Frequency/Period, Amplitude/High Level,
Offset/Low Level, Duty. You can operate the menu by using the menu selection buttons
on the right.

To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, please refer to To
Output Sine Signals on page 12.

The frequency range is 1 μHz - 5 MHz; the period range is 200 ns - 1 Ms.

5.Front Panel Operation

14

Channel

Setting menu of
Square signal

Amplitude

Load

Offset

Current signal

Frequency

Parameter

1

Duty cycle

Parameter 2

Parameter 3

Figure 5-4: The User Interfac e of Square Signal

Term Explanation

Duty Cycle:
The percentage that the High Level takes up the whole Period.

To Set the Duty Cycle

(1) Press F4 button, the "Duty" menu item is highlighted, the current value of the

Duty cycle is displayed in Parameter 1.

(2) Turn the knob to change the value directly;

or press the number keys to input the desired value, press F4 to choose "%".

For a frequency less than 1MHz, the Duty cycle range is 20% - 80%.
For a frequency ≥ 1 MHz, the Duty cycle is 50%.

5.Front Panel Operation

15

Figure 5-5: Set the Duty cycle of Square signal

To Output Ramp Signals

Press button to call the user interface of Ramp signal, the Ramp waveform

parameters can be set by operating the Ramp setting menu on the right.

The parameters of Ramp waveform are: Frequency/Period, Amplitude/High Level,
Offset/Low Level, Symmetry. You can operate the menu by using the menu selection
buttons on the right.

To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, please refer to To
Output Sine Signals on page 12.

The frequency range is 1 μHz - 1 MHz; the period range is 1 us - 1 Ms.

Channel

Setting menu
of Ramp signal

Amplitude

Load

Offset

Current signal

Frequency

Parameter 1

Symmetry

Parameter 2

Parameter 3

Figure 5-6: The User Interfac e of Ramp Signal

Term Explanation

Symmetry:

The percentage that the Rising Period takes up the whole Period.

To Set the Symmetry

(1) Press F4 button, the "Symmetry" menu item is highlighted, the current value of

the symmetry is displayed in Parameter 1.

(2) Turn the knob to change the value directly;

or press the number keys to input the desired value, press F4 to choose "%".

The symmetry range is 0% - 100%.

5.Front Panel Operation

16

Figure 5-7: Set the symmetry of Ramp signal

To Output Pulse Signals

Press button to call the user interface of Pulse signal, the Pulse waveform
parameters can be set by operating the Pulse setting menu on the right.

The parameters of Pulse waveform are: Frequency/Period, Amplitude/High Level,
Offset/Low Level, Pulse Width/Duty. You can operate the menu by using the menu
selection buttons on the right.

To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, please refer to To
Output Sine Signals on page 12.

The frequency range is 1 μHz - 5 MHz; the period range is 200 ns - 1 Ms.

Channel

Setting menu
of Pulse signal

Amplitude

Load

Offset

Current signal

Frequency

Pulse width

Parameter 2

Parameter 3

Parameter 1

Figure 5-8: The User Interfac e of Pulse Signal

5.Front Panel Operation

17

Term Explanation

Pulse Width:

There are two kinds of Pulse Width—positive and negative.
Positive Pulse Width is

the time span between thresholds of 50% of the rising edge

amplitude to the next 50% of the falling edge amplitude.
Negative Pulse Width is

the time span between thresholds of 50% of the falling edge

amplitude to the next 50% of the rising edge amplitude.
Pulse Width is determined by Period and Duty Cycle;

the formula is: Pulse Width = Period * Duty Cycle.

To Set the Pulse Width / Duty Cycle

(1) Press F4 button, the chosen menu item is highlighted, the focused parameter is

displayed in Parameter 1. Press F4 to switch between Pulse Width/Duty.

(2) Turn the knob to change the value directly;

or press the number keys to input the desired value and choose the unit.

The Pulse Width / Duty Cycle is limited by Period. The min value of the Pulse Width is
20 ns.

Figure 5-9: Set the Pulse Widt h of Pulse signal

To Output Noise Signals

The noise signal which the generator output is white noise. Press button to call the
user interface of Noise signal, the Noise waveform parameters can be set by operating
the Noise setting menu on the right.

The parameters of Noise waveform are: Amplitude/High Level, Offset/Low Level. Yo u ca n
operate the menu by using the menu selection buttons on the right.

To set the Amplitude/High Level, Offset/Low Level, please refer to To Output Sine Signals
on page 12.

5.Front Panel Operation

18

Setting menu
of Noise signal

Amplitude

Load

Offset

Current signal

Channel

Parameter 2

Parameter 3

Noise waveform

Figure 5-10: The User Interface of Noise Signal

To Output Arbitrary Signals

Press button to call the user interface of Arbitrary signal, the Arbitrary waveform
parameters can be set by operating the Arbitrary setting menu on the right.

The menu items of Arbitrary waveform are: Frequency/Period, Amplitude/High Level,
Offset/Low Level, Built-in Waveform, Editable Waveform. You can operate the menu by
using the menu selection buttons on the right.

To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, please refer to To
Output Sine Signals on page 12.

The frequency range is 1 μHz - 10 MHz; the period range is 100 ns - 1 Ms.

The Arbitrary signal consists of two types: the system built-in waveform and the
user-definable waveform.

Channel

Setting menu of
Arbitrary signal

Amplitude

Load

Offset

Current signal

Frequency

Parameter 1

Parameter 2

Parameter 3

Built-

in Exponential

Rise Waveform

Figure 5-11: The User Interface of Arbitrary Signal

5.Front Panel Operation

19

To Select the Built-in Waveform

There are 45 built-in Arbitrary waveforms.

Steps for selecting the built-in waveform:

(1) Press button, then press F4 to enter the Built-in Wform menu.
(2) Press F1 - F4 to select Common, Maths, Window or Others. E.g. select Maths

to enter the following interface.

(3) Turn the knob or press / direction key to choose the desired waveform. E.g.

select ExpRise. Press F1 to output the Exponential Rise waveform.

Built-in Waveform Table

Name

Explanation

Common

StairD Stair-down waveform
StairU Stair-up waveform
StairUD Stair-up and stair-down waveform
Trapezia Trapezoid waveform
RoundHalf RoundHalf wave
AbsSine Absolute value of a Sine
AbsSineHalf Absolute value of half a Sine
SineTra Sine transverse cut
SineVer Sine vertical cut
NegRamp Negative ramp
AttALT Gain oscillation curve
AmpALT Attenuation oscillation curve
CPulse Coded pulse
PPulse Positive pulse
NPulse Negative pulse

Maths

ExpRise Exponential rise function
ExpFall Exponential fall function

5.Front Panel Operation

20

Sinc Sinc function
Tan Tangent
Cot Cotangent
Sqrt Square root
XX Square function
HaverSine HaverSine function
Lorentz Lorentz function
ln Natural logarithm function
Cubic Cubic function
Cauchy Cauchy distribution
Besselj BesselI function
Bessely BesselII function
Erf Error function
Airy Airy function

Windows

Rectangle Rectangle window
Gauss Gauss distribution
Hamming Hamming window
Hann Hanning window
Bartlett Bartlett window
Blackman Blackman window
Laylight Laylight window
Triang Triangle window (Fejer window)

Others

DC DC signal
Heart Heart signal
Round Round signal
LFMPulse Linear FM pulse
Rhombus Rhombus signal
Cardiac Cardiac signal

The User-Definable Waveform

Press button and press F5 to select "Editable Wform".

Menu item

Instruction

Create Wform

Create a new waveform.

Select Wform

Select the waveform stored in internal storage (FLASH) or USB
device (USBDEVICE).

Edit Wform

Edit the stored waveform.

How to Create a New Waveform

(1) Enter the operation menu: Press →Editable Wform →Create Wform.

5.Front Panel Operation

21

(2) Set the number of waveform points: Press F1 to select "Wform Points", turn the

knob or press the number keys to input the desired value and choose the unit. X1, XK

respectively represent 1, 1000. The waveform points range is 2 - 8192.

(3) Set the interpolation: Press F2 to switch between On/Off. If you choose On, the

points will be connected with beelines; otherwise, the voltages between two
consecutive points will not change, and the waveform looks like a step-up one.

(4) Edit the waveform points: Press F3 to enter the operation menu.

 Press F1 to choose "Points", input the number of the point to be edited.
 Press F2 to choose "Voltage", input the voltage for the current point.
 Repeat the step above, set all the points to your needs.

 Press F4 to choose "Store", enter the file system. If a USB device is

connected, press / direction key to select the storage. "USBDEVICE" is

the USB device storage, "FLASH" is the internal storage. Choose Next level, enter

the desired storage path, choose Save, an input keyboard pops up, input the file

name, and then choose DONE.

How to Select a Stored Waveform

(1) Enter the operation menu: Press →Editable Wform →Select Wform.
(2) Enter the storage path of the desired waveform file. Turn the knob or press /

direction key to select the desired waveform file.

(3) Choose Recall output.

How to Edit a Stored Waveform

(1) Enter the operation menu: Press →Editable Wform →Edit Wform.
(2) Enter the storage path of the desired waveform file. Turn the knob or press /

direction key to select the desired waveform file.

(3) Choose Recall suppress.

How to Delete a Stored Waveform

(1) Press Save function button to enter the file system.
(2) Enter the storage path of the desired waveform file. Turn the knob or press /

direction key to select the desired waveform file.

(3) Choose Delete.

To Output DC

(1) Press CH1/2 to select the channel that you want to output DC, then press DC

button.

(2) Turn the knob to change the value; or press the number keys to input the desired

value, press F1 or F2 to select the unit.

5.Front Panel Operation

22

(3) Press CH1 or CH2 to turn on/off DC ouput of the corresponding channel.

To recall wave file

This function can read the waveform file with suffix of (*.ota) which is cut from SDS series
oscilloscope manufactured by OWON and saved to USB device or cut by the software of
OWON oscilloscope. Then the waveform generator can output the same signal as the cut
wave.

Use SDS Series oscilloscope manufactured by OWON to cut wave:

(1) Connect USB device to SDS series oscilloscope.
(2) Press Save to call out the save menu.
(3) Press the H1 button, the Type menu will display at the left of the screen, turn the M

knob to choose Cut Wave for type.

(4) Move cursor1 and cursor2 to choose the range of wave to be cut.
(5) Press the H2 button, and the input keyboard will pop up. The default name is the

current system date. Turn M knob to choose the keys, and press M knob to input the
chosen keys. Choose and press Enter key of the keyboard to end the input and store
the file with the current name to USB device.

Figure 5-12: Cut Wav e

Use waveform generators to recall wave:

(1) Enter the operation menu: Press →Editable Wform →SelectWform. Enter

the following interface:

5.Front Panel Operation

23

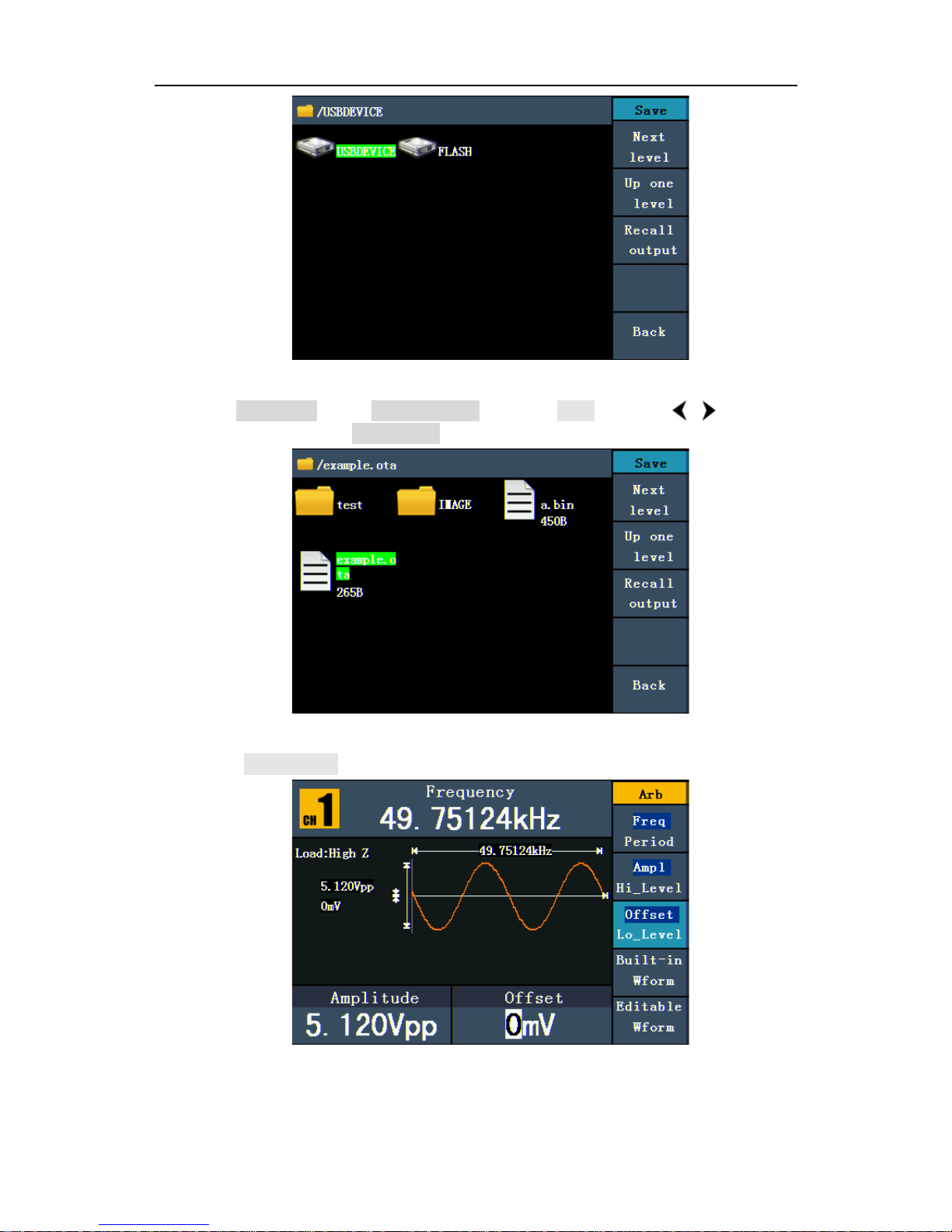

Figure 5-13: Choose storage device

(2) Select USBDEVICE, enter The Next Level. Turn the knob or press / direction

key to select the saved example.ota waveform file.

Figure 5-14: choose the .ota file

(3) Choose Recall output, and the tip “Read file successfully” will show on the interface.

Figure 5-15: Read file

Tips:

1. Normally the frequency, amplitude, and offset of the recalled wave are the same as the wave

5.Front Panel Operation

24

being cut, but when the frequency, amplitude, and offset are set out of the limit range, then the

generator would use the current parameter, which leads to the recalled wave not totally the same

as the cut wave.

2. The max data number of the waveform generator ARB is 8192. When the wave cut from

oscilloscope contains data number more than 8192, the waveform generator will compress data.

On the contrary if the data number is less than 8192, the waveform generator will use linear

interpolation.

To Save and Recall

Press Save function button to enter the file system.

To Use USB Storage

The storage location is divided into the internal storage (FLASH) and the USB device
storage (USBDEVICE). When a USB device is connected, the storage menu will show
"USBDEVICE" and "FLASH". Otherwise, the storage menu will show "FLASH" only.

(1) Install the USB device: insert a USB device into the "⑰USB port" on the front panel

in Figure 4-1, and the screen will show "Detect USB device". Press Save function

button to enter the file system, the storage menu will show "USBDEVICE" and
"FLASH".

(2) Enter the storage: Turn the knob or press / direction key to choose the

desired storage. Press F1 to enter the chosen storage. Provide operations as Next

level, Up one level, New folder, Delete, Rename, Copy, Paste.

(3) Remove the USB device: Remove the USB device from the USB port on the front

panel. The system will inform you "The USB device is removed", and the

"USBDEVICE" in the storage menu will disappear.

To Edit the File Name

In file system, the user can edit the name of a file or a f ol de r. When the system needs the
user to input a name, an input keyboard will appear.

Figure 5-16: Edit the File Name

5.Front Panel Operation

25

(1) Turn the knob or press / direction key to move the cursor left and right in the

keyboard. Press F3 to switch between capital and small of the characters.

(2) Press F1 to enter the current character. Press F2 to delete the last character .
(3) Press F4 to finish editing and save the file. Press F5 to cancel the save

operation.

Note: The length of file name is up to 15 characters.

To Set the Utility Function

Press Utility function key to enter the Utility Menu. You can set the parameters of the

Generator such as: Display Parameter, Output Parameter and System Setting. Press

Utility again to exit the Utility Menu.

To Set Display Parameter

To Set the Bright

(1) Press Utility and choose Disp Setup, press F1 to select Bright.
(2) Turn the knob to change the value, press / direction key to move the cursor

left and right; or press the number keys to input the desired value in percent, press

F4 to select the unit. The bright range is 0% - 100%.

To Set the Separator

The user can set the separator of the displayed parameter.

(1) Press Utility and choose Disp Setup, press F2 to select Sep.
(2) Press F2 to switch between Comma, Space, Off.

Take the Frequency parameter for instance:

Comma

Space

Off

To Set the Screen Saver

The screen saver will run automatically if no operation is taken for any key within the set
time. Press any button to resume.

(1) Press Utility and choose Disp Setup, press F3 to select Scrn Svr.

5.Front Panel Operation

26

(2) Press F3 to switch between On/Off.
(3) If On is selected, you can set the screen saver time. Turn the knob to change the

value, press / direction key to move the cursor left and right; or press the

number keys to input the desired time in minutes, press F4 to select the unit.

The screen saver time range is 1 - 999 minutes.

To Set Output Parameter

To Set the Output Load

For either of CH1 Output and CH2 Output on the Front panel, the Generator has a built-in

50Ωseries impendence. If the actual load does not match the set one, the displayed
amplitude and offset are incorrect. This function is used to match the displayed voltage
with the expected one.

Steps for setting the Load of each channel:

(1) Press Utility and choose Output Setup. Press F1 to select CH1Load, or press

F2 to select CH2Load; press it again to select HighZ or *Ω ("*" represents a value).

(2) To change the load value, after selecting *Ω, turn the knob to change the value, press

/ direction key to move the cursor left and right; or press the number keys to

input the desired value. Press F3 or F4 to select the unit. The load range is

1 Ω - 10 kΩ.

Note:
For either of CH1 Output and CH2 Output on the Front panel, the waveform generator
has a fixed 50Ω Series Impendence. No matter what Value the set parameter is, if the real
load is different from the set one, the displayed voltage will not equal the real voltage.

To Set the Phase Deviation

You can set the phase deviation of the two channels.

(1) Press Utility and choose Output Setup, press F3 to select PhaseDev.
(2) Press F3 to switch between On/Off.

(3) If On is selected, you can set the value of phase deviation. Turn the knob to change

the value, press / direction key to move the cursor left and right; or press the

number keys to input the desired value in degree, press F4 to select the unit. The

phase deviation range is 0 - 360°.

To Set the System

Language Setting

Press Utility and choose System, press F1 to switch display languages.

Power On Setting

(1) Press Utility and choose System, press F2 to select Power On.
(2) Press F2 to switch between Default/Last. Default means that all the settings

5.Front Panel Operation

27

return to default when powered. Last means that all the settings return to the last

one when powered.

To Return to Default Setting

Press Utility and choose System, press F3 to select Set to Default, press F1 to

confirm. All the settings will be set to default. The default settings of the system are as

follows:

Output Default

Function Sine Wave
Frequency 1 kHz
Amplitude/Offset 1 V

p-p

/ 0 Vdc

Waveforms Default

Frequency 1 kHz
Amplitude

1 V

p-p

Offset

0 Vdc

Duty Cycle of Square 50%
Symmetry of Ramp 50%
Pulse Width of Pulse 200 us
Duty Cycle of Pulse 20%

Others Default

Brightness

95%

Separator Comma
Screen Saver time 100 minutes
Load High Z
Phase Deviation 0°
Clock Source Internal
Channel Output Control Off

To Set the Beep

(1) Press Utility and choose System, enter the second page of the menu.
(2) Press F1 to select Beep.
(3) Press F1 to switch between On/Off. On is to activate the sound when the system

informs you. Off is to deactivate it.

5.Front Panel Operation

28

View System Information

(1) Press Utility and choose System, enter the second page of the menu.
(2) Press F2 to select Sys info. You can view the Version and Serial number.

To Set the Clock Source

The waveform generator provides an internal clock source and also accepts external clock
source input from the [Ref Clk] connector at the rear panel. It can also output a clock
source from the [Ref Clk Out] connector for other device to use.

Note:
The amplitude of the [Ref Clk] input signal must be over 1 V.

(1) Press Utility and choose System, enter the second page of the menu.
(2) Press F3 to select CLK Sou.
(3) Press F3 to switch between Internal/External.

To Use the Power Amplifier (Optional)

The Power Amplifier module is optional for the generator, can be used in power circuit
test, power components measurement, constant voltage output, magnetization
characteristic measurement, scientific research and education.
Features:

 Gain: X10;
 Virtual Value of Sine Output Power: 10W;
 Input Impedance: 50 kΩ;
 The integrated output protection circuit (overcurrent protection and internal

temperature abnormal protection) provided with ensures the instrument is working
stably and safely;

 Full power bandwidth: DC – 100 kHz.

How to Use:

Connect the input signal to the P-Input connector on the rear panel; the P-Output

connector outputs the amplified signal.

To Use Built-in Help

(1) Press Help function button, the catalog will display in the screen.
(2) Press F1 or F2 to choose help topic, or just turn the knob to choose.
(3) Press F3 to view the details about the topic; press F5 to go back to the

catalog.

(4) Press Help again to exit the help, or just do other operations.

6.Communication with PC

29

6. Communication with PC

The Waveform Generator supports communications with a PC through USB port. You ca n
use the ultrawave communication software to set the parameters, control the output of
the Waveform Generator.
The Waveform Generator supports communications with a PC by SCPI commands
through USB port.
Here is how to connect with PC. Install the ultrawave communication software on the
supplied CD.

(1) Connection: Use a USB data cable to connect the USB (type B) connector on the rear

panel of the Waveform Generator to the USB port of a PC.

(2) Install the driver: When the Waveform Generator is turned on, a dialog will appear

on the PC screen and guide you to install the USB driver. The driver is in the
"USBDRV" folder under the directory where the ultrawave communication software
is installed, such as "C:\Program Files\OWON\ultrawave\USBDRV".

(3) Port setting of the software: Run the ultrawave software; click "Communications" in

the menu bar, choose "Ports-Settings", in the setting dialog, choose "Connect using"
as "USB". After connect successfully, the connection information in the bottom right
corner of the software will turn green.

For the detail communication protocol of SCPI, please refer to AG Series Waveform
Generator SCPI Protocol.

To learn about how to operate the software, press F1 in the software to open the help
document.

7.SCPI

30

7. SCPI

The waveform generator supports SCPI, and the users can operate and control the device
by USB port. For the detailed information about SCPI, please refer to AG Series Waveform
Generator SCPI Protocol.

8. Troubleshooting

1. The instrument is powered on but no Display.

 Check if the power is connected properly.
 Check if the Power Switch is in the proper voltage scale.
 Check if the fuse which is below the AC Power socket is used appropriately and

in good condition (the cover can be pried open with a straight screwdriver).

 Restart the instrument after the steps above.
 If the problem still exists, please contact Lilliput for our service.

2. The measured value of output signal amplitude disaccords to the displayed value:

Check if the actual load matches the set one. Please refer to To Set the Output Load
on page 26.

If you encounter other problems, try to reset the settings (refer to To Return to Default
Setting on page 27) or restart the instrument. If it still can not work properly, please
contact Lilliput for our service.

9.Technical Specifications

31

9. Technical Specifications

All these specifications apply to the Waveform Generator unless otherwise
explanation. To reach these specifications, the instrument must have been operating
continuously for more than 30 minutes within the specified operating temperature.

All the specifications are guaranteed unless those marked with “typical”.

Waveforms

Standard Waveforms

Sine, Square, Ramp, Pulse, Noise, DC

Arbitrary Waveforms

Exponential rise, Exponential fall, Sin(x)/x,

Staircase, etc. 45 built-in waveforms,

User-Definable Waveform

Numbers of channel

2

Frequency Characteristic
(Max sampling rate 125MSa/s, frequency resolution 1 μHz)

Sine

AG1022

1 μHz—25 MHz

AG1012

1 μHz—10 MHz

Square

1 μHz—5 MHz

Ramp

1 μHz—1 MHz

Pulse

1 μHz—5 MHz

White Noise

25 MHz bandwidth (-3 dB) (typical)

Arbitrary

1 μHz—10 MHz

Amplitude Characteristic

Output Amplitude

High Z

AG1022

1 μHz to 10 MHz:

1 mVPP – 20 VPP
10 MHz to 25 MHz:

1 mVPP – 10 VPP

AG1012

1 μHz to 10 MHz

：

1 mVPP – 20 VPP

50Ω

AG1022 1 μHz to 10 MHz:

0.5 mVPP – 10 VPP
10 MHz to 25 MHz:

0.5 mVPP – 5 VPP

AG1012

1 μHz to 10 MHz：

0.5 mVPP – 10 VPP

Amplitude Accuracy

1 mVPP or 14 bits

DC Offset Range (AC+DC)

±5 V (50 Ω)
±10 V (High Z)

DC Offset Accuracy

1 mV

Output Impedance

50 Ω (typical)

Waveform Characteristic

9.Technical Specifications

32

Sine

Flatness (when the Amplitude is

1.0 V

p-p

(+4 dBm), relative to 1 kHz)

AG1022

1 μHz to 10 MHz：

0.2 dB ± 1 mv
10 MHz to 25 MHz：

0.3 dB ± 1 mv

AG1012

0.2 dB ± 1 mv

Harmonic Distortion (when the
Amplitude is 1.0 V

p-p

)

<-40 dBc

Total Harmonic Distortion (when

the Amplitude is 1 V

p-p

)

10 Hz to 20 kHz： <0.2 %

Phase Noise (when the Amplitude is
1 V

p-p

)

-110 dBc/Hz

Residue Clock Noise

-57 dBm (typical)

Square

Rise/Fall Time

<12 ns (10% - 90%) (typical, 1 kHz, 1 V

p-p

)

Jitter (rms)

1 ns + 30 ppm

Non-symmetry (below 50% Duty
Cycle)

1% of period + 5 ns

Overshoot

< 5%

Duty Cycle

20% - 80% (< 1 MHz)
50% (1 MHz - 5 MHz)

Ramp

Linearity

< 0.1% of peak output (typical, 1 kHz, 1 V

p-p

,

Symmetry 50%)

Symmetry

0% to 100%

Pulse

Pulse Width

40 ns to 1000 ks

Accuracy

10 ns

Rising/Falling Edge Time

< 12 ns

Overshoot

< 5%

Jitter

1 ns + 30 ppm

Arbitrary

Waveform Length

2 – 8k points

Sample Rate

125 MSa/s

Amplitude Accuracy

14 bits

Minimum Rise/Fall Time

35 ns (typical)

Jitter (RMS)

6 ns + 30 ppm

Input/Output

Channel Coupling, Channel Copy

Phase Deviation

0 - 360°

Rear Panel

Interfaces

USB (type B) connector

External Reference Clock Input

9.Technical Specifications

33

Impedance

1 kΩ, AC coupled

Requested Input voltage swing

100 mV

p-p

to 5 V

p-p

locking range

20 MHz ± 35 kHz

External Reference Clock Output

Impedance

50 kΩ, DC coupled

Amplitude

3.3 V

p-p

, access 50 Ω

Power Amplifier Specification (Optional)

Input Impedance

50 kΩ

Output Impedance

< 2 Ω

Gain

X 10

Max Input Voltage

2.2 Vpp

Max Output Power

10 W

Max Output Voltage

22 Vpp

Full Power Bandwidth

DC - 100 kHz

Slew Rate

10 V/us

Overshoot

< 7%

Display

Display Type

3.9 inch colored LCD (Liquid Crystal Display)

Display Resolution

480 (Horizontal) × 320 (Vertical) Pixels

Display Colors

65536 colors, 16 bits, TFT screen

Power

Supply

220-240 VAC, 100-120 VAC, 50/60 Hz, CATⅡ

Consumption

Less than 18 W

Fuse

250 V, F2AL

Environment

Temperature

Working temperature: 0℃ - 40℃

Storage temperature: －20℃ - 60℃

Relative Humidity

≤ 90%

Height

Operating: 3,000 m

Non-operating: 15,000 m

Cooling Method

Natural cooling

Mechanical Specifications

Dimension 235 mm × 110 mm × 295 mm (W*H*D)

Weight 3 kg

Interval Period of Adjustment:

One year is recommended for the calibration interval period.

10.Appendix

34

10. Appendix

Appendix A: Enclosure

Standard Accessories:

 A power cord that fits the standard of the destination country
 A USB cable
 A CD (PC link application software)
 A Quick Guide
 A BNC/Q9 cable

Appendix B: General Care and Cleaning

General Care

Do not store or leave the instrument where the liquid crystal display will be exposed
to direct sunlight for long periods of time.

Caution: To avoid any damage to the instrument, do not exposed it to any sprays,

liquids, or solvents.

Cleaning

Inspect the instrument as often as operating conditions require.
To clean the instrument exterior, perform the following steps:

1. Wipe the dust from the instrument surface with a soft cloth. Do not make any

scuffing on the transparent LCD protection screen when clean the LCD screen.

2. Disconnect power before cleaning your instrument. Clean the instrument with a

wet soft cloth not dripping water. It is recommended to scrub with soft
detergent or fresh water. To avoid damage to the instrument, do not use any
corrosive chemical cleaning agent.

Warn

ing: Before power on again for opera

tion, it is required to confirm that

the instrument has already been dried completely, avoiding any

electrical short circuit or bodily injury resulting form the moisture.
