OWL–SDI–HVA01 User Manual
SD/HD/3G-SDI to HDMI & CVBS Converter
NOTE:
The casing design is subject to
Change
without notice
This device converts a single channel SDI signal to different kinds of HD Multimedia HDMI signals and
CVBS signals .It integrates SDI Cable equalizer and relocked to enhance video performance and stability.
Simultaneously, it also separates and converts the audio signals of SDI, embedding it to HDMI signal or output
to analog audio DACs.
Features
Support SDI input format: All SDI Formats
SD: 525i @ 59.94Hz, 625i@ 50Hz
HD: 720p @
720p @ 50Hz
1080i @
1080p @ 23.98Hz
3G:
Support
Carry 1channel
Max. Cable length (Belden1694A): SD-SDI 400m/1300ft, HD-SDI 200m/600ft, 3G-SDI
Automatically embed
User selectable
5V 24V DC
SMPTE
1080p@
425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C.
SDl
output
23.98Hz /24Hz /25Hz /29.97Hz
/59.94Hz /60Hz
50Hz
I
59.94Hz
/24Hz
50Hz
/59.94Hz /60Hz
signal loop
SDI
audio signal to HDMI signal.
format (HDMI and CVBS)
out.
I
60Hz
I
25Hz
I
29.97Hz
/30Hz
I
30Hz
1 / 8
140m/450ft
Page 2
Ple a s e r e a d t h e Man u a l b e f o re a t temp t i n g to u s e th i s pro d u ct
Specifications
and appearance are subject to change without notice.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and
other European countries with separate collection systems)
This
symbol on
treated
the
correctly,
health, which
recycling of
about
disposal service or the shop where you purchased the
as household waste. Instead
recycling of electrical and
you
will
could
materials will help
recycling of this
the product or on its
electronic
help prevent
otherwise
product, please
potential
be caused by
to
packaging indicates
it
shall be handed over to the applicable
equipment. By ensuring this
negative consequences for the
inappropriate
conserve
natural resources. For
contact your
local city
product.
that this
waste handling of
office, your
more
Caution
1. Handle
Avoid any shock or
Do
not
2. Requires a
This product is not waterproof and is designed for indoor use. The allowable
range for operation of this
3. Check the
The power source voltage should be
specifications).
this
product
not handle the unit with wet hands. Provide proper
use near
water.
proper
power
with
bumping
operating
product
source
care
of the
voltage
product. Improper
environment
is between 0°C"40°C I
within the specified
handling could damage the
ventilation
32"F-104
range. (Product
and air circulation and do
"F.
product
product is disposed
environment and
detailed information
household
must meet
shall not be
collection
this
product. The
waste
product.
temperature
the
point for
of
human
4.
Objects and liquid
entry
2 / 8
Page 3
Never push objects of any kind into this product as this may touch dangerous voltage points
short out parts that could result in a fire or electric shock. Never spill any kind of liquid on
product.
5.
Cleaning
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power
before cleaning.
6. Servicing
Do not attempt to service this product by yourself
you to dangerous voltage or other
to
the device
as
opening or removing covers may expose
hazards. Refer
all service to qualified servicing
personnel.
Package Contents
of
the
1. One
2. One (1) User
3. One (1)
For any returns, please include all components listed above with original packaging in Resalable
Condition. Absolutely No Returns will be accepted if any component is missing/damaged.
(1) SDI
1. 2. 3.
to HDMI&
Manual
AC
Adapter
CVBS
Converter
Parts & Functions
Left Side View
Right
Side View
Application diagram
The distance depends on the quality of the SDI signal from the HD camera source
and also the Coax
Cable & Connector
3 / 8
Page 4
Model
OWL-SDI-HVA01
Input Interface
1x BNC SDI
Input Signal Type
SD-SDI (270Mbps), HD-SDI (1.485Gbps),
3G-SDI (2.97Gbps)
Support Input Format
SD: 525i @ 59.94Hz, 625i @5 0Hz
HD: 720p @ 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
720p @ 50Hz / 59.94Hz / 60Hz
1080i @ 50Hz / 59.94Hz / 60Hz
1080p @2 3.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz
3G:1080p @50Hz / 59.94Hz / 60Hz
SDI signal Range
0.8V p-p
SDI Impedance
75 ohms
SDI Coupling Type
AC Coupling
Max. Input Coax Length
Belden 1694A
SD-SDI 400m / 1300ft; HD-SDI 200m / 600ft
SDI Loop Out Interface
1x BNC SDI
HDMI/DVI Out Interface
1x HDMI
Frequency Bandwidth
165MHz/up to standard with HDCP: HDMI 1.3
AV（CVBS）Output Interface
CVBS: PAL/NTSC
Power Supply
5V~24V DC
Power Consumption
6 Watts (max)
Operating Temperature
32°F~104°F / 0°C~40°C
Storage Temperature
-4°F~140°F / -20°C~60°C
Relative Humidity
20-90% RH (Non-condensation)
Dimension
6.14"x4.72"x1.42" / 156 x 120 x 36mm
Technical Specifications:
*Specifications are subject to change without notice
4 / 8
Page 5
Name of Component
Manufacturer
Multi-Rate SDI Adaptive Cable Equalizer
Gennum
Multi-Rate SDI Automatic Reclocker
Gennum
Multi-Rate Dual Slew-Rate Cable Driver
Mindspeed & Gennum
SDI SPD
Bourns
HDMI ESD Protection
Semtech
Micro Controller Unit
Texas Instruments
Name of Component
Manufacturer
DC/DC Converter
Richtek
Key Components
Components Made in USA for this product:
Components Made in Taiwan for this product:
*Key components are listed by the manufacturer and are subject to change without notice
Eve Diagram
SD MODE
5 / 8
Page 6

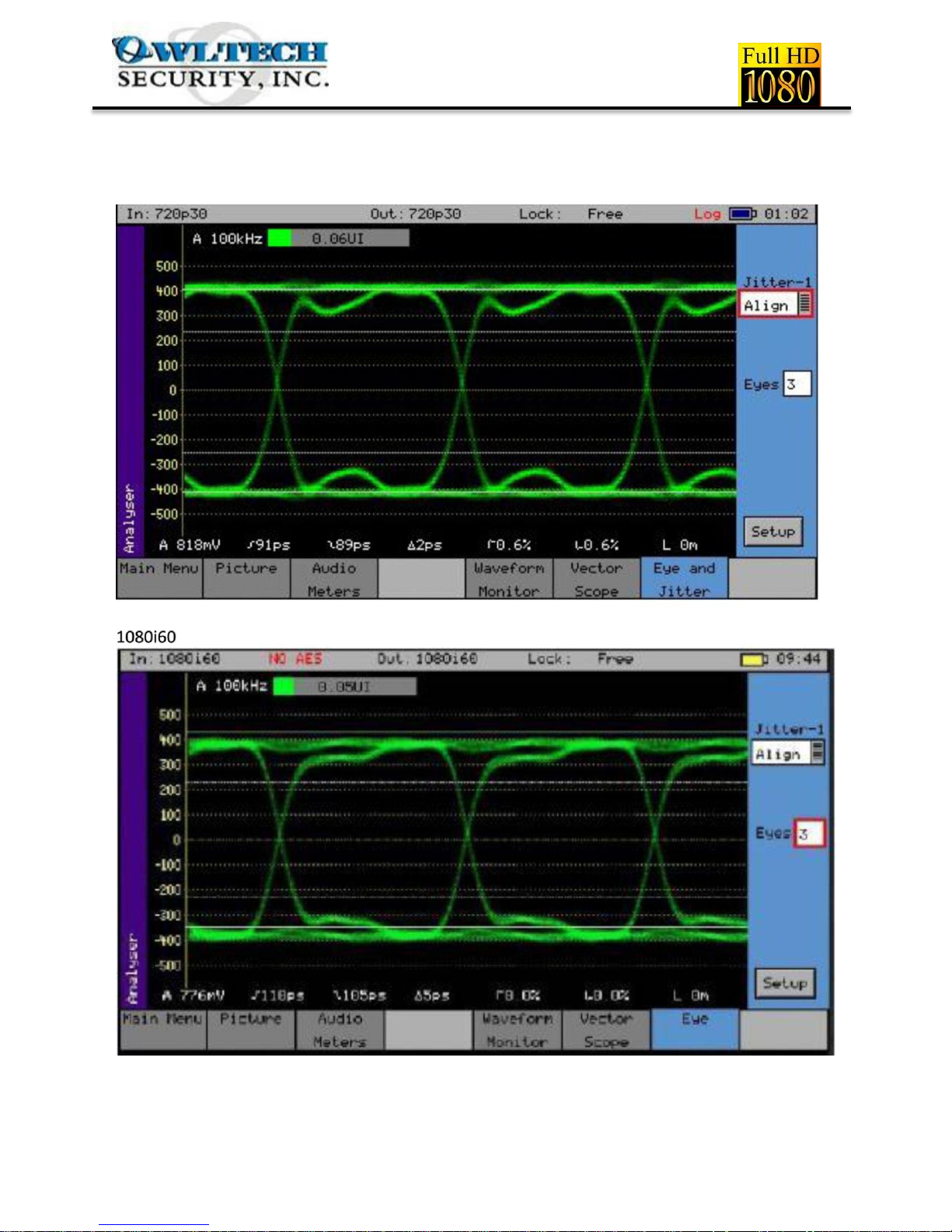

HD MODE
720P30
6 / 8
Page 7

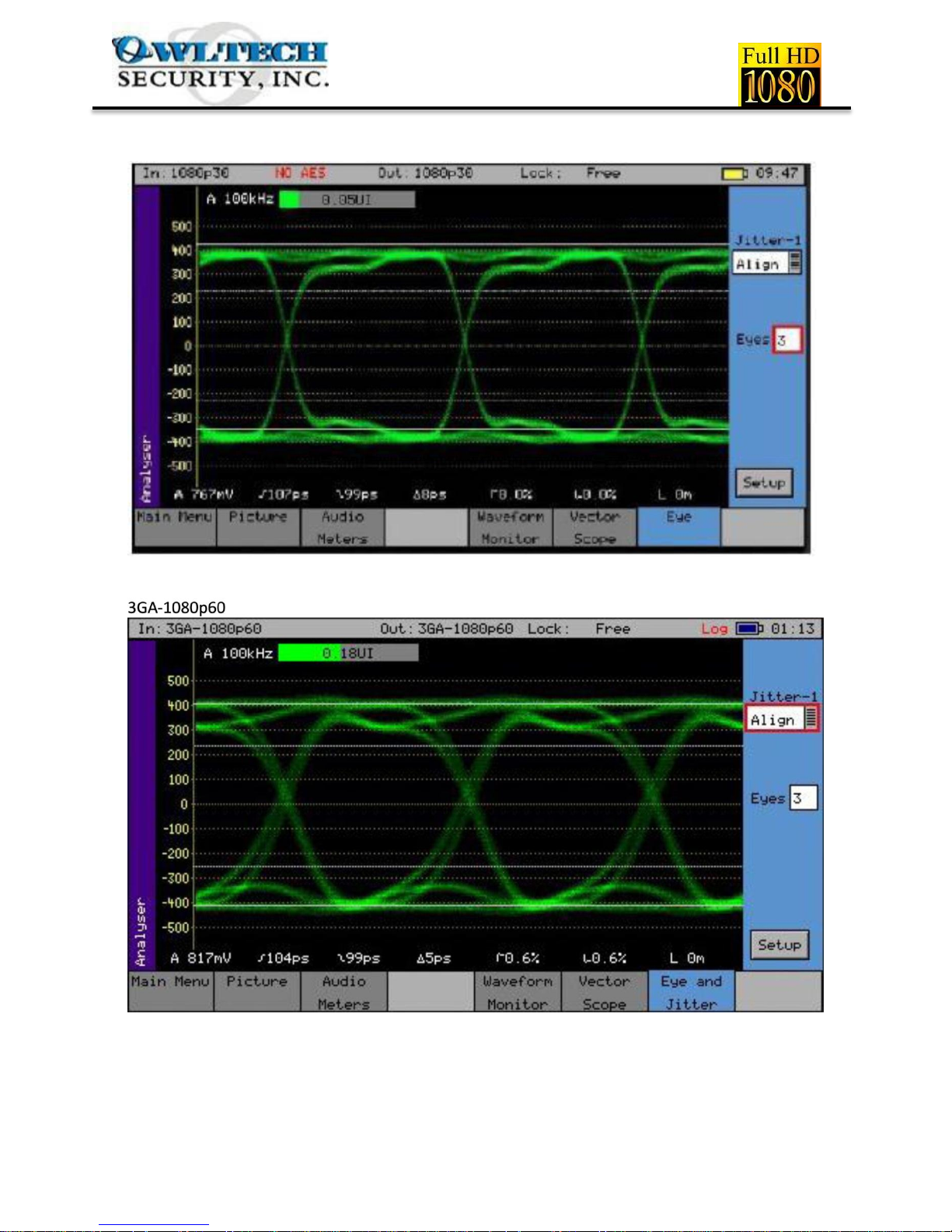

1080P30
7 / 8
Page 8
IMPORTANT NOTE: Cable & Connector for SDI HD Camera
In order to achieve the Best Quality and Long Range coax cable run of up to 200m / 600ft,
you will need:
1. Good Quality Cable: We suggest using RGG Belden 1694A Low loss Serial Digital
coax cable because RGG cables have better grounding than RG59 cables. RGG is
for Digital Signal and RG59 is for Analog Signal.
3. Good Quality installation: Do not over cut the braid because it will affect the
grounding. The image will have lines and noise.
Limited Warranty
OWL-SDI-HVA01
LIMITED ONE (1) YEAR WARRANTY AND EXCLUSIONS
Manufacturer warrants to the original consumer purchaser and not for the benefit of anyone else that
this product at the time of its sale by Manufacturer is free of defects in materials and workmanship
under normal and proper use for one (1) year from the purchase date. Manufacturer's only obligation
is to correct such defects by repair or replacement, at its option, if within such one (1) year period the
product is returned prepaid, with proof of purchase date, and a description of the problem. This
warrant excludes and there is disclaimed liability for labor for removal of this product or reinstallation.
This warranty is voided if this product is installed improperly or in an improper environment,
overloaded, misused, opened, abused, or altered in any manner, or is not used under Normal
operating conditions or not in accordance with any labels or instructions. There are no other implied
warranties of any kind, including merchantability and fitness or a particular purpose, but if any
implied warranty is required by the applicable jurisdiction, the duration of any such implied warrant,
including merchantability and fitness of or a particular purpose, is limited to one(1)year.
Manufacturer is not liable for incidental, indirect, special, or consequential damages, including
without limitation, damage to, or loss of use of, any equipment, loss sales or profits or delay or
failure to perform this warranty obligation. the remedies, provided therein are the exclusive
remedies under this warranty, whether based on contract, tort or otherwise.
8 / 8
