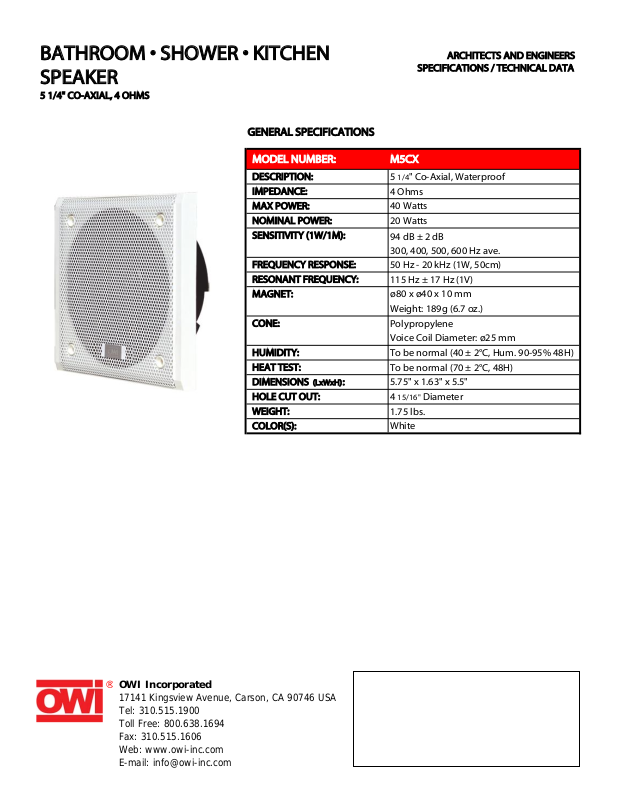

OWI M-5-CX Brochure

BATHROOM • SHOWER • KITCHEN

T

0

T

4

®

SPEAKER

5 1/4" CO-AXIAL, 4 OHMS

GENERAL SPECIFICATIONS

MODEL NUMBER: M5CX

DESCRIPTION: 5 1/4" Co-Axial, Waterproof
IMPEDANCE: 4 Ohms
MAX POWER: 40 Watts
NOMINAL POWER: 20 Watts
SENSITIVITY (1W/1M):

FREQUENCY RESPONSE: 50 Hz - 20 kHz (1W, 50cm)
RESONANT FREQUENCY: 115 Hz ± 17 Hz (1V)
MAGNET: ø80 x ø40 x 10 mm

CONE: Polypropylene

HUMIDITY: To be normal (40 ± 2°C, Hum. 90-95% 48H)
HEAT TEST: To be normal (70 ± 2°C, 48H)
DIMENSIONS
HOLE CUT OUT: 4
WEIGHT: 1.75 lbs.
COLOR(S): White

(LxWxH): 5.75" x 1.63" x 5.5"

ARCHITECTS AND ENGINEERS

SPECIFICATIONS / TECHNICAL DATA

94 dB ± 2 dB
300, 400, 500, 600 Hz ave.

Weight: 189g (6.7 oz.)

Voice Coil Diameter: ø25 mm

15/16" Diameter

OWI Incorporated

17141 Kingsview Avenue, Carson, CA 90746 USA

el: 310.515.190

oll Free: 800.638.169
Fax: [phone]
Web: www.owi-inc.com
E-mail: [e-mail]
