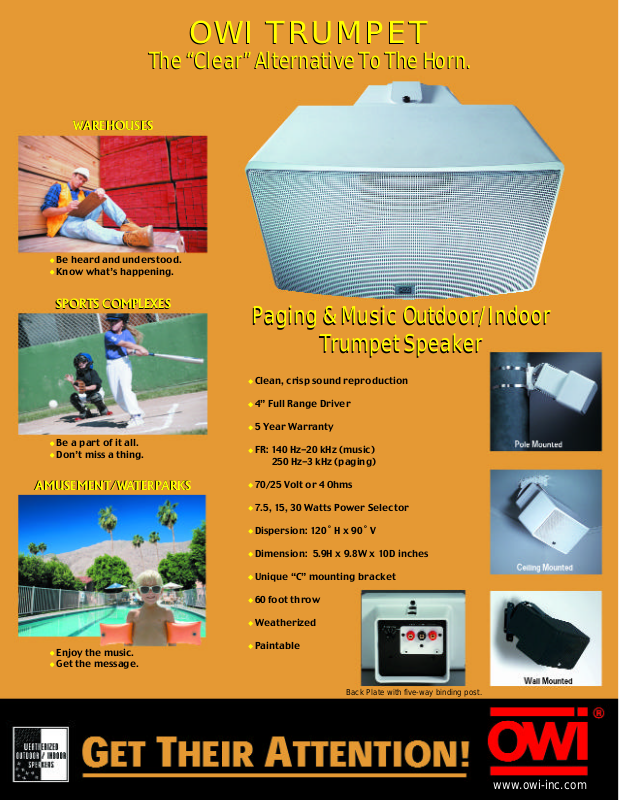

The “Clear” Alternative To The Horn.
The “Clear” Alternative To The Horn.
WAREHOUSES
WAREHOUSES
Be heard and understood.
Know what’s happening.
SPORTS COMPLEXES
SPORTS COMPLEXES
OWI TRUMPET
OWI TRUMPET
Paging & Music Outdoor/Indoor
Paging & Music Outdoor/Indoor
Be a part of it all.
Don’t miss a thing.
AMUSEMENT/WATERPARKS
AMUSEMENT/WATERPARKS
Trumpet Speaker
Trumpet Speaker
Clean, crisp sound reproduction
4” Full Range Driver
5 Year Warranty
FR: 140 Hz-20 kHz (music)
250 Hz-3 kHz (paging)
70/25 Volt or 4 Ohms
7.5, 15, 30 Watts Power Selector
Dispersion: 120˚ H x 90˚ V
Dimension: 5.9H x 9.8W x 10D inches
Unique “C” mounting bracket
60 foot throw
Weatherized
Enjoy the music.
Get the message.
Paintable
Back Plate with five-way binding post.
www.owi-inc.com
Page 2
A R C H I T E C T U R A L
P O L A R
R E S P O N S E
C H A R T S
125 - 250Hz
500Hz - 1 kHz
Model# 04-TRP 70-TRP
System Type Full Range Full Range
Speaker Driver 4” Polypropylene Coated 4” Polypropylene Coated
Outdoor/Indoor Yes Yes
Frequency Response
Music 140Hz-20kHz 140Hz-20kHz
Speech 250Hz-3kHz 250Hz-3kHz
Crossover 4khz 4kHz
Impedance 4 Ohms 25V or 70.7V
Sensitivity (1W, 1M) 90dB 90dB
Power Handling 80 Watts Max Selector Knob
40 Watts RMS 7.5W, 15W, 30W
Dispersion Coverage 120˚H x 90˚V 120˚H x 90˚V
Enclosure ABS Plastic ABS Plastic
Grill Aluminum Aluminum
Operating Temperature 14˚F to 176˚F 14˚F to 176˚F
(-10˚C to 80˚C) (-10˚C to 80˚C)
Dimensions: HWD 5.9H x 9.8W x 10D inches 5.9H x 9.8W x 10D inches
Product Weight 4.98 Lb. (2.26kG) 6.75 Lb. (3.06kG)
Throw (Distance) 60 Feet 60 Feet
Color Paintable White Black or White
Mounting Hardware Unique “C” Bracket Unique “C” Bracket
(Included) (Included)
Terminal Cover Plate Included Included
Security Cable Included Included
Paintable Yes Yes
Warranty 5 Years 5 Years
2 - 4 kHz
8 - 16 kHz
OW I
w w w. ow i - i n c. c o m
®
OWI Incorporated
17141 Kingsview Ave., Carson, California 90746
(310) 515-1900 Fax:(310) 515-1606
E-mail: [email protected]
