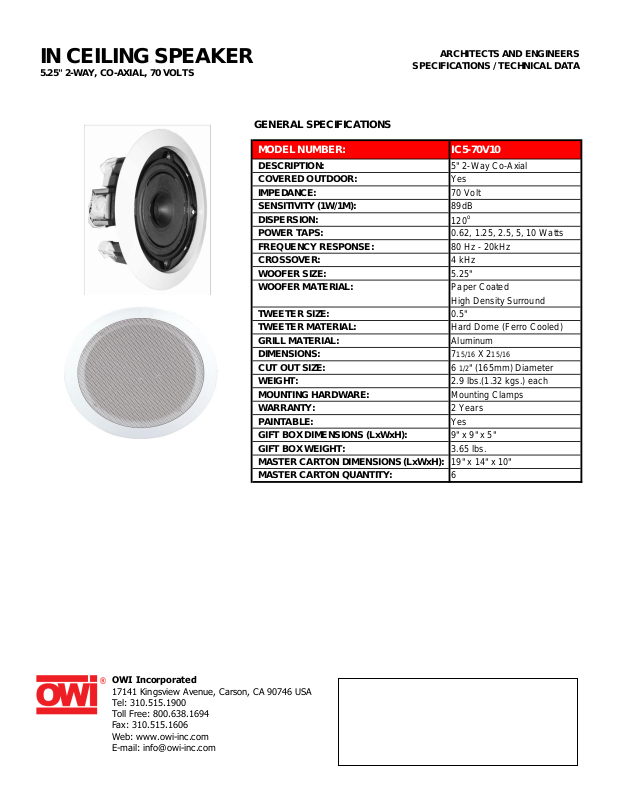

OWI IC5-70V10 Specifications

ARCHITECTS AND ENGINEERS

SPECIFICATIONS / TECHNICAL DATA

GENERAL SPECIFICATIONS

MODEL NUMBER: IC5-70V10

DESCRIPTION: 5" 2-Way Co-Axial
COVERED OUTDOOR: Yes
IMPEDANCE: 70 Volt
SENSITIVITY (1W/1M): 89dB
DISPERSION:

120

o

POWER TAPS: 0.62, 1.25, 2.5, 5, 10 Watts
FREQUENCY RESPONSE: 80 Hz - 20kHz
CROSSOVER: 4 kHz
WOOFER SIZE: 5.25"
WOOFER MATERIAL: Paper Coated

High Density Surround

TWEETER SIZE: 0.5"
TWEETER MATERIAL: Hard Dome (Ferro Cooled)
GRILL MATERIAL: Aluminum
DIMENSIONS:

715/16 X 215/16

CUT OUT SIZE:

6 1/2" (165mm) Diameter

WEIGHT: 2.9 lbs.(1.32 kgs.) each
MOUNTING HARDWARE: Mounting Clamps
WARRANTY: 2 Years
PAINTABLE: Yes
GIFT BOX DIMENSIONS (LxWxH): 9" x 9" x 5"
GIFT BOX WEIGHT: 3.65 lbs.
MASTER CARTON DIMENSIONS (LxWxH): 19" x 14" x 10"
MASTER CARTON QUANTITY:

6

IN CEILING SPEAKER

5.25" 2-WAY, CO-AXIAL, 70 VOLTS

OWI Incorporated

17141 Kingsview Avenue, Carson, CA 90746 USA

Tel: [phone]
Toll Free: 800.638.1694
Fax: [phone]
Web: www.owi-inc.com
E-mail: [e-mail]

®
