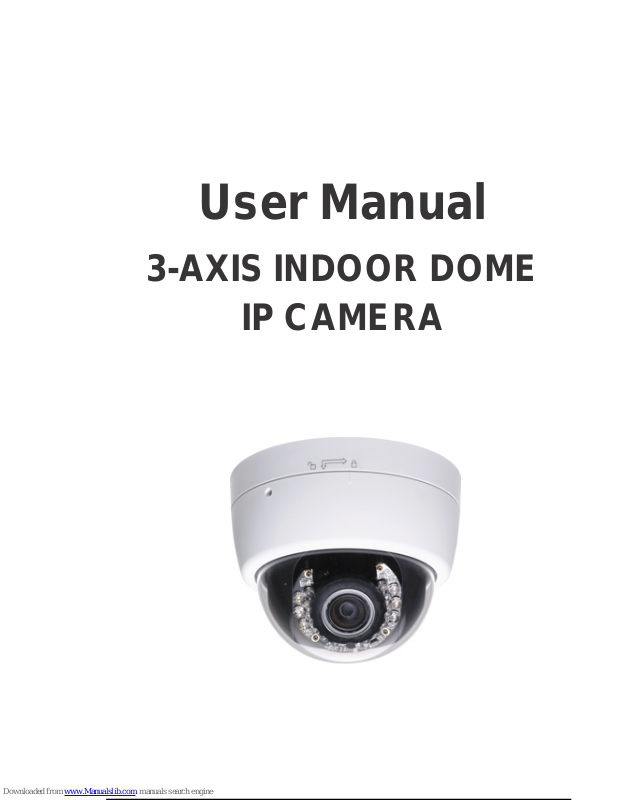

User Manual
3-AXIS INDOOR DOME
IP CAMERA
WARNINGS
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION
CAUTION
DO NOT CHANGE THE LENS
CAUTION: THIS CAMERA DESIGN IS BASED ON THE
INCLUDED LENS. LENS REPLACE MENT MAY CAUSE
INSTABILITY OF IMAGE QUALITY.
PLEASE REFER SERVICING TO QUALIFI E D SERVICE
PERSONNEL.
COPYRIGHT
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED
TO THEIR RESPECTIVE COMPANIES.
CONTENT
I.
II.
III.
A.
B.
C.
D.
IV.
V.
A.
B.
C.
D.
VI.
VII.
VIII.
IX.
Preface ..................................................... 4
Product Specifications .............................. 4
Product Installation ................................... 7
Monitor Setting ........................................................................... 7
Hardware Installation.................................................................. 8
IP Assignment .......................................................................... 10
Install ActiveX control ............................................................... 12
Live Video ............................................... 18
IP Camera Configuration ........................ 20
System ..................................................................................... 21
Network .................................................................................... 25
A/V Setting ............................................................................... 45
Event List.................................................................................. 52
Network Configur ation ............................ 61
I/O Configurati on .................................... 63
Factory Default ....................................... 66
SD Card Compatibility
............................. 67
I. Preface
II.
This IP Camera is a 5 Megapixel indoor dome IP camera with the web server
built in. User can view real-time video via IE browser. IP Camera supports
simultaneously H.264, Motion JPEG & MPEG4 video compression and dual
streaming which provides smooth and high video quality. The video can be
stored in the SD card and played back remotely. With user friendly interface, it is
an easy- to-use IP camera which is designed for security application.
Product Specifications
Main Features:
• 5 Megapixel 3-Axis Indoor Dome
• 3D+2D Digital Nois e Reduction
• Support Digital Wide Dynam ic Range
• Day &Night Switch time control manually
• IR LED Built-in 15 Meter
• Power over Ethernet available
• Video output
• H.264/ M-JPEG / MPEG4 compression
• SD card backup
• Support iPhone/iPad/Android
• SDK for Software Integration
Specification
Hardware
CPU
ARM Cortex A9
RAM 256MB
Flash 16MB
Image sensor 1/3.2” 5 Megapixel CMOS sensor
Sensitivity (AGC ON) Color : 0.5 Lux@ F1.8 (IR Off)
B / W: 0 Lux @F1.8(IR On)
Lens Type Vari-focal Lens 3-9mm@F1.8
Angle of View 28.9° ~ 93.59° (horizontal)
22.3° ~ 71.5° (vertical)
ICR Mechanism IR cut Filter (optional)
LED Built-in 18 IR LED
IR Distance 15M
I/O DI / DO
Video output Yes
3-Axis Gimbal
Adjustments Angle
Pan: 172
∘
Tilt: 30∘~ 90
∘
Rotation: 360
∘
Audio G.711(64K) and G.726(32K,24K) audio compression
Input : External Mic In
Output: External Audio Out
Power over Ethernet Yes, PoE Class 0 (IEEE802.3af)
Power consumption DC12V: 3.96W(IR Off), 5.52W(IR On)
PoE : 4.8W(IR Off), 6.72W(IR On)
Operating Temperature 0°C ~ 45°C
Dimensions 132mm (φ)x 108.4mm(H)
Weight 680g
Network
Ethernet 10/ 100 Base-T
Network Protocol
IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access list,
IEEE 802.1X, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE,
DHCP, DDNS, NTP, UPn P, 3GPP, SAMBA, Bonjour
System
Video Resolution
2592x1944@15fps, 2048x1536@15fps,
1600x1200@15fps, 1280x960@15fps,
1920x1080@30fps, 1280x720@30fps, 640x480@30fps,
320x240@30fps, 176x144@30fps
Video Adjust
Brightness, Contrast, Hue, Saturation, Sharpness, Shutter
Speed adjustable, AGC, Sense-Up, D-WDR, Flip, Mirror,
Noise reduction, Day & Night adjustable, White Balance
Triple Streaming Yes
Image snapshot Yes
Full screen monitoring Yes
Privacy Mask Yes, 3 different areas
Compression format H.264/ M-JPEG/ MPEG4(3GPP only)
Video bitrates adjust CBR, VBR
Motion Detection Yes, 3 different areas
Triggered action Mail, FTP, Save to SD card, DO, SAMBA
Pre/ Post alarm Yes, configurable
Security Password protection, IP address filtering, HTTPS
encrypted data transmission, 802.1X port-based
authentication for network protection
Firmware upgrade HTTP mode, can be upgraded remotely
Simultaneous connection Up to 10
SD card management
Recording trigger Motion Detection, IP check, Network break down (wire
only), Schedule, DI
Video format AVI, JPEG
Video playback Yes
Delete files Yes
Client System requirement
OS
Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above,
Chrome, S afari, Firefox
Mobile Support iOS 4.3 or above, Android 1.6 or above.
Hardware Suggested Intel Dual Core 2.8G,RAM: 4GB
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
III.
A.
Product Installation
Monitor Setting
1. Right-Click on the desktop. Select “ Properties”
2. Change color quality to highest (32bit).
B. Hardware Installation
1. Dome Installation Steps
a. Use screws to lock the
bottom of camera to the
ceiling or the wall.
b. Use 3-Axis to adjust the
lens angle.
c. Close the dome cover.
d. Tighten the screw on the
cover to fix it.
2. 3-Axis Diagram
Use the 3-Axis bracket to adjust the camera to appropriate angle.
3. Connector Instruction
The Cable and connector are as below. Connect power adaptor first,
then connect the IP Camera to PC or network, and set up the network
configurations according to the network environment. About I/O setting,
please refer to chapter VII in User Manual: "I/O Configuration
" for detail.
4. PoE ( Power Over Ethernet)(Optional) 802.3af PoE Switch is recommended
Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It enables power to be provided to the network
device, such as an IP phone or a network camera, using the same cable as
that used for network connection. It eliminates the need for power outlets at
the camera locations and enables easier application of uninterruptible power
supplies (UPS) to ensure 24 hours a day, 7 days a week operation.
C. IP Assignment
1. You can use the software“IP Installer” to assign the IP address of IP Camera.
The software is in the attached CD.
2. There are two language versions of IP installer. Choose one as your need:
IPInstallerCht.exe: Chinese version
IPInstallerEng.exe: English version
3. There are 3 kinds of IP configuration.
a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)
4. Execute IP Installer
5. For Windows XP SP2 user, the following message box may pop up. Please
click “Unblock”.
6. IP Installer configuration:
7. IP Installer will search for all IP Cameras connected on Lan. Click “Search
Device” to refresh the result list.
8. Click one of the IP Camera listed on the left side. The network configuration of
this IP camera shows on the right side. You may change the “name” of the IP
Camera as your preference (eg: Office, warehouse). Change the parameter
and click “Submit” . It will apply the change and reboot the Device.
9. Please make sure that the IP address of your PC and IP Camera are on the
same subnet.
The same Subnet:
IP CAM IP address: 192.168.1
.200
PC IP address: 192.168.1.100
Different Subnets:
IP CAM IP address: 192.168.2.200
PC IP address: 192.168.1.100
To Change PC IP address:
Control Panel→Network Connections→ Local Area Connection Properties→
Internet Protocol (TCP/IP) → Properties
10. A quick way to access remote monitoring is to double-click the selected IP
Camera listed on “Device list” of IP Installer. An IE browser will be opened.
11. If you link to the IP C amera successfully, there pops a box asking you to log
in. Please key in the default user name"admin" and password"admin" when
you link to the IP Camera for the first time. You can revise the user name and
password later. Please refer to Chapter V: "A.2. User Management".
D. Install ActiveX control
1. To users of IE 6.0 above
At the first time you access the camera via IE, it will ask you to install the
ActiveX component. If th e installation failed, please check the security setting
for the IE browser.
a. Follow the steps: IE→Tools → Internet Options… → Security Tab →
Custom Level… → Security Settings.
Find the option "Download unsigned ActiveX control"→ Select “Enable” or
Prompt.
Find the option "Initialize and script ActiveX controls not marked as safe" →
Select “Enable” or Prompt.
1 2
3 4
5
When popup the following dialogue box, click “Yes”.
b. You can choose another way. Go to: IE→Tools → Internet Options… →
Security Tab → Trusted sites → Add the IP address and click "OK".
In the site list you can key one single IP address or a LAN address. For
example, if you add "192.168.21.*", all the IP address under .21 LAN will
be regarded as trusted sites.
2. Use Non-IE Web Browser
If you use firefox or google chrome to access the IP camera but fail to watch
the live video, please follow the steps to install necessary tools:
(the following pictures ar e based on c hr o me.)
a. You may see the prompt message as the picture below. First, Click the link:
"Firstly, please install Microsoft Visual C++ 2010 Redistributable Package
(x86)."
(i)
(ii)
The link conducts you to the Microsoft official site that you can
download the tools. Please select the language and click "download".
In the pop-up window, please tick the first and the third file as
the picture below. Click "Next" to download both "Microsoft .NET
Framework 4 Client Profile (Web Installer)" and "Microsoft Visual C++
2010 Redistributable Package (x64)".
(iii) After finishing downloading, execute the two files respectively to install
them.The windows may ask you to reboot the PC when the installation
finished.
b. Then, Click the second link "Please click here to download the installation
program which does not support IE browser." to download Setup ActiveX.
After finishing downloading, execute the files to install ActiveX. Then
restart the browser.
c. If you execute the steps above but still cannot see the live video normally,
please try the solution:
(i) Search for the file "np_hoem_x.dll" in your system disk. For Windows
XP users, please go to "Start" → "Search" → Search for "All files and
folders" and key in "np_hoem_x.dll". For Windows 7 users, please use
the search bar on the top-right of the Windows Explorer.
(ii) Delete all the files named "np_hoem_x.dll". They're the ActiveX
control tools having been installed in your computer, but the old
version
of ActiveX might not compatible with the new version of browser.
Therefore, we delete them in order to install the latest ActiveX control.
(iii) Start your web browser, and repeat the step 2-b: "Download the
installation program which does not support IE browser" to download
and install ActiveX.
IV. Live Video
Start an IE browser, type the IP address of the IP camera in the address field. It
will show the following dialogue box. Key-in the user name and passwo rd. The
default user name and password are “admin” and “admin”.
When the IP Camera is connected successfully, it shows the following
program interface.
1. : Get into the administration page
2. : Video Snapshot
3. Show system time, video resolution, and video refreshing rate
4. Adjust image, 1/2x, 1x, 2x
5. Select video streaming source (If in”Video Setting” the streaming 2 setting is
closed, this option will not appear here.)
6. IP Camera supports 2-way audio. Click the “Chatting” check box, then you
can use microphone connected to the PC to talk to the Camera side.
7. Show how many people connect to this IP camer a.
8. Tick the Relay out "ON" box to trigger the relay output for testing. Tick "Off" to
stop triggering.
Right-Click the mouse on the video, it will show a
pop-up menu.
1. Snapshot: Save a JPEG picture
2. Record Start: Record the video in the local PC. It will ask you where to save
the video. To stop recording, right-click the mouse again. Select “Record
Stop”. The video format is AVI. Use Microsoft Media Player to play the
recorded file.
3. Mute: Turn off the audio. Click again to turn on it.
The "mute" bottom does not affect the playback recording video. As long as
the "IP Camera to PC" option in the audio setting is enabled, all the audio will
be recorded into the playback video even you click "mute" in the live page.
4. Full Screen: Full-screen mode.
5. ZOOM: Enable zoom-in and zoom-out functions. Select “Enable digital zoom”
option first within the pop-up dialogue box and then drag and drop the bar to
adjust the zoom factors.
6. Frame Buffm Sec: This function is to build a temporary buffm to accumulate
several video frames. This function can mak e vi deo smooth-going when the
Network speed is slow and lag. If you select “100”, then it plays video after
100 mSec when starting receiving images from camera. The slower the
Network is, the bigger value should be selected. The default value is null.
V. IP Camera Configuration
Click to get into the administration page as below.
Click to back to the live video page.
A. System
1. System Information
a. Server Information: Set up the camera name, select language, and set up
the camera time.
(i)
(ii)
Server Name: This is the Camera name. This name will show on the IP
Installer.
Select language: There are 11 languages to choose from. When you
change the language, it will show the following dialogue box for
Confirmation.
b. OSD Setting: Select a position where date & time stamp / text showing on
screen.
Click Text Edit to adjust the OSD text contents. Alpha means background
transparency of the text. If you select 100%, the text stamp will be directly
displayed on the live screen. If you select 0%, the text stamp will be
displayed with a black background.
Loading...
