OV Solutions OVC-2DVIR User Manual

User Manual

3-AXIS VANDAL DOME

IP CAMERA

WARINGS

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

COPYRIGHT

THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED

TO THEIR RESPECTIVE COMPANIES.

CONTENT

I. Preface

4

II. Product Specifications

4

III. Product Installation

5

A. MONITOR SETTING 5
B. HARDWARE INSTALLATION 6
C. IP Assignment 8
D. Install ActiveX control 10
E. Live Video 12

IV. IP Camera Configuration

14

A. System 15
B. Network 18

C. A/V Setting 29
D. Event List 36

V. Network Configuration

42

VI. I/O Configuration

43

VII. Factory Default

45

IX. Appendix

46

I. Preface

II.

This IP Camera is a IP Dome camera. It has the web server built in. User
can view real-time video via IE browser. IP Camera supports simultaneously
H.264, Motion JPEG & MPEG4 video compression and dual streaming which
provides smooth and high video quality. The Pan/Tilt/Zoom function can be
controlled remotely. The video can be stored in the SD card, and playback
remotely. With user friendly interface, it is an easy-to-use IP camera whi c h is
designed for security application.

Product Specif icat i ons

Main Features:

• Full HD 1080P@30fps real time

• 1/2.7” 2Megapixel CMOS Sensor

• Digital Noise Reduction

• Digital Wide Dynamic Range

• Shutter Speed adjustment

• Sense Up adjustment

• Day&Night Switch time control manually

• IR-Cut filter

• IR Distance 15M

• Vandal proof

• Power over Ethernet available

• H.264/ M-JPEG / MPEG4 compression

• Micro SD card backup

• Support iPhone/Android/Mac

• Triple Streaming

• SDK for Software Integration

For the detail specification , please refer to the data sheet

III. Product Installation

A. MONITOR SETTING

1. Right-Click on the desktop. Select “ Properties”

2. Change color quality to highest (32bit).

B. HARDWARE INSTALLATION

1. Connect power adaptor first.

2. Connect IP Camera to PC or network

3. Set up the network configurations according to the network environment. For

further explanation, please refer to chapter V: “Network Configuration for IP
Camera”.

4. IP Camera Instruction

Remove the dome cover, and you will see the structure as below.

5. Connector Instruction

Connect the camera with power and Internet as the picture above. The
following picture shows a DC 12V connector for adapter jack plug. About I/

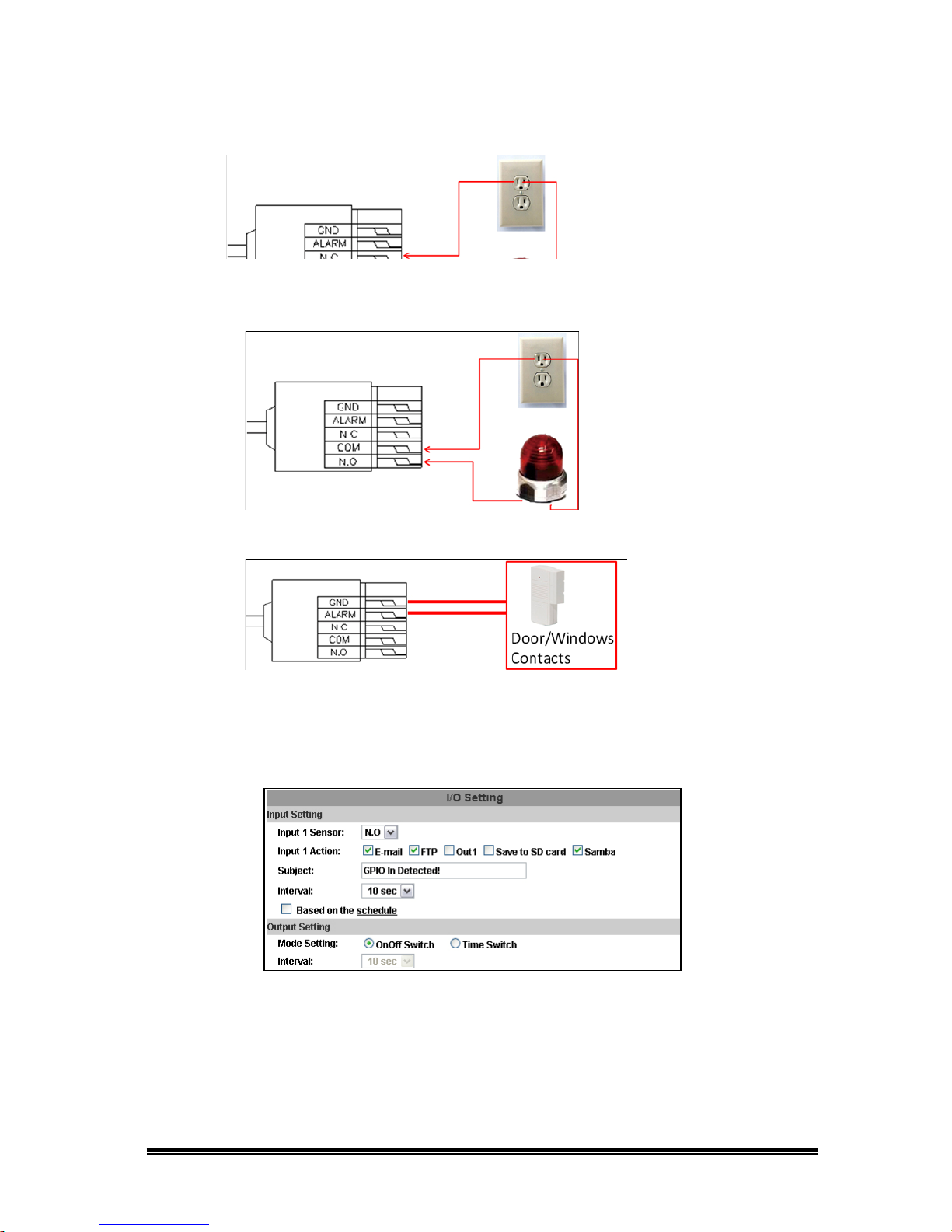

O setting, please refer to chapter VI in User Manual: "I/O Configuration" for
detail.

6. PoE ( Power Over Ethernet)(Optional) 802.3at, 30.0W PoE Switch is

recommended

Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It enables power to be provided to the network
device, such as an IP phone or a network camera, using the same cable as
that used for network connection. It eliminates the need for power outlets at
the camera locations and enables easier application of uninterruptible power
supplies (UPS) to ensure 24 hours a day, 7 days a week operation.

Ethernet

PoE
Switch

PoE IP Camera

PoE IP Camera

Ethernet Cable

Ethernet Cable

C. IP Assignment

1. Use the software, “IP Installer” to assign the IP address of IP Camera. The
software is in the attached CD.

2. There are two languages for the IP installer

a. IPInstallerCht.exe: Chinese version
b. IPInstall er Eng .exe: English version

3. There are 3 kinds of IP configuration.

a. Fixed IP (Public IP or Virtual IP)
b. DHCP (Dynamic IP)
c. Dial-up (PPPoE)

4. Execute IP Installer

5. For Windows XP SP2 user, it may popup the following message box. Please
click “Unblock”.

6. IP Installer configuration:

7. IP Installer will search all IP Cameras connected on Lan. The user can click
“Search Device” to search again.

8. Click one of the IP Camera listed on the left side. The network configuration
of this IP camera will show on the right side. You may change the “name”
of the IP Camera to your preference (eg: Office, warehouse). Change the
parameter and click “Submit” then click “OK”. It will apply the change and
reboot the Device.

9. Please make sure the subnet of PC IP address and IP CAM IP address are
the same.

The same Subnet:
IP CAM IP address: 192.168.1.200
PC IP address: 192.168.1.100
Different Subnets:
IP CAM IP address: 192.168.2.200

PC IP address: 192.168.1.100
To Cha nge PC IP address:
Control Panel→Network Connections→ Local Area Connection Properties→
Internet Protocol (TCP/IP) → Properties

Please make sure your IP Camera and PC have the same Subnet. If not,
please change IP Camera subnet or PC IP subnet accordingly.

10. A quick way to access remote monitoring is to left-click the mouse twice on
a selected IP Camera listed on “Device list” of IP Installer. An IE browser will
be opened.

11. Then, please key in the default “user name: admin” and “password: admin”.

D. Install ActiveX control

For the first time to view the camera video via IE, it will ask you to install

the ActiveX component.

If the installation failed, please check the security setting for the IE browser.

1. IE→Tools → Internet Options… → Security Tab → Custom Level… →

Security Settings → Download unsigned ActiveX controls→ Select “Enable”

or Prompt.

2. IE → Tools → Internet Options… → Security Tab → Custom Level…
→Initialize and script ActiveX controls not marked as safe → Select “Enable”
or Prompt.

1 2

3 4

5

When popup the following dialogue box, click “Yes”.

E. Live Video

Start an IE browser, type the IP address of the IP camera in the address field.
It will show the following dialogue box. Key-in the user name and password. The
default user name and password are “admin” and “admin”.

When the IP Camera is connected successfully, it shows the following
program interface.

1. ：Get into the administration page

2. ：Video Snapshot

3. Show system time, video resolution, and video refreshing rate.

4. Adjust image, 1/2x, 1x, 2x.

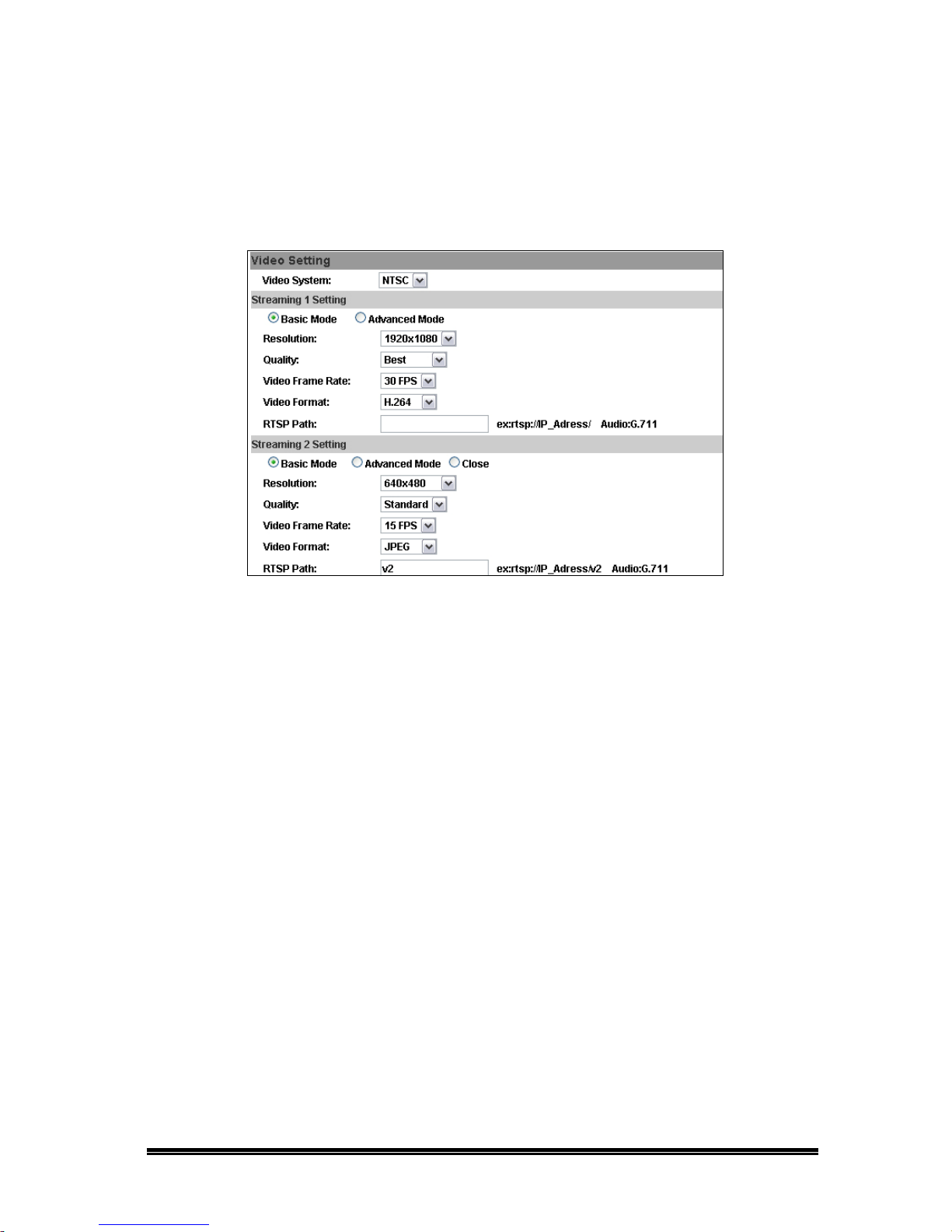

5. Select video streaming source. (When streaming 2 setting in『Video Setting』 is closed, this

function will not display.)

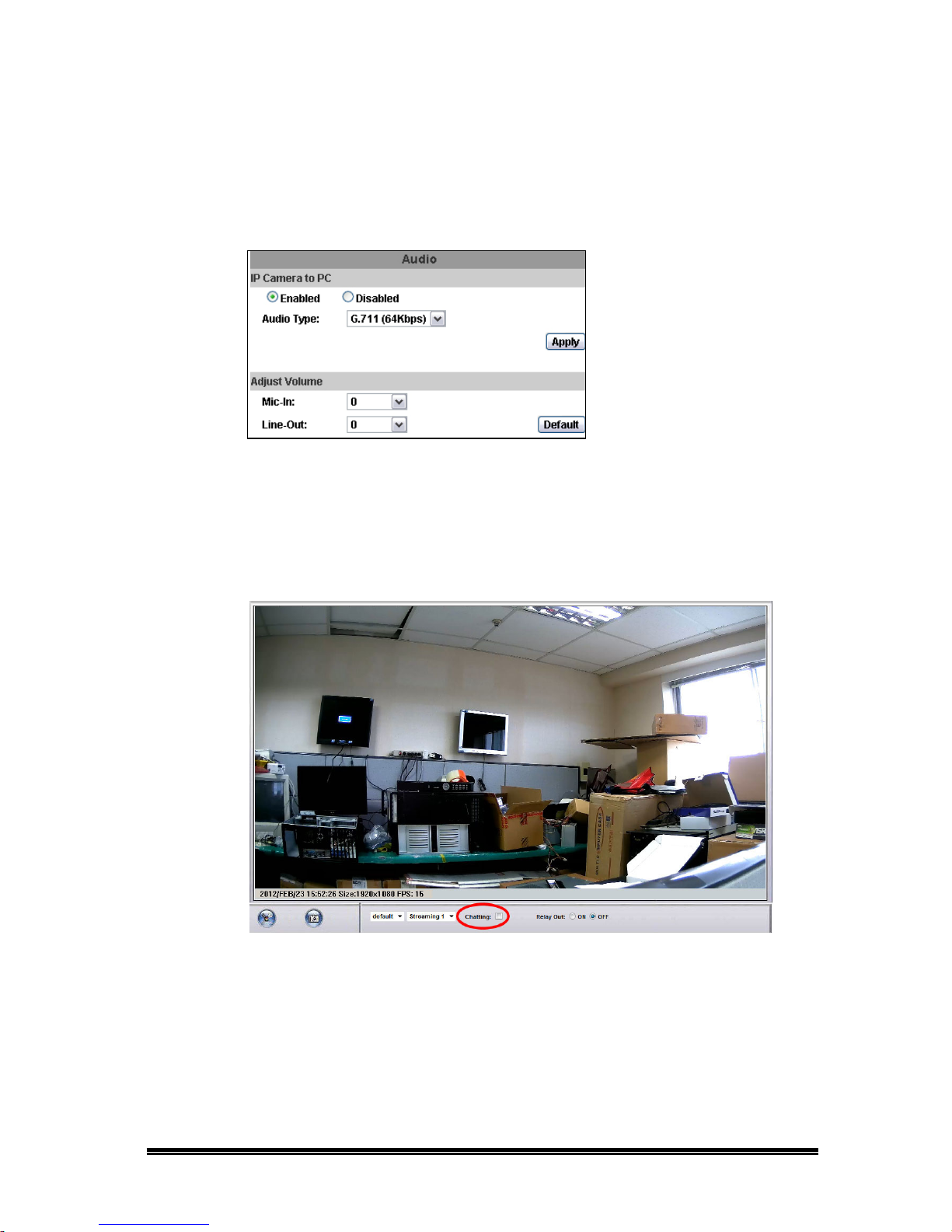

6. IP Camera supports 2-way audio. Click the “Chatting” check box. Then you can use
microphone which connects to the PC to talk to server side, which is IP Camera side

7. Control the relay output which is connected to this camera.

Double-click the video to switch to full screen view. Press “Esc” or double-

click the video again back to normal mode.

Right-Click the mouse on the video, it will show a pop-up menu.

1. Snapshot: Save a JPEG picture

2. Record Start: Record the video in the local PC. It will ask you where to save
the video. To stop recording, right-click the mouse again. Select “Record
Stop”. The video format is AVI. Use Microsoft Media Player to play the
recorded file.

3. Mute: Turn of the audio. Click again to turn on it.

4. Full Screen: Full-screen mode.

5. ZOOM: Enable zoom-in and zoom-out functions. Select “Enable digital zoom”
option first within the pop-up dialogue box and then drag and drop the bar to
adjust the zoom factors .

IV. IP Camera Configuration

Click to get into the administration page. Click to go back to the live video
page.

A. System

1. System Information

a. Server Information: Set up the camera name, select language, and set up

the camera time.

(i)

(ii)

Server Name: This is the Camera name. This name will show on the IP
Installer.

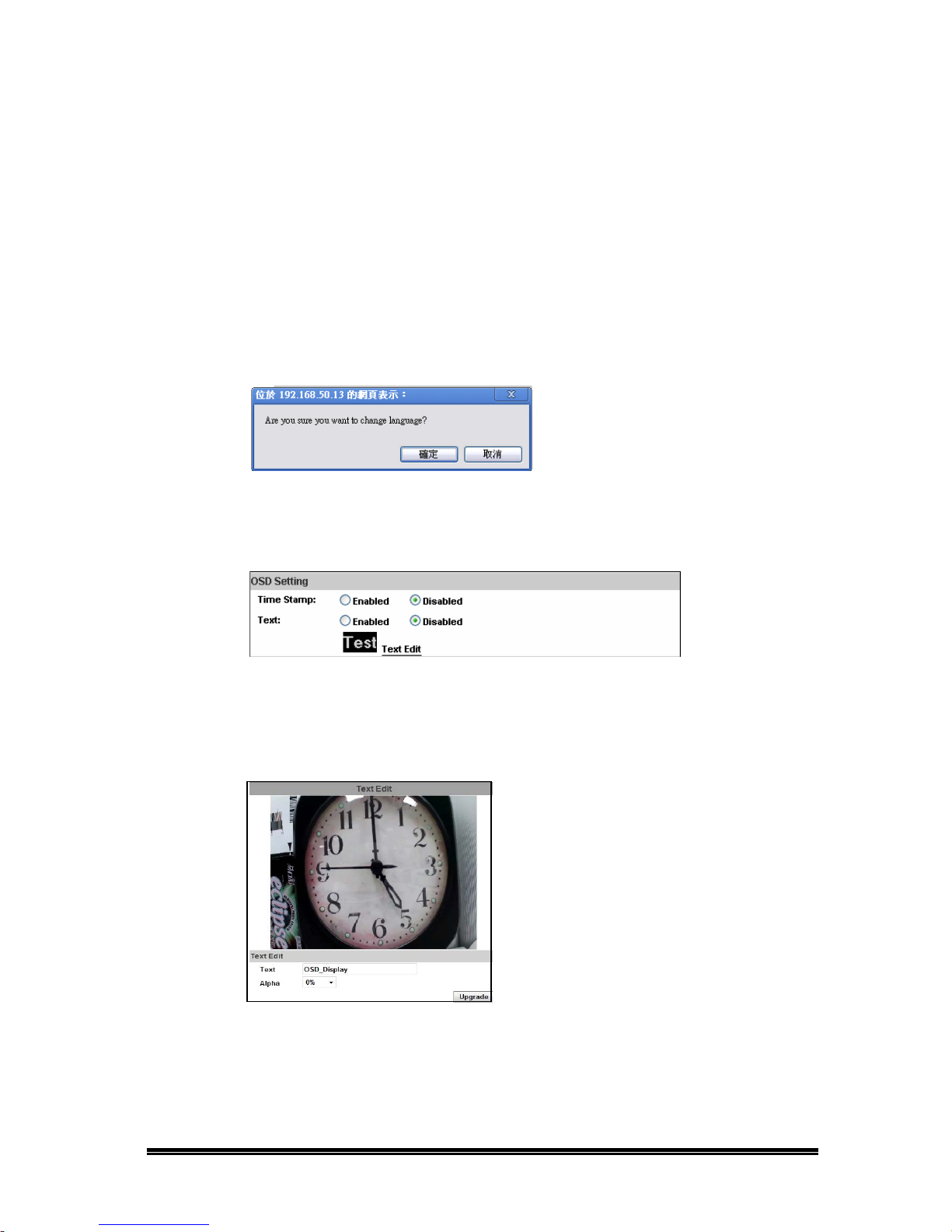

Select language: There are English, Traditional Chinese, and Simplified
Chinese to select. When change, it will show the following dialogue box
for the confirmation of changing language.

b. OSD Setting: Select a position where date & time stamp / text showing on

screen.

Moreover, c lic k Text Edit can entry to adjust the OSD contents which is

Alpha of text. Finally, click Upgrade button to reserve the setting.

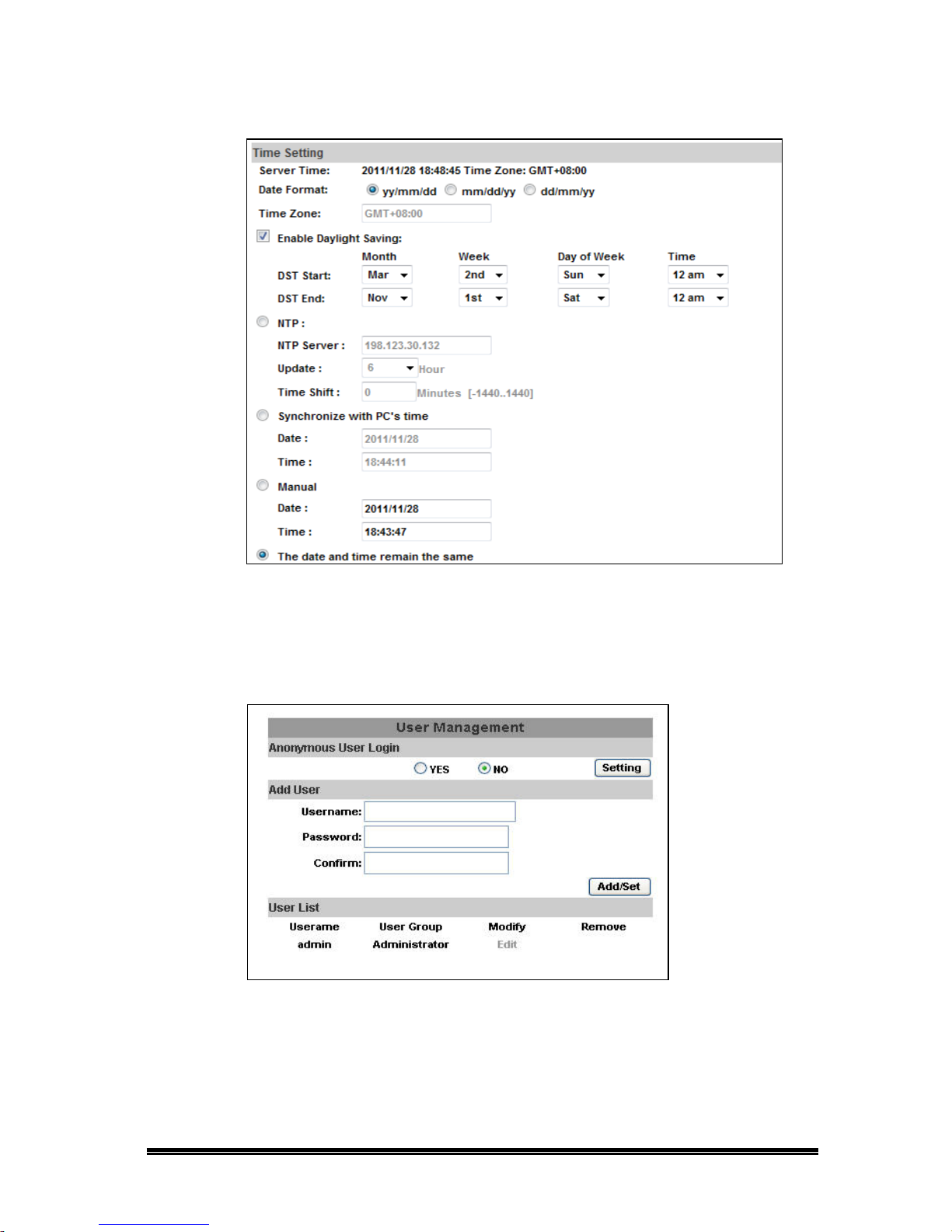

c. Server time setting: Select options to set up time - “NTP”, “Synchronize

with PC’s time”, “Manual”, “The date and time remain the same”.

2. User Management
IP CAMERA supports three different users, administrator, general user, and
anonymous user.

a. Anonymous User Login:

Yes:Allow anonymous login
No:Need user name & password to access this IP camera

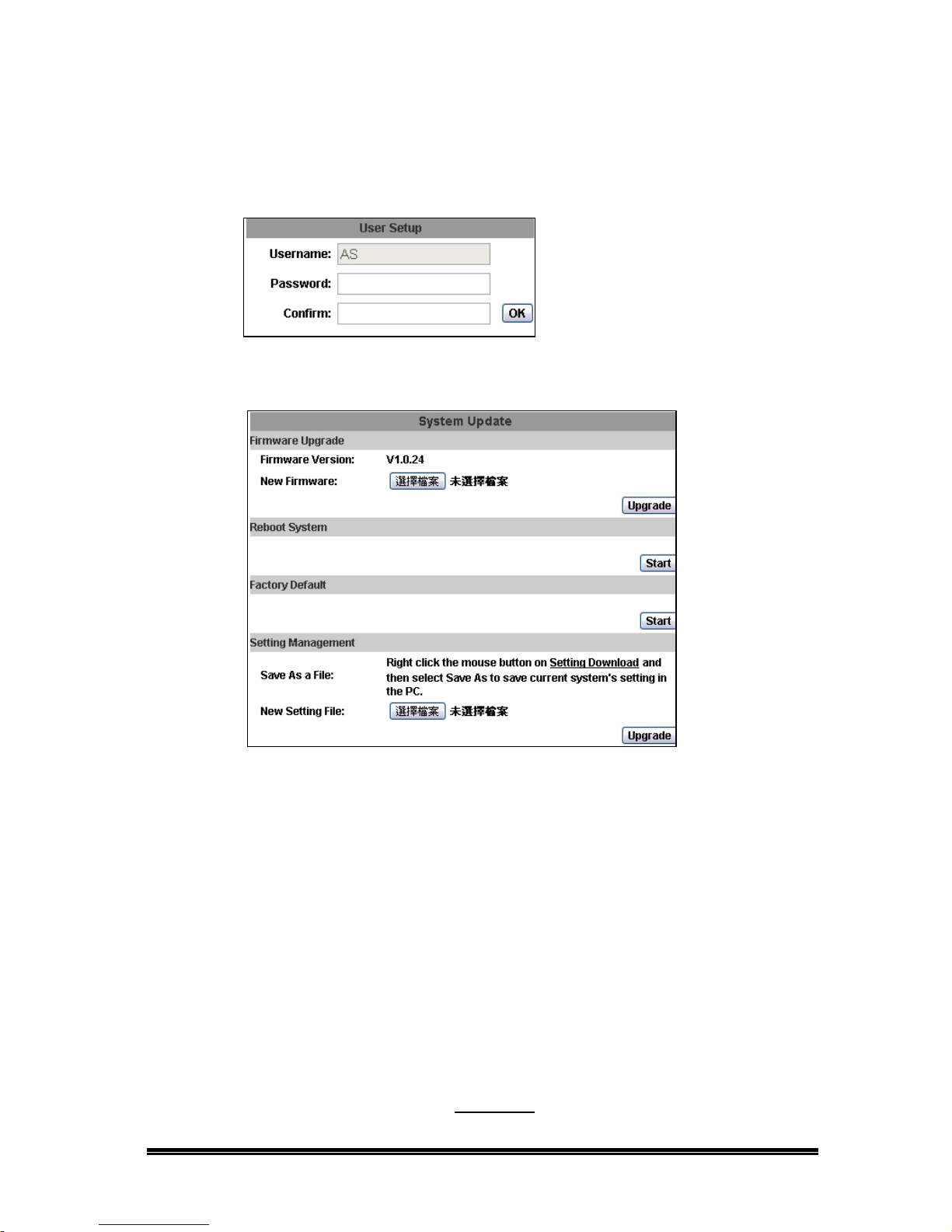

b. Add user:

Type the us er na me an d passw or d, then cli ck “Add/S et” .

c. Click “edit” or “delete” in the user list to modify them. The system will ask

you to key in the password in the pop-up window before you edit the user
information.

3. System update:

a. To update the firmware online, click “Browse…” to select the firmware.

Then click “Upgrade” to proceed.
b. Reboot system:re-start the IP camera
c. Factory default:delete all the settings in this IP camera.
d. Setting Management:User may download the current setting to PC, or

upgrade from previous sav ed setting.

(i)

(ii)

Setting download:
Right-click the mouse button on Setting Download → Select “Save
AS…” to save current IP CAM setting in PC → Select saving directory
→ Save
Upgrade from previous setting:

Browse → search previous setting → open → upgrade → Setting

update confirm → click index.html. to return to main page

B. Network

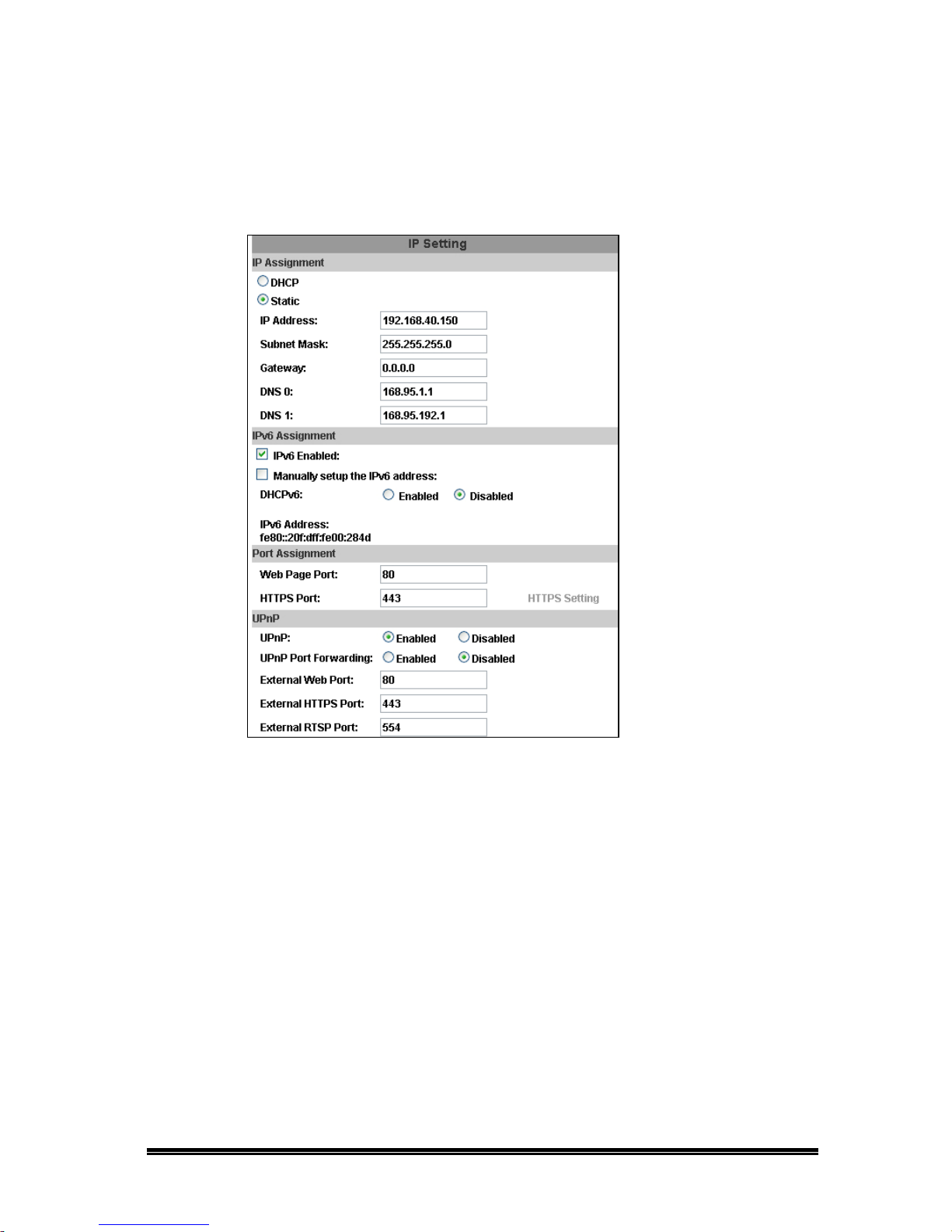

1. IP Setting
IP Camera supports DHCP and static IP.

a. IP Assignment

(i)

(ii)

DHCP: Using DHCP, IP CAMERA will get all the network parameters
automatically.
Static IP: Please type in IP address, subnet mask, gateway, and DNS
manually.

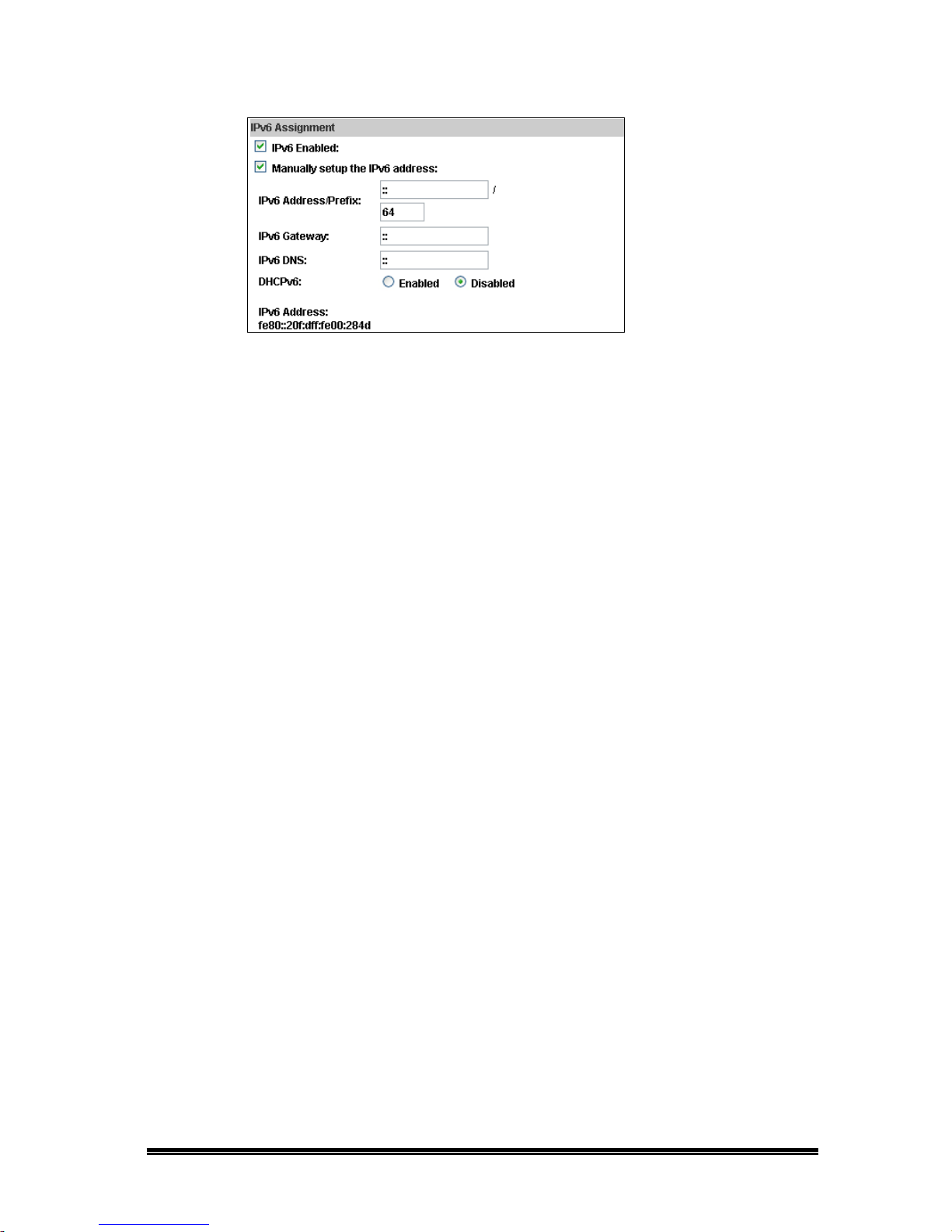

b. IPv6 Assignment: IPv6 is a newer numbering system that provides a much

larger address pool than IPv4, which accounts for most of today’s Internet
traffic. You can set up IPv6 manually by key in Address, Gateway, and
DNS, or enable DHCP to assign the IP automatically.

c. Port assignment:

(i)

(ii)

Web Page Port: setup web page connecting port and video transmitting
port (Default: 80)

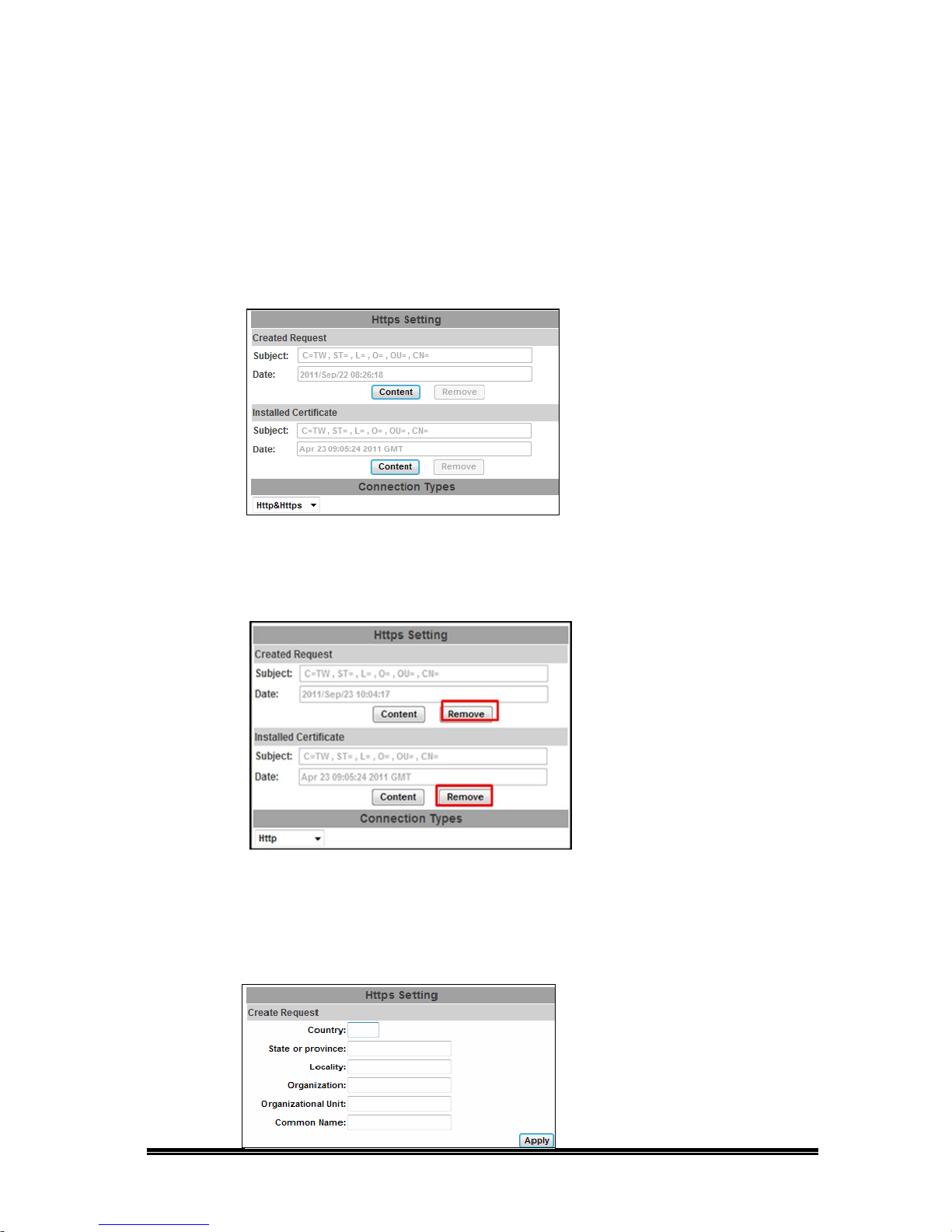

HTTP Port:setup HTTPS connecting port (Default:443)

d. UPnP (Universal Plug and play):

This IP camera supports UPnP, if this service is enabled on your
computer, the camera will automatically be detected and a new icon will be
added to “My Network Places.”

(i)

(ii)

UPnP Port Forwarding:
Enable UPnP Port Forwarding can access the Network Camera from
the Internet, select this option to allow the Network Camera to open
ports on the router automatically so that video streams can be sent out
from a LAN. There are three External port can be set, Web Port, Http
Port and RTSP port. To utilize of this feature, make sure that your router
supports UPnPTM and it is activated.
Note: UPnP must be enabled on your computer. Please follow the
procedure to activate UPnP.

• open the Control Panel from the Start Menu

• Select Add/Remove Programs

• Select Add/Remove Windows Components and open Networking
Services section

• Click Details and select UPnP to setup the service

• The IP device icon will be added to “MY Network Places”

• User may double clic k the IP device icon to access IE browser

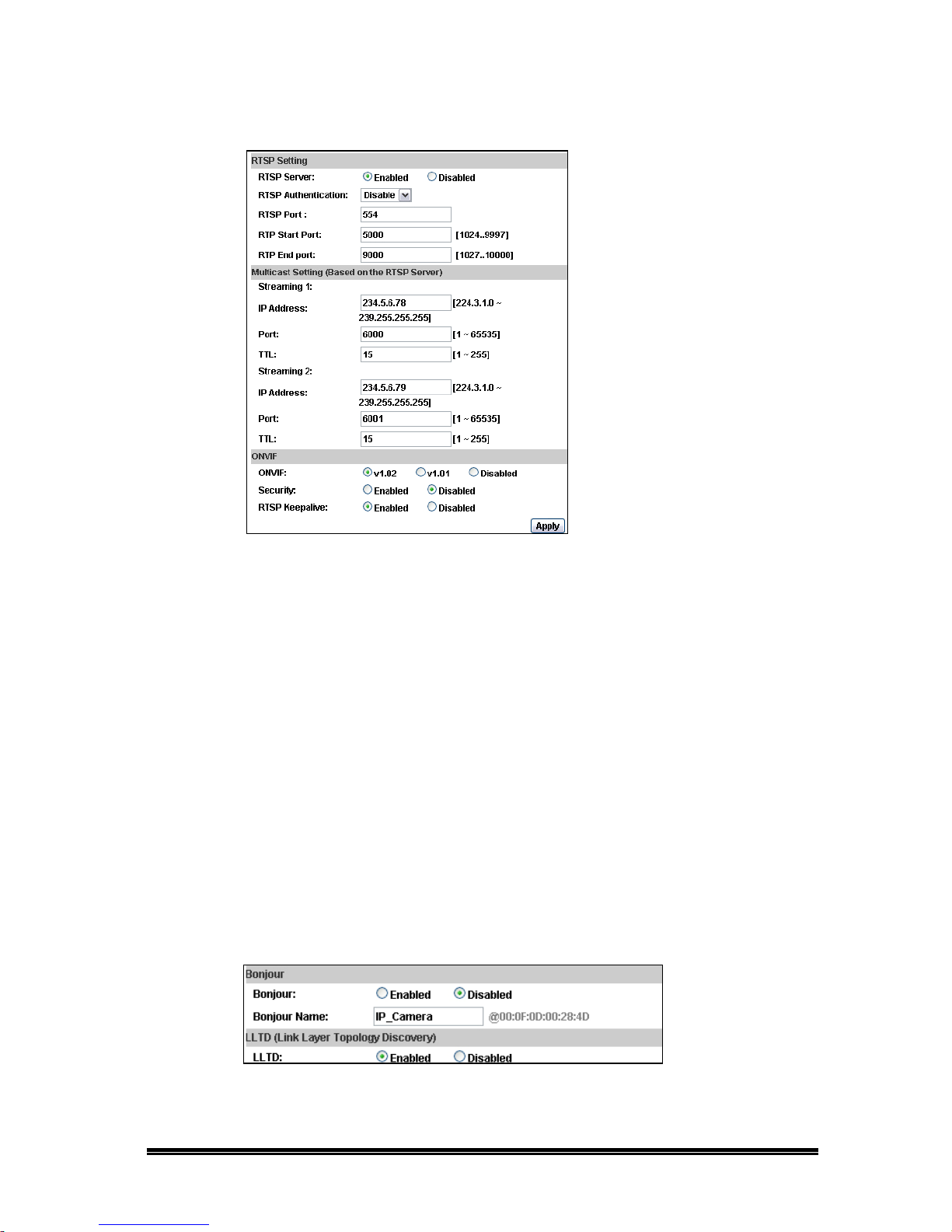

e. RTSP setting

(i)

(ii)

RTSP Server: enable or disable
RTSP Port: set up por t for RTSP transmitting (Default: 554)

(iii) RTSP Start and End Port: in RTSP mode, you may use TCP and UDP

for connecting. TCP connection uses RTSP Port (554). UDP connection
uses RTSP Start and End Port.

f. Multicast Setting (Based on the RTSP Server)

Multicast is a bandwidth conservation technology. This function allows
several users to share the same packet sent from IP camera. To use
Multicast, appoint IP Address and port here. TTL means the life time of
packet, the larger the value is, and the more users can receive the packet.

To use Multicast, be sure to enable the function "Receive Multicast" in

your media player.

g. ONVIF

Choose your ONVIF version and settings.

h. Bonjour

This function enables MAC systems to link to this IP camera. Key in
the name here.

i. LLTD

If your PC supports LLTD, enable this function then you can check the
connection status, properties, and device position(like IP address ) o f this IP
Camera in the network map.

2. Advanced
a. Https (Hypertext Transfer Protocol Secure): Https can help protect

streaming data transmission over the internal on the higher security level.

Https setting: Before setting new request, please remove old secure

identification at Http connection type.

(i)

(ii)

Created Request: remove secure identification in Created request
mode. There is a warning message showing. Please set “Yes” to
remove secure identification.
Setting the secure identification and apply it.

(iii) Installed Certificate: remove Certificate in .Installed Certificate mode.

There will be a warning message to check again.

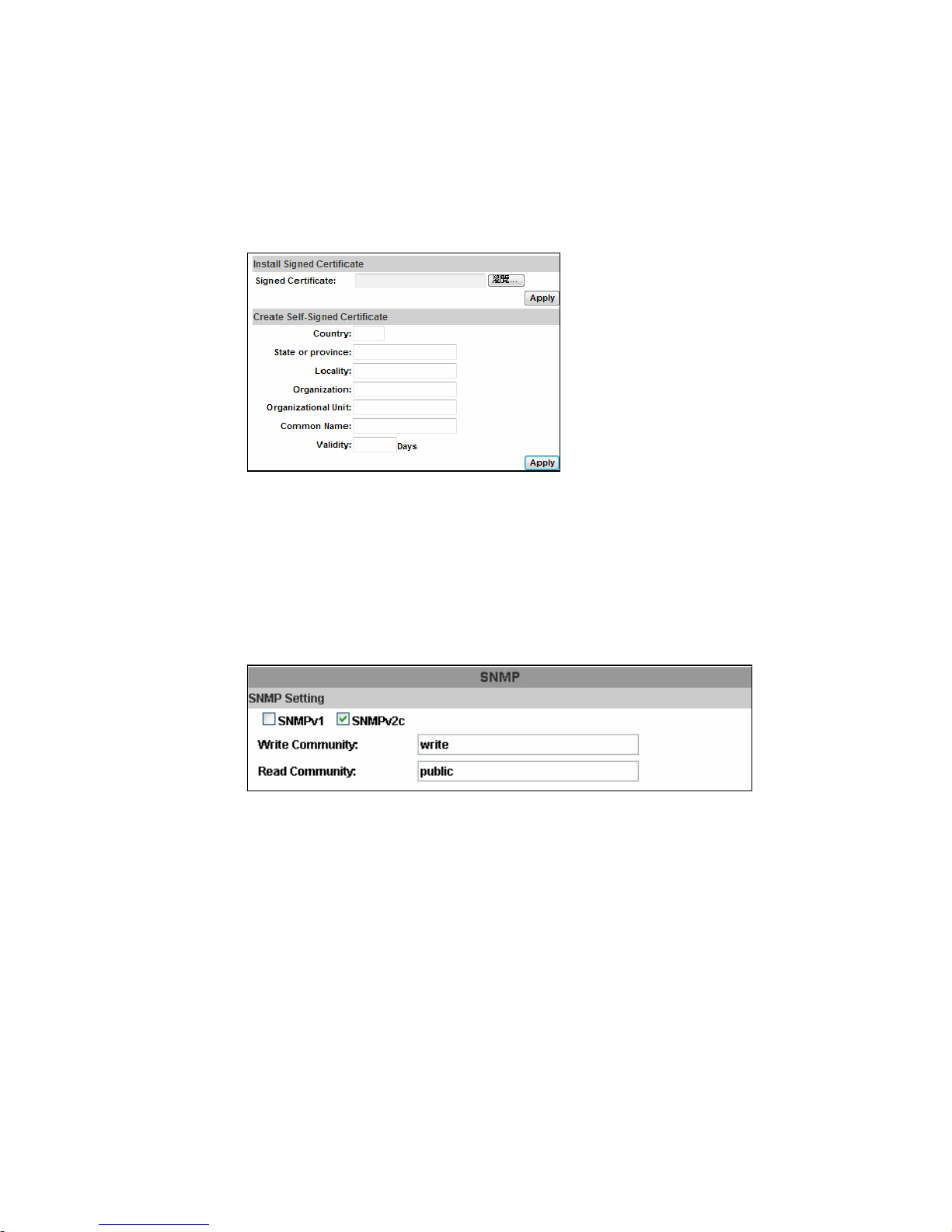

(iv) There are two ways to set Certificate- Install Signed Certificate and

Create Self-Signed Certificate.

b. SNMP(Simple Network Management Protocol)

SNMP provides a simple framework for administering networked
hardware. To manage the IP camera, you have to prepare a MIB browser
or similar tools first. SNMPv1, SNMPv2c, and SNMPv3 can be enabled
simultaneously.
(i) SNMPv1 and SNMPv2:

The term "Community name" in SNMPv1 and SNMPv2c can be
roughly regarded as key. The person who has the community name
has the authority to read or edit the information of IP camera via SNMP.

Tick the box to enable SNMPv1 or SNMPv2c protocol, and specify
the community name for write(read and write) and read(read-only). The
user who use read community name to access the IP camera cannot
modify any data of this camera.

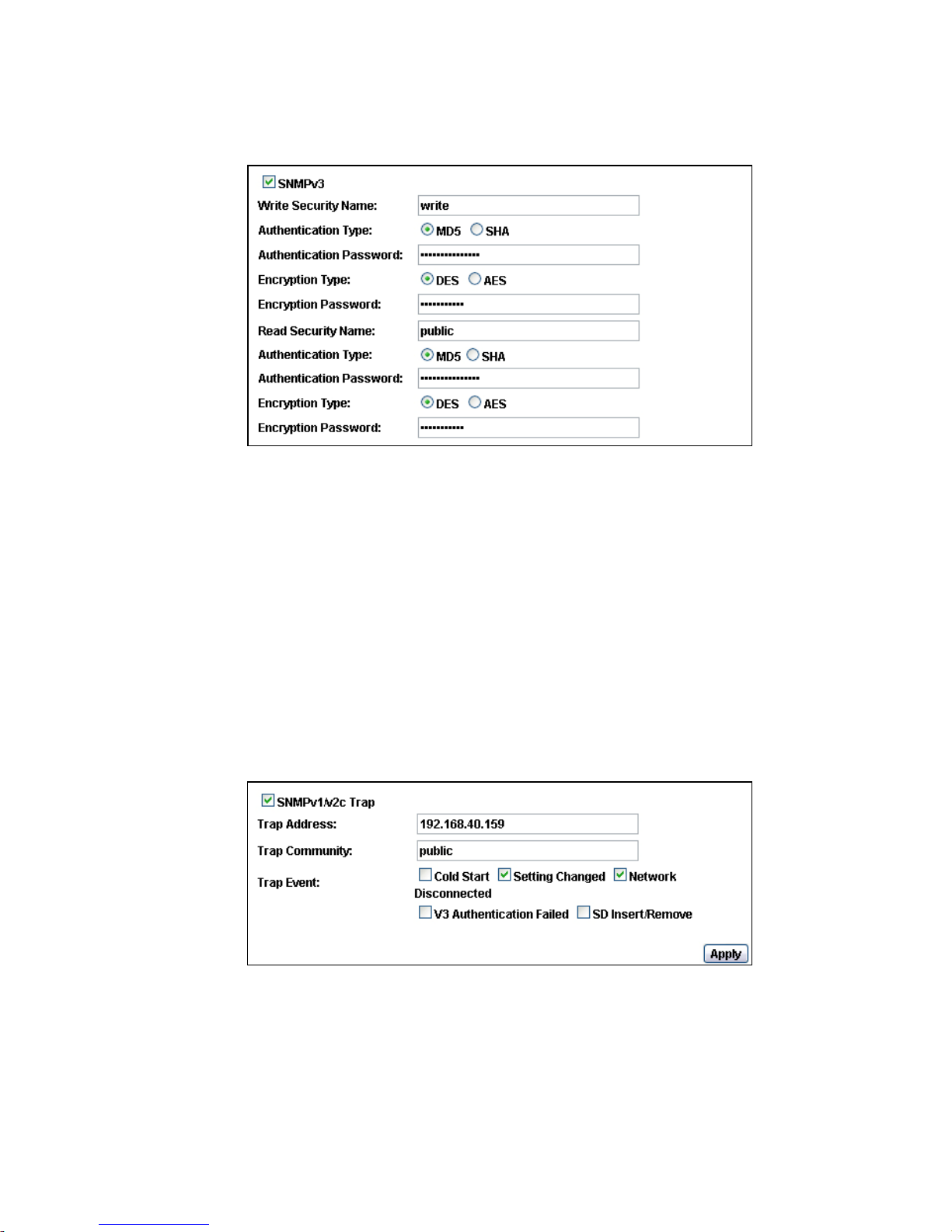

(ii) SNMPv3:

For data security reason, the authentication and encryption
assurances are added when developing SNMPv3. The user has to give
not only the security name( the same as "community name" in v1&v2c,
or sometimes we call it "context name") but the password in order to
access the IP camera. Please set security name, authentication type,
authentication password, encryption type, encryption password of
write and read respectively. The password must be 8~64 bits in length.

Different from in SNMPv1 and v2c, the user have to create an
account when using SNMPv3. In the account parameters, key in the
security name and password you set in the camera to get accessing.

(iii) SNMPv1/SNMPv2 Trap:

Trap is a mechanism that allows the a managed device to send
messages to manager instead of waiting passively for polling from
the manager. Specify the trap event. When those events happen, the
camera will send the ring message to the Trap Address, which is usually
the manager's IP address. Trap Community means the community that
can receive the trap message.

• Cold Start: The camera starts up or reboots.

• Setting changed: The SNMP setting is changed.

• Network Disconnected: The network connection was broken down.
(The camera will send trap messages after the network being
connected again)

• V3 Authentication Failed: A SNMPv3 user account tries to get
authentication but failed. (Due to incorrect password or community)

• SD Insert / Remove: A Micro SD card is inserted or removed.

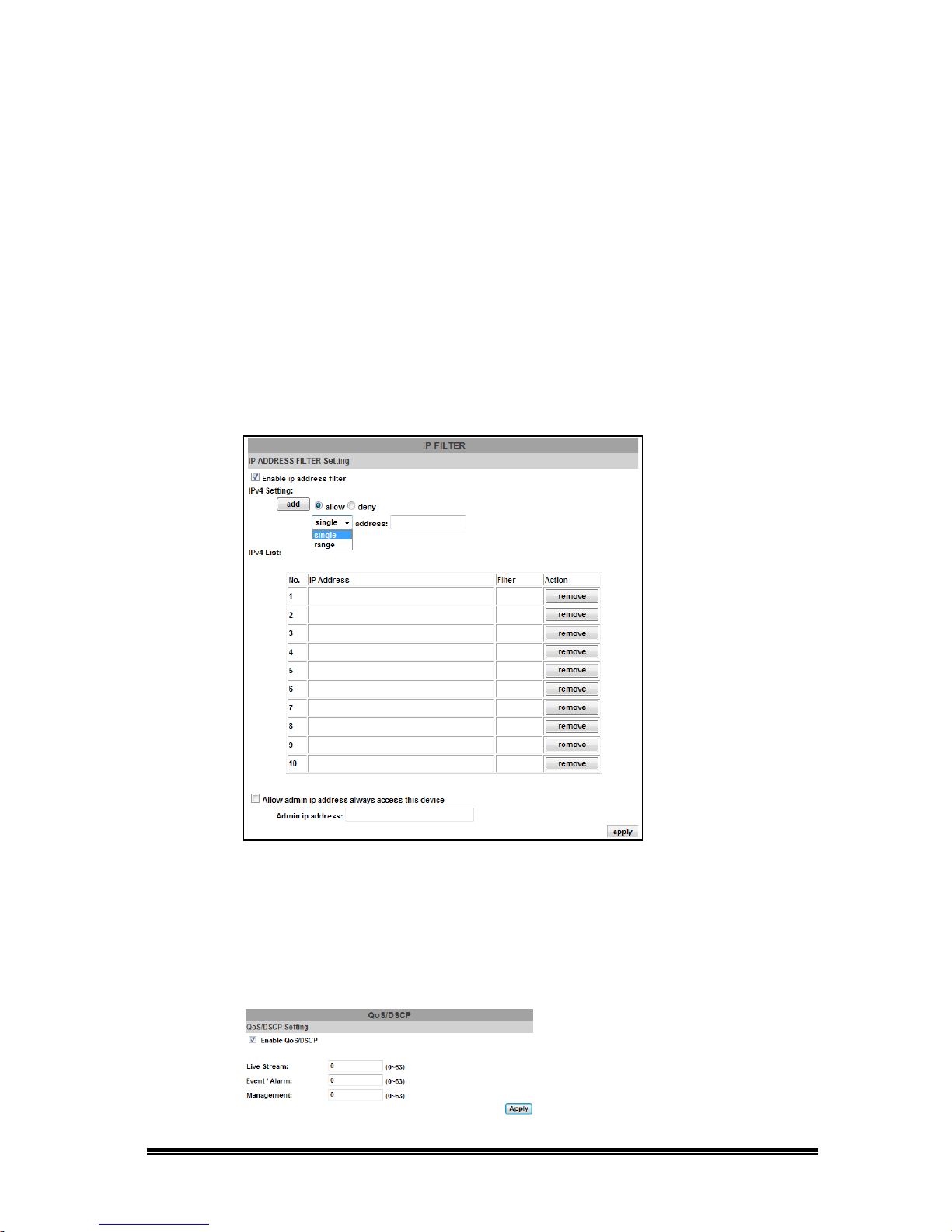

c. Access List: ”Enable IP address filter” can set IP address which can allow

or deny to this camera. There are two options, single and range, for user to
set the IP address.

d. QoS/DSCP(Quality of Server/Differentiated Services Code-point):

DSCP specifies a simple mechanism for classifying and managing network
traffic and provide QoS on IP networks. DSCP is a 6-bit in the IP header for
packet classification purpose. Please define the reserve for Live Stream,
Event / Alarm and Management.

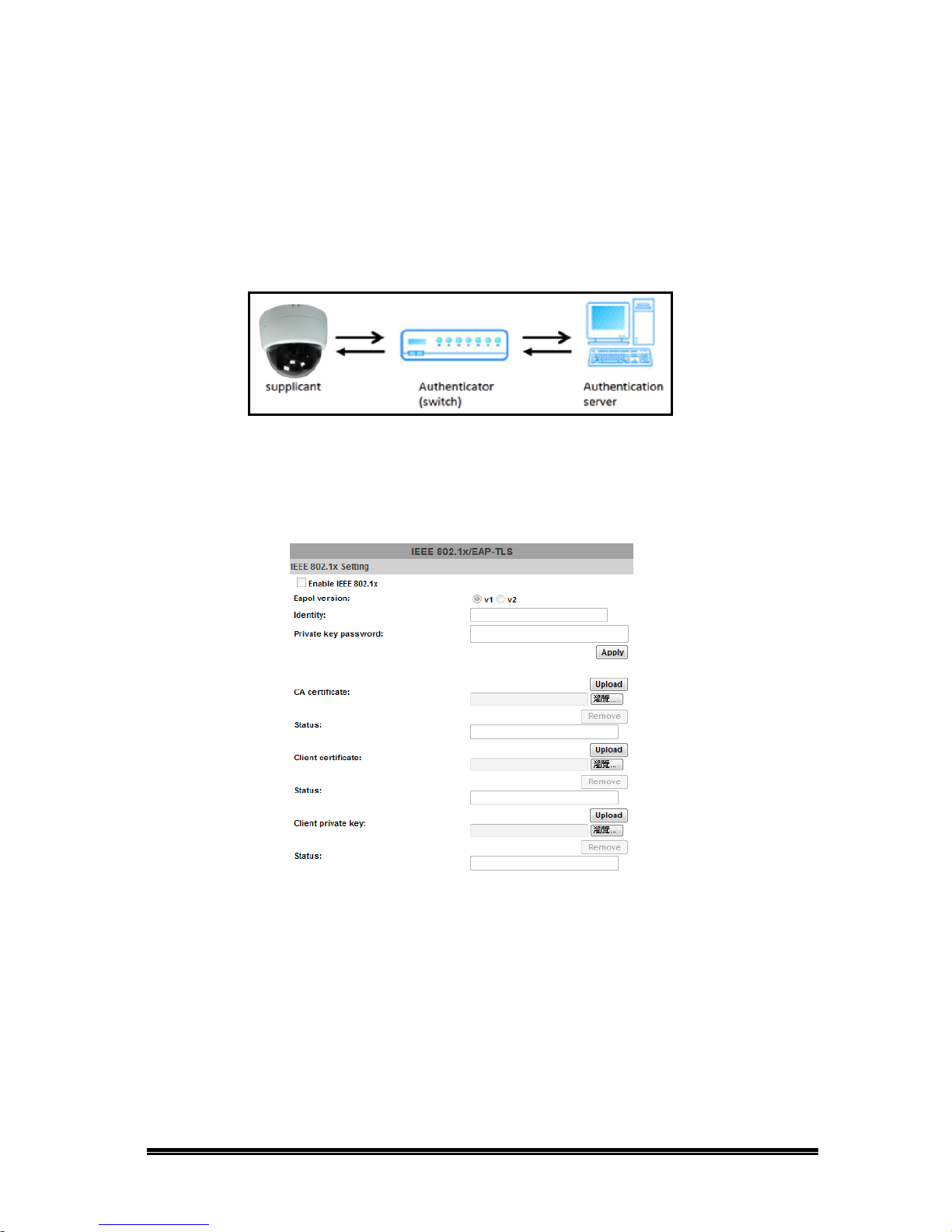

e. IEEE 802.1x is an IEEE standard for port-based Network Access

Control. It provides an authentication mechanism to device wishing to
attach to a LAN or WLAN.

The EAPOL protocol support service identification and optional point to

point encryption over the local LAN segment.

Please check what version of the authenticator and authentication
server support. This camera supports EAP-TLS method. Please enter ID,
password issued by the CA, then upload related certificates.

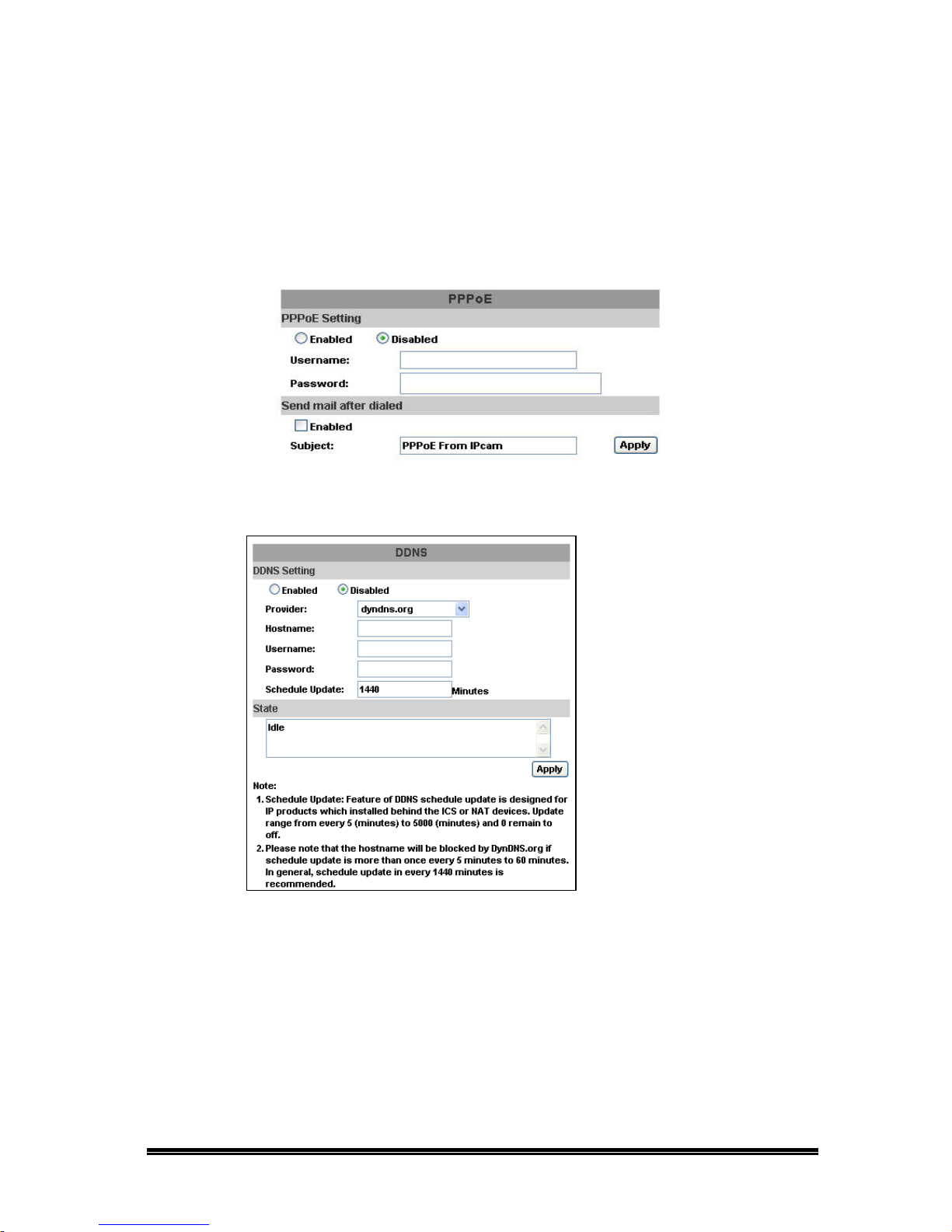

3. PPPoE & DDNS
a. PPPoE: Select “Enabled” to use PPPoE. Key-in Us ername and pas sword

for the ADSL connection. Send mail after dialed: When connect to the
internet, it will send a mail to a specific mail account. For the mail setting,
please refer to “Mail and FTP” settings.

b. DDNS:

It supports DDNS (Dynamic DNS) se rvice.

(i)

(ii)

Enable this service

Key-in the DynDNS server name, user name, and password.
(iii) Set up the IP Schedule update refreshi ng r at e.
(iv) Click “Apply”
(v) If setting up IP schedule update too frequently, the IP may be blocked.

In general, schedule update every day (1440 minutes) is recommended

(vi) DDNS Status

• Updating: Information update

• Idle: Stop service

• DDNS registration successful, can now login

• Update Failed, the name is already registered: The user name
has already been used. Please change it.

• Update Failed, please check your internet connection:
Network connection failed.

• Update Failed, please check the account information you provide:
The server, user name, and password may be wrong.

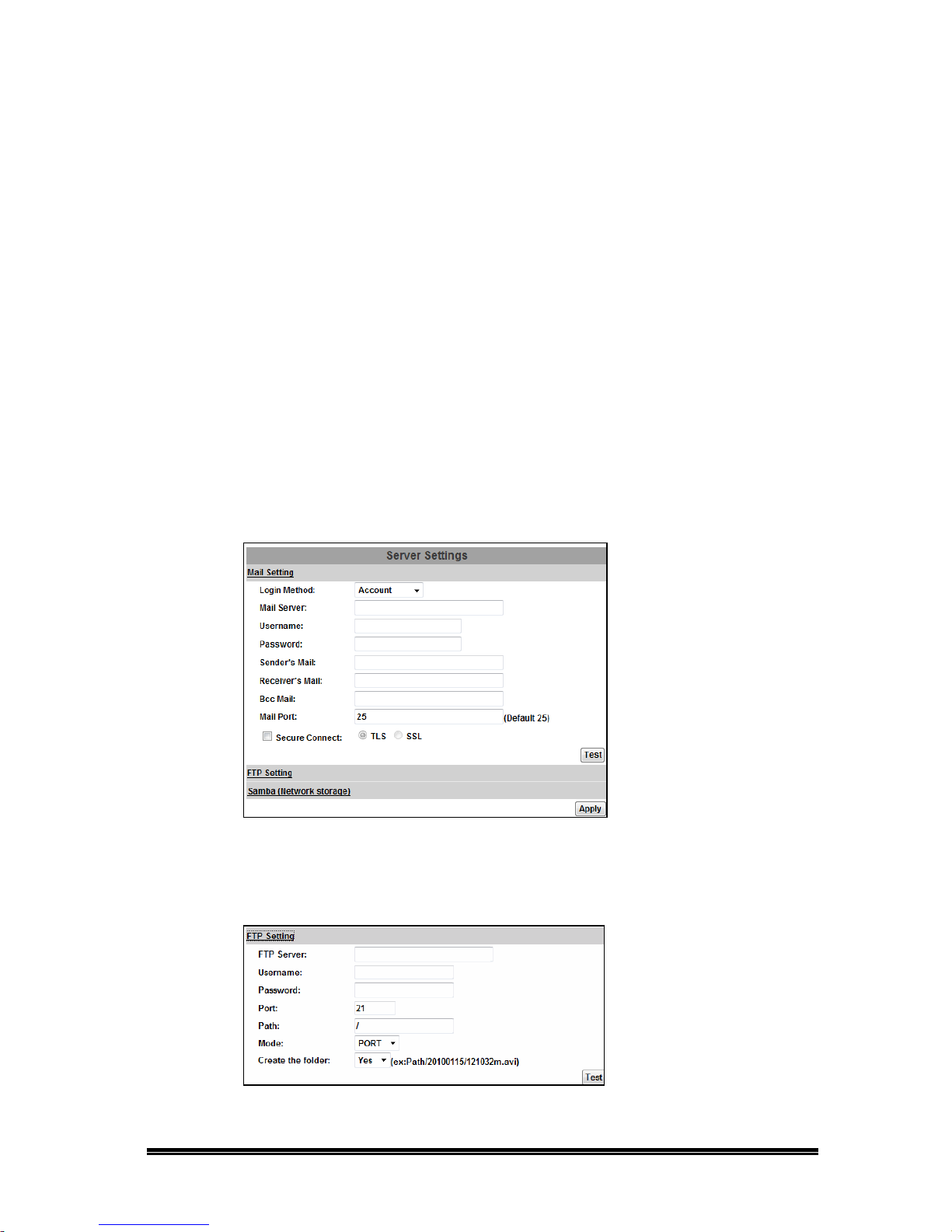

4. Server setting
There are three choices of server types available: Email, FTP and

SAMBA. Select the item to display the detailed configurati on opt ions. You
can configure either one or all of them.

a. Mail Setting: To send out the video via mail of ftp, please set up

the configuration first .

b. FTP: To send out the video via mail of ftp, please set up the confi g ur at ion

first.

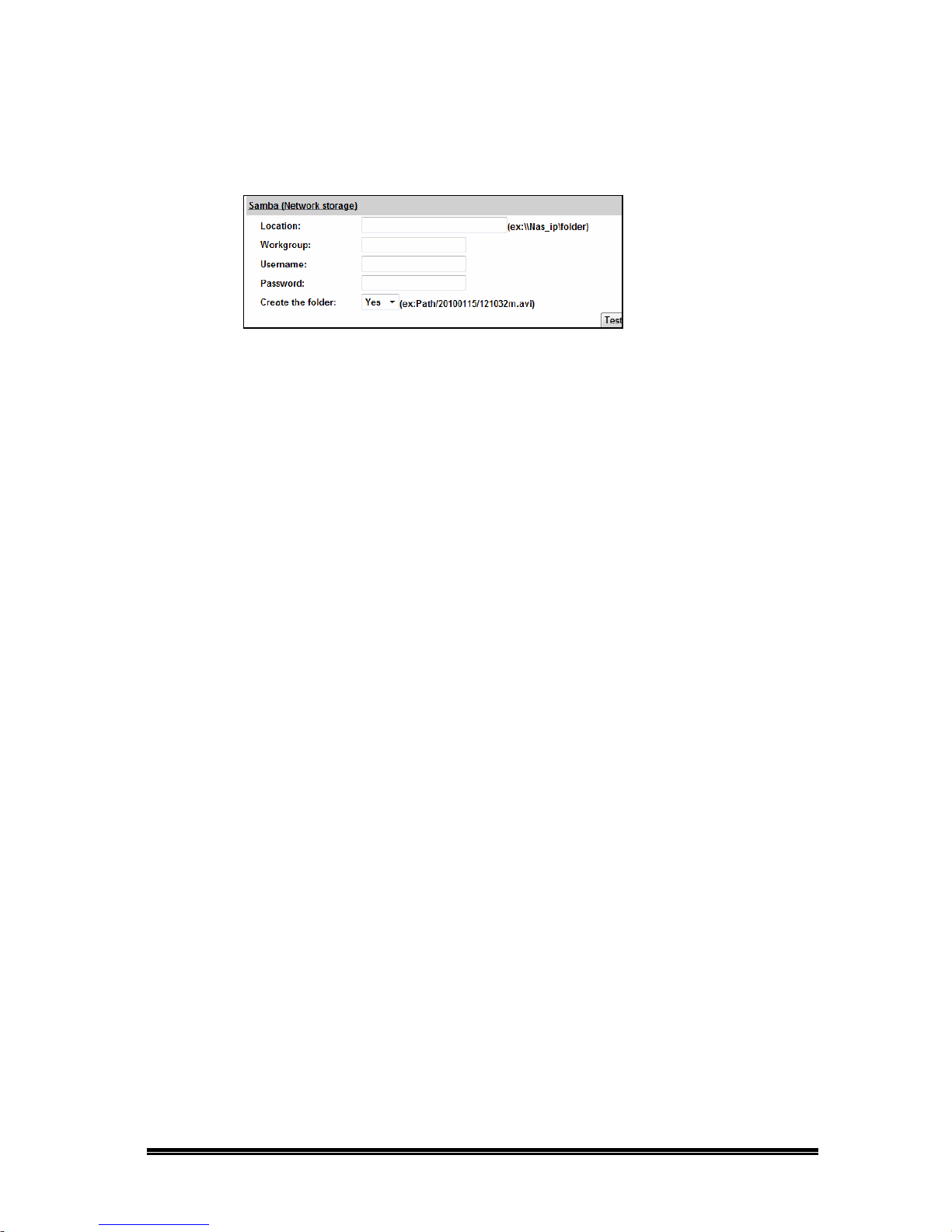

c. Samba: Select this option to send the media files via a network

neighborhood when an event is triggered

C. A/V Setting

1. Image Setting

For security and privacy purposes, there are three areas that can be set up for
privacy. Click the Area button first, and then drag an area on the above image.
Remember to save your settings. The masked area will not shown on both live
view and recording image.

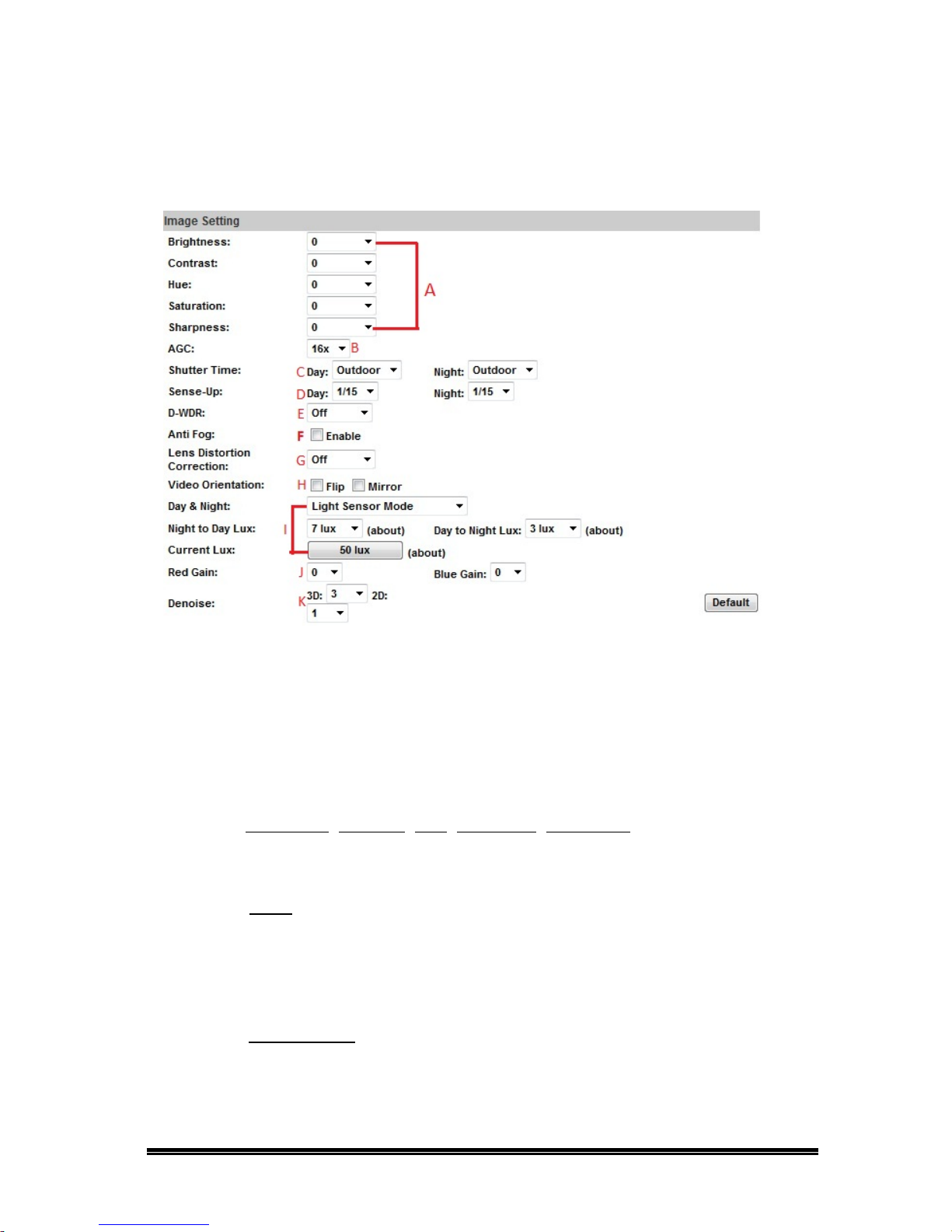

Please refer to the details below for image settings:

A. Brightness, Contrast, Hue, Saturation, Sharpness can be adjusted here.
The available values are: -4, -3, -2, -1, 0, 1, 2, 3, 4.

B. AGC: The sensitivity of the camera can adjust to the environmental
lighting. Enable this function for getting brighter image on low light, but the
level of noise may also increase. The available values are: 16x, 24x, 32x,

48x, 64x.

C. Shutter Time: Choose the location of your camera or a fixed shutter time.
The shorter the shutter time is the less light the camera receives and the
image becomes darker , it can adjust by Day and Night.

The available values are: Outdoor, Indoor, 1/30, 1/50, 1/60, 1/100, 1/120,
1/125, 1/250, 1/500, 1/100 0, 1/ 10 ,00 0.

Note: When you select a number in "Shutter Time", the shutter time will vary
in a range and be controlled by camera automatically. The following table
shows the shutter time options and corresponding range.

D. Sense up: When enabled, provides a higher sensitivity in low light
conditions by slowing the shutter speed. The available values are: 1/30, 1/1 5.

E. D-WDR: This function enables the camera to reduce the contrast in the
view to avoid dark zones as a result of over and under exposure. If the Inp ut
resolution is 30fps, the default value is fixed on ENABLED. The available
values are: OFF, 1, 2, 3, 4, 5, 6, 7, 8.

If the D-WDR is enabled the values for bright, dark and contrast can be
adjusted.

F. Anti Fog: Improve the image clarity on environments presenting high levels
of fog or smoke.

G. Lens Distortion Correction: Correct the image in the borders due to the lens
angles. The available values ar e: OFF, 1, 2, 3, 4, 5, 6, 7, 8

H. Video Orientation: Flip or mirror the image.

I. Day & Night: The camera can detect the light level of the environment. If you
choose "Light Sensor Mode", the image will be turned black and white at night
in order to keep a clear image. To set light sensor mode, appoint a lux standard
of switching D/N. Current lux value is provided for reference. Under "Times
Mode" the switch time of Color / Black and white will be according to the given
time. You can also control it by choosing "Color" or "B/W”.

J. Red / Blue gain: Set the values for Red / Blue gain. The available values are:

-5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5

K. Denoise: This function is able to filter the noise and blur from the image and
show a clearer view. You can set the values for 2D and 3D filters.

2. Video Setting

Video System: NTSC or PAL
Corridor Mode: 90 degr ees, 270 deg r ees or n one.

On Corridor Mode please take note of the lens’ position. If Corridor Mode is
set as 90 degrees or 270 degrees the relation of the image and the camera
would be as the following:


Position

0 degrees

90 degrees

270 degrees

User may select 2 streaming output simultaneously:
Streaming 1 Setting: Basic mode and Advanced mode
Streaming 2 Setting: Basic mode, Advanced mode, and 3GPP mode

a. Basic Mode of Streaming 1 and Streaming 2:

(i)

(ii)

Resolution:
There are 5 resolutions can be chosen:
1920x1080, 1280x720, ,640x480, 320x240, 176x144
Quality:
There are 5 levels to choose:
Best/ High/ Standard/ Medium/ Low
The higher the quality is, the bigger the file size is. It might affect
Internet transmitting speed if the file gets too large.

(iii) Video Frame Rate: The video refreshing rate per second. In Streaming

1 you can choose up to 30 FPS, while in Streaming 2 only up to 15

FPS.
(iv) Video Format: H.264, MPEG4, or M-JPEG
(v) RTSP Path: Set the RTSP output connecting route

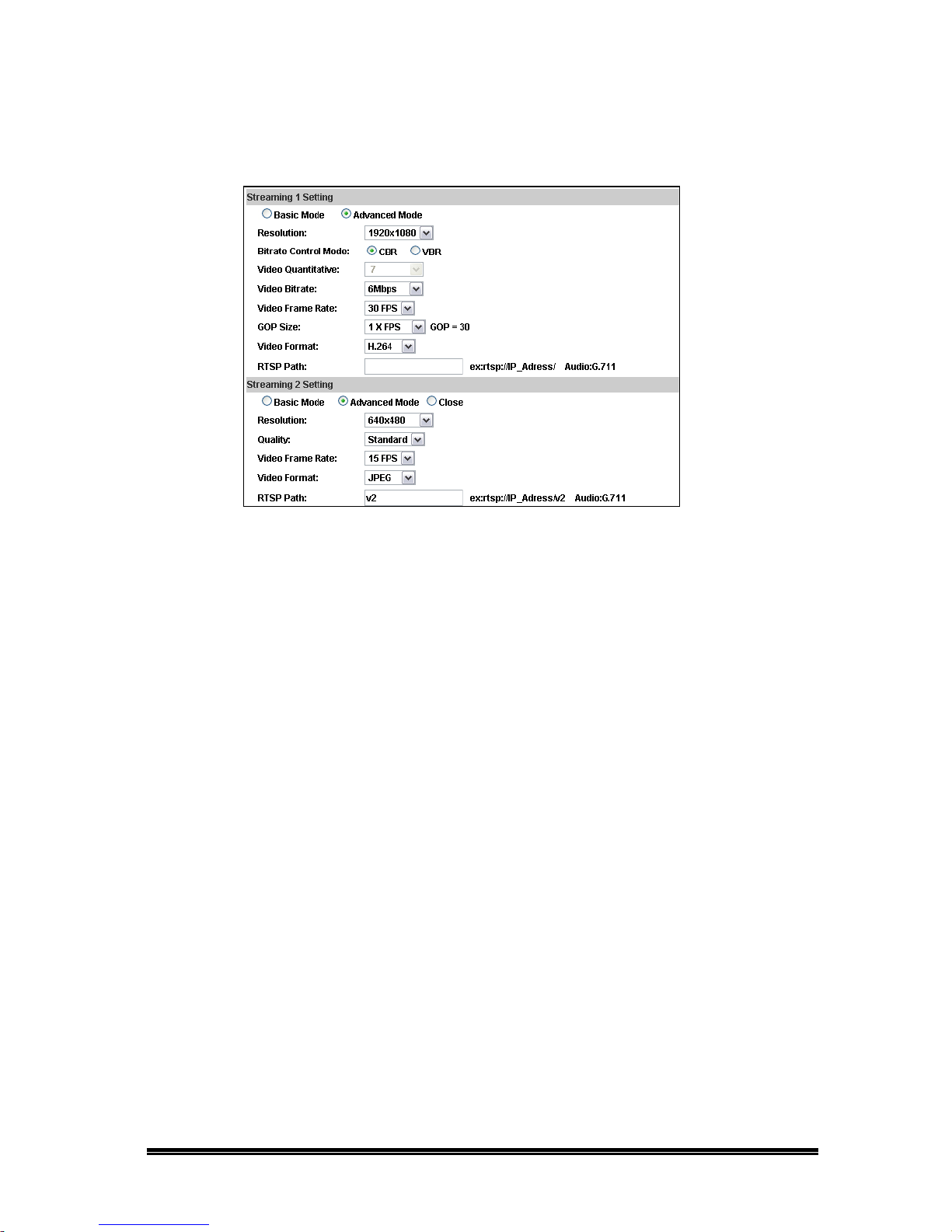

b. Advanced Mode of Streaming 1 and Streaming 2:

(i)

(ii)

Resolution

There are 5 resolutions can be chosen:

1920x1080, 1280x720, ,640x480, 320x240, 176x144

Bitrate Control Mode

There are CBR(Constant Bit Rate) and VBR (Variable Bit Rate) to

be chosen.
(iii) Video Quantitative

The quality adjustment of VBR. You can choose 1~10 compression rate
(iv) Video Bitrate

The quality adjustment of CBR. You can choose 32kbps~8Mkbps. The

higher the value is, the higher the image quality is.
(v) Video Frame Rate

The video refreshing rate per second. In Streaming 1 you can choose

up to 30 FPS, while in Streaming 2 only up to 15 FPS.
(vi) GOP Size

It means “Group of Pictures”. T he hi g her the GO P is, the better the

quality is.
(vii)Video Format: H.264,MPEG4, or M-JPEG
(viii)RTSP Path: RTSP output connecting route

In Streaming 2, the option under Advanced Mode has no difference

with under Basic Mode.

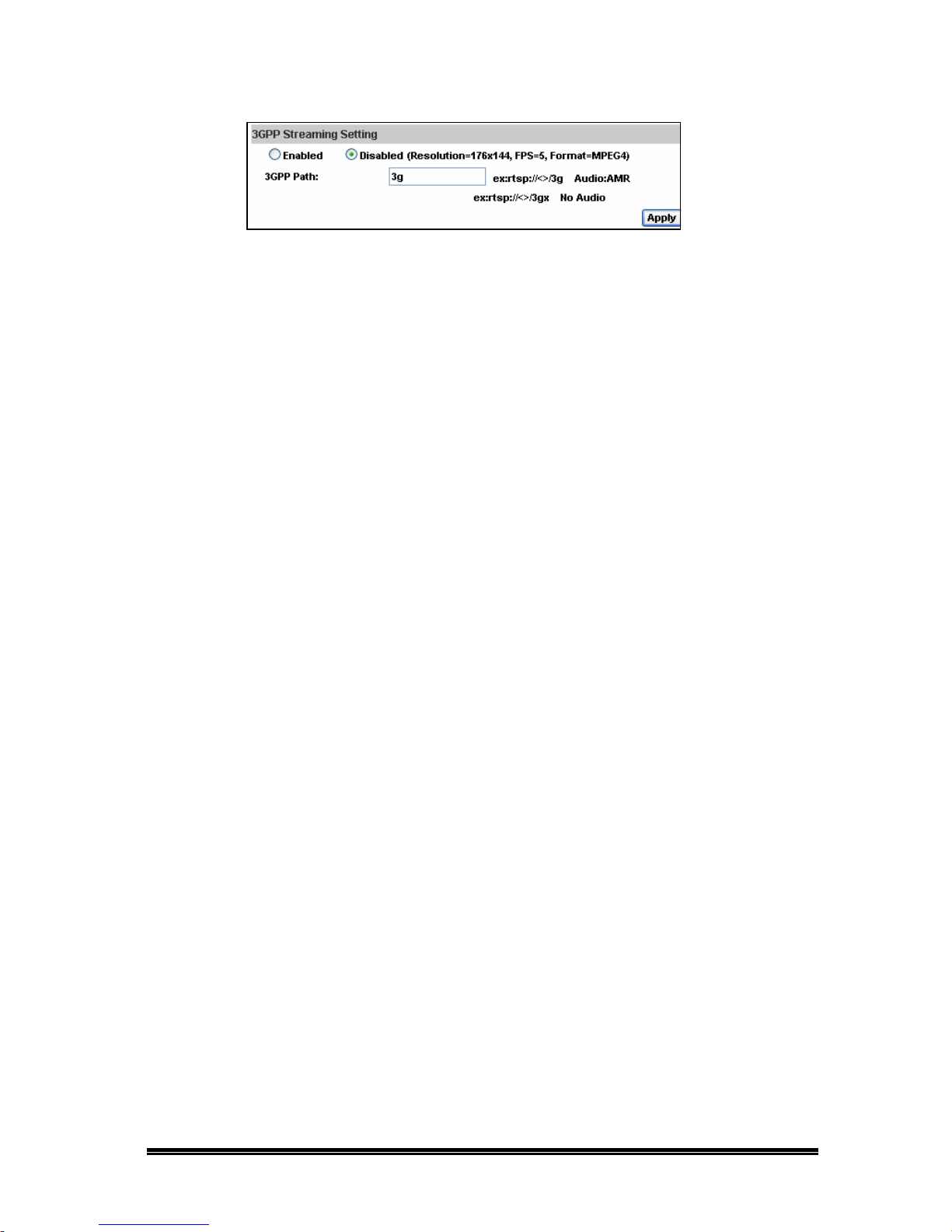

c. 3GPP Streaming mode:

(i)

(ii)

3GPP mode fixed setting: 176x144 resolution, 5FPS, MPEG4 format

Enable or Disable 3GPP Streaming
3GPP Path: 3GPP output connecting route

3. Audio:
IP Camera supports 2-way audio. User can send audio from IP Camera

mic input to remote PC; User can also send audio from remote PC mic to IP
Camera’s external speaker.

a. Audio from IP camera built-in mic to local PC: select “Enable” to start this

function.
b. Adjust Volume of audio.
c. Check “chatting” in the browsing page, then your voice can be propagated

from PC to camera.

The Audio will not be smooth when enable SD card
recording function sim ul tan eous l y.

D. Event List

IP Camera provides multiple event settings.

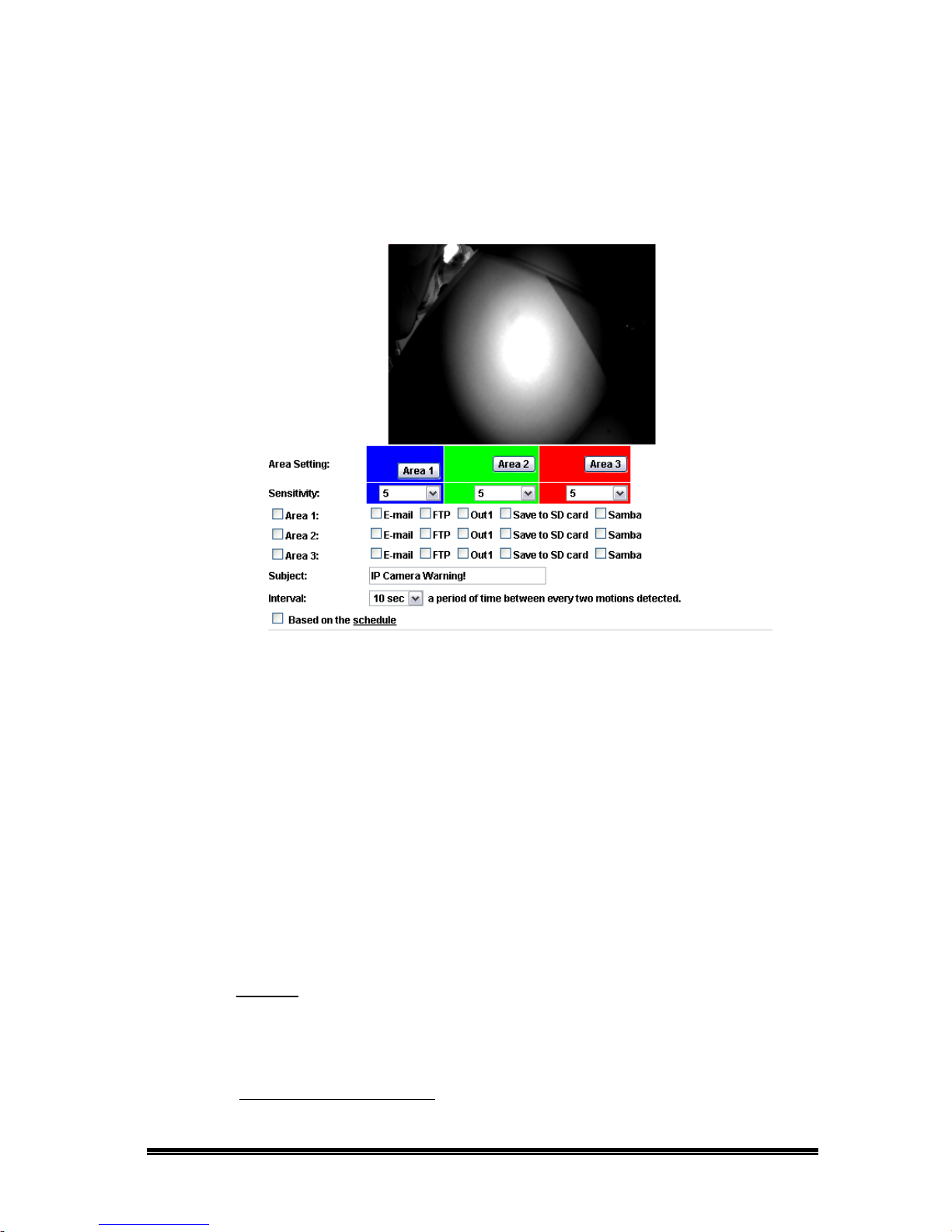

1. Event Setting

To enable motion detection, tick Area 1/2/3. Click Area 1/2/3 in Area Setting,
and draw an area on the preview screen. When motion is detected in the area,
the word Motion! will be displayed on the live screen. The camera will send
video or snapshot to specific mail addresses, trigger the output device, or
save video to FTP/ Micro SD card/ Samba.

By selecting save to SD card, the video or snapshot will be saved to the
Micro SD card. Also, by ticking E-mail/ FTP/ Samba on the Log opt ion, the
motion detection log will be sent to E-mail/ FTP/ Samba simultaneously.

• Interval: For example, when selecting "10 sec", once the motion is detected
and the action is triggered, it cannot be triggered again within 10 seconds.

• Based on the schedule: When the option box is ticked, only during the
selected schedule time the motion detection is enabled.

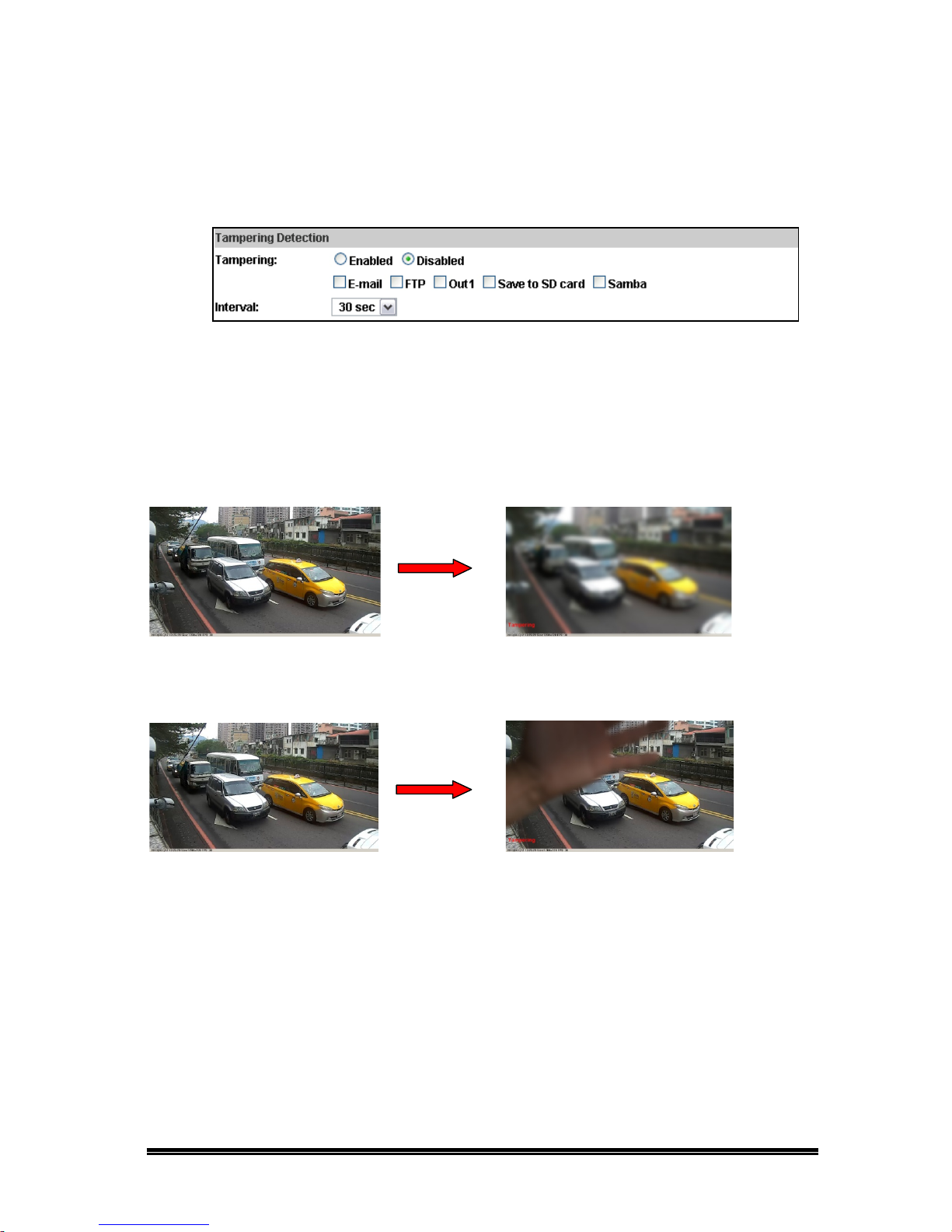

b. Tampering Detection

When the camera view is covered, moved, hit by stron g light, or out of foc us,
the tampering detection will be triggered, and send snapshot or video to
mail/FTP/Samba/SD card, or trigger the external alarm. For example:

Before Ta mpering Detection T a mpering Triggered (Defocused)

Before T ampering Detection T a mpering Triggered (Lens Covered)

Before T ampering Detection Tampering Triggered (Glare)

Before T ampering Detection Tampering Triggered (Camera Moved)

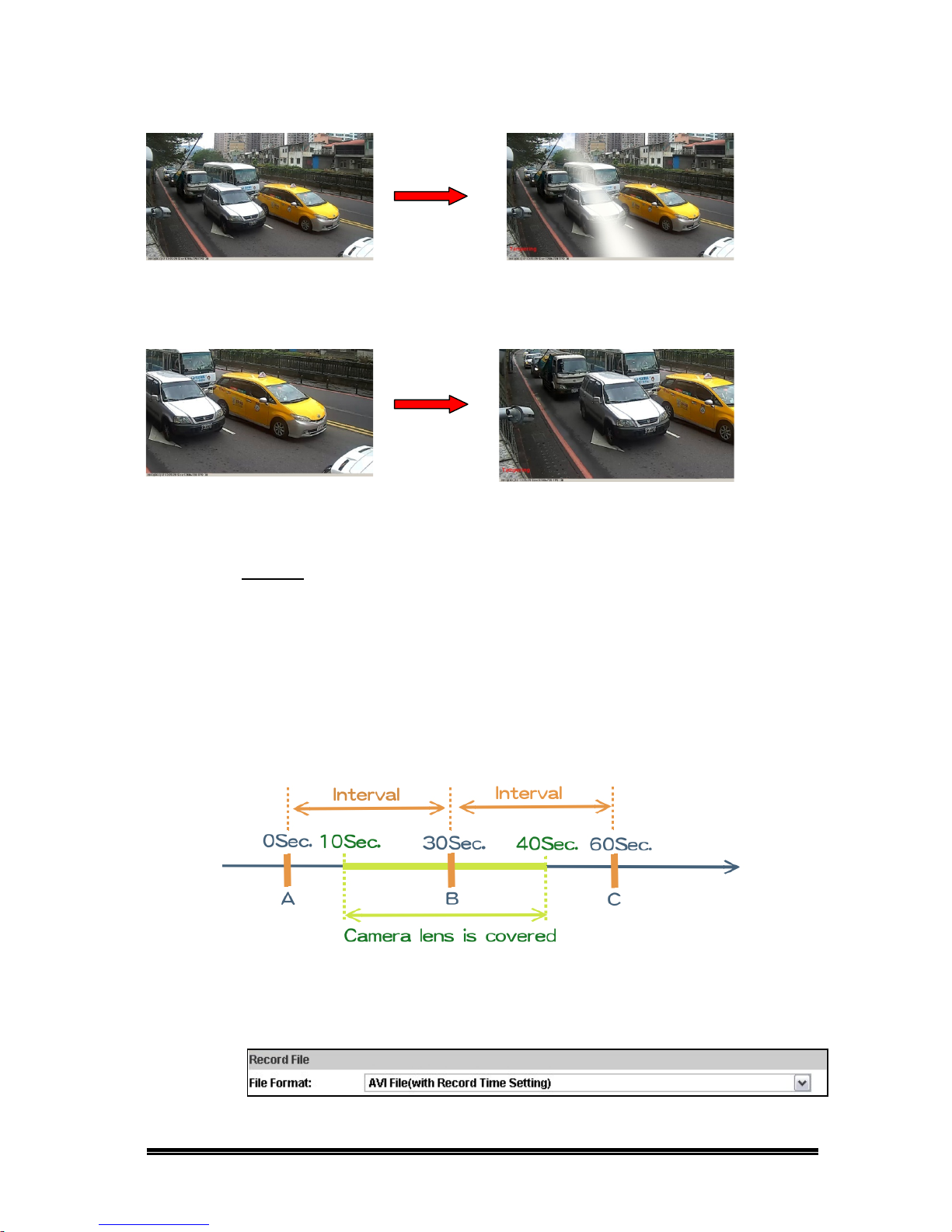

• Interval: The tampering detecting interval. Take the diagram below as
example. The interval is set for 30 second; the camera lens is covered during
10 - 40 sec. At time point B, the camera compares the view with time point A,
and sends an alarm when it founds that the lens is covered. At time point C,
the camera compares the view with time point B, and sends an alarm when it
founds that the lens is uncover ed.

c. Record File

Choose one of the format, AVI or JPEG .

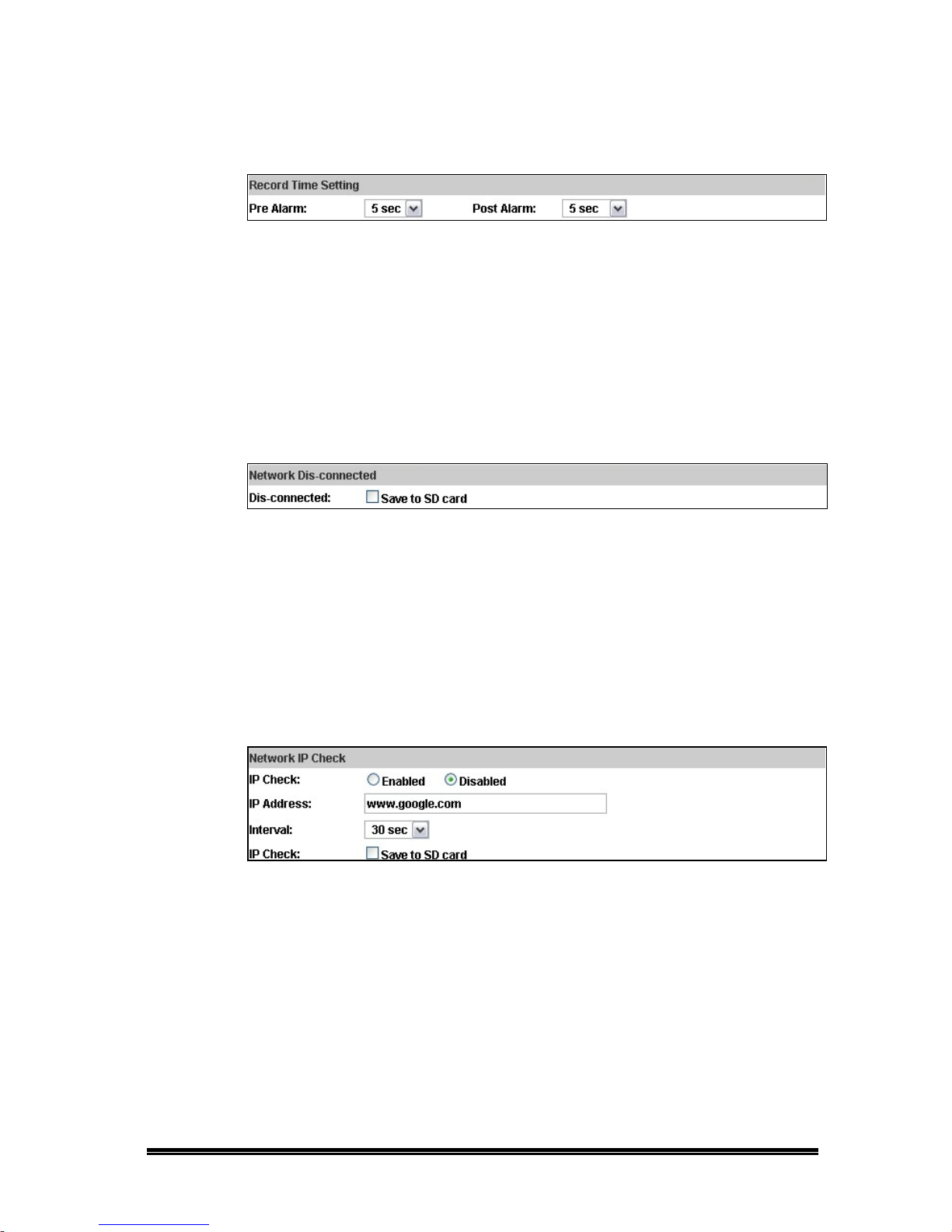

d. Record Time Setting

Set up the video recording time for Pre Alarm and Post Alarm when

motion is detected, I/O, or other devices is triggered.

Note: Pre/Post Alarm record time is base on record time setting and
restricted to IP Cam built-in Ram memory. If the quantity of data is too
huge or video quality too high, recording frame might drop or decrease on
post alarm recording time.

e. Network Dis-connected

To avoid video loss, the camera will start to save the video to
local SD card when it detect no network connection. The video recording
will continuously be saved into SD card and divided into every 10 minutes
a file until the network is reconnected successfully. The oldest file will be
deleted if the capacity of SD card is full.

This function is only enabled under wire connection.

f. Network IP check:

Key in the target IP address and interval. The camera checks once in
a while according to the setting interval time that if it can link to the
target IP address. If connection failed, the camera starts to save the
video to SD card.

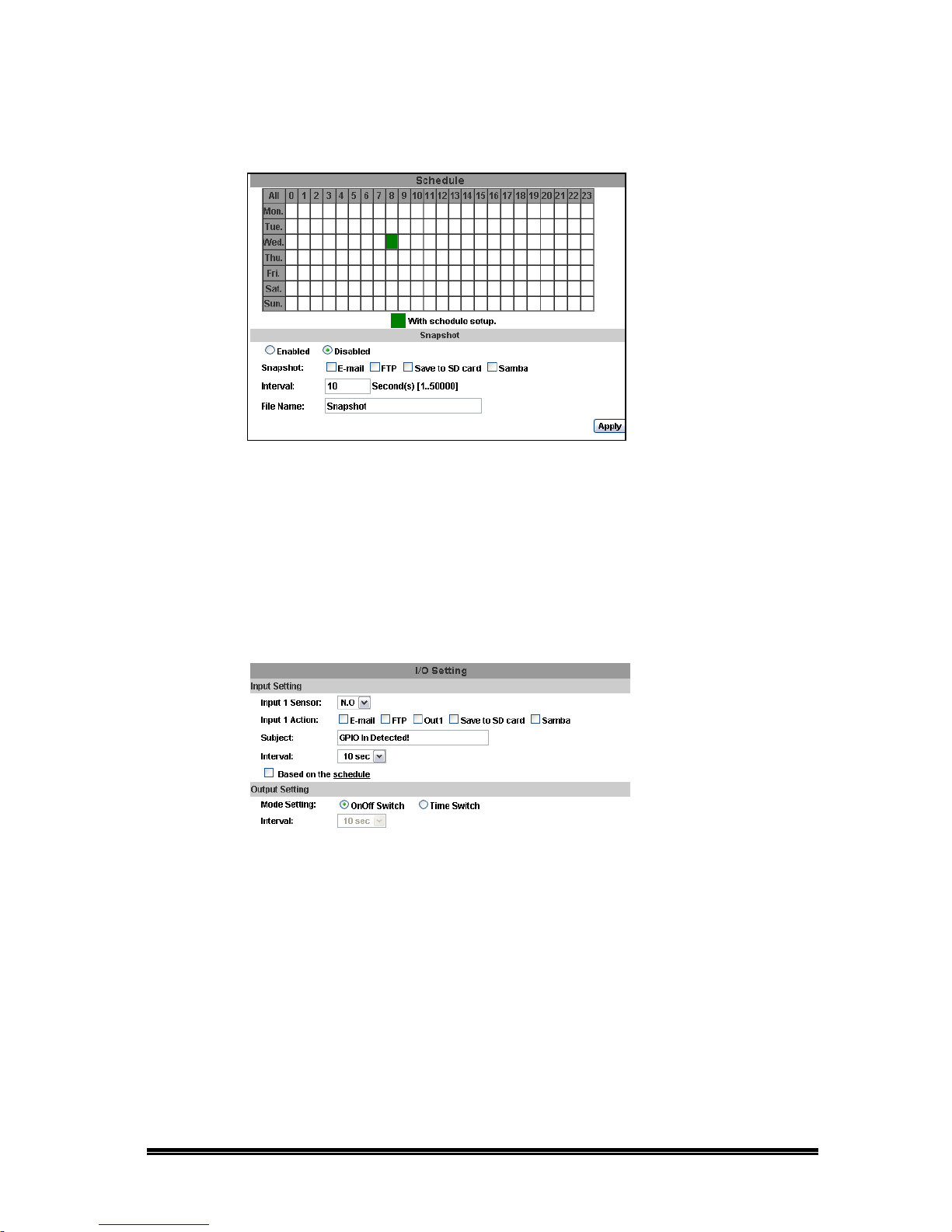

2. Schedule

a. Schedule: After complete the schedule setup, the camera data will be

recorded according to the schedule setup.

b. Snapshot: After enable the snapshot function, user can select the storage

position of snapshot file, the interval time of snapshot and the reserved file
name of snapshot.

c. Interval: The interval between two snapshots.

3. I/O Setting

a. Input Setting:

IP Camera supports input and output. When the input condition is triggered,
it can send the video to some specific mail addresses, transmit the video
to remote FTP server, trigger the relay, save video to local SD card or to
SAMBA.

b. Output Setting:

"OnOff Switch" means the camera executes the action when triggered.
"Time Switch" means the camera executes the action according to the
interval you choose after triggered.

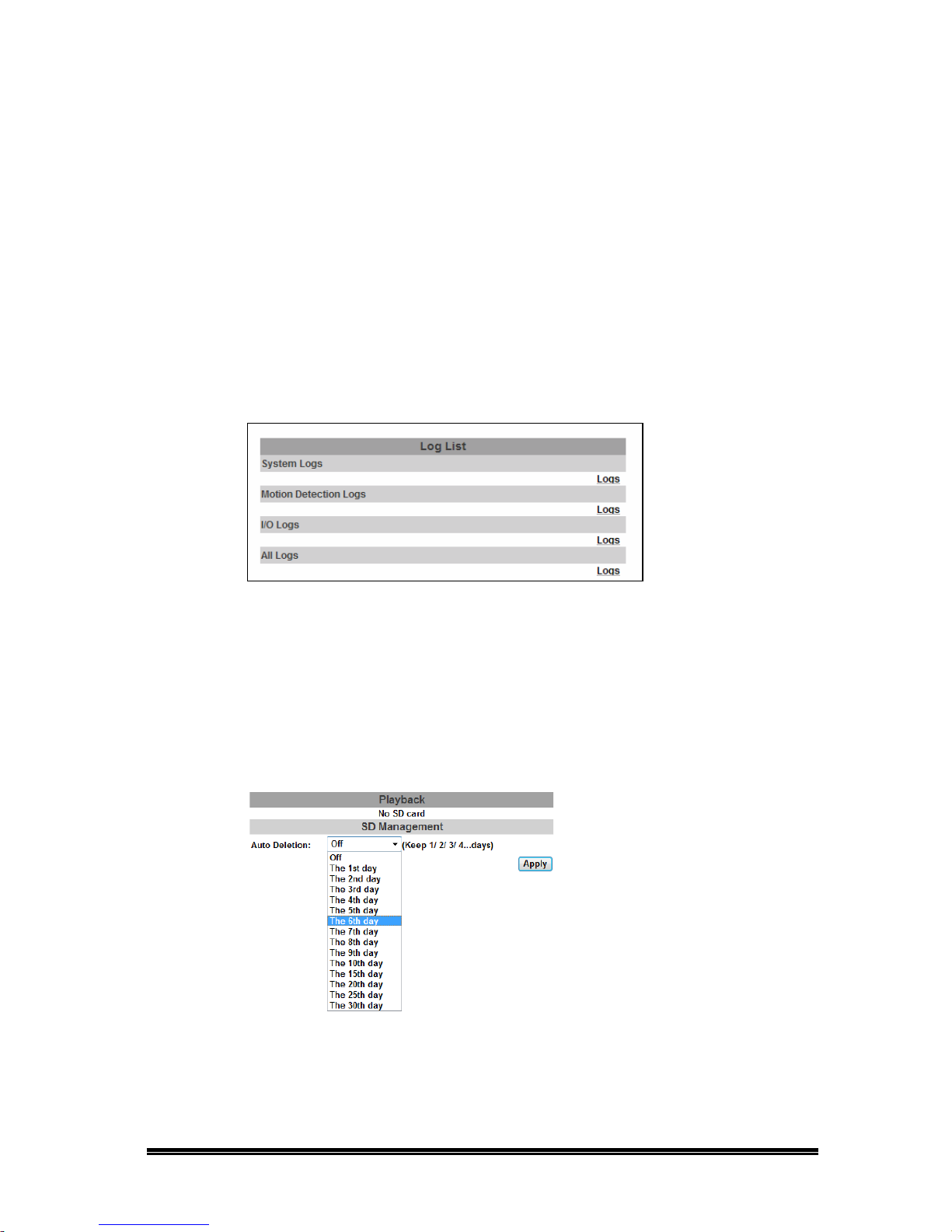

4. Log List

Sort by System Logs, Motion Detection Logs and I/O Logs. In addition,
System Logs and I/O Logs won’t lose data due to power failure

5. MicroSD card
Choose “The 1st day” meads the recoding file will be keep one day.
Example: It is five o’clock now. Choose “The 1st day”. The files will be kept
from five o’clock yesterday to five o’clock today.

Note：The use of the SD card will affect the operation of the IP Camera

slightly, such as affecting the frame rate of the video.

V. Network Configuration

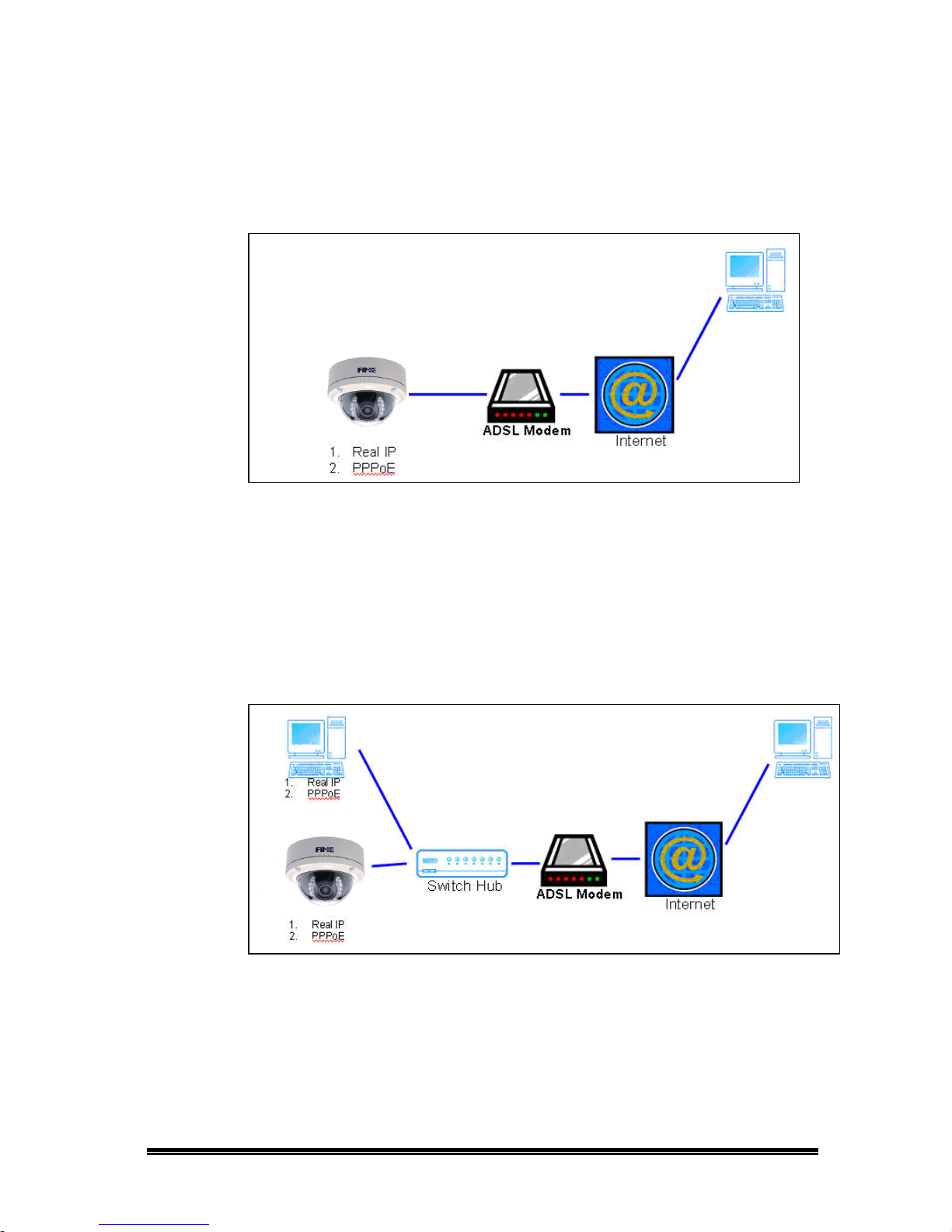

• Configuration 1:

a. Internet Access: ADSL or Cable Modem
b. IP address: One real IP or one dynamic IP
c. Only IP Camera connects to the internet
d. For fixed real IP, set up the IP into IP Camera. For dynamic IP, start PPPoE.

• Configuration 2:

a. Internet AccessL: ADSL or Cable Modem
b. IP address: More than one real IP or one dynamic IP
c. IP Camera and PC connect to the internet
d. Device needed: Switch Hub
e. For fixed real IP, set up the IP into IP Camera and PC. For dynamic IP, start

PPPoE.

• Configuration 3:

a. Internet Access: ADSL or Cable Modem
b. IP address: one real IP or one dynamic IP
c. IP Came ra and PC co nnect to the int ernet
d. Device needed: IP sharing
e. Use virtual IP, set up port forwarding in IP sharing.

VI. I/O Configuration

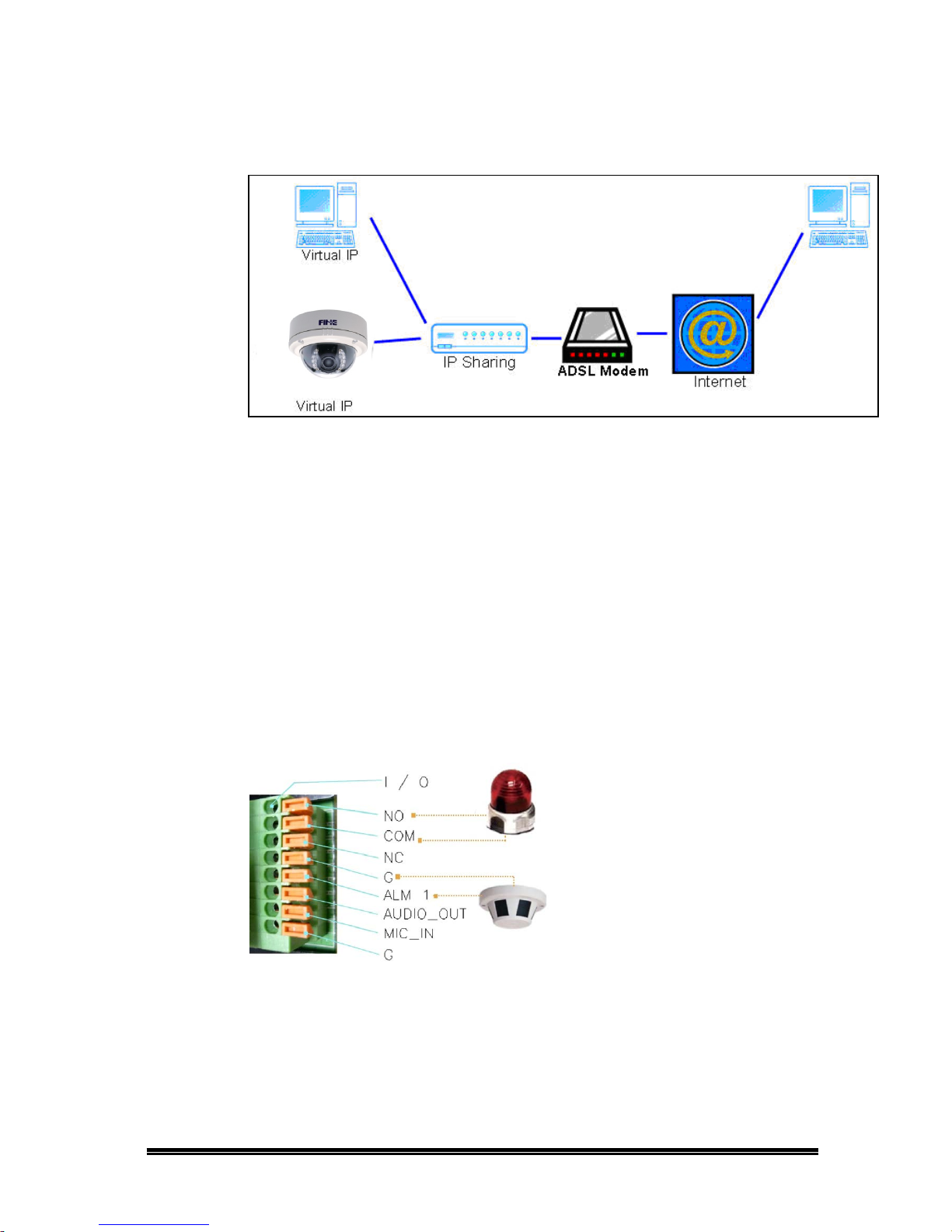

• I/O Connection
Use the terminal block in the camera as below:

a. Please connect the COM & N.O / N.C pin (depend on the device) to the

external relay (buzzer) device.

Or

b. Please connect the GND &Alarm pin to the external Trigger Device.

• I/O Setup

a. Click I/O Setting from the system setup page via IE, and check “Out1” to

enable I/O signal.

b. Click ON/OFF from the setup main page via IE to control relay out signal.

VII.

Factory Default

• To recover the default IP address and password, please
follow the following steps.

• Remove the power, Internet, and the dome cover. Press and hold
the button as

the picture below.

• Connect power to the camera, and do not release the button
during the system booting.

• It will take around 30 seconds to boot the camera.

• Release the button when camer a fini shes proceed.

• Re-login the camera using the default IP (http://192.168.1.20),

and user name

(admin), password (admi n).

IX. Appendix

The following is the Micro SD Card recommended:

Transcend

SDHC class4 16GB

SDHC class4 32GB
SD class4 16GB
SD class4 32GB
SDHC class6 4GB
SDHC class6 8GB
SDHC class6 16GB
SD class6 4GB
SD class6 8GB
SD class6 16GB
SDHC class10 4GB
SDHC class10 8GB

SDHC class10 16GB

SanDisk

SDHC class4 4GB

SDHC class4 8GB
SDHC class4 16GB

SDHC class4 32GB
