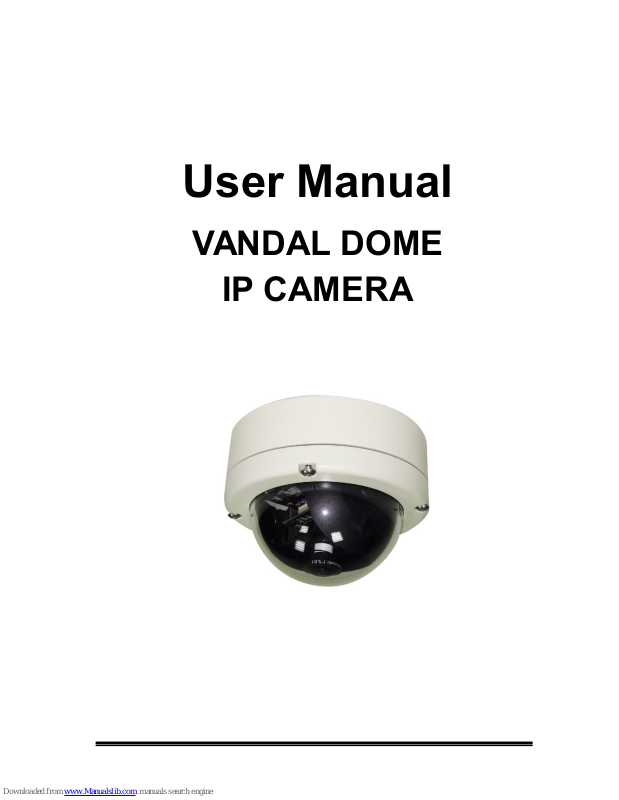

OV Solutions OVC-2DV360 User Manual

User Manual

VANDAL DOME

IP CAMERA

WARINGS

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED

TO THEIR RESPECTIVE COMPANIES.

CONTENT

I. Preface

II. Product Specifications

III. Product Installation

A. Monitor Setting

B. Hardware Installation 8

C. IP Assignment

D. Install ActiveX control

IV. Live Video

V. IP Camera Configuration

A. System

Network

C. A/V Setting

D. Event List

VI. Network Configuration

VII. I/O Configuration

VIII. Factory Default

IX. Appendix

I. Preface

II.

This IP Camera is a 2M Vandal dome IP camera. It has the web server

built in. User can view real-time video via IE browser. IP Camera supports

simultaneously H.264, Motion JPEG & MPEG4 video compression and dual

streaming which provides smooth and high video quality. IP66 waterproof

housing can adapt to outdoor environment. With user friendly interface, it is an

easy-to-use IP camera which is designed for security application.

Product Specifications

Main Features:

• 1/3.2” 2 Megapixel CMOS Sensor

• Full HD 1080P@30fps real time

• Digital Noise Reduction

• Digital Wide Dynamic Range

• Shutter Speed adjustion

• Sense Up adjustion

• Vandal proof

• IP66

• Power over Ethernet available

• H.264/ M-JPEG / MPEG4 compression

• Micro SD card backup

• Support iPhone/Android/Mac

• Triple Streaming

• SDK for Software Integration

• Free Bundle 64ch recording software

Specification

Hardware

CPU ARM 9 ,32 bit RISC

RAM 256MB

Flash 16MB

Image sensor 1/3.2” 5 Megapixel CMOS sensor

Lens Type Fish Eye 1.19mm F2.0

Sensitivity 1.0 lux @F2.0, 30fps Shutter Time 1 / 5 ~ 1 / 10,000 sec

I/O 1 D/I / 1 Relay out

Audio G.711(64K) and G.726(32K,24K) audio compression

Input : External Mic in Output: 3.5mm phone jack, Support 2-way.

Power over Ethernet Yes

Power Consumption 12V DC Power consumption Max：6.24W

PoE Power consumption Max：7.48W

Operating Temperature -10°C ~ 45°C

Dimensions 126mm (W) x 126mm (L) x 100mm (D)

Weight 1300g

Network

Ethernet 10/ 100 Base-T

Network Protocol HTTP, HTTPS, SNMP, QoS/DSCP, Access list, IEEE

802.1X, RTSP, TCP/ IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA, Bonjour

System

Video Resolution

1920x1080@30fps, 1280x720@30fps, ,640x480@30fps, 320x240@30fps, 176x144@30fps

Video Adjust

Brightness, Contrast, Hue, Saturation, Sharpness, AGC, Shutter Time, Sense-Up, D-WDR,Flip, Mirror, Day&Night adjustion ,Noise reduction

Triple Streaming Yes

Image snapshot Yes

Full screen monitoring Yes

Privacy Mask Yes, 3 different areas

Compression format H.264/ M-JPEG/ MPEG4

Video bitrates adjust CBR, VBR

Motion Detection Yes, 3 different areas

Triggered action Mail, FTP, Save to SD card, Relay out, SAMBA

Pre/ Post alarm Yes, configurable

Security Password protection, IP address filtering, HTTPS

encrypted data transmission, 802.1X port-based authentication for network protection, QoS/DSCP

Firmware upgrade HTTP mode, can be upgraded remotely

Simultaneous connection Up to 10

SD card management

Recording trigger Motion Detection, IP check, Network break down (wire

only), Schedule, D/I

Video format AVI, JPEG

Video playback Yes

Delete files Yes

Client System requirement

OS Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above,

Chrome, Safari, Firefox

Mobile Support iOS 4.3 or above, Android 1.6 or above.

Hardware Suggested Intel Dual Core 2.53G,RAM: 1024MB, Graphic card:

128MB

Minimum Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB

III.

Product Installation

Monitor Setting

1. Right-Click on the desktop. Select “ Properties”

2. Change color quality to highest (32bit).

B. Hardware Installation

1. Connect power adaptor first.

2. Connect IP Camera to PC or network

3. Set up the network configurations according to the network environment. For

further explanation, please refer to chapter VI: “Network Configuration for IP

Camera”.

4. IP Camera Instruction

Remove the dome cover, and you will see the structure as below.

5. Connector Instruction

Connect the camera with power and Internet as the picture above. The

following picture shows a DC 12V connector for adapter jack plug. About I/O

setting, please refer to chapter VII in User Manual: "I/O Configuration" for

detail.

Ethernet

PoE

Switch

PoE IP Ca

mera

PoE IP Camera

Ethernet Cable

6. PoE ( Power Over Ethernet)(Optional) 802.3at, 30.0W PoE Switch is

recommended

Power over Ethernet (PoE) is a technology that integrates power into a

standard LAN infrastructure. It enables power to be provided to the network

device, such as an IP phone or a network camera, using the same cable as

that used for network connection. It eliminates the need for power outlets at

the camera locations and enables easier application of uninterruptible power

supplies (UPS) to ensure 24 hours a day, 7 days a week operation.

C. IP Assignment

1. You can use the software“IP Installer” to assign the IP address of IP Camera.

The software is in the attached CD.

2. The IP installer has two versions of language. Choose one as your need:

IPInstallerCht.exe: Chinese version

IPInstallerEng.exe: English version

3. There are 3 kinds of IP configuration.

a. Fixed IP (Public IP or Virtual IP)

b. DHCP (Dynamic IP)

c. Dial-up (PPPoE)

4. Execute IP Installer

5. For Windows XP SP2 user, the following message box may pop up. Please

click “Unblock”.

6. IP Installer configuration:

7. IP Installer will search for all IP Cameras connected on Lan. Click “Search

Device” to refresh the result list.

8. Click one of the IP Camera listed on the left side. The network configuration of

this IP camera shows on the right side. You may change the “name” of the IP

Camera as your preference (eg: Office, warehouse). Change the parameter

and click “Submit” . It will apply the change and reboot the Device.

9. Please make sure that the IP address of your PC and IP Camera are on the

same subnet.

The same Subnet:

IP CAM IP address: 192.168.1.200

PC IP address: 192.168.1.100

Different Subnets:

IP CAM IP address: 192.168.2.200

PC IP address: 192.168.1.100

To Change PC IP address:

Control Panel→Network Connections→ Local Area Connection Properties→

Internet Protocol (TCP/IP) → Properties

10. A quick way to access remote monitoring is to double-click the selected IP

Camera listed on “Device list” of IP Installer. An IE browser will be opened.

11. If you link to the IP Camera successgully, there pops a box asking you to log

in. Please key in the default user name"admin" and password"admin" when

you link to the IP Camera for the first time. You can revise the user name and

password later. Please refer to Chapter V: "A.2. User Management".

D. Install ActiveX control

When the first time you view the camera video via IE, it will ask you to

install the ActiveX component.

If the installation failed, please check the security setting for the IE browser.

1. IE→Tools → Internet Options… → Security Tab → Custom Level… →

Security Settings → Download unsigned ActiveX controls→ Select “Enable”

or Prompt.

2. IE → Tools → Internet Options… → Security Tab → Custom Level…

→Initialize and script ActiveX controls not marked as safe → Select “Enable”

or Prompt.

1 2

3 4

When popup the following dialogue box, click “Yes”.
