Overmax Home STEAMY User Manual

STEAMY

Manual

Introduction

Dear customer!

Thank you for placing trust in us and choosing Overmax Home.

We provide you with a product perfect for everyday use thanks to the

use of high-quality materials and modern technological solutions.

We are sure that the product will satisfy your requirements as it has

been designed with utmost care.

Before you use the product, please read this manual carefully.

Should you have any remarks or questions regarding this product,

please do not hesitate to contact us:

[e-mail]

Warnings

Do not let children use this device!

To avoid electric shock, do not immerse the feeder cable or plug in
water or other liquids.

The feeder cable and plug must be in good condition and must not be
worn out. Damaged feeder cable and plug must not be used and should
be repaired by authorized service technicians.

This product is intended for home use only and must not be used for
industrial purposes.

Do not switch on the power until the tank has been filled.

Power supply must correspond to manufacturer’s requirements.

During operation the tank cap must be closed tightly and the lock nut
must be tightened up.

Use sockets with earthing.

When using, the machine must not be inclined by more than 45
degrees. Otherwise boiling water will be sprayed with water steam.

Do not direct water steam to persons, animals and electric devices.

Before you fill with water, clean and repair, disconnect the feeder cable
from the source of power supply.

Do not add any anti-rust preparations, anti-odor substances, alcohol
and detergents to the tank, otherwise it may lead to damage to the
tank.

Important: never overflow the tank with water as it may result in

inappropriate operation of the device and generation of extensive amount of

steam.

NOTE – burning risk

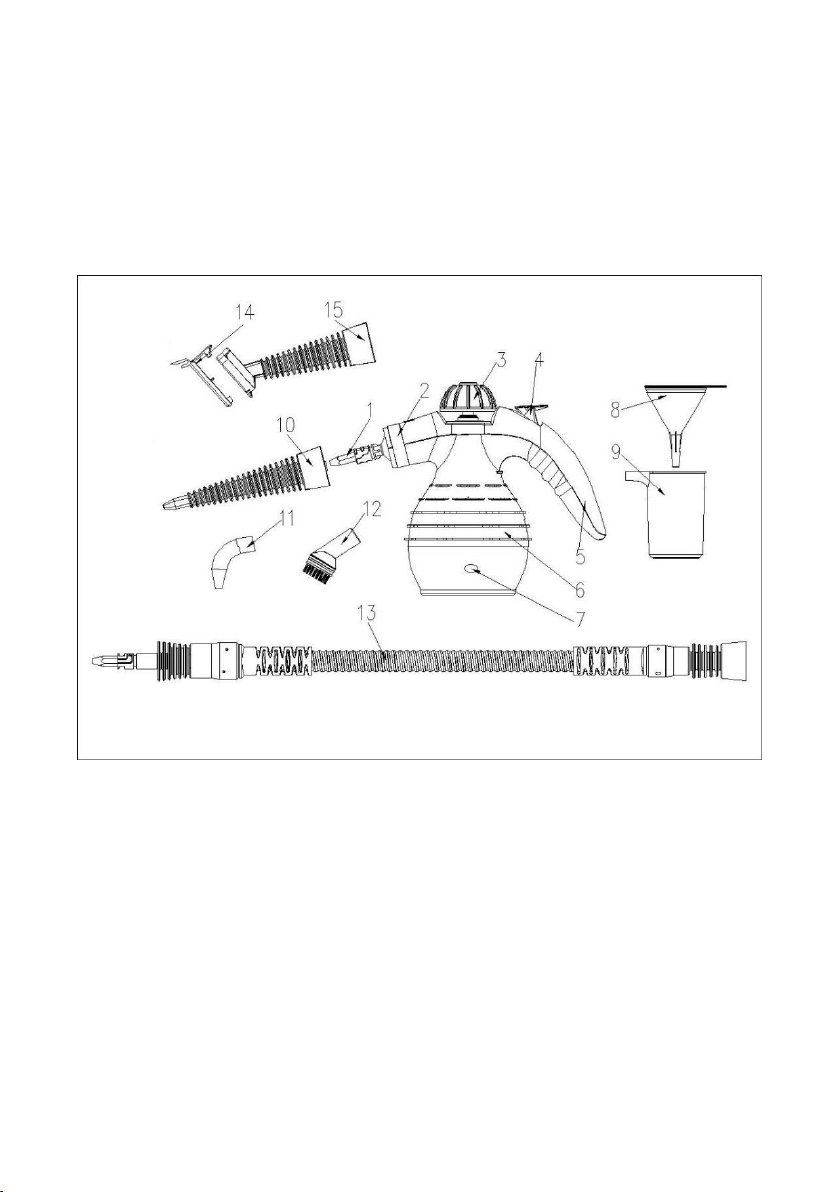

Description

A pressure washer is intended for cleaning bathrooms, toilets, kitchens, glass

and mirrors as well as most other smooth surfaces.

1. Connector

2. Lock ring

3. Safety valve

4. Button

5. Handle

6. Casing

7. Indicator light

8. Funnel

9. Measure

10. Long spray nozzle

11. Curved spray nozzle

12. Brush with soft tip

13. Flexible nozzle on wire

14. Window washing cover

15. General spray nozzle

Operations

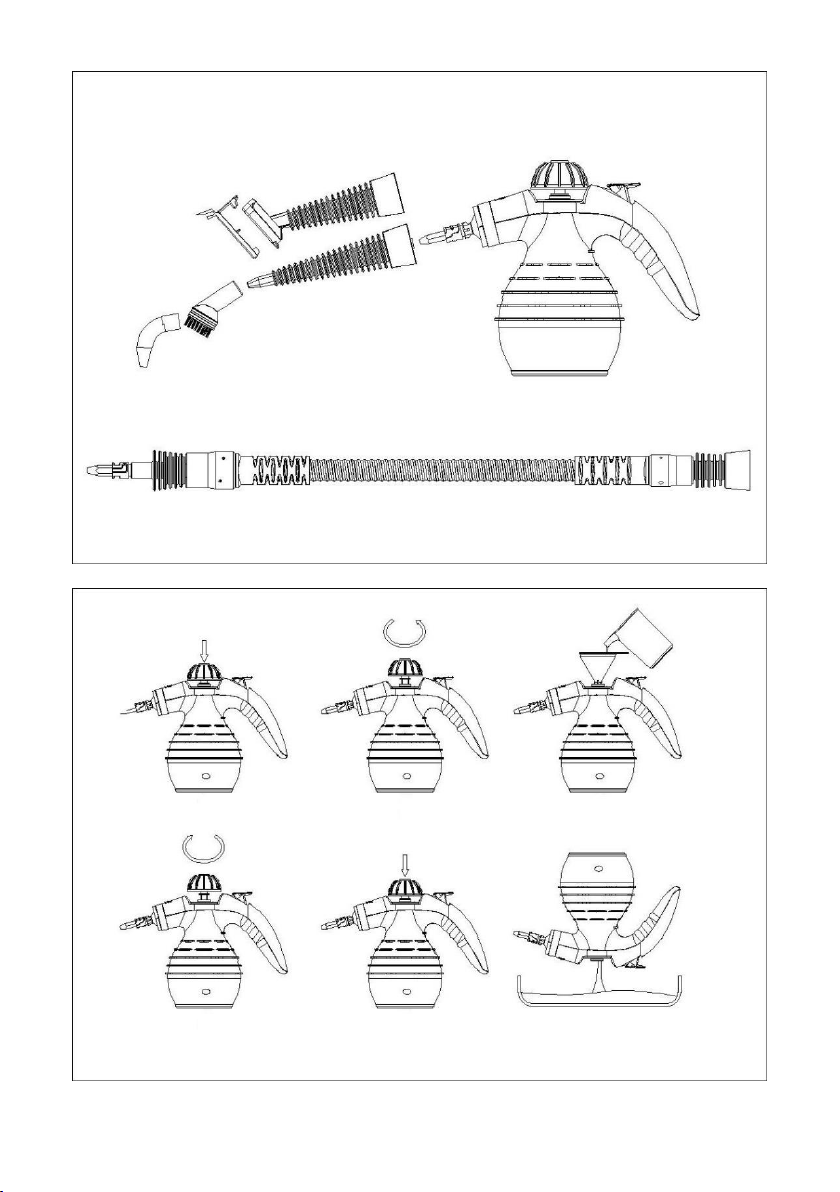

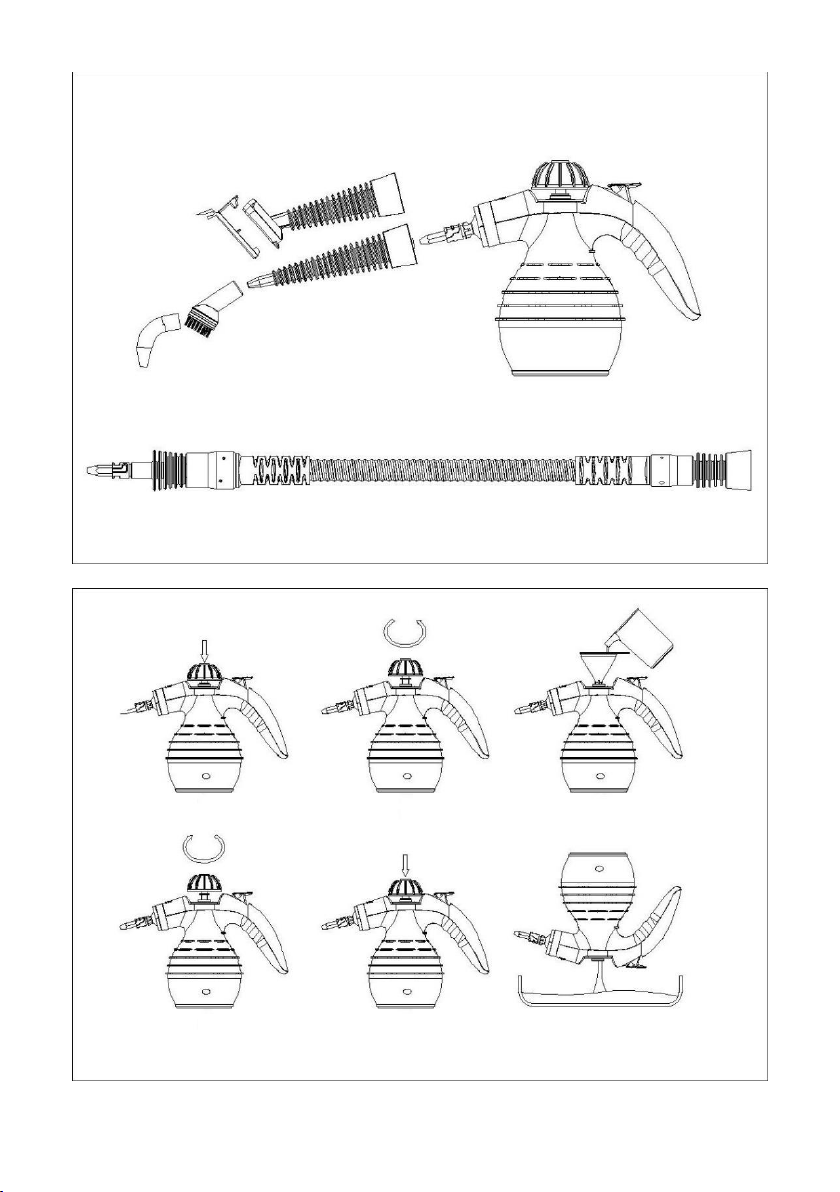

Accessories

1. Take out a long spray nozzle, general spray nozzle and extended

spray nozzle [Fig.1].

2. Mount brush round nozzles and a curved spray nozzle [Fig.3].

3. Install a spray nozzle for windows as presented in [Fig.2].

Use

1. Unscrew a safety valve, pour water through the funnel until the tank

is full (175ml, use water only). Tighten the safety valve up. When

using the device, never open the safety valve. The valve can be

unscrewed when the power supply is off and the device is cooled!

[Fig.]-[Fig.9].

2. Switch the power supply on, an indicator light will be on and the

device will start heating. When water reaches a suitable temperature

(as a rule it takes about 3 minutes), the indicator light will go out. To

start working, press the button and steam will be sprayed slowly.

Cleaning equipment can be easily assembled and disassembled. Accessories

are used to clean doors, windows, rims, floors, clothing, etc.
