English
INEAR
User Guide
FCC ID : 2ANZJDENR1
IC : 23304-DENR1
DE-NR INEARCE
Version 21/12/2017
CONTENTS
1 - DESCRIPTION OF THE SYSTEM 3
2 - OVERVIEW 4
3 - LIST OF SUPPLIED ACCESSORIES 5
4 - INEAR DESCRIPTION 5
5 - OPERATION INEAR 6
6 - TECHNICAL FEATURES 8
7 - TECHNICAL TROUBLESHOOTING 9
8 - WARRANTY 10
9 - REGULATORY COMPLIANCE 11
1 - DESCRIPTION OF THE SYSTEM
Data
Distance < 100 meter depending on installation.
INEAR User Guide
TX-BOX
ACCESS POINT
BELTPACK
Data
Range < 50 m
INEAR
Range < 10 m
Data
INEAR
Page 3 of 11
INEAR User Guide
2 - OVERVIEW
A wireless in-ear design, which receives the digital audio stream from the BELTPACK.
User Guide available to download from www.digitear.eu
Page 4 of 11
INEAR User Guide
3 - LIST OF SUPPLIED ACCESSORIES
Replacement ear buds x3

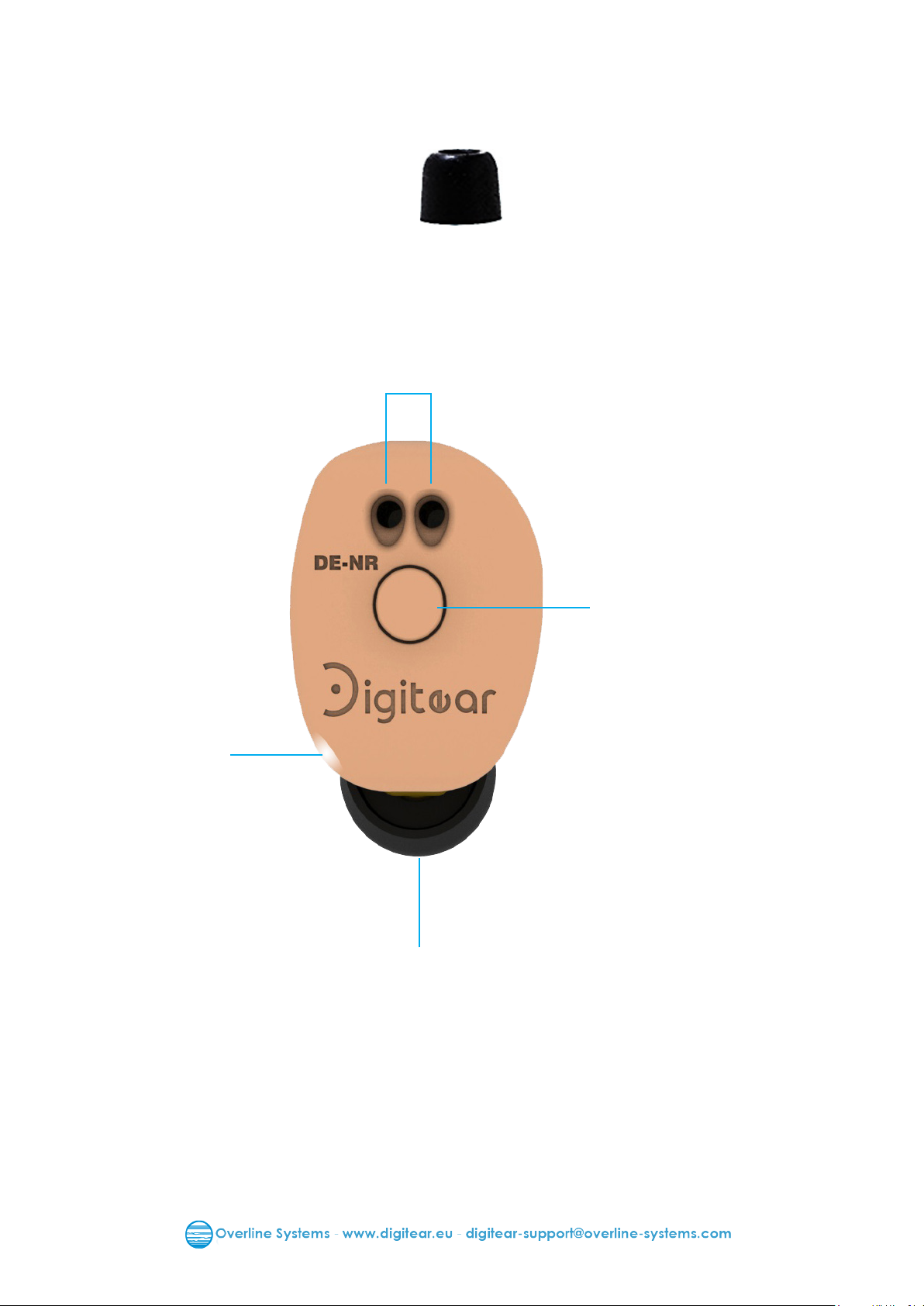

4 - INEAR DESCRIPTION
Charging connectors
LED
On/Off Button
Earbuds in silicone replaceable
Page 5 of 11
INEAR User Guide

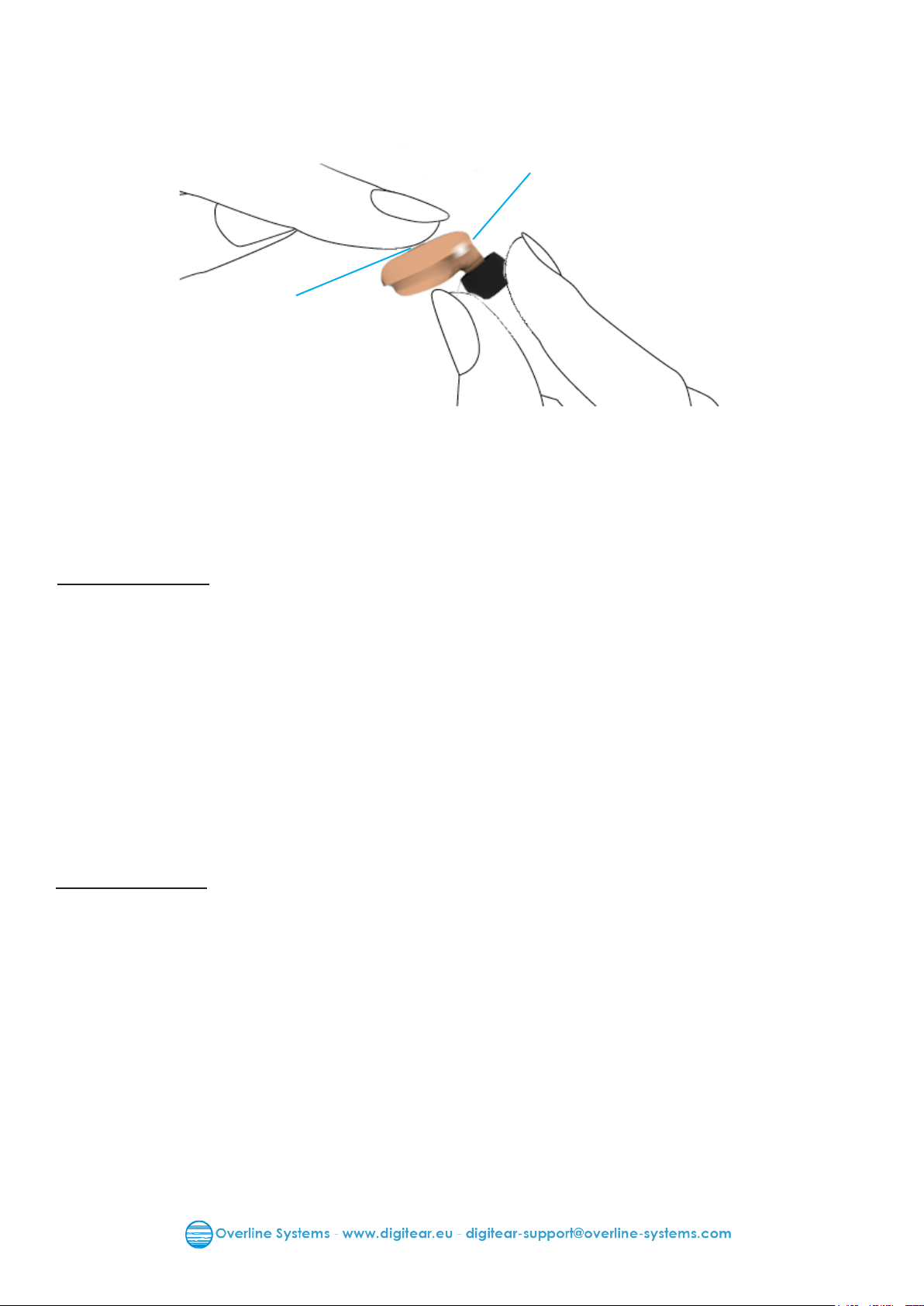

5 - OPERATION INEAR
LED
Button
The wireless INEAR has a LED which indicates delivering multiple information to the user.
“Discoverable” mode :
The INEAR is enabled to be visible for all BELTPACK. Press and hold the INEAR button for 6
seconds in order to start the discoverable mode. This mode is used to pair an INEAR with a
BELTPACK.
The LED will ash :
If the INEAR is already paired to a BELTPACK when it is switched on, it will be in
“Connectable" mode.
- Fast ashing for 120 seconds.
If the INEAR is not paired to a BELTPACK when it is switched on, it will be in "Discoverable"
mode.
Operating as Connectable :
The INEAR was recently paired, and integrated in the BELTPACK.
It will be identied and connected automatically by the BELTPACK. If it does not
automatically connect to the BELTPACK, it is because it is not paired.
The LED will ash :
- Two rapid ashes.
- Followed by a two-second pause.
- Two rapid ashes.
Page 6 of 11
INEAR User Guide
Charge operation :
When the INEAR is charging, the LED provides information about the state of charge.
Charging :
-Two ashing pulses each 2 seconds..
Charge 100% :
- The LED turns off completely.
Operation Flashing:
By activating the "Find IE" menu of the BELTPACK, the LED indicates that the INEAR is
connected.
The LED will ash :
- Quick ash
- Pause.
- Quick ash
The cycle will be repeated during 11 seconds.
Power OFF Operation:
To turn off the INEAR, press the button for at least 2.5s.
The LED will ash :
LED remains alight for 1 second and then it turns off..
Alive Mode Operation:
If the INEAR is connected and turned on, then no light signal is visible.
In order to check the INEAR status, just press the button shortly. A quick ash will indicate
its operation status.
Technical notes
- When a battery autonomy is low a beep sounds every minute in order to indicate the
low battery status of the INEAR. There is now only 15 minutes of autonomy left.
- A paired INEAR connects automatically to the BELTPACK if it is located within its range.
- The pairing procedure is explained in the BELTPACK user guide.
- In order to utilize the dual stream (see BELTPACK User Guide), a second INEAR must be
paired. The one that is already paired must be switched off. The second INEAR will then be
paired. Then the rst INEAR can be re-turned on and both INEARs can be used in the dual
stream mode.
Page 7 of 11
6 - TECHNICAL FEATURES
Audio
INEAR User Guide
Radio
Battery
Codec
Resolution
SNR
Bandwidth
Version
Class
Range of frequencies
Open eld range
Type
Operating life
APTX
16-bit / 44 kHz
92 dB
0,1 .. 14 kHz
Bluetooth 4.2
Class 1
2400 MHz - 2483 MHz
<10 meters
CP1254A3 CoinPower 60mAh
110 minutes in continuous operation./ approx 6 h in Eco Mode
Materials
Recharging
Nominal voltage (DC)
Operating conditions
Exterior materials
Weight
Size
Earbuds material
2 hours, more than 300 recharge cycles
3.7 V
5 °C to 45 °C
ABS-PC
4 g
(19.5x15x9) mm
Silicone
Page 8 of 11
INEAR User Guide
7 - TECHNICAL TROUBLESHOOTING
- Does not turn ‘ON’ despite pressing :
-> Restart a charge cycle
-> Check that the charging process is ashing
-> Contact the technical support
- The sound is too low :
-> Adjust the volume from the BELTPACK
-> Increase the level of the input signal of the TxBox
-> Contact the technical support
- The INEAR does not connect:
-> Check whether it is the right BELTPACK
-> Repeat the pairing operation (see the BELTPACK User Manual)
-> Contact the technical support
- The INEAR does not charge :
-> Clean the charging contacts of the INEAR and the Charger Box
-> Contact the technical support
Page 9 of 11
INEAR User Guide
8 - WARRANTY
Elements NOT covered by the guarantee.
This warranty covers only defects in parts and manufacturing of the product. This warranty
does not cover:
- Periodic maintenance and repair or replacement of parts as a result of normal wear and
tear.
- Transportation costs and the risks associated with the sending and retrieval of the
product by the nal customer
- Any adaptation of the product which would be necessary for the purpose of complying
with the technical or safety standards applicable in a country other than that for which
the product was originally designed and manufactured;
- Consumable elements (elements which are intended to be replaced periodically during
the life of the product, for example ear tips, batteries-beyond 12 months to date of
purchase-, connecting cables, etc.);
- Damage or defects in the product resulting from:
- Improper use or installation of the product (use or installation not in accordance with
the use to which the product is intended, installation or use not in accordance with the
Digitear instructions or the technical or safety standards in force in the country where it is
used, etc.)
- Maintenance of the product not in accordance with the Digitear instructions or
negligence in the maintenance of the product.
- Improper handling or mistreatment of the product (false maneuvers, fall, shock,
immersion, etc.) or an improper environment (poor ventilation, vibration, exposure to
moisture, excessive heat, contact with sand or any Other substance, improper power
supply, etc.)
- The use of the product with a product (hardware or software), consumable, accessory
or peripheral not compatible or defective, an adaptation of the product for the purpose
of complying with the technical or safety standards applicable in a country other than
that for which the product was originally designed and manufactured;
- A modication or repair of the product not carried out by a service provider approved
by Overline Systems
- Cases of force majeure, sinister (re, ood, etc.), lightning, etc.
- Produit: DIGITEAR (TX-BOX, Charger Box, BELTPACK, INEAR)
Warranty Period:
24 months parts and labor in workshop
Battery: 12 months (starting from the date of purchase)
ACCESS POINT: Covered by the original manufacturer’s warranty.
No sole accessory will be accepted or repaired by our repair centers.
Page 10 of 11
INEAR User Guide
9 - REGULATORY COMPLIANCE
- Any changes or modications made to this equipment not expressly approved by
OVERLINE Systems may void the authorization to operate this equipment.
Item (HVIN) : DE-NR INEAR
Type identication : DE-NR-001
PMN : Digitear
CE
This product complies to the following requirements :
Radio :
ETSI EN 300328 V2.1.1
Electromagnetic compatibility :
ETSI EN 301 489-1 V2.2.0 (DRAFT)
ESTI EN 301 489-17 V3.2.0 (DRAFT)
Safety :
IEC 62368-1: 2014 (2.Edition) and Cor. 1: 2015
EN 62368-1: 2014/AC: 2015/A11: 2017
RF exposure :
EN 50666:2013/AC:2014
EN 62209-2 (2010)
1999/519/EC
DoC available : www.digitear.eu
FCC ID : 2ANZJDENR1
IC : 23304-DENR1
This product complies to the following requirements :
47 CFR Part 15
RSS-247 Issue 2
RSS-Gen Issue 4
NOTICE: This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
- this device may not cause harmful interference, and
- this device must accept any interference received, including interference that may
cause undesired operation.
RF exposure :
IEEE 1528-2013
RSS-102 Issue 5
Radiofrequency radiation exposure Information:
- This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Radiofrequency radiation exposure Information:
- The radiated output power of the device is far below the FCC radio frequency exposure
limits. Nevertheless, the device shall be used in such a manner that the potential for
human contact during normal operation is minimized.
Page 11 of 11
