MICHELLE METAL BED
(SINGLE/KING/QUEEN/DOUBLE)
OVMICHMBBSA, OVMICHMBBDA, OVMICHMBBQA, OVMICHMBBKA,
OVMICHMBWSA, OVMICHMBWDA, OVMICHMBWQA & OVMICHMBWKA
Page 2
Page 3
Important! Read this user guide before you commence assembly.
• Follow the guidelines in this user guide to ensure correct assembly and care for this
product.
• Do not, for any reason, use a power tool to assemble this product. Use of power tools
may apply greater than necessary force on the fixtures, causing irreparable damage.
Page 4

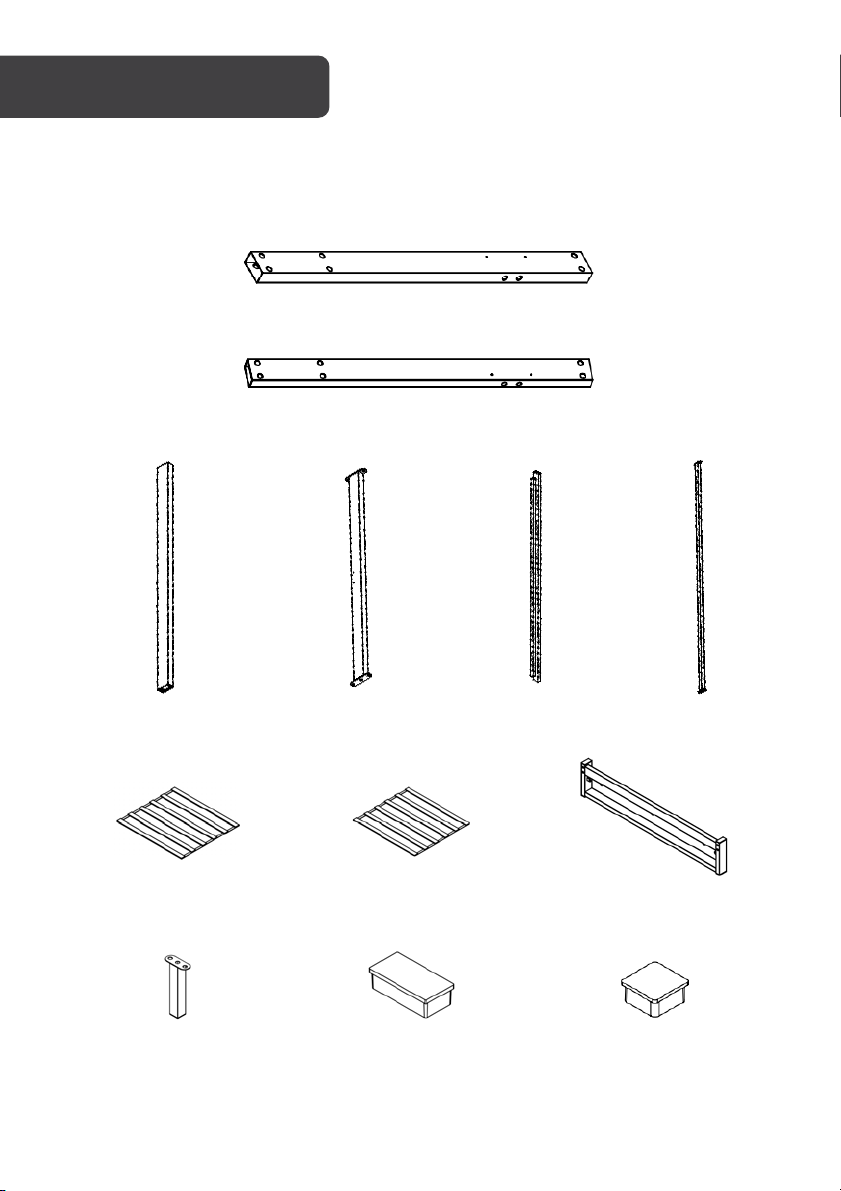

1 LHS Upright
2 RHS Upright
3 Headrest boards (x3)
4 Headrest support
5 Sides frame (x2)
6 Centre support
7a Slat assembly
7b Slat assembly
8 End board
9 Leg (x3)
10 Upright cap (x8)
11 Leg cap (x3)
Lay all components out on a clean floor and ensure all parts are included. If any pieces are
missing, check all packaging thoroughly, then contact help.Kogan.com for assistance.
Page 5

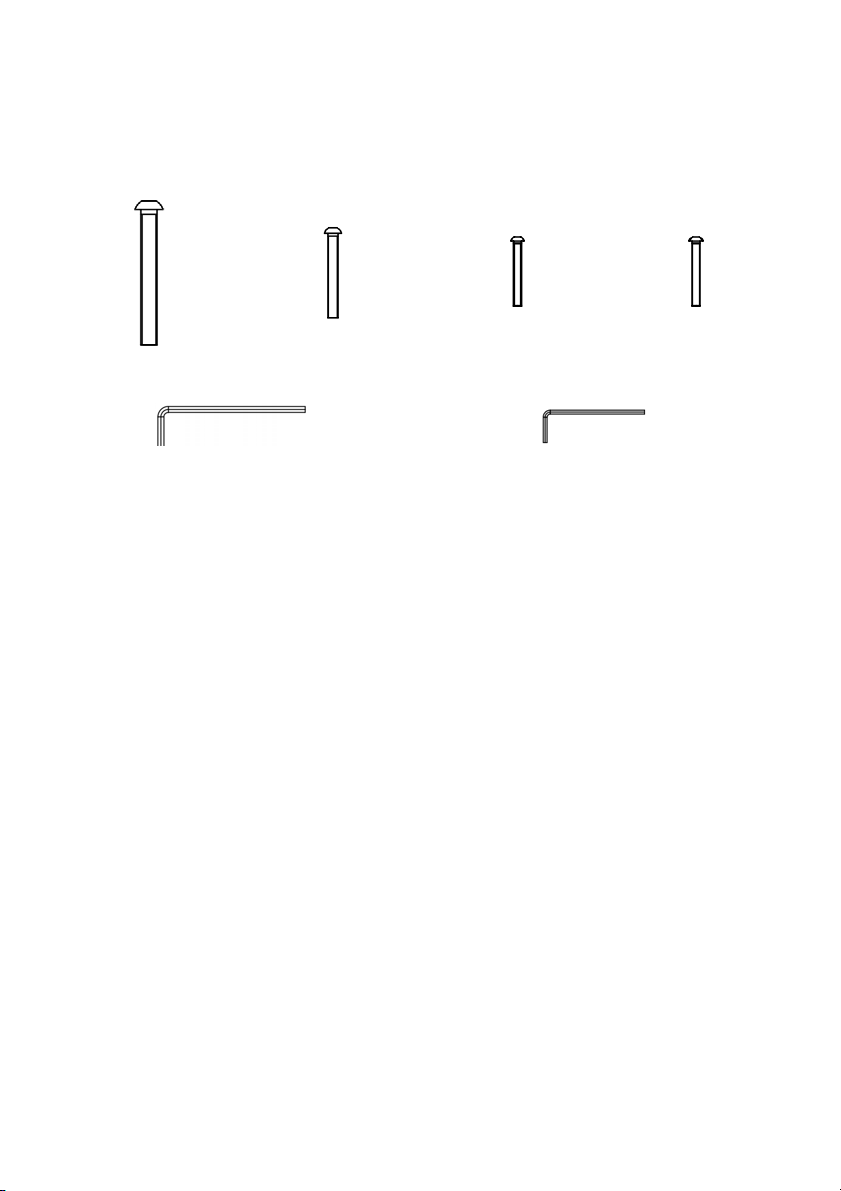

A M8x70 Screw (x8)
B M8x45 Screw (x12)
C M6x16 Screw (x10)
D M8x16 Screw (x4)
S5 M8 Allen key
S4 M6 Allen key
Hardware
Page 6
Note:
Do not use power tools when assembling this product as this may cause damage to the
components.

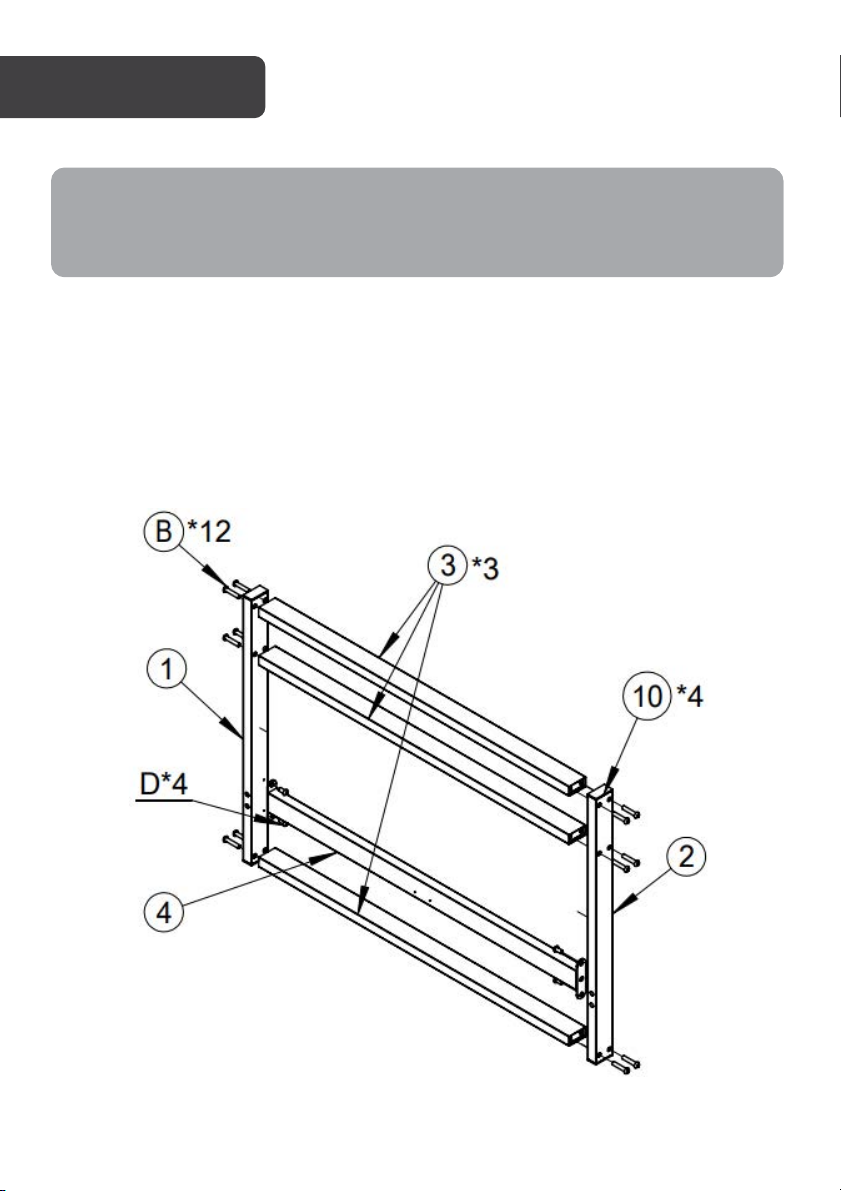

Step 1:
• Attach the three headrest boards (3) to the LHS upright (1) using six M8x45 Screws (B).
• Attach the headrest support (4) to the LHS upright (1) using two M8x16 Screws (D).
• Attach the RHS upright (2) to the head rest assembly using six M8x45 Screws (B) and
two M8x16 Screws (D).
• Place an upright cap (10) on the top and bottom of the two uprights (1)(2).
Page 7
Step 2:

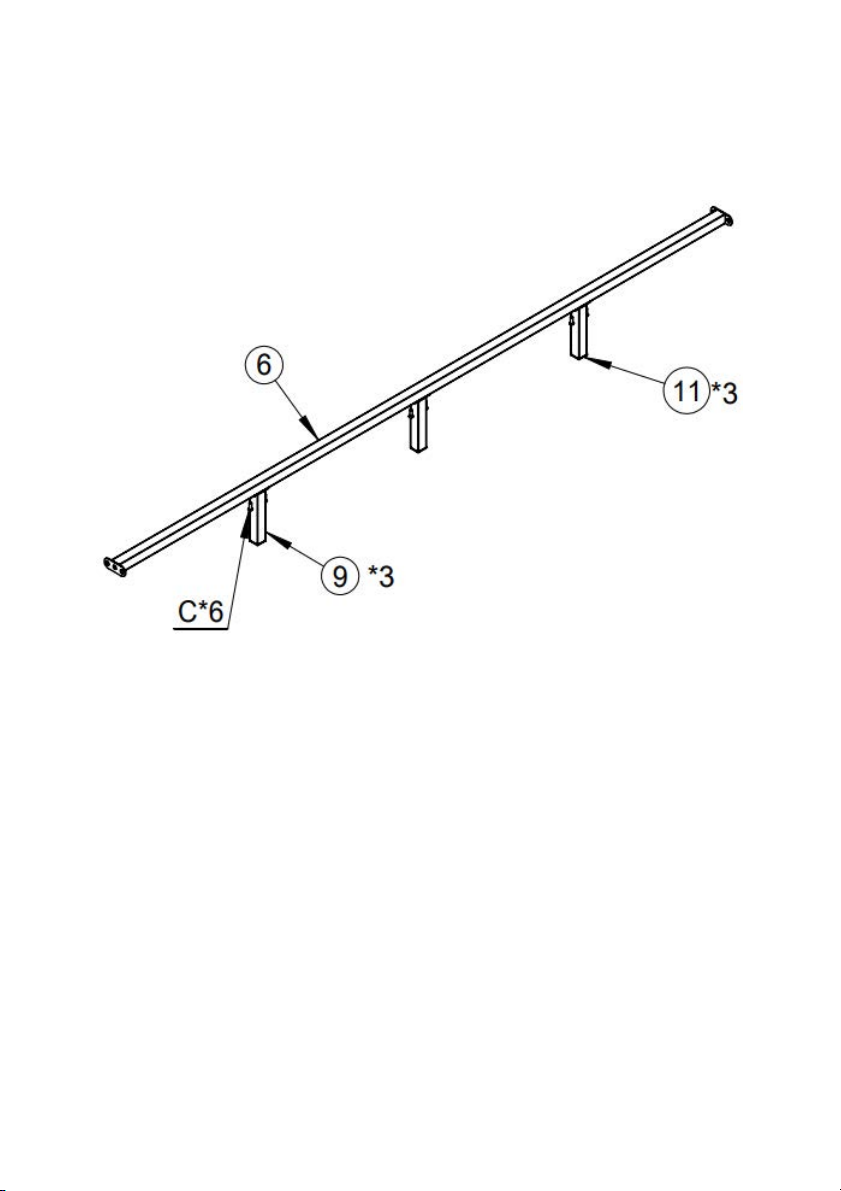

• Attach the three legs (9) to the centre support (6) using six M6x16 Screws (C).
• Place a leg cap (11) on the bottom of the three legs (9).
Page 8

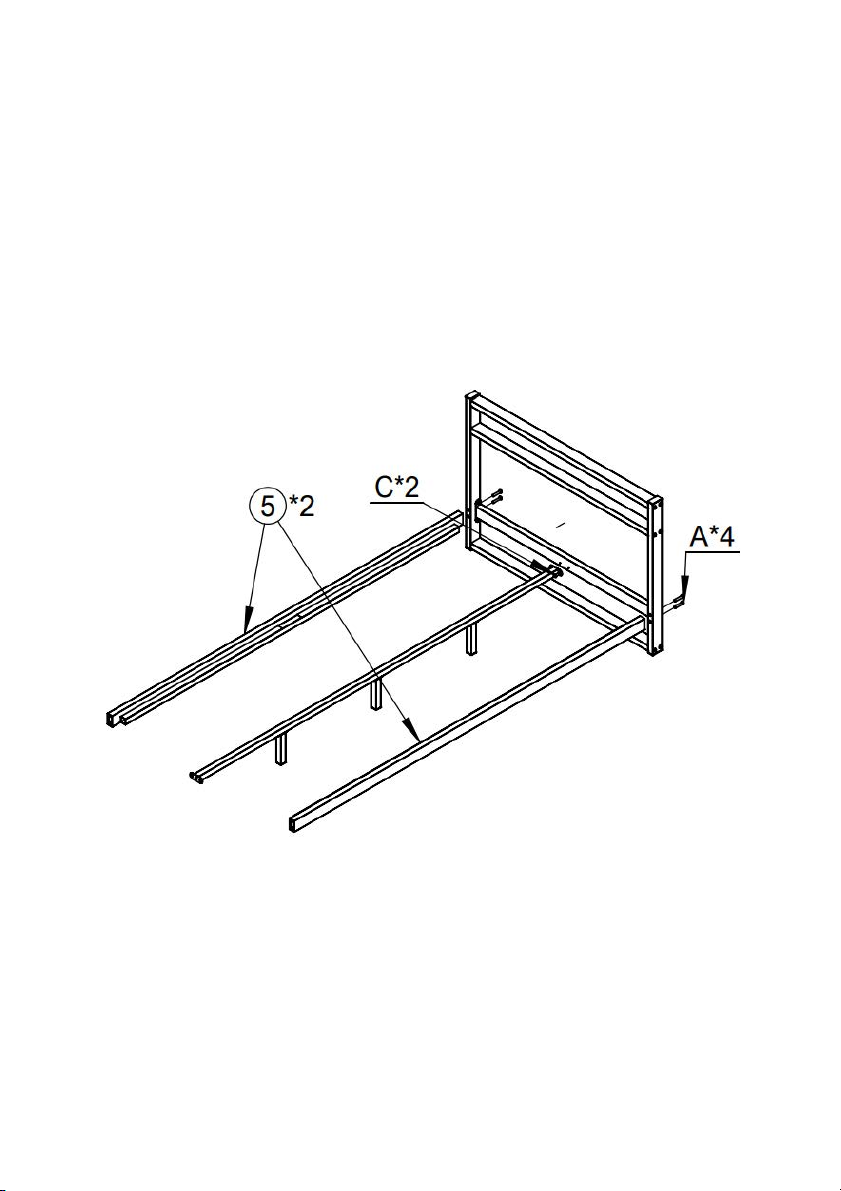

Step 3:
• Attach the centre support (6) to the middle of the headrest support (4) using two M6x16
Screws (C).
• Attach the two side frames (5) to the headrest assembly using four M8x70 Screws (A).
Note: Pay attention to the orientation of the side frames. The flat edge should be
facing outwards.
Page 9

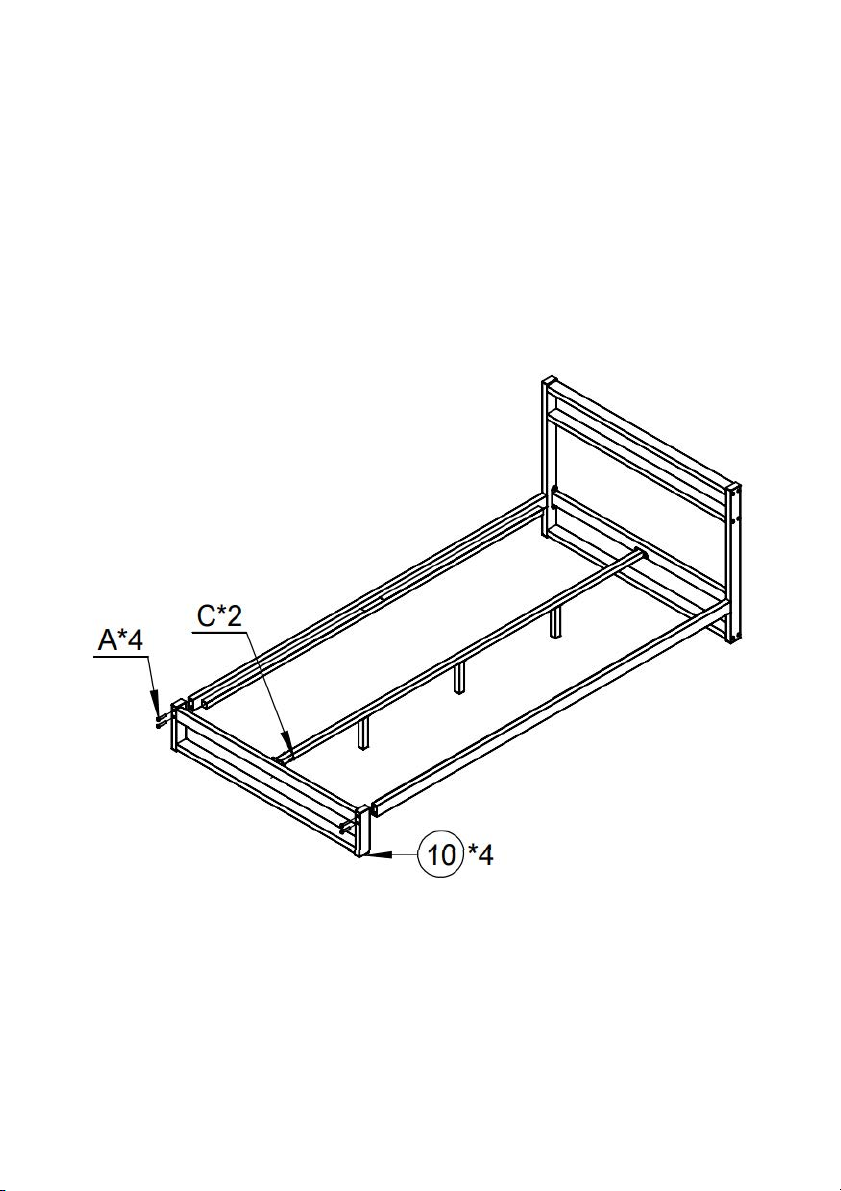

Step 4:
• Attach the end board (8) to the two side frames (5) using four M8x70 Screws (A).
• Secure the centre support (6) to the end board (8) using two M6x16 Screws (C).
• Place an upright cap (10) on the top and bottom of both the end board (8) legs.
Page 10

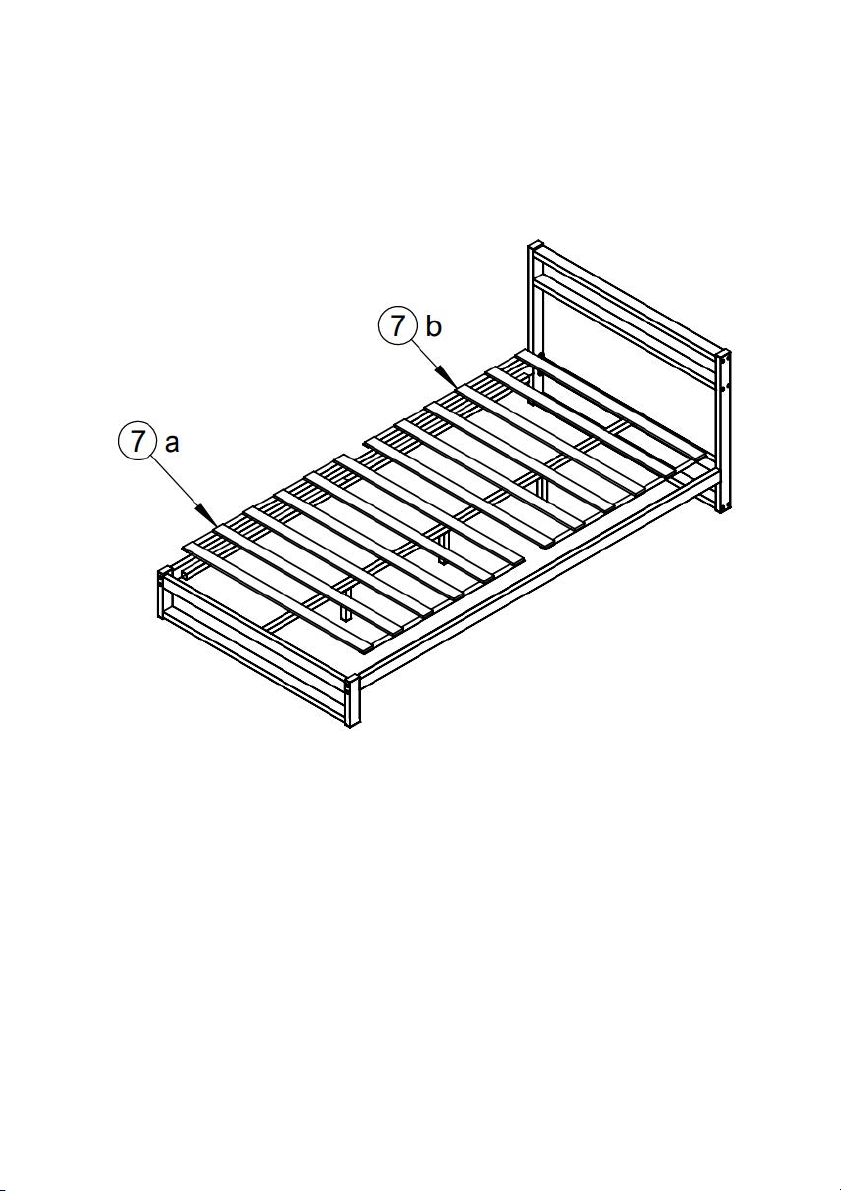

Step 6: Place both slat assemblies (7a, 7b) on top of the assembled bed frame.
Completed!
Page 11
Depending on the amount of use this product received, it may be necessary to tighten the
fixings from time to time. This is normal for any flat pack furniture.
Use a damp cloth, feather duster or normal furniture polish to clean the bed.
For any further assistance, contact help.Kogan.com.
