Oval EL4401, EL4211 Instructions Manual

Download

Page 1

Ins. No.

E-887-3N-E

BLEND OIL TEMPERATURE COMPENSATED

FLOW COMPUTER

Model : EL4401

This manual has been prepared to provide you with the information pertinent to the Blend Oil Temperature Compensated FLOW COMPUTER.

With the proper application of the information and knowledge contained in this manual, you can expect the best possible results over a long service life of this instrument. Keep this manual for ready reference.

It is suggested that the instruction manuals for the companion pulse generator (flowmeter) and receiving instrument be referred to at the same time.

Page 2

E-887-3N-E

TABLE OF CONTENTS

1. BEFORE YOU BEGIN ........................................................................................................................... 4

1.1 Confirming the Nameplate .............................................................................................................. 4

1.2 Transportation Precautions ............................................................................................................. 4

1.3 Storage Precautions ........................................................................................................................ 4

2. GENERAL ........................................................................................................................................... 5

2.1 Features ........................................................................................................................................ 5

2.2 Part Names ................................................................................................................................... 5

3. INSTALLATION ................................................................................................................................... 6

3.1 Outline Dimensions ....................................................................................................................... 6

3.2 Installation ..................................................................................................................................... 6

3.2.1 Installation Location ................................................................................................................ 6

3.2.2 Panel ....................................................................................................................................... 6

3.2.3 Installation ............................................................................................................................... 6

4. WIRING ................................................................................................................................................ 7

4.1 Field Wiring Cables ....................................................................................................................... 7

4.2 Wiring Connections ....................................................................................................................... 7

4.3 Description of Terminal Blocks for External Connections .............................................................. 7

5. GENERAL SPECIFICATIONS ............................................................................................................... 9

6. INTERNAL COMPONENTS AND FUNCTIONS ................................................................................ 10

6.1 Front Panel .................................................................................................................................. 10

6.1.1 Display .................................................................................................................................. 10

6.1.2 On-Screen Menu Items ......................................................................................................... 10

6.1.3 Error Messages ...................................................................................................................... 11

6.1.4 Front Panel Keypad .................................................................................................................11

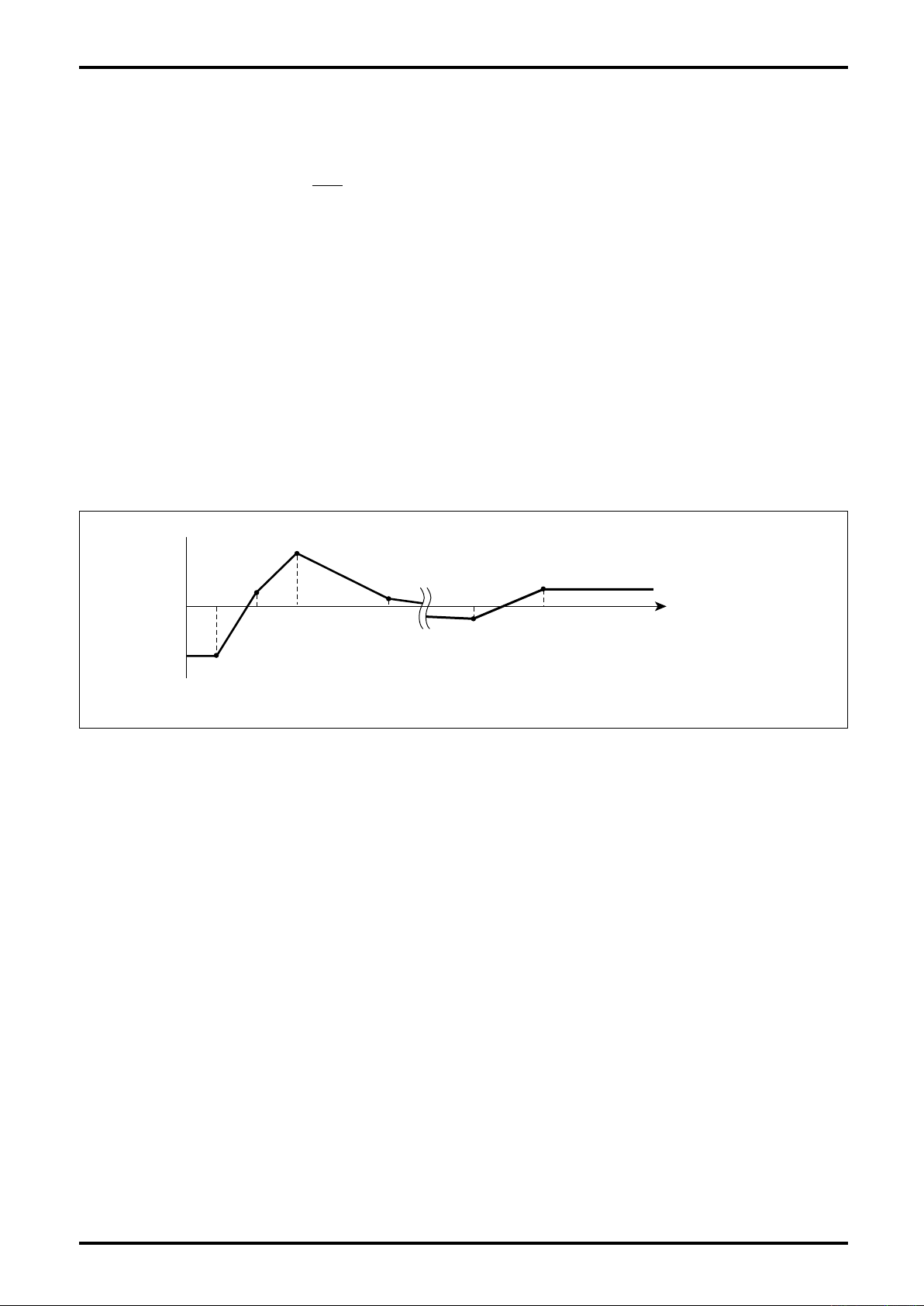

7. CALCULATION FORMULAS ............................................................................................................... 12

7.1 Implementation of Meter Error Correction（Uncorrected total flow） ............................................ 12

7.2 Implementation of Temperature Correction on Petroleums (Corrected total flow) ........................ 13

7.3 Instant Flowrate (Corrected) ......................................................................................................... 13

8. PREPARATIONAL CHECKS AND OPERATION ................................................................................. 14

8.1 Preparation Before Operation ....................................................................................................... 14

8.2 Preparational Checks .................................................................................................................... 14

8.3 Operation ...................................................................................................................................... 14

9. TROUBLESHOOTING ........................................................................................................................ 15

10. ERROR MESSAGES .......................................................................................................................... 16

11. BEHAVIOR IN ERRATIC CONDITIONS .............................................................................................. 16

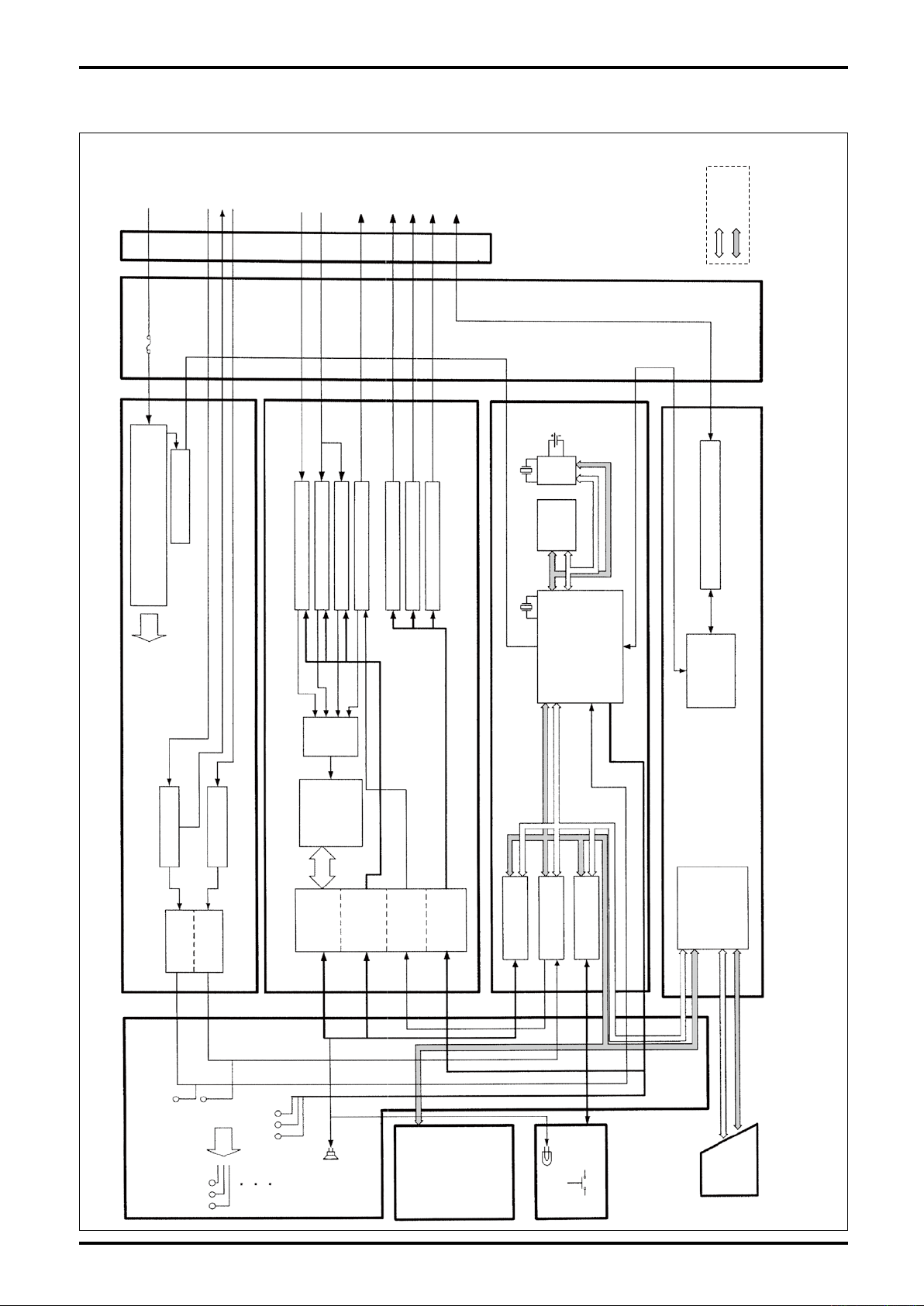

12. OVERALL BLOCK DIAGRAM ............................................................................................................. 17

13. PRODUCT CODE EXPLANATION ..................................................................................................... 18

CONVENTIONS

Shown in this manual are the signal words NOTE, CAUTION and WARNING, as described in the examples below:

NOTE: Notes are separated from the general text to bring the user's attention to

important information.

CAUTION: Caution statements signal the user about hazards or unsafe practices

which could result in minor personal injury or product or property damage.

WARNING: Warning statements signal the user about hazards or unsafe practices

which could result in severe personal injury or death.

Page 3

E-887-3N-E

COMPANION VOLUME

KEY OPERATION MANUAL Ins. No. E-880TM-E

CONTENTS

1. KEY ARRANGEMENT ........................................................................................................... 10

2. DISPLAY SCREEN ................................................................................................................ 11

3. INITIAL CHECK ..................................................................................................................... 14

4. MODE SELECTION .............................................................................................................. 18

5. RUN MODE SCREEN ...........................................................................................................23

6. SET MODE ............................................................................................................................ 36

7. SYS MODE .........................................................................................................................142

8. EL4401 ................................................................................................................................ 170

9. EL4501 ................................................................................................................................ 175

10. DIP SWITCH CONFIGURATION ........................................................................................182

(※: Model with communication capabilities)

COMMUNICATION MANUAL (※) Ins. No. E-880CM-E

CONTENTS

1. COMMUNICATION CAPABILITY OVERVIEW ........................................................................5

2. NETWORK CONFIGURATION ............................................................................................... 5

3. MODE SELECTION ................................................................................................................ 6

4. LOCAL / REMOTE SELECTION .............................................................................................8

5. SETUP ITEMS FOR COMMUNICATION .............................................................................. 10

6. COMMUNICATION PROCEDURE........................................................................................ 11

7. COMMUNICATION FORMAT ................................................................................................12

8. BCC / SUM CHECK .............................................................................................................. 45

9. CR / LF .................................................................................................................................. 46

10. CODES ASSIGNED TO UNITS ............................................................................................. 48

11. ASCII CODE .......................................................................................................................... 49

Page 4

E-887-3N-E

1. BEFORE YOU BEGIN

Every OVAL product is thoroughly tested and inspected before shipment from our factory. When received, its appearance should be inspected for possible damage by rough handling during transit. First of all, thoroughly read the handling precautions described in this section. For topics other than those covered in this section, refer to the respective sections of this manual.

If at any time in the future you seek our assistance, contact the nearest sales office in your area.

1.1 Confirming the Nameplate

The instrument is adjusted to individual specifications before shipment from our factory. Model number appears on the nameplate attached to the top of the housing. Make sure to see that the instrument you received conforms to the General Specifications and the Product Code Explanation.

◆ When you inquire, supply complete informa-

tion as to the product name, model number, product number, ratings, and other pertinent information.

1.2 Transportation Precautions

※

Nameplate (model number)

※ EL4001 is the

generic designation of the EL4001 series computers.

Fig. 1.1 Nameplate Location

(1) In order to safeguard against damage during transit, transport your instrument to the installation

location in the original package used for shipment from the factory if possible.

(2) Use care to avoid impact shocks to the instrument during transit.

1.3 Storage Precautions

If the instrument upon receipt is to be stored for extended periods of time before installation, unexpected problems could arise. If such is the case, the following considerations should be taken:

(1) The instrument can best be stored in the original package used for transit from the factory. (2) The place of storage should meet the following requirements:

☆ Free from rain and water ☆ Free from vibration and impact shocks ☆ With minimal temperature and humidity variation (around 25°C and 65% R.H.)

Page 5

E-887-3N-E

MODEL

EL4001

PLS OUT3 TEMP IN TEMP IN FLOW IN

＋−

B bA

＋−

＋−＋− ＋−

＋−

SIG SUP

SUP

ANA OUTGND POWER

（

−

）

（

＋

）

PRESS INPLS OUT1

PLS OUT2

1/1

OUT

TB2TB

2. GENERAL

Using the most advanced electronic tehcnologies, this digital instrument has been developed specifically for crude oil and heavy oil blend ratio measurement applications where accuracy is the prime requirement. In response to the flowrate, temperature, and blend ratio information arriving from the OVAL flowmeter, it converts the flowrate to the equivalent volume flowrate under standard conitions and totalizes the flow. An analog output and instant flowrate (corrected for meter error and temperature) output are additional provisions.

2.1 Features

(1) Changing the meter factor, ranges of temperature and blend proportions, liquid kind, density, or other

parameters, of the companion flowmeter is simple by keystrokes on the front-panel keypad.

(2) Built around a microprocessor, the instrument carries out calculations entirely in digital signal

processing circuits to achieve a high degree of accuracy and reliability.

(3) Variables, such as temperature and pressure, can be reviewed on command with the front panel

keypad, whether or not calculation is in progress.

(4) A nonvolatile memory (E2PROM) retains all parameters and variables. Variables are resettable

following a power cycle or reset if so configured.

2.2 Part Names and Functions

Function Keys

Display

Shift Keys

Seal Screw

IC Card

Terminal Blocks

Fig. 2.1 Part Names

Page 6

E-887-3N-E

912596

20 232.4

144

136

Min.120

Min.220

±0.8

138 0

600

1800

450

2200

Optimum

Range

AcceptableRange

Computer

3. INSTALLATION

3.1 Outline Dimensions

All dimensions in millimeters

Hold-down Fitting

Fig. 3.1 Outline Dimensions

3.2 Installation

3.2.1 Installation Location

Select an installation site where:

(1) Mechanical vibration, shock and corrosive gases are

negligible.

(2) Air is dry and temperature at room temperature and

stable.

NOTE: Although the manufacturer guarantees stated

performance at ambient temperatures up to ＋50°C, it is recommended that the instrument be placed in service at room temperature.

(3) Provide a sufficient working space behind the instru-

ment - at least 50 centimeters from the back panel of the instrument to facilitate wiring and servicing.

3.2.2 Panel

(1) Use a rigid steel sheet with a minimum thickness of

1.6 millimeters. 3.2mm thick is recommended.

(2) If it is required to install instruments alongside each

other, dimensions in Fig. 3.2 are suggested.

(3) Recommended mounting height is given in Fig. 3.3.

Fig. 3.2 Panel Cut

3.2.3 Installation

(1) Front mount the instrument through the cutout in the

panel.

(2) Fit the furnished enclosure hold-down fittings into the

top and bottom slots in the enclosure and, confirming that the instrument is positioned horizontal, secure the instrument to the panel with hold-down fittings (Fig. 3.1).

Fig. 3.3 Instrument Mounting Height

Page 7

E-887-3N-E

TB 1

TB 2

PLS OUT3 TEMP IN TEMP IN FLOW IN

＋−

B bA

＋−

＋− −＋−

＋−＋− ＋−

＋−

SIG SUP

0V SIG SUP

SUP

ANA OUT

GND POWER

（

−

）

（

＋

）

PRESS INPLS OUT1

COMM1

COMM2

TEMP

PLS OUT2

1/1

OUT

DENSITY IN

4. WIRING

(See the "Wiring Guidelines" in the instruction manual of the companion pulse generator.)

4.1 Field Wiring Cables

(1) Use electrostatically shielded, polyethylene insulated, vinyl sheathed control cables (CEVS, 1.25 to 2

mm, 2-conductor or 3-conductor), or equivalent, for input signal cables from the flowmeter. For output signal cables, use insulated vinyl sheathed cables (CVV, CVS ... JIS C 3401).

(2) Ground the end of shield wire to "G" terminal of the instrument. At the sensor end, leave the end of

shield wire unconnected.

4.2 Wiring Connections

(1) Field wiring through a conduit is recommended.

NOTE: In routing field wiring, use a separate conduit for power cable from other signal cables to

eliminate the possibility of stray current pickup.

(2) Separate field wiring from other power lines and power circuits to minimize the possibility of inductive

interference.

(3) Using crimp-type lugs for wiring, ensure good electrical connections.

Terminals are found on the back of the instrument (Fig. 4.1).

4.3 Description of Terminal Blocks for External Connections

Terminal blocks for external connections (TB1, TB2 and TB3) are found on the back of the instrument as shown in Fig. 4.1. Terminal identification appears in Table 4.1 while terminal connections appear in Table 4.2.

NOTE: TB1 and TB2 terminal numbers are

indicated on the side of terminal blocks.

CAUTION Make wiring connections upon confirmation of the validity of flowmeter (pulse generator) to receiving instrument combination by their product code number, instrument number, etc.

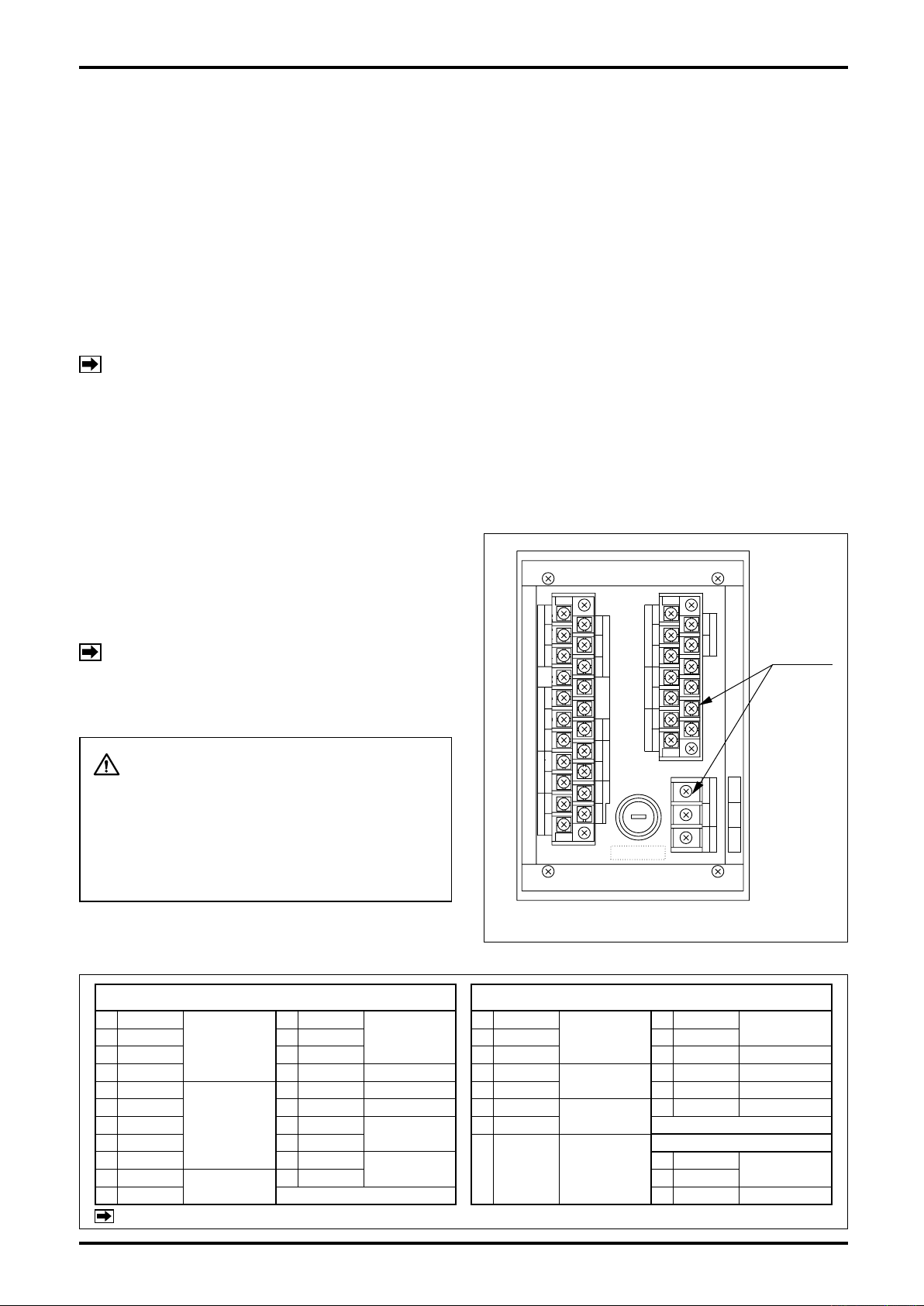

Fig. 4.1 Terminal Blocks for Ext. Connections

Table 4.1 Terminal Identification and Functions

Terminal Screws

(M3.5)

1 SUP. 2 SIG. 13 2 ＋ 9 － 3 0V 14 3 － 10 4 OUT 1/1 15 4 ＋ 5 b 6 B 17 6 ＋ 7 A 18 ＋ 8 ＋ 19 － TB3

9 － 20 ＋ 10 ＋ 11 － 3 GND

NOTE : ※ Model provided with communication interface.

Flow in

Temp. in

Alarm out

TB1 TB2

12 1 SUP.

8 ＋

Blend in

16 5 － 12

Comm 1

7 －

Analog out

Pulse out 1

※

Comm 2

21 － 2 N（－）

※

1 H（＋）

Pulse out 2

Power

Page 8

E-887-3N-E

Table 4.2 Terminal Connections

TB1 TB2

1 2 SIG. 2 3 0V 3 4 OUT 1/1 4 5 6 B 6 7 A 7 8 ＋ 8 9 － 9

Pulse out 3

11 12 13 14

Label Description

SUP. 1

Flow in

（＋） （−）（＋）

b 5 －

Temp. in

polarity

Alarm out

Static relay

3-wire generator 2-wire generator

Output sync with input signal (O.C.)

Pt100Ω 3-wire

4 to 20mADC/1 to 5VDC

 Screws on the terminal block: M3.5

Analog out

Pulse out 1

Pulse out 2

1 2 N（－） 3

Label Description

＋

polarity

Label Description

Power

H（＋）

Ground

TB3

4 to 20mADC/1 to 5VDC

Corrected instant flowrate 4 to 20mADC/1 to 5VDC

Uncorrected total flow Static relay

Corrected total flow Static relay

85 to 264VAC or 20 to 30VDC

Page 9

5. GENERAL SPECIFICATIONS

Table 5.1

Item Description

Signal name

8V 2-wire current pulse Contact closure pulse PG20 2-wire, 12VDC 3-wire

Flow input

Input signals

Temperature input

Blend input 4 to 20mADC or 1 to 5VDC

Pulse output

Output signals

Display type

Menu items

Correction range

Computing accuracy

Clock IC battery backup Lithium battery (Battery life: 10 years approx.) Communication (when com.

interface is provided.)

Transmission cable

Power source 85 to 264VAC, 50/60Hz or 20 to 30VDC Power consumption 20W max. Ambient temperature －10 to ＋50°C Mounting Panel mount Finish Munsell N1.5 Weight 2.5 kilograms, approx.

Alarm output Static relay Capacity: 230VAC/340VDC 0.2A

Analog output

Uncorrected total flow Same as output pulse unit (l, etc.) Corrected total flow Same as output pulse unit (l, etc.) Corrected instant flowrate Temperature To the 2nd decimal place (when ℃ is selected.) Blend ratio To the 2nd decimal place Overall meter error To the 4th decimal place Vol. conversion factor To the 4th decimal place Error alarm Number of errors + error messages Density Crude oil: 0.6105 to 1.0750 Fuel oil: 0.6530 to 1.0750 Lube oil: 0.8000 to 1.1640 Temperature －10 to +100℃ NOTE: Except the range not covered in JIS K 2249-1987. Ref. temperature 15℃ Corrected total flow ±0.2% of R.D.

Temperature

Voltage pulse 24VDC 2-wire Current pulse (4/20mA) 12VDC 2-wire Current pulse

Open collector pulse

Resist. thermometer

Analog 4 to 20mADC or 1 to 5VDC

Uncorrected total flow Corrected total flow Output sync with flow

input signal

Corrected instant flowrate

Display: ST display (128×128 dots), backlighted (※1), (※2) Information displayed: Data, units, error message simultaneously

L/h, etc.

Pt 100Ω at 0℃ ±0.3% of span 4 to 20mADC or 1 to 5VDC ±0.1% of span

Interface: RS485 Multipoint (Up to 16 units can be connected.) Dedicated protocol Baud rate: 4800 bps standard 9600 bps max. Use 3-conductor shielded cable to the resistance thermometer bulb. Loop resist. 5Ω max. Example: 300 meters max. with 3-conductor 1.25mm2 cable; 500 meters with 2.0mm2 cable

Static relay Capacity: 230VAC/340VDC 0.2A Pulse width: 1ms/50ms

Open collector pulse

4 to 20mADC (Max. load resistance 500Ω) or 1 to 5VDC (Output impedance 250Ω) Conversion accuracy: ±0.1% of F.S.

Pulse generator

OPTO 01, 02

PG30,

NPG60A (F)

PA14, 15, 25,

NPG60A (E)

PG30S

FlowPet-5G, NPG60A (E3)

Pt 100Ω at 0℃, 3-wire system, Rated current 2mA

E-887-3N-E

Power to generator

8.5VDC 2kHz

13.5VDC

24.0VDC

13.5VDC

Display capacity: 8 digits

Allowable current 40mA app. Shortcircuit protection circuit provided

Speed of response

50Hz

2kHz

NOTES (※1): ST display stands for Super Twisted Nematic display.

(※2): Backlight life (luminance declined to one half its original luminance) : 2500 hours, approx.

Page 10

E-887-3N-E

6. INTERNAL COMPONENTS AND FUNCTIONS

6.1 Front Panel

6.1.1 Display

The display is a 128 × 128-dot multiple function display capable of showing the data, units of measure, error messages, and other information at the same time. (The display is backlighted.)

6.1.2 On-Screen Menu Items

The units of measurement vary with configuration. Their selection is made in the SET mode. Available menu items are:

(1) Uncorrected total flow (TOTAL COUNT)

Incoming flow pulses are calibrated for meter error, integrated before correction for temperature, and the obtained totalized flow is indicated. Resolution, or the minimum unit of measurement, which varies with customer specifications, is set up with front-panel keys. This unit automatically becomes identical with the output pulse unit. While the total flow is retained irrespective of power cycling, it is resettable to zero following a power cycle if so configured in the SYS mode.

(2) Corrected total flow (TOTAL COUNT(C))

The reading corrected for meter error and temperature is integrated and indicated. Other specifications remain the same as (1).

(3) Corrected instant flowrate (FLOW RATE(C))

Instant flowrate corrected for meter error and temperature (hourly) is indicated.

(4) Temperature (TEMPERATURE)

The temperature value currently fed to the instrument is indicated to the first decimal place. If a problem arises in the course of temperature conversion, such as out-of-scale, a default fallback value is indicated.

(5) Blend ratio (BLEND PERCENT)

The blend ratio currently fed to the instrument is indicated to the first decimal place. If a problem arises in the course of ratio conversion, such as out-of-scale, a default fallback value is indicated.

(6) Overall error (OVERALL ERROR)

Correction factor for implementing meter error correction is indicated. [OVERALL ERROR] = E1×E2 where E1 : Meter error correction factor for temperature correction E2 : Flowmeter body's volumetric expansion (3α) related meter error correction factor

(7) Volumetric conversion factor (VCF)

Volumetric conversion factor which is dependent on input temperature and set density is indicated.

NOTE: For more information about setup items and options, see "KEY OPERATION MANUAL".

Page 11

E-887-3N-E

MO DEL

EL4001

RUN

6.1.3 Error Messages

When an erratic condition arises, an error message automatically appears on the display. (The information represented by error messages are listed on page 16.) If two or more concurrent errors are involved, individual messages will be scrolled at intervals of approximately 3 seconds. When an error condition disappears, an error message automatically goes out and the normal display is resumed.

NOTE: An error logging function can store a maximum of 20 events each of which consists of year,

month, day, hour and minutes of error occurrence and recovery. (Complete details are covered in the Key Operation Manual.)

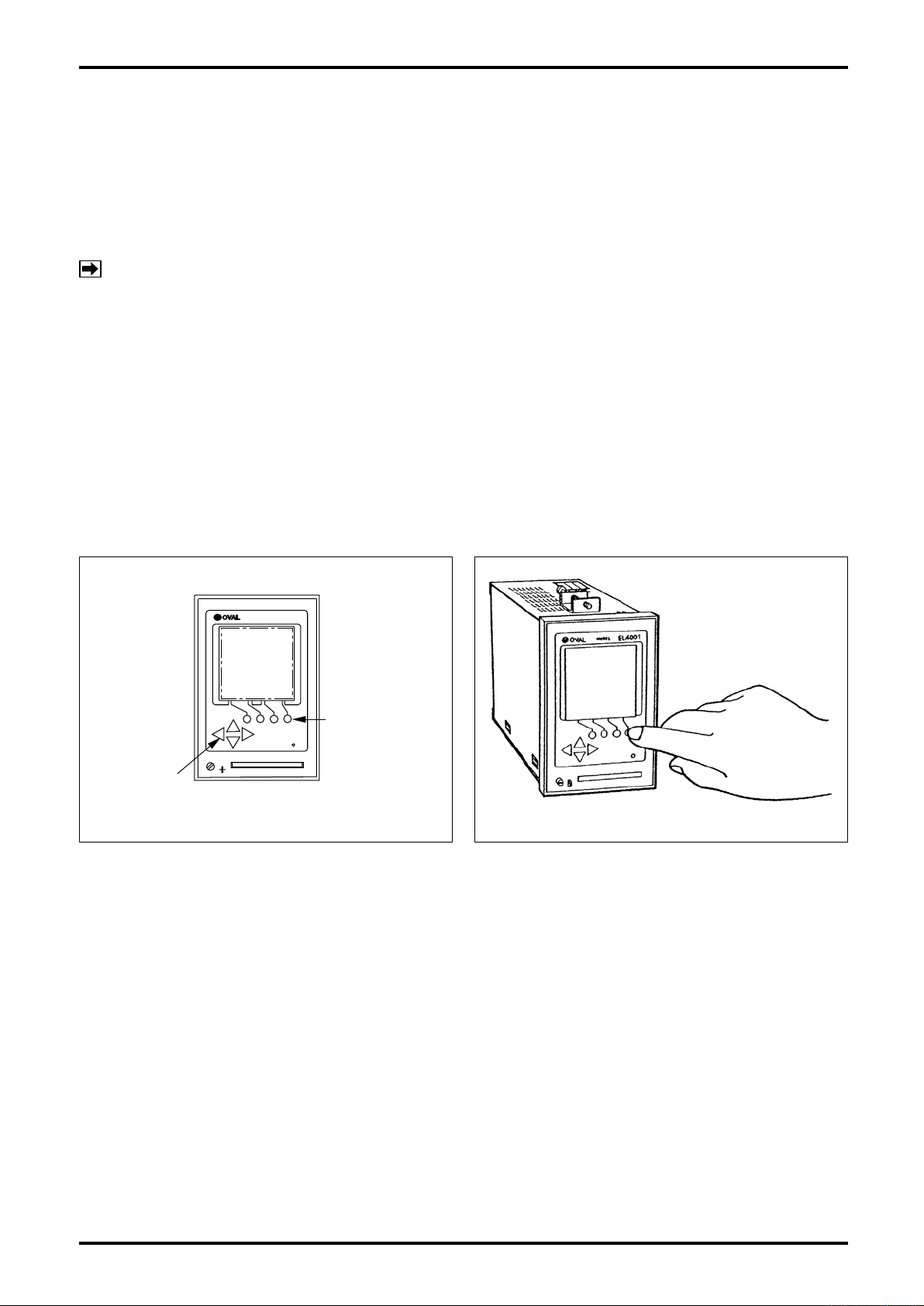

6.1.4 Front Panel Keypad

The eight front panel key switches consist of two kinds of keys - functions keys and shift keys.

・Function keys: Four round keys

Ma inly used fo r function selection, such as activating the input conditions selec ted and reconfiguration.

・Shift keys: Four triangular keys

Used for moving the cursor, moving between menu items, or changing numerical values.

Shift Keys

Function Keys

Fig. 6.1 Front Panel Keys

Fig. 6.2 Touch Key Operation

Page 12

E-887-3N-E

＋



Metererror

F1thruF9Frequency(Hz) E1thruE9Metererrorcorrectionvalue(%)

F2F

Flowrate (frequency)

｝

Programmablewithkeys

7. CALCULATION FORMULAS

7.1 Implementation of Meter Error Correction (Total flow before correction)

Q1 = a×Ip× 〔1 + 　　〕×εt

where Q1 : Total ﬂow corrected for meter error［l］ a : Meter factor ［l/P］ Ip : Number of input pulses E : Meter error correction value ［%］

εt : Meter,s correction factor relative to temperature variation εt : 1 + 3α(ｔ－20) ｔ: Operating temperature［℃］

－

3α: 4.8×10

(stainless steel)

The line graph in Fig. 7.1 below shows how meter error curve linearization is achieved. E is approximately determined by the relationships between input pulse frequency and instrumental error correction value set at multipoint error points which are programmable along the ﬂowmeter's instrumental error curve with front-panel keys, and the frequency pulse information (ﬂowrate) currently arriving from the ﬂowmeter.

100

Fig. 7.1

Page 13

E-887-3N-E

7.2

Implementation of Temperature Correction on Petroleums (Corrected total ﬂow)

Correction factor in the implementation of temperature error correction on petroleum products is given by the formula 　　　　　V.C.F = exp [－αTΔt (1.0 + 0.8αTΔt) αT = K0 / (f15)2 + (K1 / f15) αT = A + B / (f15)2 where V15 : Capacity [m3] at 15℃ Vt : Capacity [m3] at some arbitrary temperature (t℃ ) ft : Density (t℃ ) [kg/m3] f15 : Density (15℃ ) [kg/m3] αT : Thermal expansion coefcient at 15℃ －1 Δt : Temperature difference (Δt = t －15) [℃ ] K0, K1, A and B : Constants (Shown in the table below.)

Constants

A B

CRUDE

FUEL

LUBE

Sample kind

Crude oil, natural gasoline, condensate

Mobilgas 0.6530 to 0.7700 346.4228 0.4338 ─ ─ Fuel oil 0.7705 to 0.7875 ─ ─ －0.00336312 2680.3206 Kerosene,

industrial gasoline, aviation turbine fuel oil

Light oil, heavy oil 0.8390 to 1.0750 186.9696 0.4862

Petroleum-derived lubricants

Density (15℃ )

range（g/cm3）

0.6105 to 1.0750 613.9723 0.0 ─ ─

0.7880 to 0.8385 594.5418 0.0 ─ ─

0.8000 to 1.1640 0.0 0.6278 ─ ─

Volumetric conversion factor which is dependent on blend ratio is given by the formula.

V.C.F = V.C.F1× + V.C.F2×

100

100－X

100 where V.C.F1 : Volumetric conversion factor of set liquid 1 V.C.F2 : Volumetric conversion factor of set liquid 2 Χ: Blend ratio (%)

Total ﬂow corrected for temperature is given by the formula below: 　　　Q2＝Q1×V.C.F where Q2 : Total ﬂow corrected for temperature [l]

7.3 Instant Flowrate (Corrected)

Qmc ＝ Q2 ×〔1＋

where Qmc : Corrected instant ﬂowrate [l/h]

100

〕×3600

Page 14

E-887-3N-E

8. PREPARATIONAL CHECKS AND OPERATION

8.1 Preparation Before Operation

(1) Ensure that the instrument and related equipment are correctly installed and wired with no place left

unfinished.

WARNING: Make sure to see that the power terminals are connected to a power

source of the rated voltage. Applying a power source of incorrect voltage could ruin your instrument.

(2) Supply power to this instrument and make certain to see that the front panel display is illuminated.

The display will remain unilluminated for one second after power on, which however is by no means any indication of fault.

8.2 Preparational Checks

CAUTION: Allow a warmup period for 60 minutes or so after you turn on the power.

Verify that the instrument does not operate with no fluid flow.

How to Check

(1) Couple sources of simulated temperature and pressure signals. (2) Using the shift keys, select menu items and verify the information displayed.

See the KEY OPERATION MANUAL.

(3) Inject a simulated input pulse train or density signal representing the type of the companion pulse

generator.

(4) Select display menu items of the total mass flow and total calorific flow, and make sure that incoming

pulses are being accumulated. Also, verify that pulse output and analog output are properly generated.

(5) Remove the simulated pulse input and compare the obtained readings on the display with

corresponding theoretical values. Remember that this instrument is not equipped with a counter to accumulate incoming pulses. Hence, an external counter is required.

8.3 Operation

CAUTION: Allow a warmup period for 60 minutes or so after you turn on the power.

(1) Select your power reset or non-reset (accumulated total) option.

See the KEY OPERATION MANUAL.

(2) Turn on power. While the initial check screen remains displayed, indicating that the process of

verifying parameters and variables is in progress after you turned on the power, your instrument will not accept any pulse input.

(3) Place your instrument in service operation by allowing the fluid to be metered.

Page 15

E-887-3N-E

9. TROUBLESHOOTING

Reminder: If internal trouble is suspected, seek our service at the nearest sales office or

customer service representative in your area.

Table 9.1

Symptom Check Possible Causes

Display is dead. 1. Inspect fuse.

2. Make sure of power source voltage.

Faulty temperature indication. 　Erratic reading Error messages 　　TEMP 1 (PT) OVER or TEMP 1 (PT) UNDER or TEMP 1 (ANA) OVER or TEMP 1 (ANA) UNDER

Faulty blend ratio. Erratic reading Error messages BLEND OVER or BLEND UNDER

Faulty indication of meter error correction factor and/or temperature correction factor.

Fails to count pulses;

While fluid is allowed to flow.

Error messages A/D CONVERT ERROR or DENSITY CONVERT ERROR or 4mA SCALER 1 UNDER (Same also with SCALER 2.)

Error message SCALER 1 OVER (Same also with SCALERS 2 and 3.)

Display fails to respond to card insertion (it remains unchanged).

fails to produce a pulse output.

Faulty total counter reading.

1. Input signal line correctly wired?

Input signal specifications matched?

3. System configured correctly?

4. Temperature range set correctly?

1. Input signal line correctly wired?

2. Input signal specifications matched?

3. System configured correctly?

4. Blend range set correctly?

1. Temperature reading correct? 1. A fault in internal assembly.

1. Input signal line correctly wired?

2. Pulse signal coming in?

3. Pulse generator specifications matched?

1. Temperature reading correct?

2. Meter error and Temperature correction factor indications correct?

1. Parameters reconfigured correctly? 1. A fault in internal assembly.

1. Fuse is blown.

2. Line voltage is improper.

3. A fault in internal assembly.

1. Input wiring is incorrect.

2. Thermometer resistance bulb is open or shorted.

3. Temperature converter is faulty.

4. A fault in internal assembly.

1. Input wiring is incorrect.

2. Blender is faulty.

3. A fault in internal assembly.

1. Incorrect input wiring.

2. Pulse generator itself is faulty.

3. A fault in internal assembly.

1. Pulse generator itself is faulty.

2. A fault in internal assembly.

1. A fault in internal assembly.

1. Data in the card is lost.

2. Battery in the card has run out.

3. Card is defective.

CAUTION: Once any printed circuit board(s) of the internal assembly has been

removed for servicing, do not fail to reestablish all parameters in the SET mode.

Page 16

E-887-3N-E

10. ERROR MESSAGES

Table 10.1 List of Error Messages

No. Error Message Description

1 ADJUST DATA ERROR Adjusted allowable range check error

12 A/D CONVERT ERROR A/D converter circuit error

13 DENSITY CONVERT ERROR Density converter circuit error

14 TEMP 1. (PT) OVER Temperature Pt input 1 overflow

15 TENP 1. (PT) UNDER Temperature Pt input 1 underflow

16 TEMP 2. (PT) OVER Temperature Pt input 2 overflow

17 TEMP 2. (PT) UNDER Temperature Pt input 2 underflow

18 TEMP 1. (ANA) OVER Analog temperature input 1 overflow

19 TEMP 1. (ANA) UNDER Analog temperature input 1 underflow

20 TEMP 2. (ANA) OVER Analog temperature input 2 overflow

21 TEMP 2. (ANA) UNDER Analog temperature input 2 underflow

22 PRESS 1. OVER Analog pressure input 1 overflow

23 PRESS 1. UNDER Analog pressure input 1 underflow

24 PRESS 2. OVER Analog pressure input 2 overflow

25 PRESS 2. UNDER Analog pressure input 2 underflow

26 DENSITY OVER Density input overflow (unused)

27 DENSITY UNDER Density input underflow (unused)

28 4mA SCALER 1 UNDER Analog output 1 underflow

29 20mA SCALER 1 OVER Analog output 1 overflow

30 4mA SCALER 2 UNDER Analog output 2 underflow

31 20mA SCALER 2 OVER Analog output 2 overflow

NOTE: Depending on the model in service, some of the messages are not shown.

11. BEHAVIOR IN ERRATIC CONDITIONS

(1) Erratic A/D Converter

If, following energization of A/D converter circuit, the conversion process is not completed within the specified time period, it is found that the circuit has a problem. At this point, temperature and pressure fallback values are used for calculation.

(2) Temperature and Pressure Input Out of Range

If the input exceeds the high limit or falls below the low limit, its default fallback value is used for calculation.

(3) Analog Output Overflow

A full scale output is produced across the analog output terminals.

Page 17

Power

Flowinput

1/1output

Densityinput

Press.input

Temp.input

Analogoutput

Pulseoutput1

Pulseoutput2

Pulseoutput3

Comport

Terminal

Block

Addresspath

Datapath

PowerBoard

InterfaceBoardCommunicationBoard

CPUBoard

I/OBoard

PowerUnit

Internal

Power

FlowInputCkt.

Dens.InputCkt.

A/D

Converter

Press.InputCkt.(analog)

Temp.InputCkt.(analog)

Temp.InputCkt.(Pt)

AnalogOutputCircuit

PulseOutputCircuit1

PulseOutputCircuit2

PulseOutputCircuit3

Multi

plexer

Isolation

TestPins

Internal

Volt.

Buzzer

Motherboard

Keyboard

ICCard

128×128dots

STDisplay

RUN

×8keys

Isolation

ParallelI/O

TimerCounter

ParallelI/O

CPU

20MHz

Memory

RS485

Isolation

ICCard

Interface

Circuit

32.768kHz

RealTime

Clock

Lithium

Battery

Isolation

PowerDetect

Fuse

12. OVERALL BLOCK DIAGRAM

E-887-3N-E

Fig. 12.1 Overall Block Diagram

Page 18

E-887-3N-E

⑧−⑥⑤④③②① ⑯⑮−⑬⑫⑪⑩⑨ ⑰ ㉒㉑⑳ ㉓㉔㉕㉖㉗−㉙⑲⑱

Model

Power supply

Input pulse signal

Temp. input

Pressure input

Density input

Version code

Communication function

Analog output hard

Output item 4

Output item 3 affix code

Output item 3

Output item 2 affix code

Output item 2

Characteristic

Output item 1

Output item 1 affix code

Blend input

Main code

/ // Additional code

13. PRODUCT CODE EXPLANATION

●

Main code

① ② ③ ④ ⑤ ⑥

E L 4 4 0 1 Flow computer for blend oil tempensation compensation

—

⑦

Power supply

⑧

D 20 to 30VDC

J 85 to 264VAC 50Hz/60Hz

Input pulse signal

⑨

B Voltage pulse 12VDC 2 wires/3 wires

C Voltage pulse 12VDC (PG30S)

D Current pulse 24VDC (4/20mADC)

G Open collector pulse 12VDC 2 wires/3 wires

K Contact pulse

Z Special

Temp. input

⑩

N Non

B 1 to 5V

E 4 to 20mA

F Pt100Ω

G JPt100Ω

Z Special

Pressure input

⑪

N Non

Density input

⑫

N Non

Blend input

⑬

N Non (xed)

B 1 to 5V

E 4 to 20mA

Z Special

—

⑭

Output item 1

⑮ ⑯

Pulse output 1

B 1 Before correction/pulse width 1ms

B 5 Before correction/pulse width 50ms

B 9 Before correction/special pulse width

C 1 After correction/pulse width 1ms

C 5 After correction/pulse width 50ms

C 9 After correction/special pulse width

A L Alarm output

Z Z Special

Output item 1 afﬁx code

⑰

N Non

Model

Output item 2

⑱ ⑲

Pulse output 2

B 1 Before correction/pulse width 1ms

B 5 Before correction/pulse width 50ms

B 9 Before correction/special pulse width

C 1 After correction/pulse width 1ms

C 5 After correction/pulse width 50ms

C 9 After correction/special pulse width

A L Alarm output

Z Z Special

Output item 2 afﬁx code

⑳

N Non

Output item 3

󰼼 󰽇

Pulse output 3

A L Alarm output

Z Z Special

Output item 3 afﬁx code

󰽈

N Non

Output item 4

󰽉

Analog output assignment

N Non

B Before correction instantaneous analog output

C After correction instantaneous analog output

Z Special

Analog output hard

󰽊

2 1 to 5V

5 4 to 20mA

Z Special

Communication function

󰽋

N Non

R RS-485

Version code

󰽌

A Version code: A

—

󰽍

Characteristic

󰽎

0 Standard

Z Special

Page 19

●

⑧−⑥⑤④③②① ⑯⑮−⑬⑫⑪⑩⑨ ⑰ ㉒㉑⑳ ㉓㉔㉕㉖㉗−㉙⑲⑱

Model

Power supply

Input pulse signal

Temp. input

Pressure input

Density input

Version code

Communication function

Analog output hard

Output item 4

Output item 3 affix code

Output item 3

Output item 2 affix code

Output item 2

Characteristic

Output item 1

Output item 1 affix code

Blend input

Main code

/ // Additional code

Additional code

Document

D S J DWG and specications for approval (Japanese)

D S E DWG and specications for approval (English)

D R 0 Re-submission of DWG with specications

D C J Final DWG (Japanese)

D C E Final DWG (English)

D W J Wiring diagram (Japanese)

D W E Wiring diagram (English)

D T J Inspection procedure (Japanese)

D T E Inspection procedure (English)

C B J Inspection certicate: B set Only Japanese

Witnessed by customer

V 1 0 Required

E-887-3N-E

Page 20

E-887-3N-E

All specifications are subject to change without notice for improvement.

2018.01 Revised△

2008.08 Released E-887-3N-E (1)
