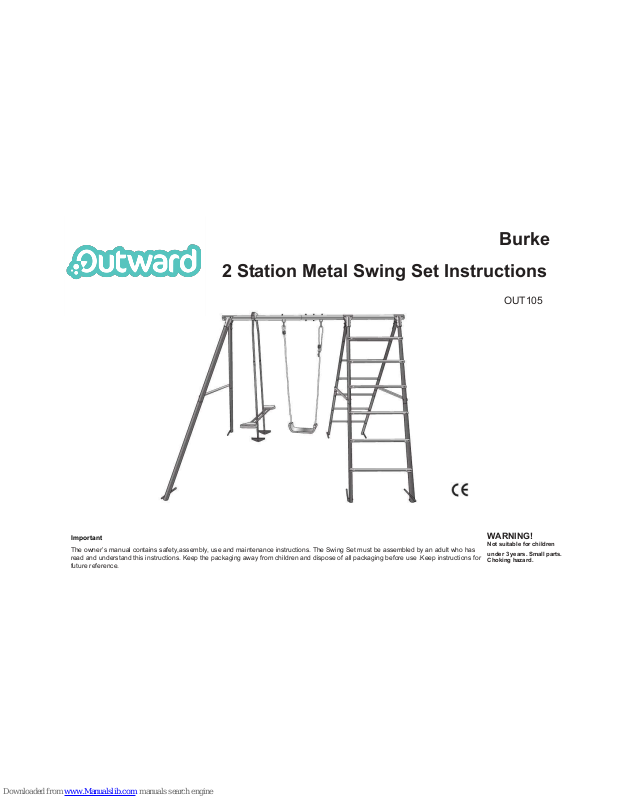

Page 1
Burke
2 Station Metal Swing Set Instructions
OUT105
I po nt
WARNING!
Not suitable for children
The owner’s manual contains safety, assembly, use and maintenance instructions. The Swing Set must be assembled by an adult who has
read and understand this instructions. Keep the packaging away from children and dispose of all packaging before use .Keep instructions for
future reference.
under 3 years. Small parts.
Choking hazard.
Important
Page 2
L cat n a d P c me t
Specifications
Proper placement and maintenance of protective surfacing is
essential. Be sure to:
1. Extend surfacing at least 2m from the equipment in all directions.
Swing set must be placed a minimum of 2m from any structure or
obstruction such as a fence, garage, house, overhanging branches,
laundry, lines, or electrical wires.
2.Do not place your product underneath electrical lines. If you must,
ensure that there is a minimum overhead clearance of 2m. See
diagram at end of paragraph.
3.Do not install the product over concrete, asphalt, packed earth,
grass, carpet, or any other hard surface. A fall on to a hard
surface can result in serious injury to the equipment user.
4.For to-fro swings, extend protective surfacing 2m in front
of and behind the point of suspension of the swing.
2
m
m
c
c
0 0
0
0
2
2
T is product is d ig f u b childr ag 3 u d adul
su isio T e m xi u n b of childr t is u it is in d
is 5, with a ma imum w ight o 1 lbs . k e . T m ximum
fall h ight f this ing set is ’ or ( . ).
Single Ride i Swin 1 lbs .
D le Ride (i Glid 2 lb (
T is produ is d ign f no al r side ial use o l . T is product
is n d ign f u in d c nu i , or ot public plac
This product is t be assem led by adults only in the manner
described ithin this o ’ m ual
T is produ m t be a hor A ho s a e includ with the product.
An h r g
A horing is n s t pr t tippin li in , a ov t in
The product is omm ded a horing in concre e ially i soft
or sandy soil
T a hor the roduct in concre dig a hole at l a 5 ( ) d
a 1 ( . c ) t 1 ( 5c ) in di e Pl ce the s ing l g
in t hol pre bly o a bric or s ne t k if fro si in . B
sure the s ing l is set 3 ( . ) b l the groun P ur concre
around the legs and fill the hole. All the concre to cure according
to the concrete manufacturer’s instruction before use .
1
m
0
m
0
Location and Placement
This product is designed for use by children ages 3 + under adult
super vision. The maximum number of children this unit is intended
to be used with is 5, with a maximum weight of 105lbs (47.64 kg)
each. The maximum fall height for this swing set is 6’ or 72” (1.83
m).
Single Ride (i.e. Swing) 105lbs (47.64kg)
Double Ride (i.e. Glider) 210lbs (95.25kg)
This product is designed for normal residential use only. This
product is not designed for use in daycare, nurseries, or other public
place. This product is to be assembled by adults only in the manner
described within this owner’s manual.
This product must be anchored. Anchors are included with the
product.
Anchoring
Anchoring is necessary to prevent tipping, lifting, and overturning.
The product is recommended anchoring in concrete, especially in
soft or sandy soil.
To anchor the product in concrete, dig a hole at least 5” (12.7cm)
deep and 10” (25.4cm) to 12” (30.5cm) in diameter. Place the swing
leg in the hole, preferably on a brick or stone to keep if from sinking.
Be sure the s wing leg is set 3” (7.6cm) below the ground. Pour
concrete around the legs and fill the hole. Allow the concrete to cure
according to the concrete manufacturer’s instruction before use.
Page 3
WARNING
Installation and Assembly
WARNING!
Equipment may become slippery when wet. Do not
Only adults should assemble or disassemble this product.
This product must be anchored. Anchors are included with this swing
set.
WARNING! Observing the following statements and warnings
reduces the likelihood of serious or fatal injury. Always follow the safety
warnings and use common sense when using the product.
WARNING! To prevent serious injury, do not allow children to play
on the product until it is completely assembled and installed.
WARNING! Do not allow children to walk close to, behind, or in
front of moving items.
WARNING! Do not allow children to twist swing ropes or loop
them over the top bar. This may reduce the strength of the ropes.
WARNING! Teach and instruct children not to swing empty seats.
WARNING! Instruct children how to sit in the center of the seats
and swing with their full weight on the seat.
WARNING! Instruct children not to use the equipment in any
manner other than intended.
WARNING! Instruct children not to get off the rides while in motion.
WARNING! Instruct children to dress appropriately. Loose fitting
clothing is potentially hazardous when using the product.
allow children to use the equipment when wet.
WARNING! Parents should check swing ropes to insure they
are secure and cannot be looped back on themselves.
WARNING! Verify that all swings and ropes are secured at
both ends.
WARNING! Never attach any materials that are not
specifically designed for use with this product, such as jump
ropes, pet leashes, rope or cords and other chains as these pose
a potential strangulation hazard.
WARNING! Children must remove bike or other sports
helmets before playing on the swing set.
Do not exceed the intended weight limit or maximum number of
users for
Single Ride (i.e. Swing) 105lbs (47.64kg)
Double Ride (i.e. Glider) 210lbs (95.25kg)
Adult supervision of children is required at all times when on or
around this product. Never leave children unattended.
Be sure to observe your children and ensure they have the
strength and skills to enjoy all the rides safely before using them
on their own.
Parents should regularly check openings and surfaces, such as
slides, for items that may be hazardous.
2
Page 4
A s mb
Parts and Tools
F ea i a bl , The product is r - bl some o the
2
parts for you. please ch k t ma sure the parts is tight be e
all ing childr on th product.
O ly adults should a ble or disa ble the product F
s f y re ns a ea e o a bly it is r omm d that t
adults a ble the product.
P ints t r e b wh l ating a placing the roduct
1. Pl ce y r product on l l ground a minimum 2m f
a s uc e o obs c io s c a a f garag , hou
ov anging branch laund lin , or el rical wir
2. D n inst ll home pl round e ipm ov concre
a halt pac e gr c t, or o h d su c
A fall on t a h d su ce c r ult in s ious inju t the
e ipm u .
3. D n place r product und t h el ri al lin . If
m t e ure that th is a minimum o d cl ce o
2m. .
4. T product should be a bl n the l ation it will b
permane l ancho .
5. The distance between ground and swing seat, minimum
distance is 35cm,The distance can be adjust by swing rope .
Swing assembly for reference .
WARNING
Un m v e t (i : tippin li ing a ov in o the
product m r ult in s io inju y or d t T product m t be
s ur l a hor be e u
2x
4x
4x
2x
2x
1x
3x
12x
A
6x
1x
4
2x
2x 2x
2x
1x
1x
3
Assembly
For easier assembly, the product is pre-assembled some of the parts
for you. Please check to make sure the parts is tight before allowing
children on the product. Only adults should assemble or
disassemble the product. For safety reasons and ease of assembly it
is recommended that two adults assemble the product. Points to
remember when locating and placing the product:
1. Place your product on level ground a minimum of 2m from any
structure or obstruction such as a fence, garage, house,
overhanging branches, laundry lines, or electrical wires.
2. Do not install home playground equipment over concrete, asphalt,
packed earth, grass, carpet, or any other hard surface. A fall onto a
hard surface can result in serious injury to the equipment user.
3. Do not place your product underneath electrical lines. If you must,
ensure that there is a minimum overhead clearance of 2m.
4. The product should be assembled near the location it will be
permanently anchored.
5. The distance between ground and swing seat, minimum distance
is 35cm. The distance can be adjusted by the swing rope. Swing
assembly for reference.
WARNING
Unexpected movement (i.e.: tipping, lifting and overturning) of the
product may result in serious injury or death. The product must be
securely anchored before use.
Page 5
M8*73mm 2x
M10*52mm 6x
M6*40mm 2x
M10*50mm 2x
M8*45mm 8x
M8*21mm 2x
M8*40mm 2x
M8*42mm 8x
M6*38mm 4x
M8*38mm
32x
M8*45mm
M8*38mm
4
M8*38mm
6x
2x
1x
2x
1x
4x
Assembly

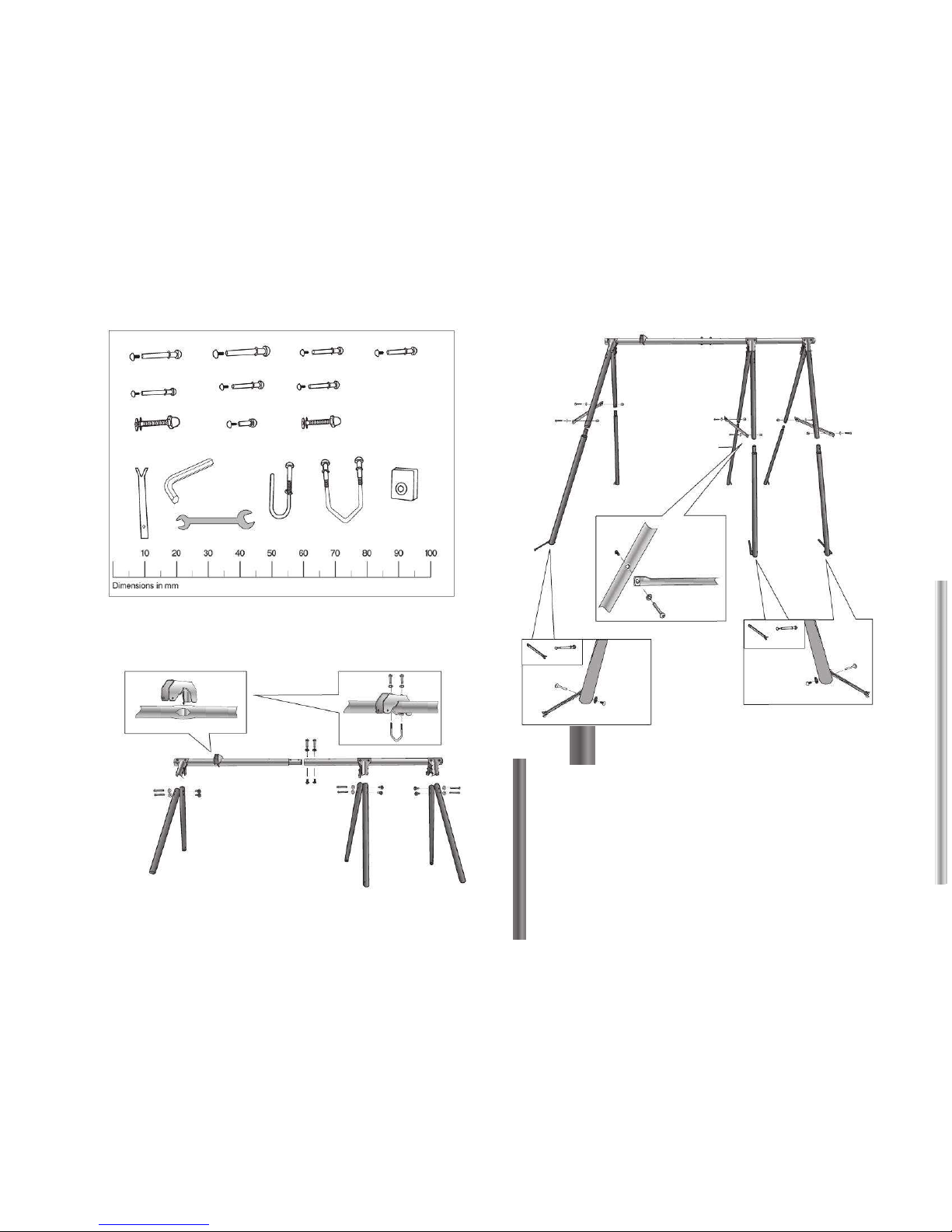

Frame Assembly
M8*45mm
2x
M8*38mm
4x
M10*50mm
M8*45mm
M8*42mm
M8*42mm
4
Page 6
Assembly
Glide Assembly
Swing Assembly
M8*40mm 2x
STEP 1
M8x21mm
STEP 2
M6*36mm 4x
Can adjust distance
between swing seat
and ground.
M8*73mm 2x
STEP 3
M6*40mm 2x
Minimum distance 35cm
5
Page 7
Assembly

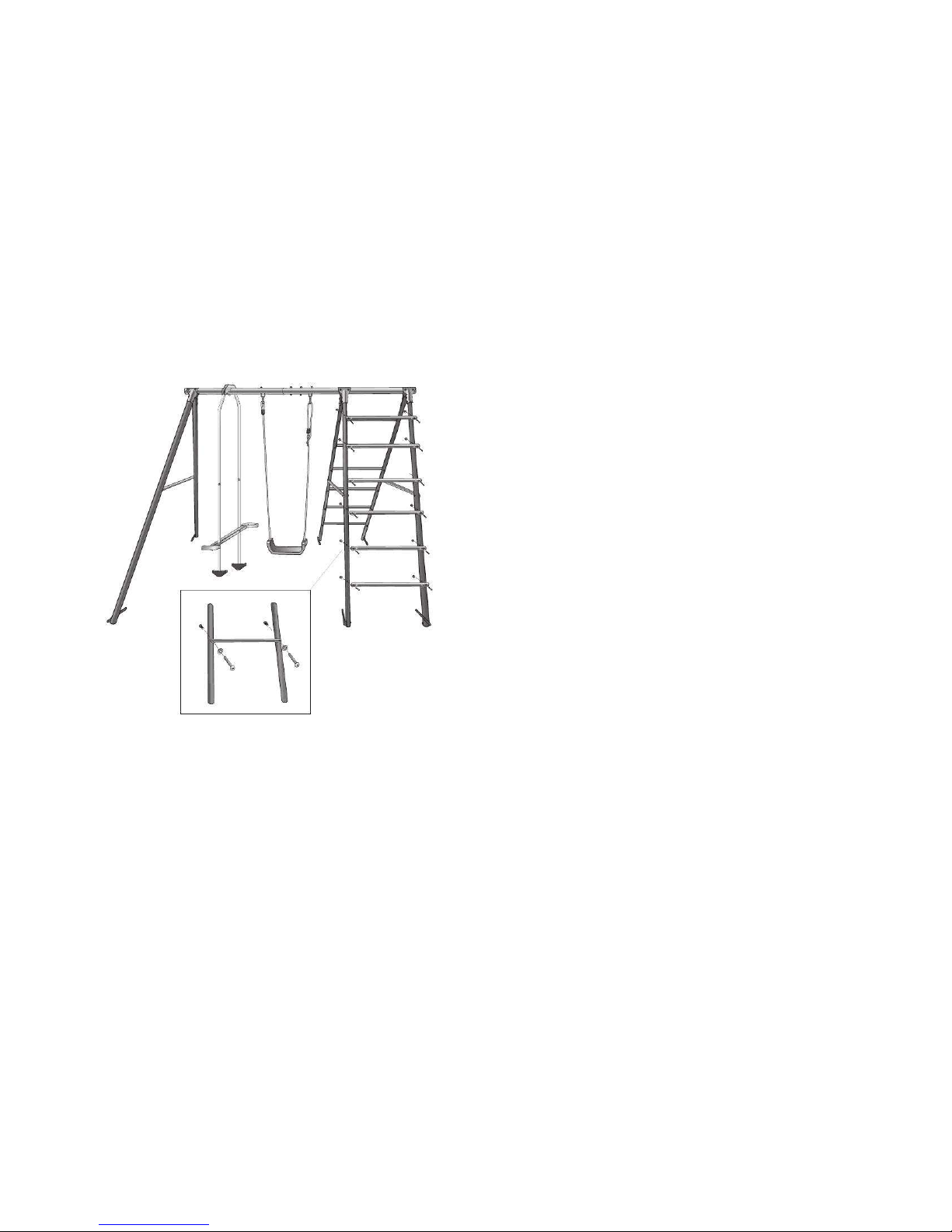

Ladder Assembly
5. Check metal parts for rust. If found, sand and repaint using a non
lead-based paint.
6. Re-install any plastic parts, such as swing seats or any other items
that were removed for the cold season.
7. Rake and check depth of all loose fill protective surfacing material to
prevent compaction and to maintain appropriate depth. Replace as
necessary.
M8*38mm
Care and Maintenance
At the beginning of each play season:
1. Tighten all hardware.
2. Lubricate all metallic moving part per manufacturer’s instructions
3. Check all protective coverings on bolts, pipes, edges and
corners.
Replace if they are loose, cracked or missing.
4. Check all moving parts including swing seats, ropes, cables and
chains for wear, rust or other deterioration. Replace as needed.
6
