LaserMatrix
®
Series 2400 Laser Printers
Replacement Parts Catalog
Page 2
COPYRIGHT
All rights reserved. This document m ay not, in whole or in part , be copied, photocopied,
reproduced, translated, reduced to any electronic m edium or machine readable form without prior
consent, in writing, from O utput Technology Corporation.
We suggest you use genuine Output Technology parts and aut hor ized service centers: Contact us
at —
1996, OUTPUT TECHNOLOGY CORPORATION
Output Technology Corporation
2310 North Fancher Road — Spokane, WA 99212-1381
(509) 536-0468
Voice: (509) 536-0468 — Fax: (509) 533-1280
Output Technology maintains a Bulletin Boar d System ( BBS) service. In the U.S.A., call (509) 5331217 to access our BBS service for the very latest drivers, firmware, pricing, maintenance and
troubleshooting aids, and application inf or m ation. Also you can contact us at —
FTP: ftp.output.com/public/output
WWW: http
CTS 046-00322-00-N
://
www.output.com
Part No: 066-00495-00
Rev. C
February 19, 1998
Page 3
GENERAL
This catalog contains itemized lists of all servicing aids, supplies, expendables, and field
replaceable parts for all models of the printer. Ordering information is provided for field replaceable
units (FRUs). FRUs are illustrated at t he end of this publication.
Parts are listed in the following tables —
Customer Replaceable Units (CRUs) and Miscellaneous, Page 2
Field Service Tools, Page 3
Field Replaceable Units (FRUs), Page 4
FRU illustrated parts breakdown drawings —
Main and Lid Access, Pages 7, 8, and 9
Paper Path, Pages 10 and 11
Fuser, Pages 12, 13, and 14
Right Side and Frame, Pages 15 and 16
Left Frame Assembly, Page 17
Engine Controller, Page 18
Raster Image Processor, Pag e 19
Low Voltage Power Supply, Page 20
ORDERING INFORMATION
To order a field replaceable unit (FRU), proceed as foll ows:
1. Find the appropriate item number from the illustrations at the end of this publication.
2. From the FRU table on Page 4, matc h t he item number to the FRU part number .
3. Obtain the serial number of your print er (on the right side of the printer).
4. If applicable, have your Visa or MasterCard number and expiration date ready, and then
contact
cover of this publication.
Series 2400 2/19/98 1
Output Technology Corporation
by phone, fax, mail as instructed on the inside
Page 4
To order customer replaceable units (CRUs) or ot her m i scellaneous items, select from the
following table and then continue as directed in Step 4 above.
CUSTOMER REPLACEABLE UNITS (CRUs) AND MISCELLANEOUS
Order Number Description
Customer Replaceable Units (CRUs)
LM2400C101
LM2400C102
LM2400C103
LM2400C104
LM2400C106
Developer Kit, containing —
(1) Startup Toner Bottle
(1) Toner Bottle Sprout
(1) Developer Unit
(1) Ozone Filter
(1) Cleaning Kit (080-00072-X X)
Drum Kit, containing —
(1) Drum Cartridge
Toner Kit, containing —
(2) Toner Bottles
(1) Toner Bottle Spout
(2) Wast e Toner Bottle
(2) Felt Cleaning Pads
Fuser Kit, 115 VAC
1
Felt Cleaning Pad Kit (package of 10 felt pad assemblies)
LM2400C107
LM2400C108
022-00184-XX
1
Consists of one fully assembled fuser heater and pressure assembly, incl udi ng rol l ers, heat lamp, thermistor, thermal break er, heat
shield, felt pad, and fel t pad cover.
2
Same as LM2400C104 but with the thermi stor mounted on the right end of t he assembly rather than in the middle. In general,
consider using LM2400C108 with printers dedicated to printing narrow labels and tags.
3
Contains LM2400C101, LM2400C102, and LM2400C103.
Fuser Kit, 230 VAC
Fuser Kit, Label/Tag, 115 VAC
Starter Kit
3
1
1,2
2 2/19/98 Series 2400
Page 5
Order Number Description
CRUs (Continued)
080-00072-XX Cleaning Kit, containing —
(5) Wipes
(5) Large-tipped swabs
(1) Brush for cleaning corona wires
Publications
066-00492-XX
066-00493-XX
066-00495-XX
066-00496-XX
Shipping
046-00324-XX Ship Kit
FIELD SERVICE TOOLS
z Screwdrivers
- #1 Phillips
- #2 Phillips
z Hex Allen wrench, 2.5 mm
z 0.74 mm feeler gaug e
z Diagonal cutters
z Needle nose pliers
Manual, Installation Guide
Manual, Operator's Guide
Manual, Parts Catalog
Manual, Maintenance
(Recommended)
z Digital voltmeter
z Cable ties
z Toner vacuum cleaner
z Varnish (for fixing small screws and
z Cleaning kit (080-00072-XX). See "CRUs
4
5
adjustments)
and Miscellaneous."
4
Includes Maintenance Manual LM1000M105 and Parts Catal og 066-00495-XX.
5
Such as 3M Model 497 (115 vac) with a standard toner fil t er.
Series 2400 2/19/98 3
Page 6
FIELD REPLACEABLE UNITS (FRUs)
Item Figure FRU Part No. Description
Qty Per
Printer
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
6
3a
5
1a
7
6
6 & 7
2
1a
4a
1a
4b
4b
1b
2
2
3a
001-00333-XX
001-00929-XX
002-00264-XX
002-00265-XX
002-00274-XX
002-00275-XX
002-00279-XX
002-00333-XX
002-00583-XX
002-00584-XX
002-00585-XX
002-00586-XX
002-00587-XX
002-00588-XX
002-00589-XX
002-00590-XX
002-00591-XX
Contact, Earth Ground
Guide, Paper, Top-Of-Form
Housing, Ozone Filter, Plenum
Cover, Tractor Sensor
Lid Catch, Left
Lid Catch, Right
Latch, Developer, Retaining, Gr een
Cover, Erase LED
Cover, Right Inside
Heat Shield, Fuser, Lower
Cover, Lamp Connector
Cover, Fuser Felt Pad
Heat Shield, Fuser, Upper
Cover, Bottom
Cover, Hinge, Right
Cover, Hinge, Left
Guide, Paper, Entrance
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
18
19
20
21
22
23
24
25
26
27
28
29
30
31
33
34
35
3a
3a
1a
1a
1a
2
2
2
3b
2
2
1a
2
5
3a
3b
3b
002-00592-XX
002-00599-XX
009-00039-XX
009-00074-XX
020-00205-XX
020-00206-XX
021-00274-XX
021-00276-XX
021-00279-XX
021-00280-XX
021-00306-XX
021-00314-XX
021-00649-XX
021-00650-XX
021-00652-XX
021-00653-XX
021-00654-XX
Guide, Paper, Exit
Roller, Pressure Exit
Enclosure, Right Side
Cover, Front (Front Door)
Cable, Control Panel
Cable, LSU
Catch Release Assembly, LID
Latch Pin Assembly, Top Cover, Right
Slide Arm Assembly
Enclosure Release Button Assembly
Erase LED Assembly
Left Enclosure, With Mounting Bracket
Laser Scan Unit
Drive Assembly, Front-End
Guide, Paper, Main
Transfer Charger Assembly
Tractor Assembly
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4 2/19/98 Series 2400
Page 7
FIELD REPLACEABLE UNITS (FRUs)
Item Figure FRU Part No. Description
Qty Per
Printer
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
6
7
4a
4a
2
4b
4b
4b
3b
3a
1a
4b
4b
4b
3a
3b
4a
4a
021-00655-XX
021-00656-XX
021-00657-XX
021-00658-XX
021-00659-XX
021-00660-XX
021-00661-XX
021-00662-XX
021-00663-XX
021-00664-XX
021-00665-XX
021-00666-XX
021-00667-XX
021-00668-XX
021-00680-XX
021-00682-XX
021-00685-XX
021-00693-XX
Frame Assembly, Right
Frame Assembly, Left
Fuser (Heater & Pressure) Assembly, 115 VAC
Fuser Base
Top Cover Assembly, With Release Button
Heat Roller Subassembly, Without Lamp
Pressure Roller Subassembly
Thermal Breaker Assembly
Stepper Motor Assembly, Tractor
Cover Assembly, Paper Exit
Control Panel (Keypad) Assembly
Fuser Heater Assembly, 115 VAC
7
Fuser Heater Assembly, 230 VAC
Fuser Pressure Assembly
Tension Roller Assembly
High Voltage Power Supply
Fuser (Heater & Pressure) Assembly, 230 VAC
Fuser (Heat & Pres) Assy, Label/Tag, 115 VAC
1
1
6
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
8
1
54 1a 035-00039-XX Overlay, Keypad 1
55
56
57
58
59
60
61
62
62.5
6
Order LM2400C104 (Page 2) which is a kit containing 021-00657-XX. (For printers dedic ated to printing narrow labels and tags,
consider using item 021-00693-XX.)
7
For 115 vac printers dedicated to printing narrow labels and tags, consider using item 021-00693-XX.
8
Order LM2400C108 (Page 2) which is a kit containing 021-00693-XX.
9
Does not include firmware. S ee 043-00370-XX in this tabl e.
10
Also see 046-00348-XX.
1b
8
10
9
7
4c
5
3b
10
040-00172-XX
040-00173-XX
040-00174-XX
040-00176-XX
040-00178-XX
040-00179-XX
040-00180-XX
040-00181-XX
040-00182-XX
PCB, Backplane
PCB, Engine Controller (EC)
9
PCB, DIMM, RIP Firmware, LM2405
PCB, Raster Image Processor ( RI P)
PCB, Toner Sensor
PCB, Fuser Sensor
PCB, Motor Controller
PCB, Tractor Encoder
PCB, DIMM, RIP Firmware, LM2406
10
1
1
1
1
1
1
1
1
1
Series 2400 2/19/98 5
Page 8
FIELD REPLACEABLE UNITS (FRUs)
Qty Per
Item Figure FRU Part No. Description
64 8 043-00370-XX EPROM, EC Firmware 1
64.5
1b
046-00348-XX
Kit, PCB,RIP Controller
11
Printer
1
65
66
67
68
1b
5
5
5
046-00890-XX
082-00201-XX
082-00204-XX
082-00415-XX
Low Voltage Power Supply, Modified
Gear, Inner Transf er , Front-End
Gear, Main Drive, Front-End
Actuator, Drum Sensor
69 4c 097- 00127- XX Clutch, Fuser 1
70
71
72
73
4c
4c
5
5
107-00102-XX
107-00104-XX
107-00105-XX
107-00106-XX
Motor, Front-End Drive (With Gear)
Fan, Ozone
Fan, Fuser Cooling
Motor, Fuser
74 4b 113-00153-XX Ther m ist or Assem bly 1
75
76
77
78
79
80
81
3a
4b
4c
11
4b
4b
11
116-00122-XX
116-00123-XX
116-00124-XX
116-00125-XX
116-00126-XX
116-00127-XX
116-00128-XX
Sensor, Paper Empty
Halogen Heat Lamp, 115 VAC
Sensor, Paper Jam
Fuse, 125V, 15 A. (F3)
12
Thermal Breaker
Halogen Heat Lamp, 230 VAC
Fuse, 250V, 6.3 A., Time-Delay (F1 & F2)
13
1
1
1
1
1
1
2
1
1
1
2
1
1
1
2
11
Contains RIP Controller PCB (040-00176-XX) plus standard-interface-connector (back) panel and optional-int erface holder with
cover plate.
12
¼ in. by 1¼ in. F3 is used with a 115 vac halogen heat lam p
13
5 mm by 20 mm. F1 is the main fuse and F2 is used with a 230 vac hal ogen heat l amp.
6 2/19/98 Series 2400
Page 9

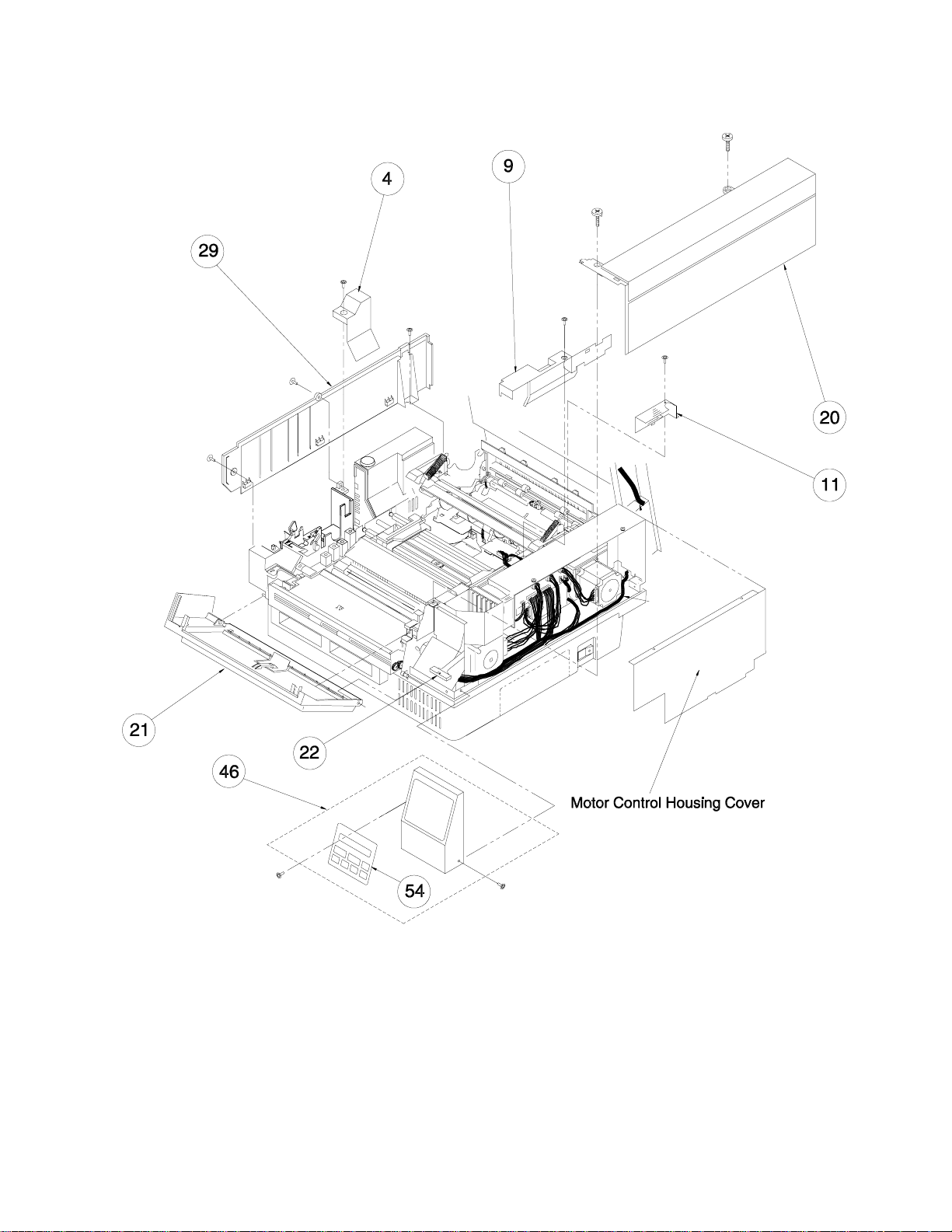

Figure 1a. Main Upper Access
PD1-A1
Series 2400 2/19/98 7
Page 10

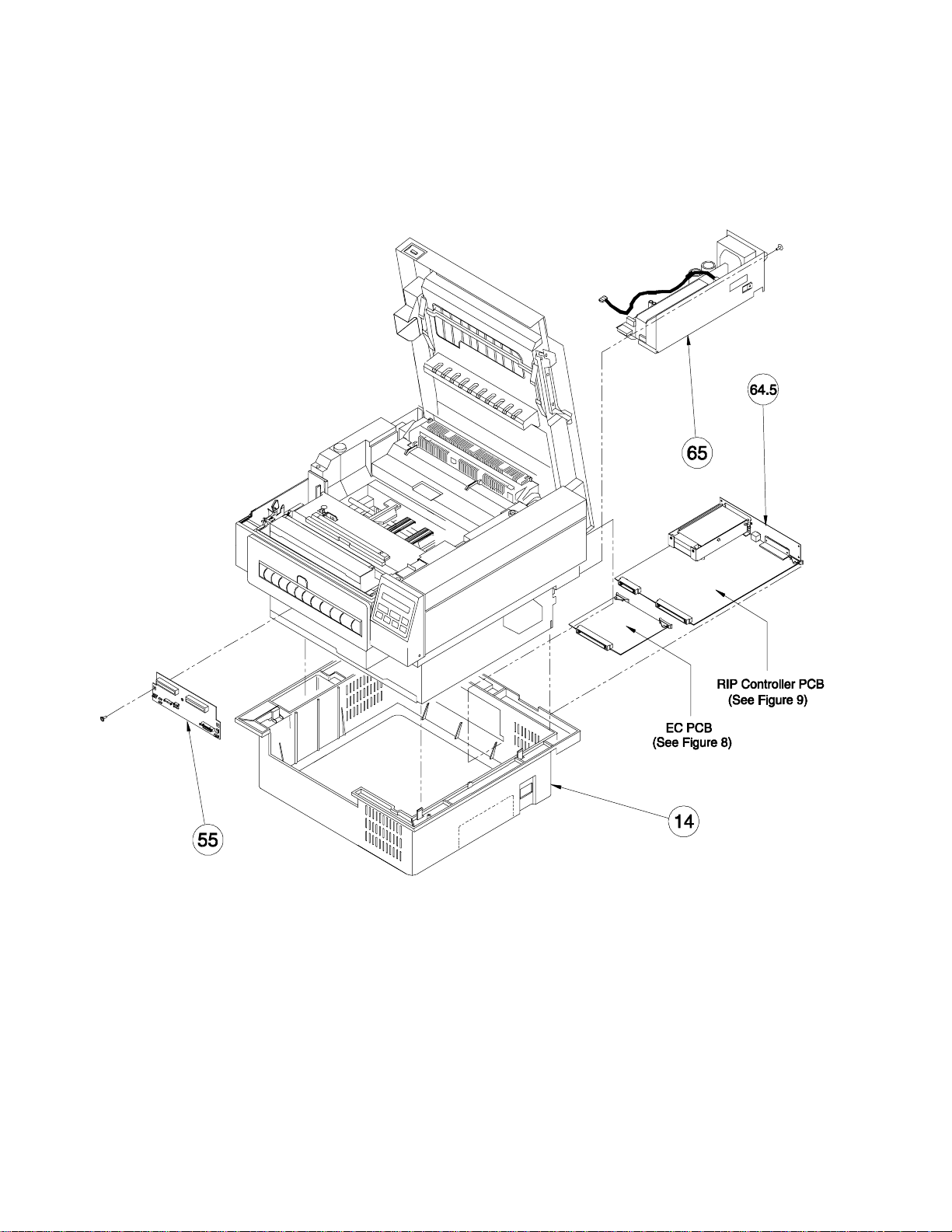

Figure 1b. Main Lower Access to LVPS & Backplane
PD1-B2
8 2/19/98 Series 2400
Page 11

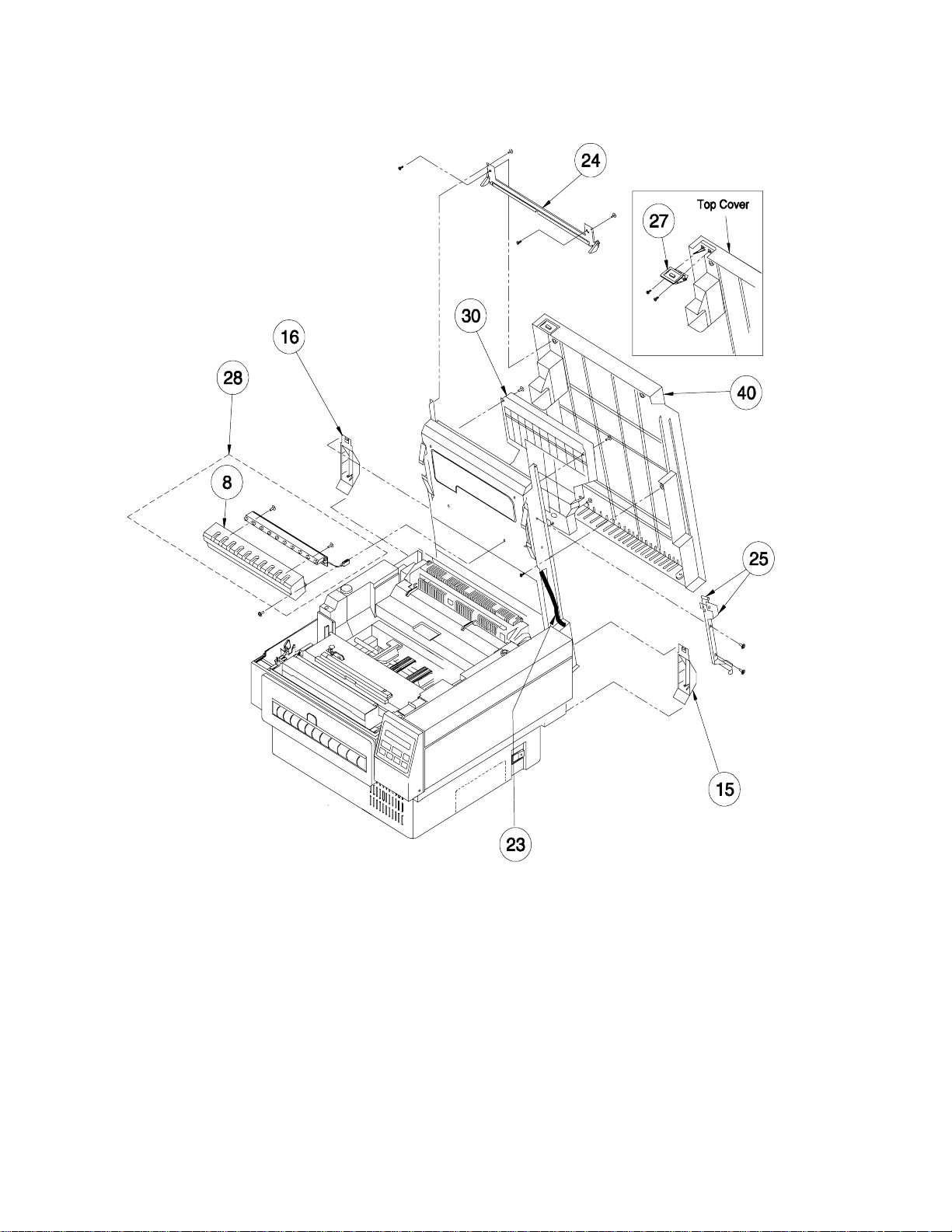

Figure 2. Lid Access
PD1-C1
Series 2400 2/19/98 9
Page 12

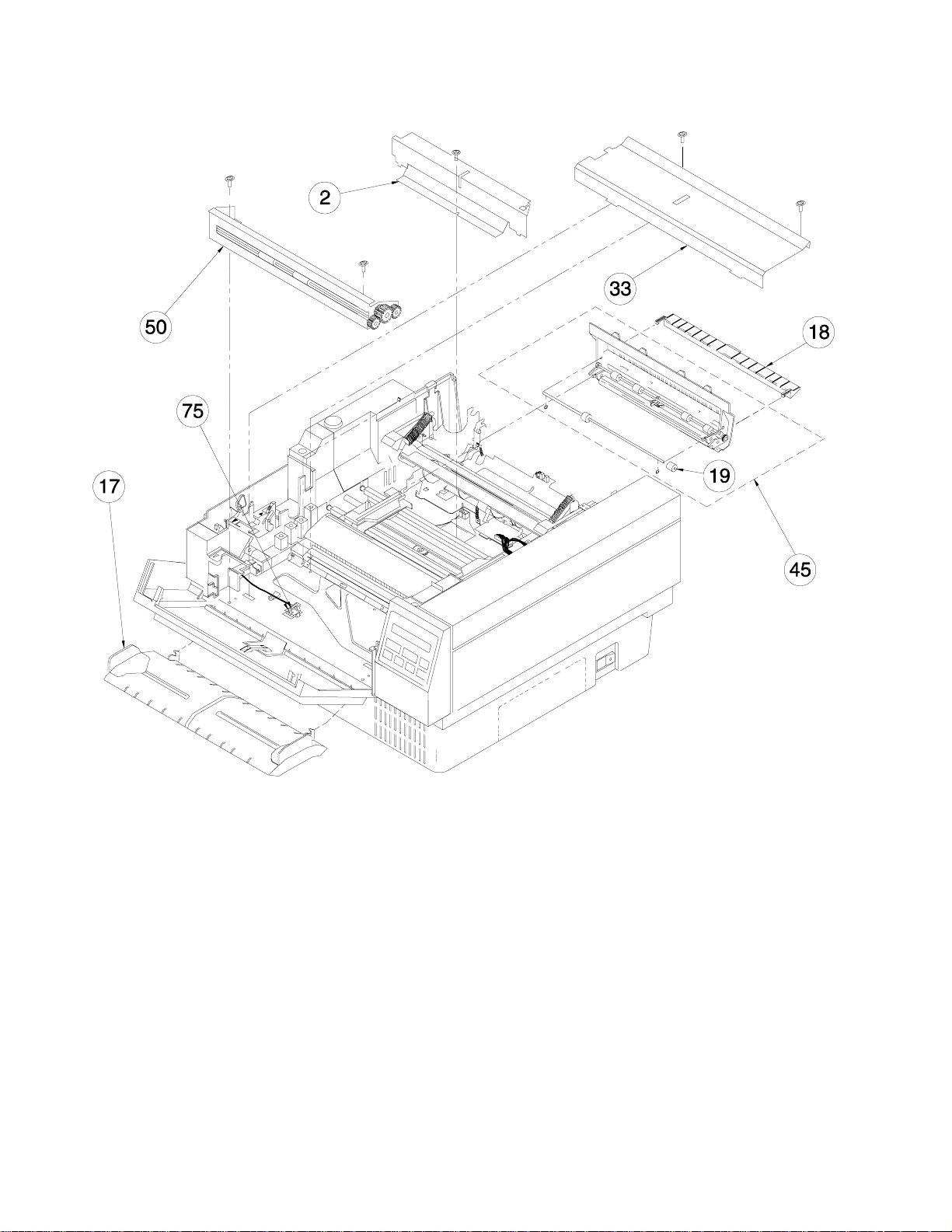

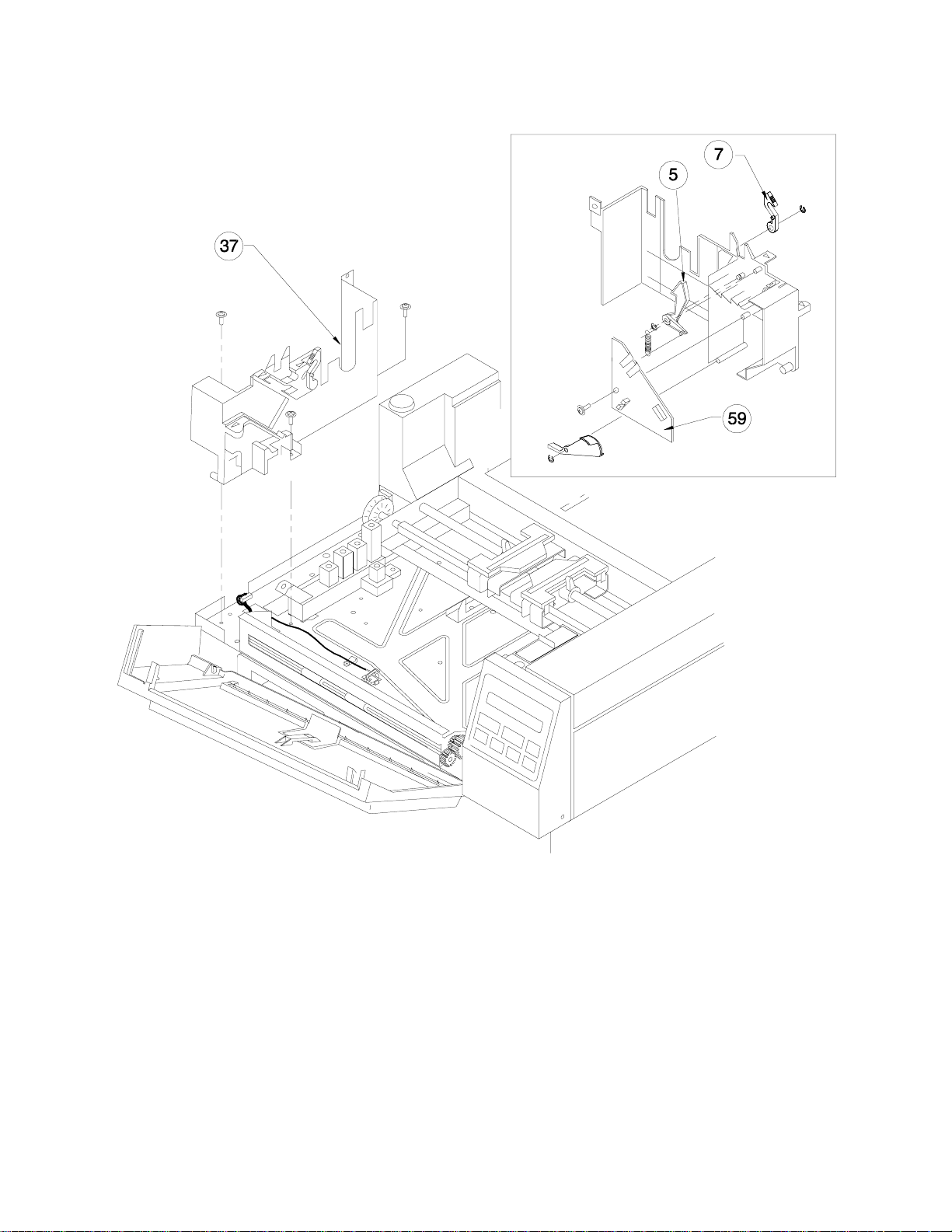

Figure 3a. Paper Path
PD1-D1
10 2/19/98 Series 2400
Page 13
Figure 3b. Paper Path
PD1-E1
Series 2400 2/19/98 11
Page 14
* See Figure 4c for disassembly of fuser base assem bl y.
** See Figure 4b for disassembly of fuser heater & press ure assemblies.

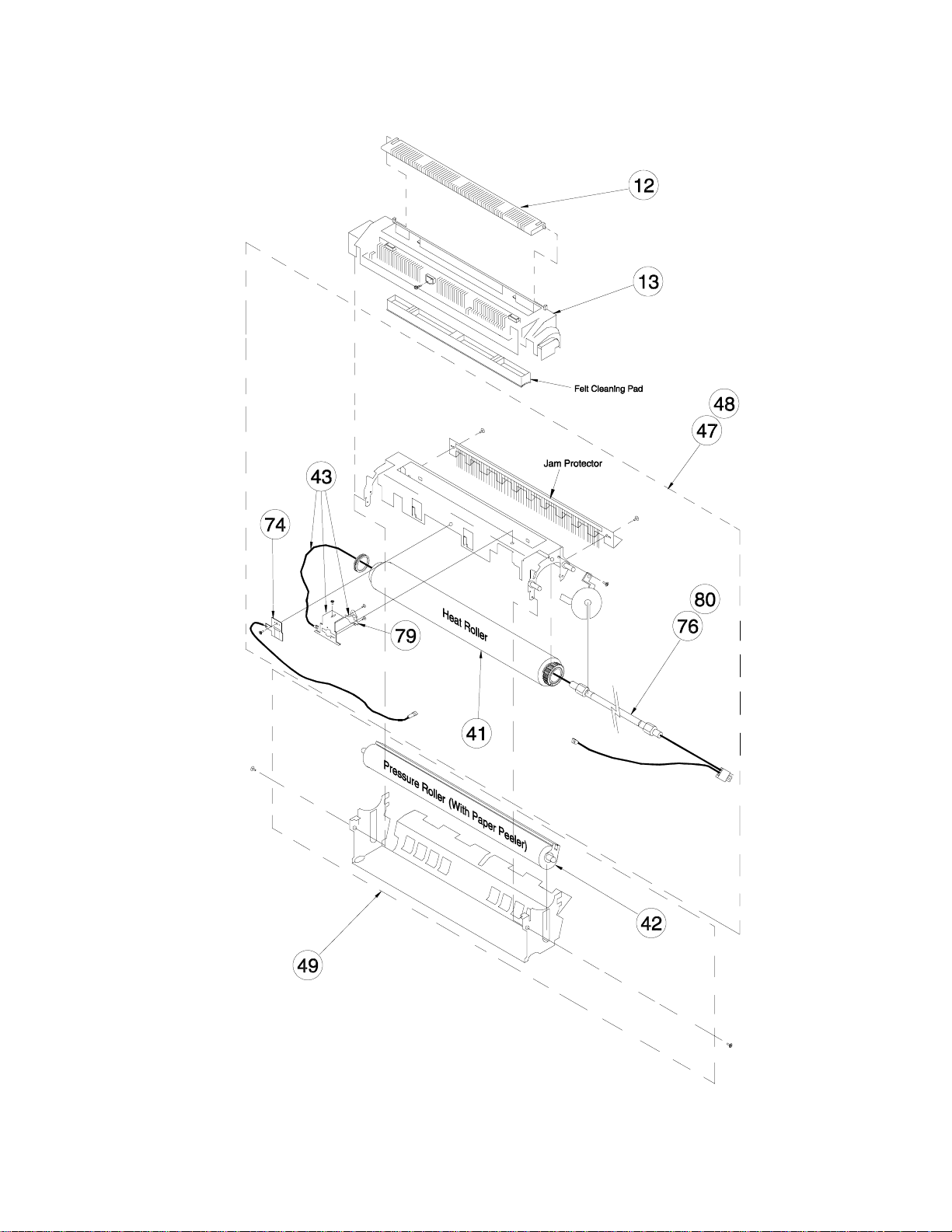

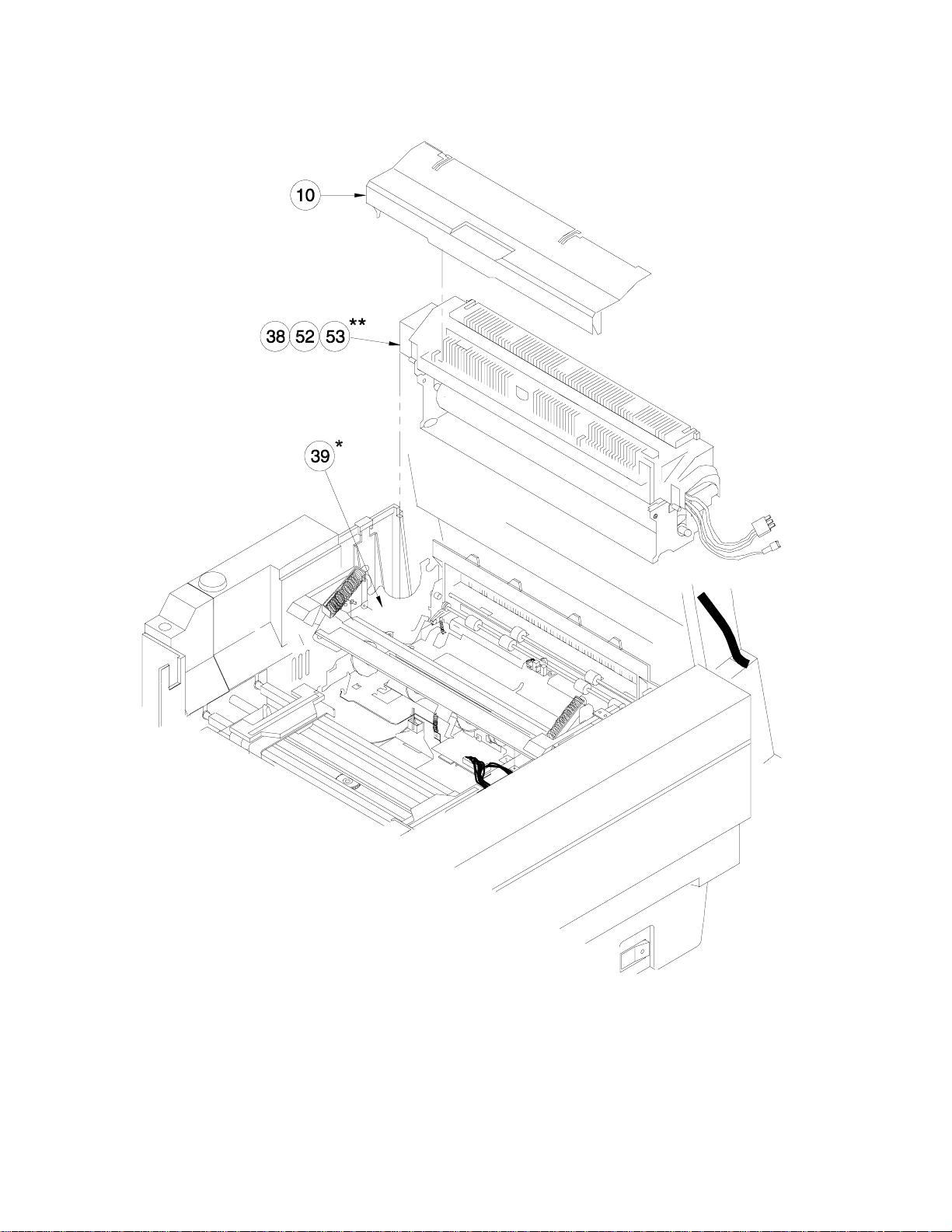

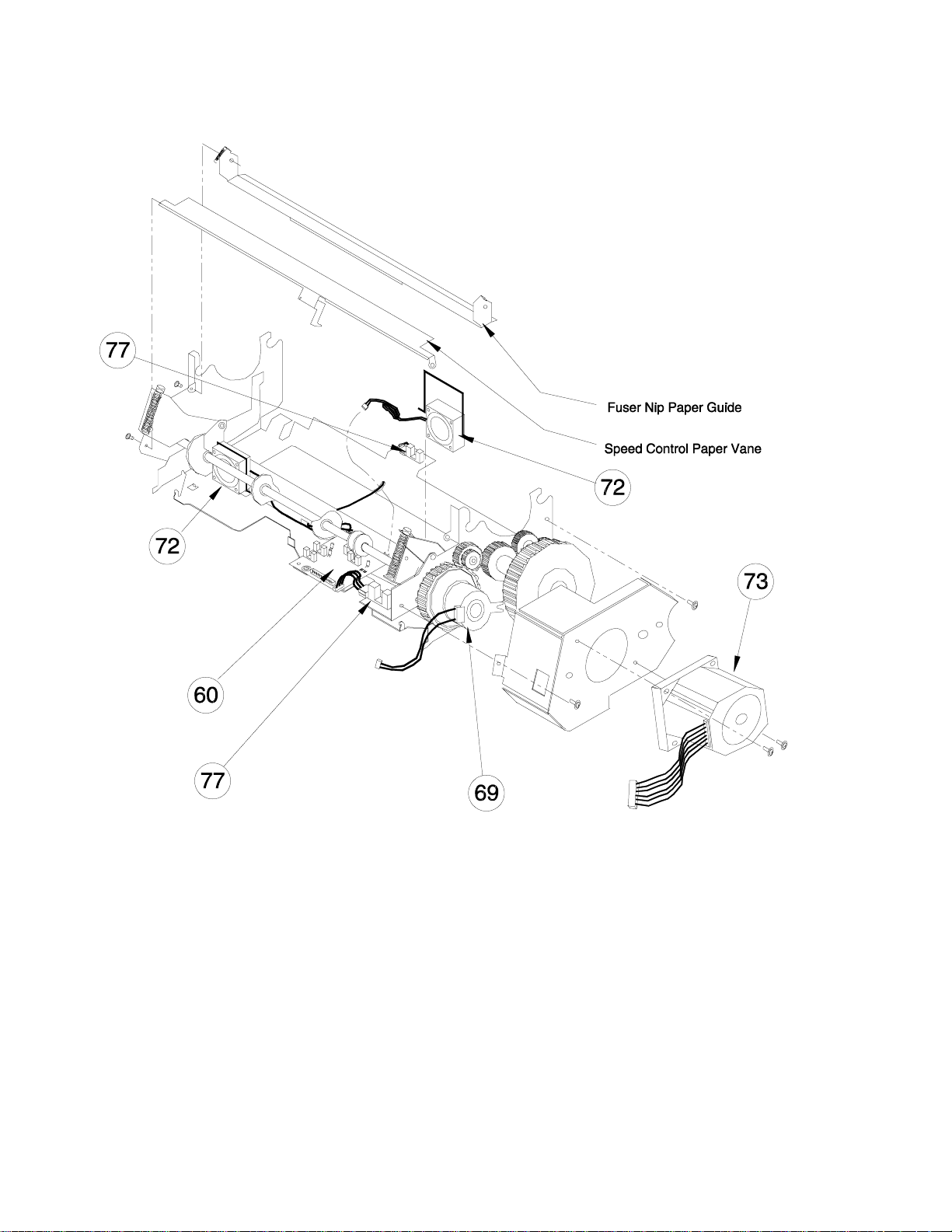

Figure 4a. Fuser Assemblies
PD1-F1
12 2/19/98 Series 2400
Page 15
Figure 4b. Fuser Heater & Pressure Assembly
PD1-G1
Series 2400 2/19/98 13
Page 16
Figure 4c. Fuser Base Assembly
PD1-H1
14 2/19/98 Series 2400
Page 17

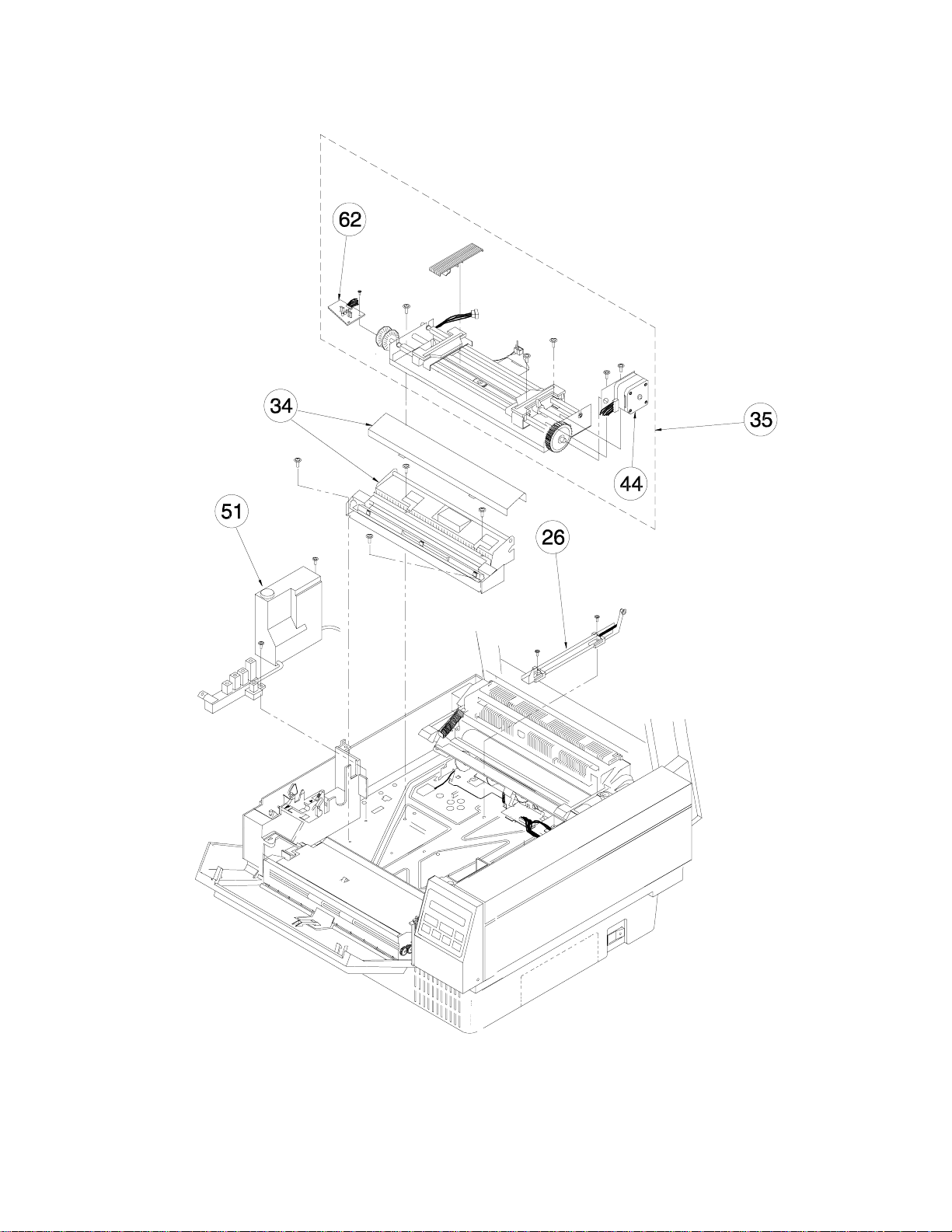

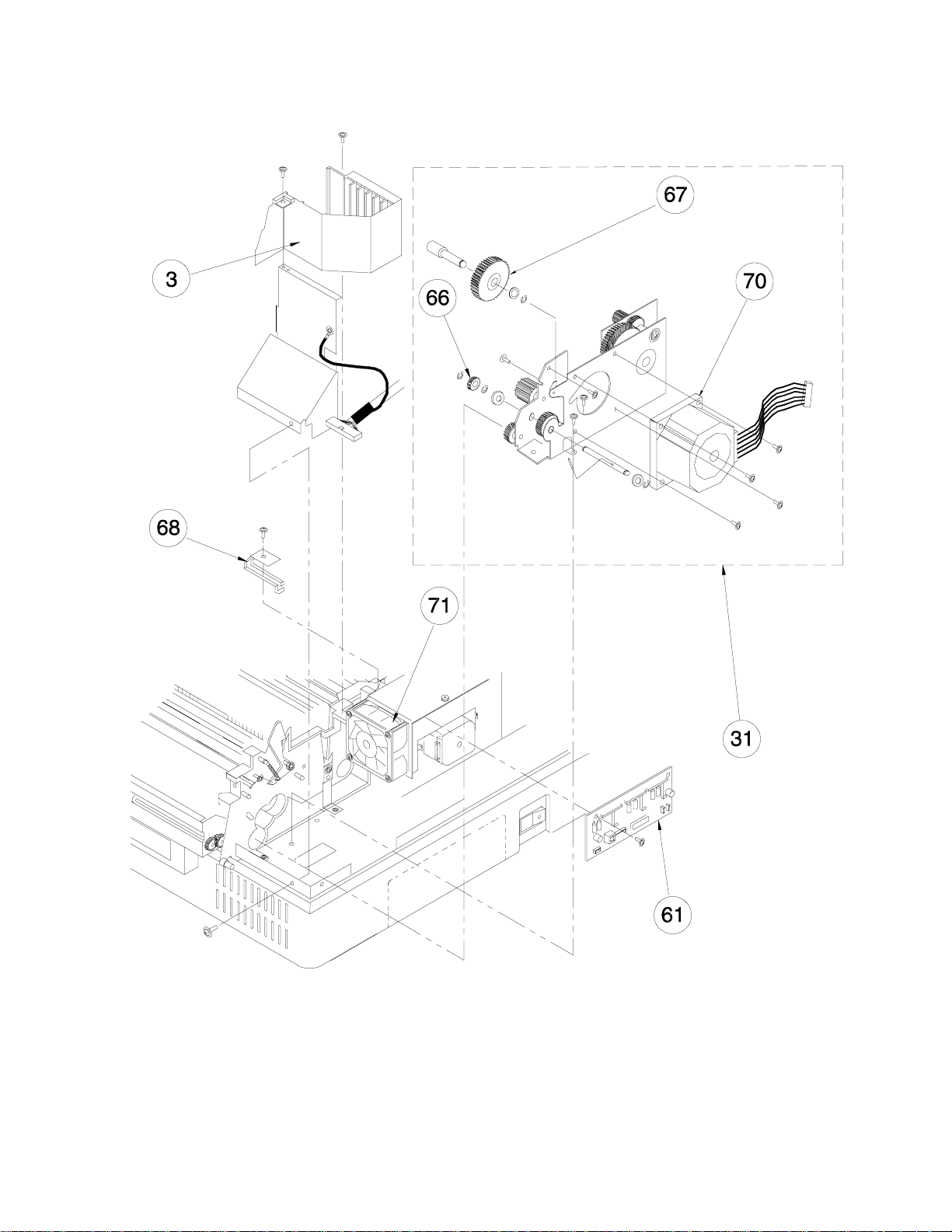

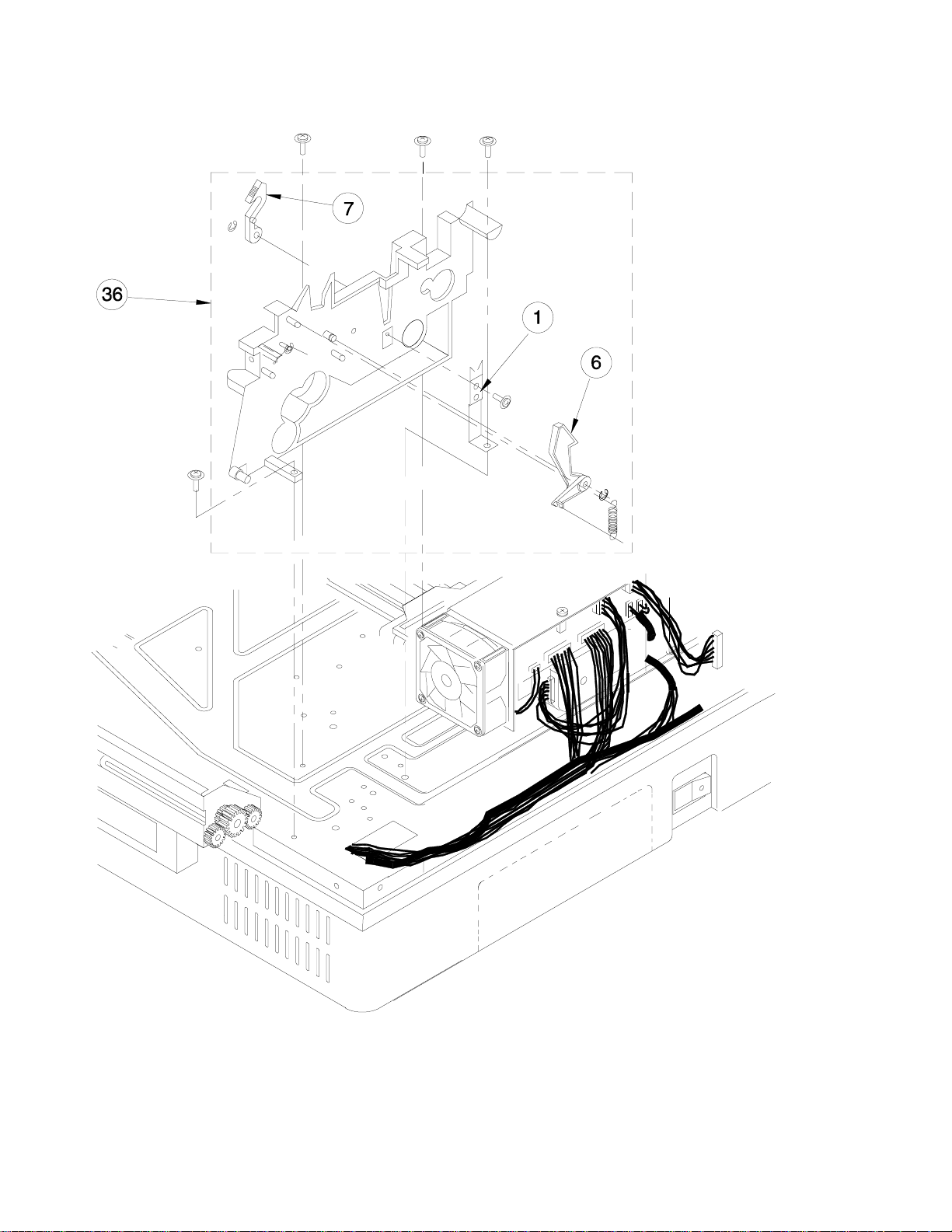

Figure 5. Right-Front Corner
PD1-I1
Series 2400 2/19/98 15
Page 18
Figure 6. Right Frame Assembly
PD1-J1
16 2/19/98 Series 2400
Page 19
Figure 7. Left Frame Assembly
PD1-K1
Series 2400 2/19/98 17
Page 20
* PCB does not contain firmware.

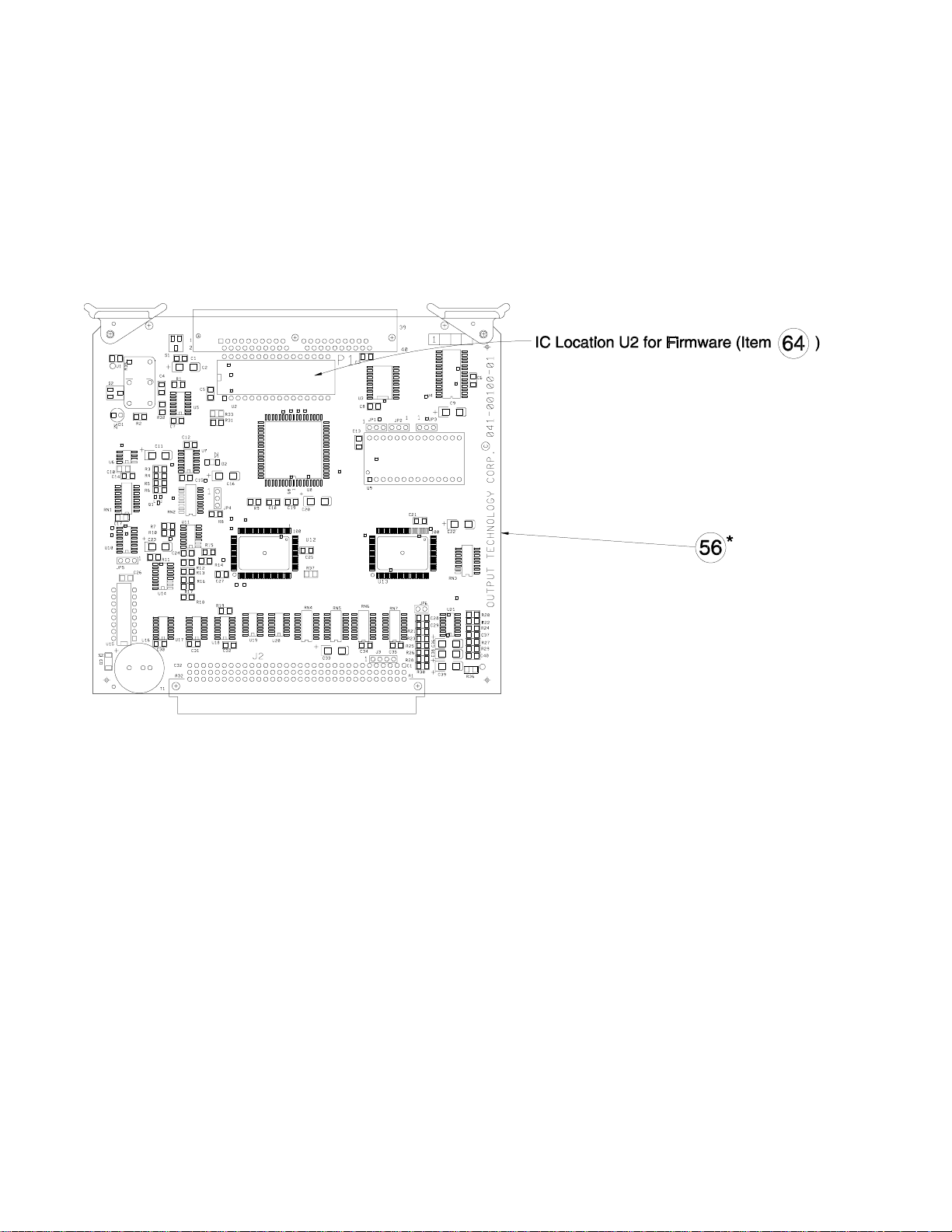

Figure 8. Engine Controller PCB
M1
PD1-
18 2/19/98 Series 2400
Page 21
* PCB does not contain firmware.
** See Figure 10 for firmware.

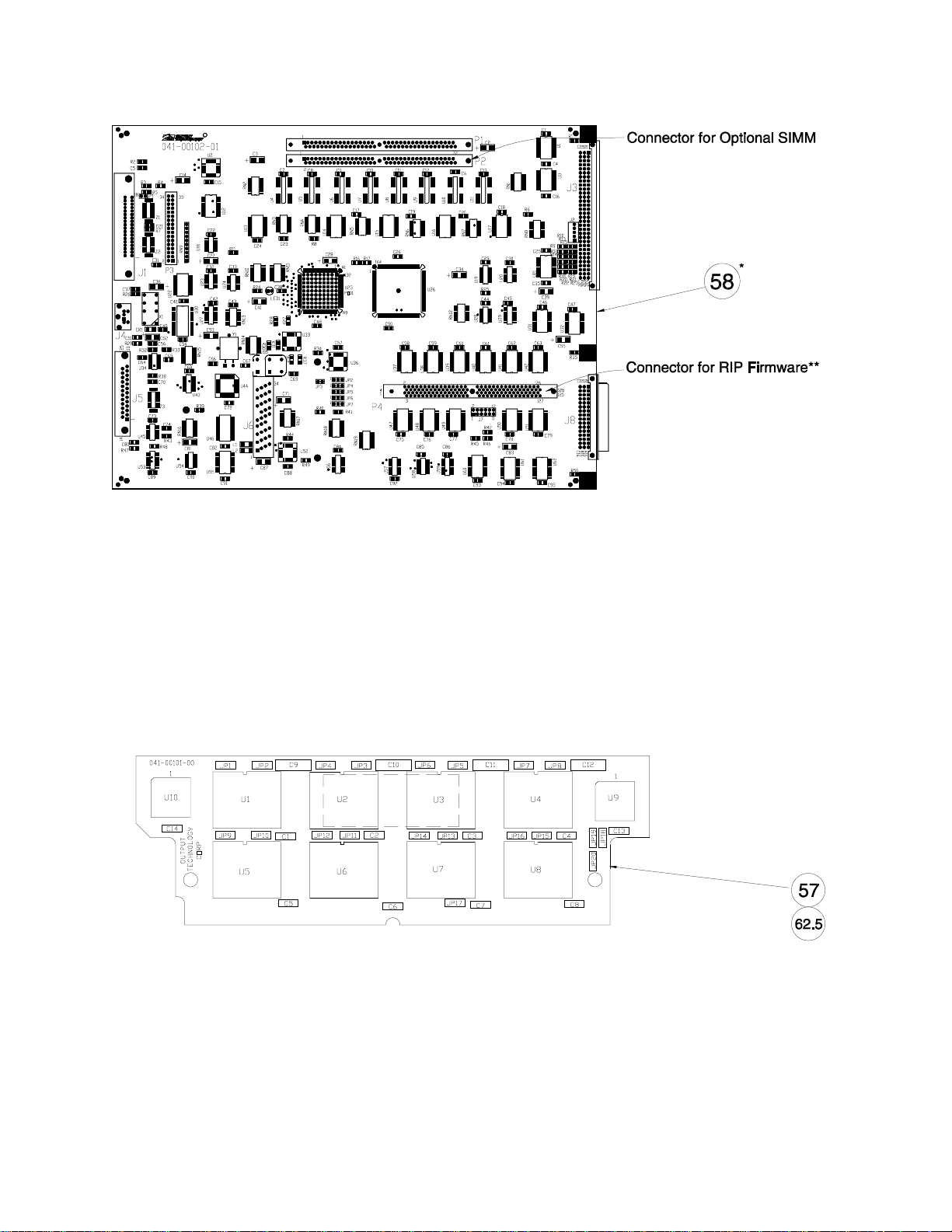

Figure 9. RIP Controller PCB (Without Firmware)
PD1-N
Figure 10. RIP Firmware (DIMM) PCB
PD1-O1
Series 2400 2/19/98 19
Page 22

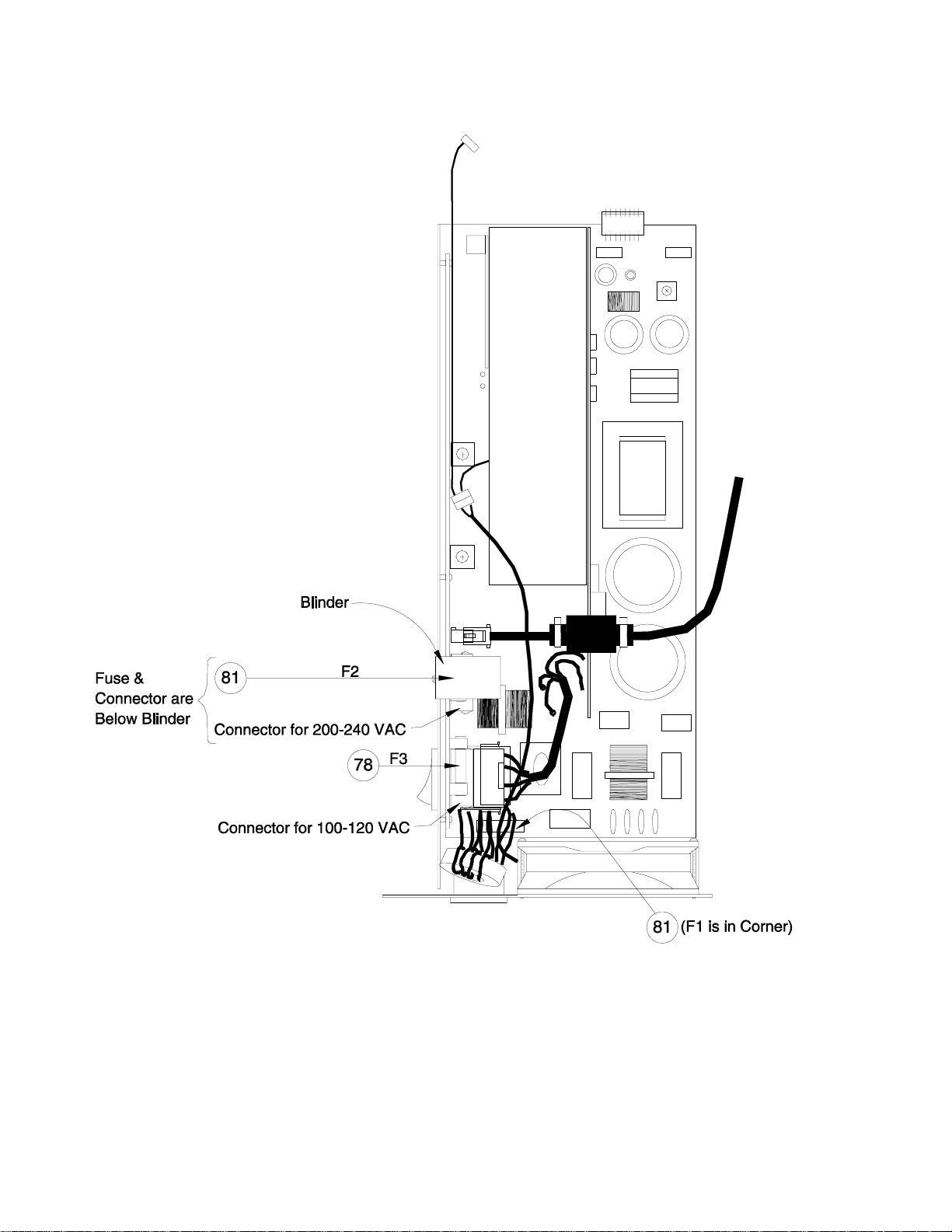

Figure 11. Low Voltage Power Supply
PD1-L1
20 2/19/98 Series 2400
Page 23
Page 24
Loading...
