Outline TFive, TSeven, TNine, TEleven User Manual

2 CHANNEL POWER AMPLIFIER

The Sound of Big Ideas

This page left intentionally blank

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

The Sound of Big Ideas

Table of contents

Important safety instructions

ntroduction

Chapter 1: Installation and operation

Chapter 2: Setup and settings

Chapter 3: Protection

Chapter 4: User maintenance

Chapter 5: Warranty
Chapter 6: Assistance
Chapter 7: Technical notes

................................................................................................................................2

................................................................................................................................................................2

Safety rules.......................................................................................................................................................................3

Speaker damage..............................................................................................................................................................3

Speaker output shock hazard...........................................................................................................................................3

I ......................................................................................................................................................................4

More sound and less weight.............................................................................................................................................4

Superior Sound-Sonic Accuracy.......................................................................................................................................4

Totally Digital with High Reliability........................................................................................................................................................4

The Best amplifier for Your Mains........................................................................................................................................................4

The T Series........................................................................................................................................................................................4

The Show Always Goes On..............................................................................................................................................4

...........................................................................................................................................................5

1.1 Unpacking...................................................................................................................................................................5

1.2 Mounting.....................................................................................................................................................................6

1.3 Operating precautions................................................................................................................................................6

1.4 AC Mains connection..................................................................................................................................................6

1.5 Connecting Inputs........................................................................................................................................................7

1.6 Connecting Outputs.......................................................................................................................................................................8

1.7 Connecting Remote Control..........................................................................................................................................................9

1.8 AUX Input CH1/CH2.............................................................................................................................................................................................10

1.9 Alarm CH1/CH2....................................................................................................................................................................................................10

1.10 AES/EBU Input.....................................................................................................................................................................................................10

.....................................................................................................................................................................11

2.1 Introduction....................................................................................................................................................................................11

2.2 The Main screen............................................................................................................................................................................11

2.3 The main menu............................................................................................................................................................................12

2.3.1 Output attenuation......................................................................................................................................................................13

2.3.2 Gain/Sensitivity.............................................................................................................................................................................13

2.3.3 Input select........................................................................................................................................................................14

2.3.4 Max output voltage............................................................................................................................................................14

2.3.5 Max mains current............................................................................................................................................................14

2.3.6 Clip limiter CH1-CH2........................................................................................................................................................14

2.3.7 Gate CH1-CH2.................................................................................................................................................................15

2.3.8 Mute at power on..............................................................................................................................................................15

2.3.9 Idle Mode..........................................................................................................................................................................15

2.3.12 Bar meters......................................................................................................................................................................15

2.3.13 Output meters.................................................................................................................................................................15

2.3.14 Temperature....................................................................................................................................................................16

2.3.15 Mains meters..................................................................................................................................................................16

2.3.18 Hardware info.................................................................................................................................................................17

2.3.19 Hardware monitor...........................................................................................................................................................17

2.3.20 LCD contrast....................................................................................................................................................................18

2.3.21 Set Keylock code.............................................................................................................................................................18

2.3.23 Service............................................................................................................................................................................18

2.3.24 The Smartcard function..................................................................................................................................................19

...............................................................................................................................

..................................................20

3.1 Turn-On/Turn-Off muting..............................................................................................................................................................20

3.2 Short circuit protection.................................................................................................................................................................20

3.3 Thermal protection.......................................................................................................................................................................20

3.4 DC fault protection.......................................................................................................................................................................20

3.5 Input/Output protection................................................................................................................................................................20

....................................................................................................................................................................21

4.1 Cleaning.......................................................................................................................................................................................21

........................................................................................................................................................................................21

4.3 Error codes................................................................................................................................................................................21

...................................................................................................................................................................................22

................................................................................................................................................................................22

........................................................................................................................................................................22

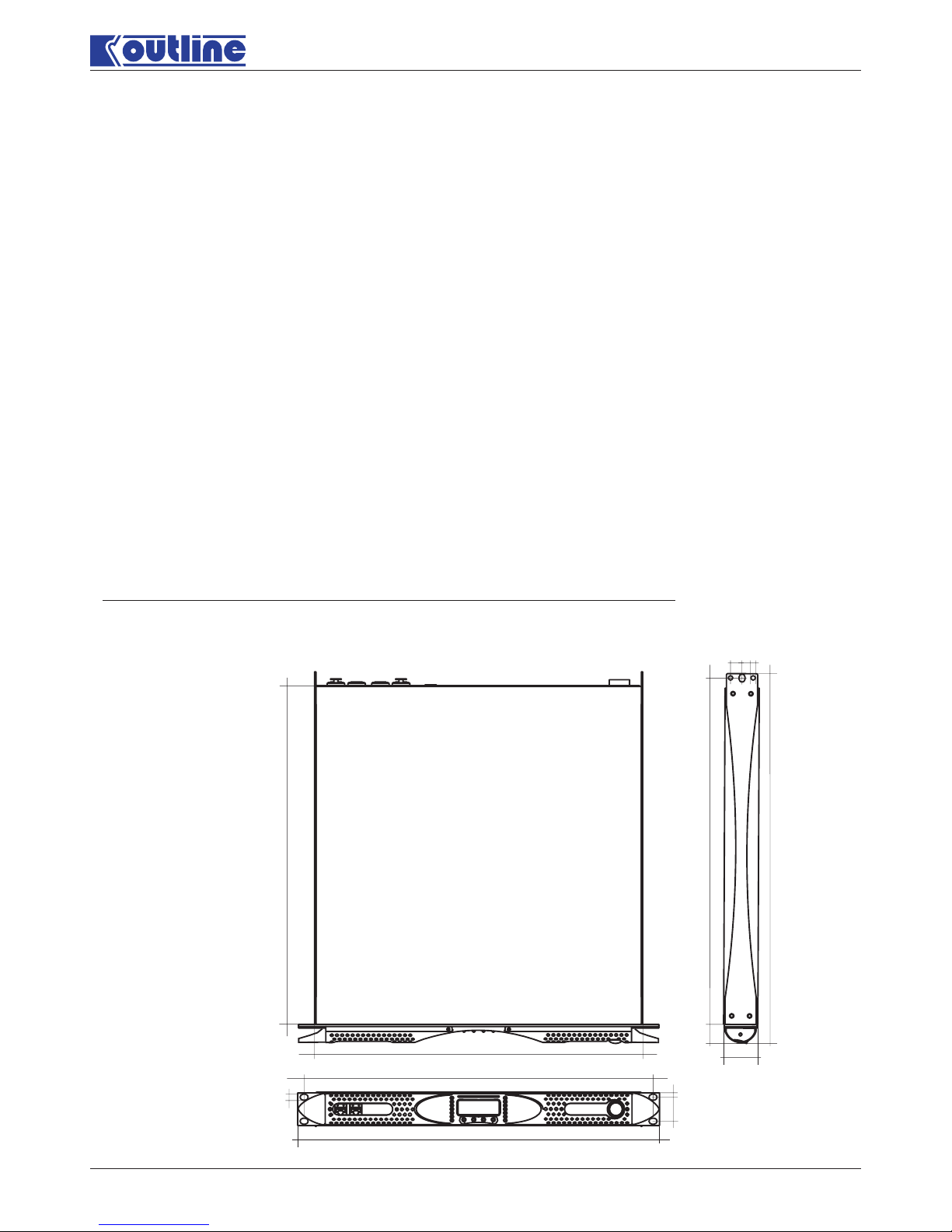

7.1 General Dimension..............................................................................................................................................................................22

7.2 Block diagram...............................................................................................................................................................23

Approvals

Warning Notice................................................................................................................................................................2

2.3.10 DSP Settings...................................................................................................................................................................15

2.3.11 Ethhernet Settings...........................................................................................................................................................15

2.3.16 Amplifier Name................................................................................................................................................................16

2.3.17 Local preset.....................................................................................................................................................................16

2.3.22 Menu locking...................................................................................................................................................................18

4.2 Dust removal

4.4 Service................................................................................................................................................................................21

7.3 Technical specifications...............................................................................................................................................................24

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

1

E

Important safety instructions

CAUTION

RISK OF ELECTRIC SHOCK

DO N OT OPEN

!

CAUTION:

SAFEGUARDS: Electrical energy can perform many useful functions. This unit has been engineered and
manufactured to assure your personal safety. Improper use can result in potential electrical shock or fire
hazards. In order not to defeat the safeguards, observe the following instructions for its installation, use and
servicing.

To reduce the risk of electric shock, do not remove the cover. No user-serviceable parts inside. Refer

servicing to qualified service personnel.

KEEP THIS INSTRUCTIONS

The Outline T Series is installed according to the Canadian Electrical Code or National Electrical Code, as applicable.

T Eleven - T Nine - T Seven
This equipment has been tested and found to compliant by Competent Body (Directive 89/336/EEC-EMC) pursuant to
the product family standard for audio professional use:
EN 55103-1 and EN 55103-2 standard ); EN61000-3-2,EN61000-3-3.
Conducted Emissions : Electromagnetic Ambient E1, E2, E3 / Class B
Radiated Emissions : Electromagnetic Ambient E1, E2, E3 / Class B
In a domestic environment this product may cause radio interferences in which case the user may be required to take
adequate measures.
This equipment has been tested and found to comply by Notified Body (Directive 2006/95/EEC L.V) pursuant to the
audio apparatus safety requirements: Standard EN 60065.

(*) T Five pending

T Five(*)
This equipment has been tested and found to compliant by Competent Body (Directive 89/336/EEC-EMC) pursuant to
the product family standard for audio professional use:
EN 55103-1 and EN 55103-2 standard ); EN61000-3-2,EN61000-3-3.
Conducted Emissions : Electromagnetic Ambient E1, E2, E3 / Class B
Radiated Emissions : Electromagnetic Ambient E4, E5 / Class A
Radiated Emissions : Electromagnetic Ambient E1, E2, E3 / Class B (**)
In a domestic environment this product may cause radio interferences in which case the user may be required to take
adequate measures.
(**) Additional round snap ferrite (of at least 145 Ohm @ 25 Mhz and 265 Ohm @ 100MHz) on Output cables and
Mains Cord allows to fulfill Electromagnetic Ambient E1, E2, E3 / Class B on radiate Emissions.
This equipment has been tested and found to comply by Notified Body (Directive 2006/95/EEC L.V) pursuant to the
audio apparatus safety requirements: Standard EN 60065.

Approvals

Warning notices

LOCATION: Install the amplifier in a well-ventilated location where it will not be exposed to high temperature or

humidity.
Do not install the amplifier in a location that is exposed to direct rays of the sun, or near to hot appliances or radiators.
Excessive heat can adversely affect the cabinet and internal components. Installation of the amplifier in a damp or
dusty environment may result in malfunction or accident.

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

2

The Sound of Big Ideas

This device must be powered exclusively by earth connected mains sockets in electrical networks compliant to the IEC 364
or similar rules.
Is absolutely necessary to verify this fundamental requirement of safety and, in case of doubt, require an accurate check by
a qualified personnel.
The constructor cannot be considered responsible for eventual damages caused to persons, things or data for the missing
of accurate earth link.

Before powering this device verify that the amplifier is supplied with the correct voltage rating.
Verify that your mains connection is capable to satisfy the power ratings of the device.
Do not spill water or other liquids into or on the unit.
Do not use this unit if the electrical power cord is frayed or broken.
Do not remove the cover. Removing the cover will expose you to potentially dangerous voltage.
No naked flame sources such like lighted candles should be placed on the amplifier.
Provide sectioning breaker between mains connections and apparatus. Suggested device is 32A/250Vac, C or D
curve, 10KA
The inlet power supply cord plug is useful as disconnection device
The power cord type is LAPP CABLE OLFLEX191 3G6 / SJT 3XAWG10 SALCAVI (Bahoing SJT 3x16AWG or I­sheng SGIS 3G1,5mmq for T Five)

Contact the authorized center for ordinary and extraordinary maintenance

·

·

·

·

·

·

·

·

·

.

The Outline T Series amplifiers are among the most powerful professional amplifiers available and are capable of producing
much more power than many loudspeakers can handle. It is the user's responsibility to use suitable speakers with the
amplifier and to use them in a sensible way that will not cause damage. Outline will not be responsible for damaged
speakers. Consult the speaker manufacturer for power-handling recommendations. Even if you reduce the gain using the
amplifier's front panel attenuation controls, it is still possible to reach full output power if the input signal level is high
enough.
A single high-power crescendo can damage high-frequency drivers almost instantaneously, while low-frequency drivers can
usually withstand very high, continuous power levels for a few seconds before they fail. Reduce power immediately if you
hear any speaker "bottoming out" - harsh pops or cracking distortion that indicate that the speaker voice coil or diaphragm
is striking the magnet assembly. Outline recommends that you use amplifiers of this power range for more headroom
(cleaner sound) rather than for increased volume.

A Outline T Series amplifier is capable of producing hazardous output voltages. To avoid electrical shock, do not touch any
exposed speaker wiring while the amplifier is operating.

This manual contains important information on operating your T Series amplifier correctly
and safely. Please read it carefully before operating your amplifier. If you have any questions,
contact your Outline dealer.

Safety Rules

Speaker output shock hazard

Speaker damage

Precautions regarding installation

WARNING:

Placing and using the amplifier for long periods on heat-generation sources will affect performances. Avoid placing the
amplifier on heat-generating sources. Install this amplifier as far as possible from tuners and TV sets. An amplifier installed
in close proximity to such equipment may cause noise or degradation of the picture.

To prevent fire or electric shock:

The ventilation should not be impeded by covering the ventilation openings with items such newspapers, table­clothes, curtains etc.
Do not expose this equipment to rain or moisture.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the apparatus”.

·

·

·

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

3

E

Introduction

Outline is a leading company in the field of high efficiency audio power management. The totally new DIGAM (DIGital
AMplifier) technology has changed the way the world looks at professional audio amplification. No other amplifiers
come close for applications demanding high power and long term reliability. Thanks to amazing reductions in heat
output along with reductions in weight and the specific high output power, T Series amplifiers can be used in an
unlimited range of applications such as concert touring, opera houses, theatres, churches, cinema, theme parks,
television sound stages and industrial applications.

More sound and less weight

Totally Digital with High Reliability

Compared to a conventional amplifier, Outline T Series technology offers very high efficiency and delivers more power
to the loudspeakers with much reduced heat dissipation. This greater efficiency enables dimensions, weight and power
consumption to be reduced. The output stages of the amplifiers typically run at 95% efficiency, dissipating only 5% of
the input energy as heat.

One of the most interesting characteristics is that efficiency is almost independent of output level. Conventional
amplifiers achieve their best efficiency only at full rated power output. Since standard music has an average power
density of 40% of the maximum level, conventional amplifiers can easily generate 10 times more heat than T Series
for the same volume of sound.

Crystal-clear highs, and a tight, well-defined low end: the most accurate reproduction of an audio signal. Patented
design features ensure very high performance in parameters such as distortion, frequency response, slew rate, power
bandwidth and dumping factor.

The T Series is based on PWM technology that has been used for 30 years or more in power supplies and inverters.
PWM provides high reliability, small size, low weight and high efficiency. A PWM converter works as a high frequency
sampler, converting the variable amplitude (audio) signal into an impulse sequence with average value equal to the
audio input.
T Series amplifiers use very high sampling frequencies to obtain high performances across the audio band.

Outline adopt Power Factor Correction. This feature ensures that a predominantly resistive load is presented to mains,
minimizing current distortion and voltage/current displacement This leads to much improved performance of the
amplifier at high levels of output and avoids mains-voltage collapses, typical of standard and switching power
supplies. Another great advantage of this technology is that its performance is, to a large extent, independent of mains
voltage. The rated output power does not vary with load/line conditions.

T Series has many advanced features, Digital control of many parameters, adjustable maximum mains consuption,
selectable digital presets and a graphic display that shows detailed information of the status of the amplifier. You can
appreciate the functionality of these and a lot of other features by reading this manual

T Series is completely protected against every possible error in operation and is designed to work under every
condition. It gives you maximum power with maximum safety and increases long-term reliability. Anticipating potential
problems at the design stage means your show always goes on!

Superior Sound-Sonic Accuracy

The Best Amplifier for Your Mains

The T Series

The Show Always Goes On

carefully.

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

4

The Sound of Big Ideas

1 Installation and operation

1.1 Unpacking

Carefully open the shipping carton and check for any noticeable damage; t

Every Outline amplifier is completely tested and inspected before leaving the factory and should arrive in perfect
condition. If you find any damage, notify the shipping company immediately. Be sure to save the carton and all packing
materials for the carrier's inspection.

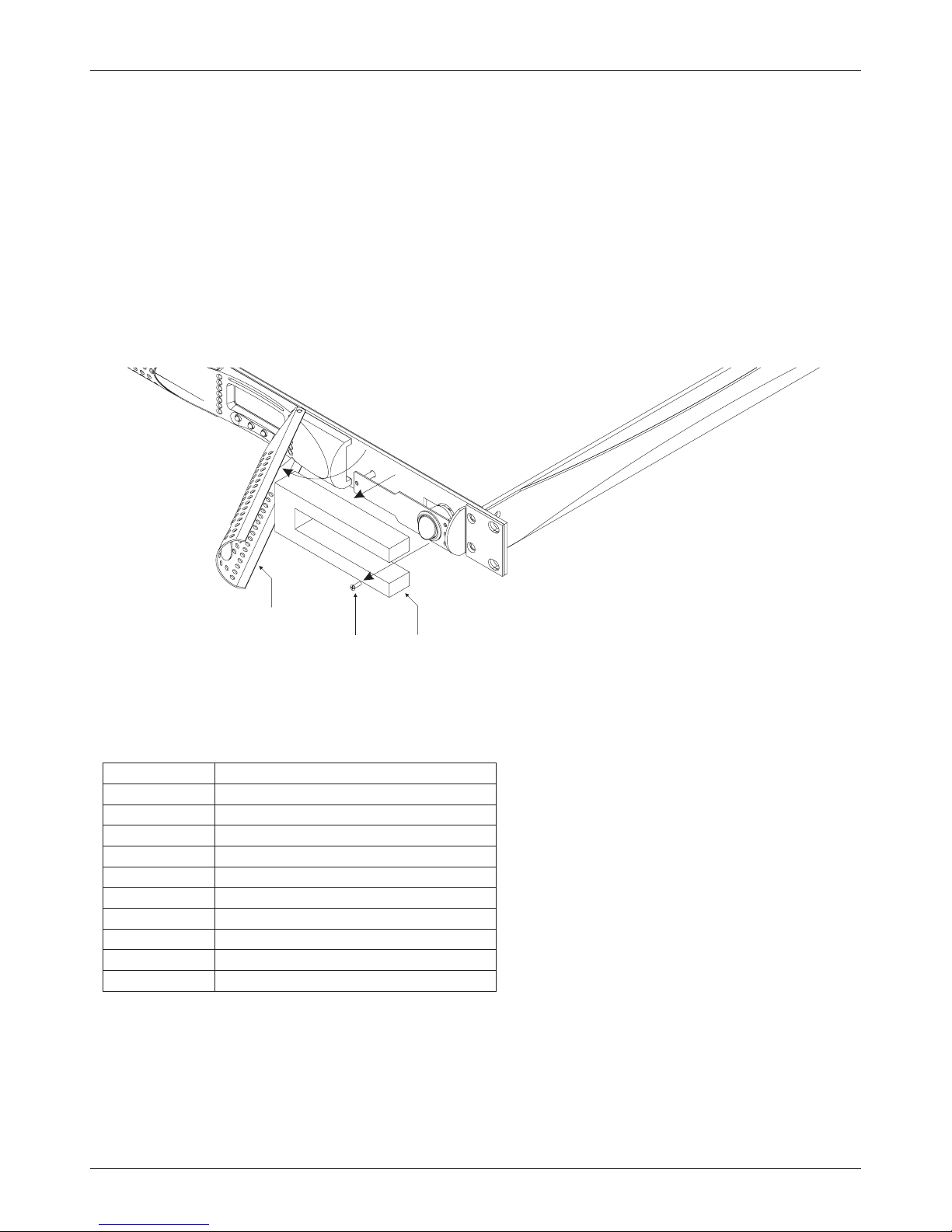

he figure below shows the exploded view of the

packing.

figure 1.1

Manual

Amplifier

Mains cable

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

5

E

1.3 Operating Precautions

Make sure the AC mains voltage is correct and is the same as that printed on the rear of the amplifier. Damage caused
by connecting the amplifier to improper AC voltage is not covered by the warranty. Make sure the power switch is off
before making any input or output connections.
It is always a good idea to have the gain controls muted during power-up to prevent speaker damage if there is a high
signal level at the inputs.
Whether you buy them or make them, use good-quality input and speaker cables. Most intermittent problems are
caused by faulty cables. Use good-quality connectors and wire, along with good soldering technique, to ensure
troublefree reliability.

1.4 AC Mains connection

The AC Main connection is made via the CPC type connector (IEC20Afor T Five) on the rear side of the panel. The
figure below shows the connection to the amplifier. Be sure that your AC mains power source has the requirements
indicated in this manual.

Is important to connect the ground for safety, do not use adapters that disable the ground.

The T Series amplifier has an automatic power factor correction system for a perfect mains
network interface. The amplifier is a resistive load for the mains network, minimizing the reactive power and the
harmonic distortion on the current. The system allows performance to be maintained even in circumstances of varying
the mains voltage.

1.2 Mounting

All T Series amplifiers are previewed for the standard 19" rack mounting; there are four front panels holes and fout rear
lateral holes. The amplifiers must be fixed into rack in both sides, back and frontal, to avoid mechanical damages. Your
amplifier uses a forced-air cooling system to maintain a low, even operating temperature. Drawn by an internal fan, air
enters through the slots in the front panel and courses over and through components. The T Series amplifiers feature
an "intelligent" variable-speed DC fan which is controlled by heat sink temperature sensing circuits: the fan speed will
increase only when the temperature of either heat sink requires it, which keeps fan noise to a minimum and helps cut
dust accumulation inside. Under extreme thermal load, the fan will force a very large volume of air through the heat
sinks. If either heat sink gets too hot, its sensing circuit will reduce the output power. If the amplifier overheats, another
sensing circuit shuts down its circuit to cut off power until it cools to a safe temperature.
The exhaust cooling air is forced out through the rear of the chassis (see figure 1.2.1), so make sure there is enough
space around the sides of the amplifier to allow the air to escape. If it is rack mounted, make sure the exhaust air can
flow without resistance. If you are using a rack with closed backs, there must be at least one standard rack space of
opening in the front of the rack for every four amplifiers. Amplifiers may be stacked directly on top of each other (no
space needed between units), starting from the bottom of the rack.

figure 1.2.1

air flow

figure 1.4.1

T Five only

MAINS

T

U

R

N

T

O

L

O

C

K

CAUTION!RISK OF ELECTRIC SHOCK: DO NOT OPEN

Vac GND

other T models

open the lock
and insert the plug

lock the plug

MAINS

GROUND

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

6

The Sound of Big Ideas

1.5 Connecting Inputs. Input connections are made via the 3-pin XLR-female type or 1/4" phone Jack connectors on the

rear side of the amplifier. The polarity is shown in figure 1.5.1.

The figure below shows the connection of analog input for balanced and unbalanced line. You can use both configuration,
but you must consider that unbalanced long line can introduce noise in the audio system. The Link switch located in the
rear panel is for direct paralleling the rear input connectors. You can use the remaining input connector to carry signal to
other amps.

IN(-)
IN(+)

GND

Balanced input

IN(+)

SHIELD

Unbalanced input

/

figure 1.5.2

figure 1.5.1

OUT2

IN2 IN1

OUT1

T

U

R

N

T

O

L

O

C

K

T

U

R

N

T

O

L

O

C

K

“WARNING

Toreduce The Risk of Fire

orElectric Shock, do not

Exposethis Apparatus

toRain or Moisture”

LINK

ON OFF

CLASS2 WIRING

pin2 - IN(+)

pin3 - IN(-)

pin1 - GND

IN(+)

IN(-)

GND

For T Five, the input connections are showed in the figure below; analog input for balanced and unbalanced line is also
available for this models.

pin2 - IN(+)

pin3 - IN(-)

pin1 - GND

pin 2 - IN(+)

pin1 - GND

pin 3 - IN(-)

signal source input
XLR female connector

signal source output
XLR male connector

XLR female

XLR male

T Five model

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

7

1.6 Connecting Outputs

Warning: there are lethal voltages at the loudspeaker connectors when the amplifier is turned on. To prevent any
damages turn the amplifier off before connecting the loudspeaker

Output connectors are made via neutrik speakon connectors. Consult the wire gauge chart to find a suitable wire gauge to
minimize power and damping factor losses in the speaker cables. The outputs can also work on bridge mode. For each
device the 1+ and 2+ pins of speakon connector are connected inside and have to be considered the positive output of the
channel; the 1- and 2- pins of speakon connector are connected inside and have to be considered the negative output of
the channel.
Note: Channel B is always polarity reversed output stage, but polarity compensated by feeding the minus pins of the
channel B output with the output voltage. Channel A is connected in the polarity mode. By having channel A and B
operating in opposite polarity, the energy storage in the power supply is more efficient. This is significant for signals below
100Hz (sub bass etc.) and improves the power bandwidth. Be sure to use balanced inputs on all measurement

equipment (also oscilloscope probes) in you are bench testing.

figure 1.6.1

OUT2

IN2 IN1

OUT1

T

U

R

N

T

O

L

O

C

K

T

U

R

N

T

O

L

O

C

K

“WARNING

Toreduce The Risk of Fire

or Electric Shock,do not

Expose thisApparatus

to Rain orMoisture”

LINK

ON OFF

CLASS2 WIRING

CH1

OUT

stereo mode

bridge mode

+

_

2+

2-

1-

1+

CH2

OUT

+

_

2+

2-

1-

1+

CH1

OUT

+

_

2+

2-

1-

1+

CH2

OUT

2+

2-

1-

1+

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

8

The Sound of Big Ideas

1.7 Connecting Remote Control

You can control the amplifier via a RS48;

connection. The same figure shows also the ID selection for Remote Control (in this case ID=

28); to change the ID, rotate the selectors at the desired value. The selected ID value also is shown in Hardware info
section ( see par 2.3.18 ).

The figure 1.7.1 shows the connection of the data cable to the plug located to the

rear panel of the amplifier.

ID selection example

ID=28

8 pin

modular

plug

(1+ PARALLEL2+) = POSITIVE
(1- PARALLEL 2- ) = NEGATIVE

OUTPUTS

ANALOG INPUTS
XLR ANALOG : 1=GND 2=IN+ 3=IN­JACK: SHELL=GND TIP=IN+ RING=IN­DIGITALINPUT (OPTIONAL)
XLR AES/EBU : 1=GND 2=IN+ 3=IN-

-Series

TECHNOLOGY

figure 1.7.1

485+

485-

Vext

GND

Pin Layout

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

9

1.8 AUX Input CH1/CH2

These inputs are automatically selected in place of the line input CH1/CH2 when an external voltage of 24V DC is applied
through the AUX COMMAND input, these inputs can be used for emergency signals as pre-recorded evacuation messages
or similar alarm messages.

1.9 Alarm CH1/CH2

Relays output 24V outputs to command external equipment; alarm relays output normally closed, open for reporting
amplifier faults

1.10 AES/EBU Input

On DSP equipped amplifiers CH2 is the AES/EBU input.

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

10

The Sound of Big Ideas

2.2 The main screen

The figure 2.2.1 show the main screen; this screen appears after a short presentation when the user powers on the
amplifier. In the first line, after power on, the writing "WAIT" appears; if the system parameters are normal, the writing
are replaced with "READY". During the normal operation the controller monitors the system parameters. If a
paramenter is out of range, the correspondent code error is written on the LCD meter of the relative channel in the
third line; if the abnormal parameter is associated to both channel, the error code is written in the center.

2 Setup and settings

2.1 Introduction

The figure below shows the front panel of Outline T Series. The front panel controls, in conjuction with the graphic LCD
display above the buttons, give to the user the total control and detailed information about the status of the amplifier.
Each pushbutton has multiple functions and the display shows the current active function for each button.
Read carefully the instructions below that help you to manage the functions of the amplifier.

figure 2.1.1

The LED bars can function as output voltage or output current meters; in the first case the LCD meters function as
output current meter, viceversa in the second case.

The LED bars have diagnostic function also; a flashing yellow LED indicates a critic range of temperature (from 80°C
to 85°C)of the power devices on the corresponding channel, if this LED is lighting constantly, the temperature is above
85°C. A lighting constantly red LED indicates that the corresponding channel is under protection and in this case the
writing "PROT" appears in the first line of the display.

The first green LED at the bottom side of the LED bar indicates,
when lighted, the presence of input audio signal above -60 dBV on the corresponding channel; the 2nd, 3rd and 4th
LED in the ascending order indicates an output level of -3dB, -6dB and -10dB rispectively. The green LEDs will be
lighted during normal working. The yellow LED will light at -1 dB. If the level of the audio signal reach the channel
output capability, red LED will be triggered.

lock

mute mute

menu

CH1 READY READY CH2

VI

I

V

figure 2.2.1

A

B

C DEFGHI

J

K

A - Ethernet plug n° 1
B - Ethernet plug n° 2
C - V/I-meter channel n° 1
D - Smartcard reader
E - Function button n° 1
F - Function button n° 2

G - Function button n° 3
H - Function button n° 4
I - Graphic LCD display
J - V/I meter channel n° 2
K - Power switch
L - Grill filter screws

L

L

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

11

The fourth line of the screen shows the functions of the buttons below.
The "lock" function is activated if the corresponding button is pressed more than 1 second; in this case all the other buttons
are locked. The same operation unlocks these buttons (unlock code is required - see par. 2.3.17 for more details).
The "mute" buttons switch off the two channels independently; in this case the parameters of the correspondent channel
disappear and the writing "muted" appears on the third line. The same operation disables the mute function.
If the "menu" button is pressed, the main menu is displayed on the LCD screen.

2.3 The main menu

The figure 2.3.1 shows the main menu. You can scroll the menu items by pushing the up or down buttons and choose the
selected one by pushing "ok" (if the chosen item enables or disables a function, the writing "on" is replaced with "off" for
disabling it, or "on" for enabling it. The menu tree is shown in figure 2.3.2.

menu

Settings

Display

Local Preset

figure 2.3.1

figure 2.3.2

back

menu Settings

Output attenuation
Input gain/sens
Input select
Max output voltage
Max mains current
Clip limiter CH1
Clip limiter CH2
Gate CH1
Gate CH2
Mute at Power on

Display Bar meters

Output meters
Temperature
Mains meters

Setup

Hardware info
Hardware monitor
LCD contrast

Amplifier Settings

Idle Mode

DSP Settings (or not present) *
Network Settings (or not present) **

Amplifier Name

Setup

Hardware info
Hardware monitor
LCD contrast

Local presets

Recall local preset
Save local preset

Set Keylock code
Menu locking
Service

Analog=>DSP=>Out *
AES3=>Out *
AES3=>DSP=>Out *
Network=>Out **
Network=>DSP=>Out * **

Analog=>Out

* Available only with optional DSP board

** Available only with optional Ethernet board

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

12

The Sound of Big Ideas

To better handle the huge amount of parameters, the single value numeric input mode is extended with a fine/coarse
feature. When you edit one of the parameters, you will start in the “fine” mode. The steps applied by the - and + keys
are the minimum allowable for that parameter. By clicking the “fast” key shown in figure 2.3.3, you will switch in the
“coarse” mode, and the key will be renamed as “slow” as shown in figure 2.3.4 . In the coarse mode, the steps are
equivalent to 10 steps of the fine mode, so that editing will be 10 times faster. Remember that by keeping the - or +
key pressed, the steps are automatically repeated.

figure 2.3.3

back

-

+

Max mains current

22 A rms

fast

back

-

+

Max mains current

22 A rms

slow

figure 2.3.4

2.3.1 Output attenuation

The figure 2.3.5 shows the Output attenuation screen. You can choose to set CH1, CH2 or both by pushing the "C1+2"
button. The "+" and "-" buttons change the value of the output attenuation in the range from 0 to -30dB.

Note: for the best sonic performance it is preferred to set the 0db output attenuation (no attenuation), and
select the proper gain/sensitivity by the following menu.

figure 2.3.5

back

-

+

C1+2

dB

-13

Output attenuation

-13

2.3.2 Gain/Sensitivity

The figure 2.3.6 shows the Gain/Sensitivity screen. You can choose to set CH1, CH2 or both by pushing "C1+2"
button. The "+" and "-" buttons change the value of the gain. The values of gains permitted are 26, 29, 32 and 35 dB;
the corresponding values of sensitivity and maximum input voltage are written in the table below.

figure 2.3.6

back

-

+

C1+2

dB

29

29

Gain/Sensitivity

3.62 3.62Vrms

values of sensitivity (Vrms)

values of maximum balanced input

GAIN

ACCEPTANCE

dBV

dBu Vrms
26
29
32
35

25,0
21,6
19,0
15,6

27
24
21
18

18
12

9
6

GAIN

MODEL

26
29
32
35

T Seven T Nine

T Eleven
5,10
3,62
2,55
1,81

5,50
3,90
2,75
1,96

6,32
4,45
3,16
2,23

T Five

5,29
3,76
2,66
1,88

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

13

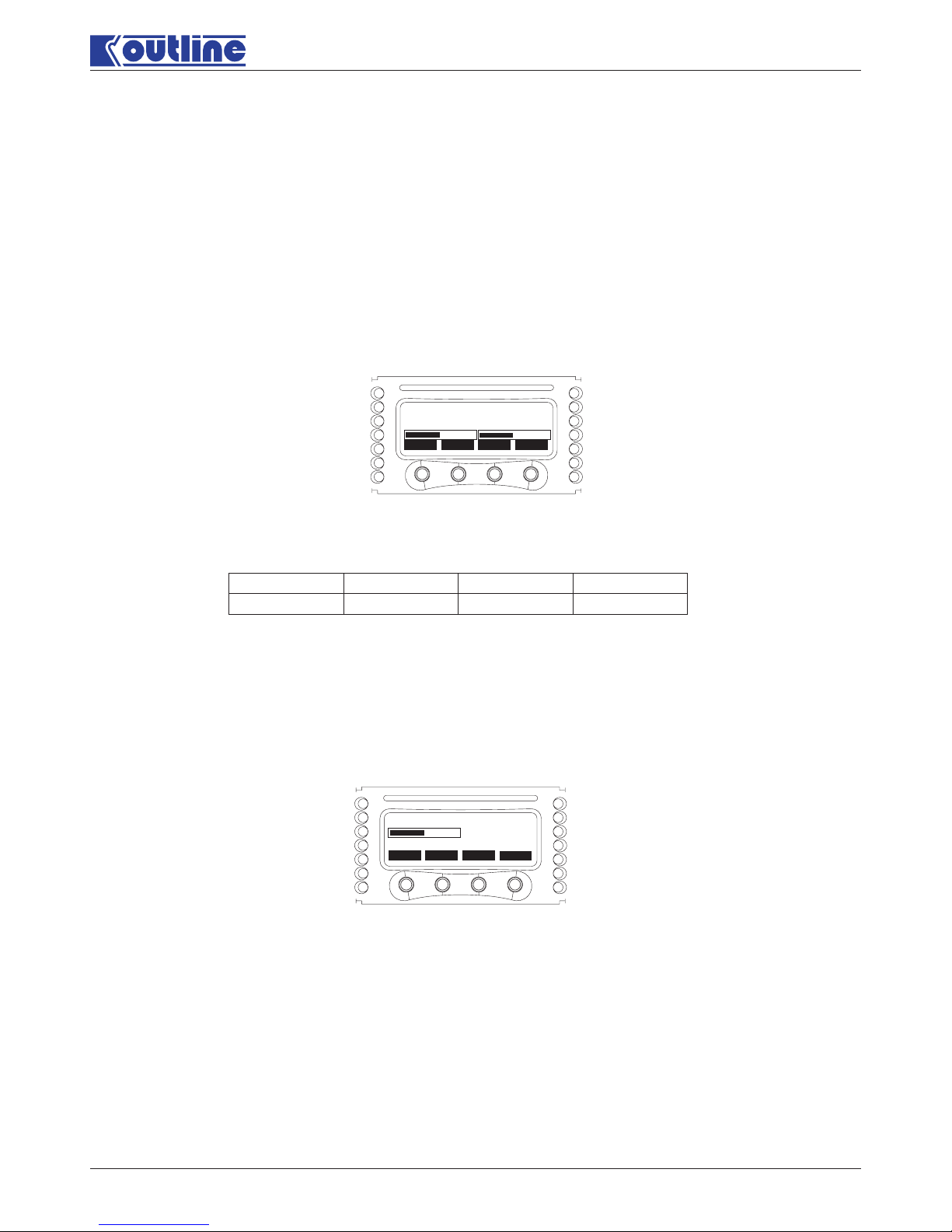

2.3.5 Max mains current

The figure 2.3.8 shows the Max mains current screen. The "+" and "-" buttons change the value of the max mains current
input in the range from 15 to 32A (8 to 16A for T Five). Maximum mains current limit set the rms value at which a C-Type
current breaker will trip-off.

figure 2.3.8

2.3.6 Clip limiter CH1 - CH2

Enable this function to prevent the distortion due to excessive amplitude of output .signal You can enable/disable it by
pushing the on/off button.

.

CAUTION: There is the risk of damage to the loudspeakers, if Clip Limiters are deactivated. You should not
deactivate Clip Limiters unless their function is taken over by external devices, such as digital system controllers.
In such cases it is mandatory, to properly adjust parameters in the external device

2.3.3 Input select

You can choose among three different input modes (if available): Analog, Digital AS3* with or without DSP processing and
Ethernet**. The up and down buttons change the selection; the "sel" button locks the selected option.

* Available only with optional DSP board
** Available only with optional Ethernet board

2.3.4 Max output voltage

The figure 2.3.7 shows the Max output voltage screen. You can choose to set CH1, CH2 or both by pushing "C1+2"
button. The "+" and "-" buttons change the value of the max output peak voltage. The ranges available are showed in the
table below

back

-

+

C1+2

Vpeak

102

Max output voltage

102

figure 2.3.7

MODEL

T Seven

T Nine

T Eleven

from 40 to 200

from 40 to 169

from 40 to 153

Values of peak voltage (V)

T Five

from 40 to 165

back

-

+

Max mains current

22 A rms

fast

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

14

The Sound of Big Ideas

2.3.7 Gate CH1 - CH2

This function allows to mute the amplifier channels individually if input signal amplitude is falling below the values shown in
the following table. You can enable/disable it by pushing the on/off button. Gating the output is delayed by 5 seconds after
input signal removal, and follows in reversed way the bottom green LED on the CH1, CH2 bar LED display *(muted if green
LED is off).

2.3.12 Bar meters

In the Bar meters screen you can choose if the LED bars operate as output voltage meter and LCD bar in the main screen
as output current meter (by selecting "LED Volt, LCD Curr), or viceversa (by selecting the other item).

2.3.13 Output meters

In the Output meters screen you can view the values of the output signal for CH1 and CH2. Furthermore, the impedance of
the load is showed in the bottom line of the screen (see figure 2.3.9). Minimum of output voltage for impedance
measurements is 10Vrms, measurements values are stored into logbook. Time between single impedance measurements
can be up to several minutes depending on program signal. Output power is shown as maximum value every 200 mS.

figure 2.3.9

back C1+2

0 Arms

0 Vrms

0 Watt

Zload=8.0

2.3.9 Idle Mode

The idle mode function is a power saving feature. By activating it, if the amplifier doesn't detect the signal for the user
defined amount of time, the output stage is turned off, saving about 40 W of power per channel. This means reduced
heating, longer amplifier and fans life, and, especially for fixed installation permanently turned on, a lower electricity bill.

2.3.8 Mute at power on

If enabled, the amplifier will be always in mute state for both channels at power on; you can mute off the channels
independently in the main screen, but in this mode the amplifier will be in the mute state at the next power on.

2.3.10 DSP Settings

This sections is implemented if optional DSP board is present.

2.3.11 Ethernet Settings

This sections is implemented if optional Ethernet board is present.

In "C1+2" mode the screen shows the output values in bridge connection.

GAIN

(dB)

26
29
32
35

-54

-57

-60

-63

dBu

mVrms

-52

-55

-58

-61

2

1,41

1

0,707

TRESHOLD VALUES OF INPUT SIGNAL DETECTOR

dBV

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

15

E

2.3.14 Temperature

In the Temperature screen you can view the historic temperature diagram of the last four hours of the final current use in
the range from 10 to 90°C; in the bottom-right side of the screen there is the present value (see figure 2.3.10).

figure 2.3.10

2.3.15 Mains meters

In the Mains meters screen you can view the voltage and the current of the mains (see figure 2.3.11).

back

Mains meters

170 Vrms

figure 2.3.11

20 Arms

back

38°C

E

2.3.16 Amplifier Name

The amplifier name, together with the current preset name, can be displayed by enabling the “Display amplifier data”
function. The 20 characters amplifier name, together with the 40 characters preset name is shown in an different way when
the amplifier is in the starting page of the main menu. The amplifier name can be assigned by the “Edit amplifier name”
command (for the text editing, see Local preset handling section).

2.3.17 Local preset

There is the possibility to store up to 50 presets on amplifier local memory.
By choosing the Save local preset command, the current amplifier configuration (basic amplifier settings + TDSP board
settings if DSP board is present) is stored on the local memory. To proceed, the menu asks to choose one of the 50
available presets (see figure 2.3.12), showing the preset number and name. If the preset was never used, it is named
<empty>. By pressing ok, you can enter the preset name. The selected character is pointed by the arrow shown in
Figure 2.3.13, and by pressing or + keys it is modified. By pressing sel key, next character is selected as shown in figure

2.3.14. When the name input is finished, by pressing the ok key, the preset is stored

figure 2.3.12

figure 2.3.13 figure 2.3.14

back

Select preset #1

<empty>

back

<-

->

ok

back

Choose preset name

PRESET 1

back

-

+

sel

back

Choose preset name

18 SET 1

back

-

+

sel

^^

The Recall local preset command loads and applies one of the stored presets, choosen through an identical dialog. Please
note that all the current amplifier settings are overwritten!

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

16

The Sound of Big Ideas

Note that if you have already input a preset name, or if you have loaded a preset from local memory or smartcard, the
name is kept by the amplifier and used as starting point for a new save preset operation.
For example, suppose that you have loaded a preset named “18IN SUB 1” from a SC, and then you save it into local
memory as shown in figure 2.3.15. In this case the menu shown in figure 2.3.16 asks you if you want to keep/edit that
name (shown figure 2.3.17) or if you would like to edit the name of the preset that is going to be overwritten (shown
figure 2.3.18). This is useful for copying presets from/to smartcard.

figure 2.3.15

figure 2.3.16 figure 2.3.17

back

Select preset #3

Existing Preset

back

<-

->

ok

back

Keep this name?

18IN SUB 1

no

-

+

yes

back

Choose preset name

-

+

sel

^

figure 2.3.18

back

Choose preset name

-

+

sel

^

18IN SUB 1

Existing Pre

ok

ok

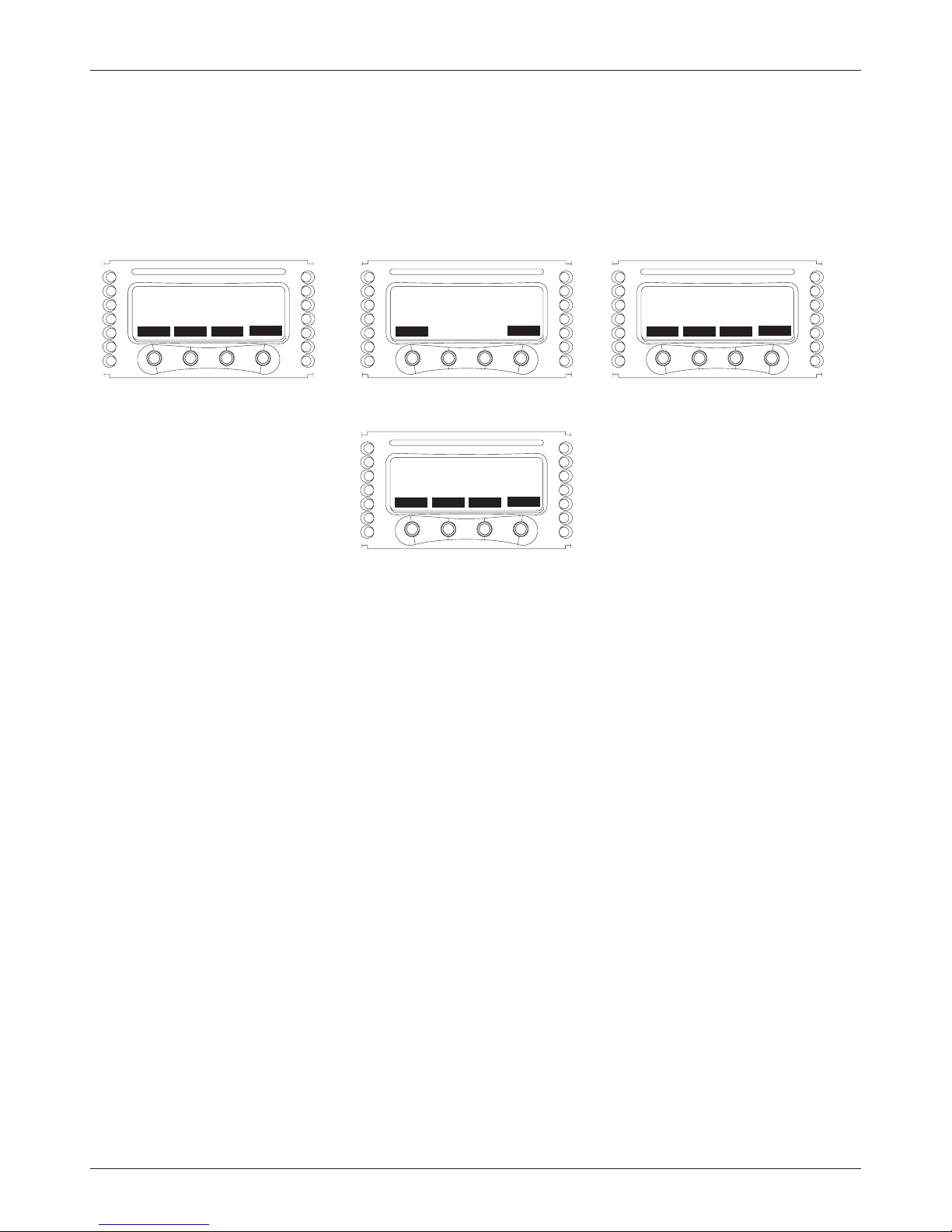

2.3.18 Hardware info

In this screen you can view some information about the hardware of the amplifier:

the serial number of the amplifier

the hardware identifier (selectable by rear panel rotary encoders)

if you push the "more" button, you can view the other info

the version number of the front panel
the version number of the controller

the version number of the DSP board

the version number ethernet adapter

if you push the "more" button, you can view the other info

the operating time of the amplifier

·

·

·

·

·

·

·

S/N
HW ID

KFRNT
KCTRL
KDSP
KETH

Lifetime

2.3.19 Hardware monitor

In this screen you can view some information about the system parameters:

amplifier power supply voltages channel 1-2

internal auxiliary voltages

auxiliary analog voltage

external remote control voltage

if the "OK" written is displayed, auxiliary voltages of power supply are correct.

DC/DC converter monitor function properly

Power Supply primary KBUS (Vboost)
Clock frequency

·

·

·

·

·

·

·

·

·

PWRBSCH1 - PWRBSCH2
VAUX

+5VAN
VEXT
VAUX
IGBTCONV
192KHZ

if you push the "more" button, you can view the others parameters:

if the "OK" written is displayed, the

if the "OK" written is displayed, the frequency system clock is right

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

17

back

-

+

sel

000000

Set keylock Code

^

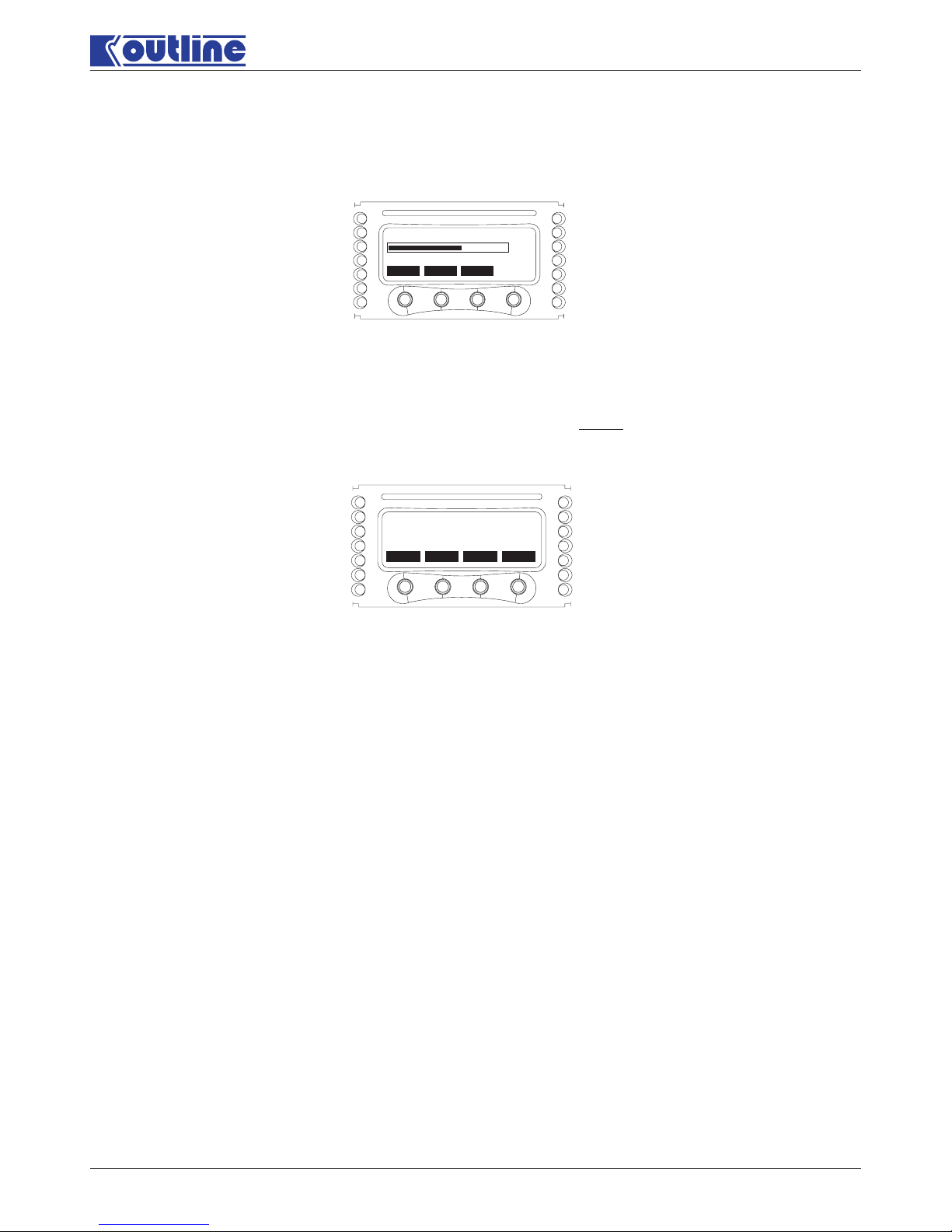

2.3.21 Set keylock code

In this screen you can insert the numeric key to unlock the settings; the same screen appears when the "unlock" button in
the main screen is pressed. There is a universal key to unlock the settings: this is .270156

figure 2.3.20

2.3.22 Menu locking

In addition to the basic pushbutton locking function, a new menu locking strategy was introduced. There are three levels of
locking: All locked, Allow safe, Allow all.

: only the menus for displaying infos are enabled, the other are hidden. Presets cannot be loaded.

: user can change from Analog input to AES3 input, always with DSP into the signal path. Some common DSP
parameters can be changed (AES3 gain trim, main delay, DSP input selection)*. Only local presets can be recalled, and
they should be all safe for the speaker system connected to that amplifier (example: HF driver 3 dB, HF driver 0 dB, HF
driver +3 dB).

: all settings menus are enabled. User can recall presets from either local memory or smartcard.
Furthermore, local presets can be made Read-Only by enabling the “Lock presets” function, in order to preserve the original
settings stored on the amplifier.
The lock code, when set different from 000000, protects the whole Menu locking submenu.

All locked
Allow safe

Allow all

* Available only with optional DSP board

2.3.20 LCD contrast

In this screen you can set the contrast of the LCD display by pushing the +/- buttons (see figure 2.3.19).

back

-

+

Contrast

6

figure 2.3.19

2.3.23 Service

The key to activate this function is factory reserved.

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

18

The Sound of Big Ideas

2.3.24 The Smartcard function

There is the possibility to store up to 150 presets for each settings smartcard . The menu is
activated when the smartcard is inserted in the amplifier, the main page of the menu is selected. The store and
recall procedures are identical to those used for local presetsas shown in figure 2.3.22.

(shown figure 2.3.21)

only if

figure 2.3.21

contacs on the

bottom side

back

ok

Recall local preset

Save local preset

You can select the desired option by pushing up or down button and "ok" to activate it. The option "Recall local preset”
does not appear if the smartcard is blank.

figure 2.3.22

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

19

3 Protection

3.1 Turn-On/Turn-Off muting

For about four seconds after turn-on, and immediately at turn-off, the amplifier outputs are muted.

3.2 Short circuit protection

A short circuit protection system safeguards the amplifier's output transistors under short circuits and other stressful loads.
It is completely inaudible when inactive. In case of short circuit, the red LED will be light-up and writing "PROT" appears in
the first line of the display(see Par. 2.2 for a detailed description). The amplifier will reset himself 5 times every 2 seconds.
Once 50 resets have been performed and the fault still exisst on the output, the unit sets into steady protection mode. Turn
ON/OFF cycle is needed to restart the unit.

3.3 Thermal protection

A T series amplifier uses a continuously variable speed fan to assist cooling (the fan speed changes in response to the
amplifier's cooling needs). If the heat sink temperature reaches approximately 80°C, the yellow LED starts to flashing. If the
temperature is more then 85°C the thermal sensing circuitry will mute each power section channels, the LED will light
permanently and the power supply will be cut off. Once the heatsink has cooled down, the amplifier will automatically reset
and the LED will be go out. It is possible to reduce the temperature by reducing the output power.

3.4 DC fault protection

If DC or excessive subsonic energy appears at a channel output, an instantaneous protection circuit will cut off the power
supply for both channels. Power supply shutdown is used instead of speaker relays, thereby improving the damping factor
and reliability of the amplifiers.

3.5 Input/Output protection

An ultrasonic network decouples RF from the outputs and keeps the amplifier stable with reactive loads.

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

20

The Sound of Big Ideas

4.2 Dust removal

Especially in a dusty environment, the front side filters clog with dust after prolonged use, this will interfere with cooling.
You may use compressed air to remove the dust from filters. To remove air filters see fig(3.4.1) , unscrew n° 2 M2,5X8
screw and rotate the covering grill; repeat the same operation on the other side.

figure 4.3.1

4 User maintenance

4.1 Cleaning

Disconnect the amplifier from the AC main source first; use a soft cloth and mild non-abrasive solution to clean the
faceplate and chassis.

4.4 Service

There are no user-serviceable parts in your amplifier. Refer servicing to qualified technical personnel.
In addition to having an in-house service department, Outline supports a network of authorized service centers. If your
amplifier needs repair, contact your Outline dealer or distributor, or contact the Outline Technical Service department, to
obtain the location of the nearest authorized service center.

4.3 Error Codes

Error code Error descr.

1

192KHz clock not present

2

Positive 15V aux

4

Negative 15V aux

8

Positive 5V analog

100

Negative power bus Ch1

200

Negative power bus Ch2

2000

Positive power bus Ch1

4000

Positive power bus Ch2

8000

External auxiliary voltage

Check rail fuses

Check rail fuses Ch1 and Ch2

The error code value displayed in the main screen is
the sum of the single error code value.
Example: 4301=4000+200+100+1
Positive power bus Ch2
Negative power bus Ch2
Negative power bus Ch1
192KHz clock not present

means

+
+
+

screw filter

coverage

grill

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

21

5 Warranty

Outline prides itself on the quality and reliability of its products that are designed and manufactured to meet the highest
quality standards. We are also proud of the great care we assure to our customers. We are confident that you will never
have a need to take advantage of this warranty, but in the unlikely event of a failure or deviation in performance, we'll do
our very best to get you swiftly back in business.

Outline amplifiers warranty is calculated from the original date of purchase from an Authorized Outline Dealer. During this
time, if your amplifier fails for any defect in components and/or labour under a correct and regular use, it will be repaired or,
at our sole opinion, replaced without any charge a part for the transport expenses to return the unit at Outline premises.
The repaired/replaced amplifier will be finally returned to you with the original shipping carton at our charge.

The Warranty conditions will not be applied in case the amplifier has been ulteriorly damaged by repair attemps,
inadequate or poor packaging, any kind of improper use/maintenance (overvoltage, incorrect connection, use with wrong
or faulty associated equipment or accessories, exposure to rigid weather conditions, excess moisture, etc…).

Warranty terms will not be consider for any unit where the serial number has been removed and or it is not clearly
readable. Outline is not responsible for any incidental or consequential damages; the responsibility is limited to the product
itself. Outline reserves the right to make changes or improvements in design or manufacturing without assuming any
obligation to change or improve product previously manufactured.

6 Assistance

The local Outline distributor/resellerwill beglad to supportyou incase offault or forany additionalinformation.
If you cannot contactyour localdistributor/reseller,please mailto [e-mail]

Do not ship anyunit toOutline for FactoryService beforehaving hadthe Outline authorization.

7 Technical notes

7.1 General Dimension

25

466

497

440

456

465

6.25
32

44.5

16 6

8

483 (19")

(338 for T Five)

(348 for

T Five)

(380 for

T Five)

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

22

The Sound of Big Ideas

7.2 Block diagram

The figure 7.1.1 shows the the output stage block diagram, the figure 7.1.2 shows the power supply block diagram.

figure 7.1.1

+

_

INPUT CH1

+

_

GAIN

SELECTION

DSP

OPTION

ETHERNET

OPTION

OUTPUT

ATTENUATOR

OUTPUT MAX

VOLTAGESELECTOR

OUPUT STAGE

(NOT INVERTING)

FUSES

P

P

POWER RAIL

BUS +/-

1+

2+

2-

1-

ETHERNET

CONNECTION

INPUT

SIGNAL

DETECTOR

P

OUPUT STAGE

CURRENT LIMITER

HF

LIMITER

CLIP

LIMITER

TEMPERATURE

CONTROL

POWER SUPPLY

CURRENT LIMITER

P

P

P

FROM

POWER SUPPLY

PATH

SELECTOR

link

switch

P

P

+

_

INPUT CH2

+

_

GAIN

SELECTION

DSP

OPTION

ETHERNET

OPTION

OUTPUT

ATTENUATOR

OUTPUT MAX

VOLTAGESELECTOR

OUPUT STAGE

(INVERTING)

FUSES

P

P

POWER RAIL

BUS +/-

1+

2+

2-

1-

ETHERNET

CONNECTION

INPUT

SIGNAL

DETECTOR

P

OUPUT STAGE

CURRENT LIMITER

HF

LIMITER

CLIP

LIMITER

TEMPERATURE

CONTROL

POWER SUPPLY

CURRENT LIMITER

P

P

P

FROM

POWER SUPPLY

PATH

SELECTOR

OUTPUT CH2

OUTPUT CH1

P

P

DC DETECTOR

SHUTDOWN

TO POWER

SUPPLY

DC DETECTOR

SHUTDOWN

TO POWER

SUPPLY

FAN

FAN

FUSES

MAINS
FILTER

MAINS
VOLTAGE
MONITOR

BRIDGE

RECTIFIER

PFC

CONVERTER

RESONANT

CONVERTER

RESONANT

CONVERTER

CONTROLLER

PFC

CONTROLLER

IGBT CONV OK

(TO )

P

Vboost OK

(TO )

P

MAINS
CURRENT
MONITOR

P

P

FRONT
PANEL

SWITCH

P

(REMOTE ON/OFF)

AUXILIARY

SUPPLY

Vaux OK
(TO )

P

TEMPERATURE

CONTROL

OVERCURRENT

CONTROL

P

POWER RAIL

BUS +/-

AUXILIARY
SUPPLY+

AUXILIARY
SUPPLY+

AUXILIARY
SUPPLY-

AUXILIARY

SUPPLY

SHUT DOWN

SHUT

DOWN

FAN

figure 7.1.2

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

23

E

7.3 Technical specifications

POWER REQUIREMENTS

Power supply..............................................................................................................................115÷230V(-15%, +15%)

Power factor............................................................................more than 0,95 (0,90 for T Five) from 500W to full power

Operating temperature ................................……………...……..................................................................... 0° C, 45° C

Weight..............................................................................................................8Kg (17,6 lbs) for T Five, 12Kg (26,5 lbs)

External dimensions...........................................Standard rack 19" (W), 1 Units (H), 497mm (D), 380mm (D) for T Five

AUDIO SECTIONS

Bandwith (1W, 8Ohm)...................................................................................................................20Hz, 20KHz ±0,2 dB

Damping factor (8Ohm)......................................................................................................... ....(20Hz, 200Hz) > 5000

Slew Rate (8Ohm)............................................................................................................50V/uS (input filter bypassed)

S/N ratio....................................................................... >112 (T Five), >108 (T Seven), >109 (T Nine), >110 (T Eleven)

Distortion THD…………………………………………………..... Max < 0.5% from 1W to full power (typically < 0.05%)

Intermodulation SMPTE …………………………..………...……. Max < 0.5% from 1W to full power (typically < 0.05%)

Intermodulation DIM 30................................................................ Max<0.5% from 1W to full power (typically < 0.05%)

Inputs.....................................Balanced to ground, XLR female combo jack 6.3mm; XLR with parallel on XLR (T Five)

Impedance...........................................................................................................10KOhm each leg balanced to ground

Gain …………………………………………………………….….…………………...…....26, 29, 32, 35dB, user selectable

Outputs… ………………..…....High current Neutrik 4-pole Speakon connectors (pins 1+ 2+ paralleled,1-2- paralleled)

OUTPUT SPECIFICATIONS

Power WATT (EIAJ)

Stereo mode

(1KHz, 1% THD)

FEATURES

2 Ohm

8 Ohm

4 Ohm

Bridged mono

2800 3600 4800 6000
2600 2500 3000 4000
1400 1300 1500 2000

T Five T Seven T Nine T Eleven

4 Ohm

16 Ohm

8 Ohm

Worldwide mains operating voltage
Power Factor Correction (PFC)
LED bar indicator
Over-temperature Forecasting
Thermal protection
Short - Circuit protection
Over-Load
Output protection
Temperature controlled air cooling system
Clip limiter and permanent signal limiter
LCD matrix interactive display
Digital gain - attenuation control
Smart Card management
User selectable maximum output power
User selectable maximum mains current draw
Remote control - diagnostic

Option DSP/Ethernet

Max voltage output:

T Five

T Seven

T Nine T Eleven

165V

153V

169V

200V

Max current output:

T Five

T Seven

T Nine T Eleven

75A

85A

85A

85A

n.a. 7200 9600 12000
n.a. 5000 6000 8000
n.a. 2600 3000 4000

T Five T Seven T Nine T Eleven

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

24

The Sound of Big Ideas

Professional amplifiers

T Series

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

27

This page left intentionally blank

Outline carries out on-going research for product improvement. New materials, manufacturing methods and design upgrades
are introduced to existing products without prior notice as a routine result of this philosophy. For this reason, any current
Outline product may differ is some aspect from its description, but will always equal or exceed the original design
specifications unless otherwise stated.

© Outline 2008
Operating manual product
Release: 081201
Printed in Italy

code: Z OMTSERIES

NOTES

Outline s.r.l. - Via Leonardo da Vinci, 56 - 25020 Flero (Brescia) - Italy

Tel. [phone] Fax [phone] — Web Site: www.outline.it E-Mail: [e-mail]

The Sound of Big Ideas
