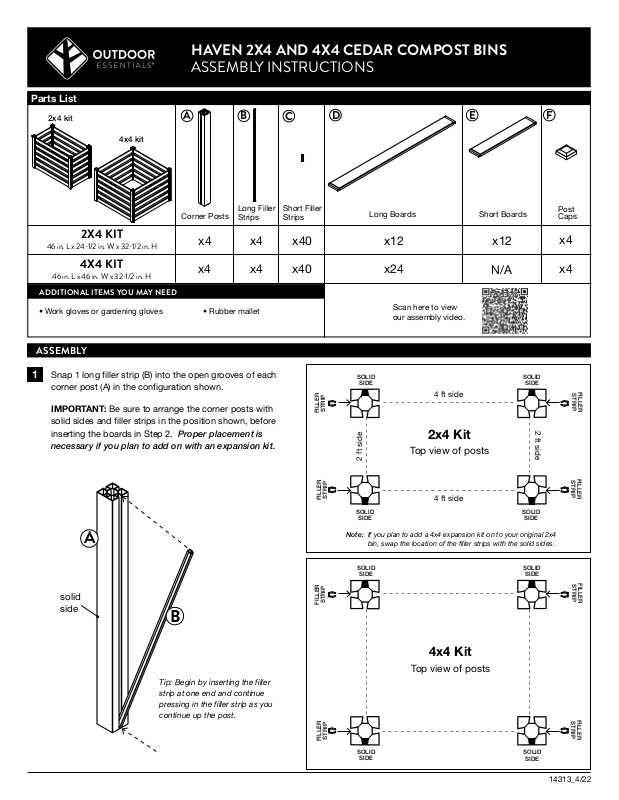

Page 1
Parts List
HAVEN 2X4 AND 4X4 CEDAR COMPOST BINS
ASSEMBLY INSTRUCTIONS
2x4 kit
4x4 kit
2X4 KIT
46 in. L x 24-1/2 in. W x 32-1/2 in. H
4X4 KIT
46 in. L x 46 in. W x 32-1/2 in. H
ADDITIONAL ITEMS YOU MAY NEED
• Work gloves or gardening gloves • Rubber mallet
A
Corner Posts
Long Filler
Strips
x4 x4 x40
x4
ASSEMBLY
Snap 1 long filler strip (B) into the open grooves of each
1
corner post (A) in the configuration shown.
IMPORTANT: Be sure to arrange the corner posts with
solid sides and filler strips in the position shown, before
inserting the boards in Step 2. Proper placement is
necessary if you plan to add on with an expansion kit.
B
C
Short Filler
Strips
x4 x40
STRIP
FILLER
D
E F
Long Boards Short Boards
SOLID
SIDE
x12
x24
Scan here to view
our assembly video.
4 ft side
x12
N/A
2x4 Kit
2 ft side
Top view of posts
SOLID
SIDE
2 ft side
Post
Caps
x4
x4
FILLER
STRIP
solid
side
A
B
Tip: Begin by inserting the filler
strip at one end and continue
pressing in the filler strip as you
continue up the post.
STRIP
FILLER
SOLID
SIDE
Note: If you plan to add a 4x4 expansion kit on to your original 2x4
bin, swap the location of the filler strips with the solid sides.
SOLID
SIDE
STRIP
FILLER
4 ft side
4x4 Kit
Top view of posts
STRIP
FILLER
SOLID
SIDE
SOLID
SIDE
SOLID
SIDE
SOLID
SIDE
FILLER
STRIP
FILLER
STRIP
FILLER
STRIP
14313_4/22
Page 2
HAVEN 2X4 AND 4X4 CEDAR COMPOST BINS
ASSEMBLY INSTRUCTIONS
ASSEMBLY – continued
2X4 KIT - Insert two long boards (D)
2
on parallel sides into the corner post
grooves, and insert two short boards
(E) on the remaining two sides. Push
boards down to the bottom to create
a base.
4X4 KIT - Insert four long boards (D)
into the inner grooves of the posts
and push boards down to the bottom
to create a base.
Tip: Use a rubber mallet to gently
tap in boards if needed.
Snap 8 short filler strips (C) into the post
3
grooves above each board as shown.
solid
side
D/E
D
solid
side
D
2x4 Kit pictured
D/E
sides with
filler strip
C
C
Page 3
HAVEN 2X4 AND 4X4 CEDAR COMPOST BINS
ASSEMBLY INSTRUCTIONS
ASSEMBLY – continued
2X4 KIT - Repeat steps 2 and
4
3 until all boards (D & E) and all
short filler strips (C) have been
inserted into the corner posts.
4X4 KIT - Repeat steps 2 and
3 until all boards (D) and all
short filler strips (C) have been
inserted into the corner posts.
D/E
D
2x4 Kit pictured
D
D/E
C
D/E
C
D/E
C
D/E
C
Attach the post caps (F) to the top of each post.
5
TIP: Use PVC glue to secure the caps in place (optional).
Do not glue on caps if you plan to add on additional bins.
F
D/E
C
D/E
Your Compost Bin is now
ready to use.
4x4 Kit pictured
See back page for combining multiple kits
Page 4
HAVEN 2X4 AND 4X4 CEDAR COMPOST BINS
ASSEMBLY INSTRUCTIONS
COMPOST BIN CONFIGURATIONS
Need to expand? Check out our Haven Cedar Compost Bin Expansion Kits to learn more. Scan here.
1 - 2x4 Kit and
1 - 2x4 Expansion Kit
1 - 2x4 Kit and
1 - 4x4 Expansion Kit
1 - 4x4 Kit and
1 - 4x4 Expansion Kit
1 - 4x4 Kit and
2 - 4x4 Expansion Kit
THE DI AGRAMS AND INSTRUCTIONS IN T HIS BROCHURE ARE FOR ILLUSTRATION PURPOSES ONLY AND ARE NOT ME ANT TO REPL ACE A LICENSED PROFESSIONAL. A NY CONSTRUCTION
OR USE OF THE PRODUCT MUST BE IN ACCORDANCE WITH ALL LOCAL ZONING A ND/OR BU ILDING CODES. THE CONSUMER ASSUMES AL L RISKS AND LI ABIL ITY ASSOCIATED WITH THE
CONSTRUCTION OR USE OF THIS PRODUCT. THE CONSUMER OR CONTRAC TOR SHOULD TAKE ALL NECESSARY STEPS TO ENSURE THE SAFETY OF EVERYONE IN VOLVED IN THE PROJECT,
INCLUDING, BUT NOT LIMITED TO, WEARING THE APPROPRIATE SA FETY EQUIPMENT. EXCEP T AS CONTAINED IN THE WRIT TEN LIMITED WARRAN TY, THE WARR ANTOR DOES NOT PROVIDE
ANY OTHER WARRANTY, EITHER E XPRESS OR IMPLIED, AND SHA LL NOT BE LIABLE FOR ANY DAM AGES, INCLUDING CONSEQUENTIAL DAM AGES.
©2022 UFP Retail Solutions, LLC. Outdoor Essentials is a registered trademark of UFP Industries, Inc.
All rights reserved. 2801 E. Beltline NE, Grand Rapids, MI 49525 (844) 529-5882
OutdoorEssentialProducts.com
14313_4/22
