Outback THG3710SS-3, THG6710SS-3 Operating Instructions Manual

Photographs are not to scale.
Specifications subject to change
without prior notice.

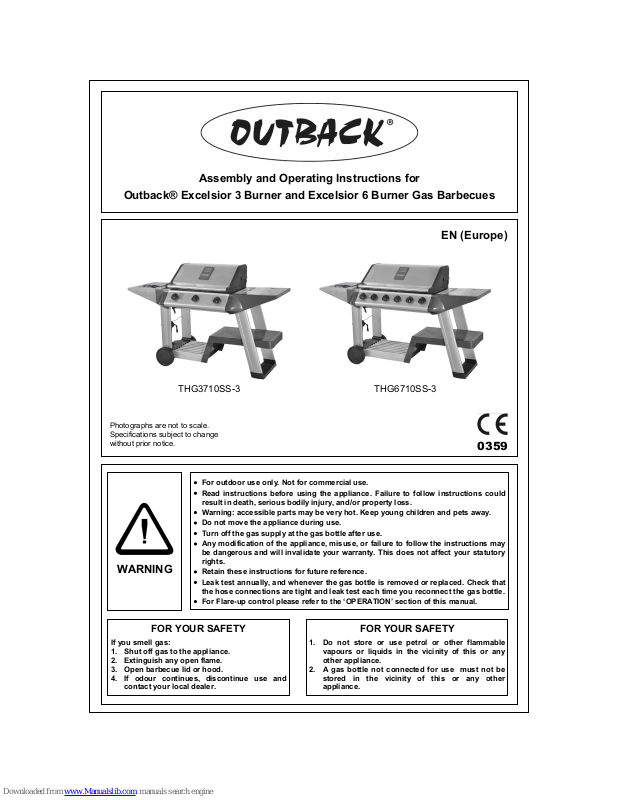

Assembly and Operating Instructions for

Outback® Excelsior 3 Burner and Excelsior 6 Burner Gas Barbecues

0359

EN (Europe)

WARNING

For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory
rights.

Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and
contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.

2. A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.

THG3710SS-3 THG6710SS-3

2

CODE PART QTY

Outback®

Excelsior 3 Burner

Outback®

Excelsior 6 Burner

HOOD

A1 Hood (Pre-Assembled to Body) 1

 

A2 Hood Handle 1

 

A3 Heat Indicator and Nuts 1

 

A4 Warming Rack 1

 

BODY

B1 Barbecue Body 1

 

B2 Burner



3 6

B3 Control Panel 1

 

B4 Knob



3 6

B5 Hose (if supplied)



B6 Lava Rock in Basket / Flame Tamer

  

B7 Cooking Grill 1

 

B8 Cooking Griddle 1

 

B9 Drip Tray Left Bracket 1

 

B10 Drip Tray Right Bracket 1

 

B11 Drip Tray 1

 

B12 Drip Pan 1

 

TROLLEY

C1 Side Burner Shelf 1

 

C2 Side Shelf Shield 1

 

C3 Front Left Endcap 1

 

C4 Rear Left Endcap 1

 

C5 Utensil Tray 2

 

C6 Right Side Shelf 1

 

C7 Right Insert 1

 

C8 Left Front Leg 1

 

C9 Left Rear Leg 1

 

C10 Right Front Leg 1

 

C11 Right Rear Leg 1

 

C12 Bottom Slat Assembly 1

 

C13 Base Tray 1

 

C14 Gas Bottle Holder 1

 

C15 Trolley Foot 1

 

C16 Hubcap 2

 

C17 Wheel 2

 

C18 Axle 1

 

C19 Retaining Rod 1

 

C20 Gas Bottle Strap 1

 

C21 Side Shelf Hook 2

 

C22 Fixing Bracket 2

 

C23 Side Burner Grid 1

 

HARDWARE

D1 M4x15 Bolt 4

 

D2 M5x15 Bolt 4

 

D3

Ø5 Washer

4

 

D4 M5 Nut 4

 

D5 M6x15 Bolt 24

 

D6

Ø6 Washer

4

 

D7 M6x35 Bolt 16

 

D8 1/4-20UNCx12 Bolt 6

 

D9 Locknut 2

 

1. Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

 Pre-Assembled Component
 Quantity varies according to model purchased
 Appearance, size, and construction may differ according to model purchased

3

C17

C16

2. Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

C9

C8

C2

B3

B4

B2

C3

C5 C4 C1

C6 C7

B1

A4

C21

A2

A1

A3

C11

C10

C13

C12

C15

C14

C18

C19

C20

or

B7

B6

B8

C23

D9

B5

C22

B10

B9

B12

B11

4

3. Hardware Reference Diagram

Specifications subject to change without prior notice.

D5

D2、D3、D4

D1

D7

D8

D5、D6

5

Attach the Right Front Leg (C10) to the Trolley Foot (C15).

4. Assembly

IMPORTANT!

TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.
The assembly of this barbecue requires 2 people.
The inlet connection of the gas rail assembly on the barbecue body is lower than the body. You must
never allow the pipe to rest on the ground during assembly as serious damage could result. We
recommend the body is left sitting in the box until required for assembly to trolley.
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.

Please read the Important Information section carefully before assembly and use of your
barbecue.

Attach the Right Rear Leg (C11) to the Trolley Foot (C15). The legs are a push fit onto the
trolley foot and onto the gas bottle holder. In case of difficulty, they may need tapping lightly
with a soft faced mallet. Take care not to damage parts.

2

1

6

Attach the Bottom Slat Assembly (C12) to the Base Tray (C13) using M6x15 Bolts (D5).

Attach the leg assembly to the Base Tray (C13) using M6x15 Bolts (D5).

4

3

7

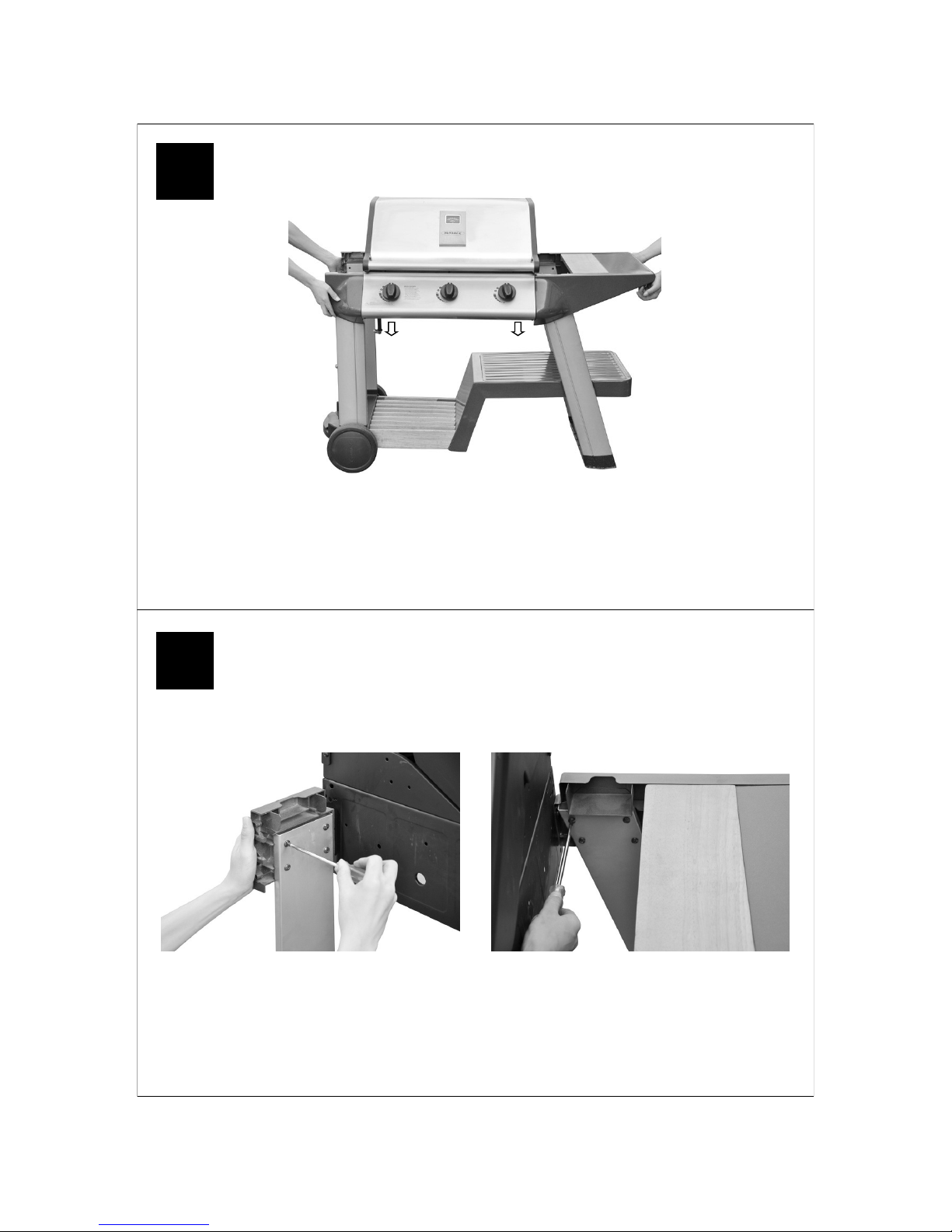

Align the Gas Bottle Holder (C14) with the Bottom Slat Assembly (C12).

Attach the Left Front Leg (C8) and Left Rear Leg (C9) to the Gas Bottle Holder (C14).
Note: Threaded inserts must be facing in the direction shown!

6

5

Threaded

Insert

8

Attach the Gas Bottle Holder (C14) to the Bottom Slat Assembly (C12) using
M6x15 Bolts (D5) and Ø6 Washers (D6).

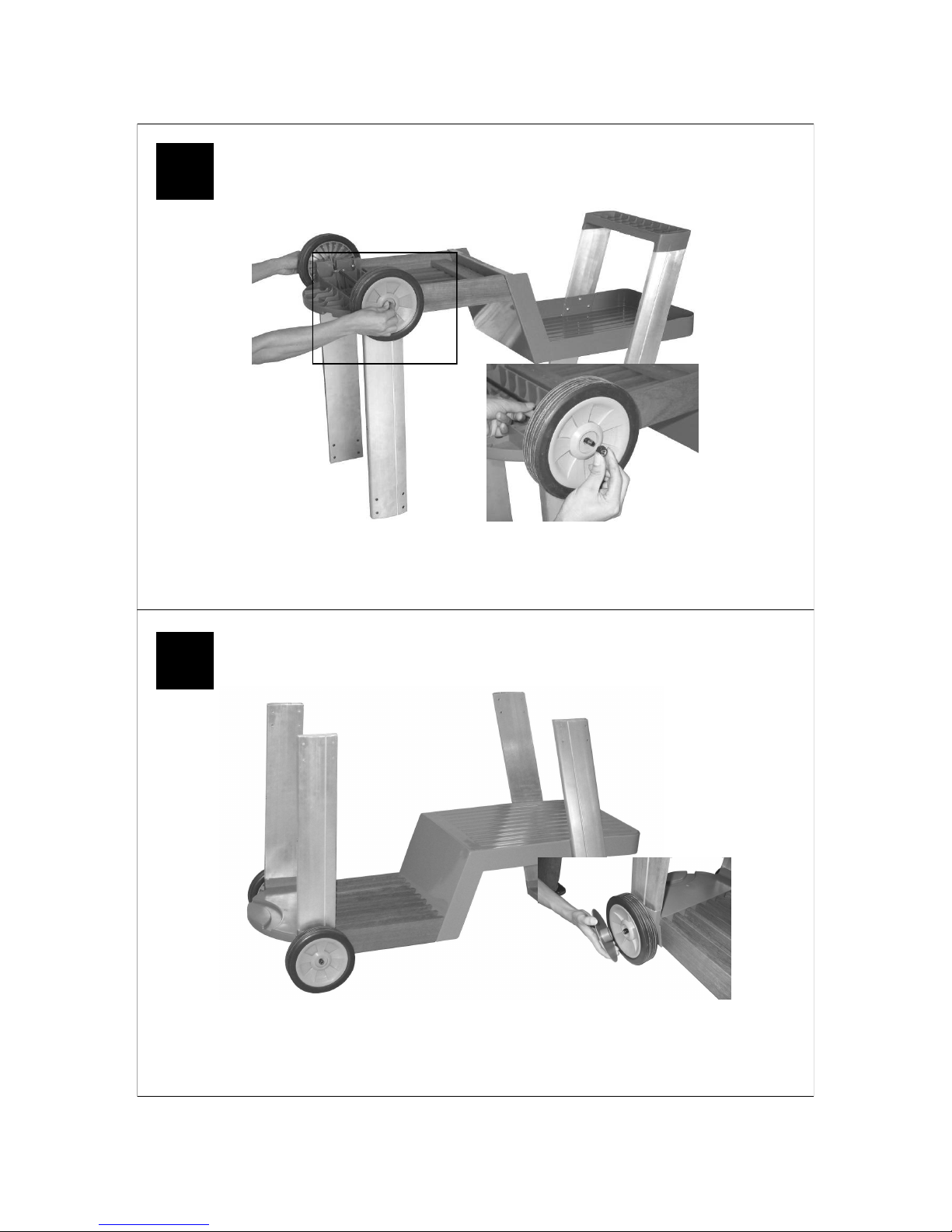

Unscrew the Locknuts (D9) from both ends of the Axle (C18).

Insert the axle through the clamping brackets into the Gas Bottle Holder (C14) and tighten the
clamp bolts. Take care not to over tighten these bolts which will damage the plastic gas bottle
holder.

8

7
