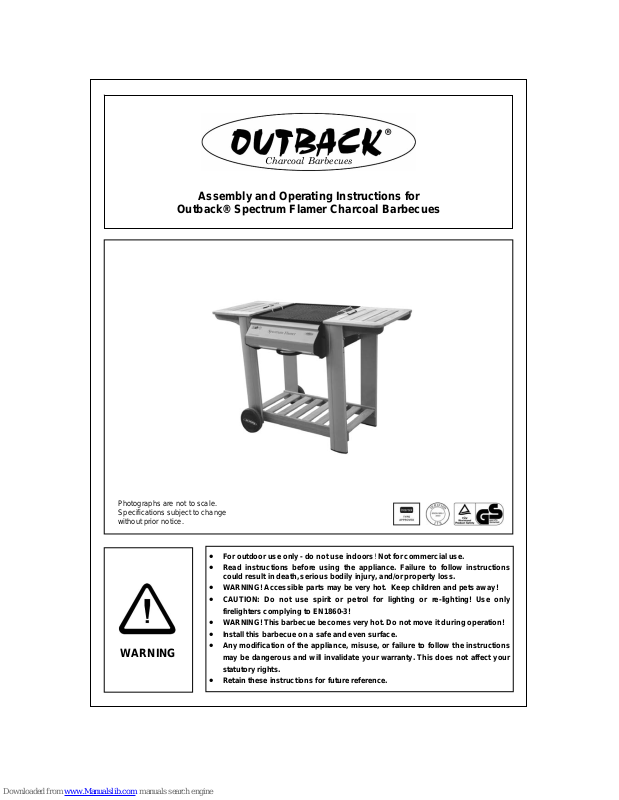

Charcoal Barbecues
Assemb ly and Operatin g Inst ructions f or
Outback® Spectrum Flamer Charco al Barb ecues
WARNING
• For outdoor use only - do not use i ndoor s! Not for commercial use.
• Read instructions before using the appliance. Failure to follow instructions
could res ul t in death, seri ous bodi ly injur y, and/ or pr oper ty loss.
• WARNING! Accessi bl e part s may be very hot. Keep children and pets away!
• CAUTION: Do not use spirit or petrol for lighting or re-lighting! Use only
firelight er s compl ying to EN1860-3!
• WARNING! Thi s bar be cue bec om es v er y hot . Do not m ove it during oper a t i on!
• Install thi s barbecue on a safe and even surface.
• Any modification of the appliance, m isuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory right s.
• Retain these inst r uctions for future r eference.
Photographs are not to scale.
Specifications subject to change
without prior notice.
2
CODE PART QTY
Outback®
Spectrum Flamer
BODY
A1 Grill Lifting Handle 2
A2 Cast Iron Grill 2
A3 Charcoal Basket Handle 2
A4 Charcoal Basket 1
A5 Barbecue Body 1
A6
Front Panel
1
A7 Ash Tray Handle 1
A8 Ash Tray 1
TROLLEY
B1 Side Shelf 2
B2 Front Left Leg 1
B3 Rear Left Leg 1
B4 Front Right Leg 1
B5 Rear Right Leg 1
B6 Leg Endcap 2
B7 Wheel 2
B8 Hubcap 2
B9 Axle 1
B10 Trolley Base 1
HARDWARE
C1 Trolley Bolt 24
C2 Body Support Bolt 8
C3 Spacer 8
C4 Wing Nut 8
C5 Washer 2
C6 Locknut 2
Pre-Assembled Component
A. Parts List
Quantities vary according to model purchased. Specifications subject to change without prior notice. For more
details on hardware, please see ‘Hardware Reference Diagram’.
3
A1
A2
A4
A3
A5
A7
B1. Spectrum Flamer Parts Diagrams
Quantities vary according to model purchased. Specifications subject to change without prior notice. For more
details on hardware, please see ‘Hardware Reference Diagram.’
B1
B10
B9
B7
B8
C5
C6
B2 B3 B4 B5
B6
A6
A8
4
B2. Spectrum Flamer Hardware Reference Diagram
Specifications subject to change without prior notice.
Part C2 (8pcs) Part C3 (8pcs) Part C4 (8pcs)
Part C1 (24pcs)
5
1
D. A ssemb ly
TOOLS NEEDED FOR ASSEMBLY:
Medium size flat blade or Phillips/crosspoint screwdriver, adjustable spanner or metric spanner set
2

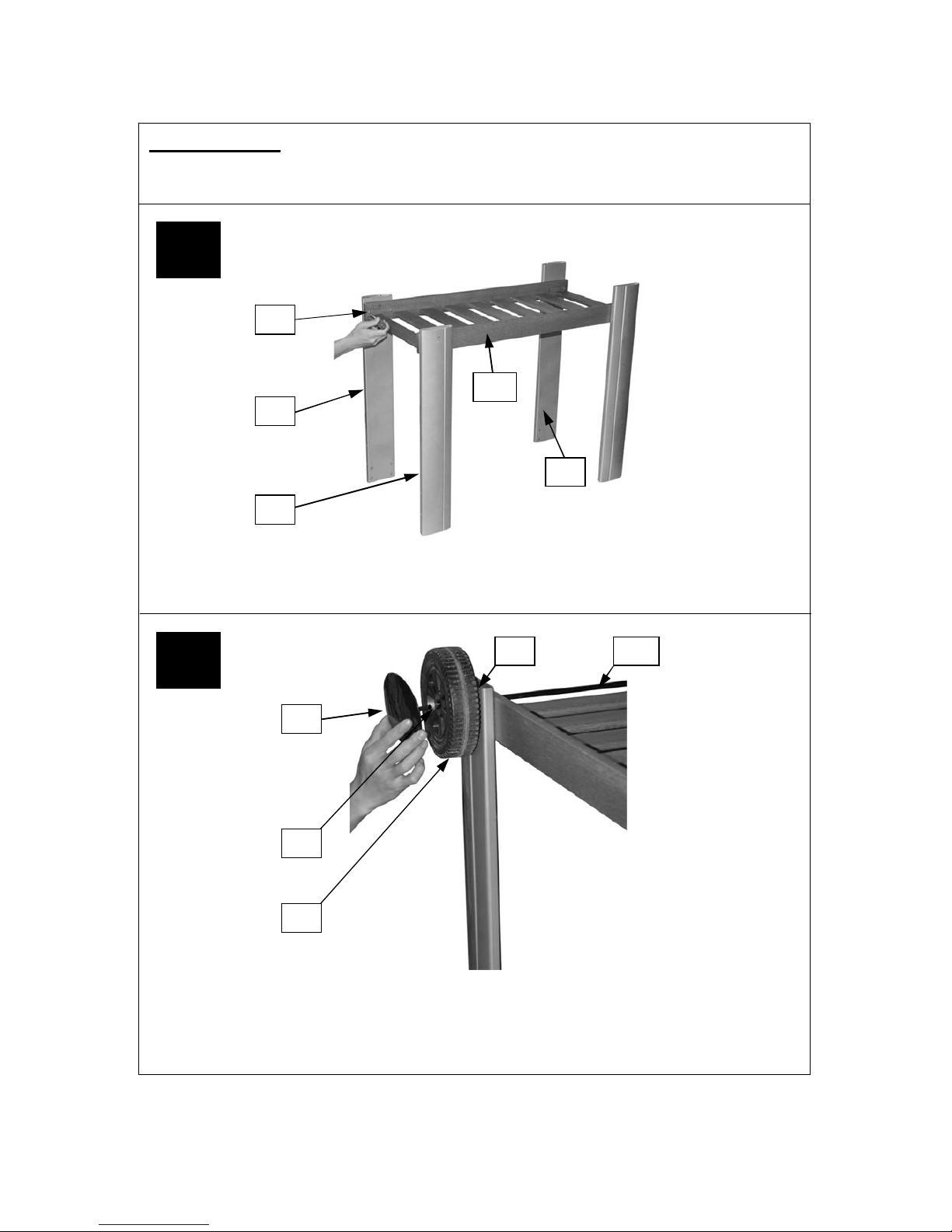

Attach the legs (B2, B3, B4,B5) as shown to the trolley base (B10) using the trolley bolts (C1).
(Photo depicts trolley
from the reverse side)
B3
B2
C1
B10
B4
B8
Slide the axle (B9) through the corresponding holes in the short legs. Place a washer (C5)
on each end of the axle. Slide the wheels (B7) over each end of the axle. Secure the wheels
into place with the locknuts (C6). Snap the hubcaps (B8) into the wheels.
C5 B9
C6
B7
6
Remove all cast iron cooking components, charcoal basket,
ash tray, and any internal packaging from the barbec ue body.
A2
A4
A7
3
4

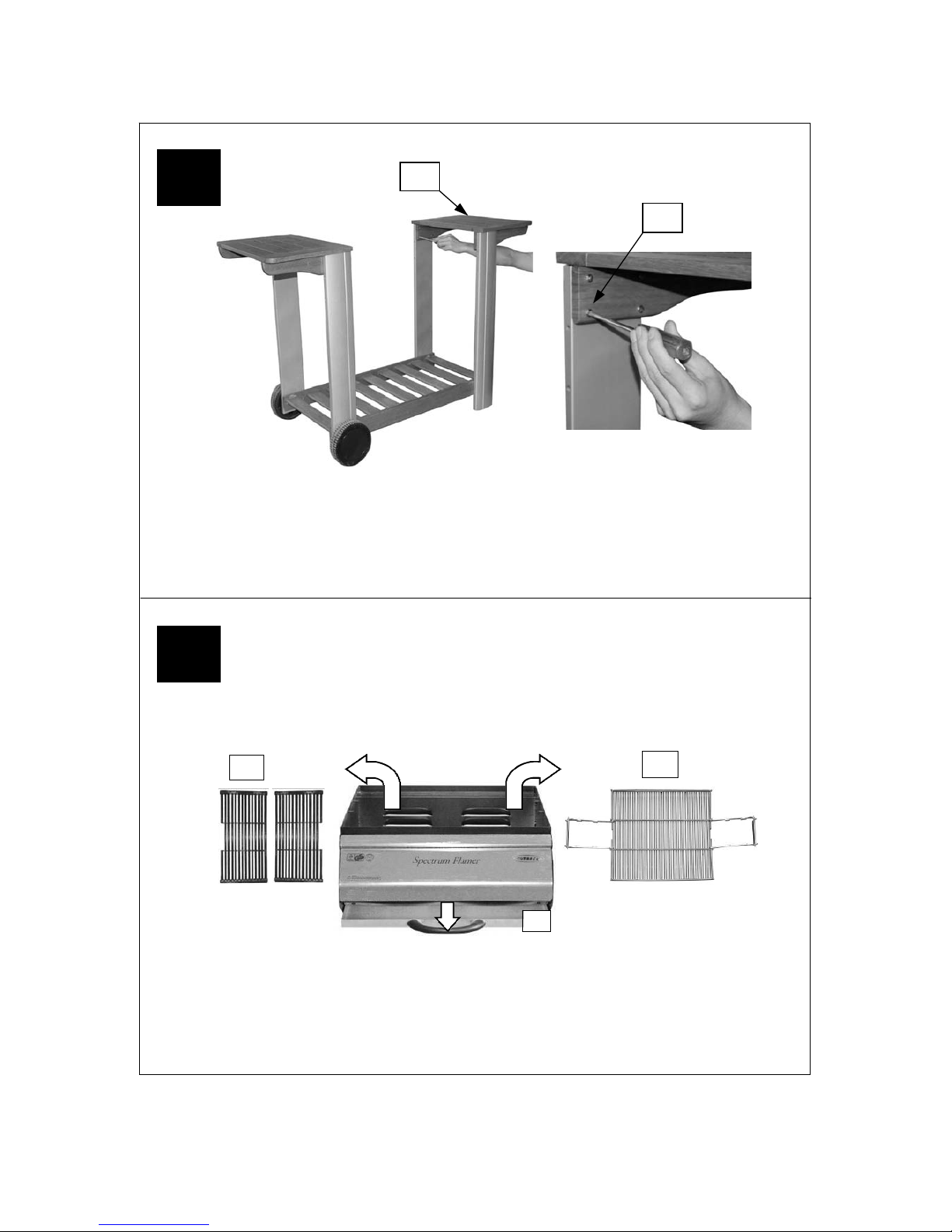

Attach the side shelves (B1) to the front/rear left legs (B2,B3) and front/rea r right legs
(B4,B5) using the trolley bolts (C1).
B1
C1
7
A5
A5

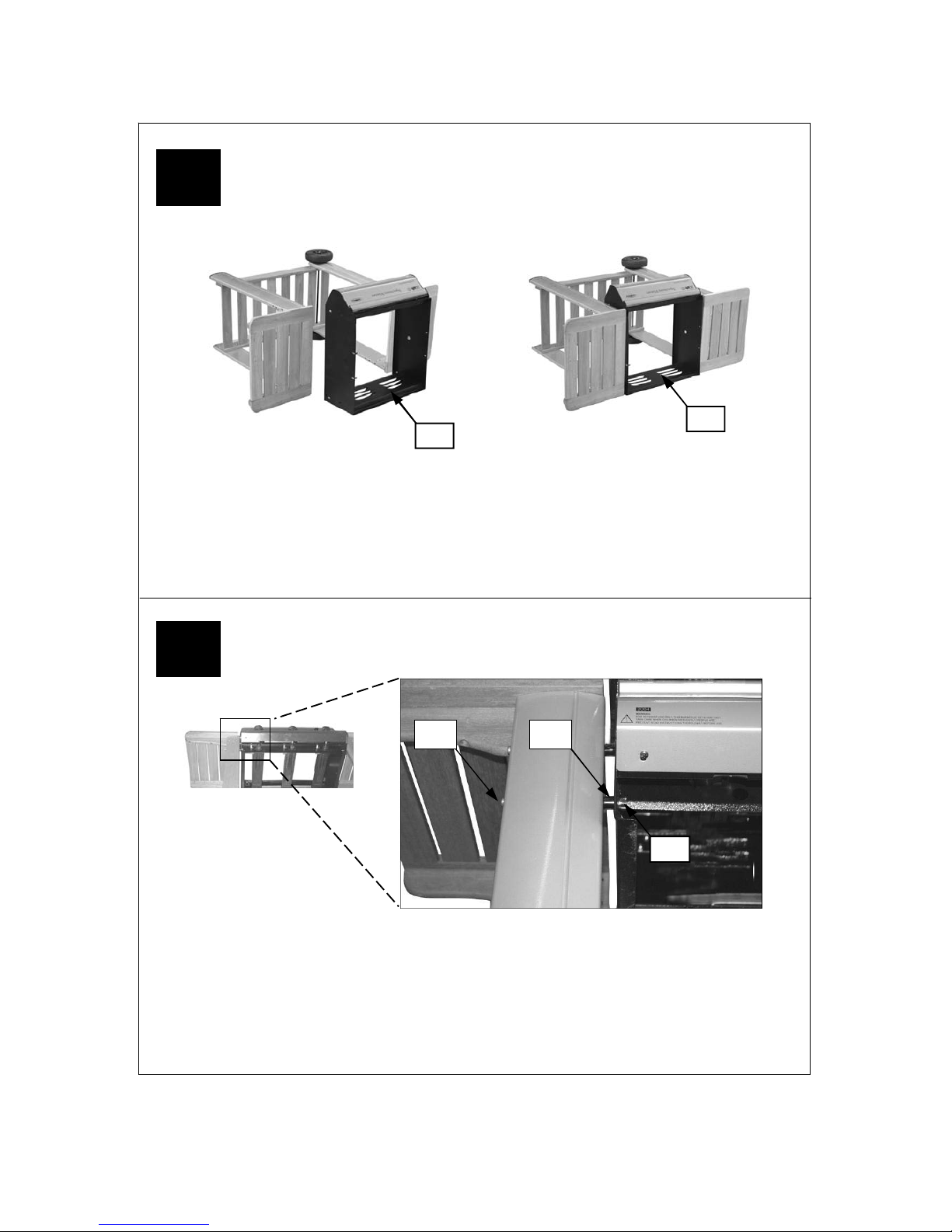

Lay the assembled trolley on its side. Lay the body (A5) on its back and slide into
position between the trolley legs.
5
6
With the barbecue laid on the ground, insert a body support bolt (C2) through the short leg,
through a spacer (C3), through the sidewall of the body, and secure the bolt with a wing nut
(C4). Repeat the process for all the legs until the body is completely fixed to the trolley.
NOTE: When positioning the body of the barbecue, ensure the wheels at the left of control
panel.
C2 C3
C4
8
A7

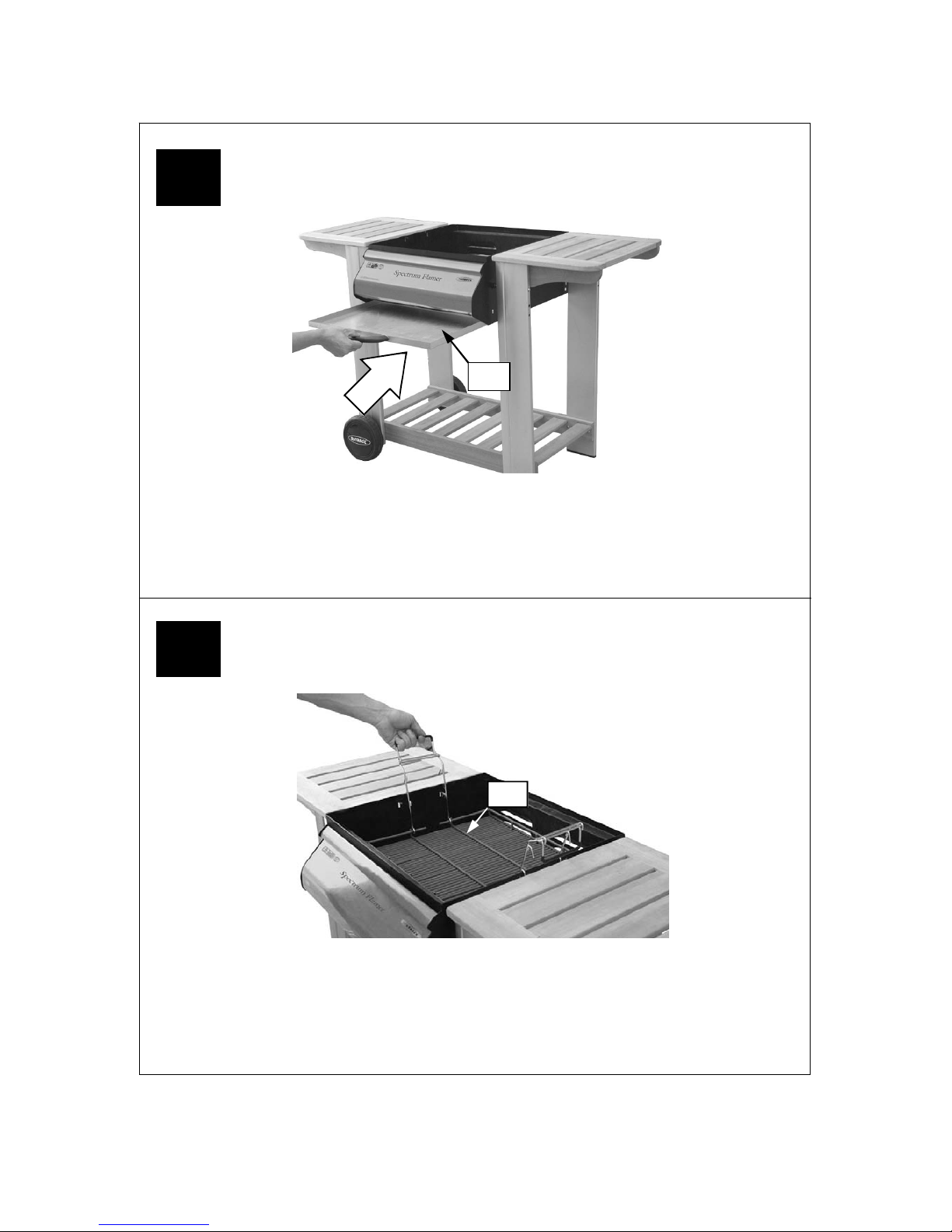

Replace the ash tray ( A7) by sliding it underneath the barbecue body (A5).
Lay charcoal basket (A4) into body making sure the basket rests on
the lowest level of hooks on the adjustable handles.
A4
7
8
9
9
A2

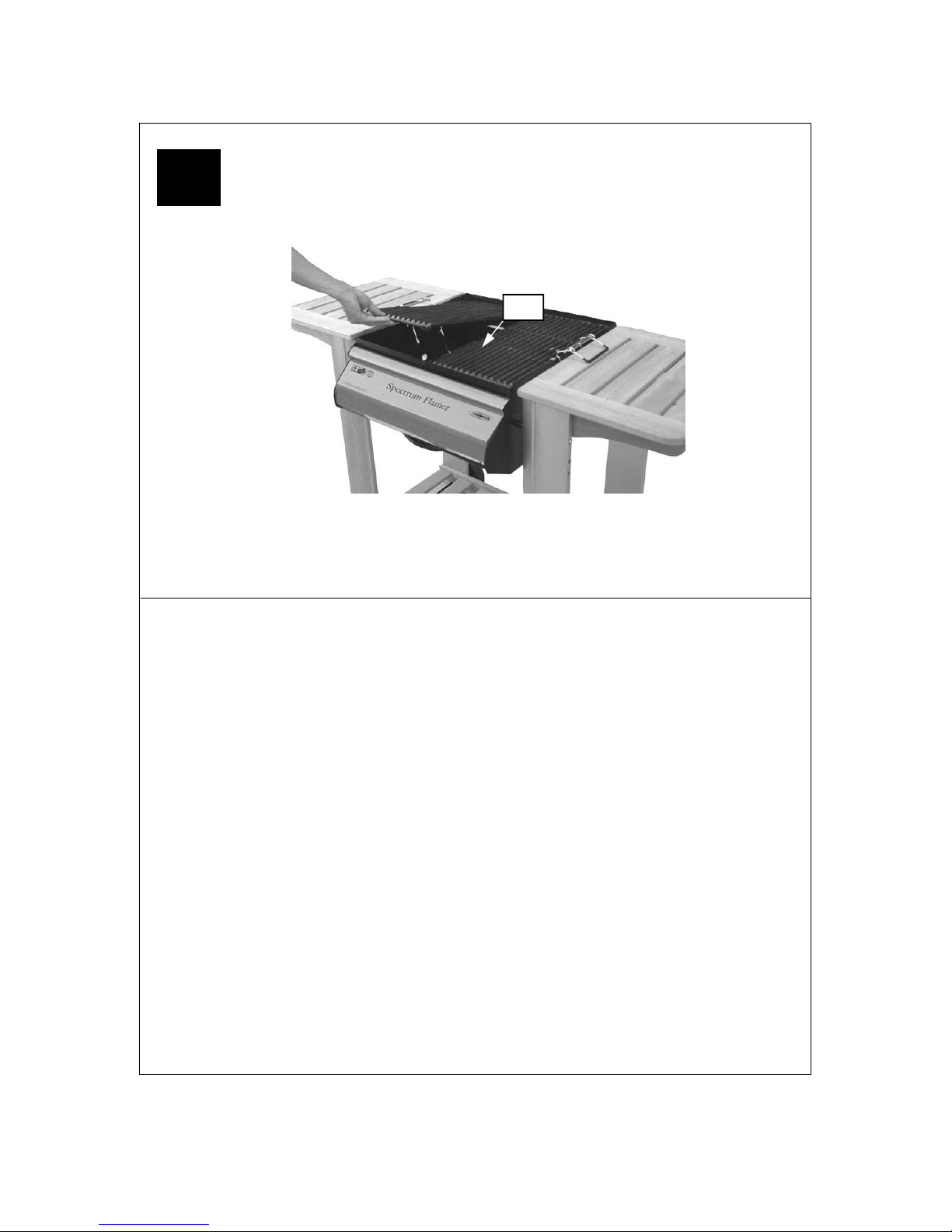

Lay cast iron grills (A2) into barbecue body (A5).
ASSEMBLY IS NOW COMPLET E.
PROCEE D TO THE NEXT PAGE FOR INSTRUCT IONS ON
OPERATI ON AND MAINTENANCE.
10
E. Important Information
Please read and understand these instructions
before assembly and use.
• Retain these instructions for future reference.
• For outdoor use only – do not use indoors!
• Do not move the barbecue while lit.
• Ensure the ash pan is in place before use.
• Never remove the ash pan whilst the
barbecue is in use. Wait until the barbecue is
completely cooled before removing it.
• Modification of the barbecue may be
dangerous, is not permitted, and will nullify
any warranty.
• Use this barbecue only on a stable, flat
plane.
• Do not use within 1m of any flammable
structure or under any combustible surface.
• Caution: Do not use spirit or petrol for
lighting or re-lighting! Use only firelighters
complying to EN1860-3.
• Do not store flammable materials near this
barbecue.
• Do not use aerosols near this barbecue.
• WARNING! This barbecue becomes very
hot. Do not move it during operation.
• WARNING! Keep children and pets away.
• Failure to follow the instructions in this
manual could result in serious injury or
property damage.
• If you have any queries regarding these
instructions, contact your local dealer.
F. Installation
F1. Selecting a Lo cation
This barbecue is for outdoor use only and should
be placed in a well-ventilated area on a safe and
even surface. Take care to ensure that it is not
placed UNDER any combustible surface. The
sides of the barbecue should NEVER be closer
than 1 metre from any combustible surface. Keep
this barbecue away from any flammable materials
!
G. Operation
G1. Warning
• Before proceeding, make certain that you
understand the IMPORTANT INFORMATION
section of this manual.
• This barbecue is designed for charcoal use
only. We do not recommend the use of lump
wood charcoal or lump wood based charcoal
products as they burn too quickly in this
design. We recommend using charcoal
briquettes. Use only enough briquettes to
cover the bottom of the charcoal basket in a
single layer. Do not overload the charcoal
basket. The maximum amount of briquettes to
be used at any one time is 2.0kg.
G2. Lining the Ash Tray
Line the ash tray with aluminium foil. This will
protect the tray, help better reflect heat, and
make cleaning easier when barbecuing is
finished.
G3. Starting the Charcoal
• Make sure the charcoal basket is in the
highest position before lighting the charcoal.
• Caution: Do not use spirit or petrol for lighting
or re-lighting! Use only firelighters complying
to EN1860-3.
• When placing charcoal, never allow charcoa l
to be closer than 5cm to the surrounding sides
of the barbecue body. T he maximum amoun t
of charcoal to be used at any one time is
2.0kg.
• Block Type Starters – Form charcoal in a
pyramid around it. Light the starter block.
When charcoal is well lit, spread around the
charcoal grid and add more as necessary.
• Liquid Starters – Place charcoal in a shallow
tin. Pour liquid charcoal starter onto charcoal
and wait 5-10 minutes so that starter is
allowed to penetrate into the charcoal. Then
place charcoal on grid in a pyra mid formation.
Light charcoal. Allow time for charcoal to
become well lit. Spread charcoal in a unifor m
layer, so that each lump is just touching. When
the charcoal is ashed over (grey coating of ash
over each lump) you are ready to begin
cooking.
• Do not begin cooking until charcoal has an
ashed-over coat.
• Do not attempt to cook whilst charcoal is
flaming.
G4. Preparation Before Cooking
To prevent foods from sticking to the porcelain,
please use a long handled brush to apply a light
coat of cooking or vegetable oil before each
barbecuing session.
It is recommended to operate the barbecue with
red-hot charcoal for at least 30 minutes before
first use. The barbecue and grills are now ready to
be used for cooking.
G5. Using the Adjustable Charcoal Basket
Warning: Handles can become hot during use.
Please wear oven gloves and take care when
handling the adjustable charcoal basket.
11
Heat can be controlled by raising or lowering the
charcoal basket using the adjustable handles. For
normal cooking, set the charcoal basket to the
lowest level. As charcoal becomes consumed, the
basket can be raised to the highest level in order
to compensate for heat loss. Also, the basket can
be adjusted higher on one side and lower on the
other to facilitate warming of foods on the lower
side, and cooking on the higher side. The basket
should NEVER rest directly on top of the ash tray.
Always use either the lowest or highest levels of
hooks on the adjustable handles. The charcoal
basket must always be positioned in the middle of
the barbecue body, between the two stop pins.
G6. Flare-Up Control
Flare-ups occur when meat is barbecued and its
fat and juices fall upon the hot charcoal. Smoke
helps give food its barbecued flavour, but avoid
excessive flare-up to prevent food being burned.
To control flare-ups, it is advisable to tri m away
excess fat from meat and poultry before grilling.
Flare-ups can be extinguished by applying baking
soda or a salt directly onto the charcoal. Always
protect your hands when handling anything near
the cooking surface of the barbecue.
If a fat fire should occur in the ash tray, wait for
the fire to go out. Do not pull out the ash-collecting
tray or douse charcoal or tray with water.
G7. Replenishing the Charcoal
To replenish the charcoal during use, remove the
food from the grill. With protected hands, use the
grill-lifting handles provided to lift the grill. Once
the grill is lifted, add the charcoal, carefully
replace the grill, and continue cooking when the
charcoal is ready. When using the handles to
move the grill, take care to position them correctly
so that the grill is stable.
H. Care and Maintenance
Clean your barbecue after use, especially before
extended periods of storage. Ensure the barbecue
and its components are sufficiently cool before
cleaning.
• Never douse the barbecue with water when its
surfaces are hot.
• Never handle hot parts with unprotected
hands.
In order to extend the life and maintain the
condition of your barbecue, we strongly
recommend that the unit be covered when left
outside for any len gth of time, especially during
the winter months. A full range of heavy-duty
Outback® covers is available fo r all models. Do
not leave the barbecue exposed to outside
weather conditions or stored in damp, moist
areas.
Even when your barbecue is covered for its’
protection it must be inspected on a regular basis
as damp or condensation can form which may
result in damage to the barbecue. It may be
necessary to dry the barbecue and the inside of
the cover.
H1. Porcelain Coated Cast Iron Cooking
Surfaces
Clean with hot, soapy water. T o remove any food
residue, use a mild cream cleaner on a nonabrasive pad. Rinse well and dry thoroughly. We
do not recommend cleaning grills and griddles in a
dishwasher.
H2. Adjustable Charcoal Basket
When fully cooled, use the handles to shake the
basket vigorously until all loose ash falls through
into the ash tray. Dispose of any unburned
charcoal and remove remaining residue with a
brass wire brush.
H3. Ash Tray
After every use, check the tray for ash or fat buildup on the aluminium foil. Discard the ash and foil,
and wash any remaining ash or fat from the tray.
Failure to clean thoroughly may cause fat fires.
These fires can severely damage your barbecue
and are not
covered by the warranty.
H4. Barbecue Body
Regularly remove excess grease or fat fro m the
barbecue body with a soft plastic or wooden
scraper. It is not necessary to remove all the
grease from the body. If you need to clean fully,
use hot soapy water and a cloth, or nylon-bristled
brush only. Remove cast iron cooking grills before
full cleaning.
H5. Trolley
Your trolley is manufactured using a hardwood
suited to outdoor use, provided it is treated with
Teak oil or similar after assembly and on a regular
basis thereafter. Hardwood will naturally weather
and change its appearance. It is quite natural for
small cracks to appear on the surface of the
wood.
H6. Fixings
All screws and bolts, etc. should be checked and
tightened on a regular basis.
Specifications ar e subject to change without prior notice.
12
Published Oct ober 2008
In the unlikely event that you experience
problems with this barbeque, please contact:
Customer Service
Outback UK
Unit 2 Farleigh Hill
Tovil
Maidstone
Kent ME15 6RG
Tel: 01622 671771
Fax: 01622 673101
e-mail: customerservice@outbackuk.com
website: www.outbackuk.com
OUTBACK UK LTD
LIMITED 10 YEAR WARRANTY
OUTBACK barbecues are warranted to the original purchaser against defects in materials and
workmanship. Porcelain coated barbecue bodies, porcelain coated roasting hoods and
stainless steel roast ing hoods are warranted for a per iod of ten (10) years f r om t he date of purchase. OUTBACK UK wil l, within this period, supply r eplacements for def ective parts free of
charge provided that:
♦ The product has not been used for t r ade, professional or hire purposes.
♦ The product has not been subjected to misuse or neglect, incl uding f at fires and flare ups.
♦ The product has not sustained damage thro ugh for eig n objects, s ubsta nces or accidents.
♦ The care and maintenance instructi ons given in your Outback manual have been followed.
This warranty is of f er ed as an extra benefit a nd is in additio n to the customers’ statutory r ights.
If you have any queries regarding the assembly or use of your barbecue please contact Out-
back UK
Loading...
