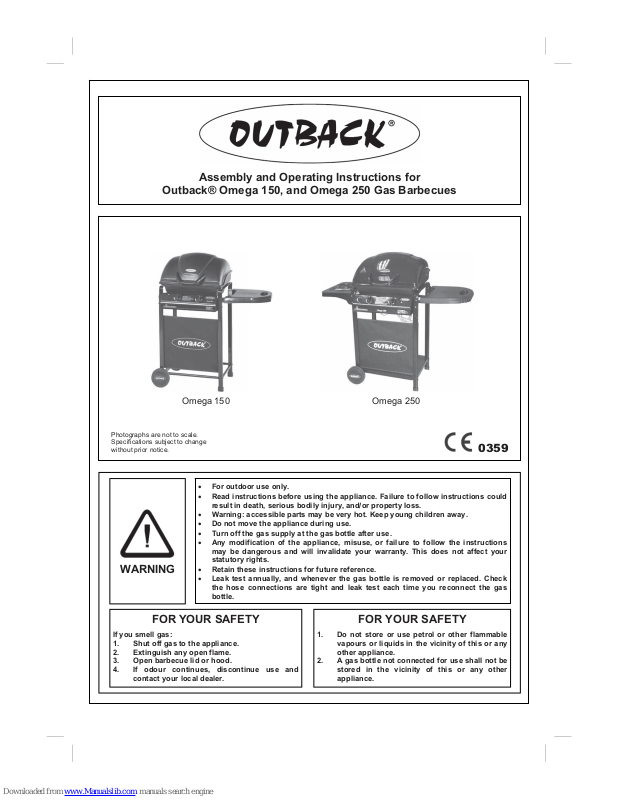

Outback OMEGA 150, OMEGA 250 Assembly Manual
Photographs are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected f or use shall not be
stored in the vicinity of this or any other
appliance.
Omega 150 Omega 250
Assembly and Operating Instructions for
Outback® Omega 150, and Omega 250 Gas Barbecues
0359
!" For outdoor use only.
!" Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
!" Warning: accessible parts may be very hot. Keep young children away.
!" Do not move the appliance during use.
!" Turn off the gas supply at the gas bottle after use.
!" Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
!" Retain these instructions for future reference.
!" Leak test annually, and whenever the gas bottle is removed or replaced. Check
the hoseconnections are tight and leak test each time you reconnect the gas
bottle.
2
A. Parts List
Quantities vary according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding Hardware Reference Diagram for your barbecue
model.
OUTBACK® OMEGA R ANGE
Body
Assembly
CODE PART QTY OMEGA 150 OMEGA 250
A1 Lava Rock / Basket 1
! "
A2 Flame Tamer 1
"!
A3 Burner 1
"#$ "#$
A4 Hood Handle 1
"! "
A5 Hood 1
"# "#
A6 Body 1
"#! "#!
A7 Grease Cup Holder 1
"#! "#!
A8 Grease Cup 1
"! "!
A9 Cooking Grill 1
"! "!
A10 Upper Hinge Bracket 2
"#! "#!
A11 Lower Hinge Bracket 2
"# "#
A12 Main Electrode (with Gas Collector Box) 1
"#$ "#$
Upper
Trolley
B1 Control Panel 1
"# "#
B2 Igniter Button 1
"#! "#!
B3 Knob 2
"# "#
B4 Arch Support 2
"#! "#!
B5 Hose/Regulator Assembly 1
"# "#
B6 Plastic Side Shelf 1
"! "
B7 Side Burner Knob 1
"#
B8 Side Burner Grid 1
"
B9 Side Burner Shelf 1
"
B10 Side Burner 1
"#
B11 Side Burner Electrode 1
"#
Lower
Trolley
C1 Left Front Leg 1
"! "!
C3 Short Axle 2
"! "!
C4 Wheel 2
"! "!
C5 Hubcap 2
"! "!
C6 Screen 1
"! "!
C7 Long Support Rod 2
"! !
C8 Leg Endcap 2
"#! "#!
C9 Right Front Leg 1
"! "!
C11 Short Support Rod 2
"! !
C12 Bottom Shelf 1
! "!
Hardware
D1 M5x10 Bolt 2
"#! "#!
D2 M6x25 Bolt 4
" "
D3 M6x30 Bolt 4
"! "!
D4 M6x40 Bolt
%
4 8
D5 M6x50 Bolt 4
" "
D6 Axle Clip 2
"! "!
D7 M6 Nut
%
8 20
D8 Shelf Spacer
%
4 8
D9 Shelf Washer
%
4 8
C2 Left Rear Leg 1
"! "!
C10 Right Rear Leg 1
"! "!
# Pre-Assembled Component
% Quantity varies according to model purchased
$!!Appearance, size, and construction may differ according to model purchased!
3
B1. Parts Diagram: Omega 150
Quantities vary according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see ‘Hardware Reference Diagram: Omega 150.’
Pre-assembled body unit includes
the following individual parts:
A9
A4
A3 A5 A6
A10
B1 B2
A11
A12
A7
A8
B4
C6
C7 C11
C5 C4
C2 C10
C8
B5
B3
B6
C3 D6
A2
C1 C9
4
B2. Hardware Reference Diagram: Omega 150
Specifications subject to change without prior notice.
C3
D6
D3
D2, D7
D4, D7, D8, D9
D5
Short Axle (2pcs) Axle Clip (2pcs)
M6x25 Bolt (4pcs), M6 Nut (4pcs)
M6x30 Bolt (4pcs)
M6x50 Bolt (4pcs)
M6x40 Bolt (4pcs), M6 Nut (4pcs),
Spacer (4pcs), Washer (4pcs)
5
C1. Parts Diagram: Omega 250
Quantities vary according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see ‘Hardware Reference Diagram: Omega 250.’
C12
C5 C4
Pre-assembled body unit includes
the following individual parts:
A9
A3 A5 A6 A10 B1 B2
A11
A12
A7
A8
B7
B5
B9
B10
B11
C6 C2 C10
C8
B6
B3
B8
B4
C3 D6
A4
A1
C1 C9
6
C2. Hardware Reference Diagram: Omega 250
Specifications subject to change without prior notice.
C3
D6
D3, D7 D2, D7
D4, D7, D8, D9
D5, D7
