Outback MS4431 Assembly Manual
0359

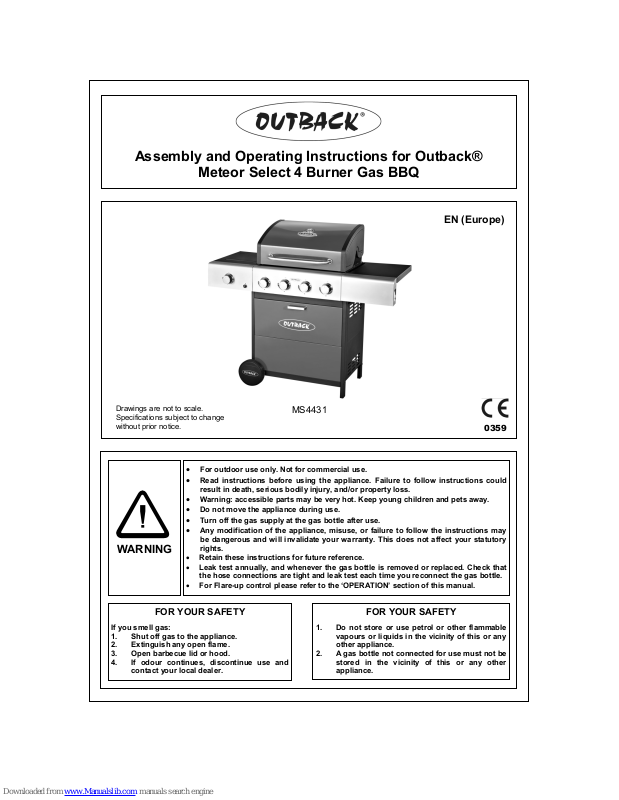

Assembly and Operating Instructions for Outback®
Meteor Select 4 Burner Gas BBQ
Drawings are not to scale.
Specifications subject to change
without prior notice.
WARNING
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the ‘OPERATION’ section of this manual.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
MS4431
EN (Europe)
2
CODE PART QTY Meteor 4 Burner
HOOD
A1 Hood (Pre-Assembled to Body) 1
A2 Hood Handle 1
A3 Warming Rack 1
BODY
B1 Barbecue Body 1
B2 Burner 4
B3 Control Panel 1
B4 Knob 4
B5 Hose (if supplied)
B6 Lava Rock in Basket / Flame Tamer
B7 Cooking Grill 1
B8 Cooking Griddle 1
B9 Drip Tray Left Bracket 1
B10 Drip Tray Right Bracket 1
B11 Drip Tray 1
B12 Drip Pan 1
B13 Ignition Button 1
TROLLEY
C1 Side Burner Shelf 1
C2 Side Burner Shelf Panel 1
C3 Side Burner Grid 1
C4 Knob Bezel 1
C5 Side Burner Knob 1
C6 Side Burner 1
C7 Side Shelf 1
C8 Side Shelf Panel 1
C9 Left Front Leg 1
C10 Left Rear Leg 1
C11 Right Front Leg 1
C12 Right Rear Leg 1
C13 Upper Support 1
C14 Storage Box Handle 1
C15 Storage Box 1
C16 Front Panel 1
C17 Side Panel 4
C18 Bottom Panel 1
C19 Wheel 2
C20 Wheel Hubcap 2
C21 Axle 1
C22 Body Support ―A‖ 1
C23 Body Support ―B‖ 1
HARDWARE
D1 ST4.0x10 Screw 28
D2 M4x10 Bolt 3
D3 M4x10 Step Bolt 4
D4 M6x15 Bolt 16
D5 M6x40 Bolt 16
D6 M6 Nut 12
D7 Locknut 2
Pre-Assembled Component
Quantity varies according to model purchased
Appearance, size, and construction may differ according to model purchased
1. Parts List
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.
3
2. Parts Diagram
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‗Hardware Reference Diagram‘.
A2
A3
B1
B2
B4
B5
B6
B9 B10
C1
C9
C17
C11
C13
C22
C23
C3
B13
C20
B7 B8
B11
C18
C14
C21
C8
C6
C2
C5
C4
C19
C15
C16
C12
B12
C10
B3
A1
C7
D7
or
4
3. Hardware Reference Diagram
Specifications subject to change without prior notice.
D1
D2
D3
D4
D5
D6
D4
D6
5

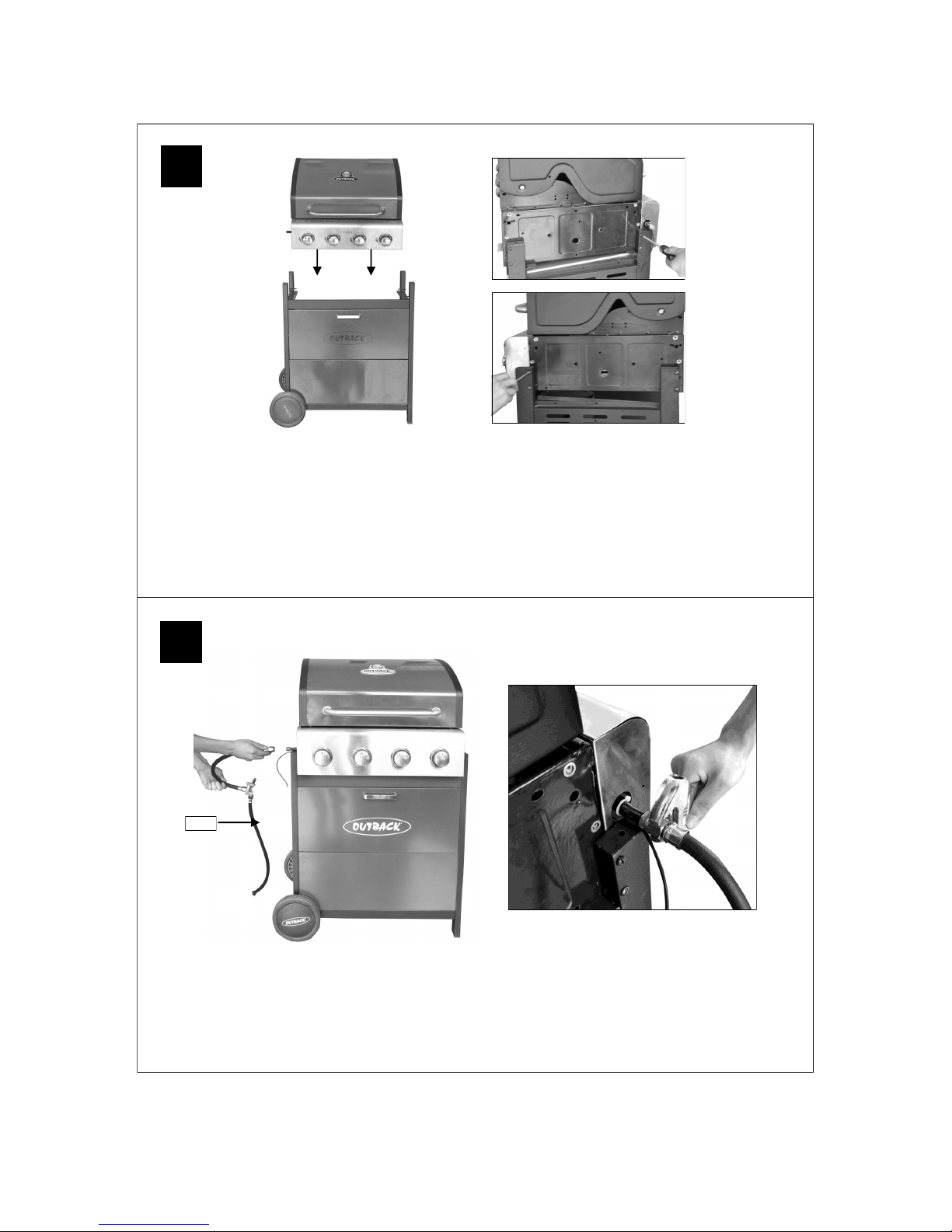

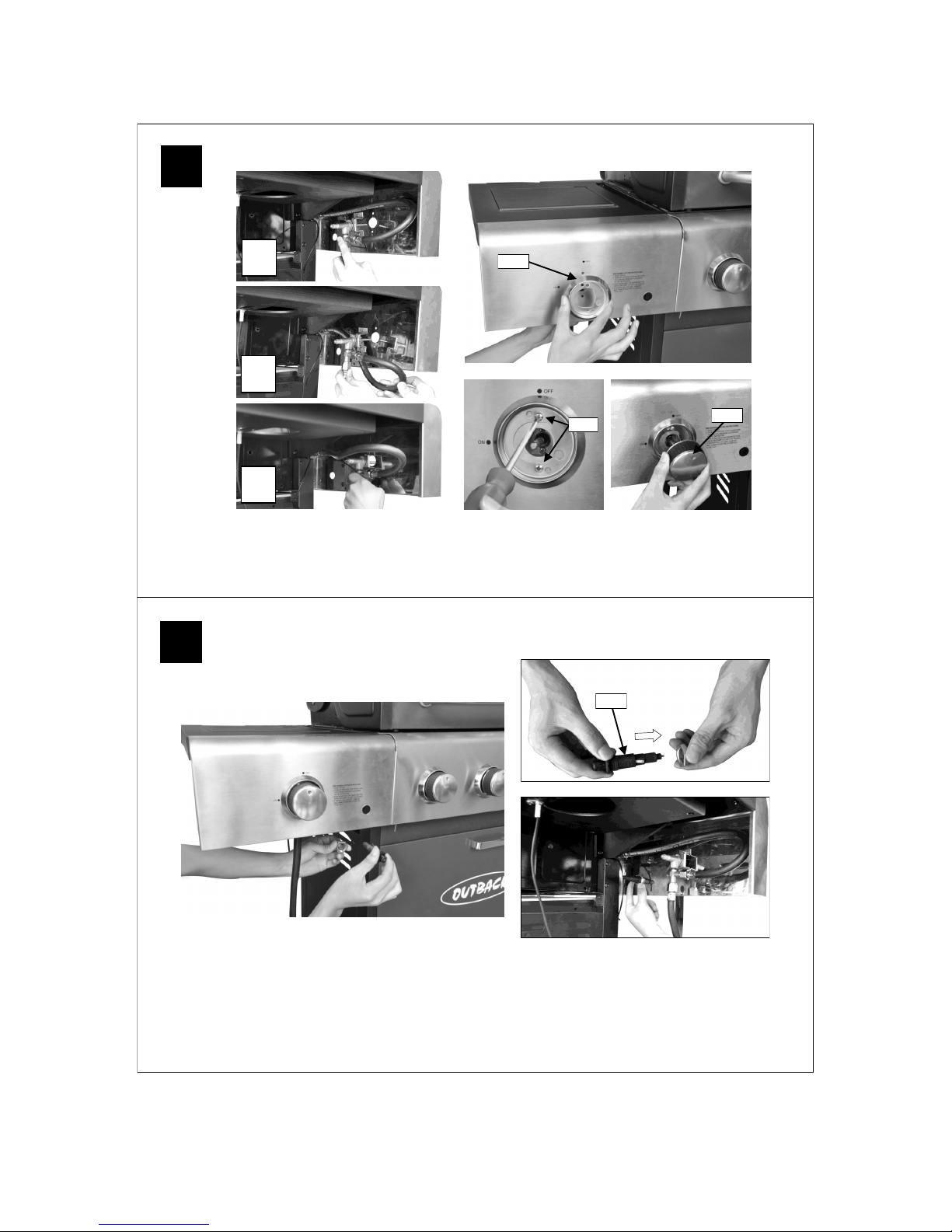

4. Assembly
IMPORTANT!
TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
Remove any internal component or packaging from the barbecue body.
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
Please read the Important Information section carefully before assembly and use of your
barbecue.
1
2
Attach the Left Legs (C9,C10) to the Side Panels (C17) using ST4.0x10 Screws (D1) as shown.
Attach the Right Legs (C11,C12) to the Side Panels (C17) using ST4.0x10 Screws (D1) as shown.
Left Cabinet Panel Assembly
Right Cabinet Panel Assembly
6
3
4
Attach the left / right cabinet panel assembly to the Bottom Panel (C18) using M6x40 Bolts (D5)
and M6 Nuts (D6) as shown.
Unscrew the Locknuts (D7) from both ends of the Axle (C21).
Slide the axle through the corresponding holes in the left legs. Slide the Wheels (C19) over each
end of the axle. Secure the wheels into place with the locknuts. Place the Wheel Hubcaps (C20)
onto the outside of the wheels.
7
Attach Drip Tray Left Bracket (B9) to the left legs using ST4.0x10 Screws (D1) as shown.
Repeat above process for Drip Tray Right Bracket (B10).
Install the Front Panel (C16) between the left / right front legs using ST4.0x10 Screws (D1).
5
6
Front Side
Rear Side
8
Remove the retaining bolts from the Storage Box Handle (C14), and then attach it onto the Storage Box (C15) using the retaining bolts.

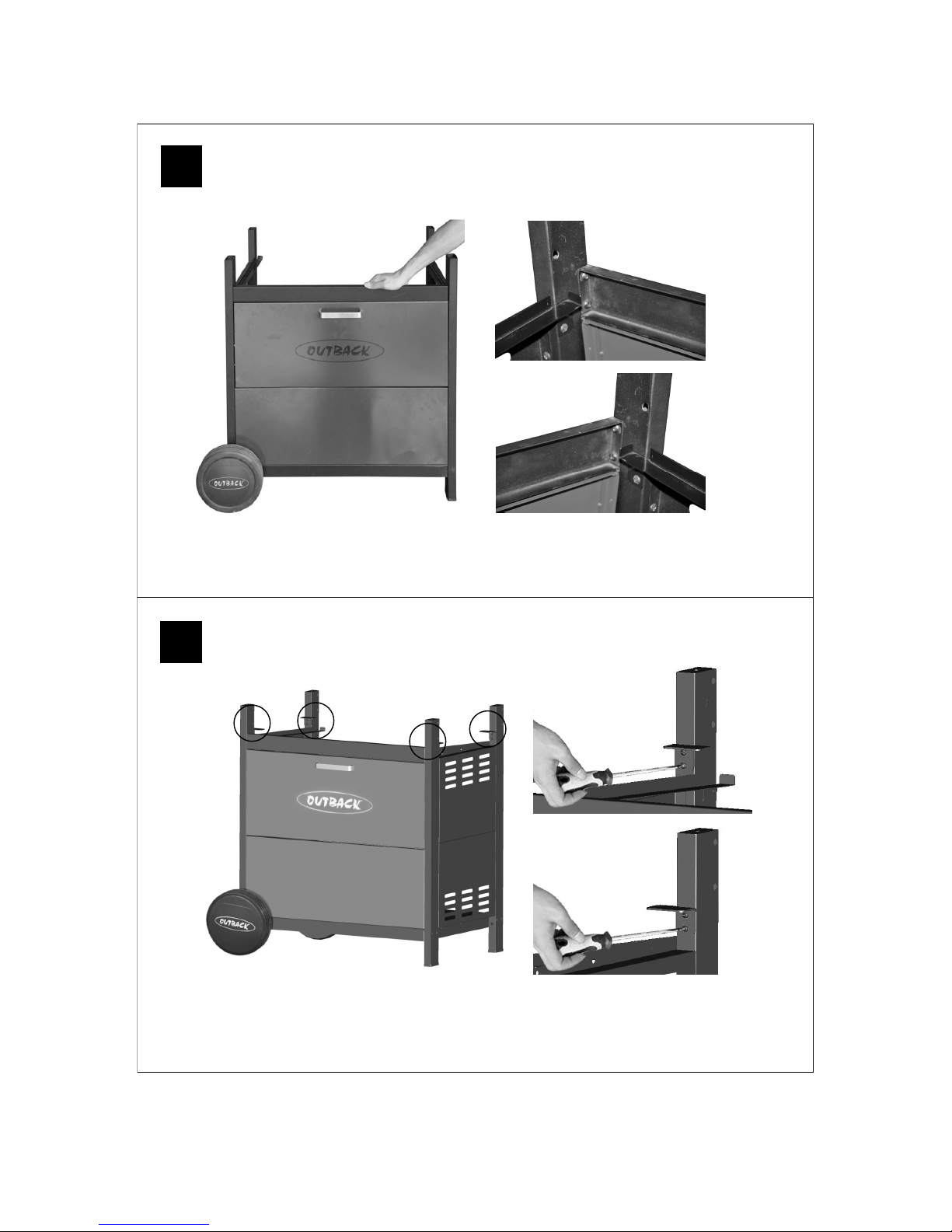

7
8
Install the storage box assembly between the left / right front legs using M4x10 Step Bolts (D3).
