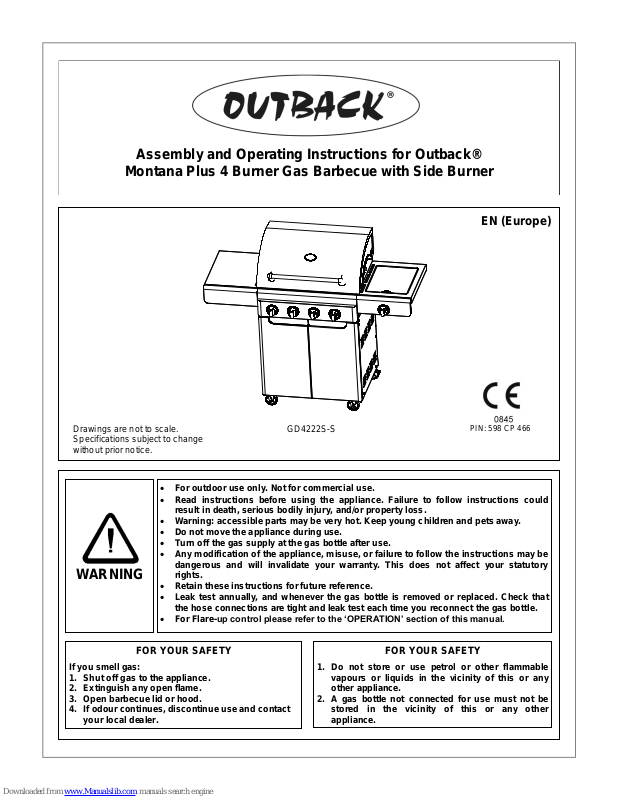

Outback GD4222S-S Assembly Manual

Drawings are not to scale.
Specifications subject to change
without prior notice.

EN (Europe)

Assembly and Operating Instructions for Outback®

Montana Plus 4 Burner Gas Barbecue with Side Burner

WARNING

 For outdoor use only. Not for commercial use.
 Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

 Warning: accessible parts may be very hot. Keep young children and pets away.
 Do not move the appliance during use.
 Turn off the gas supply at the gas bottle after use.
 Any modification of the appliance, misuse, or failure to follow the instructions may be

dangerous and will invalidate your warranty. This does not affect your statutory
rights.

 Retain these instructions for future reference.
 Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

 For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and contact
your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.

2. A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.

PIN: 598 CP 466

GD4222S-S

1. Parts List

CODE

PART

QTY

HOOD & BODY

A1

Hood (Pre-Assembled to Body)

1

A2

Flame Tamer

4

A3

Warming Rack

1

A4

Cooking Grill

2

A5

Main Burner

4

A6

Knob 5 A7

Knob Bezel

5

A8

Drip Tray

1

A9

Grease Cup

1

A10

Left Drip Tray Bracket

1

A11

Right Drip Tray Bracket

1

A12

Side Burner Gas Hose/Injector Assembly

1

SIDE SHELF

B1

Left Side Shelf

1

B2

Right Side Burner Shelf

1

B3

Side Burner

1

B4

Side Burner Grid

1

TROLLEY

C1

Upper Body Support

1

C2

Left Side Trolley Assembly

1

C3

Right Side Trolley Assembly

1

C4

Door (Left)

1

C5

Door (Right)

1

C6

Rear Panel

1

C7

Matchstick Lighting Rod Assembly

1

C8

Bottom Panel

1

C9

Lockable Caster

2

C10

Caster

2

HARDWARE

A

M6×12 Bolt & Ø6 Spring Washer

25

B

Door Axle

2

C

Ø6 Washer

6

D

M4x8 Bolt & Ø4 Spring Washer

1

Quantity varies according to model purchased. Specifications subject to change without prior notice. For more
details on hardware, please see the corresponding ‘Hardware Reference Diagram’.





2. Parts Diagram

A3

A4

A1

A2

B1

A8

B2

A5

A12

A6

A11

A10

A7

B4

B3

C1

C3

C6

C2

C7

C5

C4

C10

C8

B

C9

A9

Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details
on hardware, please see the corresponding ‘Hardware Reference Diagram’.

3. Hardware Reference Diagram

door axe (2PCS)

D

A

D

C

B

A

M4¡ Á8 bolt& 4 spring washer(4PCS)

B

6 Washer(4PCS)

C

M6¡ Á12 bolt & 6 spring washer(25PCS)

M6×12 Bolt & Ø6 Spring Washer (25pcs)

M4x8 Bolt & Ø4 Spring Washer

Door Axle

Ø6 Washer

Specifications subject to change without prior notice.

4. Assembly

1

Insert the two Lockable Casters (C9) and two standard Casters (C10) into the holes below
the Bottom Panel (C8) as shown and tighten with a wrench. The two Lockable Casters (C9)
should be on the front side.

Attach the two Door Axles (B) to this Bottom Panel in the areas as shown.

Attach the Right Side Trolley Assembly (C3) to the Bottom Panel (C8) using 2 x M6x12 Bolts and
Ø6 Spring Washers (A) as shown. Repeat for the Left Side Trolley Assembly (C2).

2

C9

C10

C8

A 4PCS

19

18

C3

C2

IMPORTANT!

 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner

or metric spanner set.

 The assembly of this barbecue requires 2 people.
 Remove any internal component or packaging from the barbecue body.
 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case sharp

edges are present.

 Please read the Important Information section carefully before assembly and use of your barbecue.

Attach the Upper Body Support (C1) to the Left and Right Side Trolley Assembly (C2 & C3) using 4
x M6x12 Bolts and Ø6 Spring Washers (A).

Attach a Rear Panel (C6) to the lower section of the Left and Right Side Trolley Assembly and
Bottom Panel using 5 x M6x12 Bolts and Ø6 Spring Washers (A).

Attach the second Rear Panel (C6) to the upper section of the Left and Right Side Trolley
Assembly using 4 x M6x12 Bolts and Ø6 Spring Washers (A).

Fit the doors (C4 & C5) to the cabinet by placing them into the door axes and then depressing the
spring pins to insert into the upper body support.

Attach the Left Drip Tray Bracket (A10) to the Left Side Trolley Assembly (C2) using 2 x M6x12 Bolts
and Ø6 Spring Washers (A) as shown. Repeat for the Right Drip Tray Bracket (A11).

3

4

A 13PCS

26

27

A

C6

C1

16

17

A

A 4PCS

20

24

A10

A11

C4

C5
