Outback Cook Dome 571 Assembly Manual
WARNING
• For outdoor use only. Not for commercial use.
• Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
• Warning: accessible parts may be very hot. Keep young children and pets away.
• CAUTION: Do not use spirit or petrol for lighting or re-lighting! Use only
firelighters complying to EN1860-3!
• Do not move the appliance during use.
• Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
• Retain these instructions for future reference.
Photographs are not to scale.
Specifications subject to change
without prior notice.

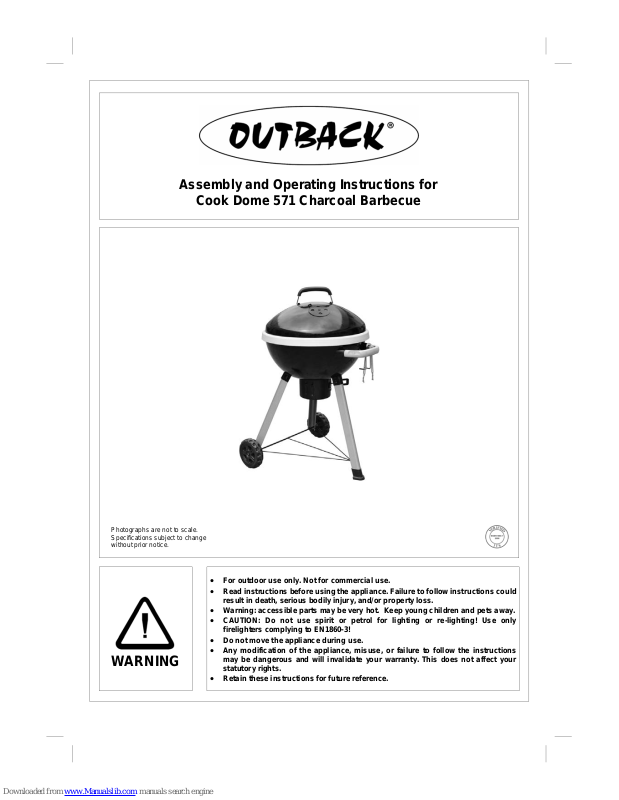

Assembly and Operating Instructions for
Cook Dome 571 Charcoal Barbecue
2
1. Parts List
Quantity varies according to model purchased. Specifications subject to change without prior notice.
Pre-Assembled Component
Quantity varies according to model purchased
Appearance, size, and construction may differ according to model purchased
CODE PART QTY Cook Dome 571
HOOD
A1 Hood 1
A2 Hood Handle 1
BODY
B1 Barbecue Body 1
B2 Cooking Grill 1
B3 Grill Lifting Handle 2
B4 Charcoal Grill 1
B5 Body Ring 1
B6 Body Handle 1
B7 Left Heatproof Spacer 1
B8 Right Heatproof Spacer 1
B9 Ash Tray 1
B10 Adjustable Vent Panel 1
B11 Ash Tray / Vent Tool 1
TROLLEY
C1 Short Leg 2
C2 Long Leg 1
C3 Leg Endcap 1
C4 Leg Support Rack 1
C5 Wheel Spacer 2
HARDWARE
D1 M5x30 Bolt 3
D2 M6x10 Bolt 6
D3 M6x30 Bolt 2
D4 Ø6 Washer 8
D5 Locknut 2
C6 Wheel 2
3
2. Parts Diagram
Quantity varies according to model purchased. Specifications subject to change without prior notice.
A1
A2
B5
B2
B4
B1
B8
B6
C2
C4
C6
B10
C3
B3
B7
B9
C1
B11
C5
4
3. Parts Diagram
Quantity varies according to model purchased. Specifications subject to change without prior notice.
D1, D3, D4
D2, D4
5

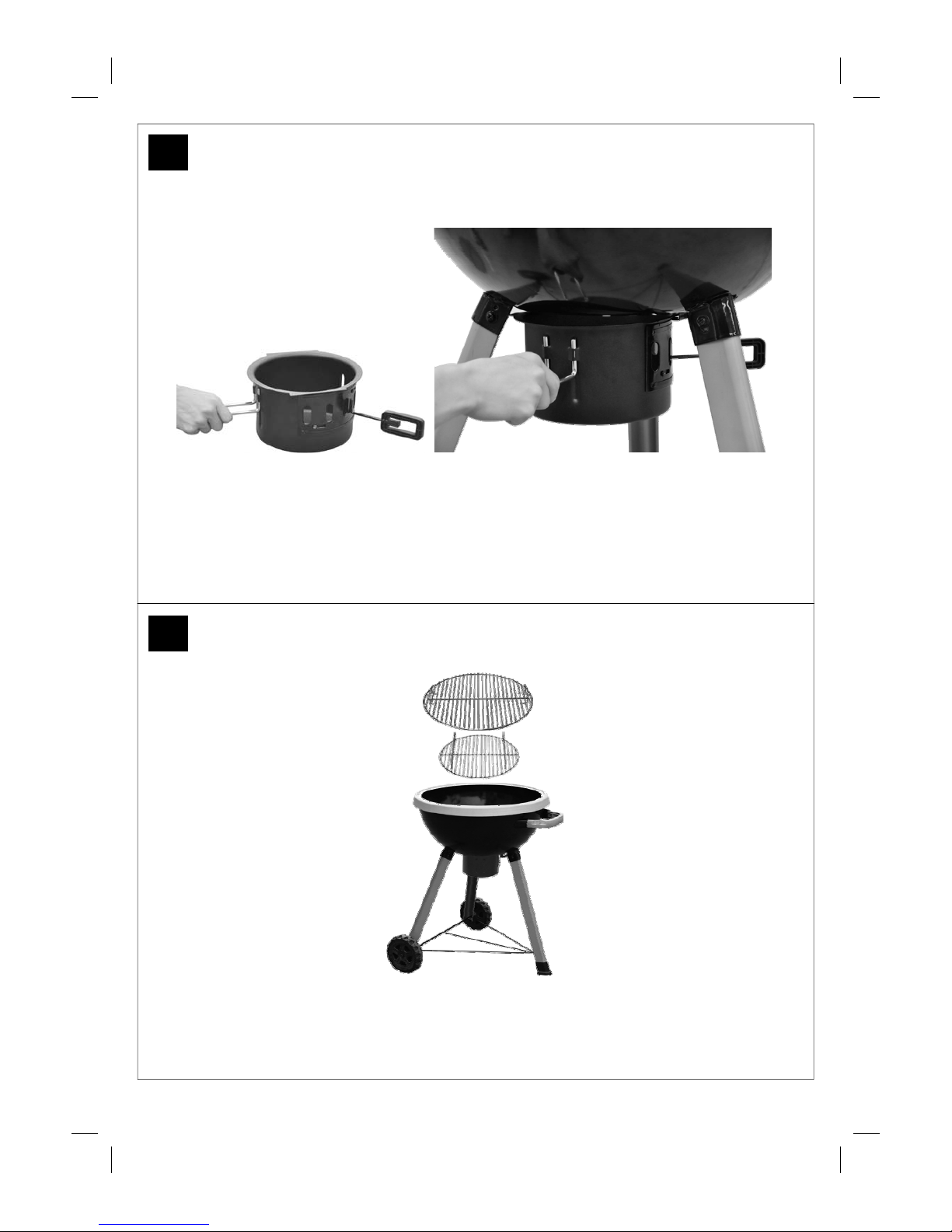

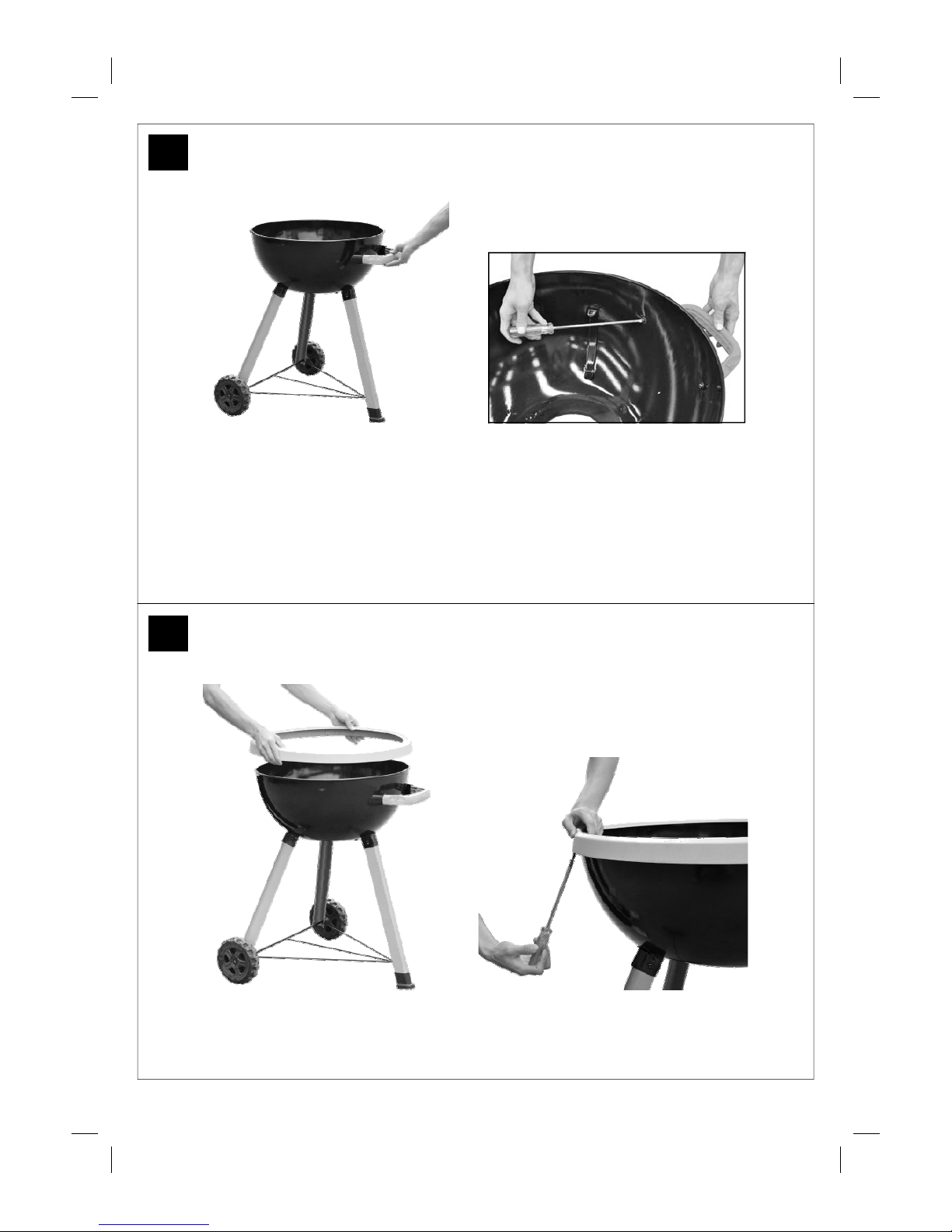

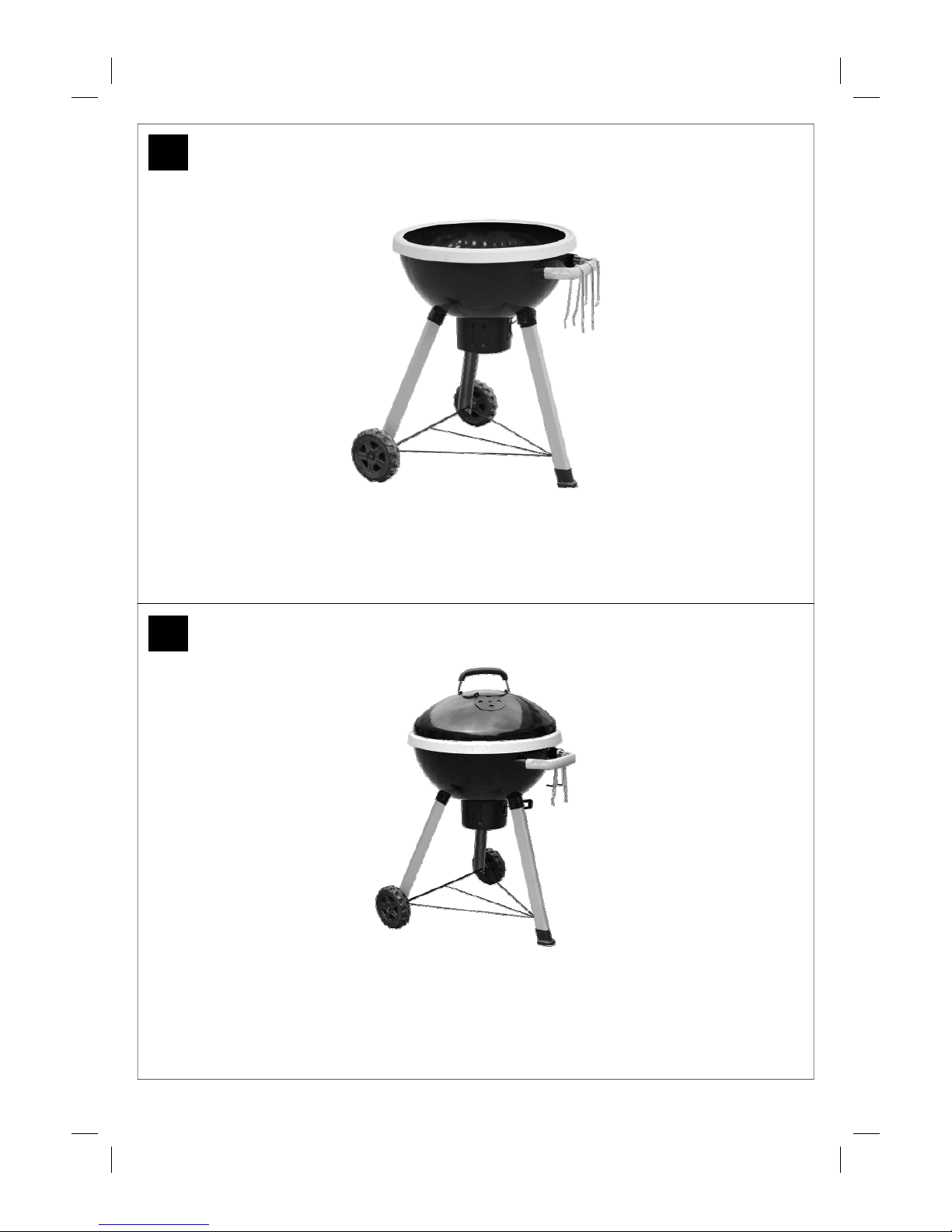

4. Assembly
IMPORTANT!
• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
• The assembly of this barbecue requires 2 people.
• W hilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
• Please read the Important Information section carefully before assembly and use of your
barbecue.

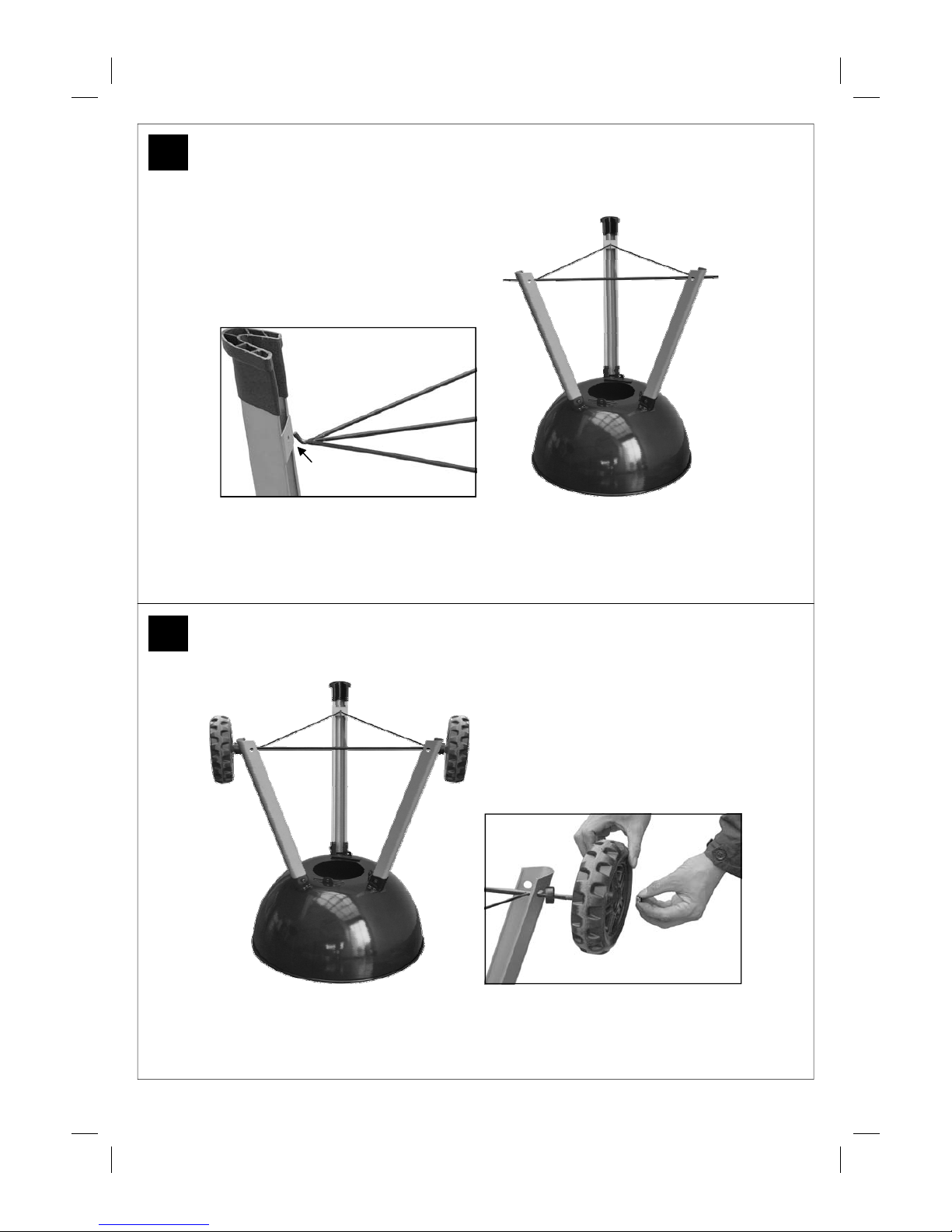

1
2
Place Long Leg (C2) into position as shown.
Insert Short Legs (C1) into remaining two leg supports.
Note: The two leg supports that are closer together accommodate the short legs. The long leg
support is located on the side near the Body Handle (B6).
Secure the Short and Long Legs (C1, C2) to the leg supports by inserting M6x10 Bolts (D2)
through Ø6 Washers (D4) and screwing into leg supports.
