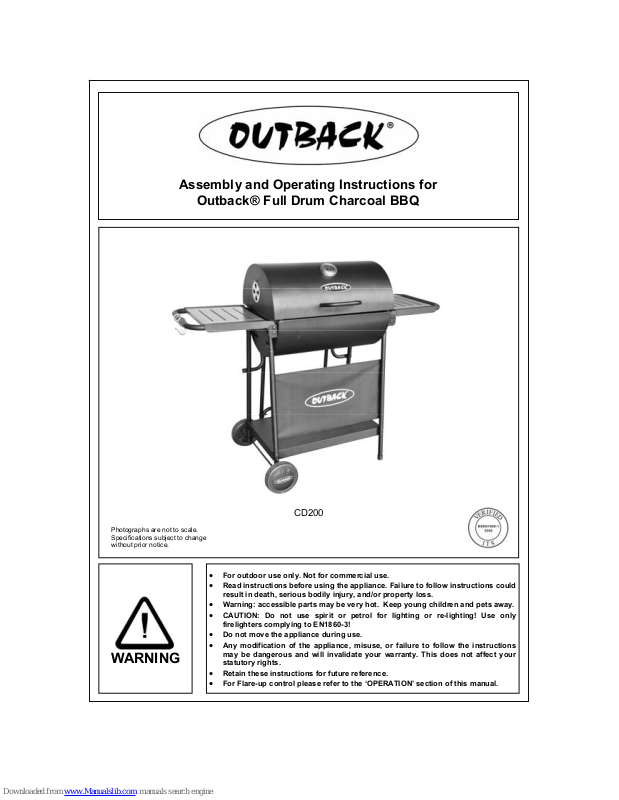

Outback CD200 Assembly Manual

WARNING

• For outdoor use only. Not for commercial use.

• Read instructions before using the appli ance. Failure to follow instructions could

result in death, serious bodily injury, and/ or property loss.

• Warning: accessible parts may be very hot. Keep young children and pets away.

• CAUTION: Do not use spirit or petrol for lighting or re-lighting! Use only

firelight ers comp lying to EN1860-3!

• Do not move the appliance during use.

• Any modification of the appliance, misuse, or failur e to follow the instructions

may be dangerous and will invalidate your warranty. This doe s not affect your
statutory rights.

• Retain these in structions for futur e reference.

• For Flare-up control please refer t o the ‘OPERATION’ section of this manual.

Photographs are not to scale.
Specifications subject to change
without prior notice.

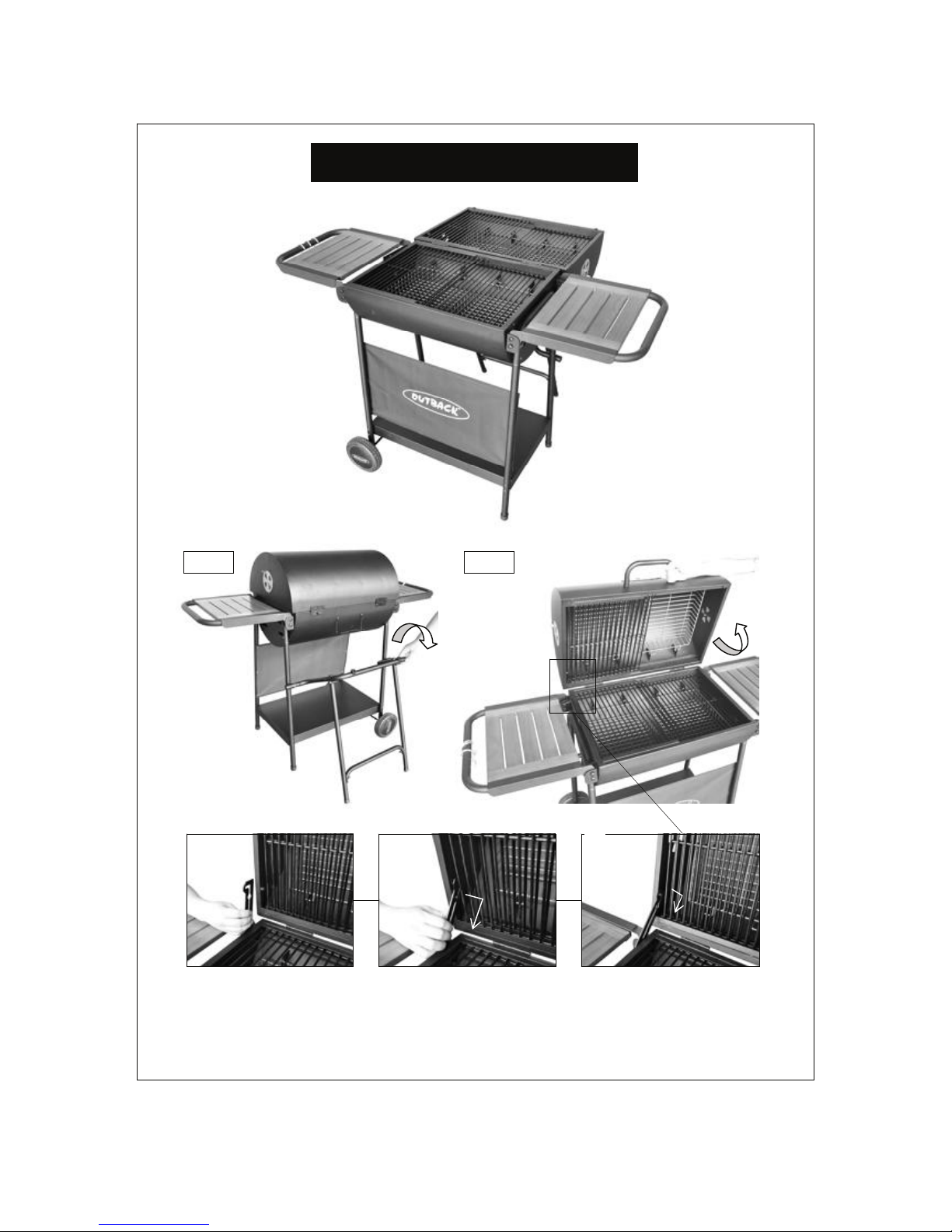

Assembly and Operating Instructions for

Outback® Full Drum Charcoal BBQ

CD200

2

Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

 Pre-Assembled Component
 Quantity varies according to model purchased
 Appearanc e, size, and construction may differ acc ording t o model purc hased

CODE PART QTY

Outback® Full Drum

Charcoal BBQ

A1 Hood 1



A2 Heat Indicator 1



A3 Hood Handle 1



A4 Charcoal Grill 4



A5 Cooking Grill 4



BODY

B1 Barbecue Body 1



B2 Upper Bracket 2



B3 Side Shelf Bracket 4



B4 Side Shelf 2



B5 Tool Hook 3



B6 Grill Lifting Handle 2



TROLLEY

C1 Left Front Leg 1



C2 Left Rear Leg 1



C3 Right Front Leg 1



C4 Right Rear Leg 1



C5 Screen 1



C6 Trolley Base 1



C7 Axle Spacer 2



C8 Locknut 2



C9 Axle 1



C10 Wheel 2



C11 Wheel Hubcap 2



C12 Rear Support Leg 2



C13 Rear Bracket 1



C14 Bend Bracket 1



C15 Silicone Pad 2



C16 Bend Bracket Hook 1



HARDWARE

D1 M6x15 Bolt 8



D2 M6x35 Bolt 16



D3 M6 Nut 24



D4 R Shape Clip 10



D5 Side Shelf Pin 8



D6 ST4.0x10 Screw 10



D7 M4 Spacer 2



D8 Leg Pin 2



D9 M5x10 Bolt 8



D10 M5 Nut 2



HOOD

3

Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B1

B3

B4

B5

C2

C1

C3

C4

C6

C5

C7

C8

C10

C11

C9

A2

A3

A4

A5

B6

B2

A1

C16

C13

C14

C12

C15

4

Hardware Reference Diagram

Specifications subject to change without prior notice.

D1

D2

D3

D4

D5

D6

D7

D8

D9

D10

5

Assembly

IMPORTANT!

• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

• Remove any internal components or packaging from the barbecue body.

• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

• Please read the Important Information section carefully before assembly and use of your

barbecue.

1

2

Attach the Left Rear Leg (C2) and Right Rear Leg (C4) onto the trolley base assembly using the
M6x35 Bolts (D2x4pcs) and M6 Nuts (D3x4pcs).

Attach the Left Front Leg (C1) and Right Front Leg (C3) onto the Trolley Base (C6) using the
M6x35 Bolts (D2x4pcs) and M6 Nuts (D3x4pcs).

D3

D2

D3

D2

NOTE: Holes
to fix screen

6

3

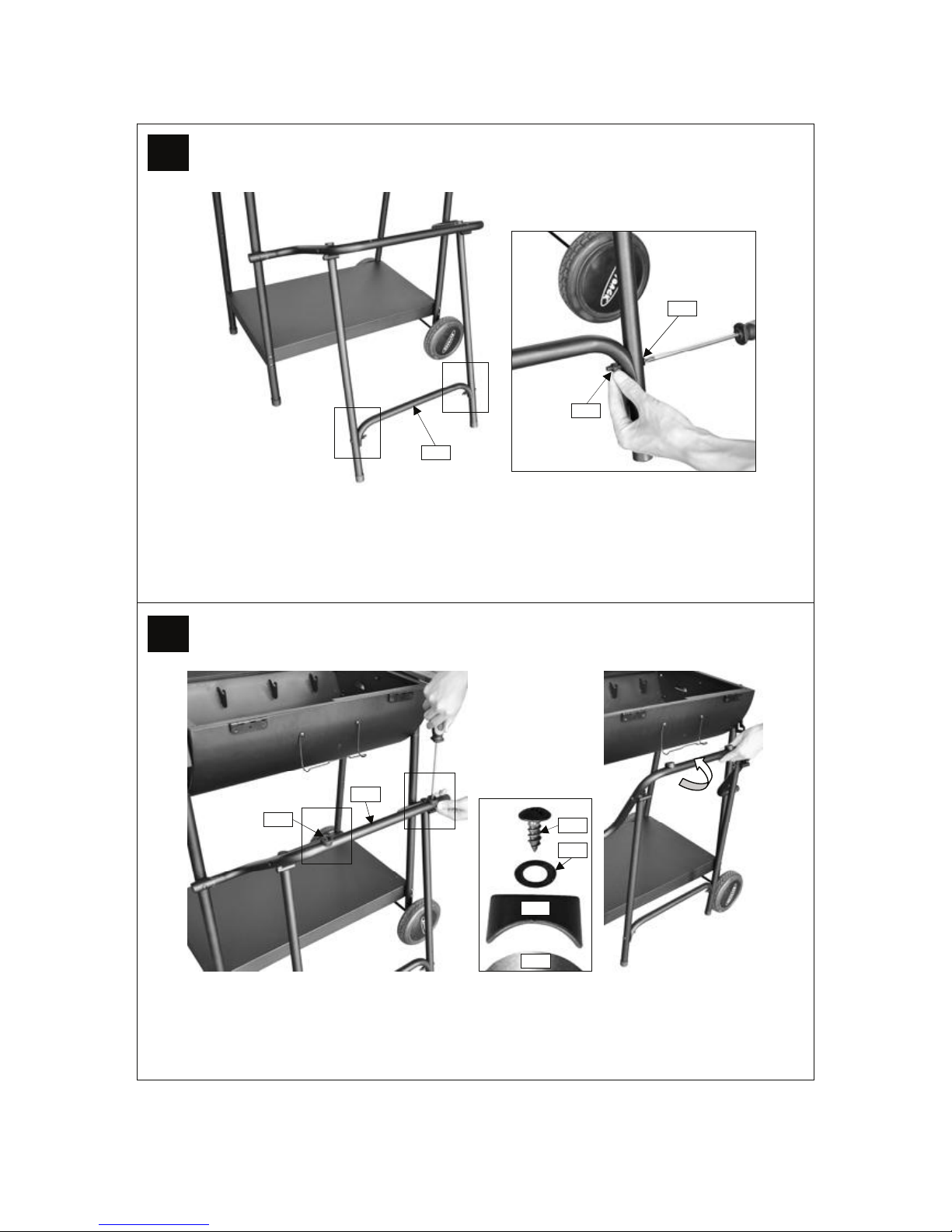

Unscrew the Locknuts (C8) from both ends of the Axle (C9).
Slide the axle through the corresponding holes in the left legs. Slide the Axle Spacer (C7) and the
Wheels (C10) over each end of the axle. Secure the wheels into place with the locknuts. Place
the Wheel Hubcaps (C11) onto the outside of the wheels.

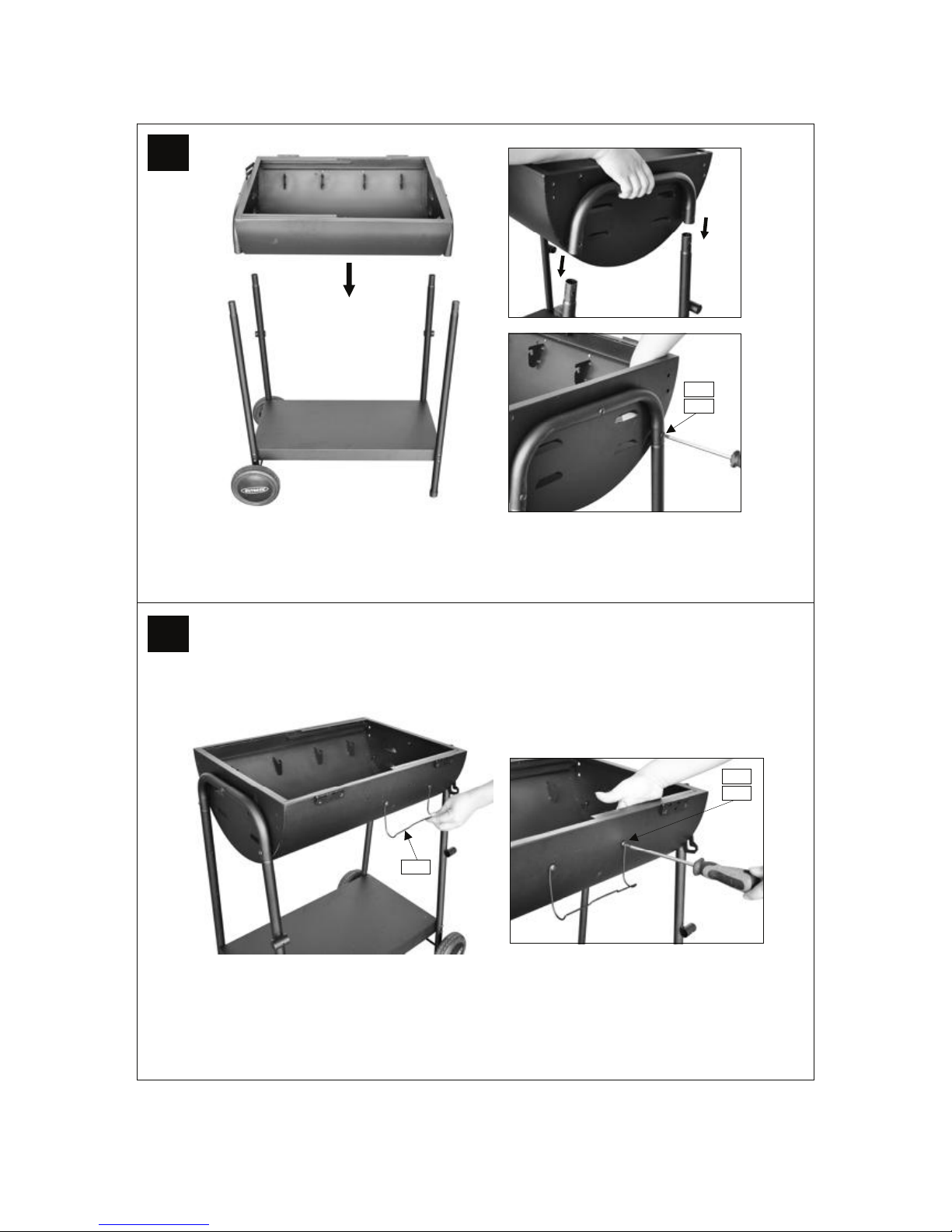

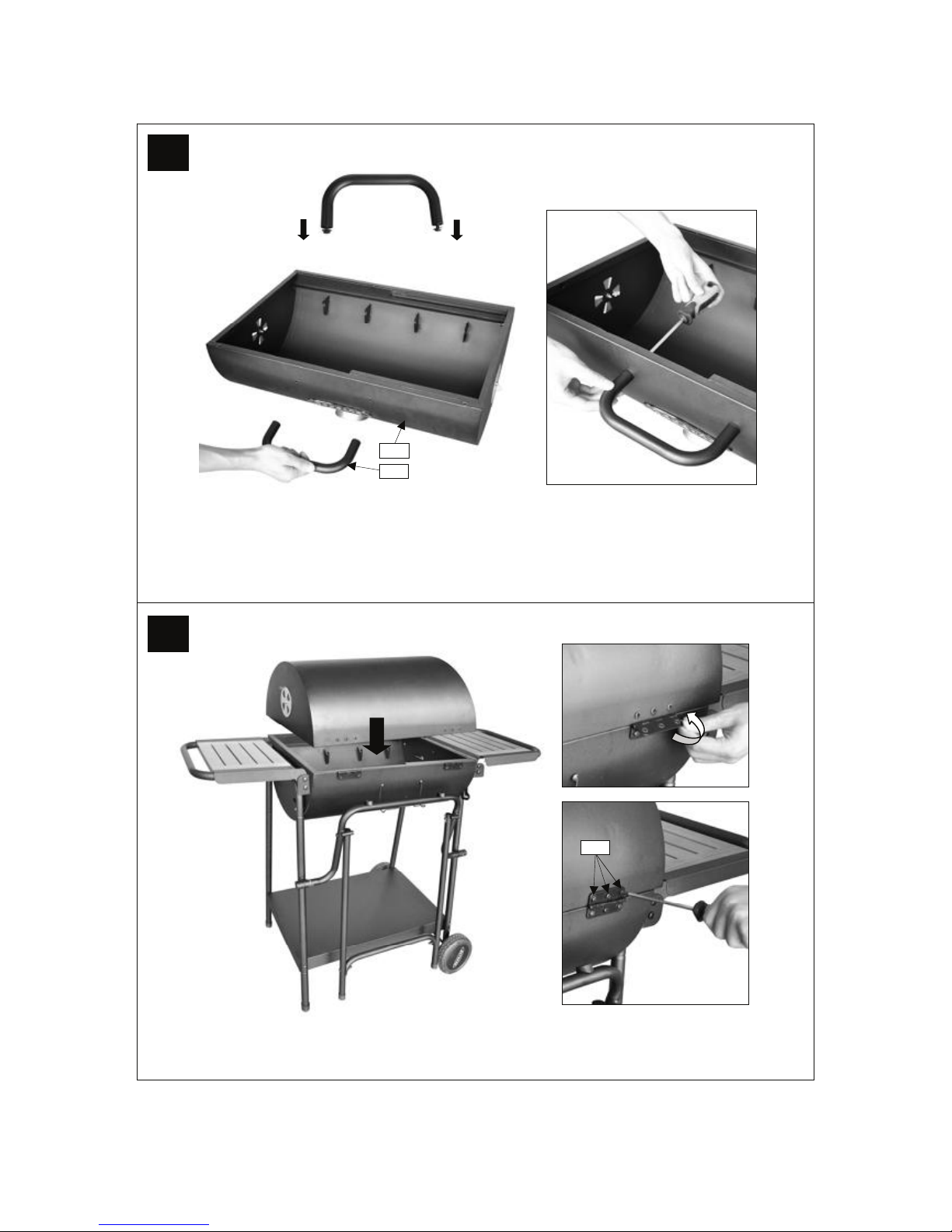

Attach a Upper Bracket (B2) onto the Barbecue Body (B1) using the M6x35 Bolt (D2) and M6 Nut
(D3). Repeat above process for other upper bracket.

4

C10

C7

C11

C9 C8

Inside

Outside

D2

D3

B1

B2

B2
