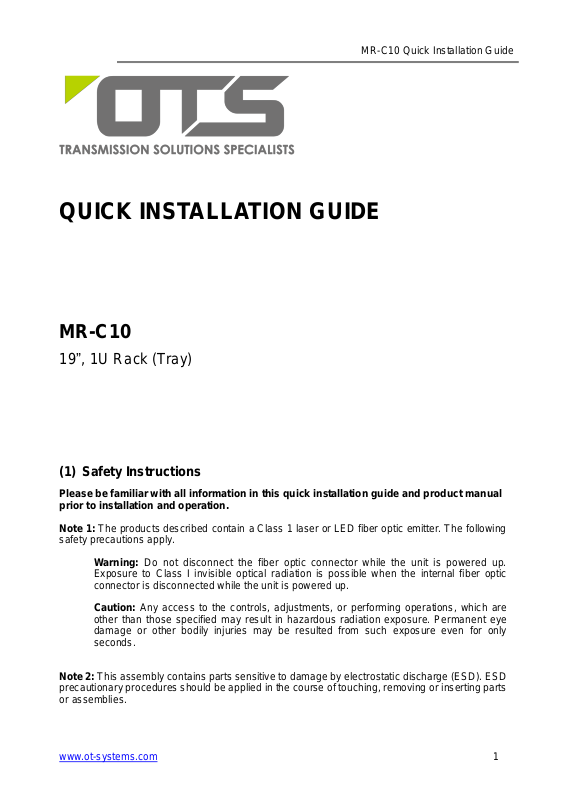

MR-C10 Quick Installation Guide

QUICK INSTALLATION GUIDE

MR-C10

19”, 1U Rack (Tray)

(1) Safety Instructions

Please be familiar with all information in this quick installation guide and product manual
prior to installation and operation.

Note 1: The products described contain a Class 1 laser or LED fiber optic emitter. The following

safety precautions apply.

Warning: Do not disconnect the fiber optic connector while the unit is powered up.
Exposure to Class I invisible optical radiation is possible when the internal fiber optic
connector is disconnected while the unit is powered up.

Caution: Any access to the controls, adjustments, or performing operations, which are
other than those specified may result in hazardous radiation exposure. Permanent eye
damage or other bodily injuries may be resulted from such exposure even for only
seconds.

Note 2: This assembly contains parts sensitive to damage by electrostatic discharge (ESD). ESD
precautionary procedures should be applied in the course of touching, removing or inserting parts
or assemblies.

www.ot-systems.com 1

MR-C10 Quick Installation Guide

Indicator

Color

Description

N/A

Red

Lit when power is supplied to the rack.

(2) Installation

2.1 General

All OT Systems products are thoroughly inspected, tested and securely packaged before
delivery to ensure a stable, intact and trouble-free service. Please check the equipment upon
receipt for any visible damage which may have been caused during shipping.

The MR-C10 Rack is dedicated and designed for all OT Systems Microtype products. The
19” (483mm) 1U-high (44.5mm) rack conveniently houses and supplies power to all Microtype
units. This rack option offers easy installation and instant viewing of all Microtype units' LED
indicators. The centralized power supply simplifies installation, saves space and clears control
room.

The rack is powered by a NV-PA/12V power supply and supports a maximum of 10 Micro
units. The rack features “hot swappable” capabilities, allowing any Microtype unit to be removed
and restored without affecting the operation of the other units in the rack.

2.2 Installation

a) Place a Microtype product into a stainless clip which is fixed in MR-C10. Slide the micro unit

through the clip rail to connect the power connector with the female power plug in the back of

the rack.
b) Repeat the above procedure for all micro units. Unused slots can be left empty.
c) The Rack can be mounted to a standard 19” racking system with appropriate screws.
d) Connect the “wire convertor” which converts DC jack to terminal block to the power adaptor

(NV-PA/12V). Conncet the “plug wire” to another end of the power adaptor.
e) Connect the power adaptor to nearby power source which will then power up the MR-C10

1U, 19” rack tray.
f) Check the status of LED located on the back of the rack. [for LEDs status, see Operational

Guides section in this manual.
g) Installation is now completed.

(3) Operational Guides

LED Indicators

Manual Earth Green manual is available on our website www.ot-systems.com
