OT Systems FTD100-XXR3 User Manual

FTD100-XXR3 Series Installation & Operation Manual

Installation and Operation Manual

FTD100-XXR3 Series

8-bit Digital Series

Triple Independent Video

Fiber Optic Receiver

www.ot-systems.com 1

OT Systems Ltd., 2014

Rev 1.2

FTD100-XXR3 Series Installation & Operation Manual

Standalone Units

Single-Mode Receivers
FTD100-SSR3SA
FTD100-SSR3LSA

Multi-Mode Receiver
FTD100 –SMR3SA

Card Modules

Single-Mode Receivers
FTD100-SSR3
FTD100-SSR3L

Multi-Mode Receiver
FTD100-SMR3

FTD100Micro Series

FTD100M Series

FTD100 Series

Single-Mode

FTD100Micro-SST
FTD100Micro-SSTL

Multi-Mode

FTD100Micro-SMT

Single-Mode

FTD100M-SST
FTD100M-SSTL

Multi-Mode

FTD100M-SMT

Single-Mode

FTD100-SST(SA)
FTD100-SSTL(SA)

Multi-Mode

FTD100-SMT(SA)

Models covered in this manual

Compatible with the following TRANSMITTERS:

Remark:

If the optical connector is FC type, the suffix in the model number will be “-FXX”. Eg.
FTD100-FSR3

www.ot-systems.com 2

FTD100-XXR3 Series Installation & Operation Manual

Table of Contents

(1) SAFETY INSTRUCTIONS .................................................................................................................................. 4

(2) PRODUCT OVERVIEW .................................................................................................................................... 5

2.1 INTRODUCTION ..................................................................................................................................................... 5

2.2 MODELS SELECTION TABLE ...................................................................................................................................... 6

(3) INSTALLATION................................................................................................................................................ 7

3.1 GENERAL ............................................................................................................................................................. 7

3.2 STANDALONE UNIT INSTALLATION .............................................................................................................................. 7

3.3 CARD MODULE INSTALLATION................................................................................................................................... 8

(4) CABLE CONNECTIONS & SETUP PROCEDURES ................................................................................................ 8

4.1 SYSTEM CABLE CONNECTIONS .................................................................................................................................. 8

4.2 GROUND CONNECTION ......................................................................................................................................... 10

(5) OPERATIONAL GUIDES ................................................................................................................................. 10

(6) SPECIFICATIONS ........................................................................................................................................... 11

(7) DRAWINGS .................................................................................................................................................. 12

(8) WARRANTY INFORMATION ......................................................................................................................... 12

(9) CONTACT INFORMATION ............................................................................................................................. 13

www.ot-systems.com 3

FTD100-XXR3 Series Installation & Operation Manual

(1) Safety Instructions

Please be familiar with all information in this manual prior to installation and
operation.

Note 1: The products described contain a Class 1 laser or LED fiber optic emitter. The following

safety precautions apply.

Warning: Do not disconnect the fiber optic connector while the unit is powered up.
Exposure to Class I invisible optical radiation is possible when the internal fiber optic
connector is disconnected while the unit is powered up.

Caution: Any access to the controls, adjustments, or performing operations, which are
other than those specified may result in hazardous radiation exposure. Permanent eye
damage or other bodily injuries may be resulted from such exposure even for only
seconds.

Note 2: This assembly contains parts sensitive to damage by electrostatic discharge (ESD). ESD
precautionary procedures should be applied in the course of touching, removing or inserting parts
or assemblies.

www.ot-systems.com 4

FTD100-XXR3 Series Installation & Operation Manual

(2) Product Overview

2.1 Introduction

The FTD100-XXR3 Series products comprise of either single-mode or multi-mode fiber optic
transmitters and receivers for the optical transmission of ONE forward (Tx → Rx) video in THREE
individual fiber links. The products work at wavelengths of 1310nm or 1550nm with either a
9/125um or 62.5/125um fiber for single-mode or multi-mode transmission respectively.

The FTD100-XXR3 Series products are compatible with the transmitters of the
FTD100Micro Series, FTD100M Series and FTD100 Series.

A non-compressed 8-bit digital video transmission scheme is implemented which supports
video in NTSC, PAL and SECAM formats.

For single-mode transmission, we also offer specifically designed products for long-haul
transmissions up to 60km. These models include the letter “L” in the suffix, e.g. FTD100-SSR3L,
etc.

The FTD100-XXR3 Series units are available as standalone units, which can be mounted
horizontally or vertically wall-mounted on any fixture. The standalone unit comes with an external
power supply FT-PA/12V, which can be powered by local 110/220V power.

The FTD100-XXR3 Series are also available as plug-in card modules installed in a 19”
rack-mount chassis. Each plug-in card occupies one slot in the rack-mount chassis. The rack
mount chassis has to be ordered separately, and comes with its own power supply for powering
the installed card modules.

www.ot-systems.com 5

FTD100-XXR3 Series Installation & Operation Manual

Type

Mode

Models1

Descriptions

Installation

requirements

Remarks

Standalone Units

Single-Mode

FTD100-SSR3SA

Triple Independendent Single-mode Video
Receiver Standalone Unit

Horizontally or
vertically
wall-mounted
Standalone
unit

FT-PA/12V
external power
supply is
included for
the Standalone
unit

2

FTD100-SSR3LSA

Triple Independendent Single-mode
Long-haul Video Receiver Standalone
Unit

Multi-Mode

FTD100-SMR3SA

Triple Independendent Multi-mode Video
Receiver Standalone Unit

Card Modules

Single-Mode

FTD100-SSR3

Triple Independendent Single-mode Video
Receiver Card Module

Housed in
FT-C18
chassis

3

FT-C18
chassis has to
be ordered
separately

FTD100-SSR3L

Triple Independendent Single-mode
Long-haul Video Receiver Card Module

Multi-Mode

FTD100-SMR3

Triple Independendent Multi-mode Video
Receiver Card Module

2.2 Models selection table

1

If the optical connector is FC type, the suffix in the model number will be “-FXX”. Eg. FTD100-FSR3

2

FT-PA/12V works under 100 -240VAC, 50/60Hz power supply

3

Refer to FT-C18 product manual for specifications

www.ot-systems.com 6

FTD100-XXR3 Series Installation & Operation Manual

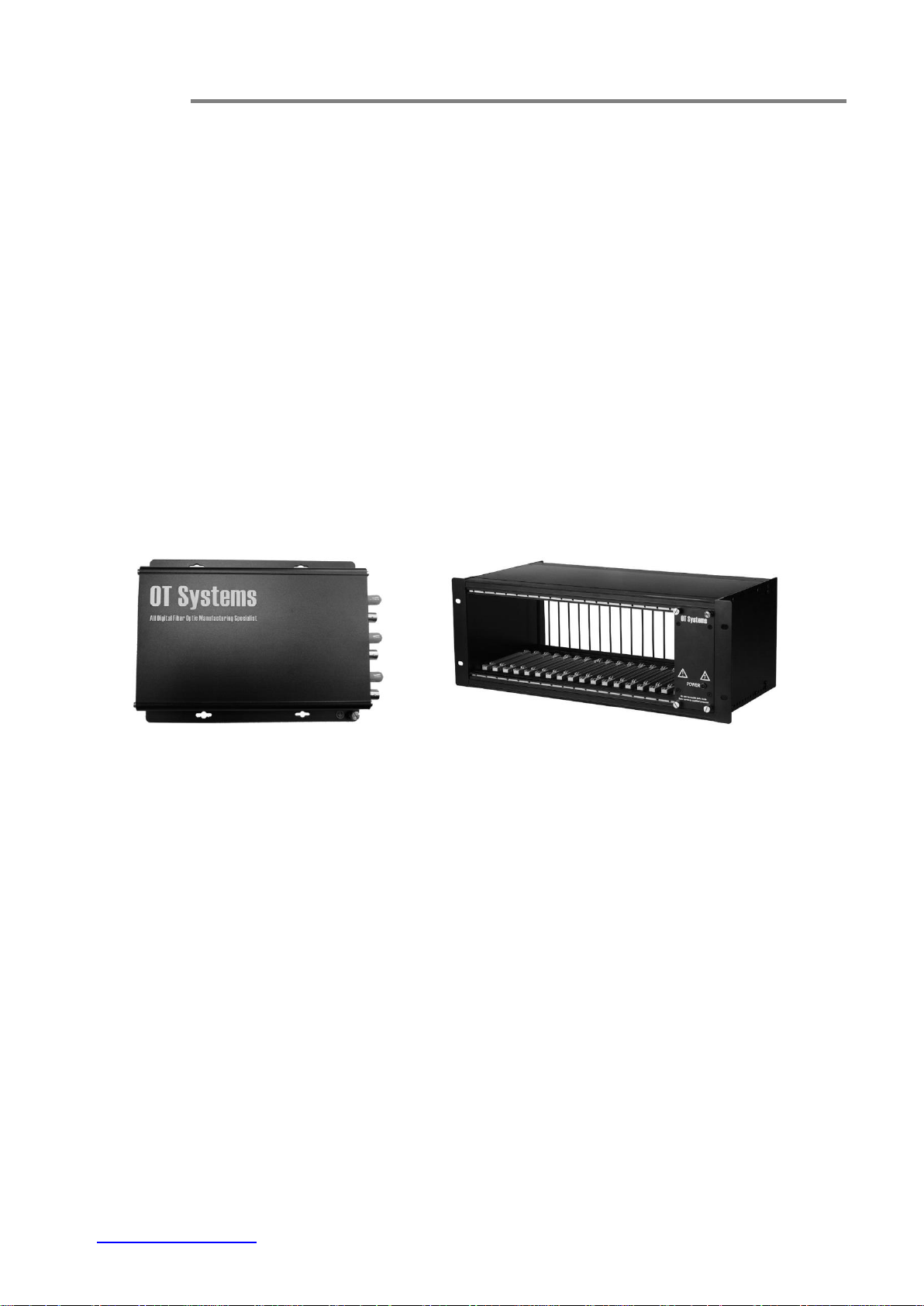

Fig. 3.1 Standalone unit

Fig. 3.2 FT-C18 chassis

(3) Installation

3.1 General

All OT Systems products are thoroughly inspected, tested and securely packaged before
delivery to ensure a stable, intact and trouble-free service. Please check the equipment upon
receipt for any visible damage which may have been caused during shipping.

The FTD100-XXR3SA Series standalone units (Fig. 3.1) can be either horizontally or
vertically wall-mounted, or mounted on any fixture. The Standalone unit works with an external
power supply FT-PA/12V powered by local 110/220V power.

The FTD100-XXR3 Series card modules are housed inside the FT-C18 rack-mount chassis
(Fig. 3.2) with an included power supply unit. The whole chassis is powered by local 110/220V
power. FT-C18 is a standard 19” (483mm) rack-mount chassis which occupies 4 rack units
(177.8mm) in height. Each FT110DF card module occupies one slot and a total of 18 cards can
be housed inside the chassis.

3.2 Standalone unit installation

a) Mount the standalone unit onto a fixture, (either on the wall or on a flat surface) with four
screws through the holes on the mounting frame to secure it in position.
b) The provided power supply should also be mounted on the same fixture or in the proximity
for connection of the supply cables to the unit, provided that an AC power supply socket is
nearby for powering the adaptor.
c) Connect all the signal inputs and outputs at the back of the unit with appropriate cables:
fiber optic cable for optical link, BNC cables for video outputs.
d) Once the unit is powered up, check that the red POWER LED on the unit is lit. If not, check
the power supply cable connections between the unit and the power supply socket.
e) With all the signals available at the input and output ports, check the status of LEDs located
on the unit. With correct status of each LED, installation is now completed [for LEDs status, see
Operational Guides on this manual’s section (5)].

www.ot-systems.com 7

FTD100-XXR3 Series Installation & Operation Manual

Signal Type

Cable Type

Connector

Optical

Single-mode or Multi-mode fiber

ST (or FC) Connector

Video

Coaxial Video Cable

BNC Connector

3.3 Card module installation

a) Insert the card module into the FT-C18 chassis along the top and bottom card guides of an
empty slot and push the card into the multi-pin socket at the rear firmly. Secure with the provided
thumb screws.
b) Repeat the above procedure for all the rest card modules. Unused slots must be covered
with blank panels provided.
c) Connect all the signal inputs and outputs at the back of the unit with appropriate cables:
fiber optic cable for optical link, BNC cables for video outputs.
d) Once the chassis is powered up, check that the red POWER LED on the front and back
panels of the card modules are lit. If not, check the power supply cable connections between the

chassis and the power supply socket. For failures of individual card’s POWER LEDs, check the

corresponding card modules, whether they have been inserted properly.
e) With all the signals available at the input and output ports, check the status of LEDs located
on the unit. With correct status of each LED, installation is now completed [for LEDs status, see

Operational Guides on this manual’s section (5)].

(4) Cable Connections & Setup Procedures

4.1 System cable connections

www.ot-systems.com 8

FTD100-XXR3 Series Installation & Operation Manual

TRANSMITTERS CAN BE:

FTD100Micro Series
FTD100M Series
FTD100 Series

TRANSMITTERS CAN BE:

FTD100Micro Series
FTD100M Series
FTD100 Series

Typical System Cable Connections Diagrams:

FTD100-XXR3 Series Receiver

Fig 4.1 Micro units to Card Module connection diagram

www.ot-systems.com 9

FTD100-XXR3SA Series Receiver

Fig 4.2 Micro units to Standalone unit connection diagram

FTD100-XXR3 Series Installation & Operation Manual

Indicator

Color

Description

CH1
CH2
CH3

PWR

Red

Lit when power is supplied to the Receiver.

OL

Yellow

Lit when optical signal from transmitter to receiver is active.

V1, V2 or V3

Green

Lit when video signals are available at the VIDEO OUT connectors.

CH1

OPT 1-

ST (or FC) Optical Connector for fiber cable connection.

VIDEO OUT 1-

BNC Video Connector for video signal ouput.

CH2

OPT 2-

ST (or FC) Optical Connector for fiber cable connection.

VIDEO OUT 2-

BNC Video Connector for video signal ouput.

CH3

OPT 3-

ST (or FC) Optical Connector for fiber cable connection.

VIDEO OUT 3-

BNC Video Connector for video signal ouput.

4.2 Ground connection

For enhanced safety to reduce the risks of electrical shock and physical damage, caused by
lightning and other power surges, as well as a connection to the surge suppresion devices in the
product, a screw terminal is provided on the Standalone cabinets (Fig. 4.3). It is highly
recommended that the Standalone unit have good ground connections to the buildings ground in
accordance with the local codes.

Fig. 4.3 Standalone unit earth ground terminal location

(5) Operational Guides

LED Indicators

Signal Ports

www.ot-systems.com 10

FTD100-XXR3 Series Installation & Operation Manual

MODELS*

PARAMETERS

FTD100-SSR3SA
FTD100-SSR3
(Single-Mode)

FTD100-SSR3LSA
FTD100-SSR3L
(Single-Mode)

FTD100-SMR3SA
FTD100-SMR3
(Multi-Mode)

OPTICAL

No. of Fiber / Connector

3 / ST(or FC)

3 / ST(or FC)

3 / ST(or FC)

Wavelength

1310 nm

1310 nm

1310 nm

Optical Power Budget

17 dB

24 dB

23 dB

Max Distance

40 km

60 km

4 km

ELECTRICAL VIDEO

Channel / Connector

3 / BNC

System

PAL, NTSC, SECAM

Bandwidth

≥ 6.0 MHz

Input/Output Impedance

75 Ohm

Input/Output Level

1.0 Vp-p typical

Differential Gain

< 1% typical

Differential Phase

< 1o typical

SNR

>60dB

POWER

Power consumption

12VDC @ 6W

Power Supply

Standalone unit: FT/PA12V DC Adaptor

Card module: Powered by FT-C18 chassis

Connector (Micro unit)

2-pin Screw Terminal

PHYSICAL

Weight

Standalone unit: 0.68 kg Card module: 0.22 kg

Dimensions (W x H x D)

Standalone unit: 156 x 30.5 x 223 mm (MAX)

Card module: 148 x 20.4 x 213 mm (MAX)

ENVIRONMENTAL

Operating Temperature

-40oC ~ +75oC

Storage Temperature

-40oC ~ +85oC

Relative Humidity

0 ~ 95% non-condensing

MTBF

>100’000 Hours

*If the optical connector is FC type, the suffix in the model number will be “-FXX”. Eg. FTD100Micro-FST

(6) Specifications

www.ot-systems.com 11

FTD100-XXR3 Series Installation & Operation Manual

(7) Drawings

Fig. 7.1 Dimensional drawings of Standalone unit (mm)

(8) Warranty Information

All OT Systems FT Series products are subject to a limited life-time warranty offered by the
company in normal circumstances. Please refer to the OT Systems Products Warranty
Statement for details. Access to the statement is available in our company website at

www.ot-systems.com.

www.ot-systems.com 12

FTD100-XXR3 Series Installation & Operation Manual

(9) Contact Information

APAC Operation

Address:
Unit 1023, 10/F, Landmark
North, 39 Lung Sum Avenue,
Sheung Shui, N.T., Hong Kong
Tel: [phone]
Fax: [phone]
Sales Inquiries

[e-mail]

Technical Support

[e-mail]

EMEA Operation

Address:
J. Slovackio str. 4, LT-11107,
Vilnius, Lithuania

Tel: [phone]
Fax: [phone]
Sales Inquiries

[e-mail]

Technical Support

[e-mail]

AMERICAS Operation

Address:
18 West Main Street, Plano,
IL 60545, U.S.A.

Tel: [phone]
Fax: [phone]
Sales Inquiries

[e-mail]

Technical Support

[e-mail]

www.ot-systems.com 13
