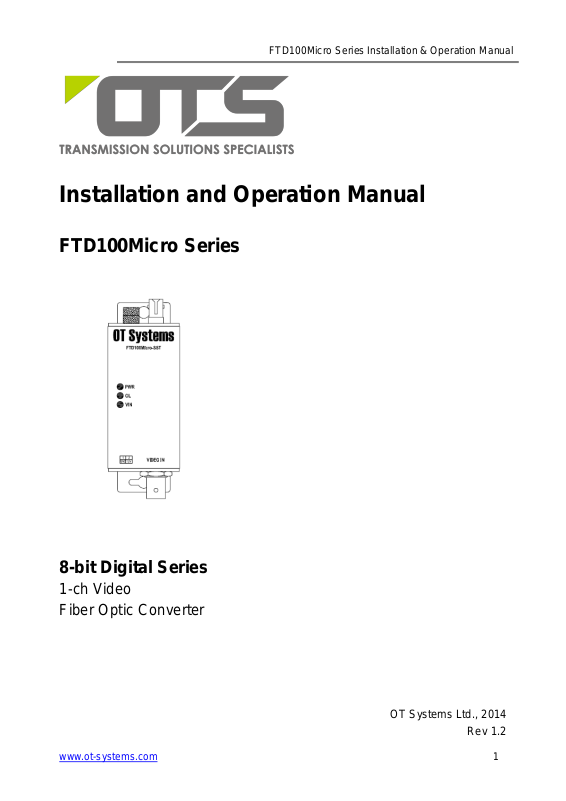

OT Systems FTD100 User Manual

FTD100Micro Series Installation & Operation Manual

Installation and Operation Manual

FTD100Micro Series

8-bit Digital Series

1-ch Video

Fiber Optic Converter

OT Systems Ltd., 2014

Rev 1.2

www.ot-systems.com 1

FTD100Micro Series Installation & Operation Manual

Models covered in this manual

Single-Mode Transmitters

FTD100Micro-SST
FTD100Micro-SSTL

Single-Mode Receivers

FTD100Micro-SSR
FTD100Micro-SSRL

Multi-Mode Transmitters

FTD100Micro-SMT

Multi-Mode Receivers

FTD100Micro-SMR

Compatible with the following Series:

FTD100
FTD100M
FTD100-XXR3

Remark:

If the optical connector is FC type, the suffix in the model number will be “-FXX”. Eg.
FTD100Micro-FST

www.ot-systems.com 2

FTD100Micro Series Installation & Operation Manual

Table of Contents

(1) SAFETY INSTRUCTIONS .................................................................................................................................. 4

(2) PRODUCT OVERVIEW .................................................................................................................................... 5

2.1 INTRODUCTION ..................................................................................................................................................... 5

2.2 MODELS SELECTION TABLE ...................................................................................................................................... 5

(3) INSTALLATION................................................................................................................................................ 6

3.1 GENERAL ............................................................................................................................................................. 6

3.2 MICRO UNIT INSTALLATION ...................................................................................................................................... 6

(4) CABLE CONNECTIONS & SETUP PROCEDURES ................................................................................................ 7

4.1 SYSTEM CABLE CONNECTIONS .................................................................................................................................. 7

4.2 GROUND CONNECTIONS ......................................................................................................................................... 8

(5) OPERATIONAL GUIDES ................................................................................................................................... 9

5.1 FTD100MICRO SERIES TRANSMITTER ...................................................................................................................... 9

5.2 FTD100MICRO SERIES RECEIVER ............................................................................................................................ 9

(6) SPECIFICATIONS ........................................................................................................................................... 10

(7) DRAWINGS .................................................................................................................................................. 11

(8) WARRANTY INFORMATION ......................................................................................................................... 11

(9) CONTACT INFORMATION ............................................................................................................................. 11

www.ot-systems.com 3

FTD100Micro Series Installation & Operation Manual

(1) Safety Instructions

Please be familiar with all information in this manual prior to installation and
operation.

Note 1: The products described contain a Class 1 laser or LED fiber optic emitter. The following

safety precautions apply.

Warning: Do not disconnect the fiber optic connector while the unit is powered up.
Exposure to Class I invisible optical radiation is possible when the internal fiber optic
connector is disconnected while the unit is powered up.

Caution: Any access to the controls, adjustments, or performing operations, which are
other than those specified may result in hazardous radiation exposure. Permanent eye
damage or other bodily injuries may be resulted from such exposure even for only
seconds.

Note 2: This assembly contains parts sensitive to damage by electrostatic discharge (ESD). ESD
precautionary procedures should be applied in the course of touching, removing or inserting parts
or assemblies.

www.ot-systems.com 4

FTD100Micro Series Installation & Operation Manual

Mode

Model1

Description

Installation

requirements

Remarks

SIngle-Mode

FTD100Micro-SST

Single-mode 1-Ch Video Transmitter
Micro Unit

Horizontally or
vertically
wall-mounted
Micro sized
cubicle

FT-PA/12V
external
power
adaptor is
included for
the Micro
unit

2

FTD100Micro-SSTL

Single-mode Long-haul 1-Ch Video
Transmitter Micro Unit

FTD100Micro-SSR

Single-mode 1-Ch Video Receiver
Micro Unit

FTD100Micro-SSRL

Single-mode Long-haul 1-Ch Video
Receiver Micro Unit

Multi-Mode

FTD100Micro-SMT

Multi-mode 1-Ch Video Transmitter
Micro Unit

FTD100Micro-SMR

Multi-mode 1-Ch Video Receiver
Micro Unit

(2) Product Overview

2.1 Introduction

The FTD100Micro Series products comprise of either single-mode or multi-mode fiber optic
transmitters and receivers for the optical transmission of ONE forward (Tx → Rx) video on one
fiber. The products work at wavelengths of 1310nm or 1550nm with either a 9/125um or

62.5/125um fiber for single-mode or multi-mode transmission respectively.

A non-compressed 8-bit digital video transmission scheme is implemented which supports
video in NTSC, PAL and SECAM formats.

For single-mode transmission, we also offer specifically designed products for long-haul
transmissions up to 60km. These models include the letter “L” in the suffix, e.g.
FTD100Micro-SSTL for Tx, FTD100Micro-SSRL for Rx, etc.

The FTD100Micro Series units are available as standalone Micro sized cubicle, which can
be mounted horizontally or vertically wall-mounted on any fixture. The Micro unit comes with an
external power supply FT-PA/12V, which can be powered by local 110/220V power.

2.2 Models selection table

1

If the optical connector is FC type, the suffix in the model number will be “-FXX”. Eg. FTD100Micro-FST

2

FT-PA/12V works under 100 -240VAC, 50/60Hz power supply

www.ot-systems.com 5

FTD100Micro Series Installation & Operation Manual

(3) Installation

3.1 General

All OT Systems products are thoroughly inspected, tested and securely packaged before
delivery to ensure a stable, intact and trouble-free service. Please check the equipment upon
receipt for any visible damage which may have been caused during shipping.

The FTD100Micro Series (Fig. 3.1) units can be either horizontally or vertically wall-mounted,
or mounted on any fixture, etc. The Micro unit works with an external power supply FT-PA/12V
powered by local 110/220V power.

Fig. 3.1 Micro unit

3.2 Micro unit installation

a) Mount the clip (Fig. 3.2) onto a fixture, e.g. a plank, (either on the wall or on a flat surface)
with two screws piercing through the holes on the mounting frame to secure it in position.

(a) Front view (b) Side view

Fig. 3.2 Micro unit’s clip

b) The provided power supply should also be mounted on the same fixture or in the proximity
for connection of the supply cables to the unit, provided that an AC power supply socket is near
by for powering the adaptor.
c) Push the Micro unit into the clip to secure it in position. For details, please follow Fig. 3.3.

www.ot-systems.com 6

FTD100Micro Series Installation & Operation Manual

Signal Type

Cable Type

Connector

Optical

Single-mode or Multi-mode Fibers

ST (or FC) Connector

Video

Coaxial Video Cable

BNC Connector

(a) Installation (b) Side view of the clip (c) Side view of the Micro unit pushed into the clip

Fig. 3.3 Micro unit installation on the clip

d) Connect all the signal inputs and outputs at the back of the unit with appropriate cables: fiber
optic cable for optical link, BNC cable for video input/output (Tx/Rx).
e) Once the unit is powered up, check that the red POWER LED on the unit is lit. If not, check
the power supply cable connections between the unit and the power supply socket.
f) With all the signals available at the input and output ports, check the status of LEDs located
on the unit. With correct status of each LED, installation is now completed [for LEDs status, see

Operational Guides on this manual’s section (5)].

(4) Cable Connections & Setup Procedures

4.1 System cable connections

www.ot-systems.com 7

FTD100Micro Series Installation & Operation Manual

Typical System Cable Connections Diagram:

Micro Transmitter Micro Receiver

Fig 4.1 Micro to Micro unit connection diagram

4.2 Ground connections

For enhanced safety to reduce the risks of electrical shock and physical damage, caused by
lightning and other power surges, as well as a connection to the surge suppresion devices in the
product, a screw terminal is provided on the Micro cabinets (Fig. 4.4). It is highly recommended
that the Micro unit have good ground connections to the buildings ground in accordance with the
local codes.

Fig. 4.4 Micro unit earth terminal location

www.ot-systems.com 8

FTD100Micro Series Installation & Operation Manual

Indicator

Colour

Description

PWR

Red

Lit when power is supplied to the Transmitter.

OL

Yellow

Lit when optical signal from receiver to transmitter is active.*

VIDEO IN / VIN

Green

Lit when video signal is fed into the VDEO IN connector.

OPT -

ST (or FC) Optical Connector for fiber cable connection.

VIDEO IN -

BNC Video Connector for video signal input.

Indicator

Colour

Description

PWR

Red

Lit when power is supplied to the Receiver.

OL

Yellow

Lit when optical signal from receiver to transmitter is active.

VIDEO OUT / VOUT

Green

Lit when video signal is received at VIDEO OUT connector.

OPT -

ST (or FC) Optical Connector for fiber cable connection.

VIDEO OUT -

BNC Video Connector for video signal output.

(5) Operational Guides

5.1 FTD100Micro Series Transmitter

LED Indicators

* For products with uni-directional signal transmission, the OL LED on the Tx is not lit because optical signal from the Rx to the Tx is

always inactive.

Signal Ports

5.2 FTD100Micro Series Receiver

LED Indicators

Signal Ports

www.ot-systems.com 9

FTD100Micro Series Installation & Operation Manual

MODELS*

PARAMETERS

FTD100Micro-SST(R)
(Single-Mode)

FTD100Micro-SST(R)L
(Single-Mode)

FTD100Micro-SMT(R)
(Multi-Mode)

OPTICAL

No. of Fiber / Connector

1 / ST(or FC)

1 / ST(or FC)

1 / ST(or FC)

Wavelength

1310 nm

1310 nm

1310 nm

Optical Power Budget

17 dB

24 dB

23 dB

Max Distance

40 km

60 km

4 km

ELECTRICAL VIDEO

Channel / Connector

1 / BNC

System

PAL, NTSC, SECAM

Bandwidth

≥ 6.0 MHz

Input/Output Impedance

75 Ohm

Input/Output Level

1.0 Vp-p typical

Differential Gain

< 1% typical

Differential Phase

< 1o typical

SNR

>60dB

POWER

Power consumption

12VDC @ 1.8W

Power supply

FT/PA12V DC Adaptor

Connector (Micro unit)

2-pin Screw Terminal

PHYSICAL

Weight

0.1 kg

Dimensions (W x H x D)

36.2 x 24.5 x 101 mm (MAX)

ENVIRONMENTAL

Operating Temperature

-40oC ~ +75oC

Storage Temperature

-40oC ~ +85oC

Relative Humidity

0 ~ 95% non-condensing

MTBF

>100’000 Hours

*If the optical connector is FC type, the suffix in the model number will be “-FXX”. Eg. FTD100Micro-FST

(6) Specifications

www.ot-systems.com 10

FTD100Micro Series Installation & Operation Manual

(7) Drawings

Fig. 7.1 Dimensional drawings of Micro unit (mm)

(8) Warranty Information

All OT Systems FT Series products are subject to a limited life-time warranty offered by the
company in normal circumstances. Please refer to the OT Systems Products Warranty Statement
for details. Access to the statement is available in our company website at www.ot-systems.com.
