FT010CB Series Installation & Operation Manual
Installation and Operation Manual
FT010CB Series
Digital Series
1 Bi-directional Contact Closure
Fiber Optic Converter
www.ot-systems.com 1
OT Systems Ltd., 2014
Rev 1.2
FT010CB Series Installation & Operation Manual
Standalone Units
Single-Mode Transmitters
FT010CB-SSTRSA
FT010CB-SSTRLSA
Single-Mode Receivers
FT010CB-SSRTSA
FT010CB-SSRTLSA
Multi-Mode Transmitter
FT010CB-SMTRSA
Multi-Mode Receiver
FT010CB-SMRTSA
Card Modules
Single-Mode Transmitters
FT010CB-SSTR
FT010CB-SSTRL
Single-Mode Receivers
FT010CB-SSRT
FT010CB-SSRTL
Multi-Mode Transmitter
FT010CB-SMTR
Multi-Mode Receiver
FT010CB-SMRT
Models covered in this manual
Remark:
If the optical connector is FC type, the suffix in the model number will be “-FXX”. Eg.
FT010CB-FSTR
www.ot-systems.com 2
FT010CB Series Installation & Operation Manual
Table of Contents
(1) SAFETY INSTRUCTIONS .................................................................................................................................. 4
(2) PRODUCT OVERVIEW .................................................................................................................................... 5
2.1 INTRODUCTION ..................................................................................................................................................... 5
2.2 MODELS SELECTION TABLE ...................................................................................................................................... 6
(3) INSTALLATION................................................................................................................................................ 7
3.1 GENERAL ............................................................................................................................................................. 7
3.2 STANDALONE UNIT INSTALLATION .............................................................................................................................. 7
3.3 CARD MODULE INSTALLATION................................................................................................................................... 8
(4) CABLE CONNECTIONS & SETUP PROCEDURES ................................................................................................ 8
4.1 SYSTEM CABLE CONNECTIONS ................................................................................................................................. 8
4.2 CONTACT CLOSURE (CC) CONNECTIONS ................................................................................................................... 10

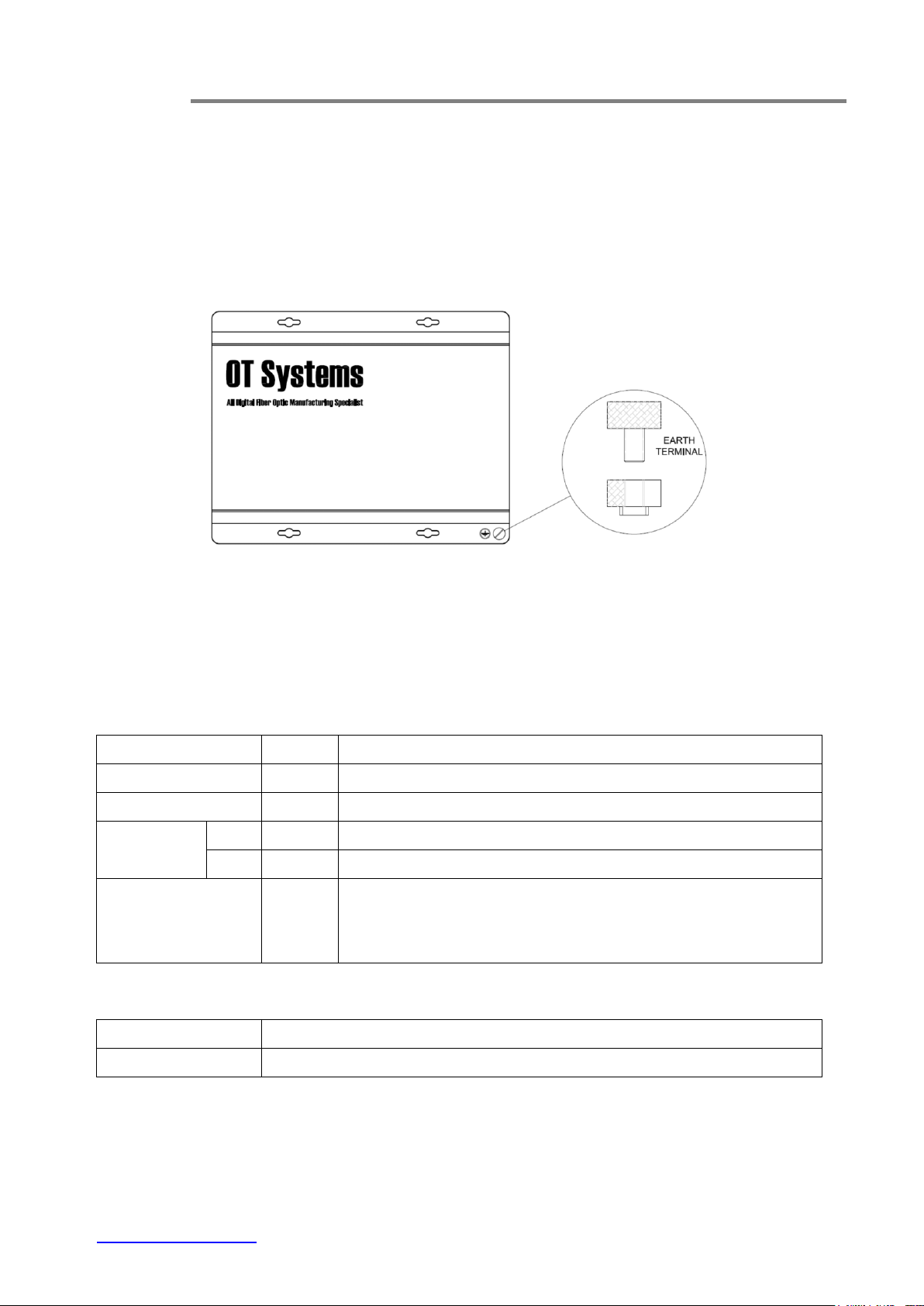

4.3 GROUND CONNECTION ......................................................................................................................................... 11
(5) OPERATIONAL GUIDES ................................................................................................................................. 11
5.1 FT010CB SERIES TRANSMITTER ............................................................................................................................ 11
5.2 FT010CB SERIES RECEIVER .................................................................................................................................. 12
5.3 RESET BUTTON (RST) .......................................................................................................................................... 12
5.4 OPERATIONAL INFORMATION ................................................................................................................................. 12
(6) SPECIFICATIONS ........................................................................................................................................... 13
(7) DRAWINGS .................................................................................................................................................. 14
(8) WARRANTY INFORMATION ......................................................................................................................... 14
(9) CONTACT INFORMATION ............................................................................................................................. 15
www.ot-systems.com 3
FT010CB Series Installation & Operation Manual
(1) Safety Instructions
Please be familiar with all information in this manual prior to installation and
operation.
Note 1: The products described contain a Class 1 laser or LED fiber optic emitter. The following
safety precautions apply.
Warning: Do not disconnect the fiber optic connector while the unit is powered up.
Exposure to Class I invisible optical radiation is possible when the internal fiber optic
connector is disconnected while the unit is powered up.
Caution: Any access to the controls, adjustments, or performing operations, which are
other than those specified may result in hazardous radiation exposure. Permanent eye
damage or other bodily injuries may be resulted from such exposure even for only
seconds.
Note 2: This assembly contains parts sensitive to damage by electrostatic discharge (ESD). ESD
precautionary procedures should be applied in the course of touching, removing or inserting parts
or assemblies.
www.ot-systems.com 4
FT010CB Series Installation & Operation Manual
(2) Product Overview
2.1 Introduction
The FT010CB Series products comprise of either single-mode or multi-mode fiber optic
transmitters and receivers for the optical transmission of ONE bi-directional (Tx ↔ Rx) contact
closure signals all on one fiber. The products work at wavelengths of 1310nm and 1550nm with
either a 9/125um or 62.5/125um fiber for single-mode or multi-mode transmission respectively.
Bi-directional transmission of Contact Closure (CC) status is supported. The CC input can
be a Dry contact or a TTL logic input. Normally Open (NO) or Normally Close (NC) Contact
selectable output is provided for a maximum current of 1000mA at 110VDC/125VAC.
For single-mode transmission, we also offer specifically designed products for long-haul
transmissions up to 60km. These models include the letter “L” in the suffix, e.g. FT010CB-SSTRL
for Tx, FT010CB-SSRTL for Rx, etc.
The FT010CB Series units are available as standalone units, which can be mounted
horizontally or vertically wall-mounted on any fixture. The standalone unit comes with an external
power supply FT-PA/12V, which can be powered by local 110/220V power.
The FT010CB Series units are also available as plug-in card modules installed in a 19”
rack-mount chassis. Each plug-in card occupies one slot in the rack-mount chassis. The rack
mount chassis has to be ordered separately, and comes with its own power supply for powering
the installed card modules.
www.ot-systems.com 5
FT010CB Series Installation & Operation Manual
Type
Mode
Models1
Descriptions
Installation
requirement
s
Remarks
Standalone Units
Single-Mode
FT010CB-SSTRSA
Single-mode 1 bi-directional Contact
Closure Transmitter Standalone unit
Horizontally
or vertically
wall-mounted
Standalone
unit
FT-PA/12V
external
power
supply is
included for
the
Standalone
unit
2
FT010CB-SSTRLSA
Single-mode Long-haul 1 bi-directional
Contact Closure Transmitter Standalone
unit
FT010CB-SSRTSA
Single-mode 1 bi-directional Contact
Closure Receiver Standalone unit
FT010CB-SSRTLSA
Single-mode Long-haul 1 bi-directional
Contact Closure Receiver Standalone unit
Multi-Mode
FT010CB-SMTRSA
Multi-mode 1 bi-directional Contact
Closure Transmitter Standalone unit
FT010CB-SMRTSA
Multi-mode 1 bi-directional Contact
Closure Receiver Standalone unit
Card Modules
Single-Mode
FT010CB-SSTR
Single-mode 1 bi-directional Contact
Closure Transmitter Card Module
Housed in
FT-C18
chassis
3
FT-C18
chassis has
to be
ordered
separately
FT010CB-SSTRL
Single-mode Long-haul 1 bi-directional
Contact Closure Transmitter Card Module
FT010CB-SSRT
Single-mode 1 bi-directional Contact
Closure Receiver Card Module
FT010CB-SSRTL
Single-mode Long-haul 1 bi-directional
Contact Closure Receiver Card Module
Multi-Mode
FT010CB-SMTR
Multi-mode 1 bi-directional Contact
Closure Transmitter Card Module
FT010CB-SMRT
Multi-mode 1 bi-directional Contact
Closure Receiver Card Module
2.2 Models selection table
1
If the optical connector is FC type, the suffix in the model number will be “-FXX”. Eg. FT010CB-FSTR
2
FT-PA/12V works under 100 -240VAC, 50/60Hz power supply
3
Refer to FT-C18 product manual for specifications
www.ot-systems.com 6
FT010CB Series Installation & Operation Manual

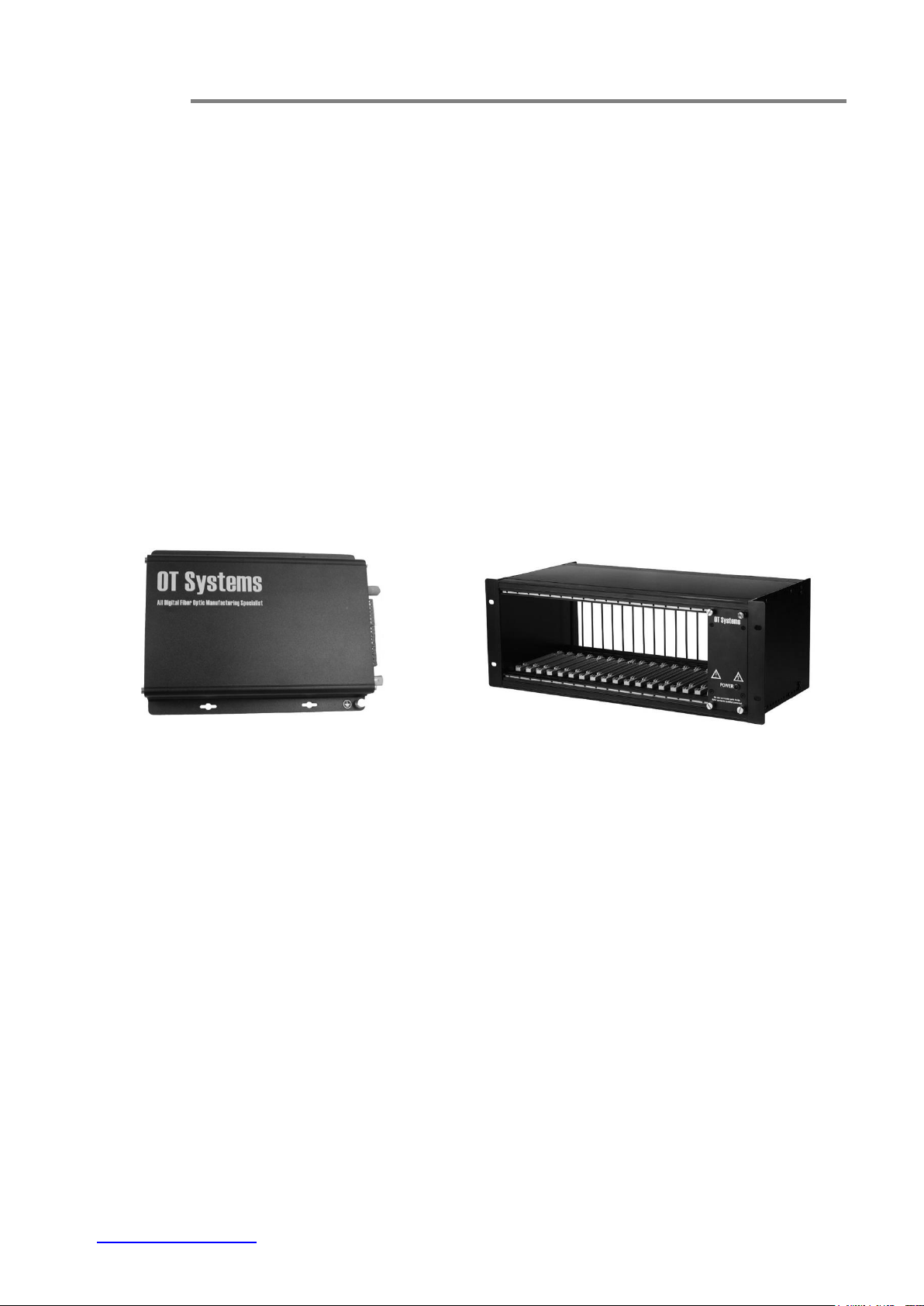

Fig. 3.1 Standalone unit
Fig. 3.2 FT-C18 chassis
(3) Installation
3.1 General
All OT Systems products are thoroughly inspected, tested and securely packaged before
delivery to ensure a stable, intact and trouble-free service. Please check the equipment upon
receipt for any visible damage which may have been caused during shipping.
The FT010CB Series standalone units (Fig.3.1) can be either horizontally or vertically
wall-mounted, or mounted on any fixture. The Standalone unit works with an external power
supply FT-PA/12V powered by local 110/220V power.
The FT010CB Series card modules are housed inside the FT-C18 rack-mount chassis (Fig.
3.2) with an included power supply unit. The whole chassis is powered by local 110/220V power.
FT-C18 is a standard 19” (483mm) rack-mount chassis which occupies 4 rack units (177.8mm) in
height. Each FT010CB card module occupies one slot and a total of 18 cards can be housed
inside the chassis.
3.2 Standalone unit installation
a) Mount the standalone unit onto a fixture, (either on the wall or on a flat surface) with four
screws through the holes on the mounting frame to secure it in position.
b) The provided power supply should also be mounted on the same fixture or in the proximity
for connection of the supply cables to the unit, provided that an AC power supply socket is
nearby for powering the adaptor.
c) Connect all the signal inputs and outputs at the back of the unit with appropriate cables:
fiber optic cable for optical link, and UTP cables for contact closure inputs/outputs (Tx/Rx).
d) Once the unit is powered up, check that the red POWER LED on the unit is lit. If not, check
the power supply cable connections between the unit and the power supply socket.
e) With all the signals available at the input and output ports, check the status of LEDs located
on the unit. With correct status of each LED, installation is now completed [for LEDs status, see
Operational Guides on this manual’s section (5)].
www.ot-systems.com 7
FT010CB Series Installation & Operation Manual
Signal Type
Cable Type
Connector
Optical
Single-mode or Multi-mode fiber
ST (or FC) Connector
Contact Closure
Twisted-pair cable
Screw Terminal Block
3.3 Card module installation
a) Insert the card module into the FT-C18 chassis along the top and bottom card guides of an
empty slot and push the card into the multi-pin socket at the rear firmly. Secure with the provided
thumb screws.
b) Repeat the above procedure for all the rest card modules. Unused slots must be covered
with blank panels provided.
c) Connect all the signal inputs and outputs at the back of the unit with appropriate cables:
fiber optic cable for optical link, and UTP cables for contact closure inputs/outputs (Tx/Rx).
d) Once the chassis is powered up, check that the red POWER LED on the front and back
panels of the card modules are lit. If not, check the power supply cable connections between the
chassis and the power supply socket. For failures of individual card’s POWER LEDs, check the
corresponding card modules, whether they have been inserted properly.
e) With all the signals available at the input and output ports, check the status of LEDs located
on the unit. With correct status of each LED, installation is now completed [for LEDs status, see
Operational Guides on this manual’s section (5)].
(4) Cable Connections & Setup Procedures
4.1 System Cable Connections
Typical System Cable Connections Diagrams:
Standalone Transmitter Standalone Receiver
Fig. 4.1 Standalone unit to Standalone unit connection diagram
www.ot-systems.com 8
FT010CB Series Installation & Operation Manual
Standalone Transmitter Card Module Receiver
Fig. 4.2 Standalone unit to Card Module connection diagram
Card Module Transmitter Card Module Receiver
Fig. 4.3 Card Module to Card Module connection diagram
www.ot-systems.com 9
FT010CB Series Installation & Operation Manual
Pin Assignment
(Screw Terminal
Block)
Data format
1 2 3 4 5
Input
Contact closure /
TTL
Input
(Hi)
Input
(Low /COM)
N/A
N/A
N/A
Output
Normally Close
(NC)
N/A
N/A
Output (Hi)
Output
(Low /COM)
N/A
Normally Open
(NO)
N/A
N/A
N/A
Output
(Low /COM)
Output
(Hi)
User’s Equipment
CC (5-PIN)
CC (5-PIN)
User’s Equipment
Hi 1
Contact
Input
Contact
Input
1 Hi
Low /COM
2 2 Low /COM
Hi 3
Relay
Contact
Output
Relay
Contact
Output
3 Hi
Low /COM
4 4 Low /COM
5 5
User’s Equipment
CC (5-PIN)
CC (5-PIN)
User’s Equipment
Hi 1
Contact
Input
Contact
Input
1 Hi
Low /COM
2 2 Low /COM
3
Relay
Contact
Output
Relay
Contact
Output
3
Low /COM
4 4 Low /COM
Hi 5 5 Hi
4.2 Contact Closure (CC) connections
For Contact closure input and output connections, please note the following pin assignment:
Contact Closure/TTL Input and Normally Close (NC) Output connection diagram:
Transmitter End Receiver End
Fig. 4.4.1 Connector Pin Assignments for Contact Closure/TTL input and Normally Close (NC)
ouput at CC port
Contact Closure/TTL Input and Normally Open (NO) Output connection diagram:
Transmitter End Receiver End
Fig. 4.4.2 Connector Pin Assignments for Contact Closure/TTL input and Normally Open (NO)
output at CC port
www.ot-systems.com 10
FT010CB Series Installation & Operation Manual
Indicator
Color
Description
PWR
Red
Lit when power is supplied to the Receiver.
OL
Yellow
Lit when optical signal from transmitter to receiver is active.
CC
IN
Red
Blinks when input contact closure is available at Tx.
OUT
Green
Blinks when relay output is available at Rx.
AL
Blue
Lit when the transmitter power off or optical fiber link has been
broken down between the Transmitter & Receiver (Fiber cable
dis-connected or No power at Transmitter).
OPT -
ST (or FC) Optical Connector for fiber cable connection.
CC -
5-pin Screw Terminal Block for contact closure signal.
4.3 Ground connection
For enhanced safety to reduce the risks of electrical shock and physical damage, caused by
lightning and other power surges, as well as a connection to the surge suppresion devices in the
product, a screw terminal is provided on the Standalone cabinets (Fig. 4.5). It is highly
recommended that the Standalone unit have good ground connections to the buildings ground in
accordance with the local codes.
Fig. 4.5 Standalone unit earth ground terminal location
(5) Operational Guides
5.1 FT010CB Series Transmitter
LED Indicators
Signal Ports
www.ot-systems.com 11
FT010CB Series Installation & Operation Manual
Indicator
Color
Description
PWR
Red
Lit when power is supplied to the Receiver.
OL
Yellow
Lit when optical signal from transmitter to receiver is active.
CC
IN
Red
Blinks when input contact closure is available at Tx.
OUT
Green
Blinks when relay output is available at Rx.
AL
Blue
Lit when the transmitter power off or optical fiber link has been
broken down between the Transmitter & Receiver (Fiber cable
dis-connected or No power at Transmitter).
OPT -
ST (or FC) Optical Connector for fiber cable connection.
CC -
5-pin Screw Terminal Block for contact closure signal.
5.2 FT010CB Series Receiver
LED Indicators
Signal Ports
5.3 Reset Button (RST)
Press the ‘RST’ button shortly will make the internal alarm buzzer silent upon recognition of
the fault.
5.4 Operational information
In case of transmitter power off, broken down of optical link, the alarm buzzer will sound and
lit of AL (Blue LED) to alert the system operator accordingly.
The alarm buzzer can be made silent by pressing the RST button (on the rear panel) of
FT010CB transmitter and receiver upon the acknowledgement and recognition of the fault.
AL (blue LED) lit until the optical signal resume normal.
www.ot-systems.com 12
FT010CB Series Installation & Operation Manual
MODELS*
PARAMETERS
FT010CB-SSTR(RT)SA
FT010CB-SSTR(RT)
(Single-Mode)
FT010CB-SSTR(RT)LSA
FT010CB-SSTR(RT)L
(Single-Mode)
FT010CB-SMTR(RT)SA
FT010CB-SMTR(RT)
(Multi-Mode)
OPTICAL
No. of Fiber / Connector
1 / ST (or FC)
1 / ST (or FC)
1 / ST (or FC)
Wavelength
1310/1550 nm
1550/1310 nm
1310/1550 nm
Optical Power Budget
17 dB
24 dB
23 dB
Max Distance
40 km
60 km
4 km
CONTACT CLOSURE
Channel / Connector
1 / 5-pin Screw Terminal
Direction
Bi-directional (Duplex)
Input
Dry contact or TTL input
Output
Dry contact, Normally Open (NO) or Normally Close (NC)
Max. 1000mA @ 110VDC, 125VAC
POWER
Power consumption
12VDC @ 2.4W
Power Supply
Standalone unit: FT/PA12V DC Adaptor
Card module: Powered by FT-C18 chassis
Connector (Standalone unit)
2-pin Screw Terminal
PHYSICAL
Weight (Kg)
Standalone unit: 0.58 Card module: 0.2
Dimensions (W x H x D) (mm)
Standalone unit: 156 x 30.5 x 223 mm (MAX)
Card module: 148 x 20.4 x 213 mm (MAX)
ENVIRONMENTAL
Operating Temperature
-40oC ~ +75oC
Storage Temperature
-40oC ~ +85oC
Relative Humidity
0 ~ 95% non-condensing
MTBF
>100’000 Hours
*If the optical connector is FC type, the suffix in the model number will be “-FXX”. Eg. FT010CB-FSTR
(6) Specifications
www.ot-systems.com 13
FT010CB Series Installation & Operation Manual
(7) Drawings
Fig. 7.1 Dimensional drawings of Standalone unit (mm)
(8) Warranty Information
All OT Systems FT Series products are subject to a limited life-time warranty offered by the
company in normal circumstances. Please refer to the OT Systems Products Warranty
Statement for details. Access to the statement is available in our company website at
www.ot-systems.com.
www.ot-systems.com 14
FT010CB Series Installation & Operation Manual
(9) Contact Information
APAC Operation
Address:
Unit 1023, 10/F, Landmark
North, 39 Lung Sum Avenue,
Sheung Shui, N.T., Hong Kong
Tel: (852) 2672 5153
Fax: (852) 2679 0756
Sales Inquiries
sales@ot-systems.com
Technical Support
techsupport@ot-systems.com
EMEA Operation
Address:
J. Slovackio str. 4, LT-11107,
Vilnius, Lithuania
Tel: (370) 60730087
Fax: (370) 52051855
Sales Inquiries
sales@ot-systems.com
Technical Support
techsupport@ot-systems.com
AMERICAS Operation
Address:
18 West Main Street, Plano,
IL 60545, U.S.A.
Tel: (1) 630 554 9178
Fax: (1) 630 554 9179
Sales Inquiries
sales.usa@ot-systems.com
Technical Support
techsupport.usa@ot-systems.com
www.ot-systems.com 15
Loading...
