OT Systems ET1100C User Manual

ET1100C Series Installation & Operation Manual

Installation and Operation Manual

ET1100C Series

Ethernet Extender Series

Microtype10/100BASE-TX Ethernet Extender over Coaxial Cable

OT Systems Ltd., 2014

Rev 1.1

www.ot-systems.com 1

ET1100C Series Installation & Operation Manual

Transmitter

ET1100C-T-MT

Receiver

ET1100C-R-MT

Models covered in this manual

www.ot-systems.com 2

ET1100C Series Installation & Operation Manual

Table of Contents

TABLE OF CONTENTS............................................................................................................................................... 3

(1) SAFETY INSTRUCTIONS .................................................................................................................................. 4

(2) PRODUCT OVERVIEW .................................................................................................................................... 4

2.1 INTRODUCTION ..................................................................................................................................................... 4

2.2 PRODUCTS HIGHLIGHTS .......................................................................................................................................... 4

(3) INSTALLATION................................................................................................................................................ 5

3.1 GENERAL ............................................................................................................................................................. 5

3.2 PACKAGE CONTENTS .............................................................................................................................................. 5

3.3 SELECTING A SITE FOR THE ETHERNET EXTENDER ......................................................................................................... 6

3.4 INSTALLATION ....................................................................................................................................................... 6

(4) CABLE CONNECTIONS & SETUP PROCEDURES ................................................................................................ 7

4.1 SYSTEM CABLE CONNECTIONS .................................................................................................................................. 7

4.2 CONNECTING TO YOUR NETWORK ............................................................................................................................ 8

4.2.1 The 10/100Base-TX Connector ......................................................................................................... 8

4.2.2 The BNC connector and Coaxial Cable ............................................................................................ 8

4.3 Cabling .................................................................................................................................................. 8

(5) OPERATIONAL GUIDES ................................................................................................................................... 9

5.1 LEDS STATUS........................................................................................................................................................ 9

(6) SPECIFICATIONS ............................................................................................................................................. 9

(7) DRAWINGS .................................................................................................................................................. 10

(8) WARRANTY INFORMATION ......................................................................................................................... 11

(9) CONTACT INFORMATION ............................................................................................................................. 11

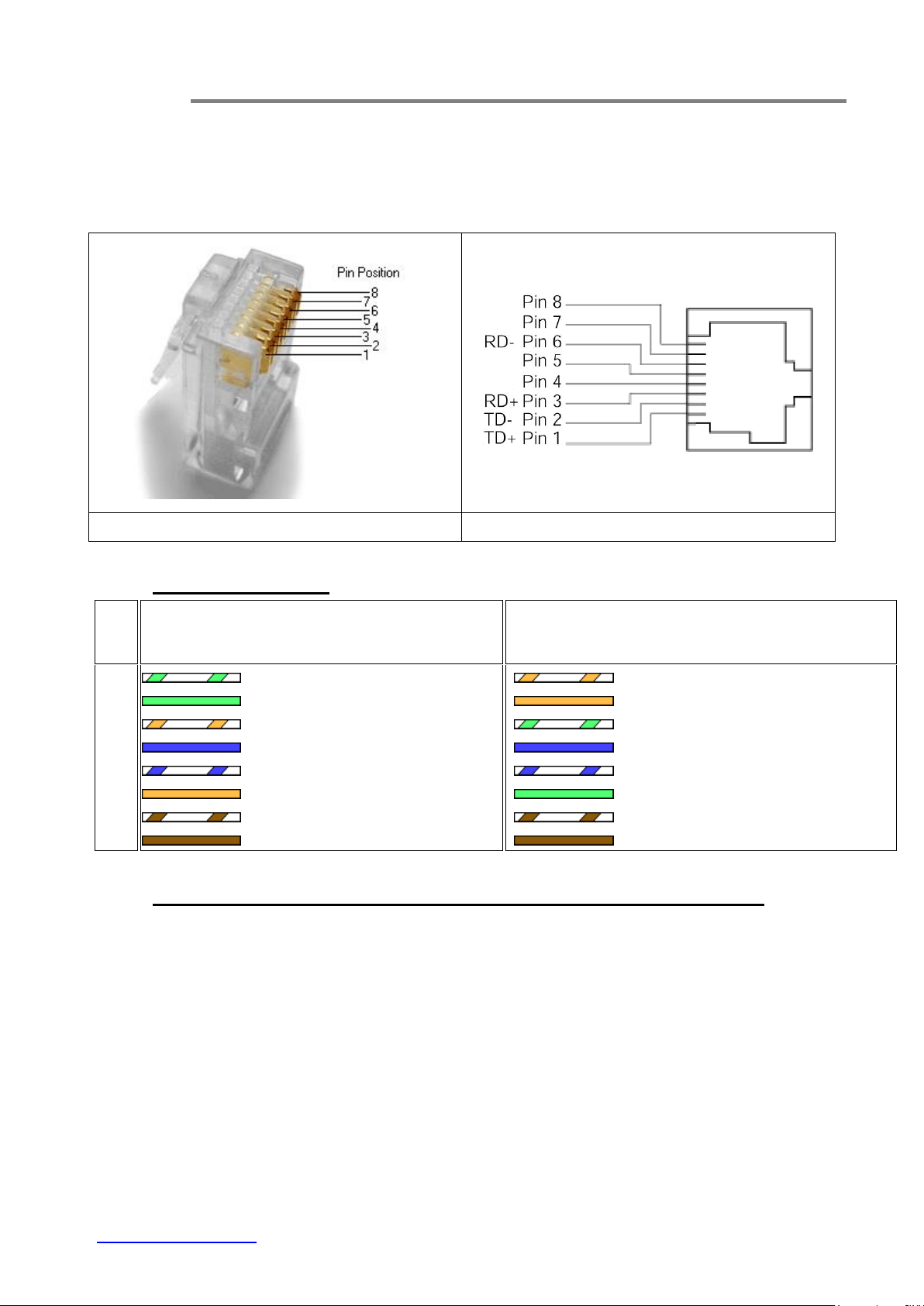

APPENDIX A ............................................................................................................................................................ A

1. CONNECTOR PINOUTS ................................................................................................................................... A

www.ot-systems.com 3

ET1100C Series Installation & Operation Manual

(1) Safety Instructions

Please be familiar with all information in this manual prior to installation and
operation.

Note 1: This assembly contains parts sensitive to damage by electrostatic discharge (ESD). ESD

precautionary procedures should be applied in the course of touching, removing or inserting parts
or assemblies.

(2) Product Overview

2.1 Introduction

OT Systems offers the perfect point-to-point solution to connect Ethernet technology to existing
coaxial installations. Designed to work in pairs, the ET1100C series offers upstream (receiver to
transmitter) connectivity for 300 meters up to 3 Mbps; downstream (transmitter to receiver)
connectivity for 300 meters up to 20 Mbps using single coaxial cables. This simple, plug-and-play
system and offers the OT Systems' design reliability. The ET1100C series is a perfect solution for
corporate campuses, industrial settings or any application where aging infrastructure must be
integrated with newer facilities and upgraded systems.

2.2 Products Highlights
Basic Features

 One Ethernet port (RJ-45 connector): 10/100Mbps-Full/Half-duplex, Auto-MDI/MDIX,

Auto-negotiation.

 One Ethernet Extender port (BNC connector): communications link over existing

coaxial cable.

 Complies with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX standards.
 Provides F-Type BNC connector.
 Operates transparent to higher layer protocols.
 External DC power adapter.
 Operating voltage and Max. Current consumption: 0.2A @ 12VDC.

Power consumption: 2.4W Max.

-10°C to 60°C (14°F to 140°F) operating temperature range.

 Microtype design - fits within most camera housings
 Plug-and-Play
 Aluminum case.
 Supports Wall-Mounting installation; Optional DIN-Rail mounting kit.

www.ot-systems.com 4

ET1100C Series Installation & Operation Manual

(3) Installation

3.1 General

All OT Systems products are thoroughly inspected, tested and securely packaged before
delivery to ensure a stable, intact and trouble-free service. Please check the equipment upon
receipt for any visible damage which may have been caused during shipping.

3.2 Package Contents

When you unpack the product package, you shall find the items listed below. Please inspect
the contents, and report any apparent damage or missing items immediately to your authorized
reseller.

 Ethernet Extender
 Quick Installation Guide
 Wall-mounting kit or DIN-rail mounting

The ET1100C Series (Fig. 3.1) can be either horizontally or vertically wall-mounted, or
mounted on any fixture, etc. It works with an external 12VDC power supply which can be
purchased separately.

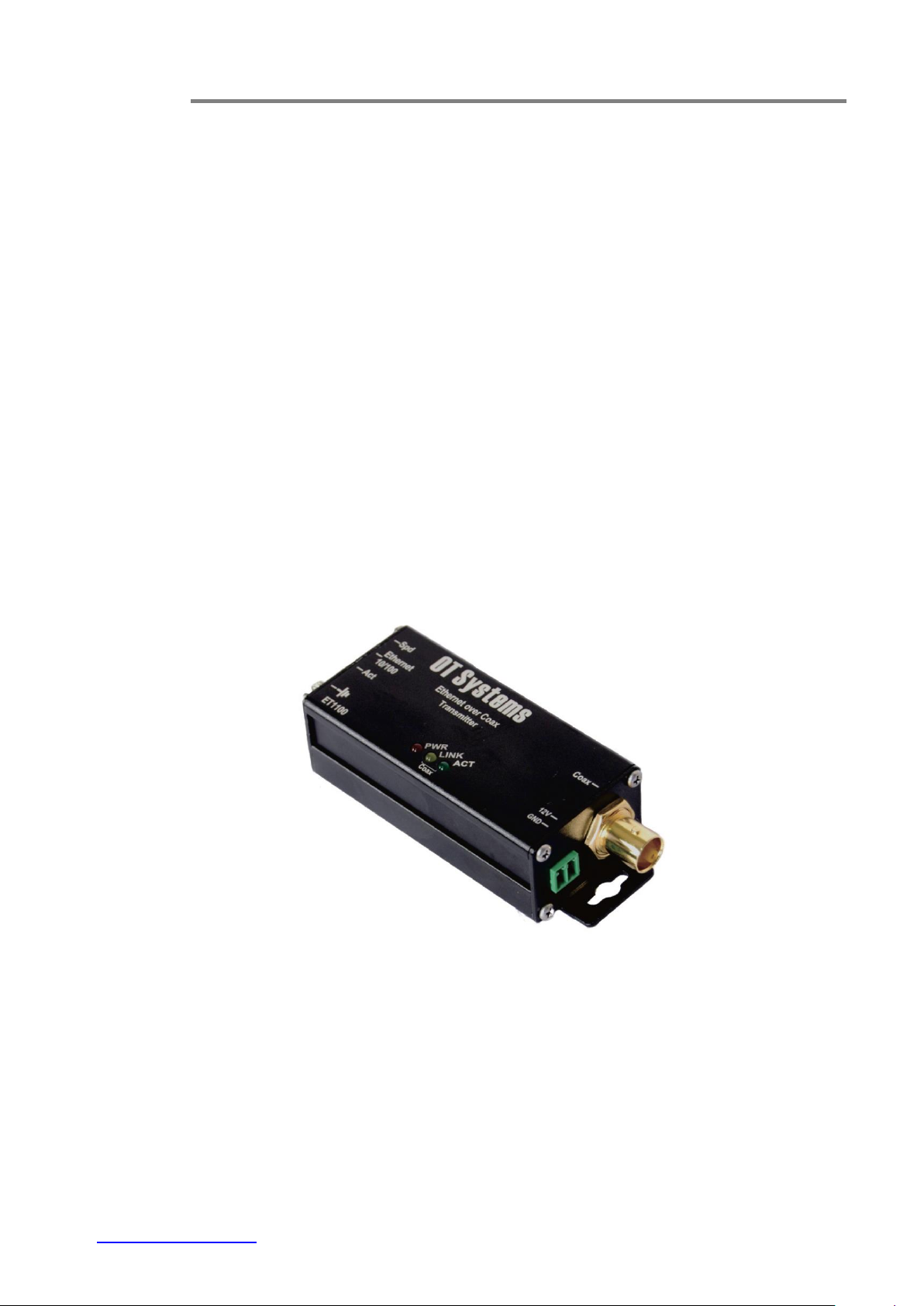

Fig. 3.1 ET1100C

www.ot-systems.com 5

ET1100C Series Installation & Operation Manual

3.3 Selecting a site for the Ethernet Extender

As with any electric device, you should place the equipment where it will not be
subjected to extreme temperatures, humidity, or electromagnetic interference.
Specifically, the site you select should meet the following requirements:

- The ambient temperature should be between -10 to 60 degrees Celsius.

- The relative humidity should be less than 95 percent, non-condensing.

- Surrounding electrical devices should not exceed the electromagnetic field (RFC)
standards.

- Make sure that the equipment receives adequate ventilation. Do not block the
ventilation holes on each side of the equipment.

- The power outlet should be within 1.8 meters of the product.

3.4 Installation

This chapter gives step-by-step instructions about how to install the Ethernet Extender:

The Microtype works with the provided external power supply (12VDC) powered by local 110/220V
power.

a) Mount the clip (Fig. 3.2) onto a fixture, e.g. a plank, (either on the wall or on a flat surface)
with two screws through the holes on the mounting frame to secure it in position.

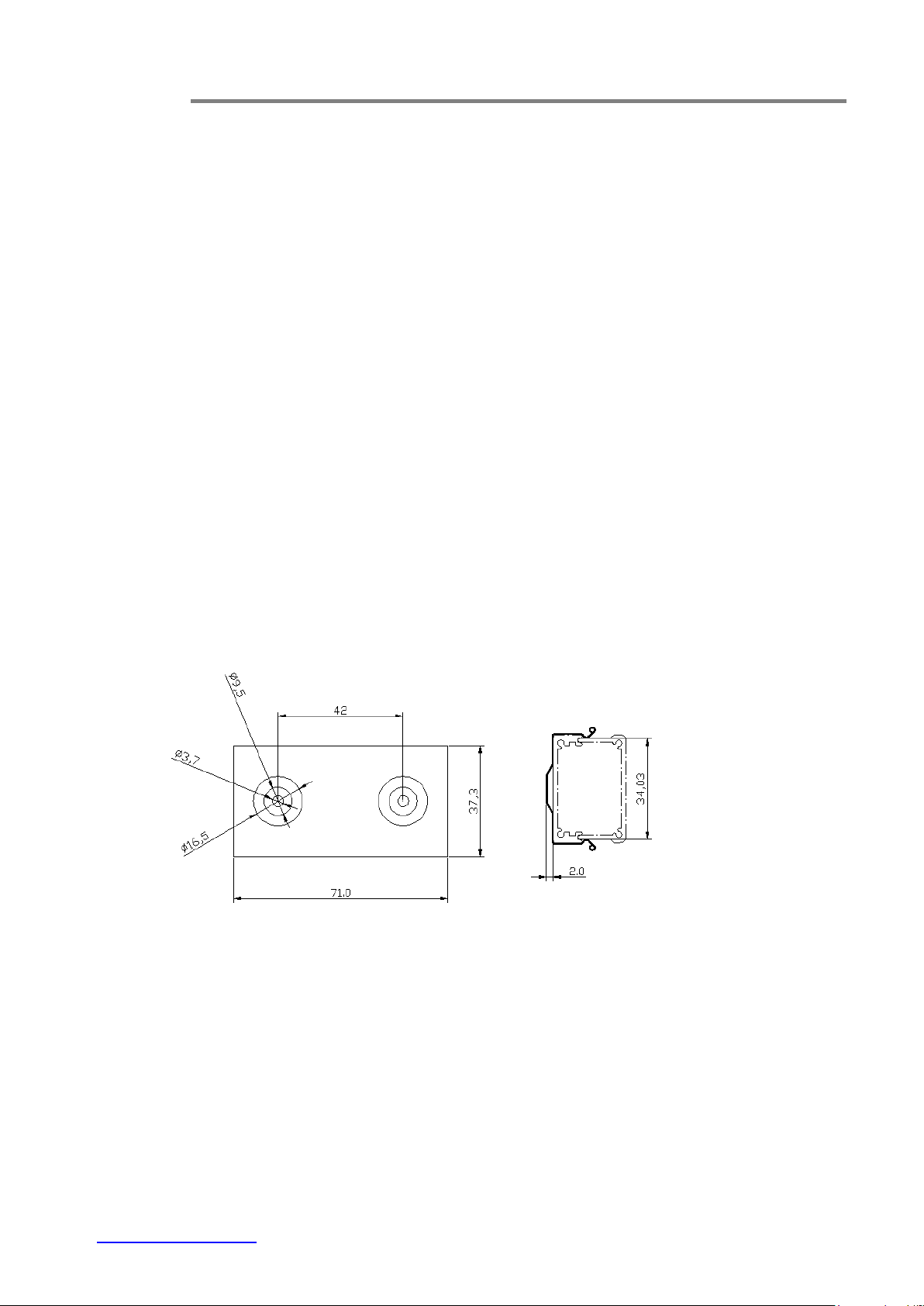

(a) Front view (b) Side view

Fig. 3.2 Micro unit’s clip

b) The provided power supply should also be mounted on the same fixture or in the proximity
for connection of the supply cables to the unit, provided that an AC power supply socket is nearby
for powering the adaptor.
c) Push the Micro unit into the clip to secure it in position. For details, please follow Fig. 3.3.

www.ot-systems.com 6

ET1100C Series Installation & Operation Manual

Signal

Type

Cable Type

Connector

For details, please
refer to

Ethernet

Twisted-pair Cable
10BASE-T: 4-pair UTP/STP Cat3, 4, 5
100BASE-TX: 4-pair UTP/STP Cat 5

RJ45 Connector

Section 4.2.1

Line

Coaxial cable (RG6, RG58 or RG59)

BNC (Female)
75 Ohm

Section 4.2.2

12VDC

Power cord

DC Jack

Section 5

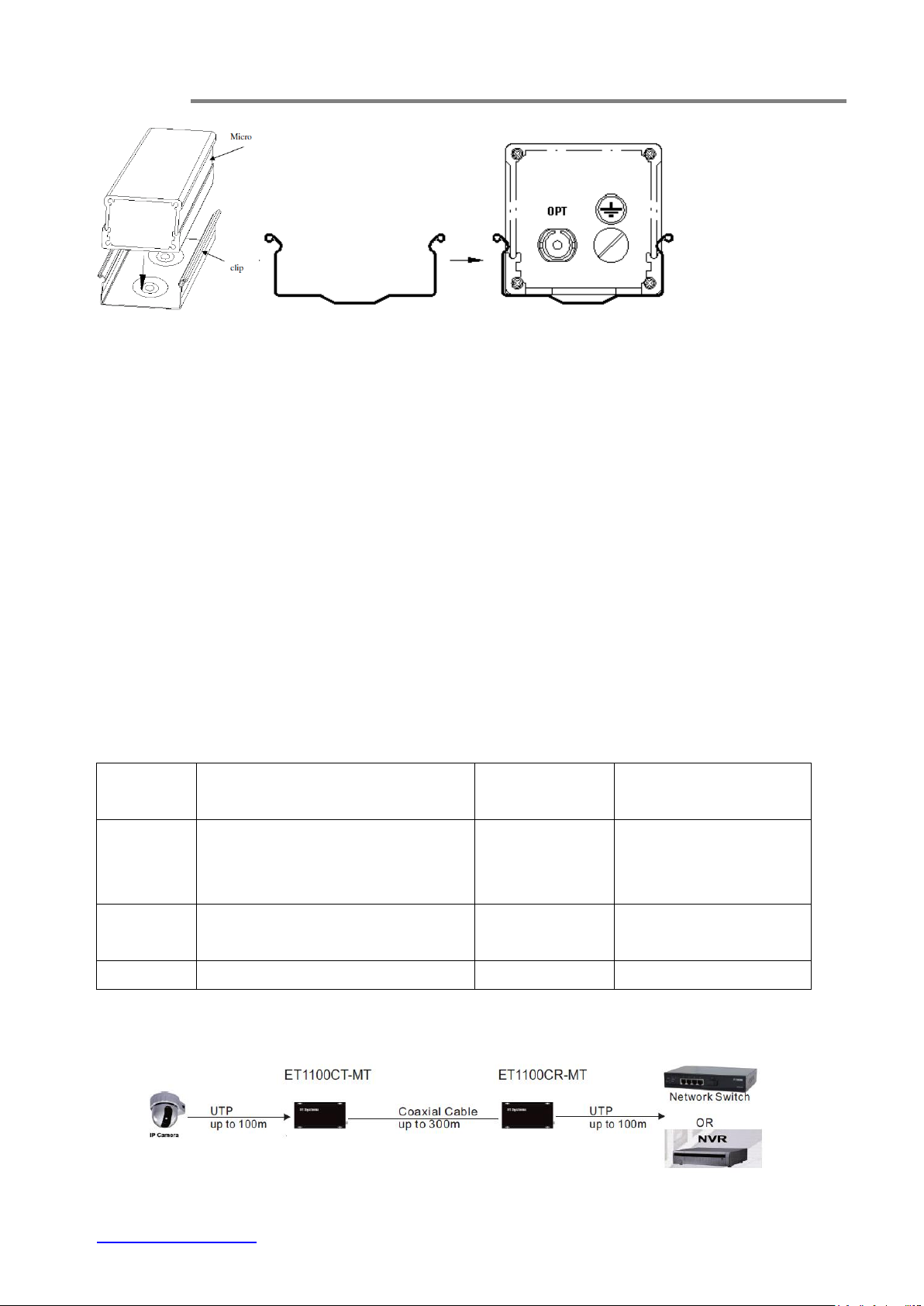

(a) Installation (b) Side view of the clip (c) Side view of the Micro unit pushed into the clip

Fig. 3.3 Micro unit installation on the clip

d) Connect all the signal inputs and outputs at the back of the unit with appropriate cables:
i) Coaxial Cable
ii) UTP cable with RJ45
e) Once the unit is powered up, check that the red POWER LED on the unit is lit. If not, check
the power supply cable connections between the unit and the power supply socket.
f) With all the signals available at the input and output ports, check the status of LEDs located
on the unit. With correct status of each LED, installation is now completed [for LEDs status, see

Operational Guides on this manual’s section (5)].

(4) Cable Connections & Setup Procedures

4.1 System cable connections

Wiring Diagram

www.ot-systems.com 7

Fig 4.1 Ethernet Extender connection diagram

ET1100C Series Installation & Operation Manual

Speed

Connector

Cable

Max.
Distance

10Base-T

RJ-45

2-pair UTP/STP Cat. 3, 4, 5

100 m

100Base-TX

RJ-45

2-pair UTP/STP Cat. 5

100 m

Connector

Cable

Max.
Distance

BNC (75Ω)

Coaxial Cable (RG6, RG58 or RG59)

300m

4.2 Connecting to Your Network
Cable Type & Length

It is necessary to follow the cable specifications below when connecting the Ethernet
Extender to your network. Use appropriate cables that meet your speed and cabling
requirements.

Cable Specifications

4.2.1 The 10/100Base-TX Connector

A standard straight through cable is used for the connection between the Ethernet switch and
device. For the details, Please see Appendix A for your reference.

4.2.2 The BNC connector and Coaxial Cable

For the Ethernet Extender port

4.3 Cabling

Step 1: First, ensure the power of the Ethernet Extender and end devices are turned off.
<Note> Always ensure that the power is off before any installation.
Step 2: Prepare cable with corresponding connectors for each type of port in use.
Step 3: Consult the previous section for cabling requirements based on connectors and speed.
Step 4: Connect one end of the cable to the Ethernet Extender and the other end to a desired device.
Step 5: Once the connections between two end devices are made successfully, turn on the power and the
Ethernet Extender is operational.

www.ot-systems.com 8

ET1100C Series Installation & Operation Manual

LEDs

State

Indication

PWR

Green

Power on.

Off

Power off.

Link

Amber

Data is avaible at coxical cable

ACT

Flashing

Transmitting or receiving Ethernet data, Act stands for ACTIVITY

Off

Neither valid Ethernet connection established nor transmitting/receiving Ethernet data

Ethernet

Lnk/Act

Steady

A valid Ethernet connection established, Lnk stands for LINK

Flashing

Transmitting or receiving Ethernet data, Act stands for ACTIVITY

Off

Neither valid Ethernet connection established nor transmitting/receiving Ethernet data

Spd

Steady

Ethernet Connection transferring at 100Mbps

Off

Ethernet Connection transferring at 10Mbps

10/100 Ethernet-

RJ45 with Cat. 5 for Ethernet connection.

COAX -

BNC connecter with Coaxial cable connection

DC12V-

2-pin screw terminal for 12VDC power connection.

Standards

IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x

Processing Type

IEEE 802.3x Full-duplex flow control

Cabling

10BASE-T
100BASE-TX

4-pair UTP/STP Cat. 3, 4, 5
4-pair UTP/STP Cat. 5

Maximum Distance

Cat5 UTP

Up to 100m

Connector

10/100BASE-TX

1X RJ45

(5) Operational Guides

5.1 LEDs Status

Signal and Power Ports

(6) Specifications

Ethernet

Coaxial

www.ot-systems.com 9

ET1100C Series Installation & Operation Manual

Cabling

Coaxial Cable (RG6, RG58 or RG59)

Maximum Distance

300m

Connector

BNC (75 ohm)

Input Power

12VDC

Power Consumption

2.4W Max.

Max. Current Consumption
& Operating Voltage

0.2A @ 12VDC

LED Indicators

PWR

Power Status

10/100 TX

Link/Activity, Speed

Dimensions

36.2mm (W) × 24.5 mm (D) × 98mm (H)

Net Weight

0.1Kg (0.25Kg including PA)

Casing

Aluminum case

Mounting Options

Wall-Mount

Operating Temperature

-10°C to 60°C (14°F to 140°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Humidity

5% - 95% non-condensing

Electrical and Mechanical

Environmental

(7) Drawings

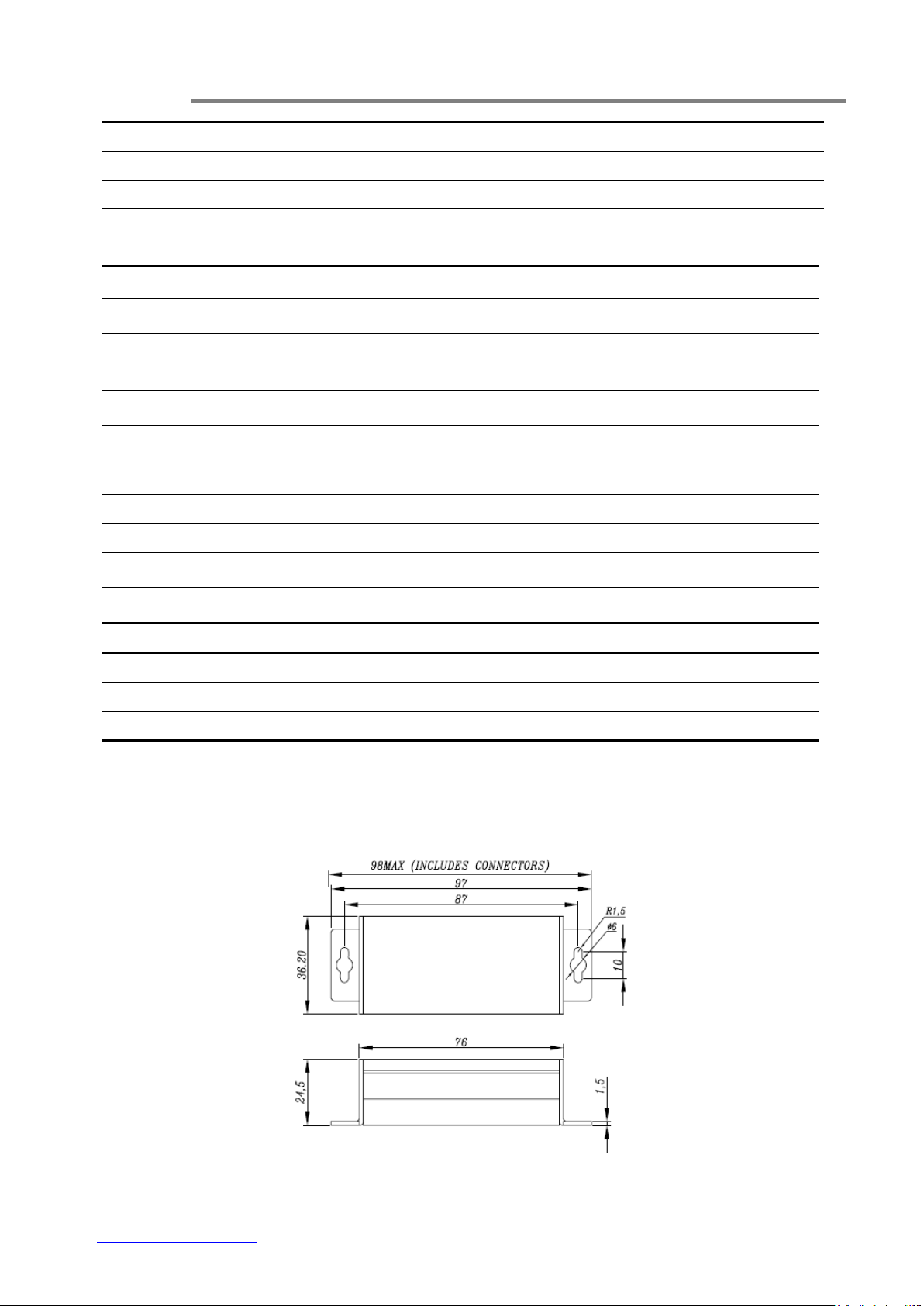

Fig. 7.1 Dimensional drawings of ET1100C (mm)

www.ot-systems.com 10

ET1100C Series Installation & Operation Manual

(8) Warranty Information

All OT Systems ET Series products are subject to a three-year limited warranty offered by
the company in normal circumstances. Please refer to the OT Systems Products Warranty
Statement for details. Access to the statement is available in our company website at

www.ot-systems.com.

(9) Contact Information

APAC Operation

Address:
Unit 1023, 10/F, Landmark North,
39 Lung Sum Avenue, Sheung
Shui, N.T., Hong Kong
Tel: [phone]
Fax: [phone]
Sales Inquiries

[e-mail]

Technical Support

[e-mail]

EMEA Operation

Address:
J. Slovackio str. 4, LT-11107,
Vilnius, Lithuania

Tel: [phone]
Fax: [phone]
Sales Inquiries

[e-mail]

Technical Support

[e-mail]

AMERICAS Operation

Address:
18 West Main Street, Plano,
IL 60545, U.S.A.

Tel: [phone]
Fax: [phone]
Sales Inquiries

[e-mail]

Technical Support

[e-mail]

www.ot-systems.com 11

Appendix A

RJ45 Connector (Male)

RJ45 Connector (Female)

RJ45
Pin #

T568A

T568B

Wire Diagram

Wire Color

10Base-T Signal

100Base-TX Signal

Wire Diagram

Wire Color

10Base-T Signal

100Base-TX Signal

1 White/Green

Transmit+

White/Orange

Transmit+

2 Green

Transmit-

Orange

Transmit-

3 White/Orange

Receive+

White/Green

Receive+

4 Blue

Unused

Blue

Unused

5 White/Blue

Unused

White/Blue

Unused

6 Orange

Receive-

Green

Receive-

7 White/Brown

Unused

White/Brown

Unused

8 Brown

Unused

Brown

Unused

Appendix A

1. Connector Pinouts

2. TIA/EIA-568 Cabling

3. Standard, Straight-Through Wiring Diagram(both ends are the same):

The Straight-Through wiring (or called “regular” Ethernet cable), both ends should be use the
same pin out on of RJ45 port.

www.ot-systems.com A
