Page 1
SoundBase
Low-profile Sound Enhancement
Page 2
User Manual
Contents
Important Safety Instructions .............................................................................................. 3
Safety .........................................................................................................................................................................................3
Identifying the Parts ............................................................................................................. 5
Main Unit ................................................................................................................................................................................5
Remote Control .....................................................................................................................................................................6
Preparations........................................................................................................................... 6
Prepare the Remote Control .............................................................................................................................................6
Replace the Remote Control Battery .............................................................................................................................6
Connections ........................................................................................................................... 7
Using the OPTICAL Connection .......................................................................................................................................7

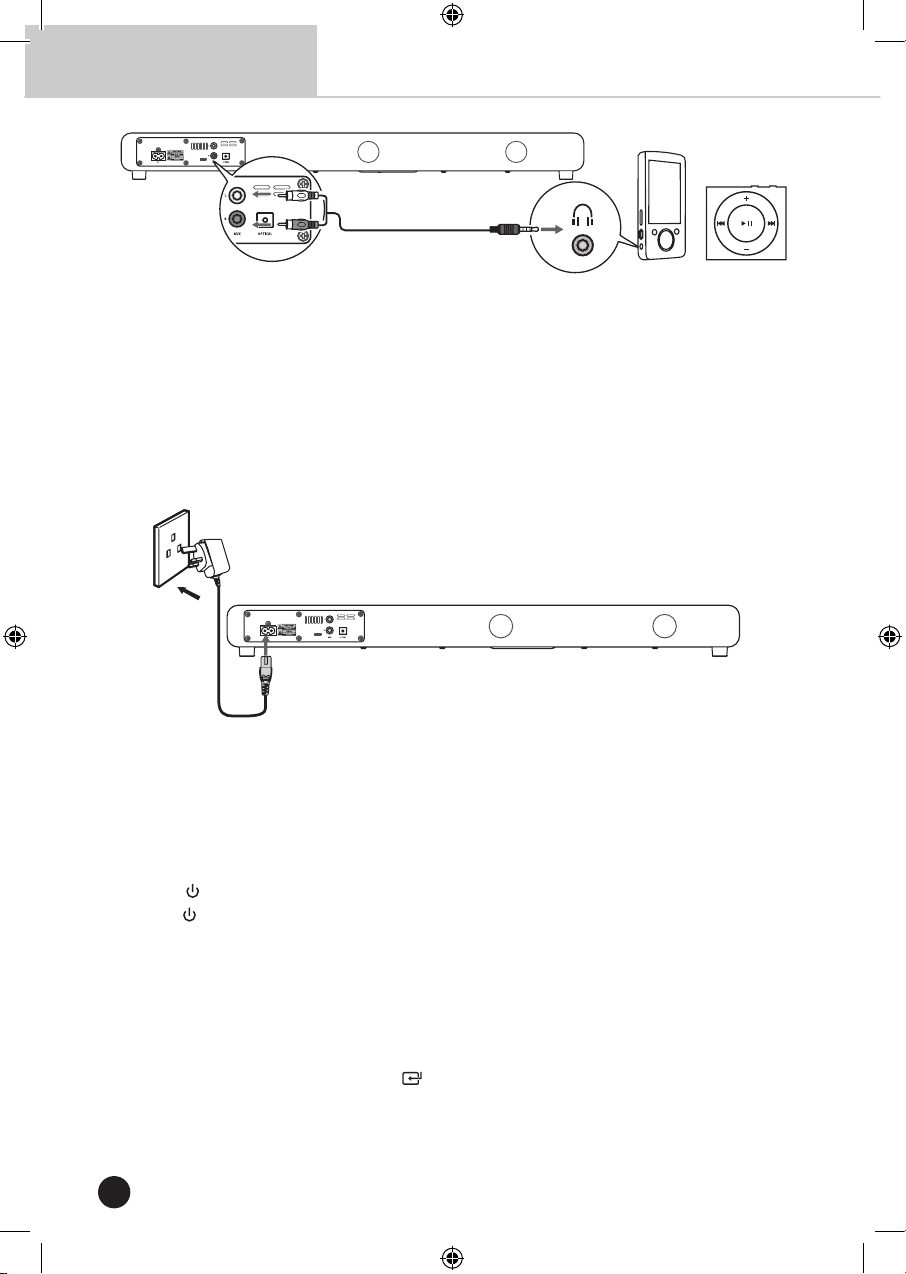

Using the AUX Connection................................................................................................................................................7
Connect Power ......................................................................................................................................................................8
Standby/ON ............................................................................................................................................................................8
Select Modes .......................................................................................................................................................................... 8
Adjust the Volume ................................................................................................................................................................9
Adjust the Bass.......................................................................................................................................................................9
AUX / OPTICAL Operation ..................................................................................................... 9
Bluetooth Operation ............................................................................................................. 9
Pair Bluetooth-enabled Devices ......................................................................................................................................9
Listen to Music from Bluetooth Device ...................................................................................................................... 10
Troubleshooting .................................................................................................................. 10
Specications ....................................................................................................................... 11
Standard Accessories ..........................................................................................................11
2
Page 3
User Manual
Important Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of sufficient
magnitude as to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
Safety
1 Read these instructions – All the safety
and operating instructions should be read
before this product is operated.
2 Keep these instructions – The safety and
operating instructions should be retained
for future reference.
3 Heed all warnings – All warnings on the
appliance and in the operating instructions
should be adhered to.
4 Follow all instructions – All operating and
use instructions should be followed.
5 Do not use this apparatus near water
– The appliance should not be used near
water or moisture – for example, in a wet
basement or near a swimming pool and the
like.
6 Clean only with a dry cloth.
7 Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8 Do not install near any heat sources such as
radiators, heaters, stoves, or other apparatus
(including amplifiers) that produce heat.
9 Do not override the safety purpose of the
polarized or grounding plug. A polarized
plug has two blades with one wider than
the other. A grounding plug has two blades
and a third grounding prong. The wide
blade or the third prong is provided for your
safety. If the provided plug does not t into
your outlet, ask an electrician to replace the
obsolete outlet.
10 Protect the power cord from being walked
on or pinched, particularly at plugs,
convenience receptacles and at the point
where they exit from the apparatus.
11 Only use attachments/accessories specified
by the manufacturer.
12 Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart or rack
is used, use caution when moving
the cart/apparatus combination to avoid
injury from tip-over.
13 Unplug the apparatus during lightning
storms or when unused for long periods of
time.
14 Refer all servicing to qualified personnel.
Servicing is required when the apparatus
has been damaged in any way, such as
power supply cord or plug is damaged,
liquid has been spilled or objects have
fallen into the apparatus, the unit has been
exposed to rain or moisture, does not
operate normally, or has been dropped.
15 This equipment is a Class II or double
in sulated electrical appliance. It has been
designed in such a way that it does not
require a safety connection to electrical
earth.
Caution:
- Use of controls or adjustments or
performance of procedures other than
those described herein, may result in
hazardous radiation exposure or other
unsafe operation.
- To reduce the risk of fire or electric shock,
do not expose this apparatus to rain or
moisture. The apparatus must not be
exposed to dripping or splashing and
objects filled with liquids, such as vases,
must not be placed on apparatus.
- The mains plug/appliance coupler is used
as the disconnect device, the disconnect
device must remain readily operable.
- Danger of explosion if battery is incorrectly
replaced.
- Replace only with the same or equivalent
type.
3
Page 4
User Manual
Warning
• The battery (batteries or battery pack) must
not be exposed to excessive heat such as
sunshine, re or the like.
• Danger of explosion if battery is incorrectly
replaced.
• Replace only with the same or equivalent
type.
• Before operating this system, check the
voltage of this system to see if it is identical
to the voltage of your local power supply.
• The ventilation should not be impeded
by covering the ventilation openings with
items such as newspaper, table-cloths,
curtains etc. Make sure there is at least 20
cm of space above and at least 5cm of space
on each side of the unit.
• Do not place this unit close to strong
magnetic elds.
• Do not place the unit on the amplier or
receiver.
• Do not place this unit close to damp areas
as the moisture will affect the life of the
laser head.
• Should any solid object or liquid fall into
the system, unplug the system and have
it checked by qualied personnel before
operating it any further.
• Do not attempt to clean the unit with
chemical solvents as this might damage
the nish. Use a clean, dry or slightly damp
cloth.
• When removing the power plug from the
wall outlet, always pull directly on the plug,
never yank on the cord.
• No naked ame sources, such as lighted
candles, should be placed on the apparatus.
• Changes or modications to this unit not
expressly approved by the party responsible
for compliance will void the user’s authority
to operate the equipment.
• The marking label is pasted on the bottom
or back of the equipment.
DO NOT INGEST BATTERY, CHEMICAL
BURN HAZARD
The remote control supplied with this
product contains a coin/button cell battery.
If the coin/button cell battery is swallowed,
it can cause sever internal burns in just 2
hours and lead to death. Keep new and
used batteries away from children. If the
battery compartment does not close
securely, stop using the product and keep
it away from children. If you think batteries
might have been swallowed or placed
inside any part of the body, seek immediate
medical attention.
• Correct Disposal Of This Product.
This marking indicates that this
product should not be disposed of
with other household wastes throughout
the EU. To prevent possible harm to the
environment or human health from
uncontrolled waste disposal, recycle it
responsibly to promote the sustainable
re-use of material resources. To return your
used device, please use the return and
collection systems or contact the
retailer where the product was purchased
as they can take this product for
environmental safe recycling.
4
Page 5
User Manual

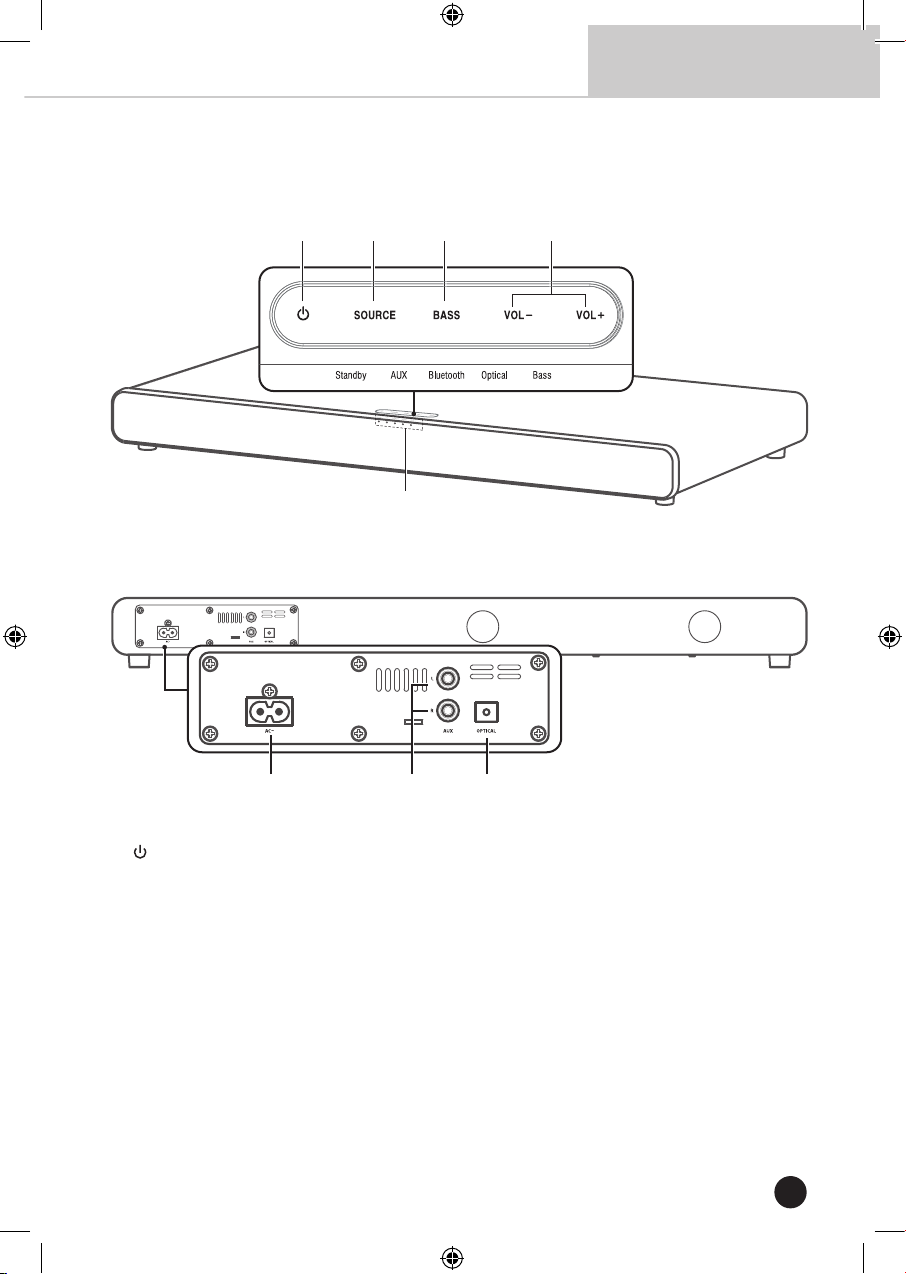

Identifying the Parts
Main Unit
Front view
Back view
1
• Switch the unit between ON and STANDBY
mode.
2 SOURCE
• Select the play function.
3 BASS
• Enable and disable the bass.
4 VOL+/VOL-
• Increase/decrease the volume level.
5 Standby/AUX/Bluetooth/Optical/BASS
Indicators
• Standby indicator light up red when the
unit is in STANDBY mode.
• AUX/Optical/Bluetooth indicator lights up
when the unit is in AUX/Optical/Bluetooth
mode respectively.
• Enable the bass when the bass indicator
light up.
6 AC~ Socket
• Connect to power cord.
7 AUX (R/L) Socket
• Connect to an external audio device.
8 OPTICAL Socket
• Connect to an external audio device.
5
Page 6
User Manual

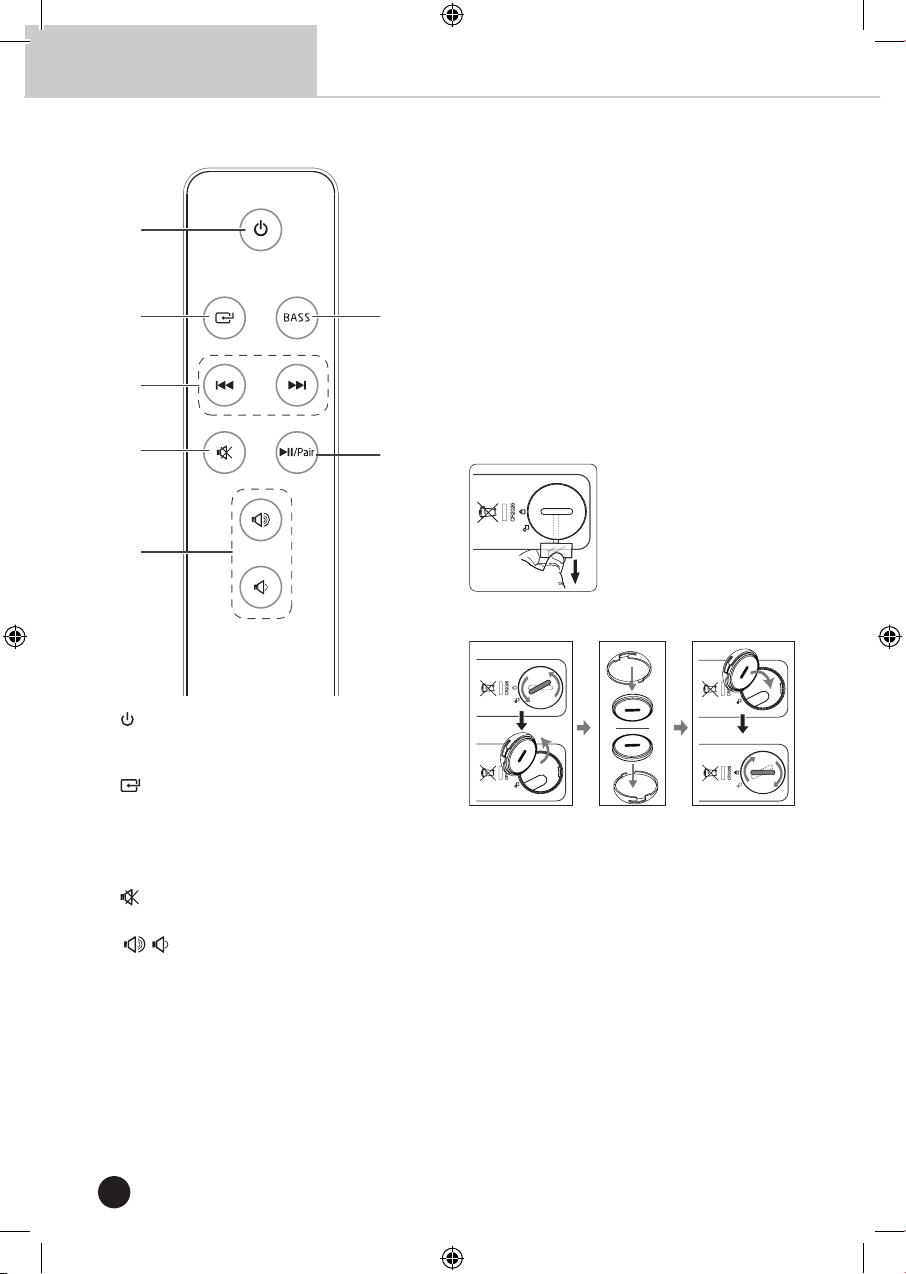

Remote Control
Preparations
Prepare the Remote Control
The provided Remote Control allows the unit to
be operated from a distance.
•
Even if the Remote Control is operated
within the effective range (6m), remote
control operation may be impossible if
there are any obstacles between the unit
and the remote control.
•
If the Remote Control is operated near other
products which generate infrared rays, or if
other remote control devices using infra-red
rays are used near the unit, it may operate
incorrectly. Conversely, the other products
may operate incorrectly.
First-time use:
The unit has a pre-installed
lithium CR2025 battery.
Remove the protective
tab to activate the remote
control battery.
Replace the Remote Control Battery
1
• Switch the unit between ON and STANDBY
mode.
2
• Select the play function.
H
G
,
3
• Skip to previous/next track in Bluetooth
mode.
4
• Mute or resume the sound.
5 ,
• Increase/decrease the volume level.
6 BASS
• Enable and disable the bass.
/
BF
7
PAIR
• Play/pause/resume playback in Bluetooth
mode.
• Activate the pairing function in Bluetooth
mode or disconnect the existing paired
Bluetooth device.
6
1. Screw the cover to unlock then remove the
cover.
2. Remove the old battery from the battery
tray.
3. Place a new CR2025 battery into the battery
tray with correct polarity (+/-) as indicated.
4. Install the battery tray back into remote
control, then screw the cover to lock.
Precautions Concerning Batteries
•
When the Remote Control is not to be
used for a long time (more than a month),
remove the battery from the Remote
Control to prevent it from leaking.
•
If the batteries leak, wipe away the leakage
inside the battery compartment and replace
the batteries with new ones.
Page 7
User Manual
•
Do not heat or disassemble batteries.
Never throw them in re or water.
•
Do not carry or store batteries with other metallic objects. Doing so could cause batteries to short
circuit, leak or explode.
•
Never recharge a battery unless it is conrmed to be a rechargeable type.
Connections

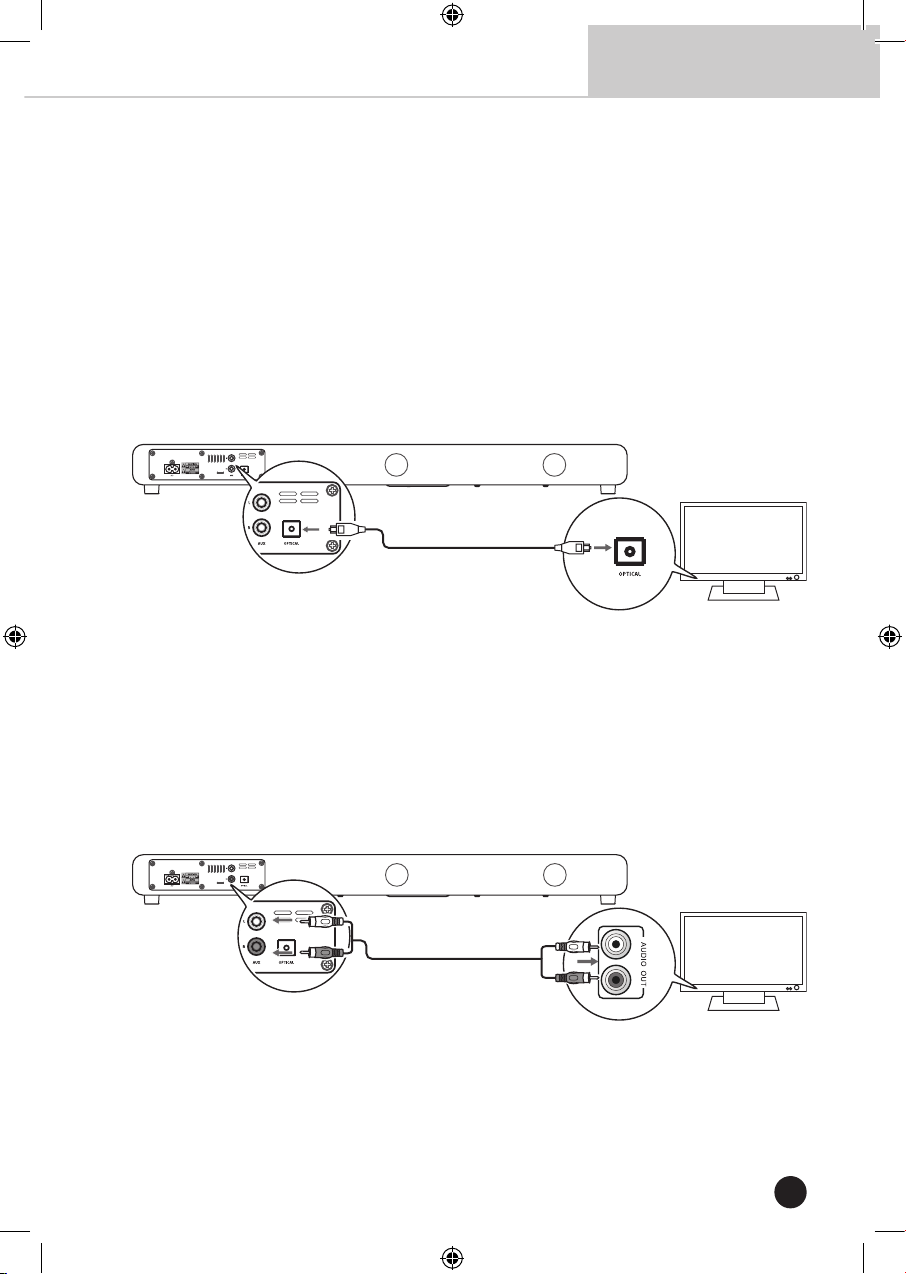

Using the OPTICAL Connection
- Remove the protective cap of the OPTICAL socket, then connect an OPTICAL cable (not included)
to the TV’s OPTICAL OUT socket and the OPTICAL socket on the unit.
OPTICAL cable
Tip:
- If there is no sound come out of the soundbar and the indicator light flash fast. Make sure the
audio setting of your source player (e.g. DVD player, game player, TV) is setted to PCM with optical
output.
Using the AUX Connection
- Use a RCA audio cable ( included) to connect the TV’s audio output sockets to the AUX (R/L)
socket on the unit.
RCA stereo audio cable
- Use a 3.5mm to RCA audio cable ( included) to connect the Portable Player’s headphone socket to
the AUX (R/L) socket on the unit.
7
Page 8
User Manual
Portable Player
3.5mm to RCA stereo audio cable
Phone
Connect Power
Caution:
- Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on
the rating label on the back or the underside of the unit.
- Before connecting the AC power cord, ensure you have completed all other connections.
- Be sure to unplug the power cord from the outlet when the system is not in use for an extended period
of time.
• Connect the power to the AC~ socket on the unit and a wall outlet.
General Operation
Standby/ON
When you first connect the unit to the mains socket, the unit will be in standby mode and the
Standby Indicator will be red.
- Press the button to switch the main unit ON.
- Press the button again to switch the unit back to STANDBY mode. The POWER indicator will light up
red.
- Disconnect the mains plug from the mains socket if you want to switch the unit OFF completely.
- If there is no signal under the AUX, OPTICAL and BLUETOOTH mode, the unit will automatically
switch off within 15 minutes.
Select Modes
Press the SOURCE button on the unit or the button on the remote control repeatedly to switch
between AUX, OPTICAL and BLUETOOTH modes.
8
Page 9
User Manual
Adjust the Volume
- Press the / buttons on the unit or the VOL+/VOL- buttons on the remote control to adjust
the volume.
- If you wish to turn the sound off, press the button on the remote control. Press the button
again or press the / buttons on the unit or the VOL+/VOL- buttons on the remote control to
resume normal listening.
Adjust the Bass
During play, press the BASS button on the unit or on the remote control enable and disable the bass.
AUX / OPTICAL Operation
1 Ensure that the unit is connected to the TV or audio device.
2 Press the SOURCE button on the unit or the button on the remote control repeatedly to switch
between AUX or OPTICAL mode.
3 Operate your audio device directly for playback features.
4 Press the Volume keys to adjust the volume to your desired level.
Bluetooth Operation
You can listen to tracks from a media device if it is connected to the unit via Bluetooth.
Pair Bluetooth-enabled Devices
The first time you connect your bluetooth device to this player, you need to pair your device to this
player.
Note:
- The operational range between this player and a Bluetooth device is approximately 8 meters
(without any object between the Bluetooth device and the unit).
- Before you connect a Bluetooth device to this unit, ensure you know the device’s capabilities.
- Compatibility with all Bluetooth devices is not guaranteed.
- Any obstacle between this unit and a Bluetooth device can reduce the operational range.
- If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter pairing
mode automatically.
1 During ON mode, Press the SOURCE button on the unit or the button on the remote control
repeatedly to select Bluetooth mode. The Bluetooth indicator will flash slowly.
2 The system has entered pairing mode.
OR
/
Press and hold the
indicator will flash rapidly.
3 Activate your Bluetooth device and select the search mode. “OTONE SoundBase” will appear on
your Bluetooth device list.
4 Select “OTONE SoundBase” in the pairing list. The Bluetooth indicator will light up solidly while
the pairing succeeds.
BF
PAIR button on the remote control to be searchable. The Bluetooth
9
Page 10
User Manual
5 To disconnect the Bluetooth function, switch to another function on the unit or disable the
function from your Bluetooth device.
Tips:
• Enter "0000" for the password if necessary.
/
• If there is an existing connection, press and hold the "
re-activate the pairing mode, the connection will be interrupted.
• If no other Bluetooth device pairs with this player within two minutes, the player will recover its
previous connection.
• The player will also be disconnected when your device is moved beyond the operational range.
• If you want to reconnect your device to this player, place it within the operational range.
• If the device is moved beyond the operational range, when it is brought back, please check if the
device is still connected to the player.
• If the connection is lost, follow the instructions above to pair your device to the player again.
Listen to Music from Bluetooth Device
• If the connected Bluetooth device supports Advanced Audio Distribution Profile (A2DP), you can
listen to the music stored on the device through the player.
• If the device also supports Audio Video Remote Control Profile (AVRCP), you can use the player’s
remote control to play music stored on the device.
1. Pair your device with the player.
2. Play music via your device (if it supports A2DP).
3. Use supplied remote control to control play (if it supports AVRCP).
/
- To pause/resume play, press the
- To skip to a track, press the H,
BF
PAIR button on the remote control.
G
buttons on the remote control.
BF
PAIR" button on the remote control to
Troubleshooting
To keep the warranty valid, never try to repair the system yourself. If you encounter problems when
using this unit, check the following points before requesting service.
No power
• Ensure the mains cable is connected securely.
• Make sure that the unit is switched on.
The remote control does not function
• Use the remote control near the unit.
• Point the remote control at the remote control sensor on the unit.
• Replace the battery in the remote control with a new one.
• Remove any obstacles between the remote control and the unit.
Loud hum or noise is heard
• The plugs and sockets are dirty. Wipe them with a cloth slightly moistened with an appropriate
non-abrasive cleaning solution.
10
Page 11
User Manual
The unit does not respond when pressing any buttons
• The unit may freeze up during use. Switch the unit off and then on again at the mains socket to
reset the unit.
No sound output
• Make sure that the unit is not muted. Press MUTE or VOL + to resume normal listening.
• Ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM
mode while using optical connection.
I can't find the Bluetooth name of this unit on my Bluetooth device for Bluetooth
pairing
• Ensure that the unit is switch on.
• Ensure that the Bluetooth function is activated on your Bluetooth device.
• The unit has a Bluetooth function that can receive a signal within 8 metres. Keep a distance within
8 metres between.
Specifications
General
Power requirements ..................................................................................................................AC220-240V~ 50/60Hz
Power consumption .........................................................................................................................................................25W
Output power RMS ...................................................................................................................................... 15W x 2 + 30W
Total harmonic distortion ...........................................................................................................................1%(1kHz, 1W)
Audio input sensitivity ...............................................................................................................................................700mV
Frequency response.......................................................................................................................................40Hz - 20KHz
Main unit (W x H x D) .......................................................................................................................... 653 x 67 x 317 mm
Speaker Impedance
Speaker ..................... .......................................................................................................................................................3Ω X 2
Subwoofer ................. ............................................................................................................................................................6Ω
Remote Control
Distance .................................................................................................................................................................................. 6m
Angle........................................................................................................................................................................................30
O
Standard Accessories
Remote Control ....................................................................................................................................................................x 1
User Manual ........................................................................................................................................................................... x 1
AC Power Cord ......................................................................................................................................................................x 1
RCA to 3.5mm audio Cable .............................................................................................................................................. x 1
RCA audio Cable ................................................................................................................................................................... x 1
•
Design and specifications are subject to change without notice.
11
Page 12
Loading...
