Otis & Eleanor BONGO-001 User Manual

WHAT”S INSIDE

User Guide and Important Information

BONGO Bluetooth Speaker

Model name:BONGO-001
FCC ID:2ABADBONGO

* BONGO Bluetooth Speaker
* Protective Hemp Satchel

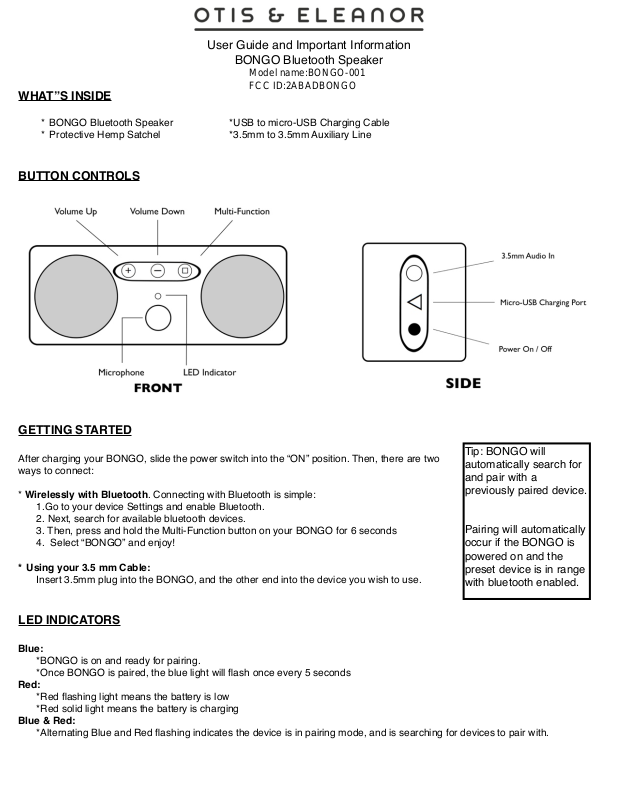

BUTTON CONTROLS

*USB to micro-USB Charging Cable
*3.5mm to 3.5mm Auxiliary Line

GETTING STARTED

After charging your BONGO, slide the power switch into the “ON” position. Then, there are two
ways to connect:

* Wirelessly with Bluetooth. Connecting with Bluetooth is simple:

! 1.Go to your device Settings and enable Bluetooth.
! 2. Next, search for available bluetooth devices.
! 3. Then, press and hold the Multi-Function button on your BONGO for 6 seconds
! 4. Select “BONGO” and enjoy!

* Using your 3.5 mm Cable:

! Insert 3.5mm plug into the BONGO, and the other end into the device you wish to use.

Tip: BONGO will
automatically search for
and pair with a
previously paired device.

Pairing will automatically
occur if the BONGO is
powered on and the
preset device is in range
with bluetooth enabled.

LED INDICATORS

!

Blue:

! *BONGO is on and ready for pairing.
! *Once BONGO is paired, the blue light will flash once every 5 seconds

Red:

! *Red flashing light means the battery is low
! *Red solid light means the battery is charging

Blue & Red:

! *Alternating Blue and Red flashing indicates the device is in pairing mode, and is searching for devices to pair with.

USER INTERFACE AND FUNCTION

Power On

Slide the power toggle button (located on the side) into the “ON” position

Activate Pairing Mode

Hold down the “☐” Multi-Function button for 6 seconds. Speaker will chime, and LED will flash red
and blue

Answer Calls

During incoming call, quickly press the “☐” Multi-Function button.

End Calls

During active call, quickly press the “☐” Multi-Function button.

Refuse Calls

During incoming call, hold the “☐” Multi-Function button for 2 seconds.

Voice Dial / SIRI

During standby, hold the “☐” Multi-Function button for 2 seconds.

Transfer Call between
BONGO and Phone

During active call, hold the “☐” Multi-Function button to transfer call from the BONGO to handset
mode on your mobile device.

Volume Up/Down

Quickly press the “+” Volume Up button to increase volume; Quickly press the “−” Volume Down
button to decrease volume.

Play/Pause Music

Quickly press the “☐” Multi-Function button.

Next/Last Track

To skip to the next track, hold the “+” Volume Up button for 3 seconds. To skip to the previous
track, hold the “−” Volume Down button for 3 seconds.

CHARGING

When BONGO has a low battery, the red LED will flash and an alert will sound
every 30 seconds. This will last for 5-10 minutes before BONGO shuts off on it’s
own.

Charge BONGO with any micro-USB cable. While BONGO is charging the red LED
will be solid red. The charge is complete when the red light turns off. A full charge
may take 2.5-3.5 hours.

FCC NOTICE: This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference; and

2. This device must accept any interference received, including
interference that may cause undesired operation.

FCC CAUTION:
*Any changes or modification not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
equipment.
*This devices and it’s antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter.

Tip: BONGO may reset if connected
to the charging cable while in use. IF
this occurs, power BONGO “OFF/
ON” and reconnect. You can now use
BONGO and charge simultaneously.

Tip: When the battery is full, BONGO
will automatically stop charging to
prevent overcharging the battery.
Even so, disconnecting the charging
cable once the battery is full may
help preserve battery life.

FCC ID: 2ABADBONGO

The FCC numbers can also be found on the BONGO.
