Oticon Radio Model - Quick Installation Guide
Radio Model Name: mini RITE Fusion 2
The mini RITE Fusion 2 radio model is a low power,
inductive r adio transceiver working at 3.84 MHz consisting
of:
• a Digital-Signal-Processor (DSP)
• a radio Front-End (FE)
• memory (EEPROM)
• antenna coil
• and smaller components
All components are mounted on a flexible Printed-CircuitBoard (PCB), which i s intended to be installed as a module
into Oticon wireless hearing aid devices.
The module also has all voltage regulators included inside
the DSP and FE and
on the board.
The module requires a battery, one or two microphones and
an audio receiver to be attached and must be mounted in an
external plastic shell.

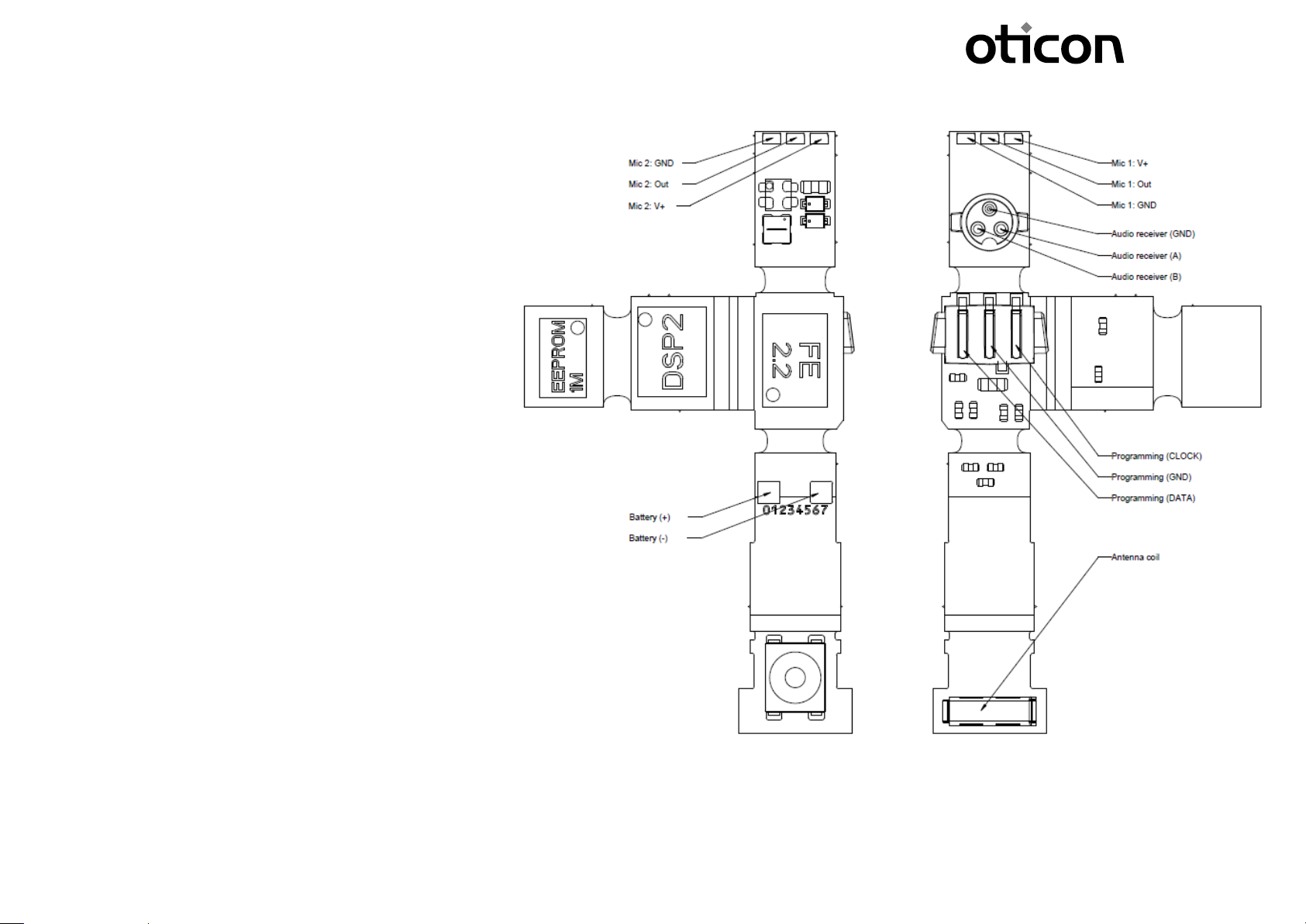

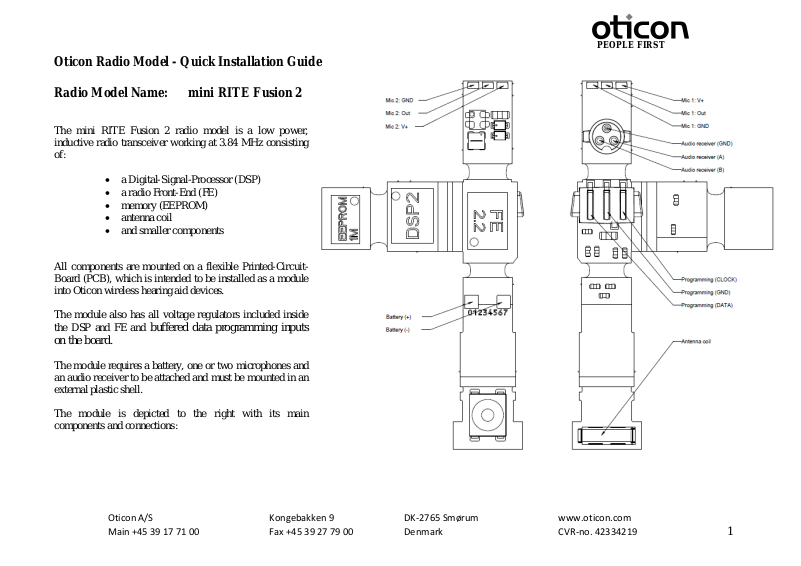

The module is depicted to the right with its main
components and connections:
buffered data programming inputs
