oticon Streamer Pro, ConnectLine Streamer Pro Instruction Manual

INSTRUCTIONS FOR USE Streamer Pro

Thank you

Thank you for choosing our product as your means to better hearing.
To support your efforts, we have put great care and attention into making sure that your
new Streamer has the highest quality and is easy to use and maintain.

The Streamer connects your hearing instruments wirelessly to different audio sources
and makes your hearing instruments work like wireless headphones. The Streamer
transmits the sound directly into both hearing instruments and thereby improves the
audio experience.

Information about the entire ConnectLine system is available online at www.oticonusa.
com/connectline. Here you will also find instructional “how-to videos” and a support sec­tion answering frequently asked questions.

We recommend that you read this manual carefully before you start to use the device in
order to achieve the maximum benefit from your new Streamer. The manual describes
the most frequently used functions which are important to understand before you start
to use the Streamer. We also encourage you to read the “Getting Started” user guide,
which is included in the package. If you have any questions about the use or maintenance
of the Streamer, please contact your Hearing Care Professional.

Indication for use

The Streamer is intended to be used by wireless Oticon hearing instrument users
together with their hearing instruments. The Streamer is a communication interface
between the hearing instruments and other devices such as cell phones.

The Streamer can be connected to a range of external (additional) devices to enable
the hearing instrument user to better hear a TV or to communicate through Bluetooth­enabled cell phones, etc.

The Streamer can also be used as a remote control that enables you to adjust the hearing
instrument volume and change programs in the hearing instruments.

IMPORTANT NOTICE

Please familiarize yourself with the entire contents of this booklet before using your
Streamer. It contains instructions and important information about the use and
handling of your Streamer and batteries.

Contents

Package contents 8
Device view 11
Warnings 12

Basic functions - first-time use

Wearing the Streamer with the neck loop 16
Using the Streamer without the neck loop 18
Turning the Streamer on and off 20
Charging the Streamer 22
Battery low indicator 24
Remote control of the hearing instruments 28
Pairing the Streamer with a cell phone and other devices 30
Clear pairing 32

Continues on next page

Primary functions

Connectivity/streaming 34
Cell phone 35
ConnectLine Phone solution 40
ConnectLine Microphone 42
ConnectLine TV solution 44

Secondary functions

Connectivity/streaming 47
Music/audio cable 48
Headset cable 50
Music/audio wireless 52
PC headset - wireless 54
T-coil (built-in) 56
FM receiver (optional) 58
Avoiding heat, humidity and chemicals 60

Additional information

Cleaning and maintenance 61
Accessories and spare parts 62
Personalizing your Streamer 64
Technical information 67

Index 70

8

Package contents

Streamer Pro – what is included in the box:

The Streamer box contains the following elements:

Your new Streamer

Box 4Box 1

Neck loop - medium (page 16) Neck loop - long (page 16)

Protective skin (page 62)Cleaning clothCharger (page 22)

GETTING STARTED Streamer Pro

Please read this
user guide before
you start using your
new Streamer

INSTRUCTIONS for use Streamer Pro

9

Box 3

Charger base (page 22)

Box 2

3.5 mm mini jack
stereo cable
for MP3/music
(page 48)

USB charger cable
(page 22)

3.5 mm headset
splitter cable for use
with PCs (page 50)

Getting Started

This guide (Instructions For Use)

*Optional

11

Device view

Microphone
(page 42)

Volume control
(up/down)
(page 28)

Neck loop in/out

Neck loop
(page 16)

Phone

(page 35 & 40)

TV (page 44)

AUX selector
(page 47)

Microphone inlet

On/off button

Status

indicator

On/off indicator
Pairing
Battery

Mini jack

FM receiver

Power supply

On/off

12

You should familiarize yourself fully with the following general warnings and the entire
contents of this booklet before using your Streamer.

Products to be connected to external equipment

The safe use of the Streamer with the auxiliary input cable is determined by an external
signal source. When the input cable is connected to mains-operated equipment, this
equipment must comply with IEC-60065, IEC-60950, IEC-60601 or equivalent safety
standards.

The safety of recharging batteries with the USB connector only is determined by the
external equipment. When the USB connector is connected to mains-operated equip­ment, this equipment should be UL-approved or comply with IEC-60065, IEC-60950,
IEC-60601 or other equivalent safety standards.

Explosives

There is a risk that Streamer will explode and cause serious injury.
Never expose the Streamer to extreme heat by putting it in the oven, microwave oven,
burning it or leaving it inside a parked car in the sun.

Warnings

13

Chocking hazards

The Streamer is not a toy and therefore should be kept out of the reach of children and
anyone else who might swallow parts or otherwise cause injury to themselves. Special
attention should be paid to the smaller components in order to prevent children from
swallowing them and choking.

If a part is swallowed, see a doctor immediately.

Interference and implantable devices

The Streamer is designed to comply with the most stringent Standards of International
Electromagnetic Compatibility. However, the Streamer might cause interference with
other medical devices such as defibrillators and pacemakers.

• Please contact the manufacturer of your implantable device for information about the
risk of disturbance.

• Immediately remove the Streamer if interference is suspected. Do not use the
Streamer and seek advice.

Interference can also be caused by power line disturbances, airport metal detectors,
electromagnetic fields from other medical devices, radio signals and electrostatic dis­charges.

Warnings

14

Use of the neck loop

If by accident the neck loop should get caught on something while the user is wearing it,
the neck loop is constructed to break automatically. Therefore, never try to shorten or
modify the neck loop in an unauthorized way. The neck loop should not be used for chil­dren who weigh less than 11 kg.

Use in cars

Using the Streamer with a cell phone while driving can distract you. If driving conditions,
or traffic laws, demand it, pull off the road and park before making and answering calls.

Use on aircraft

The Streamer should not be used on board aircraft, unless specifically permitted by the
flight personnel.

Warnings

Battery replacement

Do not attempt to open the battery compartment, as it may damage the battery.
The service guarantee is void if there are signs of tampering.

Cell phone compatibility

Please refer to www.oticonusa.com/connectline for a list of cell phones that have been
tested comprehensively by Oticon, and have been found to fulfill the minimum require­ments for ConnectLine compatibility at the time of testing. However, Oticon takes no
responsibility for such compatibility in general. Specifically, Oticon shall not be responsi­ble for incompatibility resulting from future updates of the cell phones, nor from events
of incompatibility not covered by and/or found in these tests. Oticon takes no financial
responsibility in terms of reimbursements of cell phones that do not work as expected.
Before purchasing a new cell phone, you are advised to consult the list mentioned above.

Warnings

15

16

Basic functions - rst-time use

Wearing the Streamer – with the neck loop

The neck loop is an integral part of the Streamer’s electronic system. It is used as an
antenna to transmit sound to your hearing instruments.

For the best possible sound and longest possible streaming time, the Streamer should
always be worn with one of the included neck loops. The Streamer comes with two neck
loops, both long and medium lengths.

IMPORTANT NOTICE

Please use the neck loop carefully. Due to safety reasons (to avoid strangulation) the
neck loop will automatically release if it gets caught in something. Do not shorten or
modify the neck loop in any way, i.e., such as tie a knot to shorten the length. If a neck
loop breaks, it cannot be repaired and must be replaced immediately. Consult your
Hearing Care Professional for a replacement.

17

Neck loop

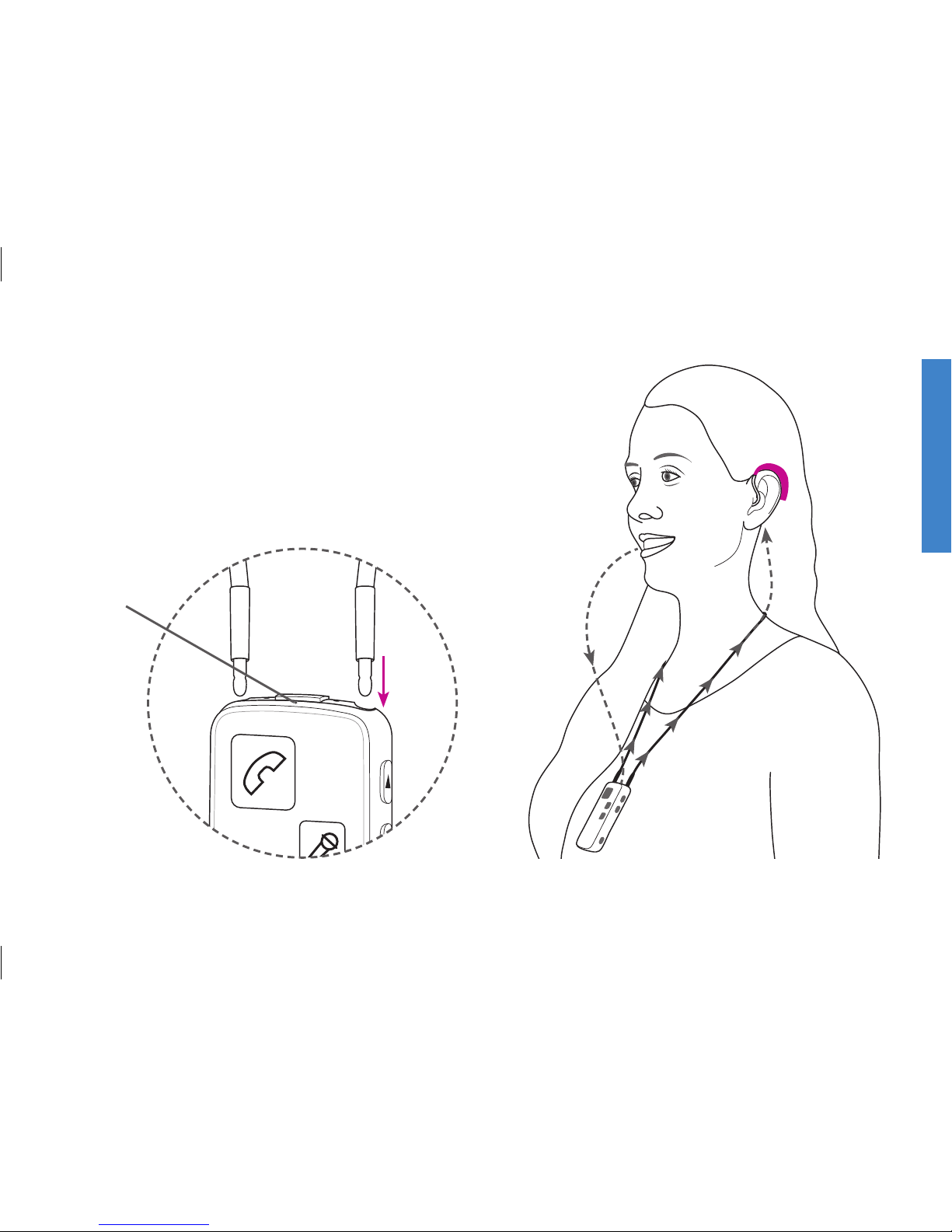

Inserting the neck loop

The neck loop snaps into the holes on the top of
the Streamer.

Note that when talking to somebody through the
Streamer, it is important that your voice can be
picked up by the built-in microphone on the top.

Microphone

Your voice

Sound from

Streamer to hearing

instruments

18

Using the Streamer without the neck loop

The Streamer can also be used without the neck loop, e.g., if kept in a pocket or used
with the optional belt clip.

When using the Streamer without the neck loop, the distance to the hearing instrument
should be less than one meter. You may experience drop-outs in sound, which is why we
always recommend using the neck loop.

When using the Streamer without the neck loop, more power will be used – consequently
maximum streaming time is reduced to 5 hours on one full charge.

IMPORTANT NOTICE

A defective neck loop should be replaced immediately.

19

No neck loop

Max 1 meter

Belt clip (optional)

20

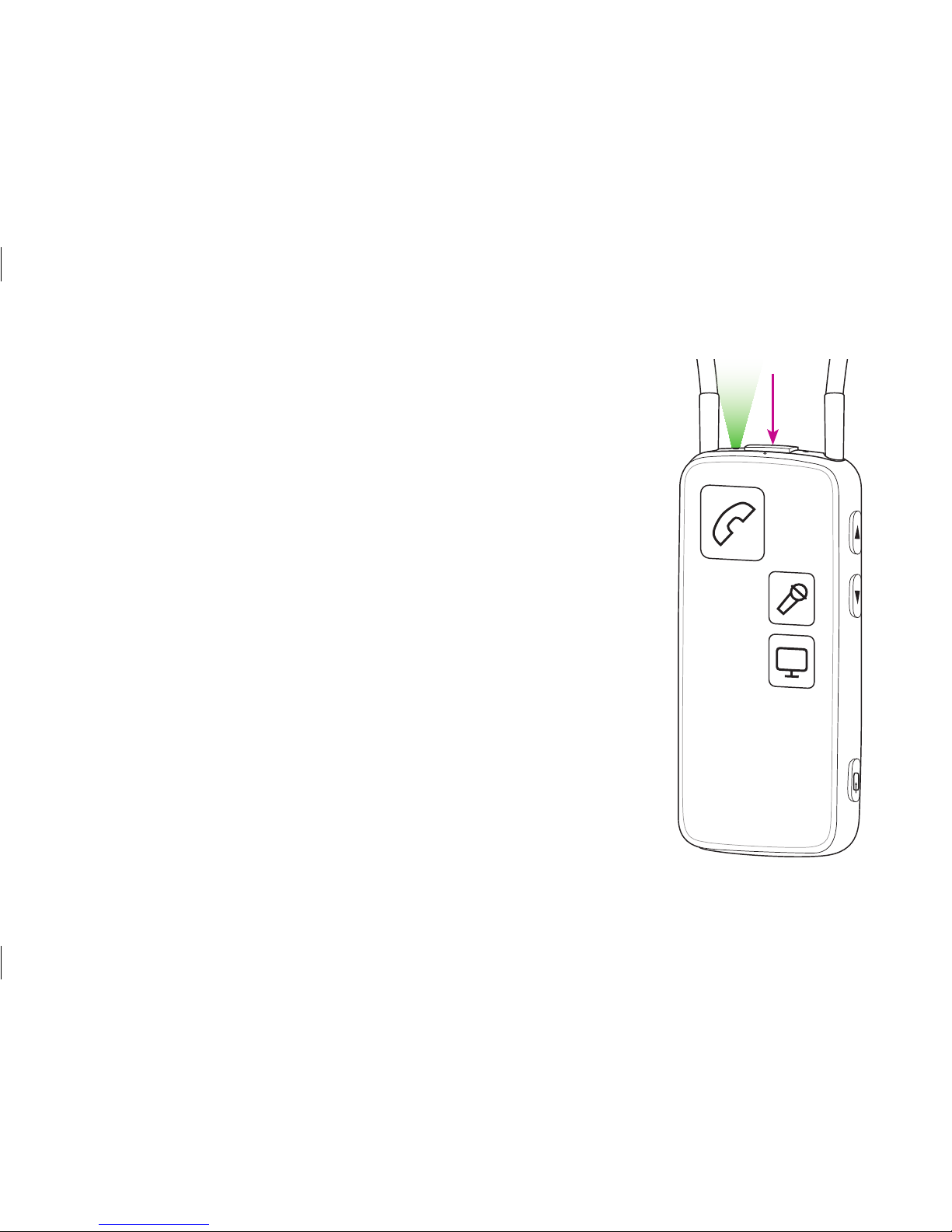

Turning the Streamer on and o

Power on

Press the on/off button on the top of the Streamer for

approx. 2 seconds until all lights on the front and top flash
to indicate it is powered on.

Release the on/off button. The power indicator on the top

of the Streamer should now fade to green.

If the Streamer cannot power on, make sure it is charged
(page 22).

To see the status of the Streamer, press the on/off button
briefly.

Power o

Press and hold the on/off button on the top of the
Streamer for approx. 2 seconds until the green power
indicator is turned off.

21

On/off

Power on/off

Status Front Description

The Streamer is off

After pressing the on/off button for approx. 2 seconds, all
lights will be on for a few seconds to indicate that the
Streamer is now turned on

The Streamer is now turned on and ready for use

22

Charging the Streamer

The Streamer uses a rechargeable battery. We recommend that
you charge the Streamer daily for best possible
performance.

Using the enclosed charger and optional charger base (A), or a
USB compliant device with a charge current of 500mA, simply
insert the micro USB socket in the bottom of the Streamer (B).

Charging is indicated by a blinking green indicator on the top.
Once fully charged, the indicator will show steady green.

On/off

indicator

POWER

23

Charging

Charging

Status Front Description

When the Streamer is charging, the status indicator will
blink green

Charging – when turned on (or in use) – the status indicator
will shift between strong and soft green.

Blink Fade

A

B

24

Battery low indicator

The Streamer will indicate battery low (approx. 20 min­utes capacity left) with a steady red light, and battery
very low (approx. 5 minutes capacity left) with a blinking
red light.

Battery low

indicator

25

Battery

IMPORTANT NOTICE

The battery should not be drained completely. Keeping the battery fully charged will
prolong the capacity of the battery. The battery cannot be replaced by the user.

Battery low indicator

Status Front Description

Battery low – approx. 20 minutes capacity left when
streaming to hearing instruments

Battery very low – approx. 5 minutes capacity left when
streaming to hearing instruments

Steady Fading

26

Battery capacity and charge time

Battery capacity
using neck loop

Up to 10 hours typical daily use: 2 hours phone, 6 hours TV
and 2 hours standby (after 2 years the capacity will be
approx. 8 hours typical daily use).

Battery capacity not
using neck loop

Up to 5 hours typical use: 1 hour phone, 3 hours TV and 1
hour standby.

Battery charge time

2 hours for complete charge, using enclosed power supply.

Remote

If the Streamer is turned off, remote control of hearing
instrument will work for up to 6 months on one full charge.

Battery life expectancy

The battery in the Streamer will last for more than 2 years if
fully charged once a day.

Battery

Remote control of the hearing instruments

Volume up/down

Briefly pressing on either volume up or down will regulate the volume in the hearing
instruments accordingly. You will hear small confirmation “ticks” in the hearing instru­ments.

Changing programs in the hearing instruments

You can change programs up or down by holding the volume up or down for more than
one second. Changing programs is indicated by a sound in your hearing instruments.

Muting the hearing instruments

You can mute the hearing instruments by pressing the volume up AND down for 1 second

simultaneously.

IMPORTANT NOTICE

• The mute function is only available in the most recent Oticon hearing instruments.
Please consult your Hearing Care Professional for details.

• Even though the Streamer is turned off, the remote functionality of the hearing
instruments will still work.

29

Remote

Volume/program
shift

mute

30

Pairing the Streamer with a cell phone
and other devices

Before the Streamer can be used with other devices – such as
cell phones - the two devices have to be paired.

1. Bring the Streamer into pairing mode

Press and hold the on/off button for approx. 5 seconds,

until the indicator blinks blue.

0000

0000

31

Pairing

2. Bring the other device (e.g., cell phone) into pairing
mode.

This is typically in a set-up menu on your phone.
We advise you to look in your cell phone’s “instructions
for use,” e.g., under pairing.

3. The other device (cell phone) will often request a pin
code.

The pin code for the Streamer is 0 0 0 0 (four zeros).

4. Once paired, the cell phone will typically show a head­set icon; at the same time the Streamer pairing indica­tor will be steady blue.

32

Clear pairing

If you have problems with pairings, you can clear all
pairings by pressing the on/off button and the volume up
button at the same time for 3 seconds.

33

Pairing

Pairing

Status Front Description

Streamer in pairing mode

Pairing complete

Streamer on

Steady Blinking

34

Primary functions

Connectivity/streaming

The ConnectLine Streamer user interface has been designed to
give you the best possible daily use in the following situations:

1. Use of a cell phone through Bluetooth* (page 35).

Use of the ConnectLine Phone solution (sold separately)
with an analog landline phone* (page 40).

2. Use of a ConnectLine partner Microphone (sold separately),
to improve your chances of hearing a chosen speaker
at a distance, or in very noisy situations (page 42).

3. Use of ConnectLine TV solution (sold separately)
to wirelessly transmit the TV sound to your hearing
instruments (page 44).

* In effect turning the Streamer and the hearing instruments into a wireless headset

35

Cell Phone

Cell phone

To be able to receive or make calls while using the
Streamer, make sure that the Streamer and cell phone
have been paired (pages 30-31), are turned on and are
within range (10 meters). Your cell phone may indicate
that it is connected to the Streamer with a small headset
icon.

For more information please refer to:

www.oticonusa.com/connectline

36

How to answer a call

Make sure that you are able to speak into the
Streamer’s microphone inlet.

When your cell phone rings, you will hear an incom­ing call alert in your hearing instruments. At the
same time the phone button on the Streamer and
the status indicator will blink green.

Press the phone button on the Streamer briefly to

answer the call. You will hear a small confirmation
beep in your hearing instruments.
The phone button and status indicator will now be
steady green.

To end the call, simply press the phone button on
the Streamer briefly.

Microphone

37

Cell Phone

Receiving a call

Status Front Description

Streamer on and ready

Phone indicator and top status blinks green. You will hear
an incoming call indicator in your instruments

When the call is connected, you will hear a beep
acknowledging that the call is answered – you are now able
to listen and talk to the other party

Steady Blinking

33 40 17

_ _

38

How to make a call

Make sure that you are able to speak into the Streamer’s
microphone inlet.

To make a call, all you need to operate is the cell phone.
You do not need to operate the Streamer. Simply key in

the number as you normally do to make a call – the call is

automatically connected to your Streamer.

The phone button on the Streamer and the status
indicator on the top will turn green, and you will hear a
confirmation beep in your hearing instruments indicating
that the call is now connected through your Streamer and
hearing instruments.

To end the call, simply press the “call end” button on the
phone or the phone button on the Streamer briefly.

39

Cell Phone

Making a call

Status Front Description

Streamer on and ready

When the call is connected, you will hear a beep acknowl­edging that the call is connected – you are able to listen and
talk to the other party

Steady Blinking

40

ConnectLine Phone solution

The Streamer can also be used with a traditional analog
landline phone by using a ConnectLine Phone solution,
which is available as a separate accessory.

For details on how to use the ConnectLine Phone solution,
please refer to the instructions included with the
ConnectLine Phone solution or:

www.oticonusa.com/connectline

41

Phone

Talking on the phone

Status Front Description

Streamer on and ready

Streamer connected – you are able to listen and talk to the
other party

Steady

42

ConnectLine Microphone

As a separate accessory, a ConnectLine Microphone is
available, which transmits the sound from a chosen
speaker to your hearing instruments through the
Streamer.

For details on how to use the ConnectLine
Microphone solution, please refer to the instructions for
use included with the ConnectLine Microphone or:

www.oticonusa.com/connectline

43

Mic

Sound from ConnectLine Microphone

Status Front Description

Streamer on and ready

When connected to the Microphone - you will hear sound
from the microphone in the hearing instruments

Steady

Up to 15 meters

44

ConnectLine TV solution

As a separate accessory, a ConnectLine TV solution is
available, which transmits the sound from a TV to your
Oticon hearing instruments through the Streamer.

For details on how to use the ConnectLine TV solution,
please refer to the instructions for use included with the
ConnectLine TV solution or:

www.oticonusa.com/connectline

45

TV

Watching TV

Status Front Description

Streamer on and ready

Connecting to TV

Streamer connected – sound from TV in hearing
instruments

Steady Blinking

47

Streaming

Secondary functions

Connectivity/streaming

The Streamer can be used with a wide range of
standard peripherals, such as MP3
players, computers, etc.

The following priorities apply:

A Priority 1 Mini jack in/out (if connected) Briefly press AUX selector Page 48

B Priority 2 FM (if connected) Briefly press AUX selector Page 58

C Priority 3 Wireless Bluetooth (built-in) Briefly press AUX selector Page 52

D Priority 4 Tele loop receiver (built-in) Press and hold AUX selec-

tor for approx. 2 seconds

Page 56

A

C

D

B

48

Music/audio cable

Inserting and connecting the included mini jack cable
enables you to listen to music/audio from a wide range of
devices.

To listen to audio from your device, simply press the AUX

selector briefly. When the cable is inserted, streaming will

start automatically.

For more information please refer to:

www.oticonusa.com/connectline

49

Music - wired

Music/audio - cable

Status Front Description

Streamer on and ready

You will hear a confirmation beep followed by the sound
from the device

Steady

50

Headset cable

Make sure that you are able to speak into the Streamer’s
microphone inlet.

Inserting and connecting the included mini jack cable and
the included headset splitter cable enables you to use the
Streamer as a headset with your computer.

To use the headset function, simply press the AUX

selector briefly.

For more information please refer to:

www.oticonusa.com/connectline

Microphone

51

Headset - wired

Headset cable

Status Front Description

Streamer on and ready

You will hear a confirmation beep – you are now able to
listen and talk to the other party

Steady

52

Music/audio wireless

To hear music/sound wirelessly, e.g., from an MP3 player
or a computer with built-in Bluetooth, make sure that the
device has been paired to your Streamer (page 30), that
both are turned on, and within range (<10 meters).

If you pair to a computer, make sure that the Streamer is
paired as headphone/A2DP device.

For more information please refer to:

www.oticonusa.com/connectline

53

Audio - wireless

Music/audio wireless

Status Front Description

Streamer on and ready

Streamer connecting to music/audio device

When connected, you will hear a confirmation beep
followed by the sound from the device

Steady Blink

54

PC headset - wireless

Make sure that you are able to speak into the
Streamer’s microphone inlet.

When pairing to a computer, make sure that the
Streamer is paired as a headset device.

To use the headset function, simply press the phone

button briefly.

For more information please refer to:

www.oticonusa.com/connectline

55

PC headset - wireless

Headset - wireless

Status Front Description

Streamer on and ready

Streamer connecting to music/audio device

When connected, you will hear a confirmation beep
followed by the sound from the device

Steady Blink

56

T-coil (built-in)

The Streamer has a built-in tele loop receiver (T-coil).

To receive sound from the tele loop receiver,

press and hold the AUX selector for approx.
2 seconds.

For more information please refer to:

www.oticonusa.com/connectline

Please note: if desired, the operation can be changed
so the T-coil can be activated by a short press
instead. Please see page 64.

57

T-coil

T-coil

Status Front Description

Streamer on and ready

When connected, you will hear a confirmation beep
followed by the sound from the tele loop system

Steady

58

FM receiver (optional)

Using the Euro pin socket in the bottom of the
Streamer, sound from an FM receiver can be
received.

Simply plug in the FM receiver and press the AUX

selector briefly.

For more information please refer to:

www.oticonusa.com/connectline

59

FM

FM

Status Front Description

Streamer on and ready. FM receiver powered on and ready
for channel sync

When connected, you will hear a confirmation beep
followed by the sound from the device

Steady

IMPORTANT NOTICE

Please make sure the Streamer is powered on, but not streaming sound to the hear­ing instruments and that FM is NOT selected when entering a classroom or similar
environment where FM channel sync is required.

60

Avoiding heat, humidity and chemicals

The operating temperature for the Streamer is 10-45ºC.

Your Streamer must never be exposed to extreme heat, such as putting it in the oven,
microwave oven, burning it or leaving it inside a parked car in the sun. There is a risk that
it will explode and cause serious injury.

The Streamer must never be exposed to a lot of moisture, e.g., steam baths, showers or
heavy rain.

The Streamer must not be exposed to or cleaned with cleaning chemicals or alcohols.
The chemicals in cosmetics, hair spray, perfume, aftershave lotion, suntan lotion and
insect repellent can damage your Streamer. You should always remove your Streamer
before applying such products and allow time for the product to dry before using your
Streamer.

61

Additional

Additional information

Cleaning and maintenance

The Streamer is a sealed device that requires only a minimum of maintenance. Any dirt,
moisture or grease should be cleaned off by using a dry or damp cloth. It is recommended
to clean the Streamer on a regular basis. The microphone inlet and the connectors for
audio input, neck loop and charging must be kept free of dirt or debris.

The Streamer and the neck loop must never be washed or immersed in water or other
liquids.

62

Accessories and spare parts

Protective skins

Additional protective skins are available from your Hearing
Care Professional.

Protective skin – single button

A protective skin with one protruding button, which makes
“blind” operation easier, is available from your Hearing Care
Professional.

Additional

63

Replacement neck loops

Replacement neck loops are available in
three sizes: Short (51 cm), medium (66
cm) and long (81 cm) from your Hearing
Care Professional.

Belt clip

A belt clip is available from your Hearing Care Professional.

64

Personalizing your Streamer

Your Hearing Care Professional is able to personalize your Streamer to better meet your
specific needs.

Cell Phone

The following cell phone features can be enabled by your hearing care professional:

Reject call
An incoming call can be rejected by briefly pressing the volume down button on the
Streamer.

Voice dial
Briefly pressing the phone button will enable voice dial (if supported by your cell
phone and you are not in range of a ConnectLine phone adapter).

65

Additional

Last number redial
Pressing and holding the phone button will activate the last number redial (if supported
by the cell phone).

Transfer call
Pressing and holding the phone button will transfer a call back to the cell phone.

Disable “all buttons answer call” functionality
If disabled, only the phone button on the Streamer will answer calls.

Enable incoming (A2DP) alerts
If enabled, other devices, e.g., iPods, computers and cell phones can activate/start
audio streaming, for example, incoming text alerts or music started from a paired and
connected computer.

66

Other

AUX selector

Default settings:
Wireless Bluetooth (built-in) - short press
Tele loop receiver (T-Coil) - long press

Can be changed to:
Tele loop receiver (T-Coil) - short press
Wireless bluetooth (built in) - long press

67

Additional

Technical information

Besides the Bluetooth transmitter, the Streamer contains a radio transmitter using
short-range magnetic induction technology, working at 3.84 MHz. The magnetic field
strength of the transmitter is < -15 dBμA/m @ 10m.

The emission power from the Streamer is below international emission limits for human
exposure. The Streamer complies with international standards concerning electromag­netic compatibility.

Due to the limited size available on the device, many of the relevant approval markings
are found in this document.

This device contains a module with:

FCC ID: U28CL2STRM
IC: 1350B-CL2STRM

The device complies with Part 15 of the FCC rules and RSS-210 of Industry Canada.

68

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may
cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate radio fre­quency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:

0543 0682

N1175

69

Additional

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and the receiver.

• Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Hereby, Oticon A/S declares that this Streamer Pro is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. Declaration of
conformity is available at:

Oticon A/S
Kongebakken 9
DK-2765 Smørum
Denmark
www.oticon.com

Waste from electronic
equipment must be han­dled according to local
regulations.

70

Index

A

A2DP device. SeeMusic wireless
Accessories 62
Aircraft, use on 14
Answer a call 36
Antenna 16
Audio (music) 48

Cable 48
Listen to music 48
Wireless 52

B

Battery 26

Capacity 26
Charge time 26
Life 26
Low 24
Rechargeable 22

Belt clip 18
Bluetooth 52

C

Call

Answer 36
End 36, 38
Make 38
Reject 64

Transfer 65
Cars, use in 14
Cell phone 35
Cell phone compatibility 15
Changing programs 28
Charger 22
Charger base 22
Charging 22
Chemicals 60
Cleaning 61
Clear pairing 32

71

Index

Computer

Headset cable 50
Music/audio cable 48
Music/audio wireless 52

ConnectLine

Microphone 42
Phone 40
TV 44

E

Earphones. SeeHeadset
End the call 36, 38
Euro pin socket. SeeFM

F

First-time use 16
FM 58

H

Headphone. SeeHeadset

Headset 34

Cable 50
Cell phone 35
Splitter cable 50

Wireless 52, 54
Headset cable 50
Headset splitter cable 50
Heat 60
Humidity 60

I

Indication for use 3
Interference 13, 68

L

Landline phone 40
Last number redial 65
Listen to audio 48
Listen to music 48

72

128109US / 12.12

M

Maintenance 61
Make a call 38
Microphone 42
Microphone inlet 11
Mini jack 11
Mini jack cable 48, 50
MP3 player 52
Music 52

Cable 48
Listen to music 48

Wireless 52
Mute 28
Muting the hearing instruments 28

N

Neck loop 16

P

Pairing 30

Clearing 32

Mode 30
PC. SeeComputer
Personalizing 64
Phone solution 40
Pin code 31
Power o/on 20
Protective skin 62

R

Rechargeable battery 22
Reject call 64
Remote control 28

S

Sound. Seemusic
Spare parts 62

128109US / 12.12

Splitter 9
Splitter cable 50

T

Talking on the phone 36, 38, 41
T-coil 56
Technical information 67
Tele loop 56
Transfer call 65
TV 44

V

Voice dial 64
Volume up/down 28

W

Warnings 12, 13, 14
Wireless 52, 54
Without the neck loop 18

People First is our promise
to empower people
to communicate freely,
interact naturally and
participate actively

People First

0000128763000001
