Oticon Radio Model - Quick Installation Guide
Radio Model Name:
Aurora ITE
Oticon A/S
Kongebakken 9
DK-2765 Smørum
www.oticon.com
1
Main PCB
Battery chamber
3,84 MHz coil antenna
Microphone
Speaker
Microphone
2,4 GHz Antenna
The Aurora ITE radio model contains a radio transceiver running at 3.84 MHz and a transceiver running at 240 0MHz-2483MHz implemented on a
single hardware platform.
The 3.84 MHz radio is a low power, short range, inductive radio transceiver working at a single channel at 3.84 MHz using MSK modulation with
320 kbit/s data rate and connected to a small coil antenna.
The radio model is implemented in an engine module mounted on the main PCB with connections to the antennas, the microphones, the speaker

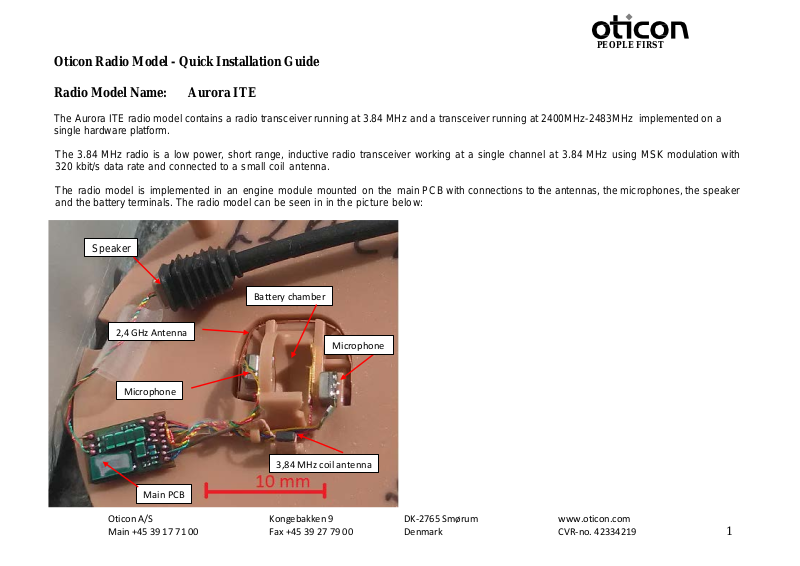

and the battery terminals. The radio model can be seen in in the picture below:
Main +45 39 17 71 00
Fax +45 39 27 79 00
Denmark
CVR-no. 42334219
Page 2
PEOPLE FIRST
Oticon Radio Model - Quick Installation Guide
Radio Model Name:
Aurora ITE
Oticon A/S
Kongebakken 9
DK-2765 Smørum
www.oticon.com
2
Battery chamber
Microphone
Speaker
Microphone
Main PCB
Coil antenna
2,4 GHz Antenna
The Aurora ITE radio model requires only a single cell battery (size 13 or size 312) to be attached and a customized plastic shell, holding
everything together, in order to be operational as a fully functional hearing aid.
An example is sh own here:
Main +45 39 17 71 00
Fax +45 39 27 79 00
Denmark
CVR-no. 42334219
Page 3
PEOPLE FIRST
Oticon Radio Model - Quick Installation Guide
Radio Model Name:
Aurora ITE
Oticon A/S
Kongebakken 9
DK-2765 Smørum
www.oticon.com
3
The Aurora ITE radio model is intended to be installed in Oticon wireless ITE hearing aid devices (In-The-Ear) styles.
Main +45 39 17 71 00
Fax +45 39 27 79 00
Denmark
CVR-no. 42334219
Page 4
Oticon A/S
Kongebakken 9
DK-2765 Smørum
www.oticon.com
4
PEOPLE FIRST
Contains:
FCC ID:
U28AUITE13
IC:
1350B-AUITE13
Contains:
FCC ID:
U28AUITE312
IC:
1350B-AUITE312
Oticon Radio Model - Regulatory Label Information for USA & Can ada
The followi ng informati on will be part of the User Manual for the fi nal product:
Radio Model Name: Aurora ITE 13 / Aurora ITE 312
If size 13 battery is used:
If size 312 battery is used:
NOTICE:
This device comp lies with Part 15 of the FCC Rules and with RSS-210 and RSS-247 of Industry Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
Changes or modifications made to this equipment not expressly approved by Oticon A/S may void the FCC authorization to operate this
equipment.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Main +45 39 17 71 00
Fax +45 39 27 79 00
Denmark
CVR-no. 42334219
Page 5
Oticon A/S
Kongebakken 9
DK-2765 Smørum
www.oticon.com
5
PEOPLE FIRST
Oticon Radio Model - Regulatory Label Information for Japan
Radio Model Name: Aurora ITE 312 / 202-LSG036
Aurora ITE 13 / 202-LSG035
Description: Radio module with 2.4 GHz low power transceiver to be integrated into Oticon, Bernafon, Sonic
hearing instruments.
NB: The regu latory label for Japan is also
included in the product package label.
This device is granted pursuant to the Japanese Radio Law (電波法) and the Japan ese T el ecom m uni cati o ns Busi nes s
Law (電気通信事業法) under the grant ID n° 認証番号: 202-LSG035 and 202-LSG036.
This device should not be modified (otherwise the granted designation number will become invalid)
本製品の改造は禁止されています。（適合証明番号などが無効となります。）
