O’three Aquatherm User Manual

Instruction Manual

TM

HOT WATER SUIT

Version 1.2/0418

PATENT PENDING

Page 1

Contents

Warnings

Medical Advice

Type of Suit

Material

Valve

Tube Assembly

Compatibility

Suitability

Suit Fitting

Size Chart

Accessories

Components Supplied

Suit Checks

Donning the Suit

3

Dong the Suit

4

Cleaning & Care

5

Storage

5

Maintenance

6

Inspection Intervals

6

Repairs

6

Modications

6

Safe Disposal

7

Recycling

7

Manufacturer Information

7

Warranty

7

Caveat

8

Translation / Languages

If this product is to be sold to countries where English is not the
rst language, please contact O’Three Ltd where a translated
version of the user hand book will be provided.

Version 1.2/0418

8

8

9

9

10

10

10

10

11

11

12

12

12

Page 2

Warnings

Instructions - Please read all the instructions in this
manual prior to using the AquathermTM suit.

Training - This suit is only to be used by an individual
who has obtained specic training in its use, or is under
the instruction of an industry recognised instructor.

Version 1.2/0418

Buoyancy - This suit is not intended as a buoyancy aid.
The buoyancy of the Aquatherm

TM

suit will decrease with

depth.

Page 3

Medical Advice

Allergies - In very rare cases some people may have an
allergic reaction to some kinds of neoprene or latex.

If a rash of any kind does appear whilst you are wearing
your suit, please remove immediately and seek medical
advice.

Scalding - Although incredibly rare, scalding may occur.

To help minimise the eects of scalding it is advisable
to wear an undergarment or base layer under any hot
water suit.

Work Rates - If an increased work rate is expected whilst
using the AquathermTM, please be aware of any signs of
hyperthermia (over heating) and take immediate action.

Version 1.2/0418

Page 4

Type of Suit

AquathermTM - Commercial
Diving Hot Water Suit.

The suit is fully compliant with

standard EN 14225-3:2005

Material

2.5mm pre-compressed, shrink
resistant neoprene.

Externally laminated with a
tough triple thread nylon.

Features

• Neck comfort.

• Moulded knee and

shoulder pads.

• O-set zip.

• Detachable / reusable hot

water inlet valve.

• Wrist / ankle velcro
mounts.

• 2 x Reinforced cargo
pockets.

Resin impregnated for quick
drying and increased durability.

Version 1.2/0418

• Ergonomically shaped at
the arms and legs.

• Glued and blind stitched.

• Internally reinforced and

sealed seams.

Page 5

Compatibility

The Aquatherm

TM

is compatible
with all commercial diving
hot water systems and all
commercial diving harness
systems.

The Aquatherm

TM

can be used
by male or female divers if
sizing allows.

Tube Assembly

Continuous loop system
and an internal bore that is
100% larger than the industry
standard means an increased
eciency in the delivery of hot
water throughout the entire
suit, giving a ow of up to
45 Ltrs. per minute.

Suitability

The Aquatherm

TM

is designed
to be used as a commercial
hot water suit attached to
commercial hot water delivery
systems.

The suit is designed to be
used in an environmental
temperature range of 2oC
(35.6oF) to 20oC (68oF)

Version 1.2/0418

Divert out

(clockwise)

Divert in

(anti-clockwise)

Valve

Re-useable, quick t ‘in
and out’ valve assembly
for easy maintenance.

Page 6

Suit Fitting

The suit has its size designation
printed on both arms and
inside on the suit information
panel.

Please choose a suit that most
closely matches your body
dimensions - height and chest.

Size Chart

JP014

Aquatherm

JP000

Aquatherm

JP001

Aquatherm

JP002

Aquatherm

JP003

Aquatherm

JP004

Aquatherm

JP005

Aquatherm

JP006

Aquatherm

JP007

Aquatherm

JP008

Aquatherm

JP009

Aquatherm

Accessories

JP010

Aquatherm

JP011

Aquatherm

JP012

Aquatherm

JP013

Aquatherm

Version 1.2/0418

Height

Sizes

5’5” - 5’7”/ 165 - 170cm

- S
5’7”

- M

- MT

- ML

- L

- LT

- XL

- XLT

- 2XL

- 2XLT

- 3XL

- Tubing Pack

- Valve

- Spanner

- Hole Cutting Tool

- 5’9”/ 170 - 175cm

5’9” - 5’11”/ 175 - 180cm
5’9” - 5’11”/ 175 - 180cm
5’11” - 6’1”/ 180 - 185cm
6’1” - 6’3”/ 185 - 190cm
6’1” - 6’3”/ 185 - 190cm
6’3” - 6’5”/ 190 - 195cm
6’3” - 6’5”/ 190 - 195cm
6’5” - 6’7”/ 195 - 201cm
6’5” - 6’7”/ 195 - 201cm

ChestProduct Code
36” - 38” / 92 - 97cm
38” - 40” / 97 - 101cm
38” - 40” / 97 - 101cm
40” - 42” / 101 - 107cm
42” - 44” / 107 - 112cm
42” - 44” / 107 - 112cm
44” - 46” / 112 - 117cm
44” - 46” / 112 - 117cm
46” - 48” / 117 - 122cm
46” - 48” / 117 - 122cm
48” - 50” / 122 - 127cm

Components Supplied:

• Neoprene Hot Water Suit

• Instruction Manual

Page 7

Suit Checks

Prior to use

• Zip is operable and in
good condition.

• Valve is seated tightly into
suit.

• We recommend a full ow
test prior to every dive.

Donning the Suit

1. Treat the suit as you would
a set of overalls.

2. Undo the front zip, pull
onto your legs and up to
your waist.

3. Pull onto your arms and
pull up the front zip.

Post dive

• Check to make sure the
suit has no tears or wear
from use.

• Check if the suit has
picked up any dirt or
contamination that will
degrade it.

• Clean the suit as per
instructions in this manual.

Version 1.2/0418

Dong the suit

1. Treat the suit as you would
a set of overalls.

2. The dong procedure is
the reverse of donning.

3. Undo the front zip, pull the
suit o your arms.

4. Push the suit down to the
waist and step out of the
legs.

Page 8

Cleaning

Rinse thoroughly
in cold fresh water
after every use.

Allow to dry
naturally and out
of direct sunlight.

Occasionally
wash in a mild
detergent.

Periodically apply
silicone spray to
the zip.

Storage

After rinsing hang the suit on a
curved hanger.

Do not leave a neoprene suit
folded in a damp condition for
longer than is necessary.

Neoprene will crease if not
stored correctly.

Diesel and Oil

You may come in contact with
diesel. This will have a massive
impact on the life of the suit.

Care Instructions

Version 1.2/0418

Diesel and oil will eat your suit.
We cannot oer a warranty /
guarantee against this. Regular
rinsing in fresh water will help
slow this process down.

Page 9

Maintenance

Suit Maintenance

Please follow the cleaning and
inspection routines as detailed
in this manual.

Valve / Loop Maintenance

Periodically ush the valve and
tubes through with clean fresh
water.

Inspection Intervals

The suit should be inspected by
a responsible person prior and
post every dive.

If the suit is stored for any
length of time the suit should
be thoroughly checked and
ow tested prior to
re-commissioning and use.

In order to carry out this
procedure it is not necessary to
remove the valve from the suit.

Version 1.2/0418

Repairs

Simple repairs to the suit may
be carried out with a quality
neoprene adhesive.

Modications

Under no circumstances should
the suit be modied without
the knowledge and consent of
the manufacturer.

Page 10

Safe Disposal

When a suit has reached the
end of its natural life, the
correct method of disposal
will depend on the laws
and regulations within your
country.

Please ensure you dispose of
this suit in a thoughtful and
careful way.

For suits that may have become
contaminated with chemicals,
additional expert advice should
be sought.

Recycling

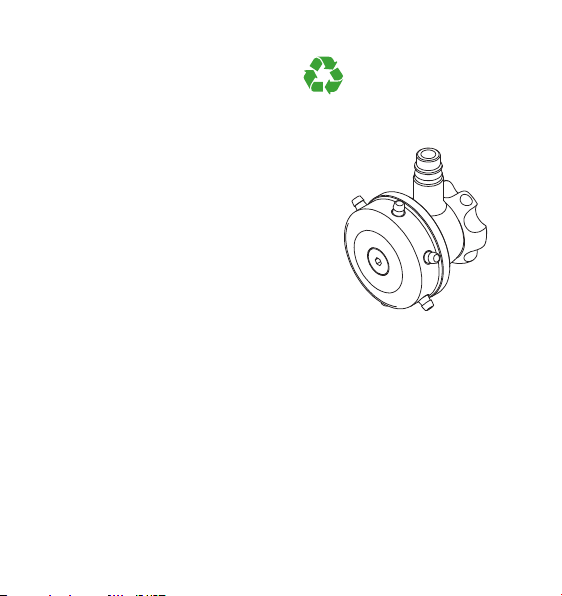

Please be aware that
the suit valve is easy to
remove and therefore
re-useable.

This is a unique feature of the
Aquatherm

TM

Hot Water Suit.

Before disposal, as an
additional safety measure, we
advise you cut the suit in half.

Version 1.2/0418

Recycling part of the suit at
end of life is not only better for
the environment but allows
for a cost saving in equipment
purchase.

Page 11

Manufactured by: Distributed by:

O’Three Ltd
Osprey Quay
Portland, Dorset UK
DT5 1BL

Chambers Oceanics Ltd
3D Harpings Road
Hull, UK
HU5 4JF

[phone]

[email protected]

Warranty

The AquathermTM is guaranteed
against defects in materials
and workmanship for one year.
In the unlikely event you do
experience a problem during
that period, if after inspection,
O’Three are satised that the
product is defective, and taking
into account what they regard
as fair wear and tear from the
natural life of the suit, they
will repair or replace it free of
charge.

Version 1.2/0418

www.hotwatersuit.com

[phone]

[email protected]

Caveat

Regardless of where you have
bought your AquathermTM
or where you intend to use
it, it is sold to you on the
understanding that only
English Law applies in cases of
all warranty claims and product
liability.

Certicate number

OT/15/744/11/2706
