Other M Macaudio-FearlessOne-cpwr Schematic

Download

Page 1

Page 2

Page 3

Page 4

Page 5

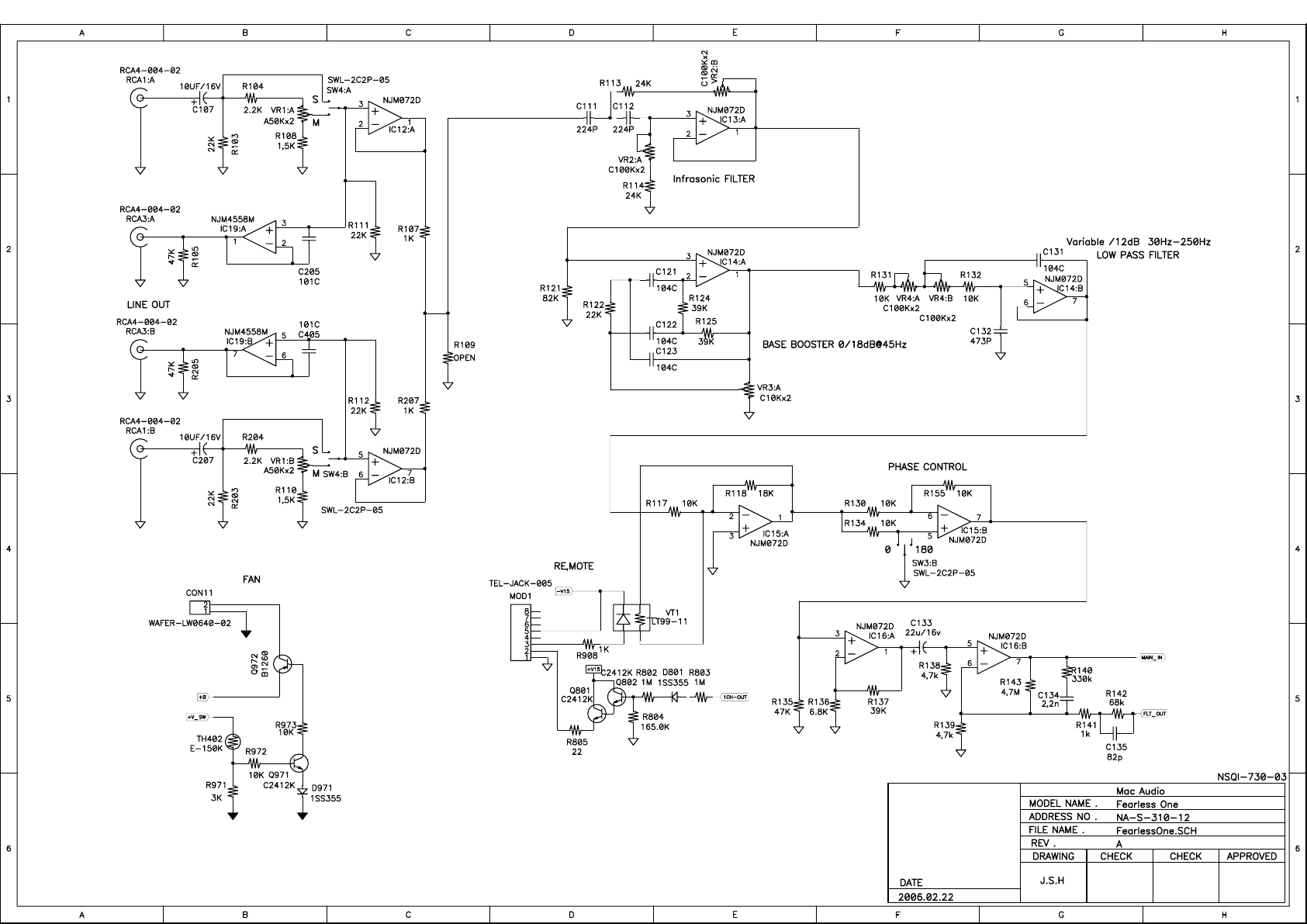

Fearless One

PMC-310-12

DATE .

2006.02.22

MODEL NAME . ADDRESS NO . FILE NAME . REV .

J.S.H

NSQI-730-06

Mac Audio Fearless One NA-P-310-12 FearlessOne.PCB A

APPROVEDCHECKCHECKDRAWING

Page 6

Fearless One

PMC-310-12

DATE .

2006.02.22

MODEL NAME . ADDRESS NO . FILE NAME . REV .

J.S.H

NSQI-730-06

Mac Audio Fearless One NA-P-310-12 FearlessOne.PCB A

APPROVEDCHECKCHECKDRAWING

Page 7

Mac Audio FEARLESS ONE

육각

색

NO CODE ITEM SPEC Q'TY

LOCATION

1 . APBK-0001-BK T/R SPRING "A" L=38,t=0.6,BK 5.0000

2 . APBK-0002-BK T/R SPRING "B" L=26

3 . APBK-0007-BK T/R SPRING "C" L=11

4 . APHS-0636-00 HEAT SINK L=300mm Mac Audio: Fearless One 1.0000

5 . APPL-0519-00 FRONT PANEL EGI1.0t Mac Audio: Fearless One 1.0000

6 . APPL-0520-00 REAR PANEL EGI1.0t Mac Audio: Fearless One 1.0000

7 . XHPM-03+10MN PAN HEAD MACHINE P.H.M 03x10 Ni 1.0000

for GND

8 . XHPM-26+06MN PAN MACHINE SCREW P.H.M 2.6x06 Ni 4.0000

for PCB+POST

9 . XHWM-03W16MN WRENCH HEAD MACHINE W.H.M 03*16 Ni 2.0000

for FAN

10 . XHWT-03W08CN WRENCH HEAD TAPPING W.H.T 03x08 Ni(

for PANEL(8)+TER(2)

11 . XNHN-03YW HEX NUT M3 천연

for FAN

12 . XTLW-30HN "L"TYPE WRENCH 3.0mm Ni 1.0000

for ACC'Y

t=0.6,BK 1.0000

t=0.6,BK 2.0000

) 10.0000

2.0000

13 . XTLW-40HN "L" TYPE WRENCH 4.0mm Ni 1.0000

for ACC'Y

14 . YOVB-1602505 POLY BAG 160x250x0.05t 1.0000

for ACC'Y+MANUAL

15 . YOVB-3005005 POLY BAG 300x500x0.05t 1.0000

1 / 14

Page 8

Mac Audio FEARLESS ONE

,C4,C6,

,D3,D6,D7,

NO CODE ITEM SPEC Q'TY

LOCATION

for SET

16 . CCHF-2012-101J CHIP CERAMIC CAP 2012-100

C405

C205

17 . CCHF-2012-102J CHIP CERAMIC CAP 2012-1000

C32

C19

18 . CCHF-2012-103J CHIP CERAMIC 2012-10nF/50V 5% 1.0000

C27

19 . CCHF-2012-104J CHIP CERAMIC CAP 2012-0.1uF/50V 5% 19.0000

20 . CCHF-2012-220J CHIP CERAMIC 2012-22

C40

21 . CCHF-2012-221J CHIP CERAMIC CAP 2012-220

C16

22 . CCHF-2012-222J CHIP CERAMIC CAP 2012-2200

C31

23 . CCHF-2012-271J CHIP CERAMIC CAP 2012-270

C41

24 . CCHF-2012-473J CHIP CERAMIC CAP 2012-0.047uF/50V 5% 1.0000

C132

C10,C13,C14,C15,C18,C22,C24,C47,C88,C89,C118,C121,C122,C123,C131,C163

C39

F/50V 5% 2.0000

F/50V 5% 1.0000

F/50V 5% 2.0000

F/50V 5% 1.0000

25 . CCHF-2012-820J CHIP CERAMIC CAP 2012-82

C17

26 . DIODE-1SS355 CHIP DIODE 1SS355TE-17 9.0000

27 . DIODE-ES1G CHIP DIODE ES1G 1.0000

D17

D15,D18,D101,D801,D971

F/50V 5% 1.0000

2 / 14

Page 9

Mac Audio FEARLESS ONE

,R8,

,R6,

NO CODE ITEM SPEC Q'TY

LOCATION

28 . DIODE-MBR0520L CHIP DIODE MBR0520L 2.0000

D25

D24

29 . IC-LM393 CHIP IC LM393M(SO-8) 2.0000

IC3

IC2

30 . IC-NJM072M OP AMP IC NJM072M (SOP-8) 5.0000

IC13,IC14,IC15,IC16

IC12

31 . IC-NJM4558M OP AMP IC NJM4558M (SOP-8) 1.0000

IC19

32 . IC-SG3525AP CHIP IC SG3525AP (SOP-16) 1.0000

IC1

33 . RES2012-1002 CHIP RESISTO

R94

34 . RES2012-101 CHIP RESISTO

R22,R150

R13

35 . RES2012-102 CHIP RESISTO

R20,R28,R63,R78,R83,R107,R141,R153,R207,R908

36 . RES2012-103 CHIP RESISTO

R11,R56,R117,R130,R131,R132,R134,R155,R972,R973

37 . RES2012-104 CHIP RESISTO

R16,R21,R30,R32,R149

38 . RES2012-105 CHIP RESISTO

R151,R802,R803

R14

39 . RES2012-121 CHIP RESISTO

R23

CHIP2012-10.0Kohm 1% RESISTOR 1.0000

CHIP2012-100 ohm 3.0000

CHIP2012-1K ohm 12.0000

CHIP2012-10K ohm 12.0000

CHIP2012-100K ohm 6.0000

CHIP2012-1M ohm 4.0000

CHIP2012-120 ohm 1.0000

3 / 14

Page 10

Mac Audio FEARLESS ONE

NO CODE ITEM SPEC Q'TY

LOCATION

40 . RES2012-1272 CHIP RESISTO

R88

CHIP2012-12.7Kohm 1% RESISTOR 1.0000

41 . RES2012-152 CHIP RESISTO

R110

R108

42 . RES2012-153 CHIP RESISTO

R31

R12

43 . RES2012-1653 CHIP RESISTO

R804

44 . RES2012-183 CHIP RESISTO

R118

45 . RES2012-202 CHIP RESISTO

R95

46 . RES2012-203 CHIP RESISTO

R60

47 . RES2012-220 CHIP RESISTO

R805

48 . RES2012-221 CHIP RESISTO

R38

R27

49 . RES2012-222 CHIP RESISTO

R15,R33,R39,R104,R204

CHIP2012-1.5K ohm 2.0000

CHIP2012-15K ohm 2.0000

CHIP2012-165.0Kohm 1% RESISTOR 1.0000

CHIP2012-18K ohm 1.0000

CHIP2012-2K ohm 1.0000

CHIP2012-20K ohm 1.0000

CHIP2012-22 ohm 1.0000

CHIP2012-220 ohm 2.0000

CHIP2012-2.2K ohm 6.0000

50 . RES2012-223 CHIP RESISTO

R111,R112,R122,R154

R103

51 . RES2012-243 CHIP RESISTO

R114

R113

52 . RES2012-244 CHIP RESISTO

CHIP2012-22K ohm 5.0000

CHIP2012-24K ohm 2.0000

CHIP2012-240Kohm 1.0000

4 / 14

Page 11

Mac Audio FEARLESS ONE

NO CODE ITEM SPEC Q'TY

LOCATION

R50

53 . RES2012-2492 CHIP RESISTO

R93

54 . RES2012-272 CHIP RESISTO

R81

R79

55 . RES2012-275 CHIP RESISTO

56 . RES2012-302 CHIP RESISTO

R971

57 . RES2012-3300 CHIP RESISTO

R77

R74

58 . RES2012-331 CHIP RESISTO

R62,R80

R29

59 . RES2012-334 CHIP RESISTO

R140

60 . RES2012-3601 CHIP RESISTO

R76

R75

61 . RES2012-392 CHIP RESISTO

R26

CHIP2012-24.9Kohm 1% RESISTOR 1.0000

CHIP2012-2.7K ohm 2.0000

CHIP2012-2.7M ohm 1.0000

CHIP2012-3K ohm 1.0000

CHIP2012-330.0ohm 1% RESISTOR 2.0000

CHIP2012-330 ohm 3.0000

CHIP2012-330K ohm 1.0000

CHIP2012-3.60Kohm 1% RESISTOR 2.0000

CHIP2012-3.9K ohm 1.0000

62 . RES2012-393 CHIP RESISTO

R25,R36,R124,R125,R137

R24

63 . RES2012-472 CHIP RESISTO

R138,R139

R10

64 . RES2012-473 CHIP RESISTO

R135,R148,R205

R105

CHIP2012-39K ohm 6.0000

CHIP2012-4.7K ohm 3.0000

CHIP2012-47K ohm 4.0000

5 / 14

Page 12

Mac Audio FEARLESS ONE

NO CODE ITEM SPEC Q'TY

LOCATION

65 . RES2012-474 CHIP RESISTO

R51

R17

66 . RES2012-475 CHIP RESISTO

R143

R61

67 . RES2012-5101 CHIP RESISTO

R49

68 . RES2012-512 CHIP RESISTO

R85

R54

69 . RES2012-682 CHIP RESISTO

R40,R136,R152,R235

R18

70 . RES2012-7501 CHIP RESISTO

R87

R19

71 . RES2012-751 CHIP RESISTO

R35,R84

R34

72 . RES2012-823 CHIP RESISTO

R121

73 . RES3216-104 CHIP RESISTO

R164,R172,R174

R162

CHIP2012-470K ohm 2.0000

CHIP2012-4.7M ohm 2.0000

CHIP2012-5.10Kohm 1% RESISTOR 1.0000

CHIP2012-5.1K ohm 2.0000

CHIP2012-6.8K ohm 5.0000

CHIP2012-7.50Kohm 1% RESISTOR 2.0000

CHIP2012-750 ohm 3.0000

CHIP2012-82K ohm 1.0000

CHIP3216-100Kohm 4.0000

74 . RES3216-4532 CHIP RESISTO

R163,R171,R173

R161

75 . RES3216-470 CHIP RESISTO

R178

76 . RES3216-683 CHIP RESISTO

R142

CHIP3216-45.3ohm 1% RESISTOR 4.0000

CHIP3216-47ohm 1.0000

CHIP3216-68Kohm 1.0000

6 / 14

Page 13

Mac Audio FEARLESS ONE

Q2,Q7,Q8,Q15,Q

Q3,Q

Q4,Q5,Q6,Q13,Q14,Q20,Q25,Q26,Q

NO CODE ITEM SPEC Q'TY

LOCATION

77 . TR-2SA1037K CHIP TRANSISTO

2SA1037K 5.0000

78 . TR-2SB1260 CHIP TRANSISTO

972

79 . TR-2SC2412K CHIP TRANSISTO

801,Q802,Q971

80 . TR-2SD1898 CHIP TRANSISTO

81 . CCEF-473SL-T CERAMIC CAPACITO

C30

82 . CCEF-820SL-T CERAMIC CAPACITO

C135

83 . CMAI-272J-T MYLAR CAPACITO

84 . CMFG-102-2572-T MPF CAPACITO

C20

85 . CMFG-104-2572-T MPF CAPACITO

C93,C94,C271

C92

86 . CMFG-222-2572-T MPF CAPACITO

C134

2SB1260 2.0000

2SC2412K 11.0000

2SD1898 1.0000

0.047uF/50V 5% SL *5

82pF/50V 5% SL *5

0.0027uF/100V 5%

0.001uF/63V 5%

0.1uF/63V 5%

0.0022uF/63V 5%

APPING 1.0000

APPING 7.2x6.5x2.5 1.0000

APPING 7.2x6.5x2.5 4.0000

APPING 7.2x6.5x2.5 1.0000

87 . CMFG-224-3572-T MPF CAPACITO

C112

C111

88 . CMFG-472-2572-T MPF CAPACITO

C29,C52,C53,C54,C55

C28

89 . DIODE-1N4007 DIODE 1N4007 1.0000

0.22uF/63V 5%

0.0047uF/63V 5%

APPING 7.2x6.5x3.5 2.0000

APPING 7.2x6.5x2.5 6.0000

7 / 14

Page 14

Mac Audio FEARLESS ONE

NO CODE ITEM SPEC Q'TY

LOCATION

90 . DIODE-1N4744 ZENER DIODE 1N4744 15V 1W 1.0000

D215

91 . DIODE-1N4745 ZENER DIODE 1N4745 16V 1W 2.0000

92 . DIODE-1N5227 ZENER DIODE 1N5227 3.6V/0.5W 1.0000

D102

93 . RES1/2W-100M RESISTOR RES 1/2W MINI 10 ohm 2.0000

R72

R71

94 . RES1/2W-330M RESISTOR RES 1/2W MINI 33ohm 4.0000

R65,R66,R67

R64

95 . RES1/4-000 RESISTOR RES 1/4W 0 ohm 20.0000

J11,J12,J13,J14,J15,J16,J17,J18,J19,J20,J21,J22,J23,J24,J25,J26,J27,J28,J29

J10

96 . RES1/4-100 RESISTOR RES 1/4W 10 ohm 1.0000

R91

97 . RES1/4-222 RESISTOR RES 1/4W 2.2K ohm 1.0000

R92

98 . RES1/4-223 RESISTOR RES 1/4W 22K ohm 1.0000

R96

99 . RES1/4-2R2 RESISTOR RES 1/4W 2.2ohm 1.0000

100 . RES1/8-223 RESISTOR RES 1/8W 22K ohm 1.0000

R203

101 . RES1W-2R7M RESISTOR RES 1W MINI 2.7 ohm 7.0000

R52,R53,R58,R59,R68,R69

8 / 14

Page 15

Mac Audio FEARLESS ONE

,T1,

NO CODE ITEM SPEC Q'TY

LOCATION

102 . BART-248-03 COPPER TRACE 1.6t 48mm 1-0-0-1 2.0000

CP11

CP10

103 . BART-264-03 COPPER TRACE 1.6t 64mm 1-0-1-0-1 1.0000

CP6

104 . BART-280-08 COPPER TRACE 1.6t 80mm 1-0-1-0-0-1 1.0000

CP7

105 . BART-280-10 COPPER TRACE 1.6t 80mm 1-0-0-0-0-1 2.0000

CP9

CP8

106 . CMEM-474K-T METAL CAPACITO

C164

107 . CMFM-106-103120 MPF CAPACITO

C161

108 . CMFM-125-71714B MPF CAPACITO

C171

C75

109 . CMFM-335-102618 MPF CAPACITO

C171A

110 . COIL-COR139-01 RING CHOKE COIL *22-2.2x10.5T 1.0000

L102

111 . COIL-COR162-01 RING CHOKE COIL K1138x2 (BLUE) 100UH 1.0000

L101

112 . CORE-RING-40 CORE RING *40x3T 3.0000

L101

113 . DIODE-U30D20A FAST RECOVERY U30D20A 1.0000

D72

0.47uF/250V 10% BULK 1.0000

10 uF/250V 5% BULK 31x20x10 1.0000

1.2 uF/250V 5% BULK 17x14x7 2.0000

3.3 uF/250V 5% BULK 26x18x10 1.0000

9 / 14

Page 16

Mac Audio FEARLESS ONE

,F2,

이

NO CODE ITEM SPEC Q'TY

LOCATION

114 . DIODE-U30D20C FAST RECOVERY U30D20C 1.0000

D71

115 . FHD-003-01 FUSE HOLDER DFK-08053 1.0000

116 . IC-LM317T REGULATOR IC LM317T 1.0000

IC21

117 . IC-LM337T REGULATOR IC LM337T (TO220) 1.0000

IC22

118 . LDR-LT99-11 LDR LT 99.11 1.0000

VT1

119 . LED-SPR39MV LED *3 2COLO

LED201

120 . PAD-HF425-01 SILICON PAD 길

30mm (IC21

121 . PHAU03-100-08A PIN HEADER PHAU03-100-08A 2.54mm 8PIN 1열 ANGLE 2.0000

122 . RELAY-CT11D12S RELAY CT11-D12S RA-A12S 1.0000

RL101

123 . RES2W-102M RESISTOR RES 2W MINI 1K ohm 1.0000

R73

124 . RES2W-103M RESISTOR RES 2W MINI 10Kohm 2.0000

R167

125 . RES3W-222 RESISTOR RES 3W 2.2K ohm 1.0000

R165

126 . RES5W-3R9WIRE RESISTOR RES 5W 3.9 ohm WIRE 6mm FORMING/R FORMING 1.0000

R177

IC22)

R168

SPR39MV 1.0000

:10mm 높이:23mm 3.0000

10 / 14

Page 17

Mac Audio FEARLESS ONE

디

NO CODE ITEM SPEC Q'TY

LOCATION

127 . RES5W-R01 SHUNT RESISTO

R176

R175

128 . SWL-2C2P-05 SLIDE SWITCH SK-22H02-G-G 9mm 2.0000

SW4

SW3

129 . T-CLAD-2444-10 T-CLAD 24x44x1.0t

101-Q102,Q110-Q111,D71-D72,Q21-Q22,Q23-Q24

130 . TEL-JACK-005 PHONE JACK 623PB-6-BLACK 1.0000

MOD1

131 . TH-E-150K THERMISTOR 150K NON LUG 1.0000

TH402

132 . TH-M-100K THEMISTOR 100K

TH201

133 . TPH04-240-10A PIN HEADER

CON13

134 . TRANS-PTS268-01 POWER TRANS *40 5T/13T 1.0000

135 . TRANS-PTS282-01 POWER TRANS *40 5T/13T/9T 1.0000

RES 5W 0.01 ohm 10mm 2.0000

O-3P 5.0000

긋형 1.0000

PH04-240-10A 1.0000

136 . VR09-2063 MAIN VOLUME 15SK 15A 50Kohm 2련 RV096 GB C41 GOLD KNOB 1.0000

VR1

137 . VR09-2065 MAIN VOLUME 15SK 15C 10Kohm 2련 RV096 GB C41 GOLD KNOB 1.0000

VR3

138 . VR09-2066 MAIN VOLUME 15SK 15C 100Kohm 2련 RV096 GB C41 GOLD KNOB 2.0000

VR4

VR2

11 / 14

Page 18

Mac Audio FEARLESS ONE

,C3,

NO CODE ITEM SPEC Q'TY

LOCATION

139 . WAFER-LW0640-02 WAFER LW0640-02 FAN LW0640-02/M5045-02 1.0000

CON11

140 . WAFER-TSS254-10 WAFER

CON12

141 .

142 .

143 .

144 .

145 .

146 .

147 . AMAB-0108-00 BADGE AL

148 . APBM-0057-00 FRONT PCB POST BSBM/L=24.3mm 4CH 2.0000

149 . APBM-0106-00 PCB HOLDER BsBM H=2.0mm GS-SERIES(HIGH) 2.0000

150 . APCO-0306-00 BOTTOM COVER L=299.6mm

151 . FUSE-40A-10021 AUTO FUSE 40A PAT10021 3.0000

PCB-FEARLESS CARTON BOX 4SETS/CTN 0.2500

PCP-FEARLESS CARTON PAD 2PCS/CTN 0.5000

PGB-FEARLESS GIFT BOX 1.0000

PIM-FEARLESS MANUAL 1.0000

PSL-00000003 SERIAL LABEL MADE IN KOREA(無) 2.0000

BOTTOM(1)

PSP-FEARLESS SET PAD 1.0000

for FAN

for ACC'Y

G/BOX(1)

SS-254-10A 2.54mm 2열 1.0000

t=2.0 Mac Audio: Fearless One 1.0000

SILVER Fearless1 1.0000

152 . Mac Audio-REMOTE REMOTE ASS'Y Mac Audio Mac Audio: Fearless One 1.0000

for ACC'Y

153 . CESC-MV100D55 ELECTROLYTIC SMD CAP 10uF/16V MV-D55 4x5 8.0000

C11,C12,C43,C51,C90,C91

12 / 14

Page 19

Mac Audio FEARLESS ONE

NO CODE ITEM SPEC Q'TY

LOCATION

154 . CESC-MV220E55 ELECTROLYTIC SMD CAP 22uF/16V MV-E55 5x5 4.0000

C115,C116,C133

C45

155 . CESC-MV470F55 ELECTROLYTIC SMD CAP 47uF/16V MV-F55 6.3x5 1.0000

156 . CESD-MV100E55 ELECTROLYTIC SMD CAP 10uF/25V MV-E55 5x5 1.0000

C117

157 . CESE-MV101H10 ELECTROLYTIC SMD CAP 100uF/35V MV-H10 8x10 1.0000

158 . CESF-MV010D55 ELECTROLYTIC SMD CAP 1uF/50V MV-D55 4x5 1.0000

C23

159 . CESF-MV100F55 ELECTROLYTIC SMD CAP 10uF/50V MV-F55 6.3x5 7.0000

C82,C83,C84,C85,C86,C87

C81

160 . CESF-MV2R2D55 ELECTROLYTIC SMD CAP 2.2uF/50V MV-D55 4x5 1.0000

161 . IC-IR2184SPBF CHIP IC IR2184SPBF SOP-8 1.0000

IC5

162 . TR-MMBTA92 CHIP TRANSISTO

163 . CEAF-100A0511T2 ELECTROLYTIC AL. CAP 10uF/50V +85 5x11 SD/2.5 mm TAPPING 2.0000

C207

C107

164 . PCB-PMC310-12 MAIN PCB 128x334.25x1.6t BLUE 1.0000

165 . CEAD-332B1631T7 ELECTROLYTIC AL. CAP 3300uF/25V 16x31 +105 NXB 7mm TAPPING(WB) 5.0000

C34,C35,C36,C37

C33

166 . CEAH-332A3030B ELECTROLYTIC AL. CAP 3300uF/80V 30x30 +85 BULK PIN TYPE (HC) 4.0000

C72,C73,C74

C71

MMBTA92 KST92 MTF 1.0000

13 / 14

Page 20

Mac Audio FEARLESS ONE

Q21,Q22,Q23,Q

,F2,

NO CODE ITEM SPEC Q'TY

LOCATION

167 . CEAM-100N1220T5 ELECTRONIC AL. CAP 10uF/250V NP 12.5x20 NP 5mm TAPPING 2.0000

C173

C162

168 . FAN-PL30S12L FAN 30x30x10 1.0000

169 . FET-F

170 . FET-IRFP064N FET IRFP064N 4.0000

171 . FUSE-40A-10021 AUTO FUSE 40A PAT10021 3.0000

172 . PHONE-002-G PHONE JACK PJ-002(G) GOLD L/R ASS'Y 2.0000

173 . PHOTO-KPC117 PHOTO COUPLE KPC117 3.0000

174 . TER-002-23-H 2P TERMINAL WB02-36D (JSZ2-32) Down/Wrench/Gold/BK 1.0000

175 . TER-003-23-H 3P TERMINAL WB03-33D (JSZ3-31) Down/Wrench/Gold/Black 1.0000

176 . TR-KTD600K TRANSISTOR KTD600K 1.0000

177 . WAFER-LW0640-04 WAFER LW0640-04 S11 4A 2.0000

A34N20 FET FQA34N20 4.0000

101,Q102,Q110,Q111

IC7,Q227

IC6

TER2

TER1

178 . DIODE-EL1Z FAST RECOVERY EL1Z TAPPING 10.0000

D22,D73,D74,D75,D76,D77,D78,D79,D80

D21

14 / 14
