Cadac-G268F
Schematic
6 pgs
5.38 Mb
0
Table of contents
Loading...

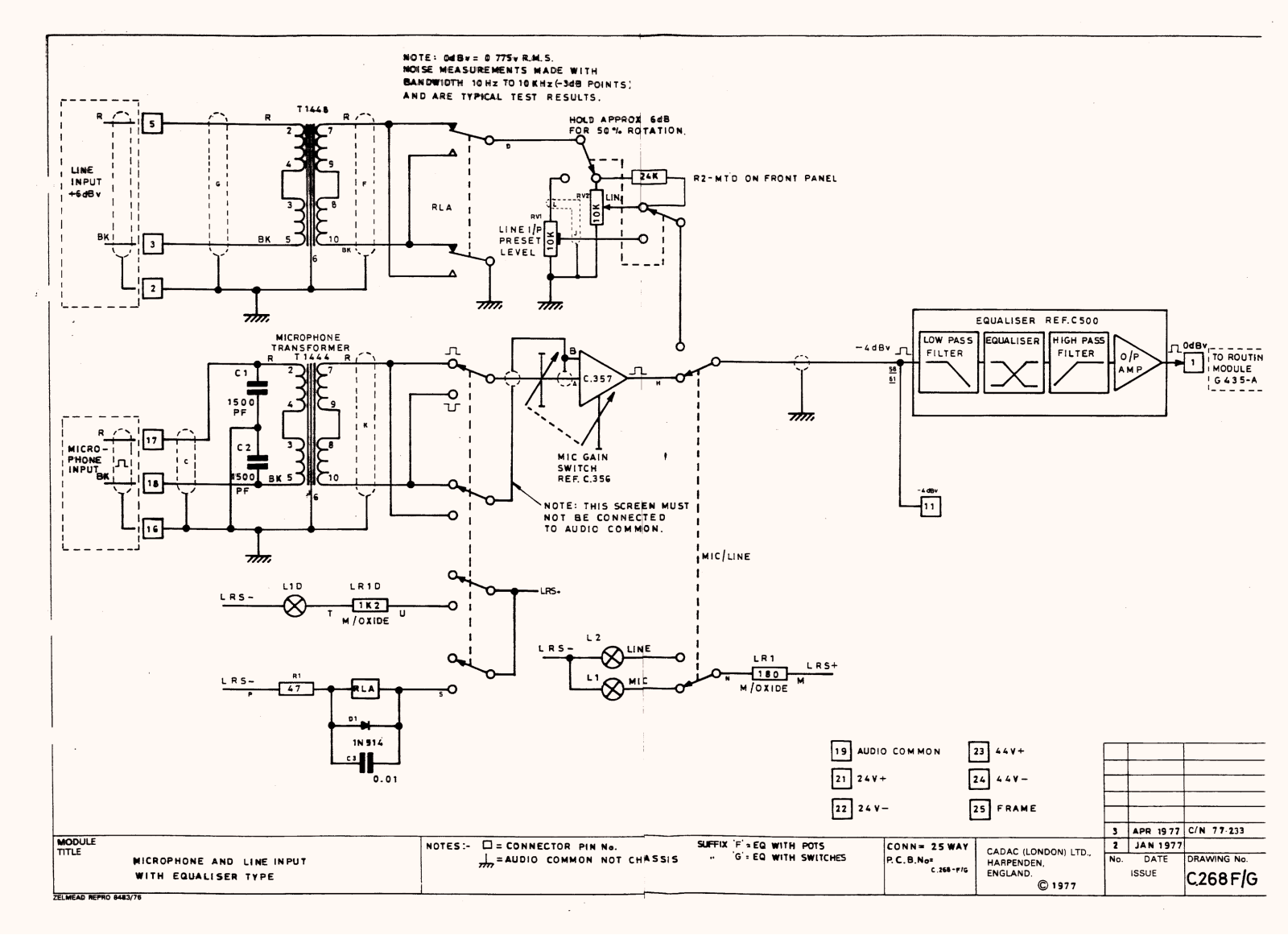

Other C Cadac-G268F Schematic
...
Other C Schematic
Download
Specifications and Main Features
Frequently Asked Questions
User Manual
Download
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
