Cadac-G228
Schematic
7 pgs
9.91 Mb
0
Table of contents
Loading...

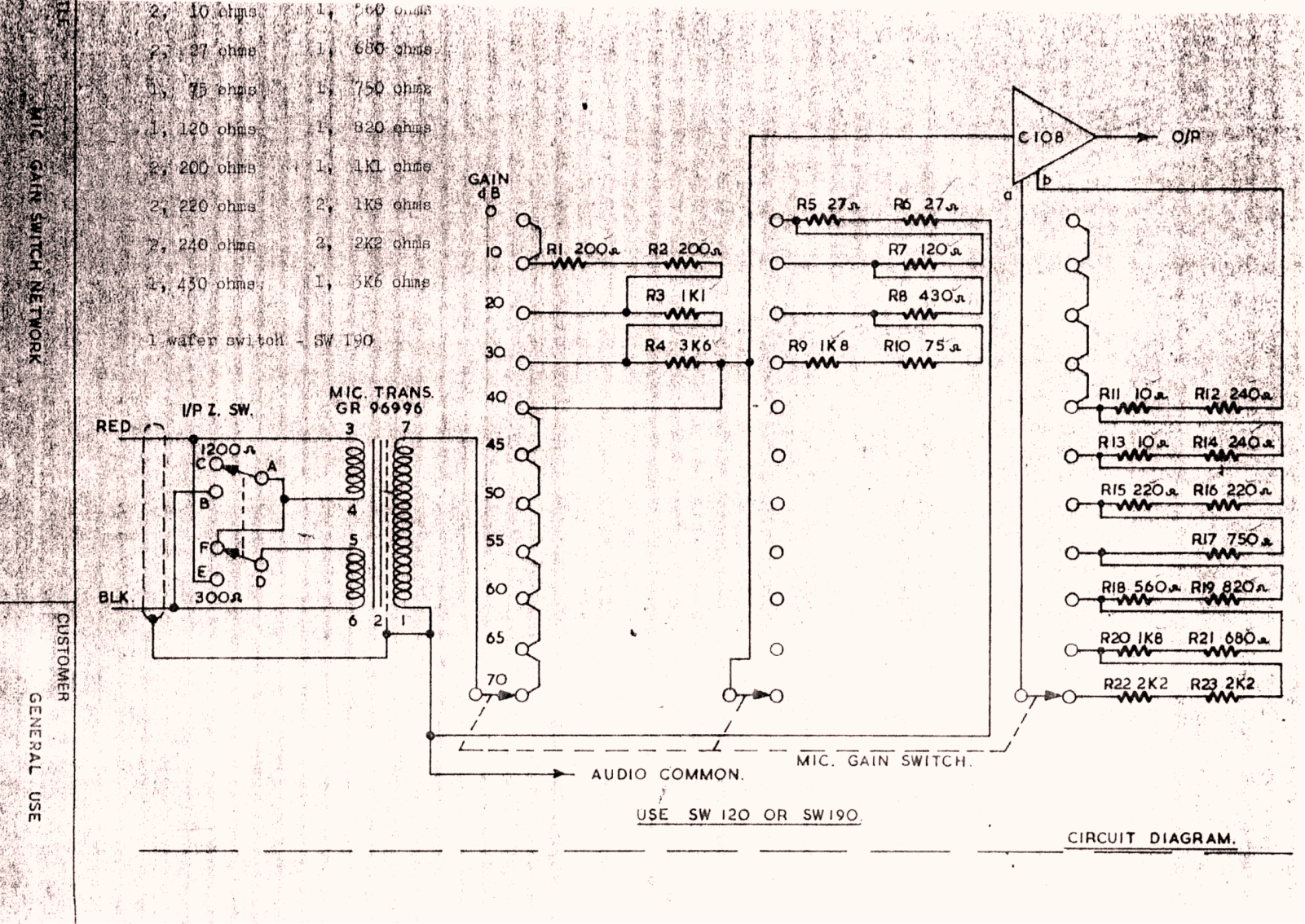

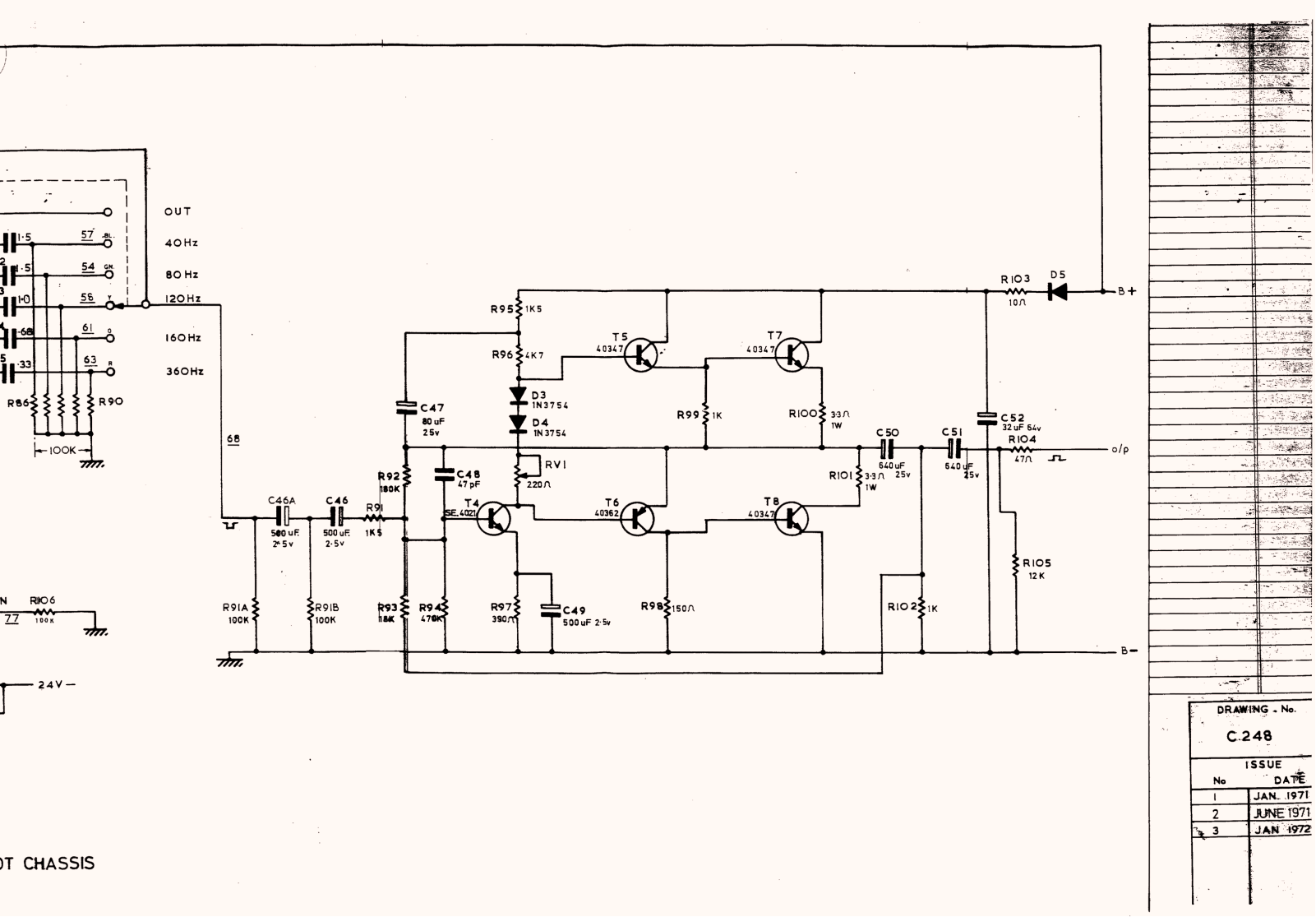

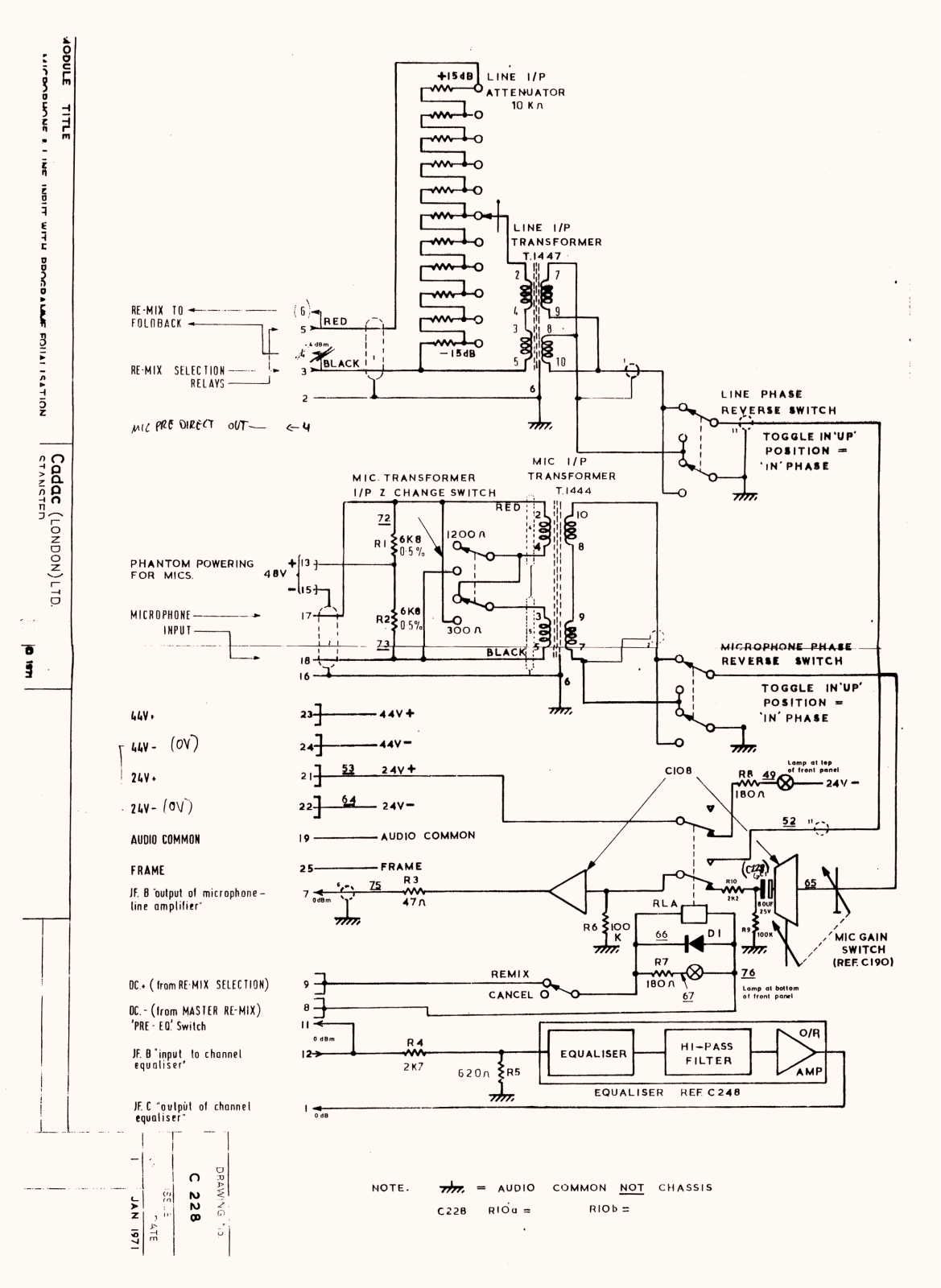

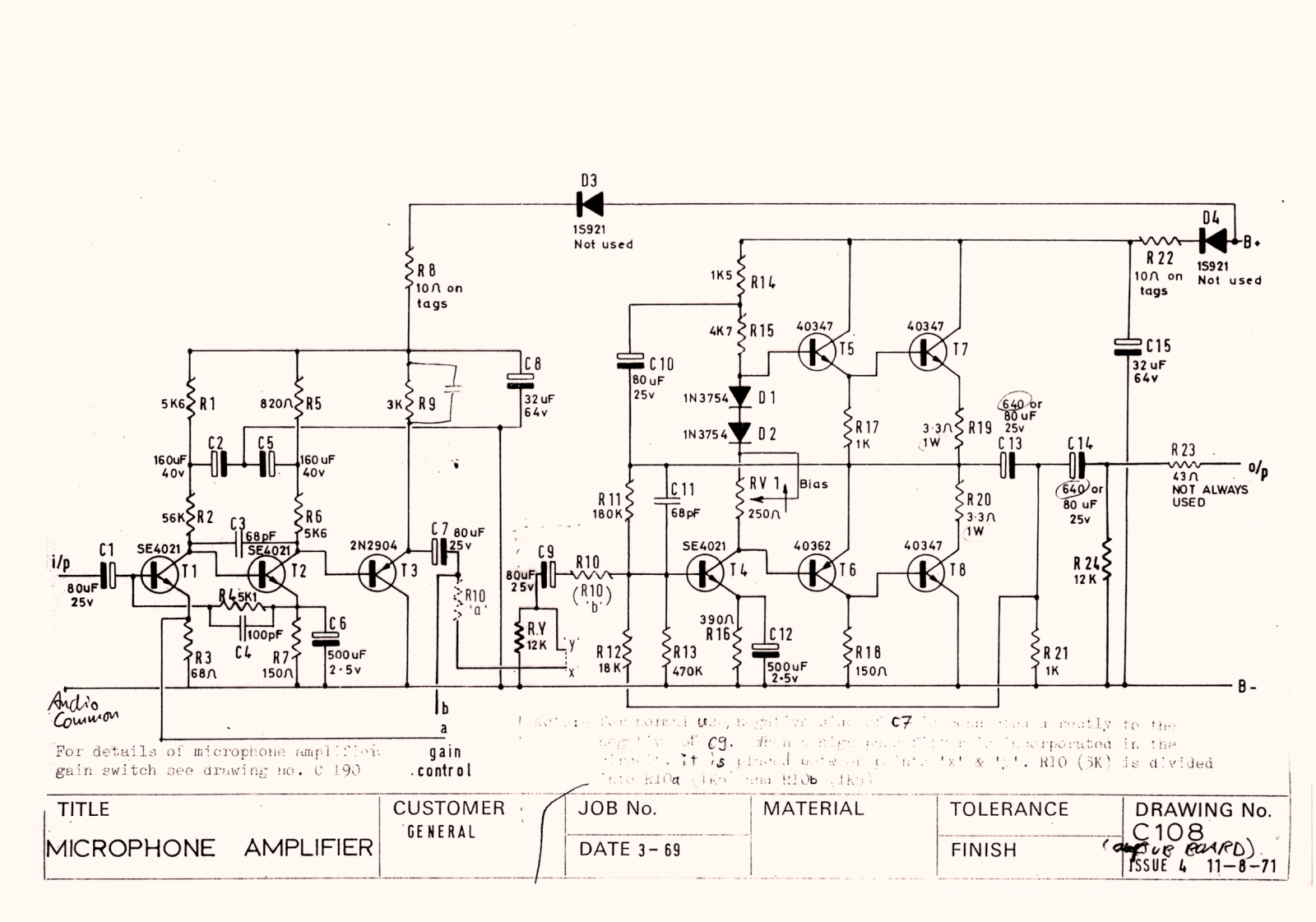

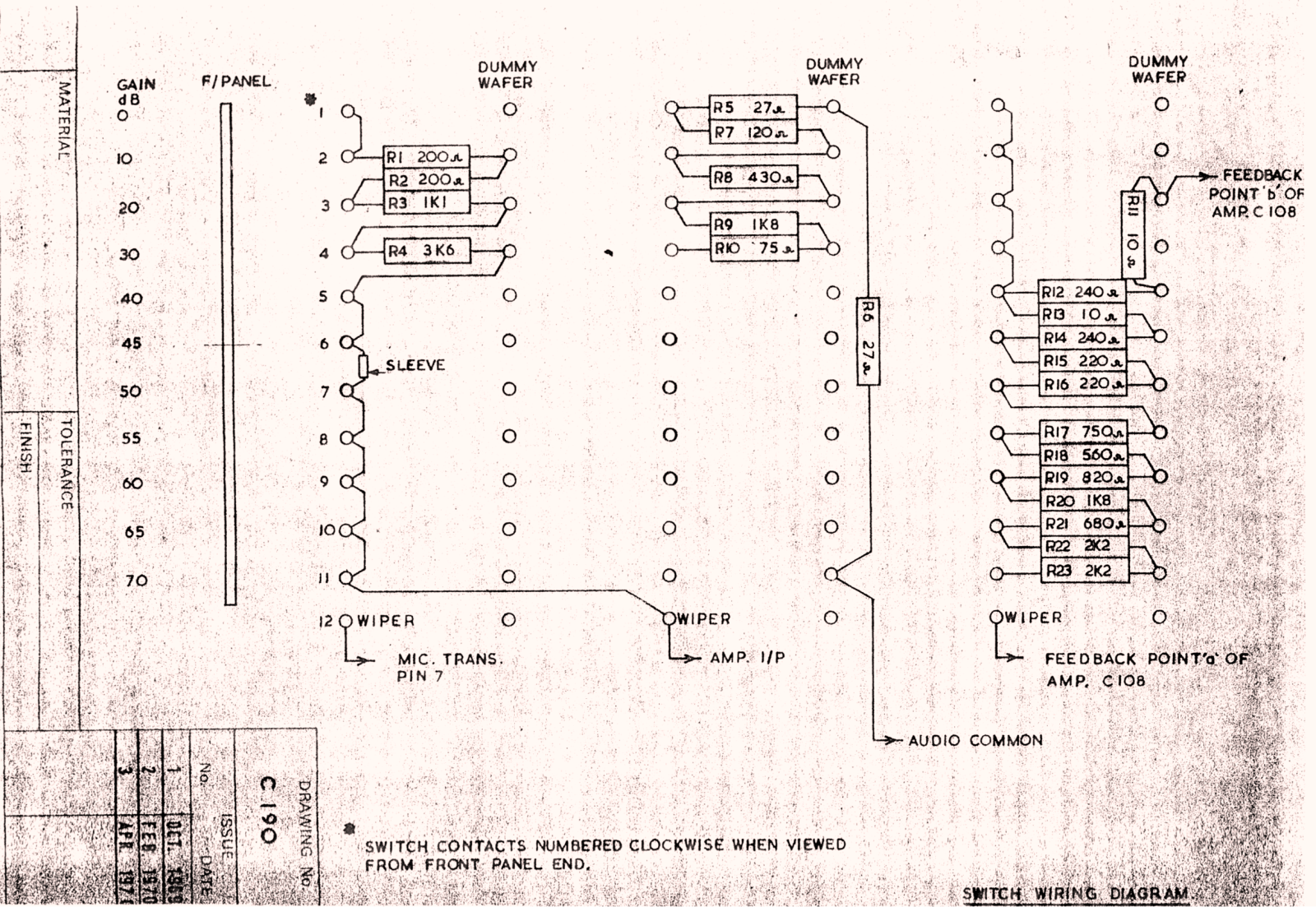

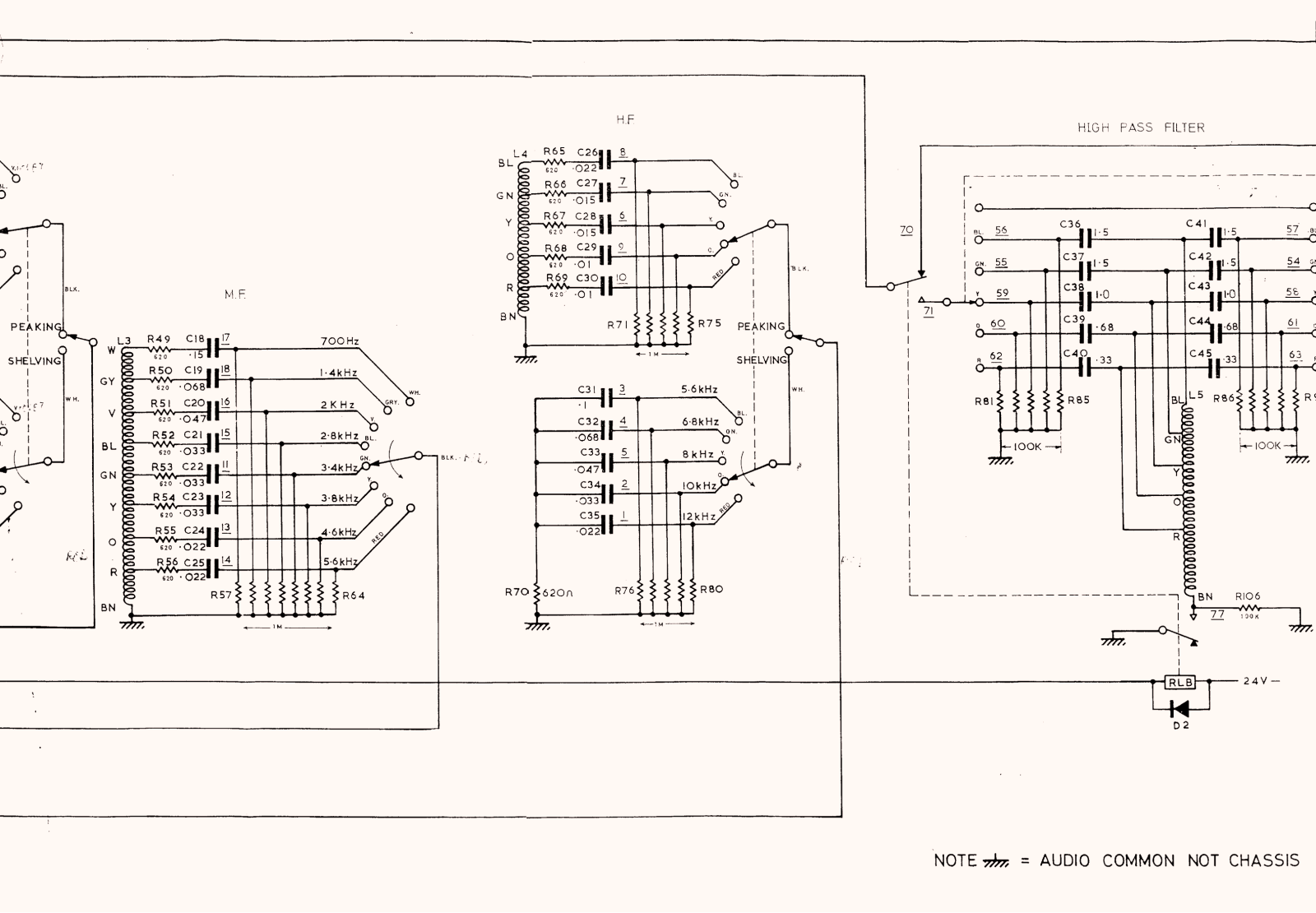

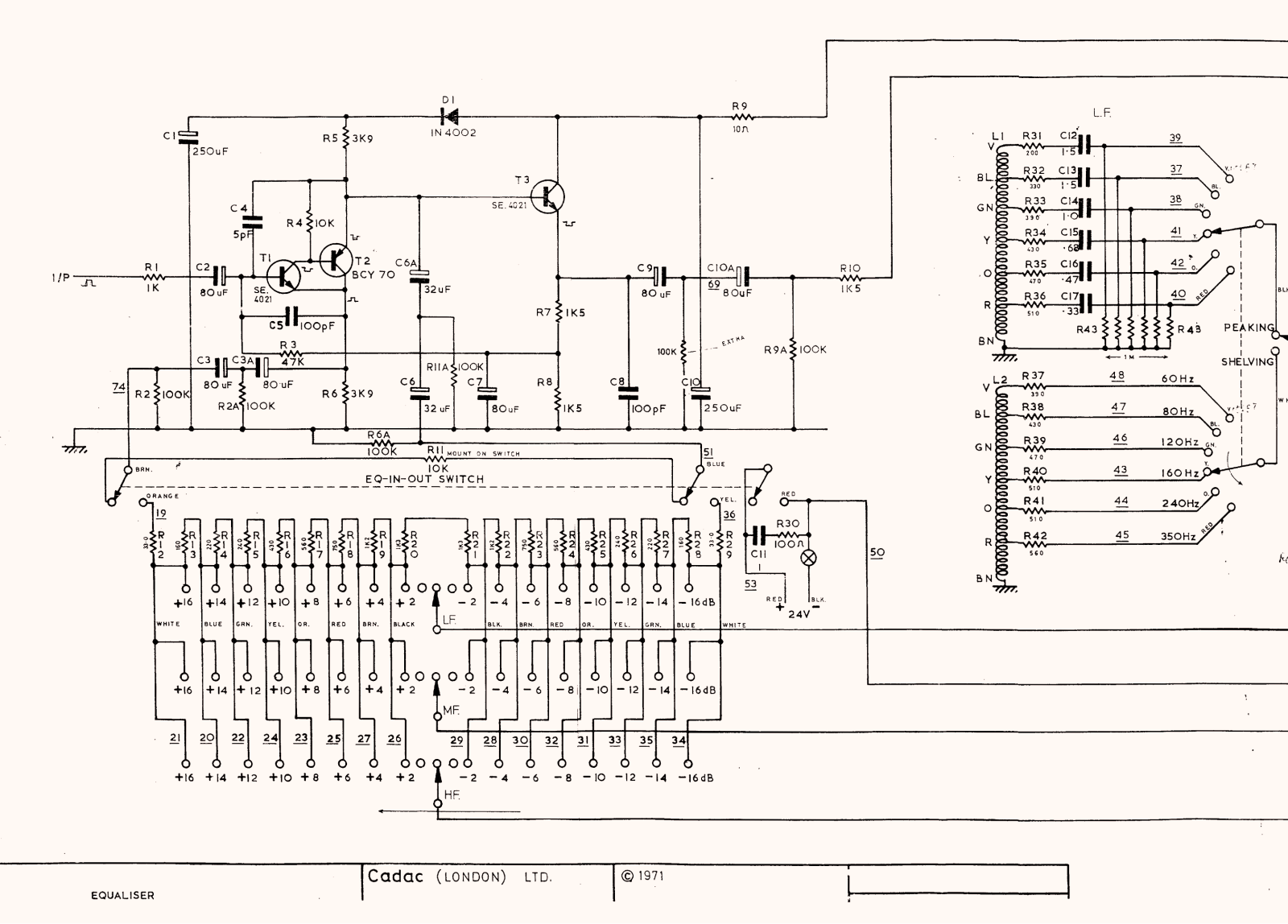

Other C Cadac-G228 Schematic
...
Other C Schematic
Download
Specifications and Main Features
Frequently Asked Questions
User Manual
Download
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Loading...
+
hidden pages
