MADE IN
BRITAIN
Dimensions
Width - 138cm
Depth - 49cm
Height - 72cm
Malibu - Pedestal Desk and Filer
Assembly Instructions - Please keep for future reference
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Issue 5 - 04/09/14
Important - Please read these instructions fully before starting assembly
279/5935
246/9405
Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 37kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 1, 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: If there is any
chance of this unit being pulled
over by children etc. it is
recommended that the unit is
secured to a wall using suitable
fixings (not supplied).
• Dispose of all packaging
carefully and responsibly.
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page can be
cut out and used as reference throughout
the assembly. Keep this page with these
instructions for future reference.
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Tools required
Rule Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Electric drill
(do not use for
fitting screws)
Components - Panels
Please check you have all the panels listed below
2
1
2
5
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
8
15
20
12
9
13
10
11
6
File Side (W414)
(314 x 120mm) x 2
16
14
3 4
7
23
File Bar (FBAR334)
(334mm long) x 2
Top (D2799A)
(1377 x 490mm)
Small Back
(X846)
(622 x 375mm)
Plinth (D2810A)
(349 x 80mm)
Modesty (D2805A)
(601 x 162.5mm)
Drawer Front
(D2797A)
(358 x 156mm)
File Back (D2795A)
(338 x 253mm)
File Front (D2798A)
(358 x 300mm)
Drawer Back
(W331-124BCK)
(331 x 124mm)
Drawer Base (T342-367)
(342 x 367mm)
Left Drawer
Side (W370-124LH)
(370 x 124mm)
Right Drawer
Side (W370-124RH)
(370 x 124mm)
Large Back
(X661-388)
(661 x 388mm)
Cupboard Left
Side (D2832A)
(706 x 444mm)
Filer Left
Side (D2800A)
(706 x 444mm)
Fixed Shelf
(D2806A)
(362 x 423mm)
Shelf (D2814A)
(349 x 421mm)
Cupboard Right
Side (D2803A)
(706 x 444mm)
Filer Right
Side (D2801A)
(706 x 444mm)
Rail (D2796A)
(362 x 80mm) x 2
Door (D2808A)
(623 x 345mm)
Base (D2813A)
(349 x 426mm)
Keyboard Shelf (D2809A)
(580 x 350mm)
17 18 19
22
24 25
21
File Base (T320-320)
(320 x 320mm)
Please check you have all the fittings listed below
3
Components - Fittings
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
J
9mm Screw (F73) x 8
Knock-in Peg (F171GY) x 4
T
Wedgefix (F639) x 2
S
9mm Screw (F74) x 2
A B
Metal dowel (F901) x 14
C
E
Large locking
nut (F900) x 8
F
G H
L
ON
NQ
Small locking
nut (F3) x 6
25mm Screw (F50) x 740mm Screw (F910) x 18
D
Wooden dowel (F22) x 6
13mm Screw (F63) x 10
Nail (F51) x 22
I
L
K
Shelf stud (F110) x 4
NPM
Handle (F631) x 3
Drawer runner (F1004) x 4
13mm Screw (F52) x 6
Wedge panel holder
(F248) x 2
15mm Screw (F116) x 2
Hinge plate
(F523) x 2
Hinge (F522) x 2
S
U
R Runner (F160) x 1
b
L Runner (F161) x 1
U
c
L Runner (F159) x 1
U
a
R Runner (F162) x 1
U
d
R
V
Plastic Nail (F91) x 8
Assembly Instructions
4
If you have damaged or missing components, call the
Customer Helpline: 08456 400800 quoting the reference
numbers below

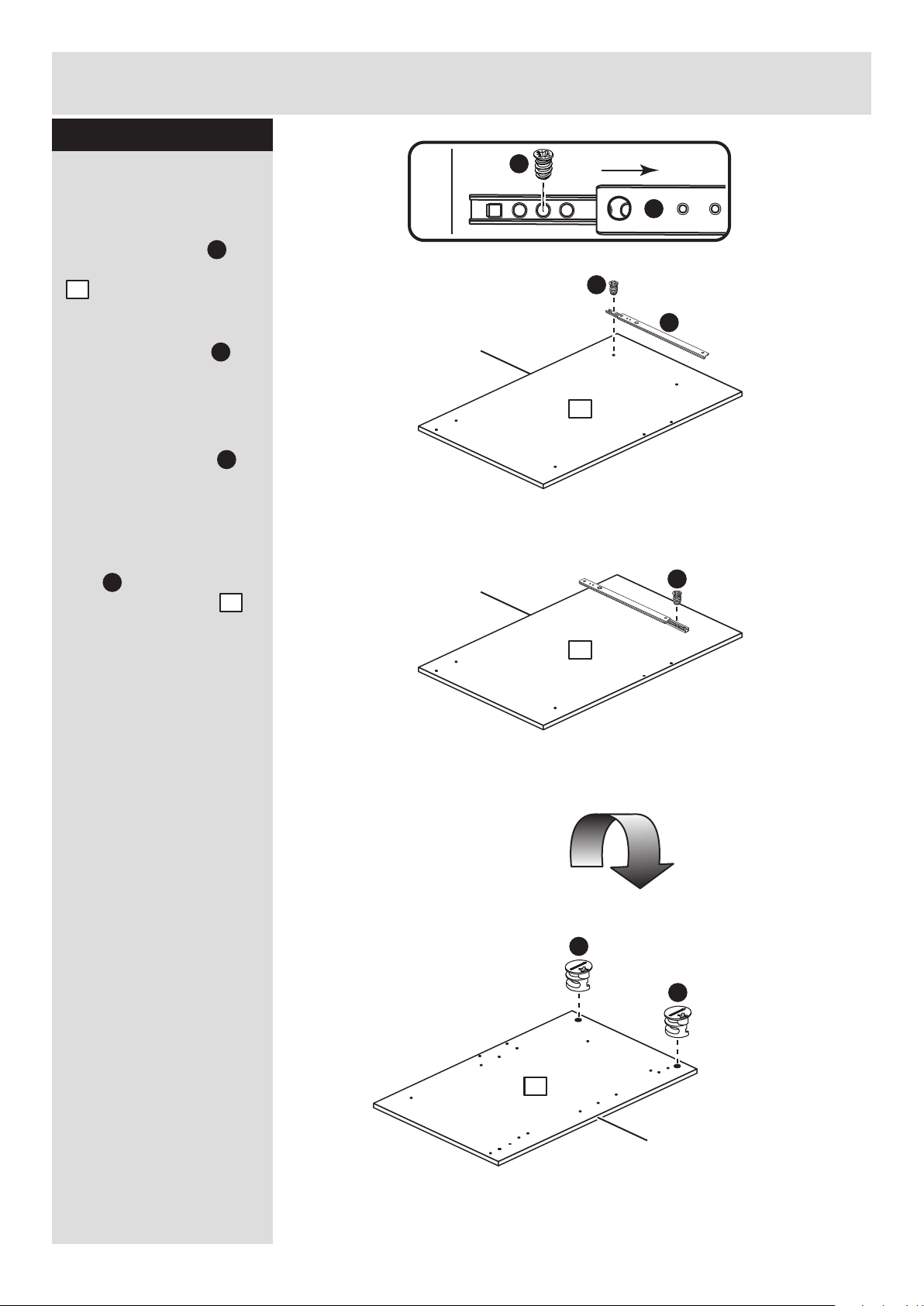

Step 1
B
D
D
D
17
18
Step 2
Prepare the drawer
front
Screw 2 metal dowels
into the drawer front .
Note: Tighten the metal
dowels up fully against
the panels.
B
14
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
D
17
18
Attach the drawer
sides to the drawer
fronts
Push the left drawer sides
. and right drawer sides
. onto the back of the
drawer fronts .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
17
18
14
D
D
17
18
B
B
14
14
B
B
D
17
18
Assembly Instructions
5
Step 4
R
R
Fit the drawer base
Slide the drawer base
down the grooves in the
drawer sides and
and down into the
groove in the drawer
front .
Step 5
Fit the drawer back
Fit the drawer back
between the drawer
sides and .
Make sure that the
drawer base fits into
the groove in the drawer
back .
Hold the drawer back
in position and tap the
knock-in pegs
through the holes in the
drawer sides and .
Step 6
22
17 18
14
14
19
17 18
22
19
19
R
Attach the handle
Attach a handle to the
drawer front using
screw .
Note: Do not
overtighten the screw.
M
F
14
17 18
Step 7
Fit the wedgefixes
Turn the drawer
assembly over and slide
2 wedgefixes into the
front and back grooves,
as shown, and tighten up
the screws.
T
R
R
T
T
T
22
17
18
19
17
18
22
M
F
14
Assembly Instructions
6
Step 8
B
B
D
Prepare the file front
and the file back
Screw 2 metal dowels
into the holes shown on
the back of the file front
. .
Screw 2 metal dowels
into the holes shown on
the file back .
Note: Tighten the metal
dowels up fully against
the panels.
B
12
16
Prepare the file sides
Insert 2 small locking
nuts into the holes
shown on each of the file
sides .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Assemble the file
front and file sides
a: Push 2 file sides
onto the back of the file
front as shown.
b: Turn the 2 small
locking nuts on the
file sides clockwise
to secure them - more
than 1/2 a turn.
Step 9
Step 10
B
D
D
B
D
20
20
B
20
12
D
20
a:
b:
B
B
x 2
D
12
16
20
20
20
20
12
12
Small groove
Fit the drawer back
Push the file back
down onto the 2 file
sides and 2 file bars
. .
Turn the 2 small locking
nuts on the file sides
. clockwise to secure
them - more than 1/2 a
turn.
Note: Make sure that
the file base is
pushed into the groove
in the file back .
Assembly Instructions
7
Step 11
Fit the file base
Slide the file base
between the slots in the
2 file sides and push
it down onto the file front
. .
Fit the file bars
Push the 2 file bars
down into the holes on
the file front .
Step 12
Step 13
21
23
20
12
12
16
20
D
20
21
16
23
21
20
20
12
12
23
23
16
20
20
23
23
21
325mm
Assembly Instructions
8
Step 14
Attach the handle
Attach a handle to the
file front using screw
. .
M
F
12
M
F
12
Step 15
G
N N
Secure the backs
Place the wedge panel
holders onto the file
base , pushing them
up against the back of
the file front .
Screw the wedge panel
holders into the 2
mark holes using screws
. .
N
N
G
21
12
N
N
21
12
Finished
front edge
Assembly Instructions
9
Step 16
Step 17
Prepare the cupboard
left side
Fit 2 hinge plates onto
the cupboard left side
making sure that the slot
is facing towards the
finished front edge.
Insert 2 large locking
nuts into the
cupboard left side as
shown.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
1
O
C
O
1
C
1
U d
U c
Runners must be
pushed up against
the drawer front
H
H
H
H
20
20
12
DL
DR
Fit runners to the file
drawer
Turn the file drawer
assembly over.
Fit runner , marked
with ‘DR’, to the bottom
edge of the right file side
. , as shown, making
sure that it is pushed up
against the back of the
file front . Use a
bradawl to mark the
fixing positions, then
secure with 2 screws .
Fit runner , marked
‘DL’, to the bottom edge
of the left file side
using the same method.
20
U d
20
12
H
U c
Right side
Left side
O
O
C
C
1
2
Finished front edge
Assembly Instructions
10
Step 18
Finished
front edge
C
C
2
Prepare the cupboard
right side
a: Place a runner on
the cupboard right side
. . Slide back the top of
the runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner back
the other way and use
the corresponding hole
to fit the 2nd screw .
Turn the cupboard
right side over
c: Insert 2 large locking
nuts into the
cupboard right side
as shown.
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Q
2
Finished
front edge
J
Q
Turn the cupboard right side over
J
J
C
2
a:
b:
c:
J
Q
Finished front edge
J
2
2
E
E
Assembly Instructions
11
Step 19
Fit the plinth
Push the plinth onto
the cupboard right side
. and secure it using
screw .
E
11
2
E
11
2
Join the cupboard
right side and base
Attach the base to
the cupboard right side
. using 2 screws .
Finished
front edge
A
Step 20
A
10mm
A
Prepare the plinth
Tap 2 wooden dowels
into the plinth .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
Step 21
A
11
Plain chipboard
surface
11
6
E
2
6
plain
chipboard
surface
2
Finished
front edge
Finished
front edge
Finished
front edge
J
Q
Assembly Instructions
12
Step 22
Finished
front edge
E
E
E
Fit the cupboard left
side
Attach the cupboard left
side to the base
and the plinth using 3
screws .
Step 23
1
6
11
11
E
1
6
Turn the filer left side
over for the next step
a:
b:
J
J
C
C

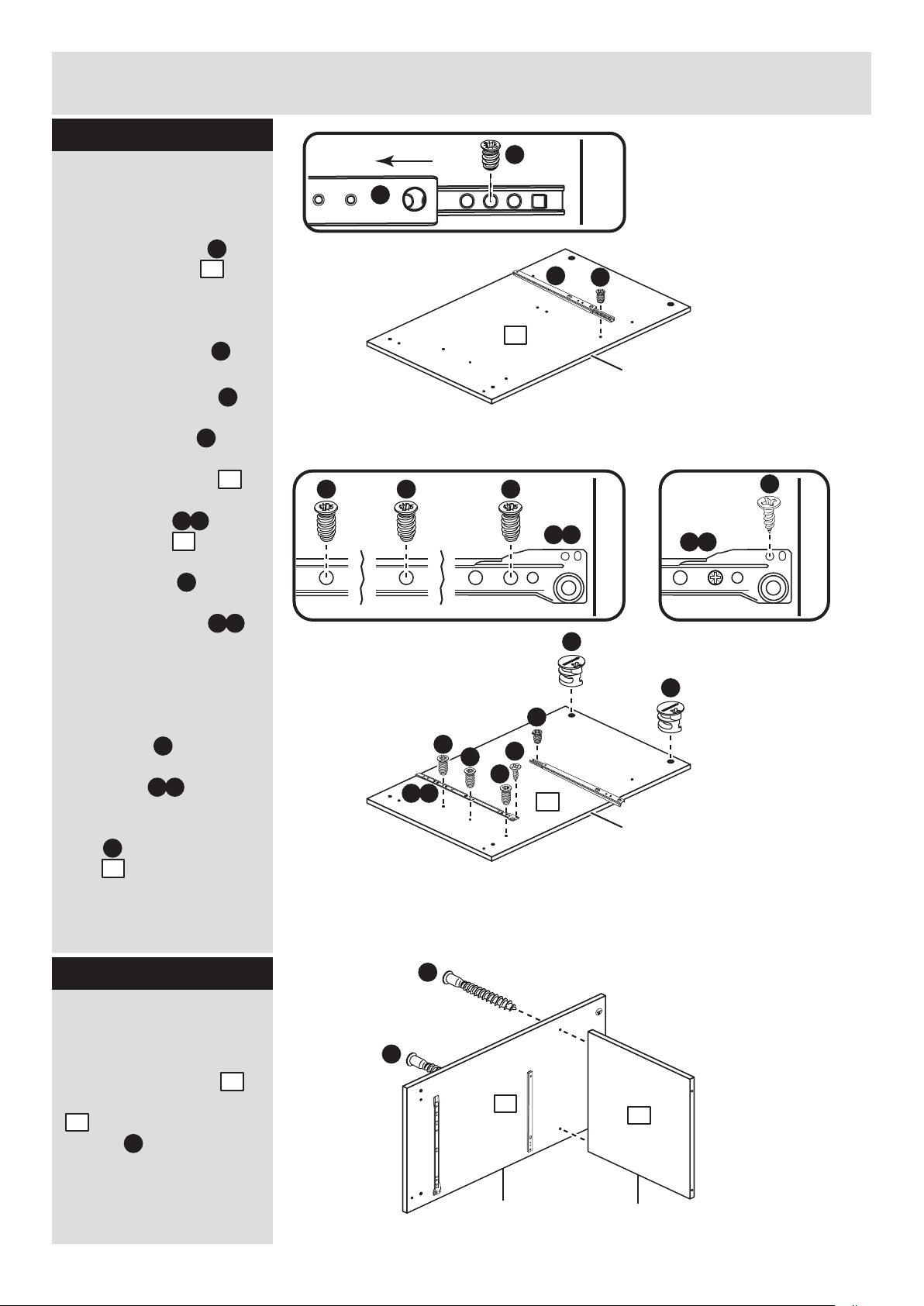

Prepare the filer left
side
a: Place a runner on
the filer left side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the filer left side .
Fit the runner to the
filer left side .
The 1st screw uses
the 2nd hole in from the
front of the runner .
The 2nd and 3rd screws
use the holes that line up
with the other panel
holes.
Fit a screw into the
2nd hole in at the top of
the runner .
Insert 2 large locking
nuts into the filer left
side .
Turn the filer left side
over for the next step
3
J
J
3
3
Q
Q
C
3
U a
U a
I
3
3
U a
I
Finished front edge
I
1st
screw
2nd
screw
I
3rd
screw
U a
Finished front edge
H
H
I
I
U a
I
H
U a
Q
Assembly Instructions
13
Step 24
Prepare the other
surface of the filer left
side
a: Place a runner on
the filer left side .
Slide back the top of the
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner back
the other way and use
the corresponding hole
to fit the 2nd screw .
Q
3
J
J
Finished
front edge
J
Q
a:
b:
Finished
front edge
Finished
front edge
3
3
J
Q
J
Finished
front edge
E
E
Assembly Instructions
14
Step 25
Finished
front edge
Join the filer right
side and fixed shelf
Push the fixed shelf
onto the filer right side
. and secure it using 2
screws .
7
4
7
4
E
Finished
front edge
J
Q
J
Q
C
C
Finished
front edge
Finished
front edge
I
I
U b
I
U b
I
Finished front edge
I
1st
screw
2nd
screw
I
3rd
screw
U b
Finished front edge
H
H
J
Prepare the filer right
side
a: Place a runner on
the filer right side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the filer right side .
Fit the runner to the
filer right side .
The 1st screw uses
the 2nd hole in from the
front of the runner .
The 2nd and 3rd screws
use the holes that lines
up with the other panel
holes.
Fit a screw into the
2nd hole in at the top of
the runner .
Insert 2 large locking
nuts into the filer right
side .
4
J
J
4
4
Q
Q
C
4
U b
U b
I
H
U b
a:
b:
Step 26
4
4
Finished
front edge
E
E
Assembly Instructions
15

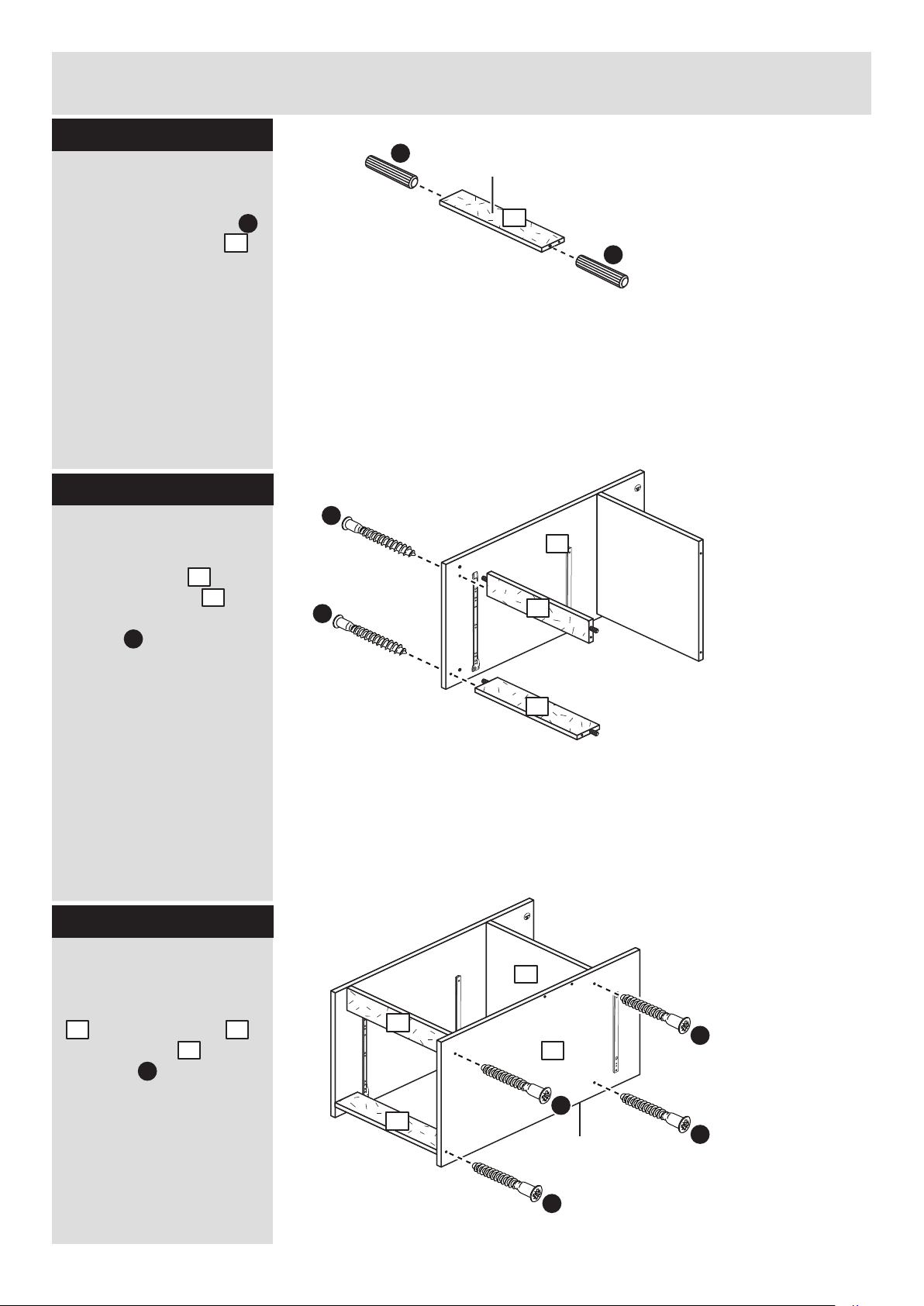

Step 27
Fit the filer left side
Attach the filer left side
. to the fixed shelf
and the 2 rails using
4 screws .
3
10
7
E
Fit the rails
Push the 2 rails onto
the filer right side . and
secure them using 2
screws .
10
10
10
4
4
E
A
A
Prepare the 2 rails
Tap 2 wooden dowels
into each of the rails .
Step 28
Step 29
x 2
A
10
10
Plain chipboard
surface
E
E
E
E
3
10
10
7
E
E
Finished
top edge
Assembly Instructions
16

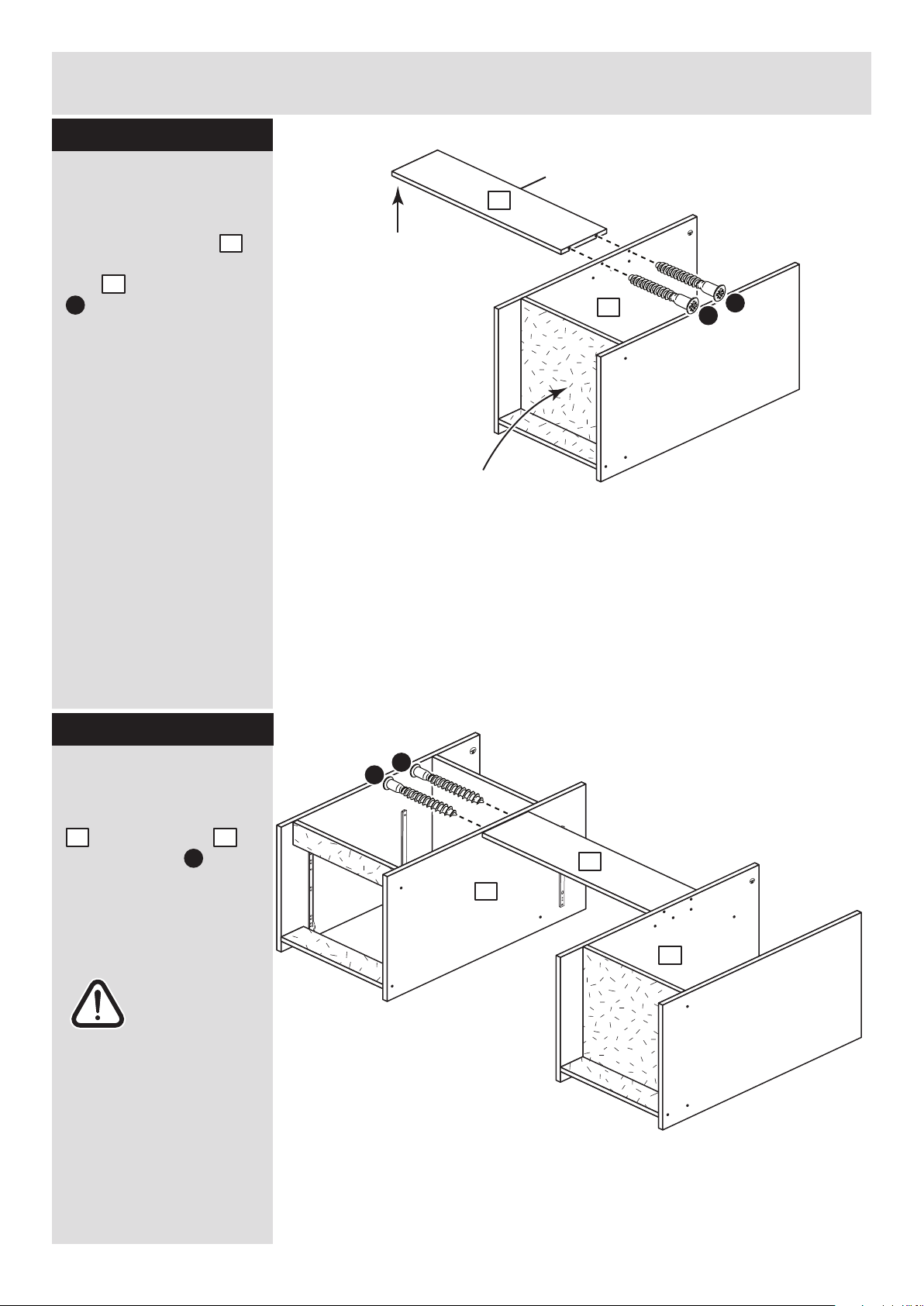

Step 30
Fit the modesty to the
cupboard assembly
Attach the modesty
to the cupboard right
side using 2 screws
. .
Step 31
13
2
E
Fit the filer assembly
Attach the filer left side
. to the modesty
using 2 screws .
Carefully stand the
unit up for the next
step.
13
3
E
Warning: The
unit is heavy.
Lift with care.
E
E
Note: Support the modesty
until the filer assembly has
been fitted in the next step.
Note: The cupboard
assembly is the one
with the base panel
2
13
2
13
3
Assembly Instructions
17

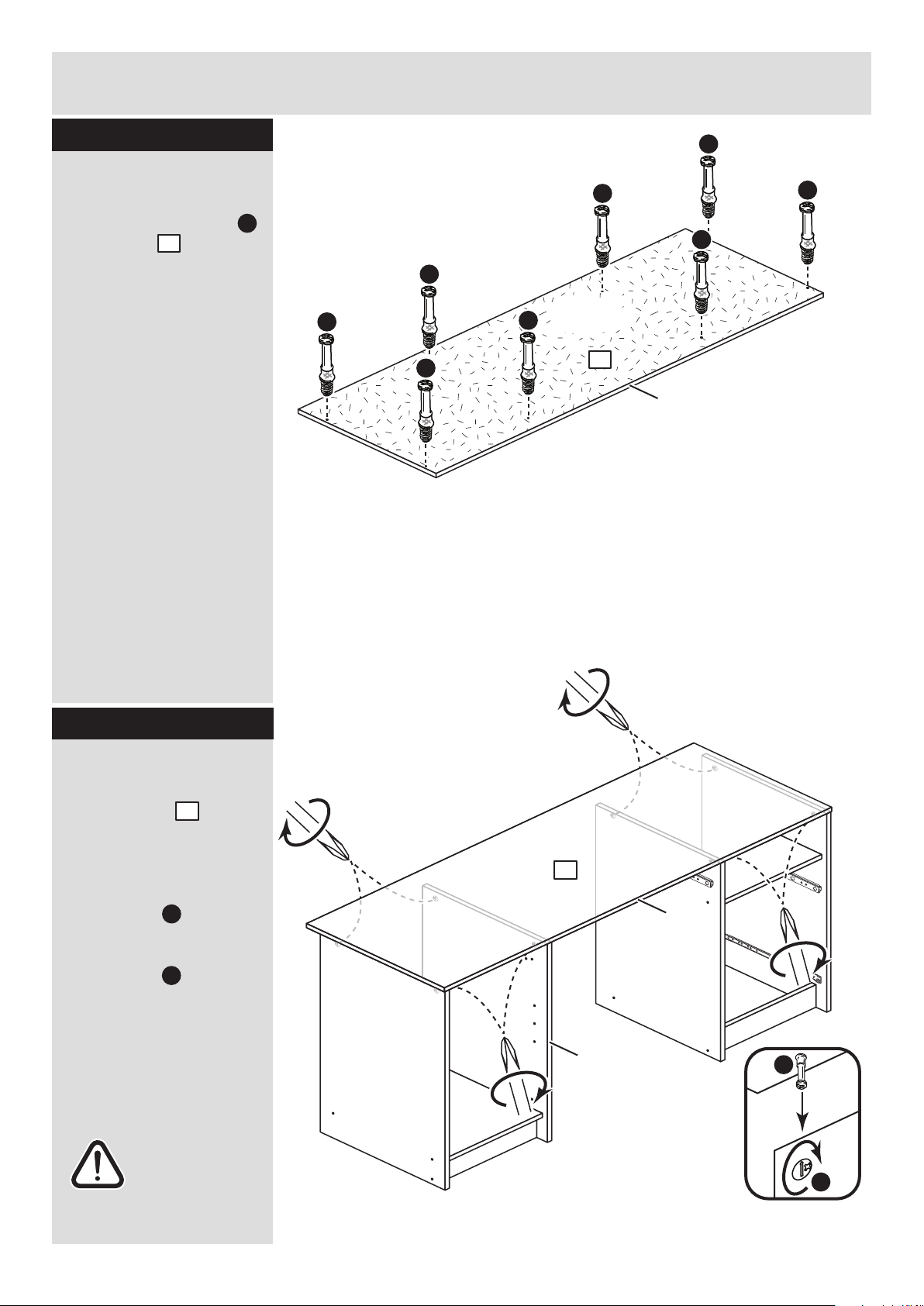

Step 32
Prepare the top
Screw 8 metal dowels
into the top .
B
5
Fit the top
Lower the top down
onto the assembly.
Use a screwdriver to
tighten the 8 large
locking nuts .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Carefully lay the unit
back down onto its
front.
5
C
C
Warning: The
unit is heavy.
Lift with care.
Step 33
B
B
B
B
B
B
B
B
5
Finished
front edge
C
B
Finished
front edge
Finished
front edge
5
plain
chipboard
surface
yy
Assembly Instructions
Step 34
18
Fit the backs
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the small back
. and large back
onto the unit.
Nail around the side
and bottom edges of the
backs and .
Note: Nails should
be spaced about 150mm
apart.
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
24 25
24 25
L
2
xx
yy
xx
b:
L
a:
24
25
2
Step 35
Fit the 8 plastic nails
Tap 2 plastic nails
into the bottom edge of
each side panel , ,
. and as shown.
Carefully stand the
unit up for the next
step.
V
V
1 2
3 4
V
V
V
V
V
V
V
Warning: The
unit is heavy.
Lift with care.
1
2
3
4
Assembly Instructions
19
Step 36
Fit the shelf
Insert 4 shelf studs at
the required height.
Lower the shelf down
onto the shelf studs .
K
8
K
Side panel
File
drawer
Step 37
K
x 4
8
Fit the file drawer
Slide the wheels of the
runners fitted to the file
drawer, over the wheels
of the runners fitted to
the side panels and push
the file drawer into
position.
Assembly Instructions
Step 38
20
Prepare the door
Push fit the 2 hinges
into the door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
P
15
H
Step 39
Fit the drawer
Slide both the runners
forward and locate the
drawer sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
S
Q
Q
S
2nd threaded
hole
Q
S
17 18
S
S
15
P
H
H
90
P
P
H
H
Assembly Instructions
21
Step 40
IMPORTANT
Carefully choose which hole you will need to drill
Drill the handle hole
in the door
Important: Please follow
these instructions
carefully.
Lay the door down
onto a smooth surface.
Important: Carefully
choose which hole you
need to drill.
Check that the holes and
hinges are in the same
place as the diagrams.
Note: We recommend
the use of a small piece
of waste wood, placed
behind the hole while
drilling, to reduce the
possibility of any
breakout.
Using the pilot hole in
the rear face of the door,
. drill through the hole
indicated opposite, using
a 2.5mm diameter drill.
Turn the door over
and open out the 2.5mm
hole that you have just
drilled by drilling back
through it with a 5mm
drill.
15
15
15
Note: Drill bits
are not provided
Small piece of
waste wood
ONLY drill
this hole
15
Assembly Instructions
Step 41
22
Fit door and handle
Note: The easiest way to
attach the door is to
fit the top hinge first,
then align and fit the
other hinge.
a: Push the hinge
onto the front part of the
hinge plate .
The recess at the bottom
of screw B goes into the
slot in the hinge plate.
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
the door using
screw .
P
P
P
O
O
O
P
O
M
F
15
15
F
M
15
a: b:
c: d:
O
P
O
O
B
O
P
P
P
A
P
O
B
e:
Assembly Instructions
23
Step 42
b:
c:
d:
a:
Adjust the door if
needed
a: Before adjusting the
door, use a spirit level to
check the top (or base)
of the unit is level, frontto-back and side-to-side
in the 3 positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C
b:
F
F
Assembly Instructions
Step 43
24
a:
Fit the keyboard shelf
2 people are needed
here
a: Slide the runners
forward and place the
keyboard shelf
between them.
Secure the keyboard
shelf to the runners
using 2 screws
through the 2nd hole
from the front of the
runners.
b: Slide the keyboard
shelf to the back of
the unit and secure it
using 2 screws in the
last holes at the back of
the runners .
9
Q
Q
9
9
F
Q
F
2nd
hole
Front
Last
hole
F
F
Finished
front edge
9
9
Assembly Instructions
25
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
and quote the reference numbers on the component pages.
Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW
Step 44
Assembly is complete
Warning: The
unit is heavy.
Lift with care.
ALR3050
Loading...
