SP04500137
TPWS TESTER
USER
GUIDE
TPWS TESTER User Guide
SP04500137
2/52
User Guide TPWS Tester
TABLE OF CONTENTS
TPWS TESTER OVERVIEW
1. SPECIFICATIONS....................................................................................................................... 3
2. IMPORTANT SAFETY INSTRUCTIONS. .................................................................................... 4
3. CAUTION .................................................................................................................................... 5
4. FUNCTION KEYS ....................................................................................................................... 6
5. HEADER ICONS ......................................................................................................................... 7
6. POWER ON .......................................................................................................... 7
TPWS TESTER USE – TOYOTA /LEXUS VEHICLES .................................. 8
1. SENSOR ACTIVATION .............................................................................................................. 9
TPWS TESTER USE – OTHER OEMS ................................................................... 15
1. SENSOR ACTIVATION............................................................................................................. 15

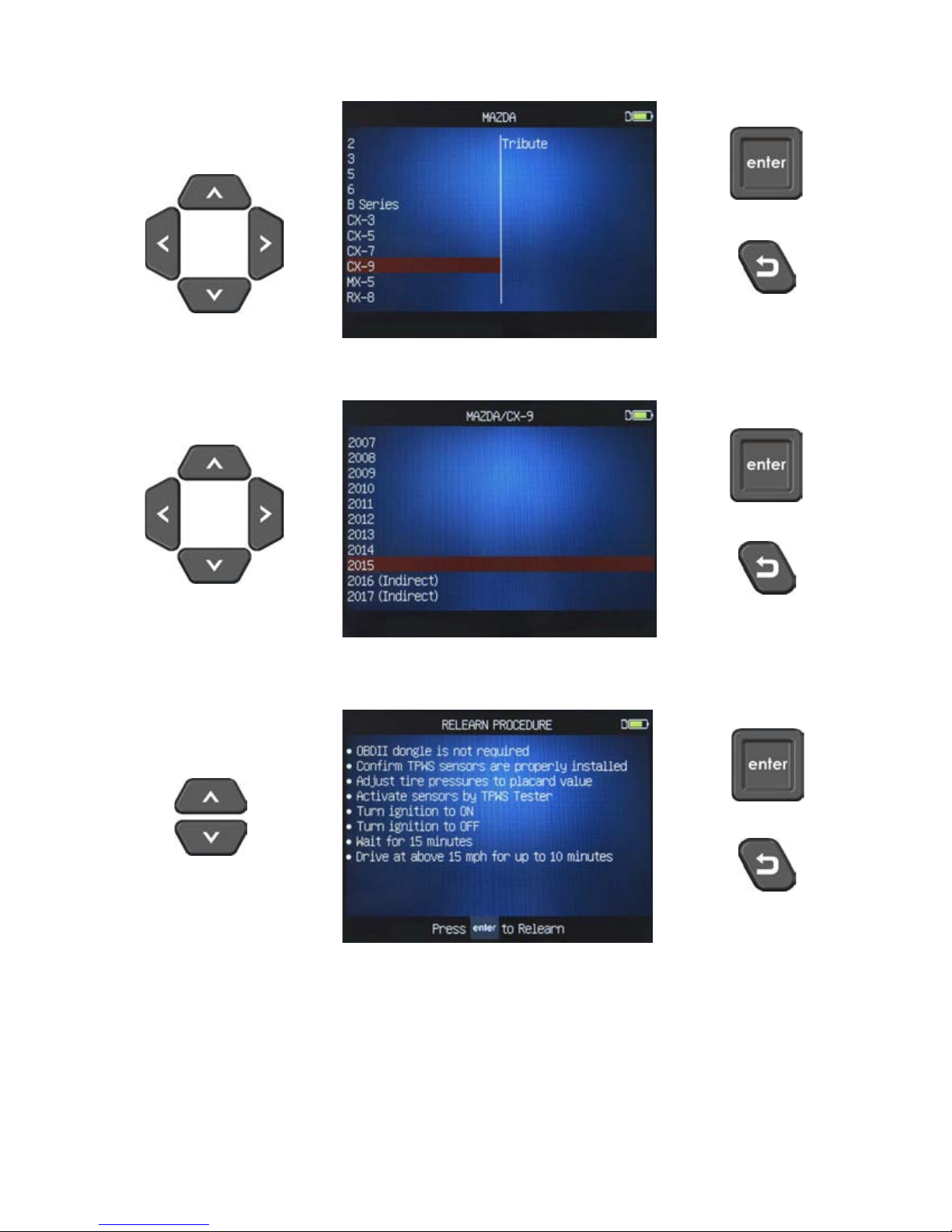

2. RELEARN PROCEDURE .......................................................................................................... 21

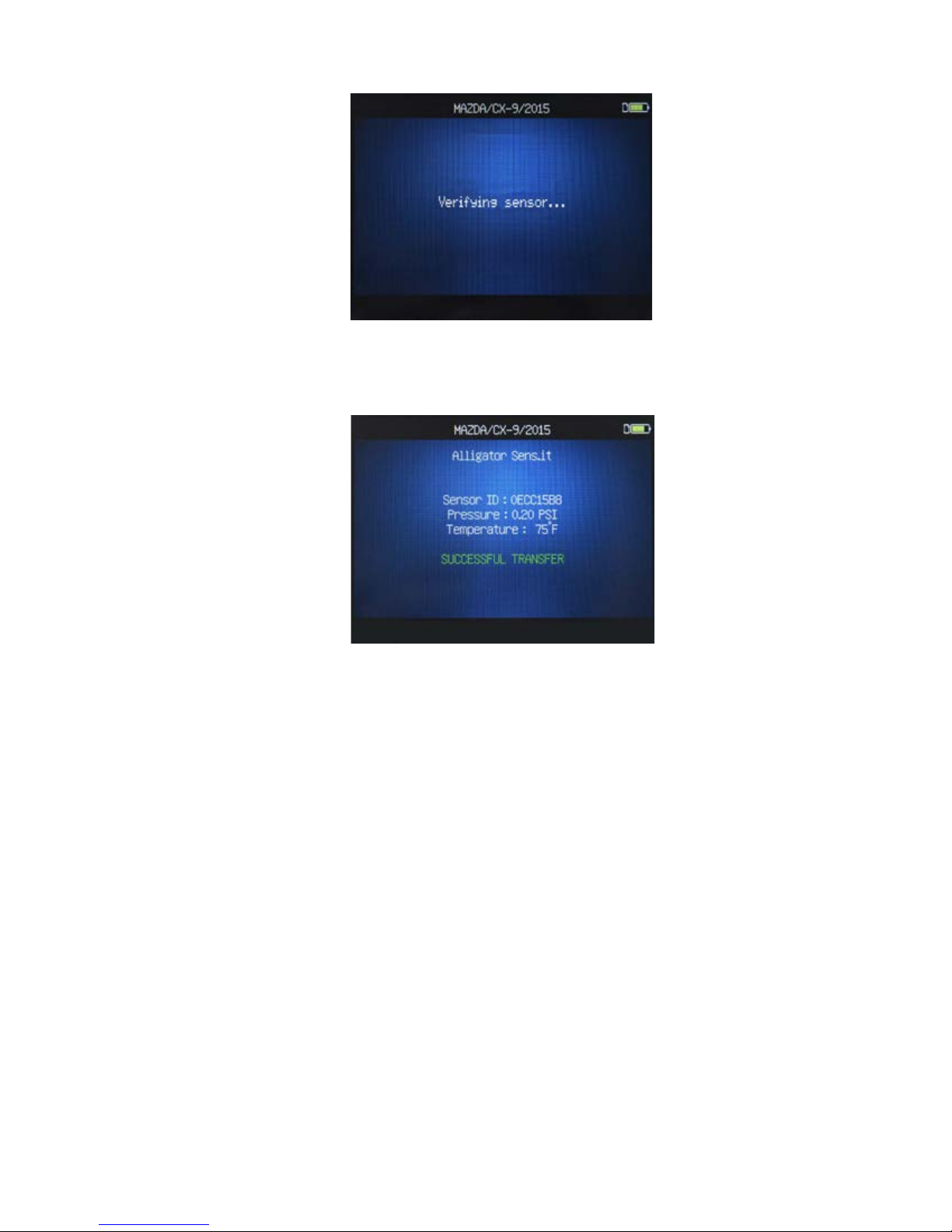

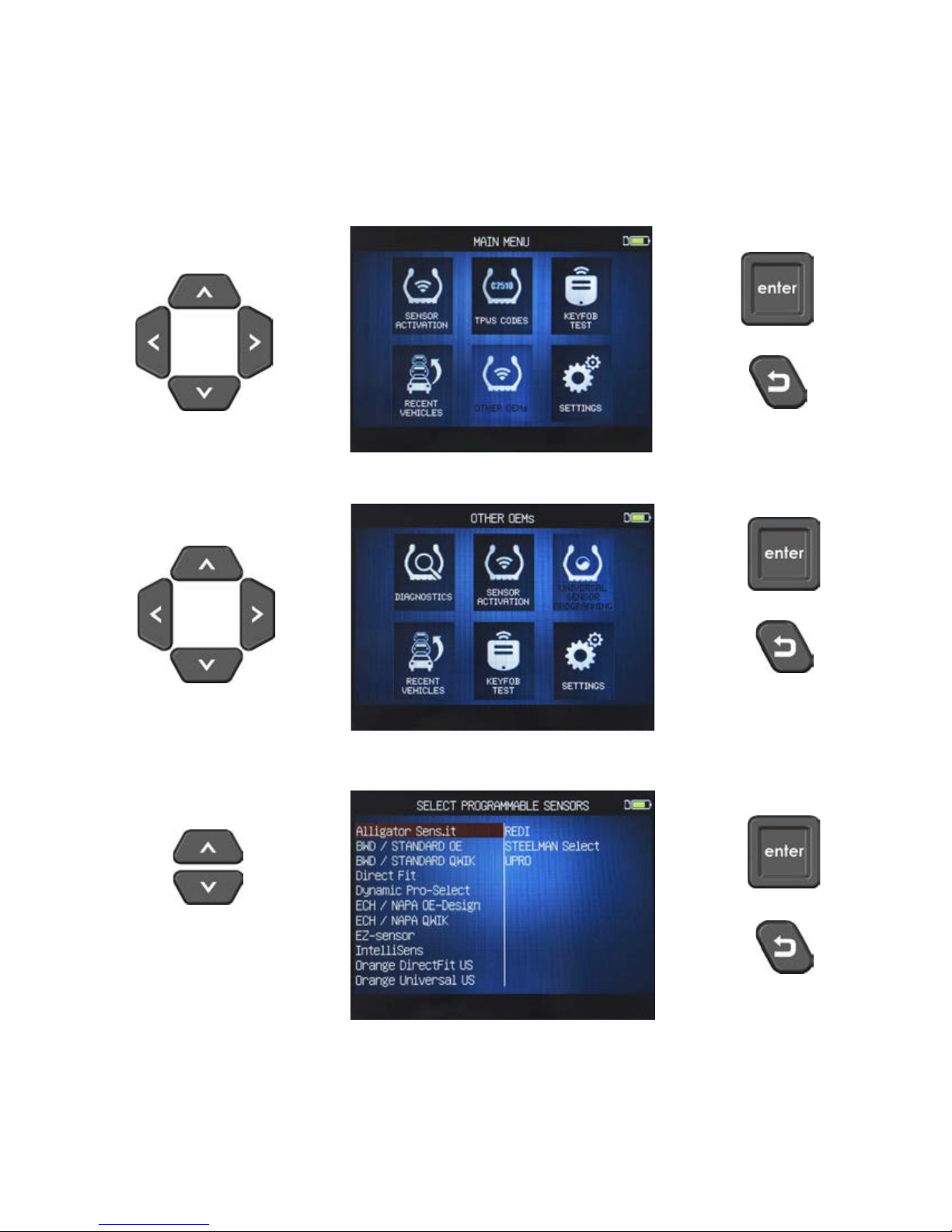

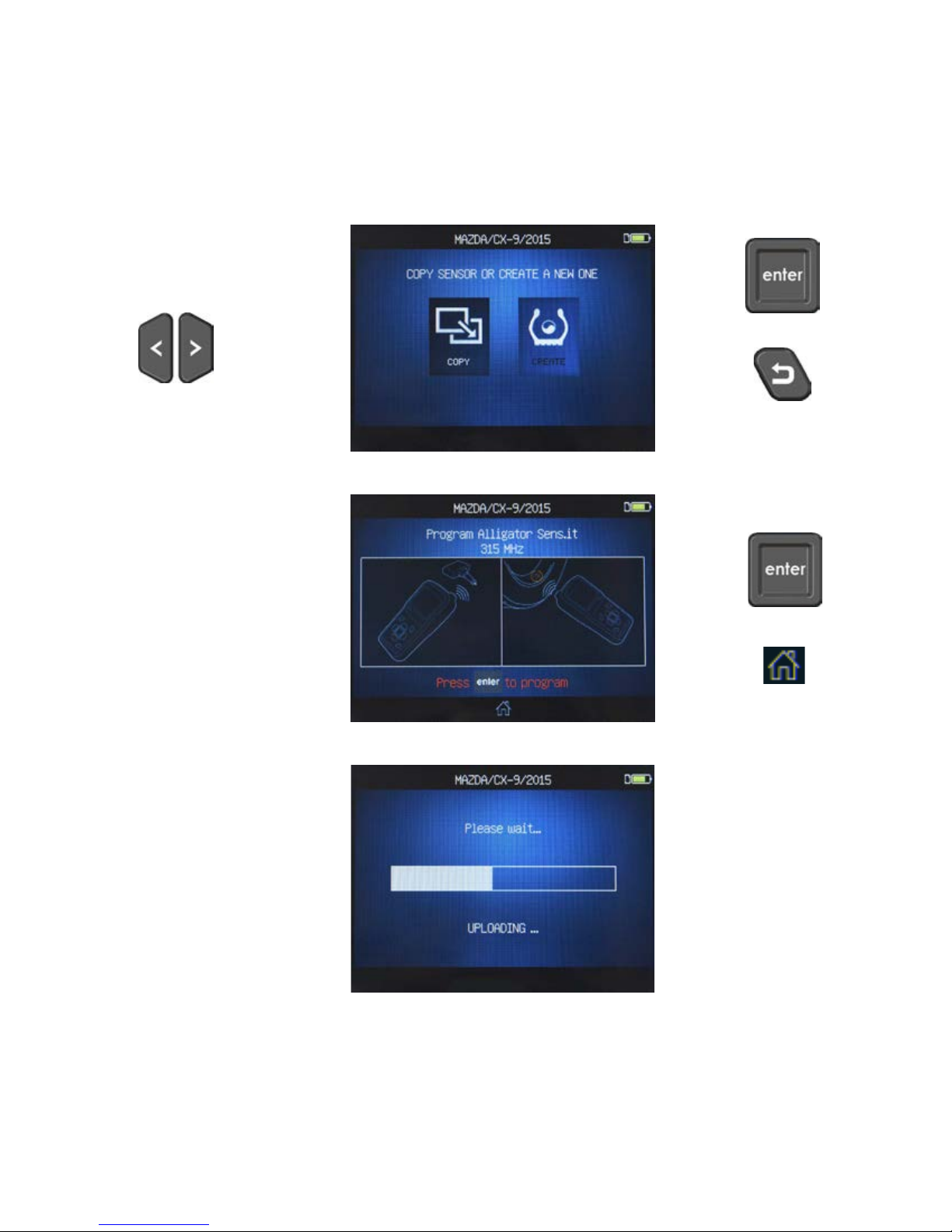

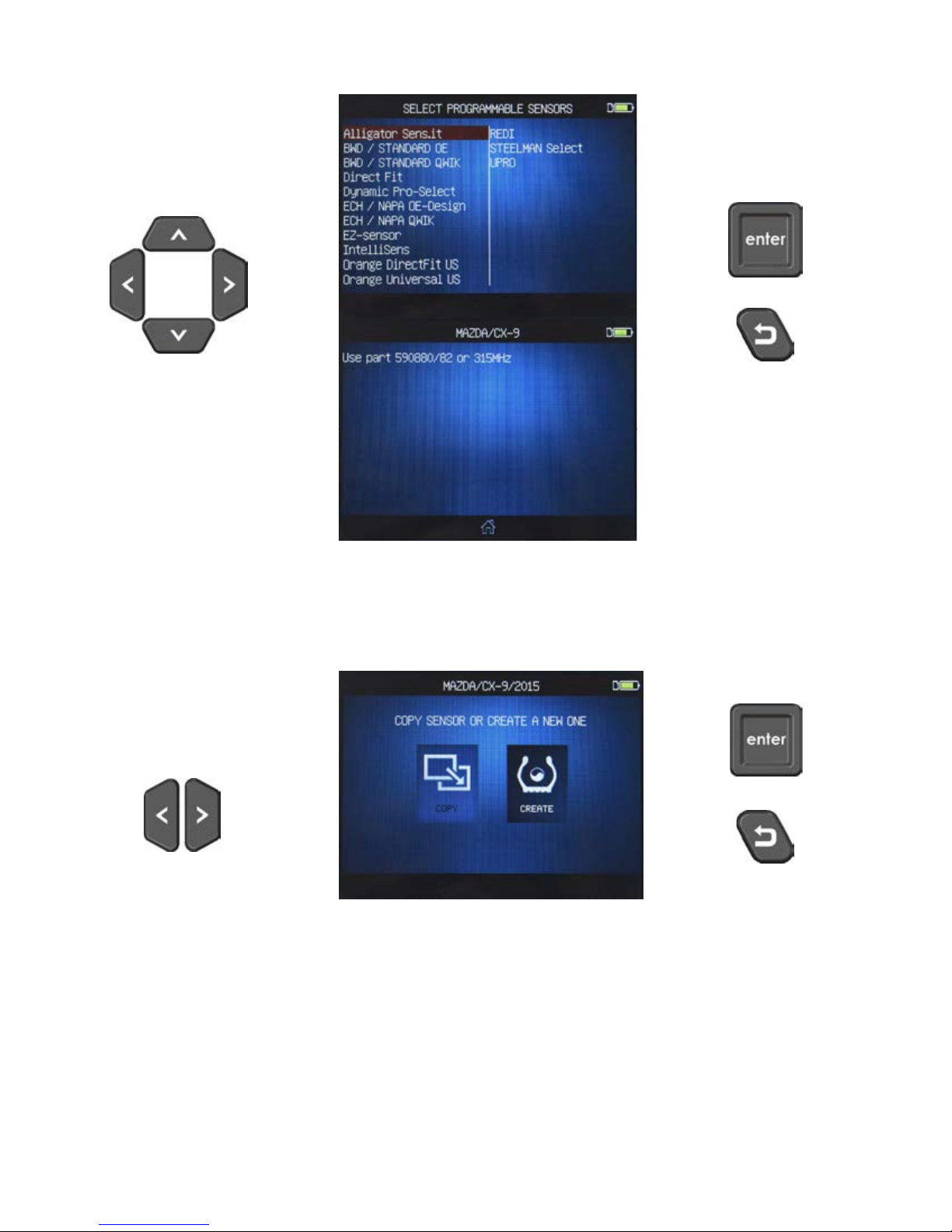

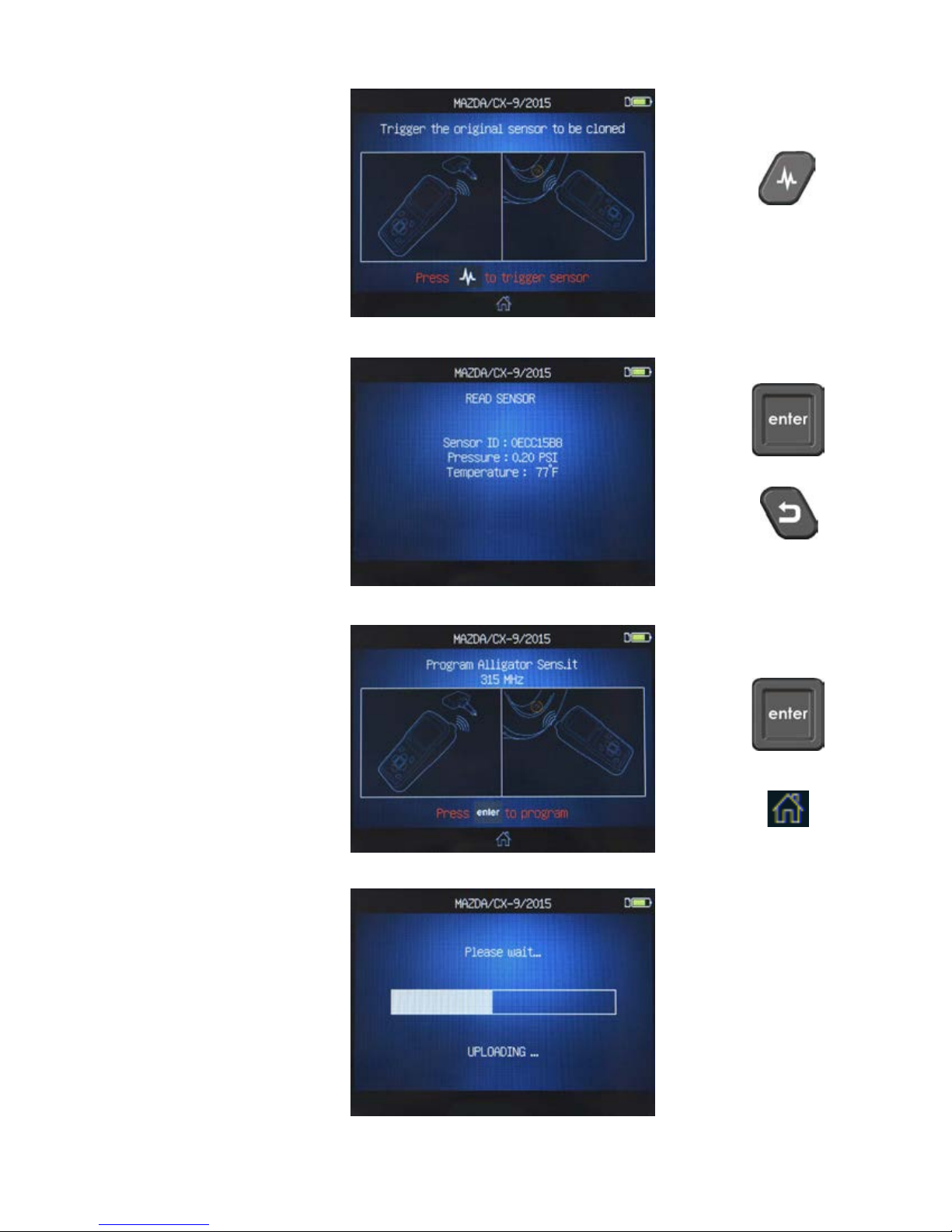

3. UNIVERSAL SENSOR PROGRAMMING ................................................................................. 26
TPWS TESTER USE – OTHER FEATURES ..................................................... 33

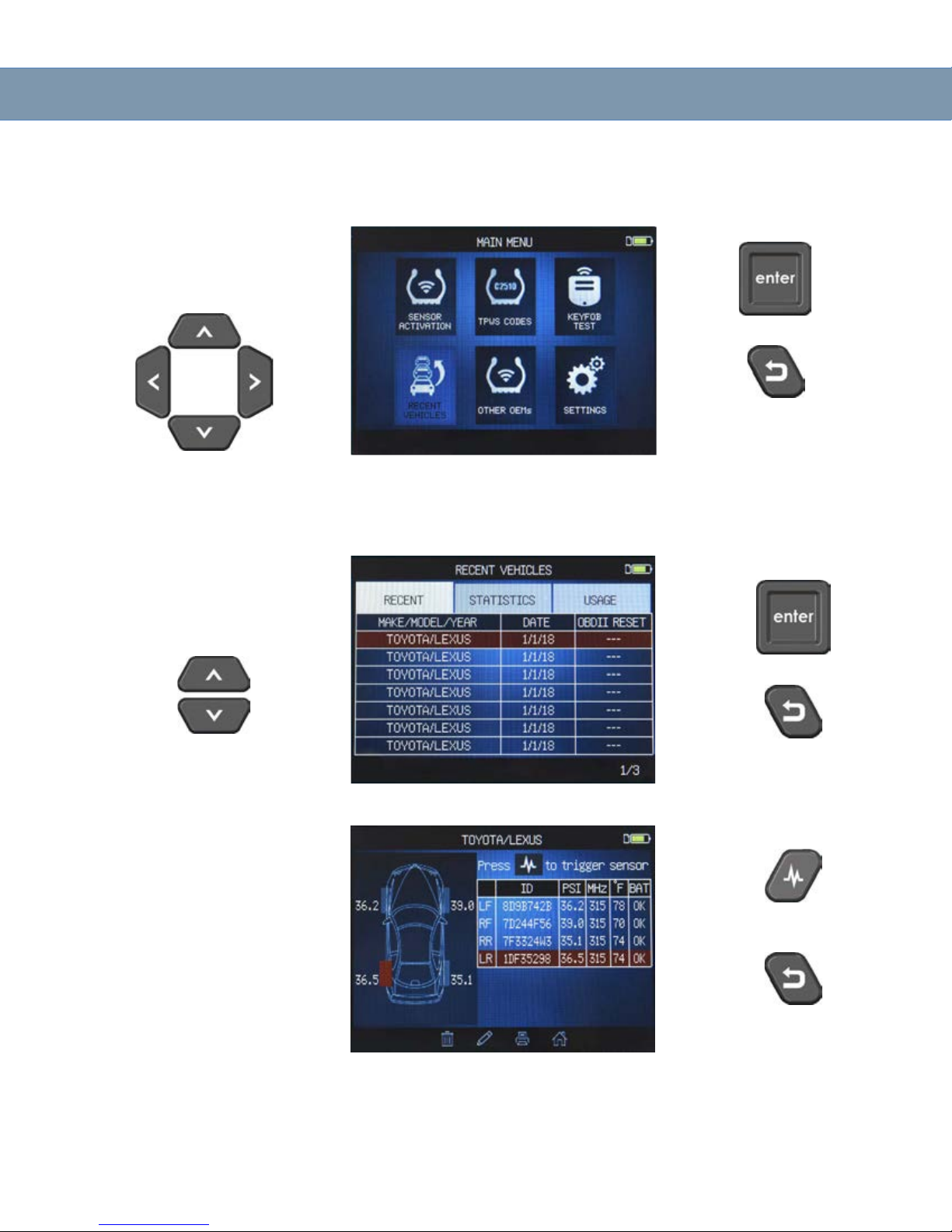

1. RECENT VEHICLE.................................................................................................................... 33

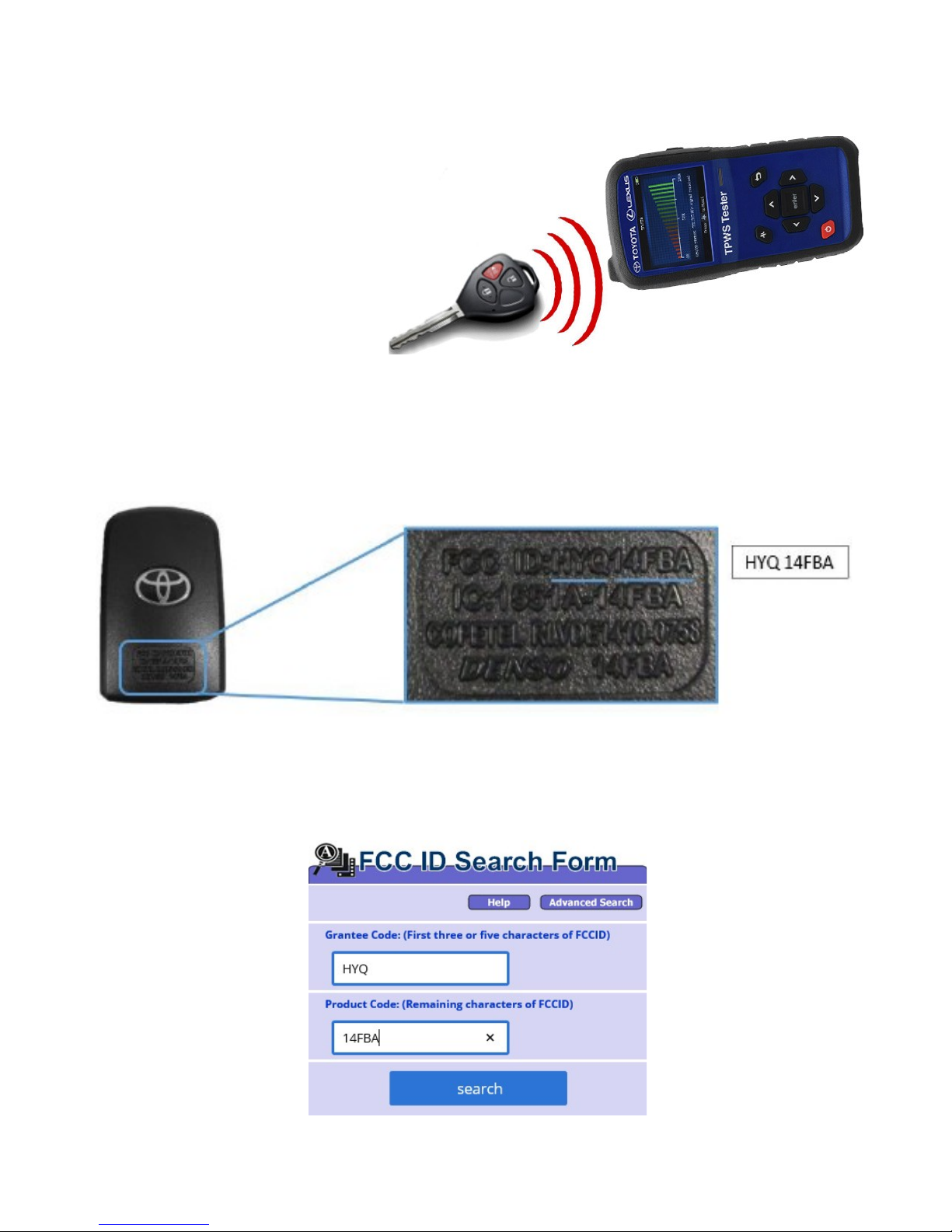

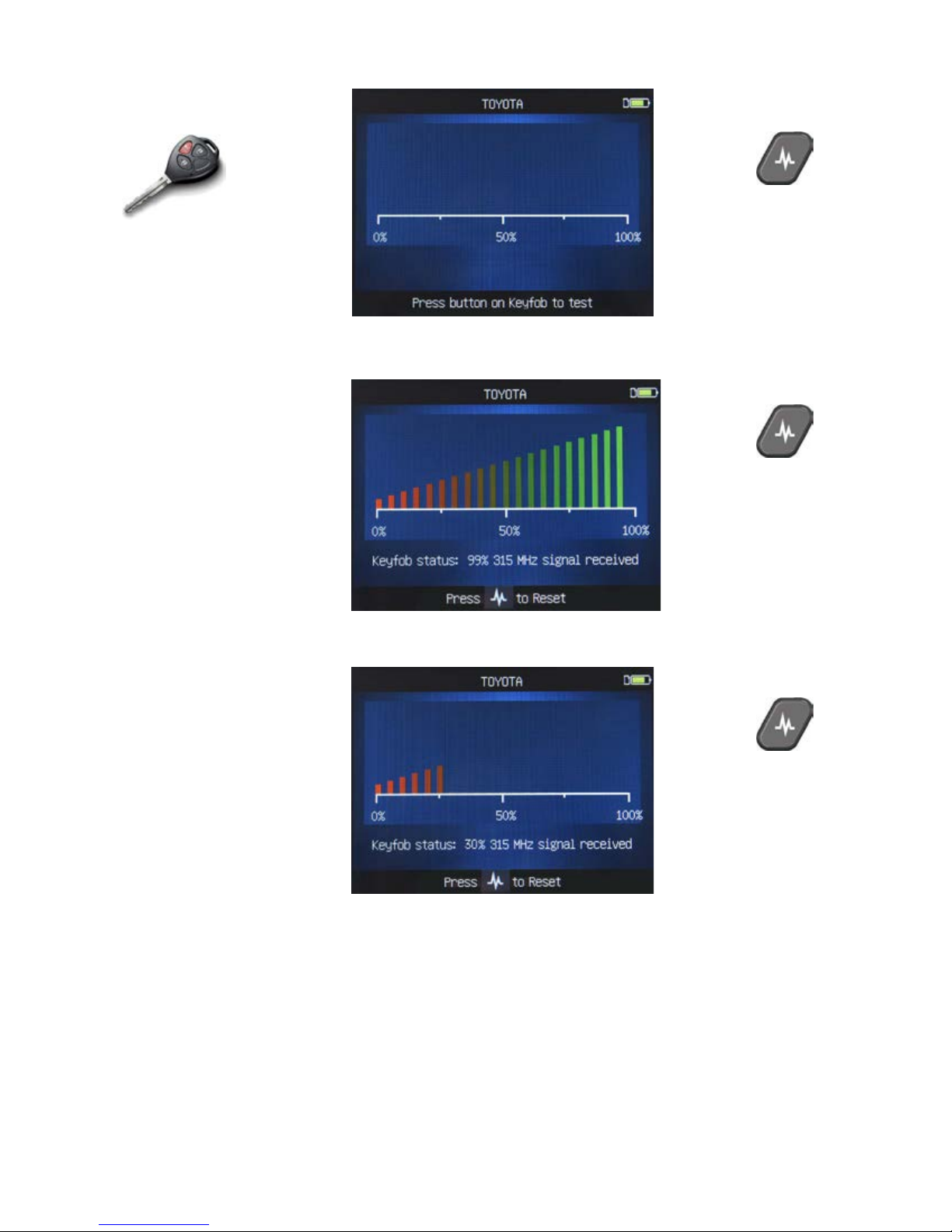

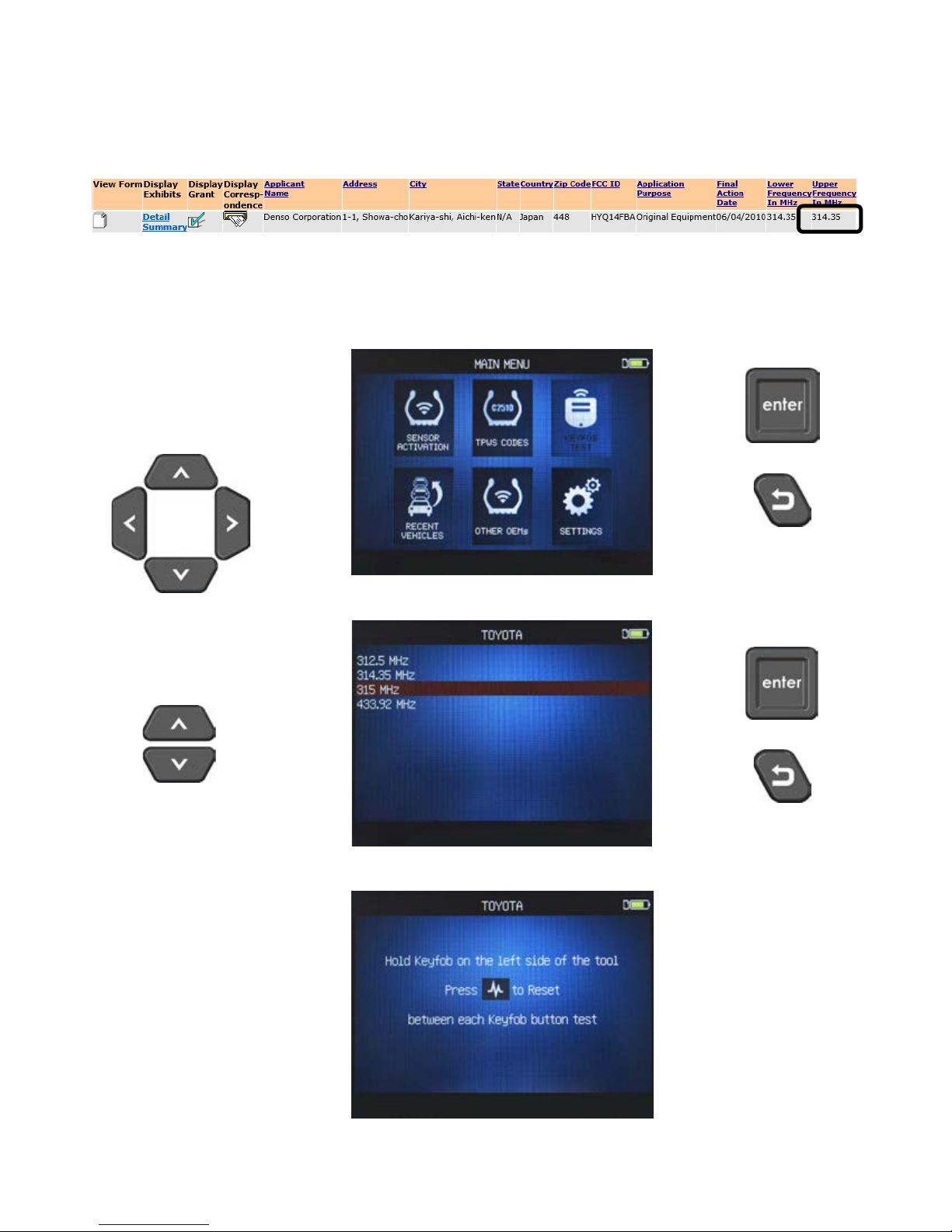

KEY FOB TEST ........................................................................................................................ 35
2.

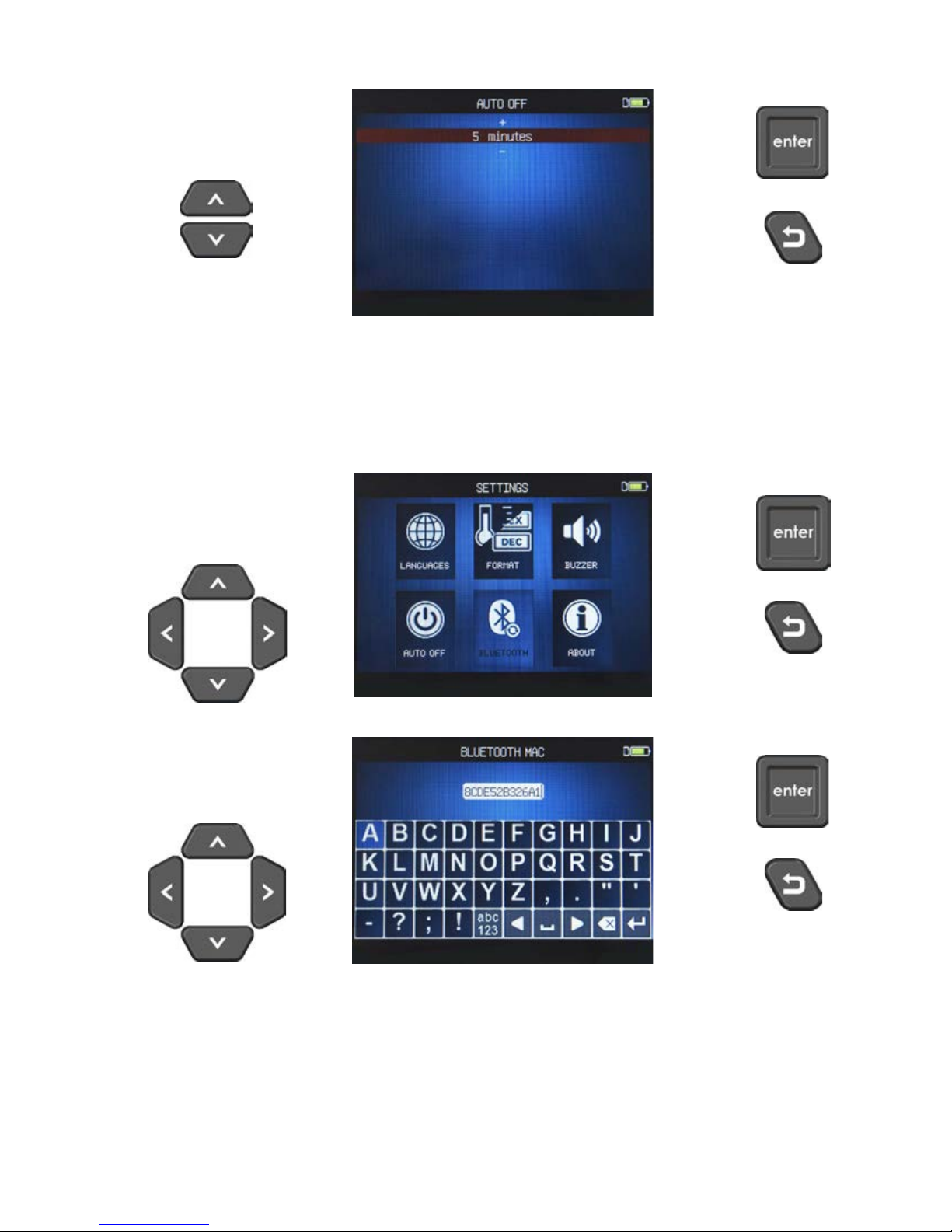

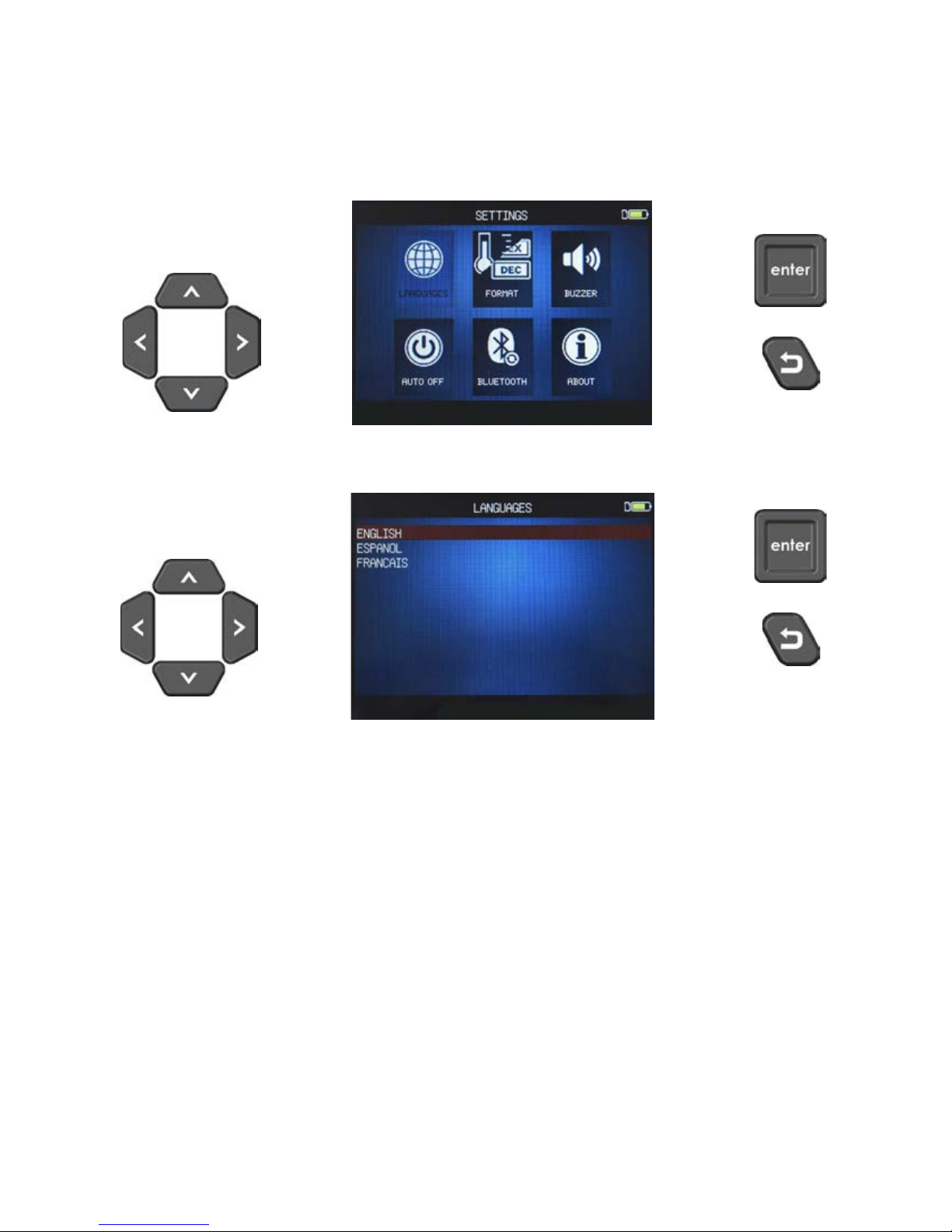

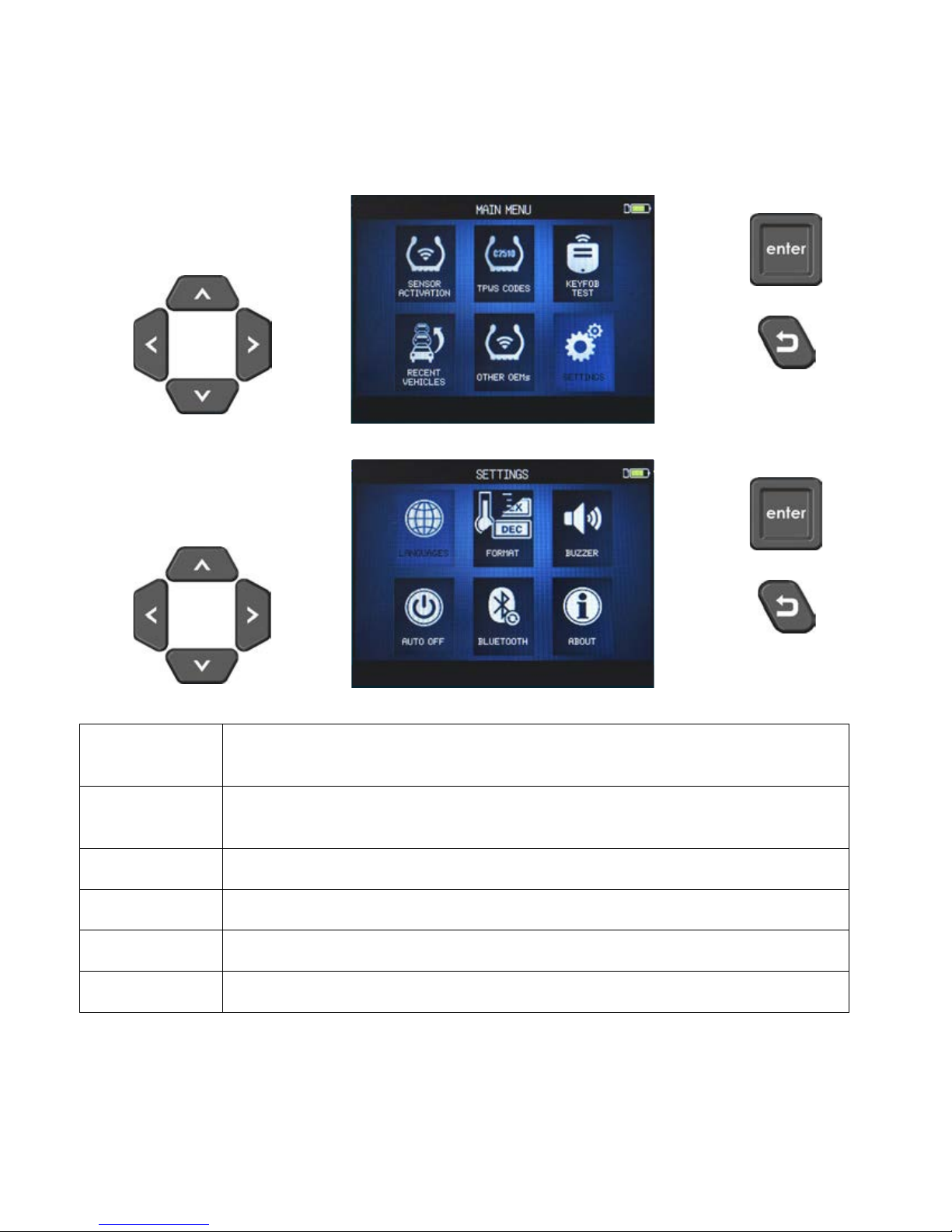

3. SETTINGS ................................................................................................................................ 38
MISCELLANEOUS. ............................................................................................................ 45
1. CHARGE ................................................................................................................................... 45
2. TOOL UPDATE .......................................................................................................................... 46
3. TROUBLESHOOTING ............................................................................................................... 46
4. LIMITED WARRANTY / CERTIFICATE(S) ................................................................................ 47
5. SAFETY BATTERY AND CHARGE INFORMATION ................................................................. 50
6. RECYCLING .............................................................................................................................. 52
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
3/52
User Guide TPWS Tester
TPWS TESTER OVERVIEW
1. SPECIFICATIONS
Battery Type: Rechargeable Lithium Ion.
Battery Life: Approximately 800 activations per full charge.
Dimensions (Max. L,W,D): 8.1" x 4.1" x 2.3" (20.5 cm x 10.4 cm x 5.7 cm).
Case Material: High Impact ABS.
Response Frequency:
Low Battery Indication: LCD bar graph display.
Weight: Approx. 1.4 lbs.
Temperatures: Operating: -4° F to 131° F (-20° C to +45° C).
Main frequencies: 315 MHz and 433.92 MHz (supporting
most specific frequencies).
Storage: -4° F to 131° F (-20° C to +45° C).

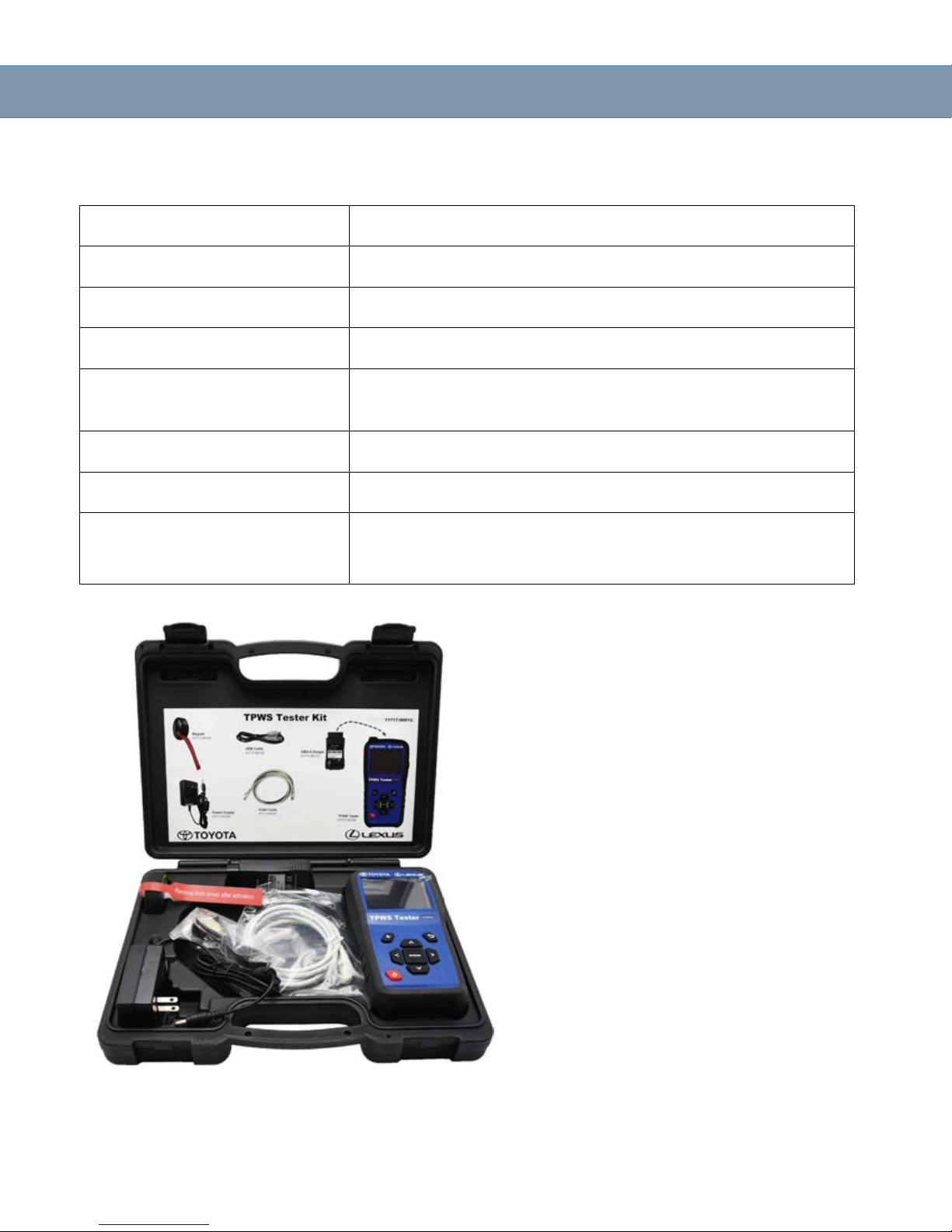

Product content:
➢
TPWS Tester
➢
USB cable x 1
➢
OBDII Module x1
➢
Magnet x1
➢
100-240V AC / 24V DC adapter x1
➢
Quick Start Guide
➢
Carrying case
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
4/52
User Guide TPWS Tester

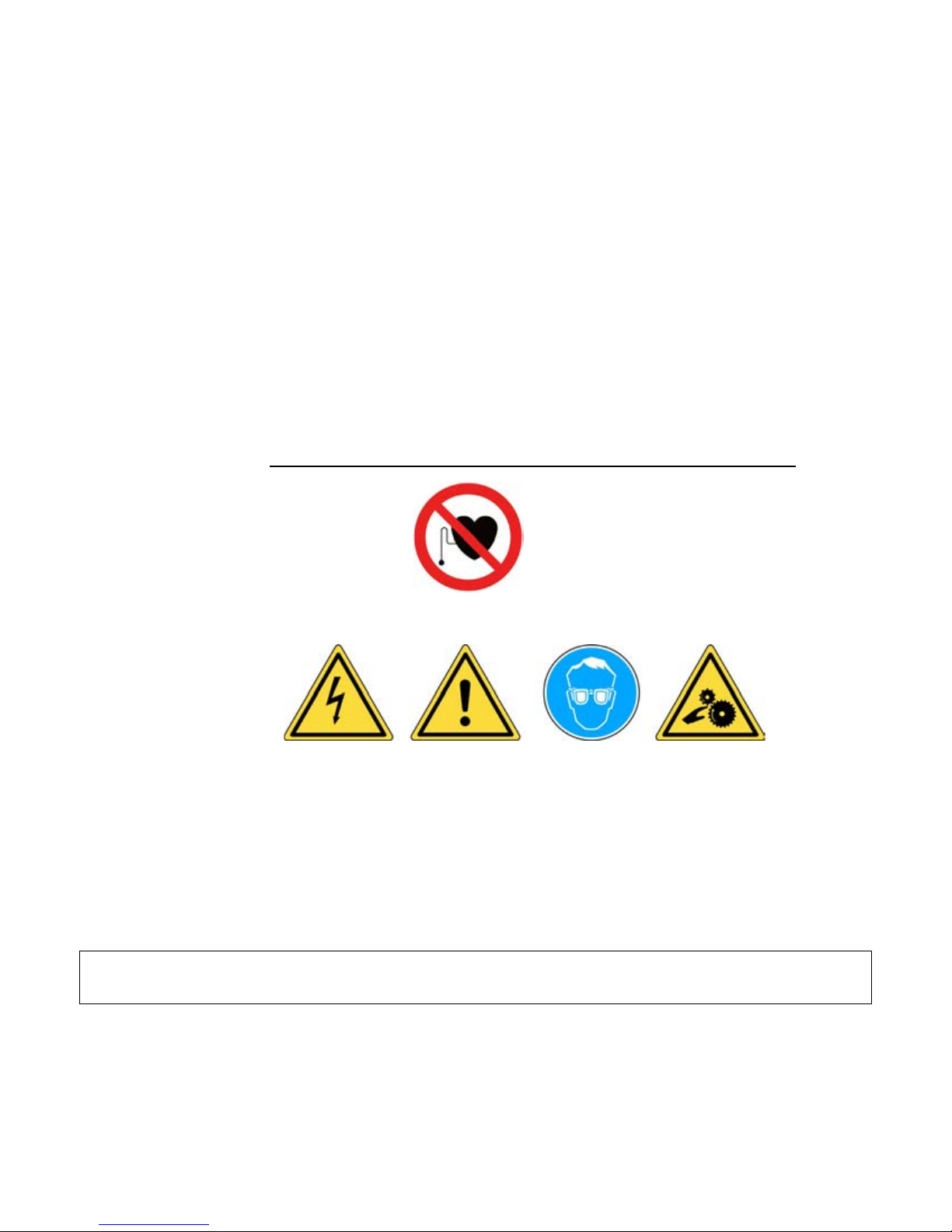

2. IMPORTANT SAFETY INSTRUCTIONS
Do not discard. Retain for future reference.
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions:
(1) This device will not cause harmful interference, and
(2) This device will accept any interference received, including interference that may cause
undesired or improper operation.
WARNING: This product emits electromagnetic and electronically
generated waves that may interfere with the safe operation
of pacemakers.
Individuals that have pacemakers should never use this product.
WARNING:
Do not use on live electrical circuits.
Must read instructions before use.
Wear safety goggles. (User and bystanders).
Risk of entanglement.
Read the Warranty, Safety and Recycling information at the end of this user guide.
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
5/52
User Guide TPWS Tester
3. CAUTION
READ THESE INSTRUCTIONS BEFORE USING
Your TPWS Tester has been designed to be durable, safe, and reliable when properly used.
The TPWS Tester is intended to be used only by qualified and trained automotive technicians
or in a light industrial repair shop environment. Please read all instructions below before using.
Always follow these safety instructions. If you have any questions pertaining to the safety or
reliability of this tool, please call OTC Technical Support.
3.1 Read All Instructions
All warnings on the tool and in this manual should be adhered to. All operating
instructions should be followed.
3.2 Retain Instructions
The safety and operating instructions should be retained for future reference.
3.3 Heed Warnings
User and bystanders must wear safety goggles and must read instructions before
use. Do not use on live electrical circuits, risk of entanglement.
3.4 Cleaning
Clean with a soft dry cloth, or if necessary, a soft damp cloth. Do not use any harsh
chemical solvents such as acetone, thinner, brake cleaner or alcohol, as this may
damage the plastic surface.
3.5 Water & Moisture
Do not use this tool where contact or immersion in water is a possibility. Never spill
liquid of any kind onto the tool.
3.6 Storage
Do not use or store the tool in an area where it is exposed to direct sunlight or
excessive moisture.
3.7 Use
To reduce the risk of fire, do not operate the tool in the vicinity of open containers or
flammable liquids. Do not use if the potential for explosive gas or vapors exists. Keep
the tool away from heat generating sources. Do not operate the tool with the battery
cover removed.
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
6/52
User Guide TPWS Tester

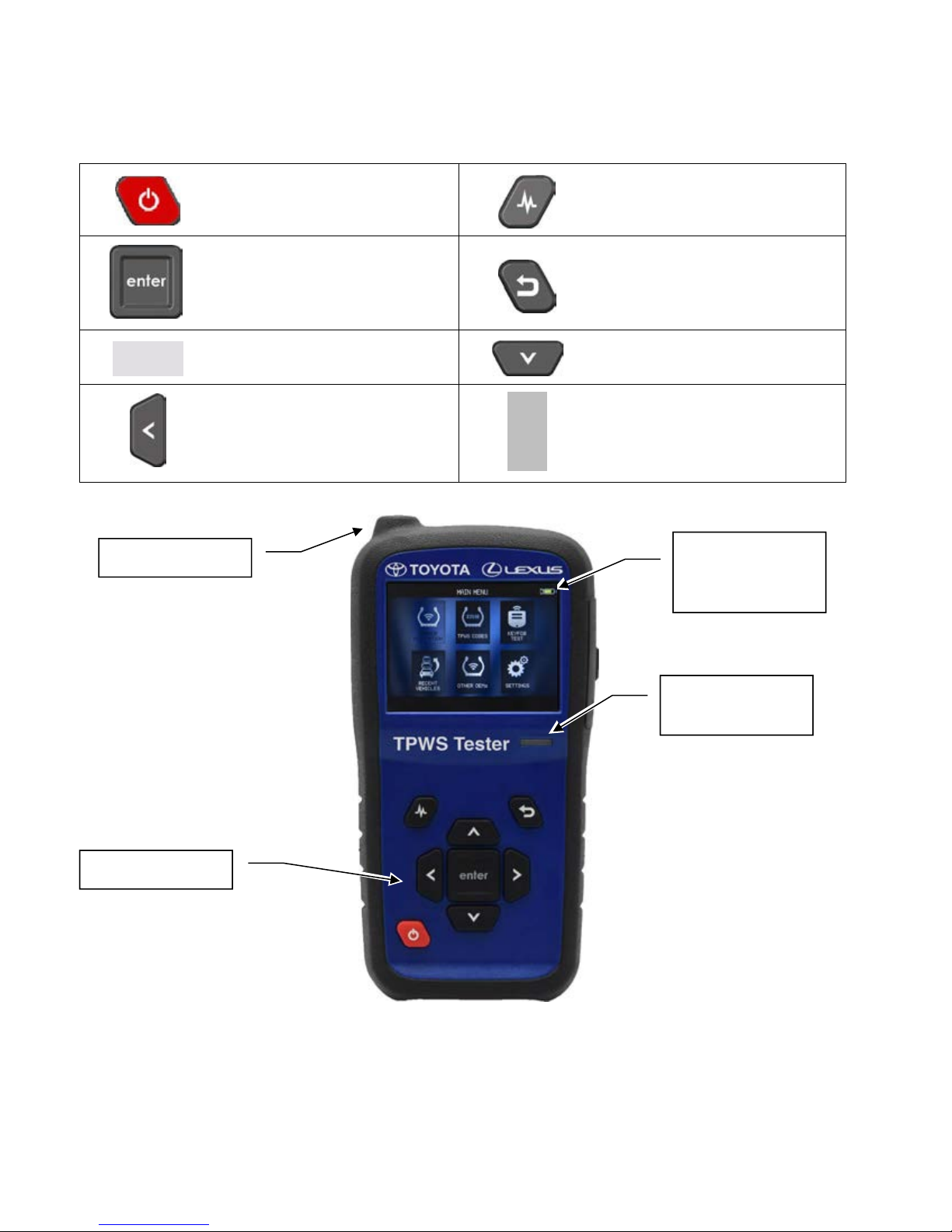

4. FUNCTION KEYS
Antenna
Power ON/OFF switch
Test or trigger sensor.
Next, continue or confirm. Cancel, previous step.
Navigate to select "up”.
Navigate to select “down”.
Navigate to select “left”. Navigate to select “right”.
Battery status
and SD Card
insertion status
Keypad
Battery charge
indicator
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
7/52
User Guide TPWS Tester

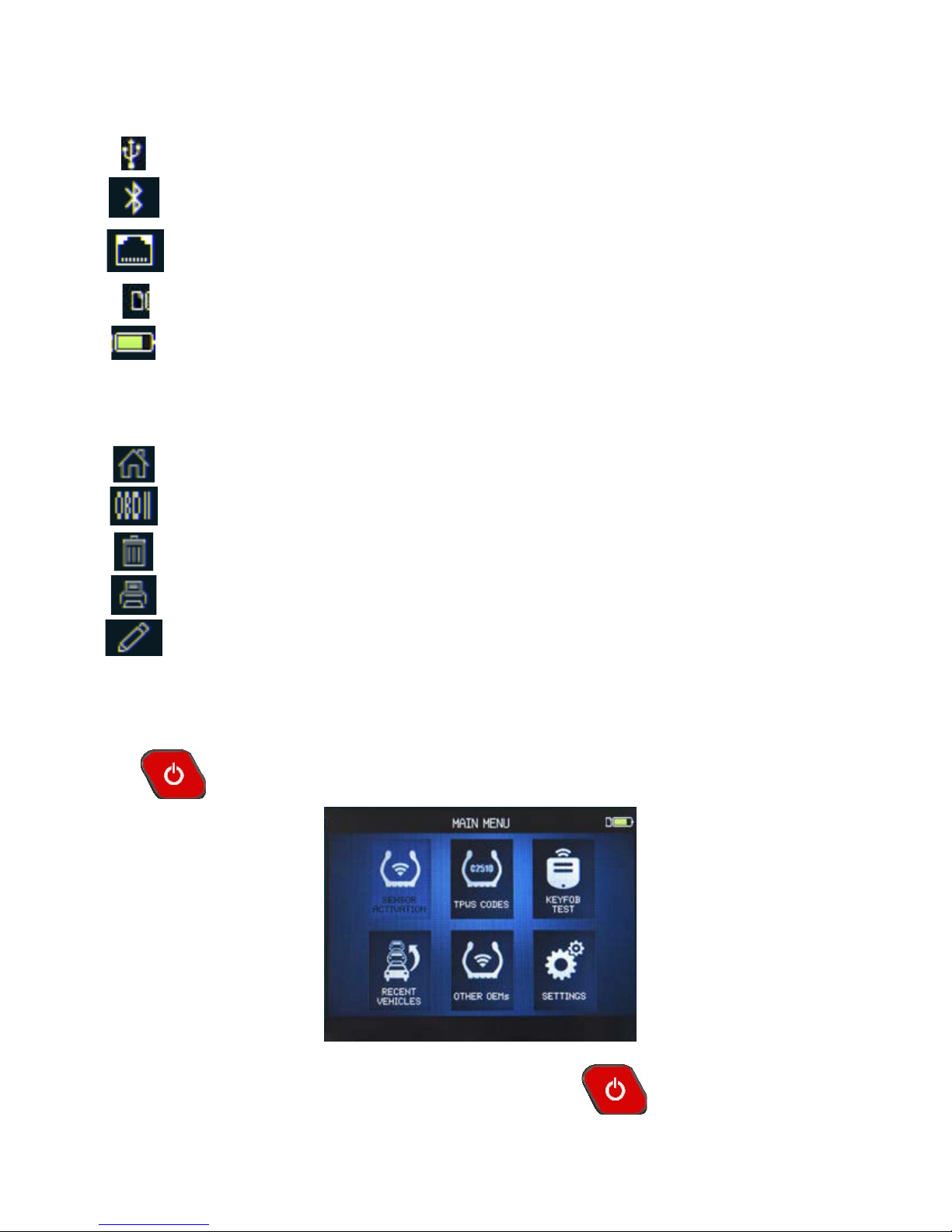

5. HEADER ICONS
The tool is connected to PC via USB cable.
The tool is connected via Bluetooth to the OBDII module.
The tool is connected via RJ45 cable to the OBDII module.
SD card is inserted.
Battery status.
BOTTOM ICONS
Selecting this icon will take you to the MAIN MENU.
Selecting this icon will register the TPWS Sensors.
Selecting this icon will delete the sensor data displayed.
Selecting this icon will print the sensor data displayed.
Selecting this icon will allow the user to input the job information.
6. POWER ON
Press key to turn on the TPWS TOOL.
To power off the tool, press and hold (about 3 seconds) the key.
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
8/52
User Guide TPWS Tester
TPWS TESTER USE – TOYOTA/LEXUS VEHICLES
IMPORTANT:
Vehicle specific information is used in this manual as an example and may not represent
specific instructions for each model and year. When performing various functions with
the tool, it is important to refer to the on-screen prompts and/or repair manual information.
Warning: For best sensor test result, hold the tool against the tire sidewall
right above the valve stem.
Features: Read, diagnose sensors, and transfer data to ECU when required.
Service Procedure
1. S
ENSOR ACTIVATION

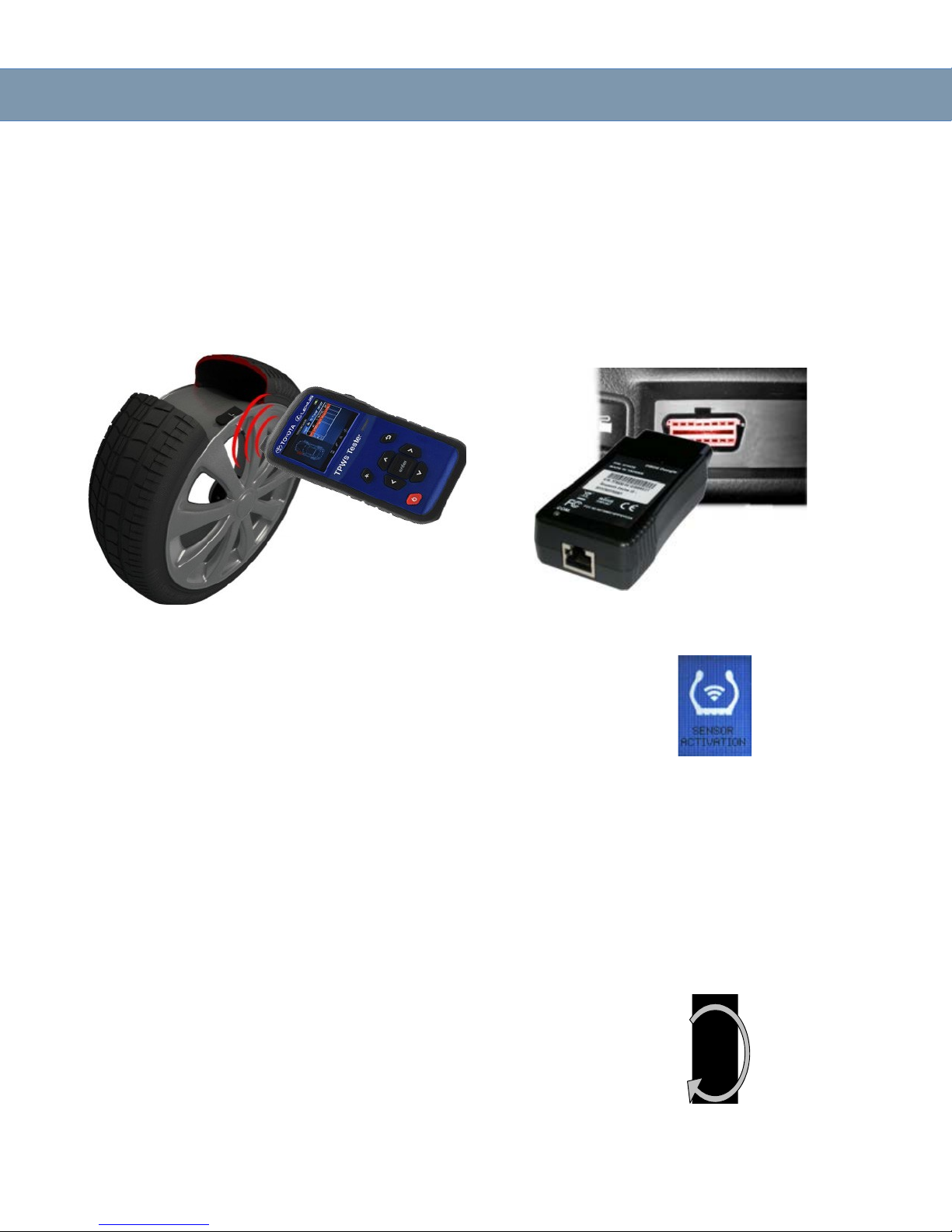

Before servicing the tires/wheels, using your TPWS Tester, activate
each of the vehicle's sensors to make sure they are working properly.
This will eliminate the liability associated with replacing previously damaged or
defective sensors. This procedure allows you to quickly identify damaged or
defective sensors, because some TPWS systems may not report a damaged or
defective sensor condition on the instrument cluster for up to 20 minutes.
Note: If the sensors are not activated (“No Sensor Detected” message displayed),
please refer to the Troubleshooting section of this Guide.
Begin by triggering the driver's left front (LF) wheel sensor.
The same procedure should be followed on all wheel sensors, in a
clockwise rotation, until all the vehicle sensors have been learned.
Trigger all wheels
1 Start LF
4 LR
2 RF
3 RR
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
9/52
User Guide TPWS Tester

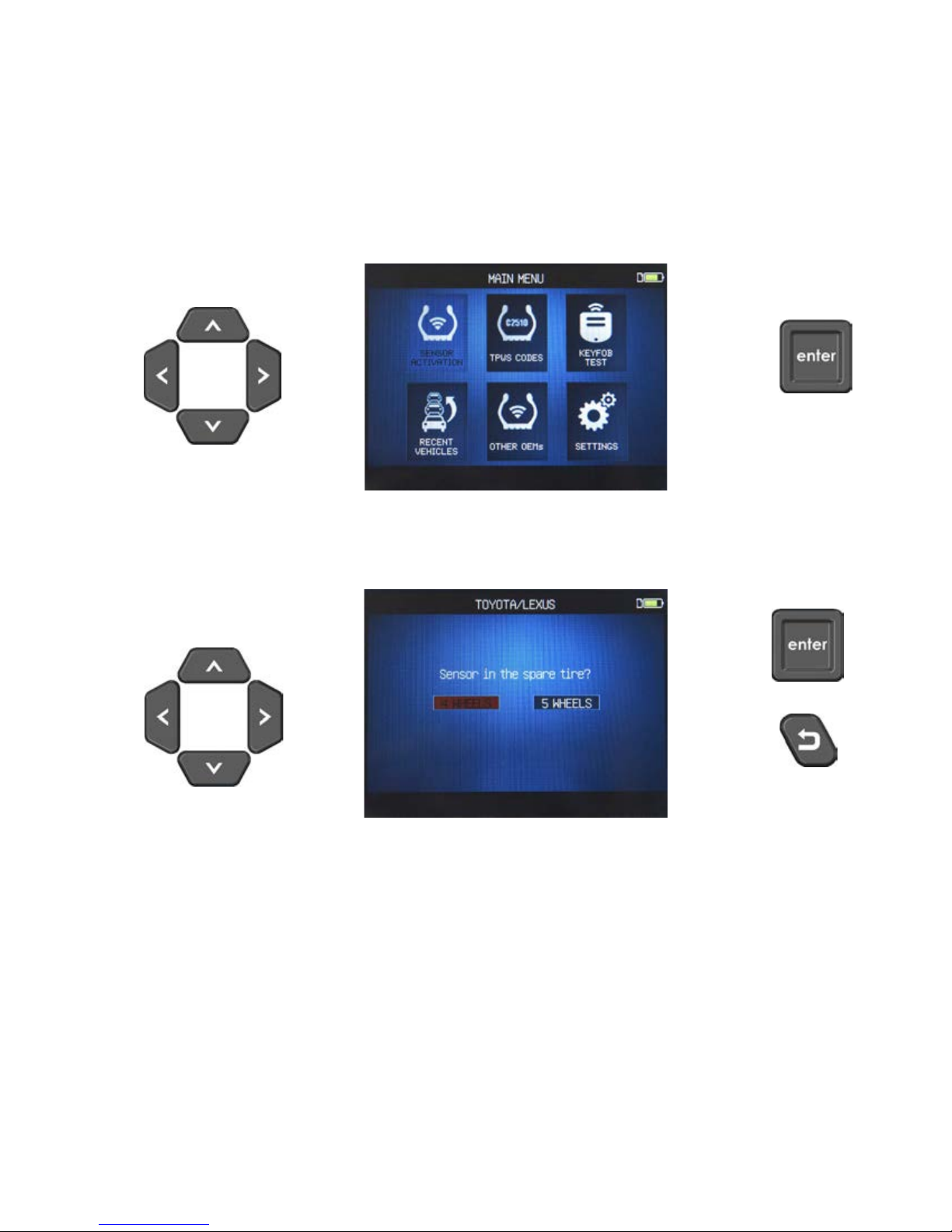

1.1. SELECT SENSOR ACTIVATION
This is to trigger all the sensors on the vehicle and/or reprogram the
TPWS sensor IDs into the ECU through the OBDII port or used in
conjunction with Techstream.

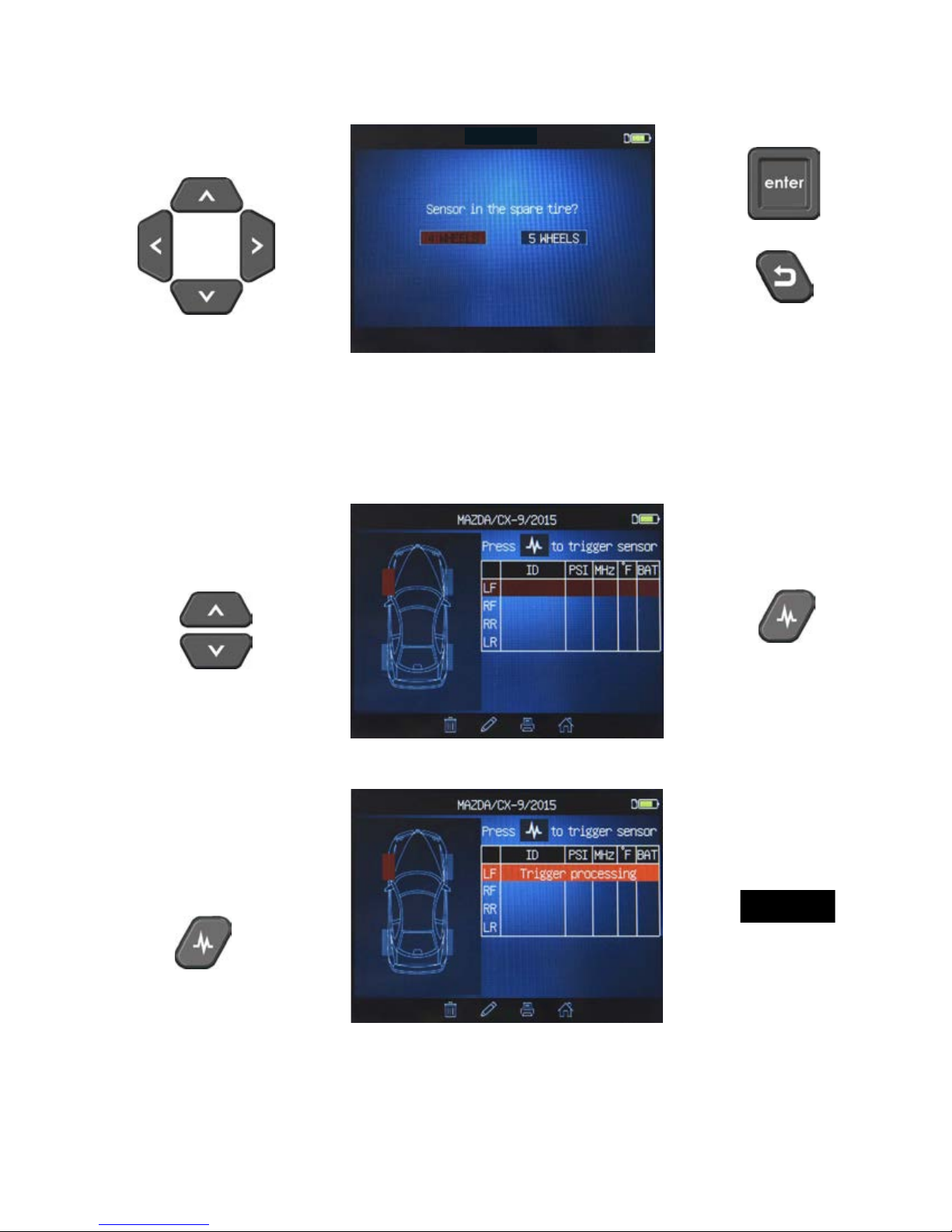

1.2. SELECT NUMBER OF WHEELS
Continue
= Continue
= Previous
Note: If the spare tire in the vehicle has a TPWS sensor, then select "5 WHEELS".
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
10/52
User Guide TPWS Tester

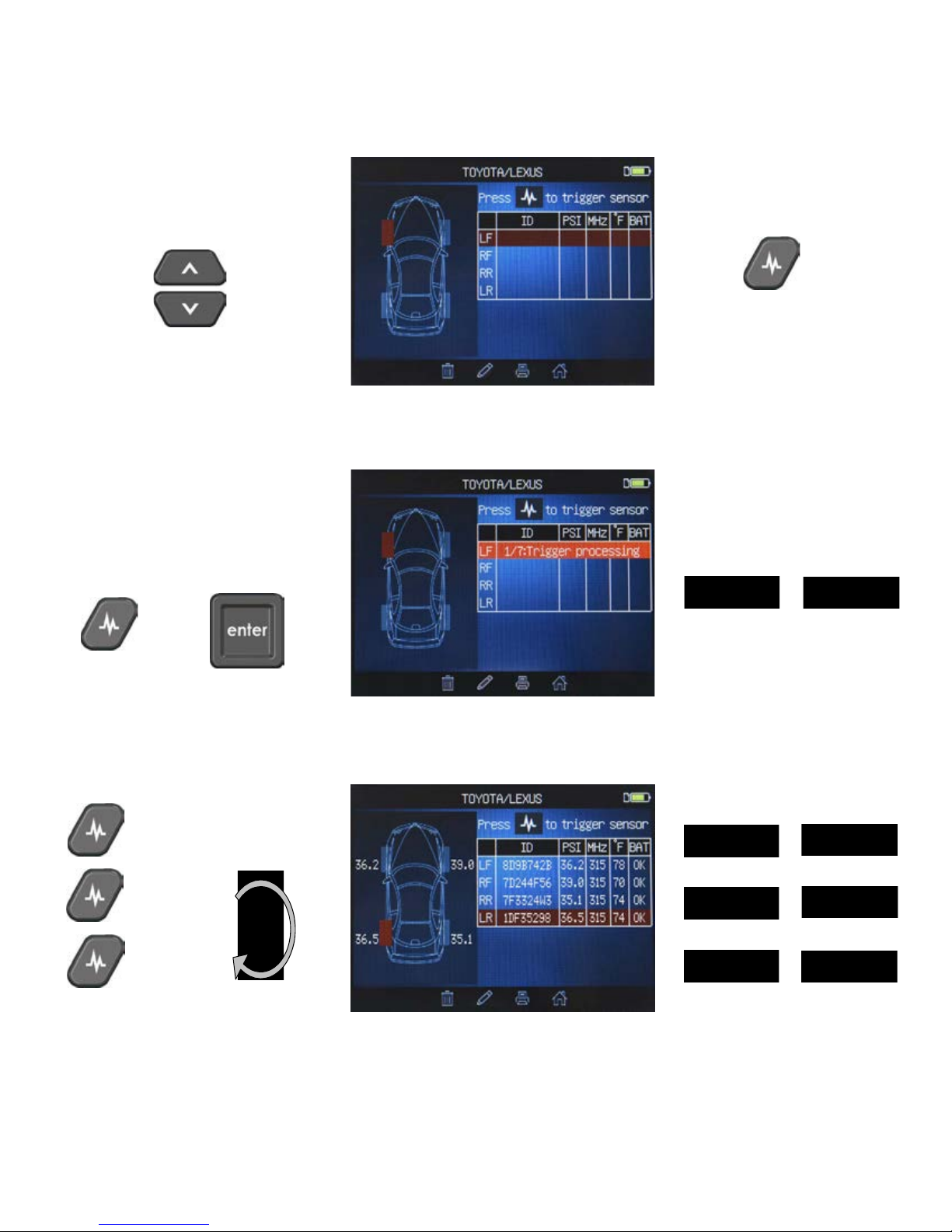

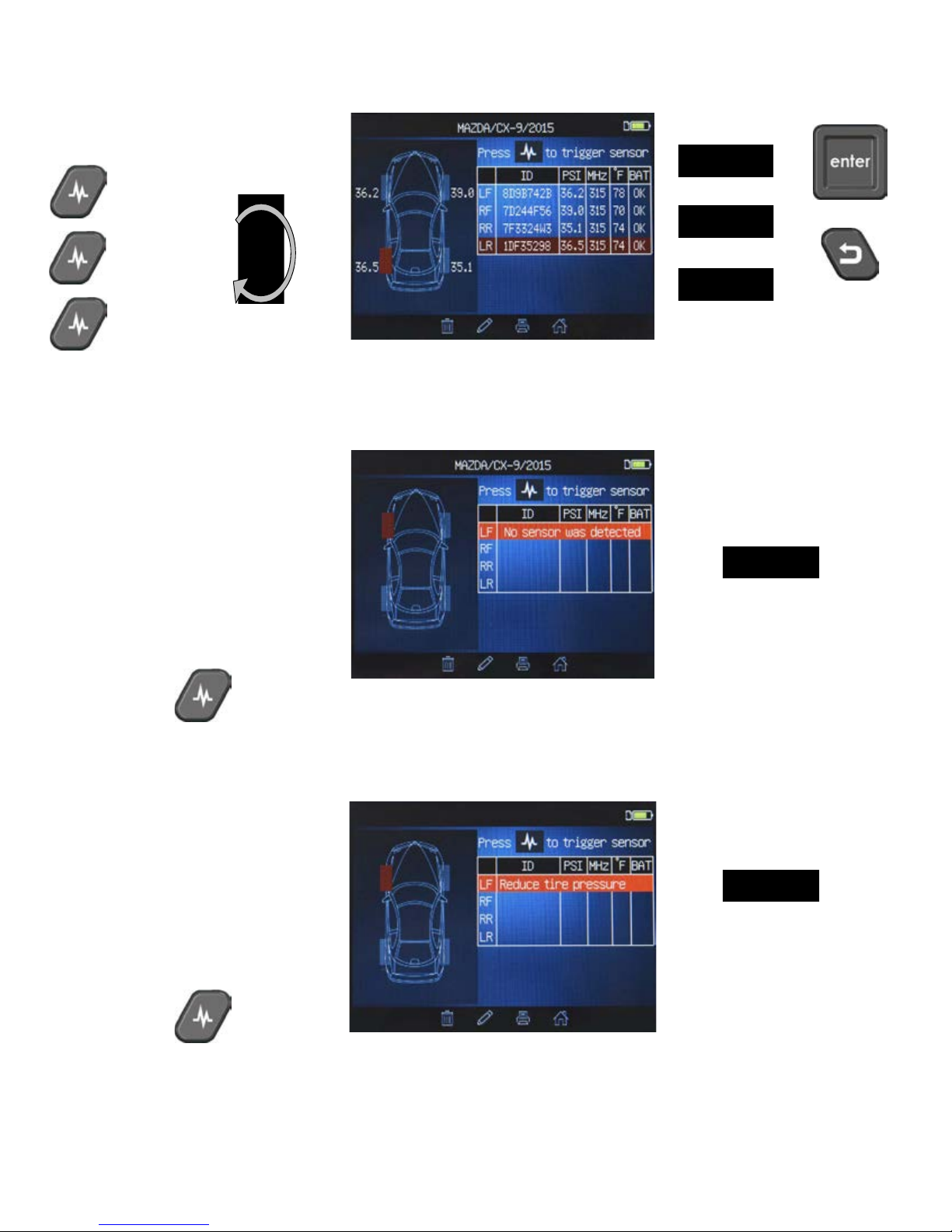

1.3. TEST TPWS SENSORS
Begin by triggering the
driver's left front (LF)
wheel sensor.
To scroll wheels.
The tool is triggering the
sensor. Auto scan sensor
reading can take up to
1 minute and 30 seconds.
LF
Trigger all wheels.
RF
1 Start LF
RR
LR
4 LR
RF
2
3 RR
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
11/52
User Guide TPWS Tester

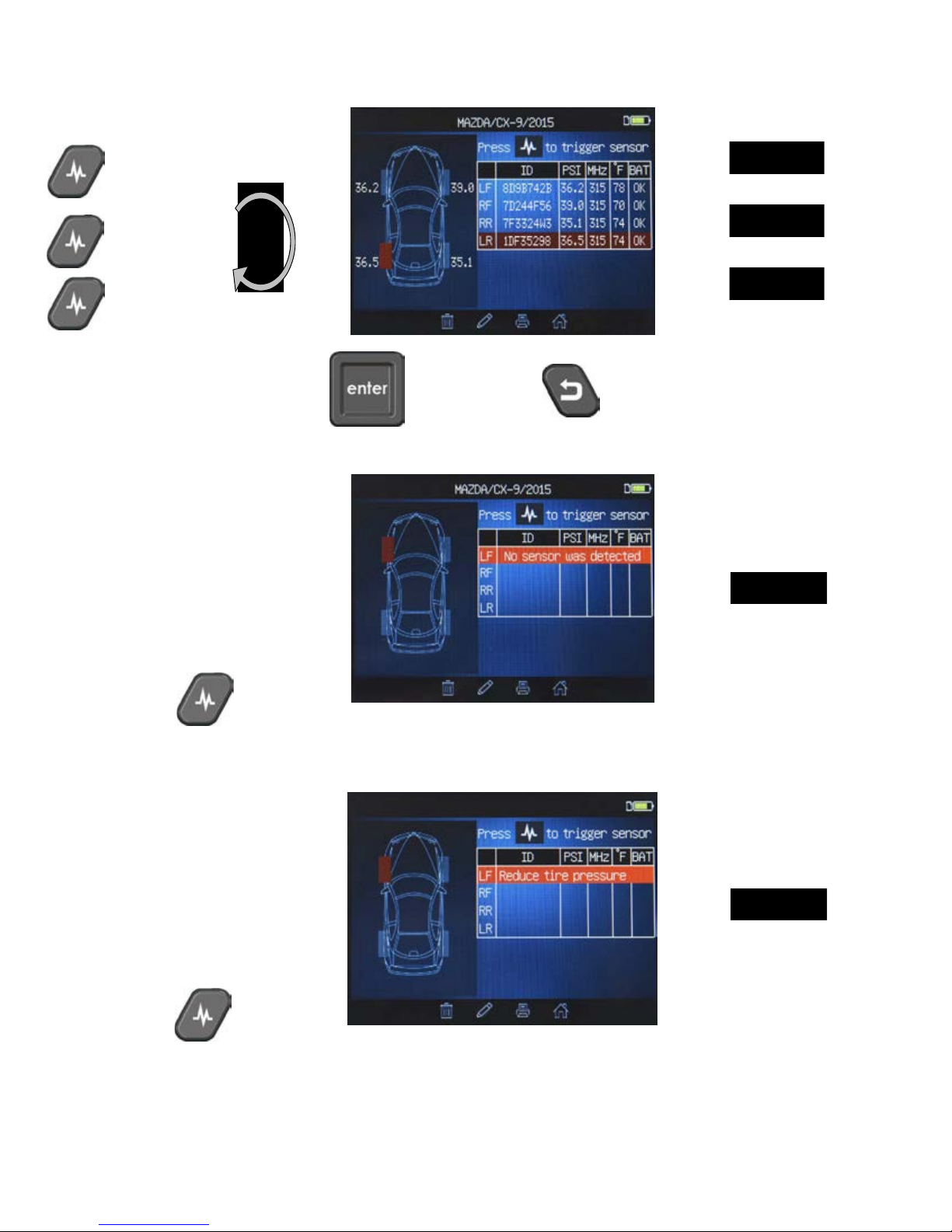

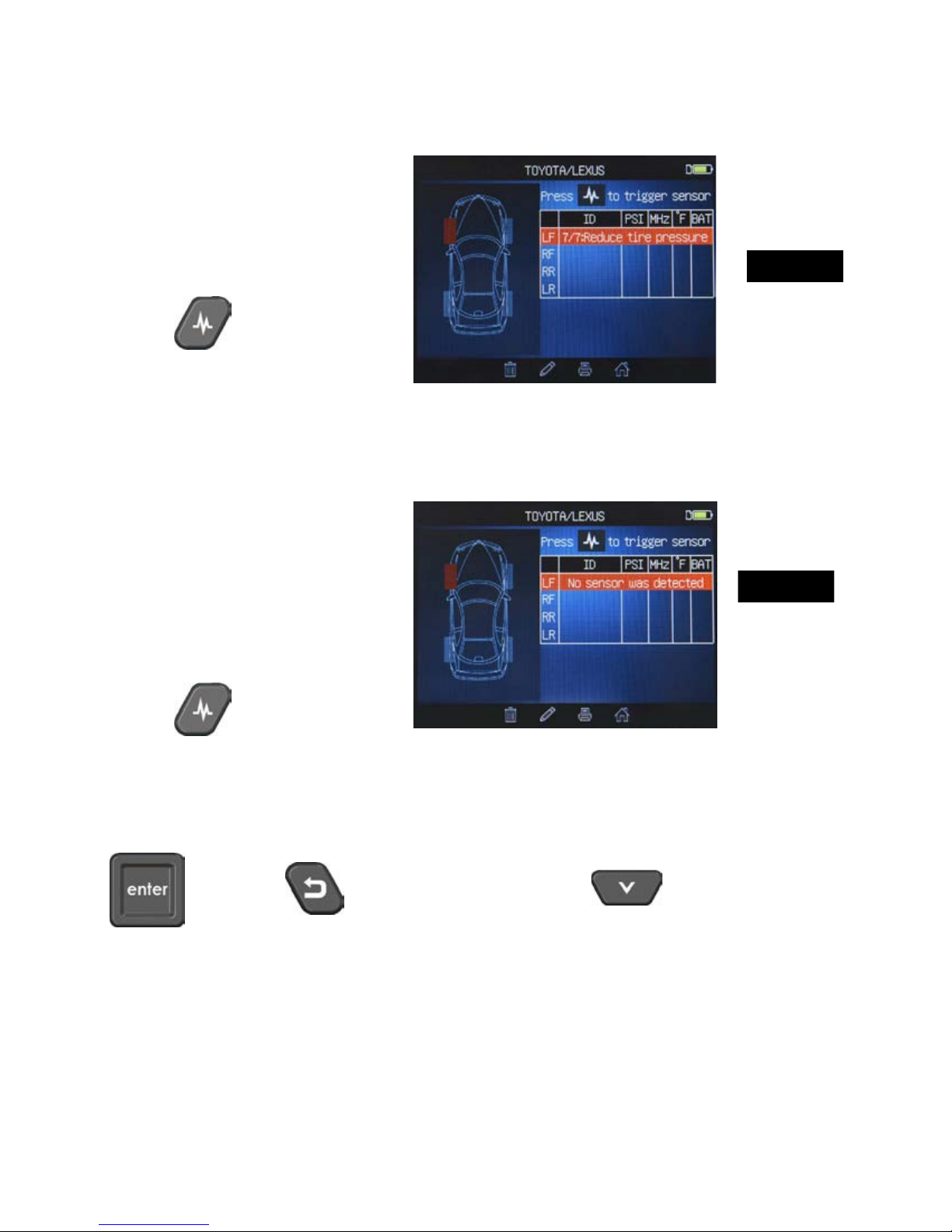

On some earlier model
vehicles, reducing tire pressure
is required to read the TPWS
sensor ID. Reduce tire pressure
after the screen displays
"Reduce Tire Pressure".
LF
If screen displays "No sensor
was detected", press the trigger
button to test sensor again. If
the message is still displayed,
the sensor may be the wrong
sensor type, or need to be
replaced.
LF
= Continue = Previous and erase results = Next wheel.
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
12/52
User Guide TPWS Tester

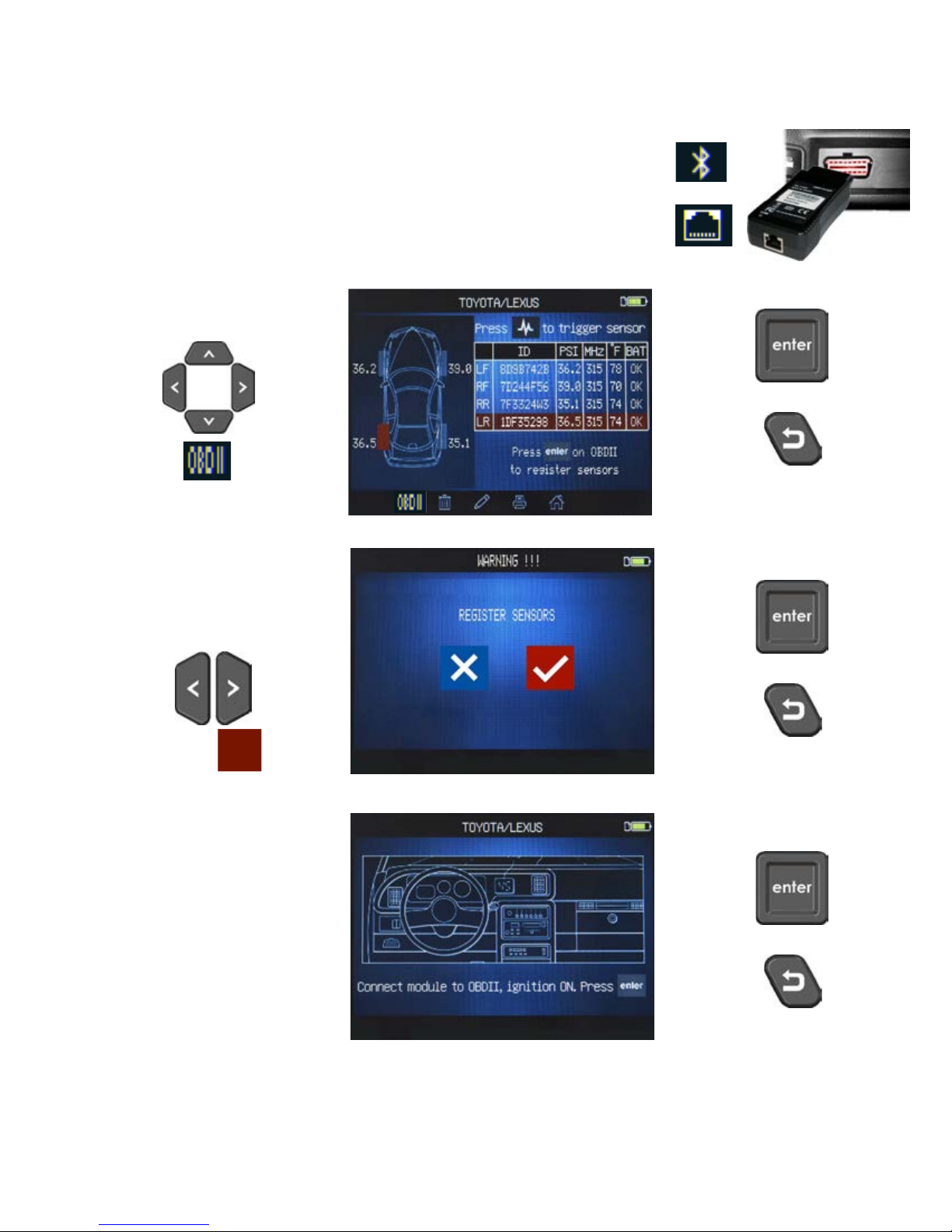

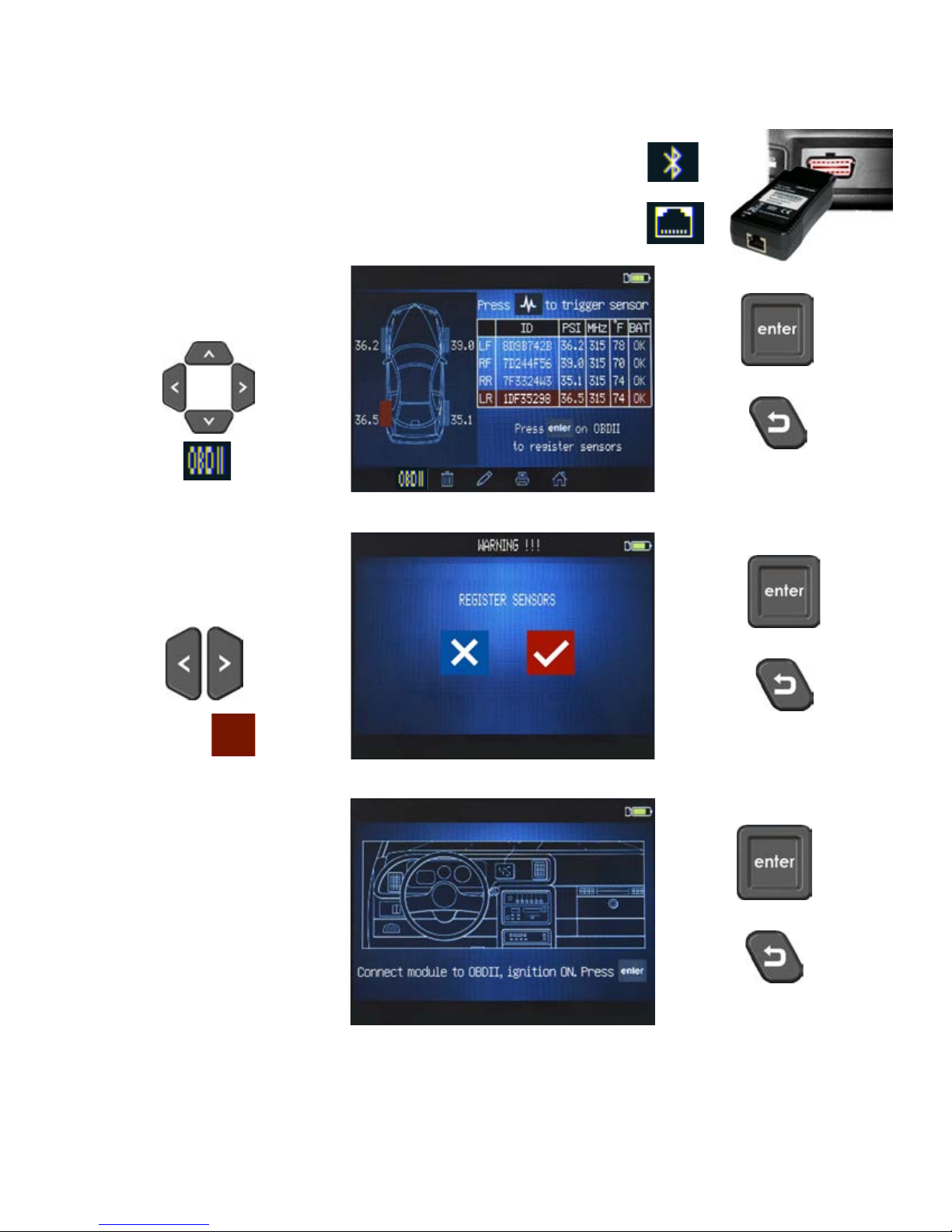

1.4. TPWS SENSOR ID REGISTRATION USING TPWS TESTER
After all sensor IDs are read and displayed on the tool, connect the
OBDII module to the vehicle and the turn ignition on. A Bluetooth icon
will appear on the header of the tool if it’s connected via Bluetooth.
The RJ45 icon appears if the tool is connected to the OBDII
module via cable.
Select the OBDII
icon.
= Continue
= Previous
The device
prompts you to
continue.
Select
Check connection
and turn ignition key
to ON.
Note: Keep the
engine OFF.
= Continue
= Previous
= Continue
= Previous
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
13/52
User Guide TPWS Tester

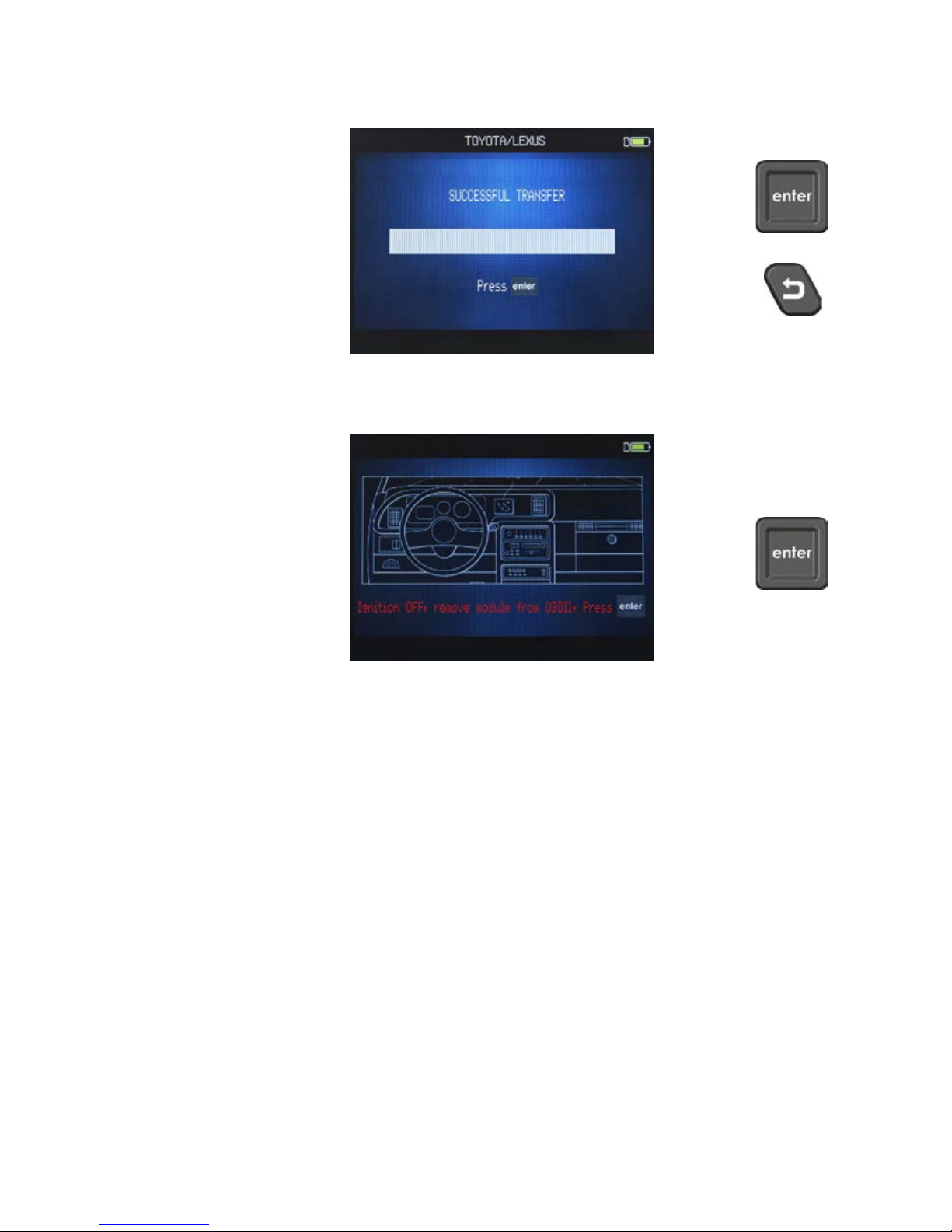

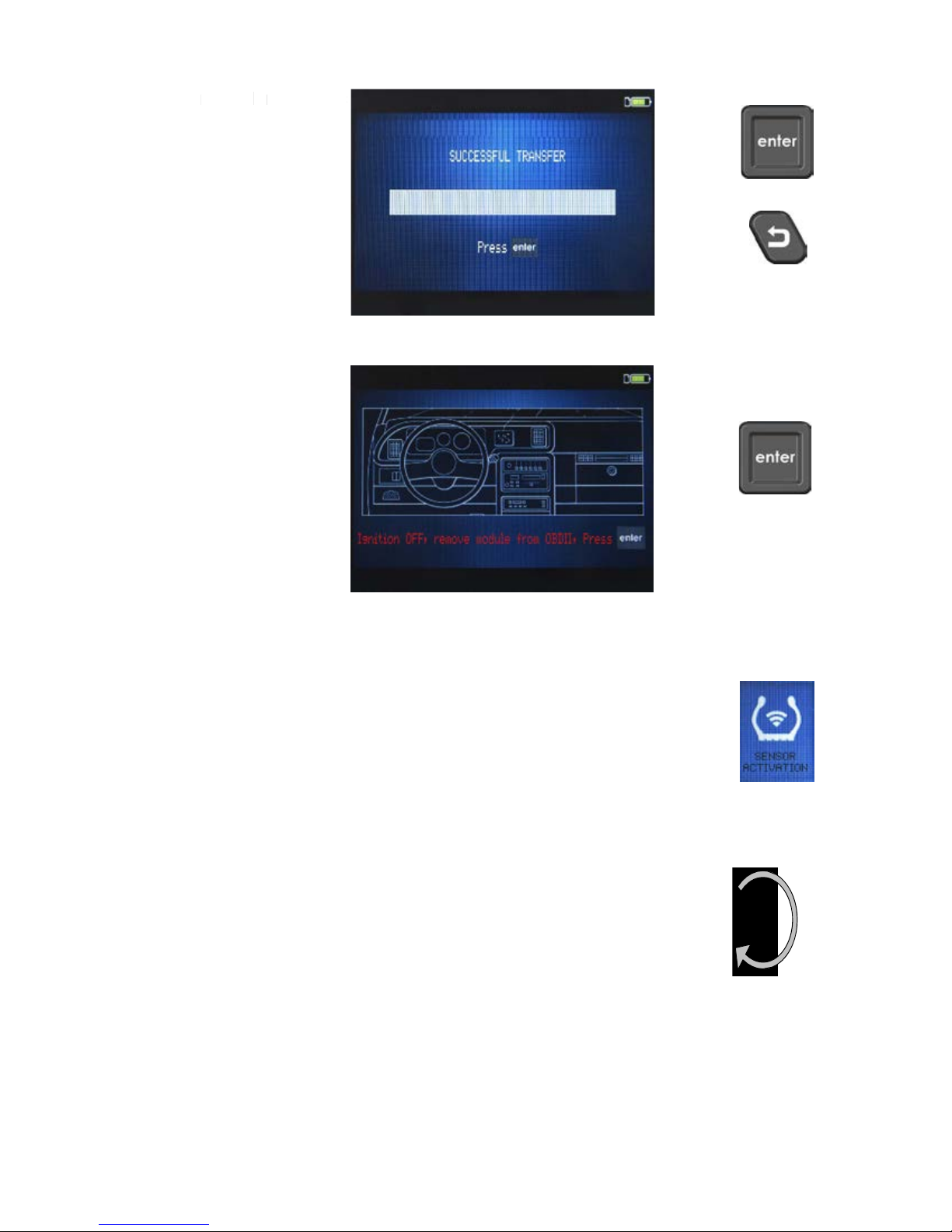

The transfer will
begin. The following
messages appear
briefly.
CONNECTED
TRANSFER OK
VERIFY OK
SUCCESSFUL
TRANSFER
The data transfer to
the ECU is
complete.
Turn ignition off and
unplug from the
DLC connector.
= Continue
= Previous
= Continue
Note: The vehicle dashboard information may take approximately 5 minutes to be
updated after vehicle has been driven.
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
14/52
User Guide TPWS Tester

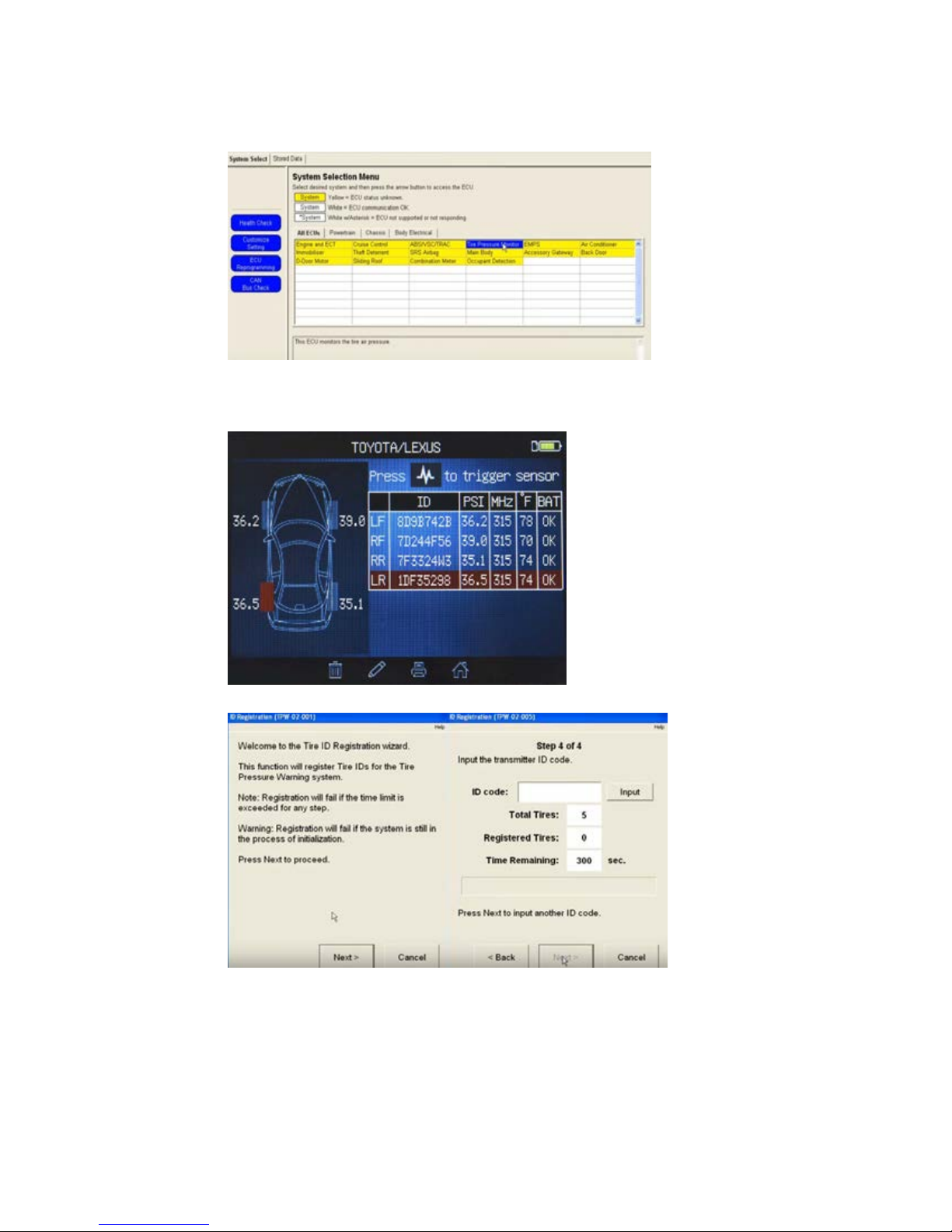

1.5. TPWS SENSOR IDREGISTRATION USING TECHSTREAM
1.5.1. Launch Tire Pressure Monitor / Tire ID Registration.
1.5.2. Input sensor ID codes read by TPWS Tester into Techstream.
1.5.3. Follow the on-screen instructions in Techstream to complete sensor
ID registration.
OTC Technical Support: (800) 933-8335
TPWS TESTER User Guide
SP04500137
15/52
User Guide TPWS Tester

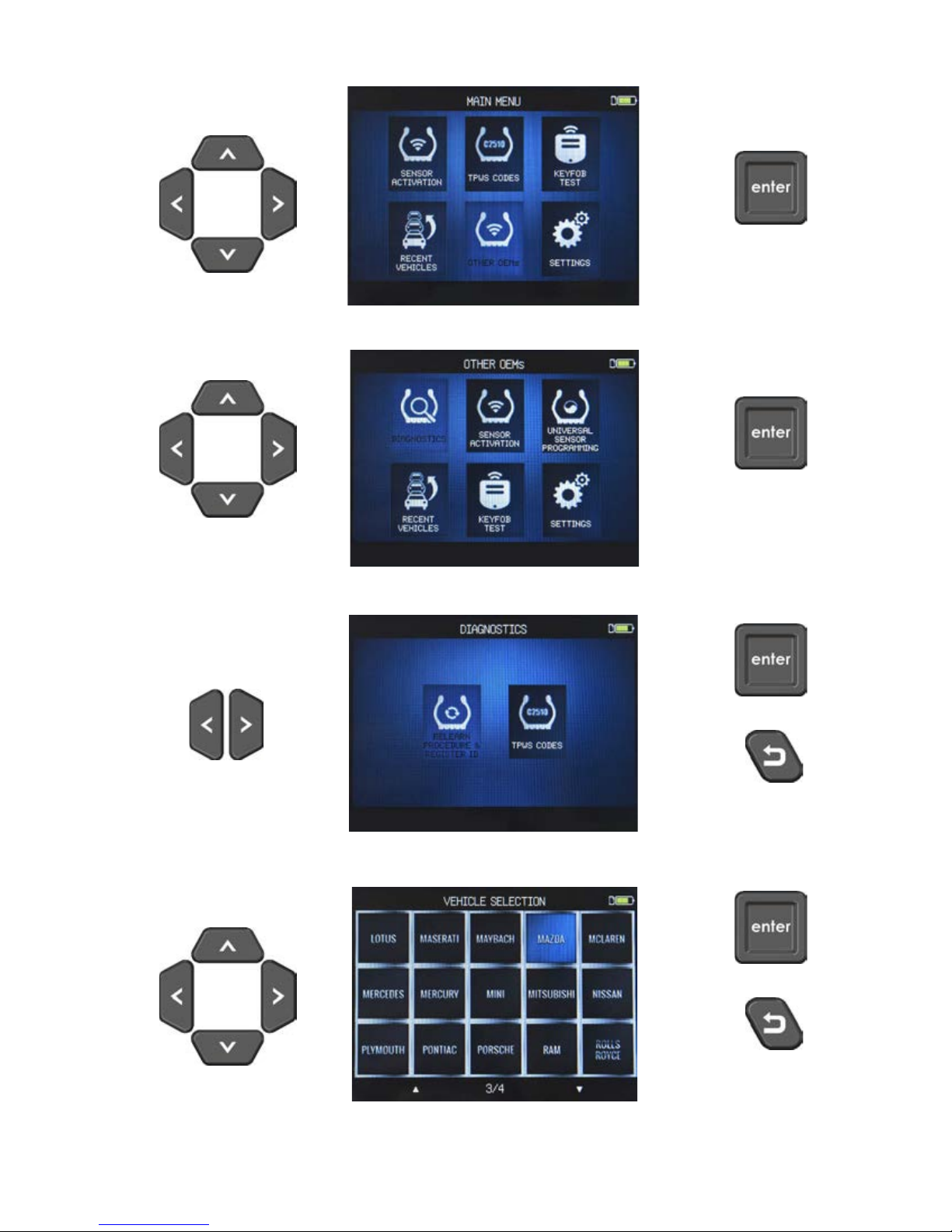

TPWS TESTER USE – OTHER OEMS
I
MPORTANT:
Vehicle specific information is used in this manual as an example and ma y not represent
specific in structi ons for each model and year. When performing v arious functions with the
tool, it is important to refer to the on-screen prompts and/o r repair m anu al info rm atio n.
WARNING:
Features: Read, diagnose sensors, and transfer data to ECU when required.
For best sensor test result, hold the tool against the tire
sidewall right above the valve stem.
Service Procedure
1.
Sensor Activation - Other OEMs
Before servicing the tires/wheels, using your TPWS TESTER, trigger each
of the vehicle's sensors to make sure they are working properly.
This will eliminate the liability associated with replacing previously damaged or defective
sensors. This procedure will not change the vehicle settings because the vehicle has yet to be
put into learn mode. This procedure allows you to quickly identify damaged or defective
sensors, because some vehicles do not report a damaged or defective sensor condition on the
instrument cluster for up to 20 minutes.
Note: If the sensors do not trigger, please refer to the Troubleshooting section
of this Guide.
Perform tire/wheel service.
For vehicles that require learning, please see Section 2.
OTC Technical Support: (800) 933-8335
SP04500137
16/52
User Guide TPWS Tester

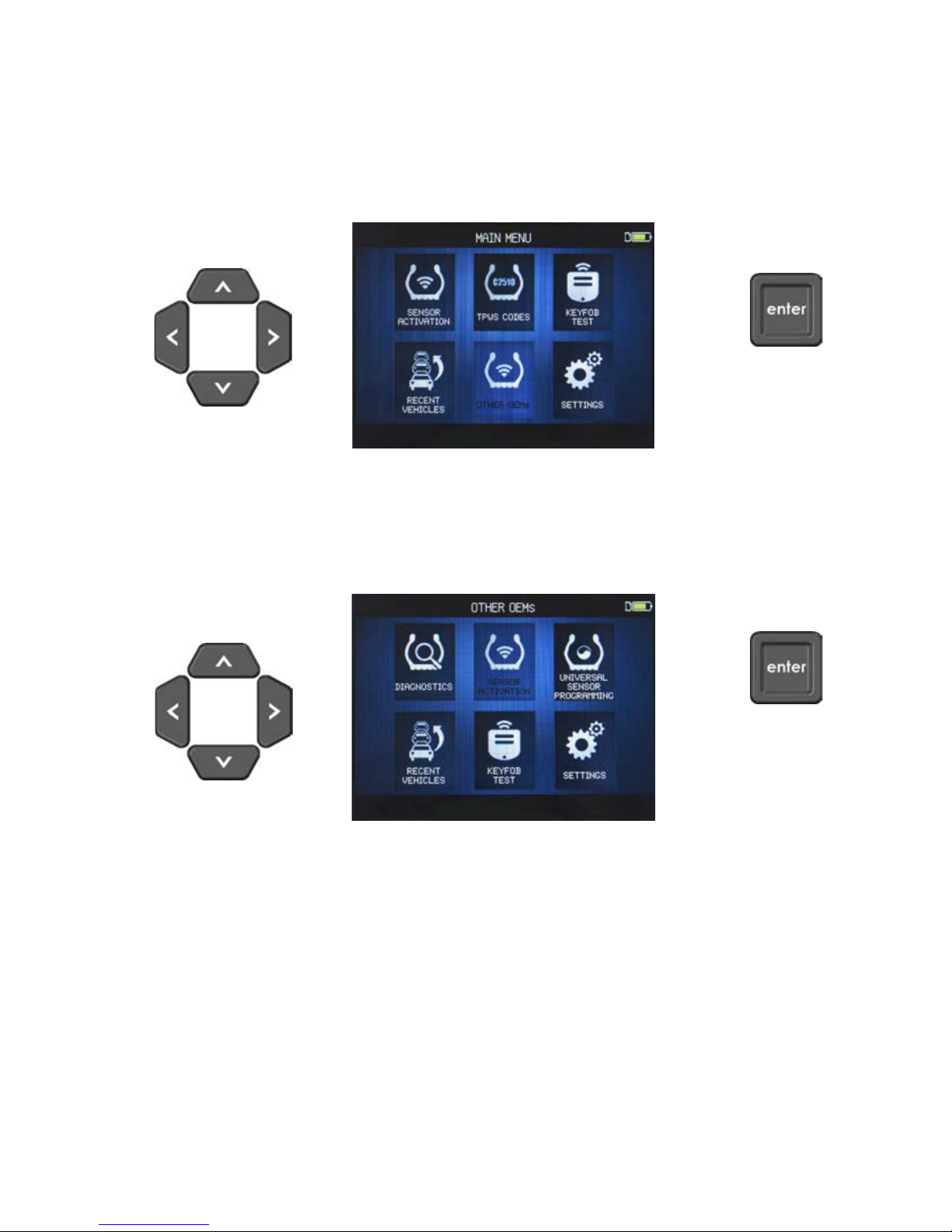

1.1. SELECT OTHER OEMS
This is to trigger all the sensors on the vehicle and reprogram the sensor
ID(s) in the ECU through the OBDII port.
1.2. SELECT SENSOR ACTIVATION
= Continue
= Continue
OTC Technical Support: (800) 933-8335
SP04500137
17/52
User Guide TPWS Tester
TPWS TESTER User Guide

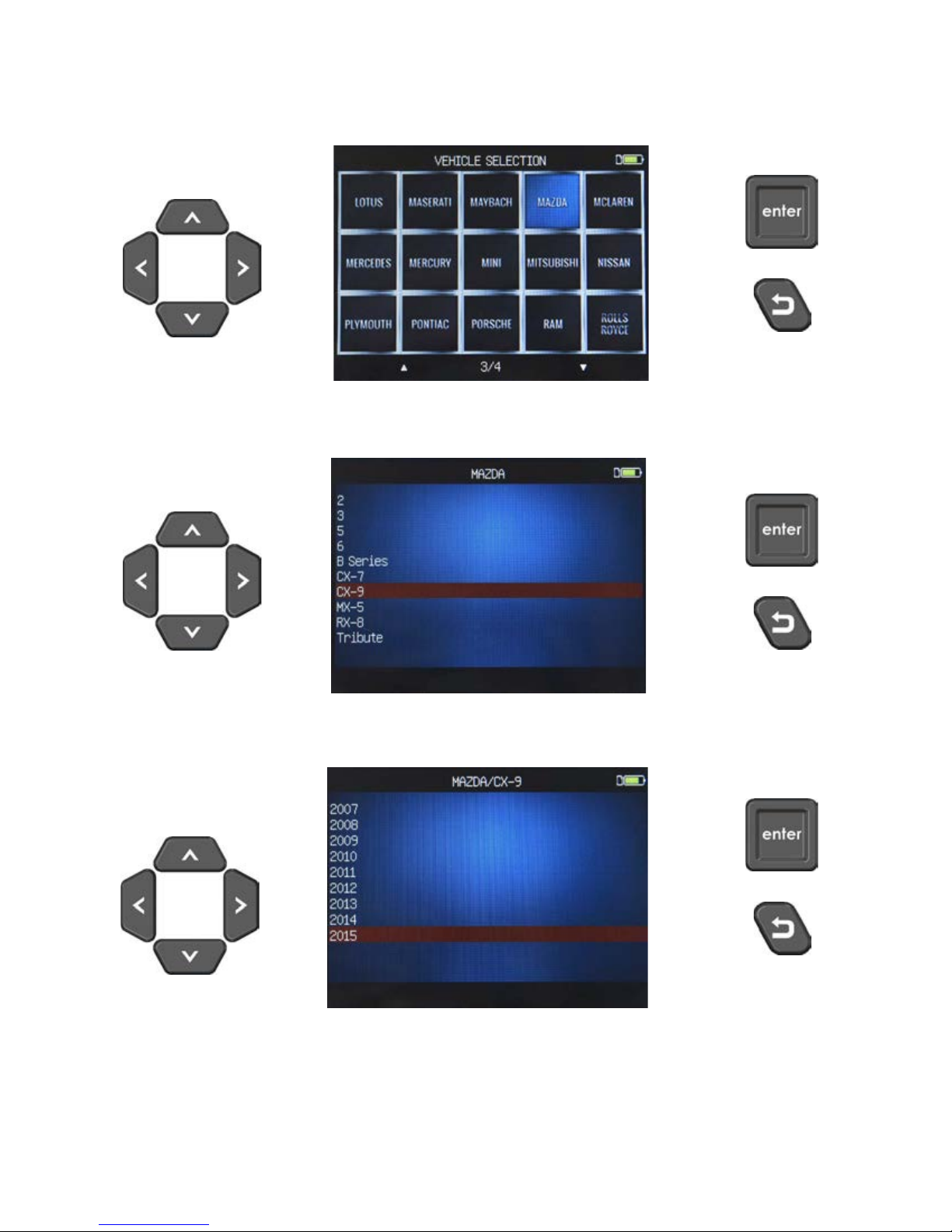

1.3. SELECT CAR MANUFACTURER
1.4. SELECT VEHICLE MODEL
= Continue
= Previous
1.5. SELECT YEAR
= Continue
= Previous
= Continue
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
18/52
User Guide TPWS Tester
TPWS TESTER User Guide

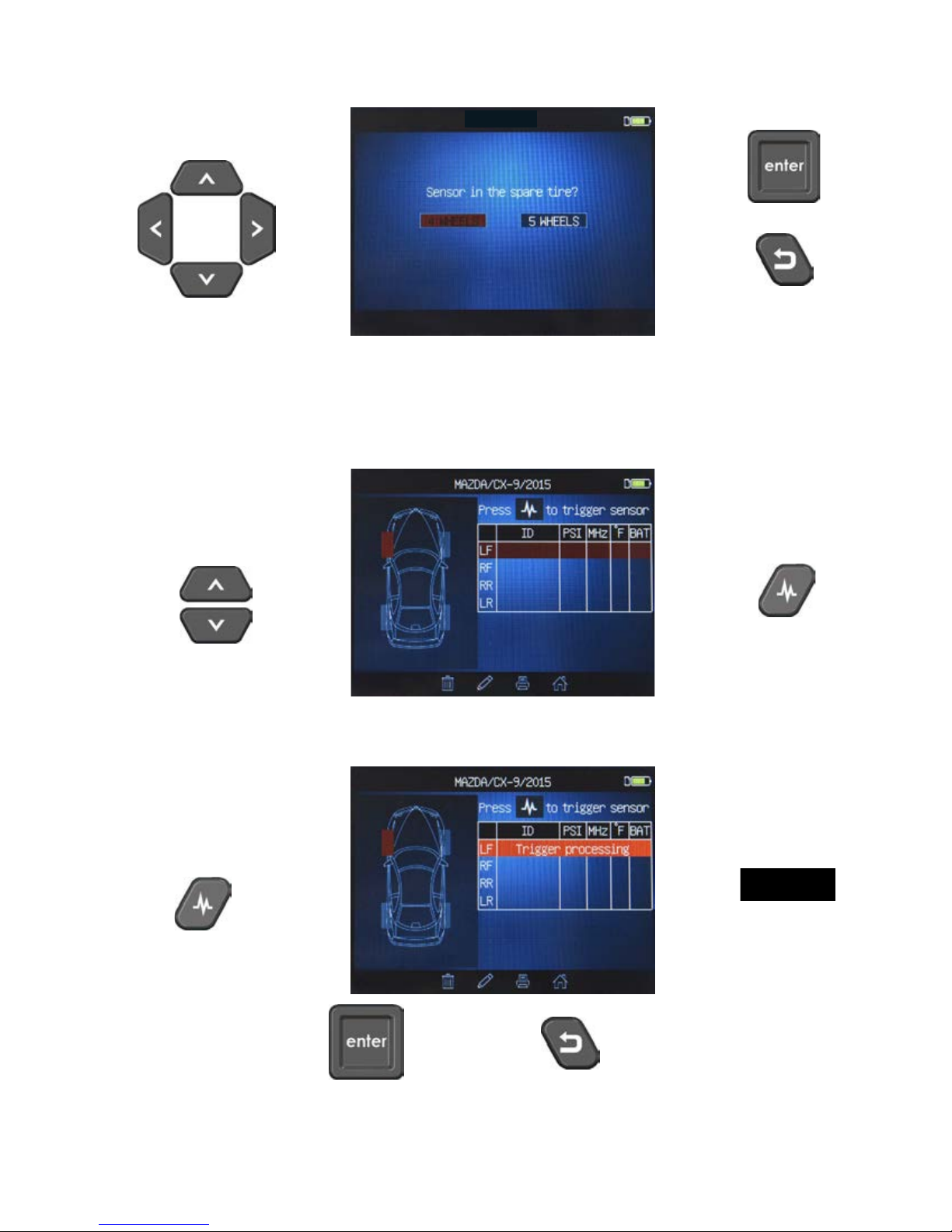

1.6. SELECT NUMBER OF WHEELS
= Continue
= Previous
Note: If the spare tire in the vehicle has a TPWS sensor, then select "5 WHEELS".
1.7. TEST SENSORS
The tool is ready to
trigger the sensors.
To scroll wheels.
On the keypad, press the
trigger button until "trigger
processing" appears.
LF
The tool is triggering
the sensors.
OTC Technical Support: (800) 933-8335
SP04500137
19/52
User Guide TPWS Tester
TPWS TESTER User Guide
Trigger all wheels.
RF
RR
1 Start LF
4 LR
2 RF
3 RR
LR
If the screen displays
“No sensor was
detected”, press the
trigger button to test the
sensor again. If the
same message is still
displayed, the sensor
may be wrong or need
to be replaced.
= Continue
= Previous
LF
On some earlier model
vehicles reducing tire
pressure is required to
read the TPWS sensor ID.
Reduce tire pressure after
the screen displays
"Reduce Tire Pressure".
LF
OTC Technical Support: (800) 933-8335
SP04500137
20/52
User Guide TPWS Tester
TPWS TESTER User Guide
1.8. REPROGRAM ECU THROUGH OBDII PORT – OTHER OEMS
After all sensor ID’s are read and displayed on the tool,
connect OBDII module to the vehicle and turn ignition on.
The Bluetooth icon appears on the header of the tool if it’s
connected via Bluetooth. The RJ45 icon appears if the tool
is connected to the OBDII module via cable.
Select the OBDII
icon.
= Continue
= Previous
The device
prompts you
to continue.
Select
Check connection
and turn ignition key
to ON.
Note: Keep the
engine OFF.
= Continue
= Previous
= Continue
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
21/52
User Guide TPWS Tester
TPWS TESTER User Guide
SELECT DIAGNOSTIC
S
The transfer will
begin. The following
messages appear
briefly.
CONNECTED
TRANSFER OK
VERIFY OK
SUCCESSFUL
TRANSFER
The data transfer to
the ECU is complete.
Turn ignition off and
unplug from the
DLC connector.
= Continue
= Previous
= Continue
2.
Relearn Procedure - Other OEMs
This service explains the procedure on how to relearn the sensors on the
vehicle.
With the vehicle in learn mode, begin by triggering the driver's left front
(LF) wheel sensor. Some vehicles will provide an audible chirp
confirming that the sensor ID has been learned by the vehicle on board
computer.
The communication between the sensor and the on board computer
is also confirmed on the LCD display of the TOOL.
The same procedure should be followed on all wheel sensors, in a
1 Start FL
clockwise rotation, until all the vehicle sensors have been learned.
After triggering the driver's rear wheel sensor, some vehicles will
chirp twice indicating that the TPWS system has been learned.
4 End RL
For vehicles that do not require learning, we recommend you
trigger each wheel sensor, one final time, to make sure they are
working correctly prior to releasing the vehicle to the customer.
FR 2
RR 3
OTC Technical Support: (800) 933-8335
SP04500137
22/52
User Guide TPWS Tester
TPWS TESTER User Guide
2.1.
SELECT OTHER OEMS
2.2.
SELECT DIAGNOSTIC
= Continue
= Continue
2.3.
SELECT RELEARN PROCEDURE & REGISTER ID
2.4.
SELECT CAR MANUFACTURER
= Continue
= Previous
= Continue
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
23/52
User Guide TPWS Tester
TPWS TESTER User Guide
2.5.
Use the keypad
instructions.
SELECT VEHICLE MODEL
2.6.
SELECT YEAR
= Continue
= Previous
= Continue
2.7.
CONFIRMATION FOR RELEARN PROCEDURE
to scroll up and
down to read
= Previous
= Continue
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
24/52
User Guide TPWS Tester
TPWS TESTER User Guide
2.8.
SELECT NUMBER OF WHEELS
= Continue
= Previous
Note: If the spare tire in the vehicle has a TPWS sensor, then select "5 WHEELS".
2.9.
TEST SENSORS
The tool is ready to
trigger the sensors.
To scroll wheels.
On the keypad, press
the trigger button until
"trigger processing"
appears.
LF
The tool is triggering
the sensors.
= Continue
= Previous and erase results
OTC Technical Support: (800) 933-8335
SP04500137
25/52
User Guide TPWS Tester
TPWS TESTER User Guide
Trigger all wheels.
RR
RF
1 Start LF
RR
4 LR
LR
If the screen displays “No
sensor was detected”, press
the trigger button to test the
sensor again. If the same
message is still displayed,
the sensor may be the wrong
sensor type, or need to be
replaced.
2
RF
3
RR
= Continue
= Previous and erase results
LF
On some earlier model
vehicles reducing tire
pressure is required to read
the TPWS sensor ID.
Reduce tire pressure after
the screen displays "Reduce
Tire Pressure".
LF
OTC Technical Support: (800) 933-8335
SP04500137
26/52
User Guide TPWS Tester
TPWS TESTER User Guide
3. UNIVERSAL SENSOR PROGRAMMING – OTHER OEMS
The TPWS Tester works with most known aftermarket universal programmable sensors with
the options to create the new sensor ID(s) and/or to duplicate sensor ID(s) from original
sensor(s).
3.1.
SELECT OTHER OEMS
= Continue
= Previous
3.2. SELECT UNIVERSAL SENSOR PROGRAMMING
SELECT BRAND
3.3.
= Continue
= Previous
= Continue
Use the keypad to scroll up
and down to select the brand.
Note: Some of the above brands shown in this example may change.
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
27/52
User Guide TPWS Tester
TPWS TESTER User Guide

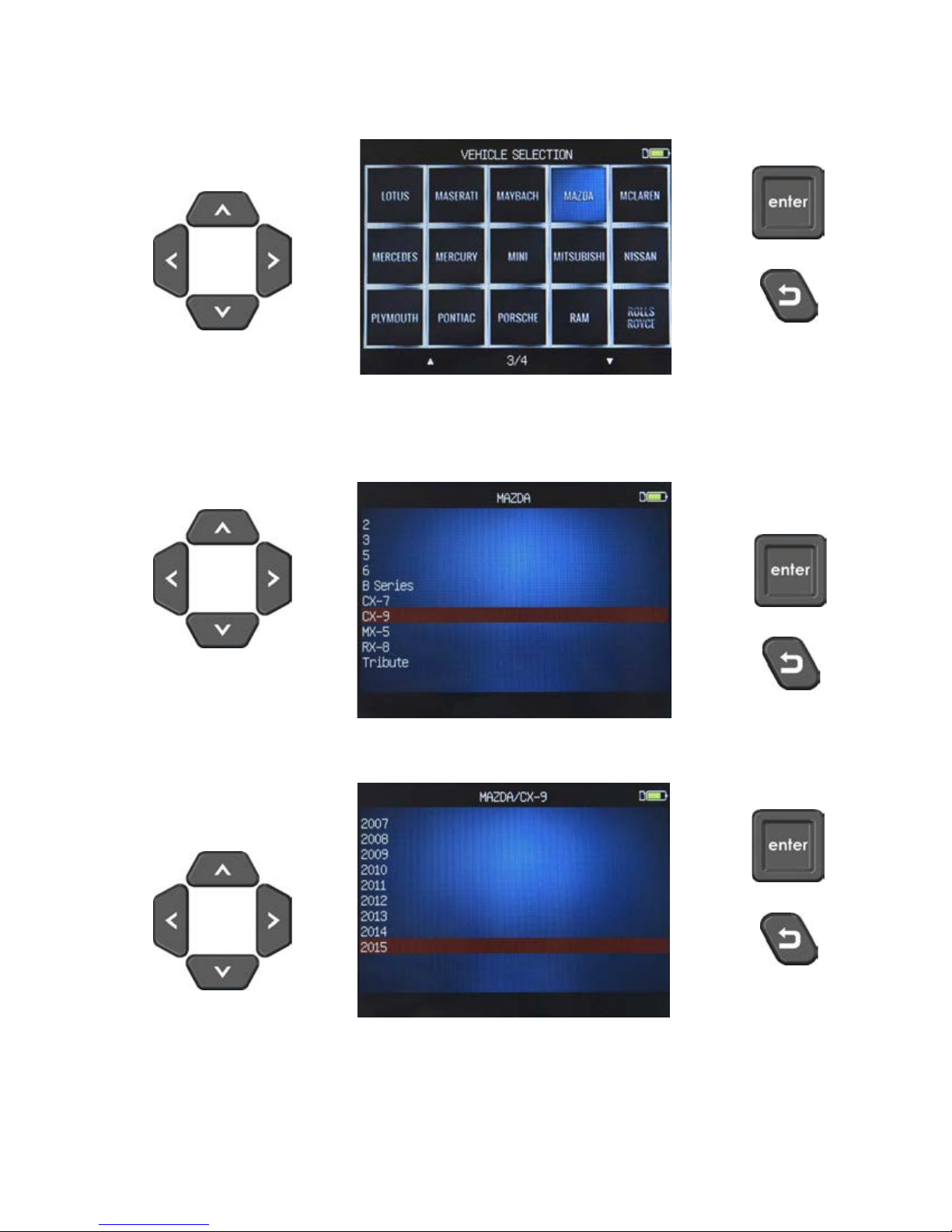

3.4.
SELECT VEHICLE MANUFACTURER
= Continue
= Previous
3.5. SELECT VEHICLE MODEL
SELECT YEAR
3.6.
= Continue
= Previous
= Continue
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
28/52
User Guide TPWS Tester
TPWS TESTER User Guide
3.7.
SELECT SENSOR MODEL
The models of
sensors are
displayed here.
= Continue
= Previous
3.8.
"COPY SENSOR ID" SECTION – OTHER OEMS
This section is to recover a sensor ID if the "old" sensor can be cloned.
Scroll right and left
to select the
COPY option.
= Continue
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
29/52
User Guide TPWS Tester
TPWS TESTER User Guide
Position the sensor
in front of the tool
antenna to check
the sensor.
Wait a few seconds
as the tool triggers
the sensor.
The sensor data is
displayed.
To trigger
the sensor.
= Continue
= Previous
Position the sensor
in front of the tool’s
antenna to send
the ID to the
new sensor.
Wait a few seconds.
= Continue
= Home
OTC Technical Support: (800) 933-8335
SP04500137
30/52
User Guide TPWS Tester
TPWS TESTER User Guide
The tool will verify
the sensor.
The tool will confirm
the sensor
is cloned.
OTC Technical Support: (800) 933-8335
SP04500137
31/52
User Guide TPWS Tester
TPWS TESTER User Guide
3.9.
"CREATE SENSOR ID" SECTION – OTHER OEMS
This section is to create a MMY specific sensor if the "old" sensor can't be cloned. The "new"
sensor ID(s) are generated randomly by the tool, and may not be the same as the original. A
TPWS reset (see Section 2) is required, when new sensor ID(s) are created.
Scroll right and left
to select the
CREATE option.
= Continue
= Previous
Position the sensor in
front of the tool’s
antenna and press
enter to send the
= Continue
ID code to the
new sensor.
Wait a few seconds.
= Home
OTC Technical Support: (800) 933-8335
SP04500137
32/52
User Guide TPWS Tester
TPWS TESTER User Guide

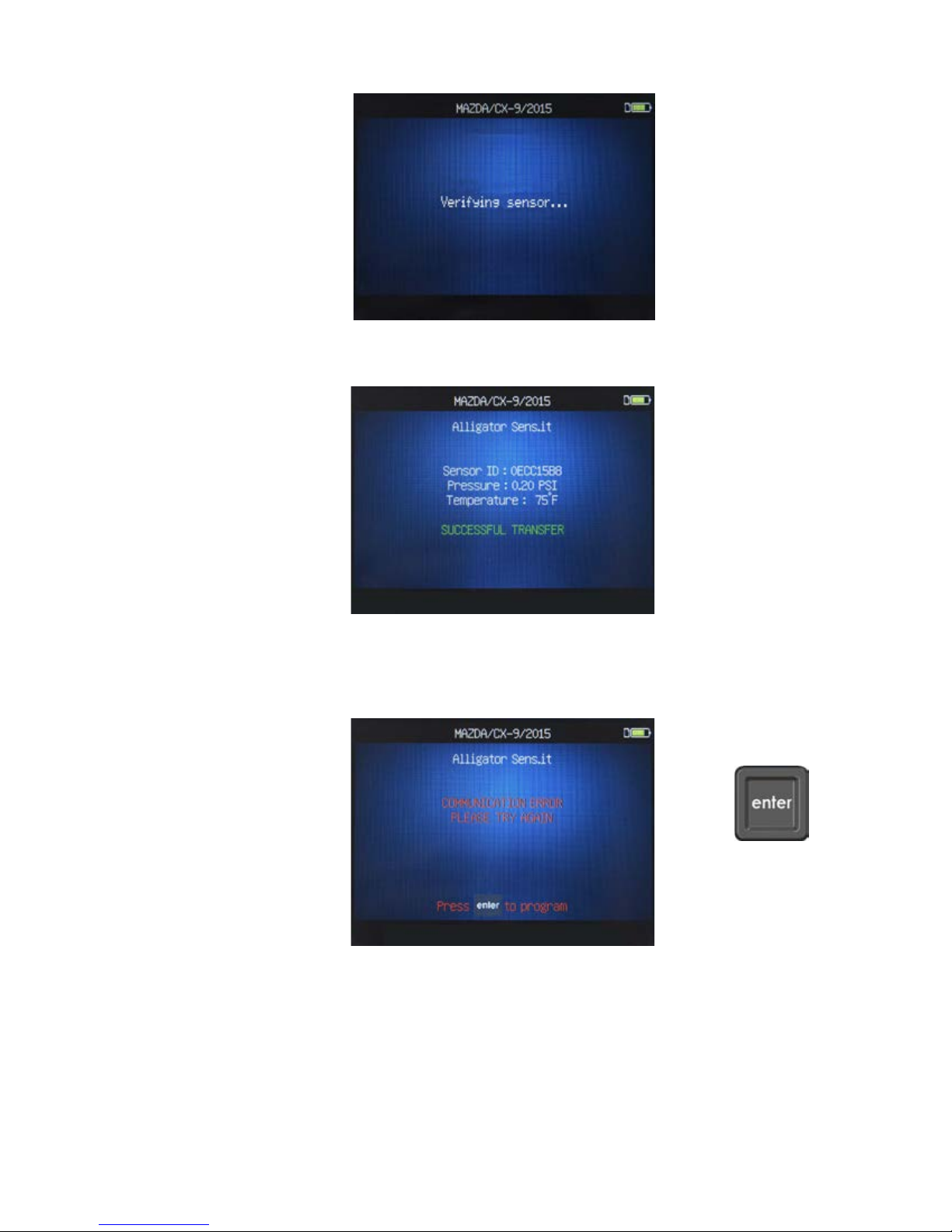

The tool will verify
= Start
again
the sensor.
The tool will confirm
the sensor is cloned.
3.10. REPROGRAM ISSUE - OTHER OEMS
In case of an ID
transfer issue, the
following message
appears indicating
you must start again.
OTC Technical Support: (800) 933-8335
SP04500137
33/52
User Guide TPWS Tester
TPWS TESTER User Guide
TPWS TESTER USE – OTHER FEATURES
1. RECENT VEHICLE
This feature shows a list of the latest device activity.
Use the keypad to
select, “Recent
Vehicles”.
1.1.
RECENT
= Continue
= Previous
Select the vehicle
to display.
When a vehicle
record is selected,
the stored sensor ID
information is
displayed. It is
possible to load or
reload the sensor
ID(s), if needed.
= Continue
= Previous
= To trigger
the sensor
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
34/52
User Guide TPWS Tester
TPWS TESTER User Guide

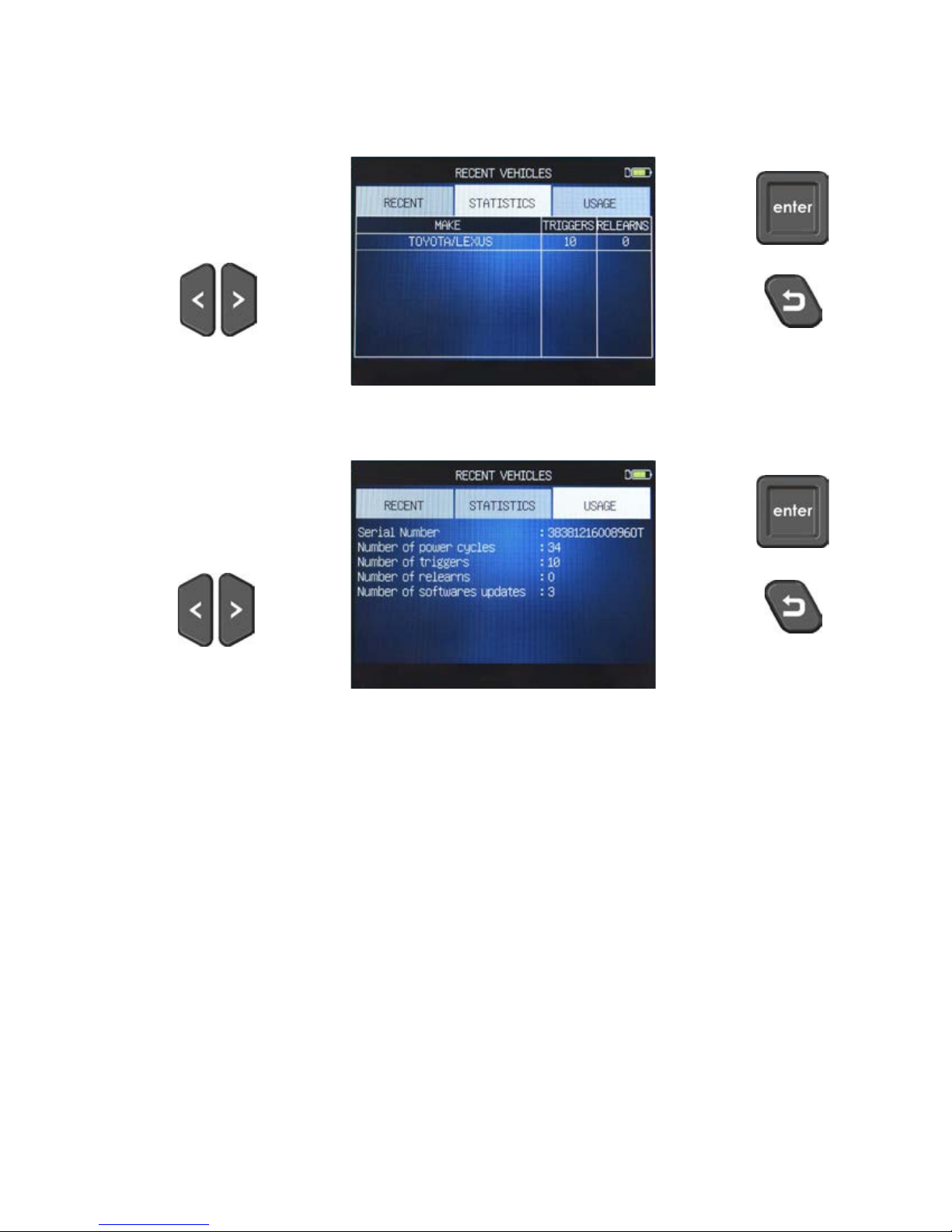

1.2. STATISTICS
Scroll right and left
to select the
STATISTICS option.
1.3.
USAGE
Scroll right and left
to select the
USAGE option.
= Continue
= Previous
= Continue
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
35/52
User Guide TPWS Tester
TPWS TESTER User Guide
2. KEYFOB TEST
This is to test the strength of the RF signal of the keyfob.
2.1.
LOCATE FCC ID
Use the Federal Communications Commission’s (FCC) ID located on the back of the key fob,
and the FCC website to determine the correct key fob frequency:
2.2.
ACCESS FCC WEBSITE
Access the FCC website www.fcc.gov/oet/ea/fccid and enter the FCC ID from the key fob into
the search form.
OTC Technical Support: (800) 933-8335
SP04500137
36/52
User Guide TPWS Tester
TPWS TESTER User Guide
2.3.
FIND THE RESULTS
After clicking search, the FCC ID results are displayed.
2.4.
SELECT CORRECT FCC ID
Select the correct frequency for the key fob test function on the tool and proceed with the test.
Select "KeyFob
Test".
= Continue
= Previous
Select the
frequency.
Read the
instructions and wait
a few seconds for
the next screen.
= Continue
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
37/52
User Guide TPWS Tester
TPWS TESTER User Guide
Press and hold
the lock or
unlock button
on the key fob.
= To start
a test.
The device waits for the RF signal.
PASS: The key fob is
projecting a strong
signal strength.
FAIL: Low signal
strength indicates
a low battery. It is
recommended that
you replace
the battery.
= To reset
the device
and start a
new test.
= To reset
the device
and start a
new test.
OTC Technical Support: (800) 933-8335
SP04500137
38/52
User Guide TPWS Tester
TPWS TESTER User Guide
3. SETTINGS
3.1.
ENTER SETTINGS MENU
Use the keypad to
select "Settings"
and press enter.
Use the keypad to select
a function to change the
setting as desired.
= Continue
= Previous
= Continue
LANGUAGE
FORMAT
Select displayed language among English, Español (Spanish), and
Français (French).
Change the air pressure and temperature display (kPa, Bar or PSI and F°
or C°). Change the format of sensor ID display.
BUZZER Turn buzzer to ON or OFF (YES or NO).
AUTO OFF Time to turn off the device automatically after not being operated.
BLUETOOTH This is to pair the OBDII module to the tool.
ABOUT Displays the current version and information about the device.
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
39/52
User Guide TPWS Tester
TPWS TESTER User Guide
3.2.
CHANGE LANGUAGE SETTINGS
LANGUAGE: Used to change the language displayed on screen.
Select
Languages.
Scroll up and down
to select the
desired Language.
= Continue
= Previous
= Continue
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
40/52
User Guide TPWS Tester
TPWS TESTER User Guide

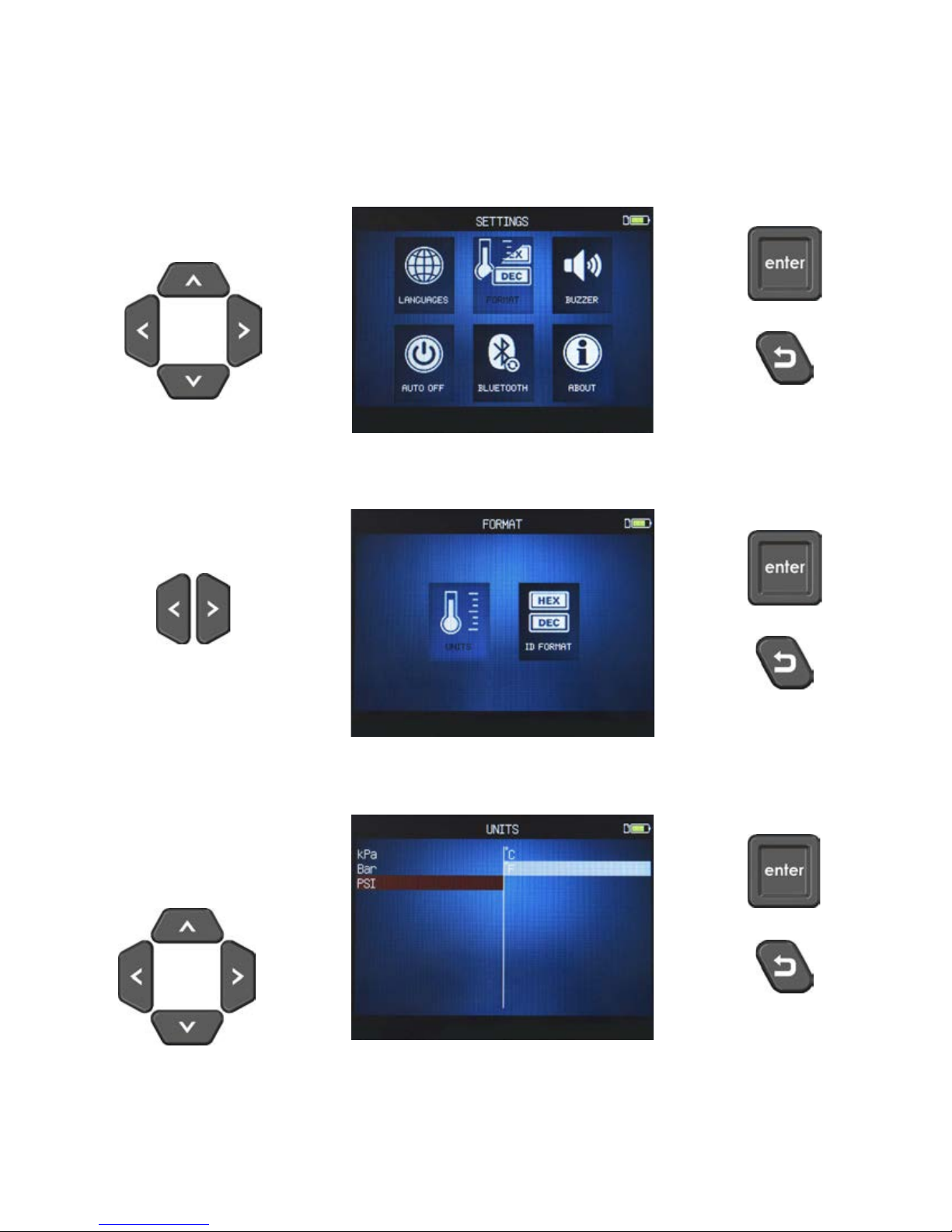

3.3.
CHANGE UNITS SETTINGS
UNITS: Used to change the pressure and temperature units of measurement
displayed on screen.
Select the Format
function.
Select Units.
= Confirm
= Previous
Select the pressure
and temperature
Units.
= Continue
= Previous
= Confirm
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
41/52
User Guide TPWS Tester
TPWS TESTER User Guide

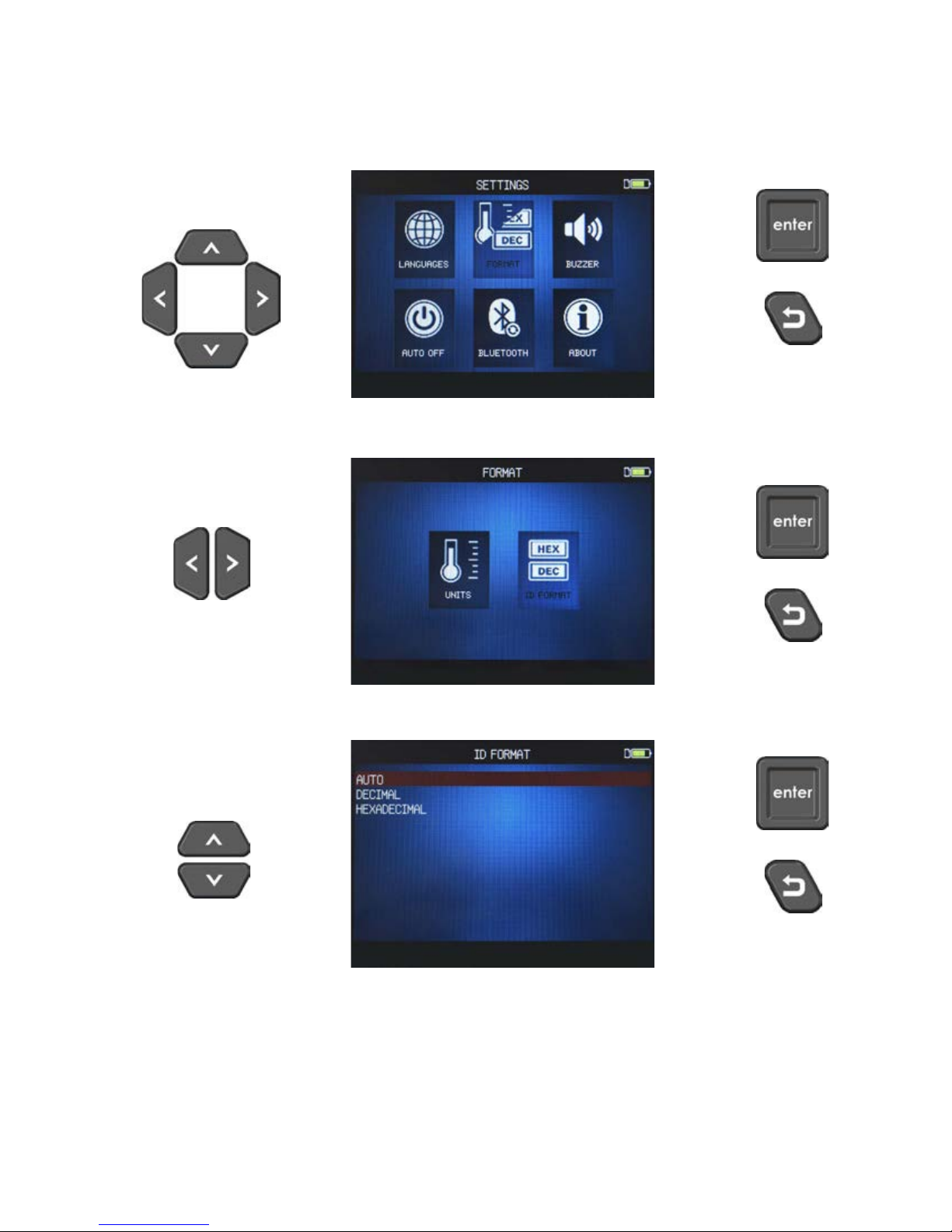

3.4.
CHANGE ID FORMAT SETTINGS
FORMAT: Used to change the format of the sensor ID(s) displayed on screen.
Select the Format
function.
Select the ID
Format function.
= Confirm
= Previous
Scroll up and down
to select a format.
AUTO: Will display sensor ID(s) as transmitted from the sensor.
DECIMAL: Will display sensor ID(s) in decimal (0 to 9).
= Confirm
= Previous
= Confirm
= Previous
HEXADECIMAL: Will display sensor ID(s) in hexadecimal (0 to F).
OTC Technical Support: (800) 933-8335
SP04500137
42/52
User Guide TPWS Tester
TPWS TESTER User Guide
3.5.

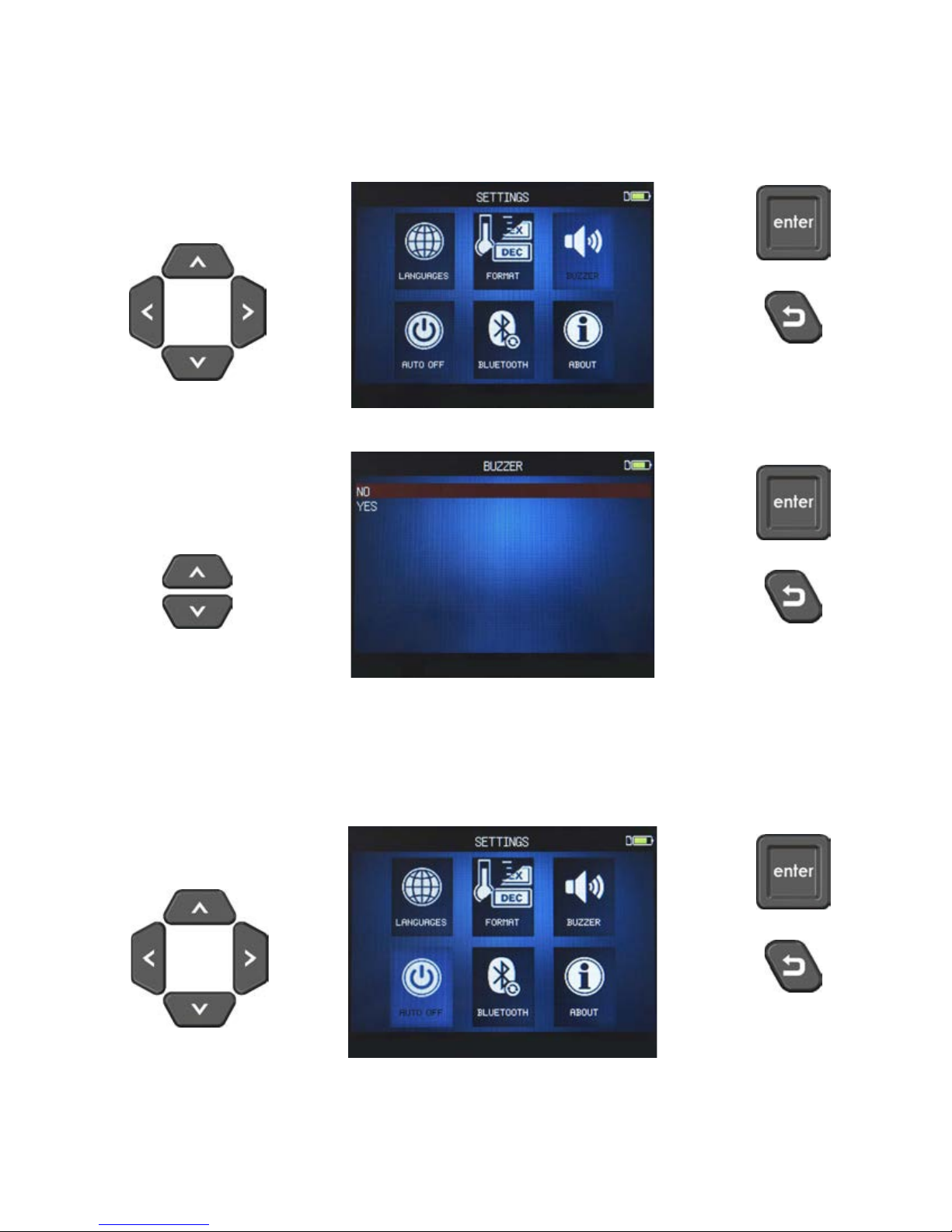

CHANGE BUZZER SETTINGS
BUZZER: Used to turn buzzer to ON or OFF. When the buzzer is set to YES, an audible
beep is heard when the sensor ID(s) is detected.
Select the Buzzer
function.
= Confirm
= Previous
Scroll up and down
to select Yes or No.
= Confirm
= Previous
3.6.
CHANGE AUTO OFF SETTINGS
AUTO OFF: Used to select the number of minutes the device will remain ON before
automatically shutting OFF when there is no activity.
Select the Auto Off
function.
= Confirm
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
43/52
User Guide TPWS Tester
TPWS TESTER User Guide
Scroll up (+) and
down (-) to change
time.
Change to 60 min
(maximum) or to
DISABLED (never).
= Confirm
= Previous
3.7.
BLUETOOTH
This is to pair the OBDII module to the tool.
Select the Bluetooth
function.
= Continue
= Previous
Enter the MAC
address found on
the OBDII module.
= Continue
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
44/52
User Guide TPWS Tester
TPWS TESTER User Guide
3.8.

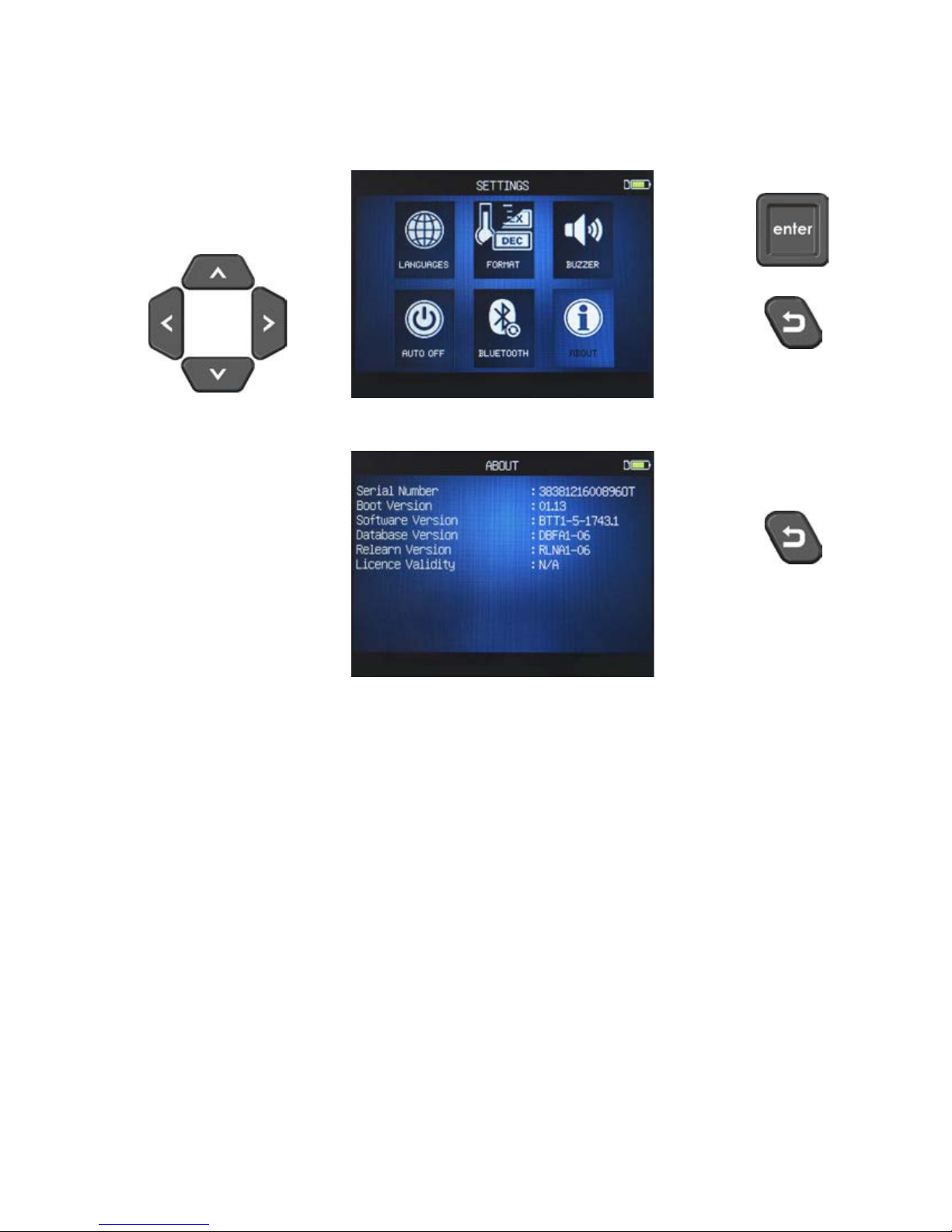

ABOUT
Displays the current version and information about the device.
Select the About
function.
View various
information about
the tool's software
version and more.
= Continue
= Previous
= Previous
OTC Technical Support: (800) 933-8335
SP04500137
45/52
User Guide TPWS Tester
TPWS TESTER User Guide
MISCELLANEOUS

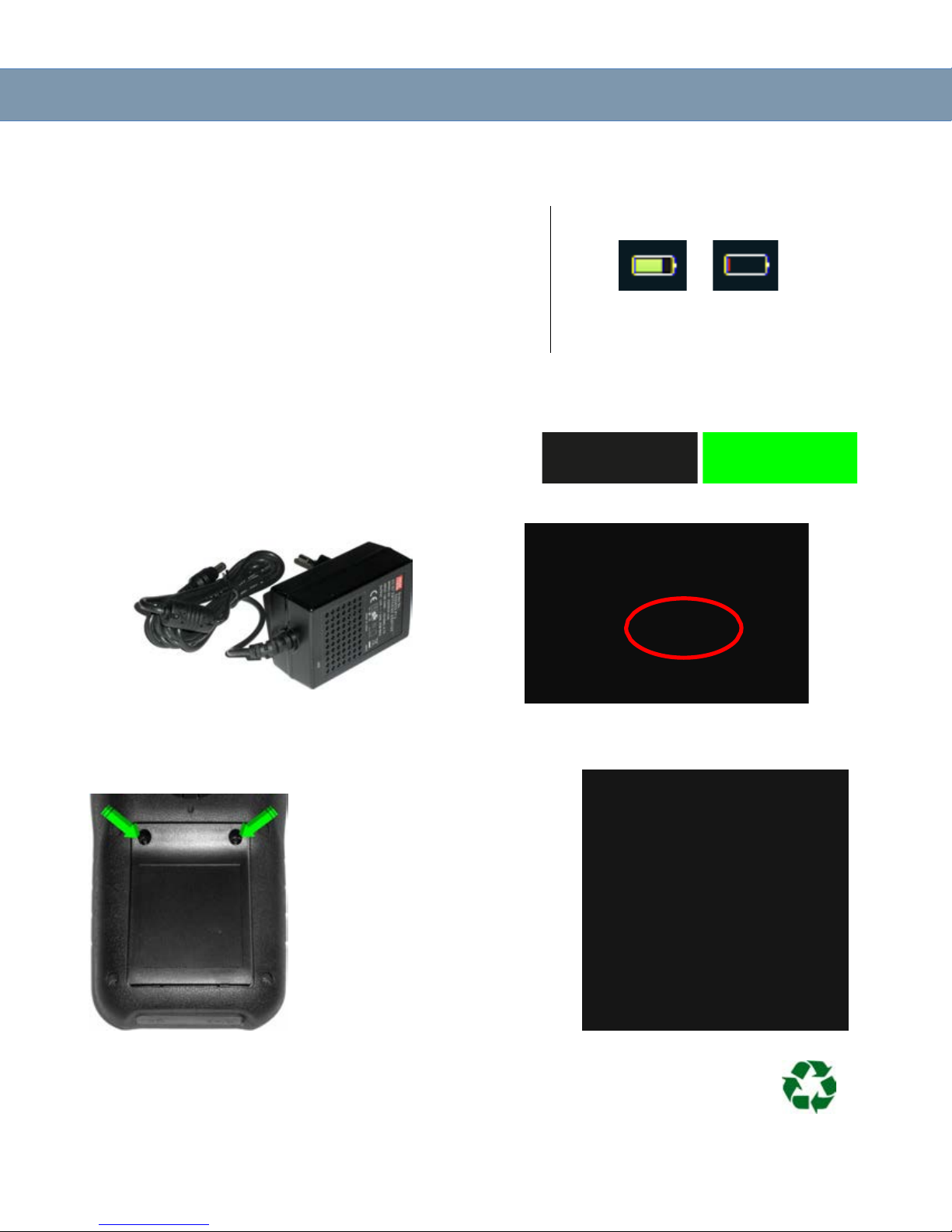

1. CHARGE
Low Battery Indication
Your TPWS TESTER incorporates a low battery
detection circuit. Battery life is an average of 800
sensor tests per battery charge (approximately 160
to 200 vehicles) this may change following the sensor
model.
DO NOT use the tool with low battery status because the transmission and emission may not
be reliable.
When charging, the battery light is red and becomes
green when the battery is fully charged.
Battery indicator status:
When low, icon is flashing and the
tool will turn off after 10 seconds.
For charging the tool, directly plug the supply jack to the tool and plug the supply in an
appropriate outlet. The LED "CHARGE" light will turn on (red).
Battery replacement
Please recycle the used battery. See Battery and Recycling information in the
chapters 5 and 6 below.
Unscrew the two screws on
the back of the tool.
Remove the cap.
Unplug the battery and
change the battery with a new
one.
Reinstall the cap and the
screws.
OTC Technical Support: (800) 933-8335
SP04500137
46/52
User Guide TPWS Tester
TPWS TESTER User Guide
2. TOOL UPDATE
Updating Your TPWS TESTER
The tool received already has the latest software uploaded. As a new protocol becomes
available, it will become necessary to update your tool. At that time more details will be provided
on how to update the tool.
Slot for SD card
USB connector
for updating.
for non Internet
update.
3. TROUBLESHOOTING
If the TPWS TESTER is unable to trigger one or more of the sensors, using either electronic
or magnetic activation, please use the following troubleshooting guide:
1) The vehicle does not have a sensor even though a metal valve stem is present. Be aware
of Schrader rubber style snap-in stems used on TPWS systems.
2) The sensor may be damaged or defective.
3) The sensor may be the type that periodically triggers on its own and is not designed to
respond to a triggering frequency.
4) Your TPWS TESTER may require a software upgrade.
5) Check “Auto Off” time settings for screen display.
6) Your TPWS TESTER is damaged or defective.
OTC Technical Support: (800) 933-8335
SP04500137
47/52
User Guide TPWS Tester
TPWS TESTER User Guide
LIMITED WARRANTY / CERTIFICATE(S)
4. L
4.1. LIMITED WARRANTY
(UNITED STATES)
HIS WARRANTY IS EXPRESSLY LIMITED TO
T
ORIGINAL RETAIL BUYERS OF BOSCH® NEW OR
REFURBIS HED EL ECTR ONIC DIA GNO STIC TOOLS
(“UNITS”).
ew BOSCH® Units and Smart Cable are
N
warranted against defects in materials and
workmanship for one year (12 months) from date
of purchase.
Refurbished BOSCH Units and Smart Cable are
warranted against defects in materials and
workmanship for 90 days from date of purchase.
Scope Module and Gas Module (Analyzer) are
warranted against defects in material and
workmanship for one year (12 months) from date
of purchase.
Rechargeable Batteries, Cables, Sample Cell,
O2 Sensor, NOx Sensor, and Pump are
warranted against defects in material and
workmanship for 90 days from date of purchase.
This warranty does not cover consumable items,
including, without limitation, non-rechargeable
batteries, filters, printer paper, calibration gas,
case, or probe/hose assembly.
This warranty only covers products manufactured
by BOSCH®. BOSCH® will pass through to the
original purchaser all manufacturers warranties.
For all products manufactured by third parties,
please see the original manufacturer’s warranty for
details.
This Warranty does not cover any Unit that has been
abused, altered, opened, worn out, contaminated, used for
a purpose other than that for which it was intended, or used
in a manner inconsistent with instructions regarding use.
This Warranty does not cover battery leakage. The sole
and exclusive remedy for any Unit found to be defective is
repair or replacement, at the option of BOSCH® . In no
event shall BOSCH® be liable for any direct, indirect,
special, incidental or consequential damages (including lost
profit) whether based on warranty, contract, tort or any
other legal theory. The existence of a defect shall be
determined by BOSCH® in accordance with procedures
established by BOSCH®. No one is authorized to make any
statement or representation altering the terms of this
warranty.
DISCLAIMER
THE ABOVE WARRANTY IS IN LIEU OF ANY
OTHER WARRANTY, EXPRESS OR IMPLIED,
INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
SOFTWARE
Unit software is proprietary, confidential information
protected under copyright law. Users have no right in
or title to Unit software other than a limited right of use
revocable by BOSCH®. Unit software when correctly
installed, will execute its programmed instructions.
BOSCH® does not warrant that software will operate
uninterrupted or error-free. Unit software may not be
transferred or disclosed without the written consent of
BOSCH®. Unit software may not be copied except in
ordinary backup procedures.
his Warranty is only valid to the original purchaser of
T
the Unit and is not transferable. All warranty claims
must be made within the warranty period and proof of
purchase must be supplied. This Warranty does not
cover the cost of freight to return the Unit to BOSCH®.
Technical Support
If you have any questions on the operation of the
product, please call (800) 933-8335.
Repair Service
Please contact Technical Support for
troubleshooting and service options prior to
sending any unit in for repair.
OTC Technical Support: (800) 933-8335
SP04500137
48/52
User Guide TPWS Tester
TPWS TESTER User Guide
SOFTWARE PRODUCT LICENSE
AGREEMENT
IMPORTANT: Do not continue until you have read
this Software Product License Agreement
(“Agreement”).
By clicking the "I Accept" button (or authorizing any
other person to do so), you accept this Agreement
and are bound by its terms. If you are not sure that
you are authorized by your employer to accept this
Agreement, take this package to a principal in your
firm before proceeding. This Agreement is a legal
agreement between you and Bosch Automotive
Service Solutions (“Bosch”). This Agreement governs
your use of the software, associated media, printed
materials and electronic documentation (collectively,
“Software Product”) utilized with the Bosch OBDII
TPWS Tool. Carefully read the terms and conditions
of this Agreement before using this Software Product.
Use of this Software Product indicates your
acceptance of the following terms and conditions.
4.2. LICENSE
(d) remove any proprietary notices or labels relating
to the Software Product.
You agree that the Software Product belongs to
Bosch. You agree to keep confidential and use your
best efforts to prevent and protect the contents of the
Software Product from unauthorized disclosure.
4.4. INTELLECTUAL PROPERTY
You acknowledge that no title to the intellectual
property in the Software Product is transferred to you.
You further acknowledge that all right, title and
interest in and to the Software Product shall remain
the property of Bosch and/or its suppliers, and you will
not acquire any rights to the Software Product, except
as expressly set forth above. This includes all copies
of the Software Product made by you as well as the
related user manuals and other supporting materials.
The Software Product is protected by copyright laws,
international copyright treaties, and other intellectual
property laws and treaties. All trademarks appearing
in the Software Product are the property of their
respective owners.
ubject to the terms and conditions of this
S
Agreement, Bosch grants to you a personal, nontransferable (except as noted in Section 8
(Assignment)) and non-exclusive license (without the
right to sublicense) to use the Software Product on a
single tool at a time. This Agreement will also govern
any Software Product updates, upgrades, and
program additions for the Software Product which has
been provided to you by Bosch, unless such
upgrades, updates, or additions are accompanied by
a separate agreement, in which case the terms of that
agreement will govern. Bosch is not obligated to
provide any updates, upgrades or program additions
to the Software Product.
4.3. RESTRICTIONS
You shall not, and shall not permit anyone else to:
(a) copy, distribute, or otherwise provide any portio
the Software Product to any third party (including
of
leasing, renting, letting on loan or sublicensing); (b)
modify, unbundle, translate, prepare derivative works
of, disassemble (except to the extent that this
restriction is expressly prohibited by law), reverse
compile, decompile, or reverse engineer any part of
the Software Product to build a similar or competitive
product or service; (c) use the Software Product in a
computer-based services business; or
n
4.5. CONSENT TO USE OF DATA
The Software Product does not collect any personally
identifiable information on its own. You may wish to
enter optional personally identifiable information.
Personal identifiable information will be maintained in
accordance with applicable data protection laws and
regulations. All data generated by the Software
Product may be used by Bosch for any purpose,
including but not limited to, facilitating the provision of
software updates, product support and other services
related to the Software Product. You additionally
agree that Bosch shall have the right use the data
generated by the Software Product, in aggregated
and depersonalized form, for statistical, survey,
product research, product development, and
marketing purposes, and as part of such use, to make
the aggregated and depersonalized data available to
third parties for use by such third parties. In
compliance with the applicable data protection
regulation, you are able to have the personally
identifiable information rectified, amended or deleted.
Requests should be sent to:
Bosch Automotive Service Solutions
655 Eisenhower Drive
Owatonna, MN 55060
Phone 800-933FAX 507-455-7451
OTC Technical Support: (800) 933-8335
SP04500137
49/52
User Guide TPWS Tester
TPWS TESTER User Guide
4.6. TAXES
You will pay all taxes, including sales, use, personal
and property taxes, due to your use of the Software
Product.
4.7. DISCLAI MER OF WARRANTIES
To the maximum extent permitted by applicable law,
Bosch and its affiliates, licensors, service providers,
and suppliers of the software product do not warrant
the software product, its content, use or any support
provided by Bosch, which is provided “as is” and
without warranties of any kind, either express or
implied. Bosch disclaims all warranties, express or
implied, including, but not limited to warranties of title
and implied warranties of merchantability, fitness for
a particular purpose, title, compatibility, security,
accuracy and non-infringement. Some states and
jurisdictions do not allow limitations on implied
warranties, so some or all of the above limitations
may not apply to you, in which event the above
limitations will be enforceable to the maximum extent
permitted by applicable law.
Neither Bosch, or any of its affiliates, nor any of
Bosch’s licensors, service providers, or suppliers
warrant that the software product will be uninterrupted
or error-free or that defects will be corrected.
We will not be liable for any loss or damage caused
by delay in furnishing the software product or any
other performance under this agreement.
Your use of the software product is at your sole risk
and you will be solely responsible for any damage to
your computer system or loss of data that results from
such use.
Neither Bosch or any of its affiliates, nor any of
Bosch’s licensors, service providers or suppliers
warrant or make any representations regarding the
use or the results of the use of the software product
in terms of its correctness, accuracy, reliability, or
otherwise. Bosch makes no warranty and assumes
no responsibility for any third-party hardware,
equipment or software with which the software
product may be required to communicate or operate.
You expressly understand and agree that Bosch and
its affiliates, licensors, service providers and
suppliers, to the maximum extent permitted by
applicable law, shall not be liable to you or any third
parties for any direct, indirect, incidental, special,
consequential, exemplary or punitive damages, or
any other damages whatsoever, for any matter
arising from or relating to this agreement, any
products or services provided hereunder, the
software product or the internet generally, including,
without limitation, your use or inability to access and
use the software product, any changes to or
inaccessibility of the software product, delay, failure,
unauthorized access to or alteration of any
transmission or data, any material or data sent or
received or not sent or received, or the accuracy of
any data or information provided by or through the
software product, whether such liability is asserted on
the basis of contract, tort or otherwise and even if
Bosch was informed of the possibility of such
damages.
Our entire liability and your exclusive remedies for
liability of any kind (including liability for negligence)
for the software product covered by this agreement
and all other performance or nonperformance by us
under or related to this agreement are limited to the
remedies specified under this agreement.
4.8. INDEMNIFICATION
We (or our supplier) will indemnify you against costs
and damages arising from claims of infringement of a
United States patent or copyright resulting from your
use of the Software Product if: (a) you tell us promptly
about any claim; (b) we do not avoid the claim by
modifying or furnishing a substitute Software Product
satisfactory to you; and (c) you give us full control of
any litigation or settlement.
You shall indemnify, hold harmless and, at Bosch’s
option, defend us and our affiliates and our respective
officers, directors, employees, agents and
representatives (each a “Bosch Indemnified Party”)
from any and all claims, liabilities, damages, losses,
expenses and/or costs (including, but not limited to,
reasonable attorneys’ fees) resulting from or arising
out of any claim, suit, action, arbitration or proceeding
brought or threatened by a third party against a Bosch
Indemnified Party relating to: (i) a breach or alleged
breach by you of any of its representations,
warranties, covenants or obligations hereunder, (ii)
your use, misuse or failure to use the Software
Product, or (iii) infringement or misappropriation of
any Bosch intellectual property or the intellectual
property rights of any third party by you.
4.9. ASSIGNMENT
You may transfer and assign a Software Product and
this Agreement to a successor of your business
OTC Technical Support: (800) 933-8335
SP04500137
50/52
User Guide TPWS Tester
TPWS TESTER User Guide
in which you use the Software Product. However, you
must transfer all copies of the Software Product to the
successor. The successor must promptly notify us
that the successor will comply with the terms of this
Agreement. Otherwise, you may not transfer or
assign the Software Product and this Agreement.
be construed to be enforceable to the fullest extent
possible. If any provision or part of a provision of this
Agreement is held to be unlawful, void, or
unenforceable, that provision or part of the provision
shall be deemed severable from this Agreement and
not affect the validity and enforceability of any
remaining provisions.
4.10. TERMINATION
This Agreement and the license granted hereunder
are effective until terminated by you or Bosch. You
may terminate it at any time by destroying the
Software Product. Your rights under this Agreement
will also terminate automatically without notice from
Bosch if you fail to comply with any term or condition
of this Agreement. Upon termination of this
Agreement you shall cease all use of the Software
Product and destroy all copies, full or partial, of the
Software Product. The provisions of Sections 3, 4, 5,
6, 7, 10 and 12 shall survive any termination of this
Agreement.
4.11. EXPORT AND OTHER LAWS
You may not use the Software Product in violation of
any federal, state or other applicable laws. You may
not use or otherwise export or re-export the Software
Product except as authorized by United States law
and the laws of the jurisdiction in which the Software
Product was obtained. In particular, but without
limitation, the Software Product may not be exported
or re-exported (a) into any U.S. embargoed countries
or (b) to anyone on the U.S. Treasury Department’s
list of Specially Designated Nationals or the U.S.
Department of Commerce Denied Person’s List or
Entity List. By using the Software Product, you
represent and warrant that you are not located in any
such country or on any such list. You also agree that
you will not use the Software Product for any
purposes prohibited by United States law, including,
without limitation, the development, design,
manufacture or production of nuclear missiles, or
chemical or biological weapons.
4.12. GENERAL
You are solely responsible for installation,
management and operation of the Software Product.
Bosch’s failure to exercise or enforce any right or
provision of this Agreement shall not operate as a
waiver of such right or provision. The parties agree
that each provision of this Agreement is intended to
4.13. APPLICABLE LAW
This Agreement shall be governed by and construed
in accordance with the laws of the State of Michigan,
without giving effect to any principles of conflicts of
laws. Both parties submit to personal jurisdiction in
the State of Michigan and further agree that any
cause of action relating to this License shall be
brought in the state and federal courts in the County
of Oakland, State of Michigan. Your use of the
Software Product may also be subject to other local,
state, national or international laws.
Copyright© 2014, Bosch Automotive Service
Solutions. All Rights Reserved
5. SAFETY BATTERY AND CHARGE
INFORMATION
You must read and understand these safety
instructions and warnings before using or
charging your lithium polymer batteries.
Operating environment
Remember to follow any special current regulations
any area, and always switch off your device when its
use is prohibited or when it may cause interference or
danger.
Use the device only in its normal operating positions.
Your device and its enhancements may contain small
part. Keep them out of the reach of small children.
About Charging
Use only the charger supplied with your device. Use
of another type of charger will result in malfunction
and/or danger.
When the red LED turns green, the charge is complete.
About the Charger
Do not use the charger in a high moisture
environment. Never touch the charger when your
hands or feet are wet.
OTC Technical Support: (800) 933-8335
SP04500137
51/52
User Guide TPWS Tester
TPWS TESTER User Guide
Allow ventilation around the charger when using it. Do
not cover the charger with paper or other objects that
will reduce cooling. Do not use the charger while it is
inside a carrying case.
Connect the charger to a proper power source. The
voltage requirements are found on the product case
and/or packaging.
Do not use the charger if the wires become damaged.
Do not attempt to service the unit. There are no
serviceable parts inside. Replace the unit if it is
damaged or exposed to excess moisture.
This charger is not a toy and should not be used by
children or infirm persons without proper training or
supervision.
Do not use it as a power source.
Unplug it before attempting to service or clean it.
About the Battery
CAUTION: This unit contains an internal Lithium
Polymer battery. The battery can burst or explode,
releasing hazardous chemicals. To reduce the risk of
fire or burns, do not disassemble, crush, pierce or
dispose of the battery or the instrument in fire or water,
do not short circuit or short the contacts with a metal
object.
Use a specified charger approved by the BOSCH
manufacturer and supplied with the device.
The tool must be returned to the factory for battery
replacement.
Opening the tool or tampering with the seal
placed on the t ool, if bro ken wil l void the warrant y
Safety for Lithium Polymer battery use
NEVER leave the battery unattended during the
charging process. The device must imperatively be
placed on a non-flammable surface during charging
(ceramic platter or metal box).
Charge the Lithium Polymer battery ONLY with the
charger provided.
NEVER use a Ni-MH (Nickel Metal Hydride) type
battery charger to charge a Lithium Polymer battery.
If the battery begins to overheat more than 60°C
(140°F), STOP IMMEDIATELY the charge. The battery
should NEVER exceed 60°C (140°F) during the
charging process.
NEVER charge the battery immediately after use and
while still hot. Leave it cool down to ambient
temperature. If you see some smoke or some liquid out
of the battery, stop the charge immediately.
Disconnect the charger and place the tool in an
isolated area for at least 15 minutes. DO NOT USE
THE BATTERY AGAIN, return the device to your seller.
Keep a fire extinguisher for electrical fires handy while
charging the battery. In the unlikely event that the
Lithium Polymer battery will ignite, DO NOT use water
to extinguish the fire, use some sand or the fire
extinguisher described above.
It must neutralize the Lithium Polymer battery elements
unusable. The neutralization process must be
performed with very strict security fit. It is recommended
that you return us the tool, we will collect the battery out
of use and gives to a specialized recycler.
Do not dispose of Lithium Polymer batteries to the
dustbin.
The Lithium Polymer battery is not suitable for children
under 14 years. Do not leave a Lithium Polymer battery
within the reach of children.
To prevent leakage or other hazards, do not store
batteries above 60°C (140°F). Never leave the battery
inside a car (for example) where the temperature could
be very high or in a place where temperatures could
exceed 60°C (140°F). Store the battery in a dry place to
avoid contact with liquid, whatever the type. Store the
battery only on a nonflammable surface, heat resistant,
nonconductive and away from all flammable materials
or sources. Always store the battery out of reach of
children.
A Lithium Polymer battery should be stored with a
minimum charge of 30%. If you store completely
discharged, it will quickly become unusable.
If you don't use the battery for a long time, you have to
regularly charge the battery (every 6 months) to be over
the minimum charge of 30%.
If you don't follow these safety precautions, you may
cause serious personal injury and damage to property;
you may even cause a fire!
The BOSCH Company disclaims any responsibility for
damage sustained in case of noncompliance with these
safety instructions.
Using a Lithium Polymer battery has a high risk of fires
and can cause serious damages to property and
persons, the user agrees to accept the risk and
responsibility.
The BOSCH Company couldn't control the proper use
of the battery for each customer (charge, discharge,
storage etc.); it cannot be held responsible for damage
to persons and property.
OTC Technical Support: (800) 933-8335
SP04500137
52/52
User Guide TPWS Tester
TPWS TESTER User Guide
6. RECYCLING
out wheeled dustbin means that the product must be taken to separate
Do not dispose of the rechargeable Lithium-Ion battery or the tool and/or it
accessories to the dustbin.
These components must be collected and recycled.
The crossedcollection at the product end-of life. This applies to your tool but also to any enhancements
marked with this symbol. Do not dispose of these products as unsorted municipal waste.
For further information, please contact BOSCH.
OTC Technical Support: (800) 933-8335
Loading...
