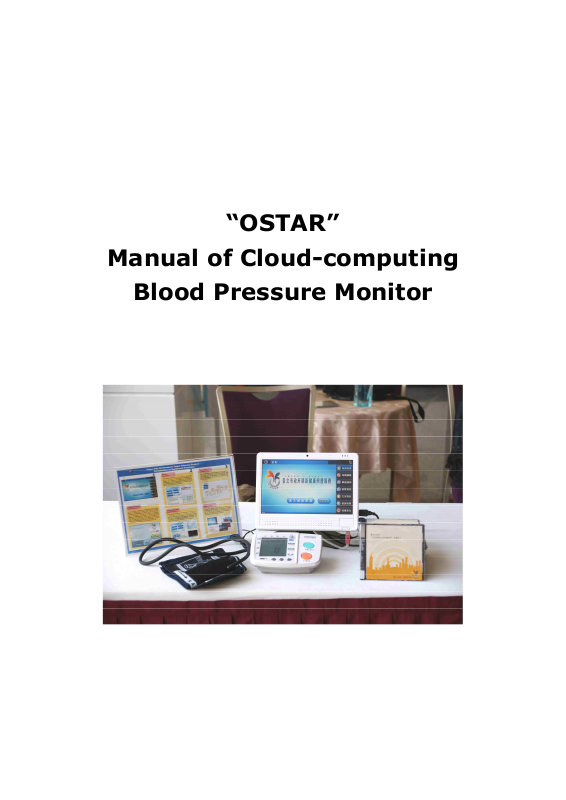

Ostar P2 User Manual

“OSTAR”

Manual of Cloud-computing

Blood Pressure Monitor

MEDITECH CORP.

E-Mail：[e-mail]

Website: http://www.ostar.com.tw

Product Overview

OSTAR telecare system with TCP/IP is available in TCP/IP transmission
and can be used to monitor users’ blood pressure, heart pulse and
heart health situation. Connecting OSTAR blood pressure monitor and
a PC by an OSTAR USB cable, the user can transmit vital-sign data to
a remote telecare information system through TCP/IP.
It serves a convenient function that users can connect with a server
and quickly view history vital-sign data and curves of themselves.

Specification

Model: P2, OSTAR blood pressure monitor with cloud-computing.

1

MEDITECH CORP.

E-Mail：[e-mail]

Website: http://www.ostar.com.tw

Instruction

1. Connect OSTAR cloud-computing blood pressure monitor (BPM)

and a PC by OSTAR USB cable, and turn on the BPM.

2. Go on the Internet on

http://www.iamok.com.tw and choose the English edition. And

then choose “Run on Cloud.”

3. At the 1

certification downloading (Fig. 2).

st

time to do cloud-computing, there will be a safety

IE

and go to OSTAR website,

Fig. 2 Cloud-downloading

4. If the connection failed, please check the cable and press “Search

blood pressure monitor once again.”

2

MEDITECH CORP.

E-Mail：[e-mail]

5. After connecting OSTAR BPM successfully, the program will find it

automatically (Fig. 3).

Website: http://www.ostar.com.tw

Turning
On

Fig. 3 The user interface of Cloud-computing

6. The user could choose 1~4 user numbers. Without choosing, the

system will set no. 1 as the user number. After choosing, the
program will be on waiting situation (Fig. 4).

Fig. 4 The operating interface of Cloud-computing

3

MEDITECH CORP.

E-Mail：[e-mail]

7. The user could press the “turning on” button to run OSTAR BPM

to detect blood pressure signals.

8. After detecting blood pressure, the user could press “Go to

Website of this BPM” and then view the vital-sign data on the

database (Fig. 5).

Website: http://www.ostar.com.tw

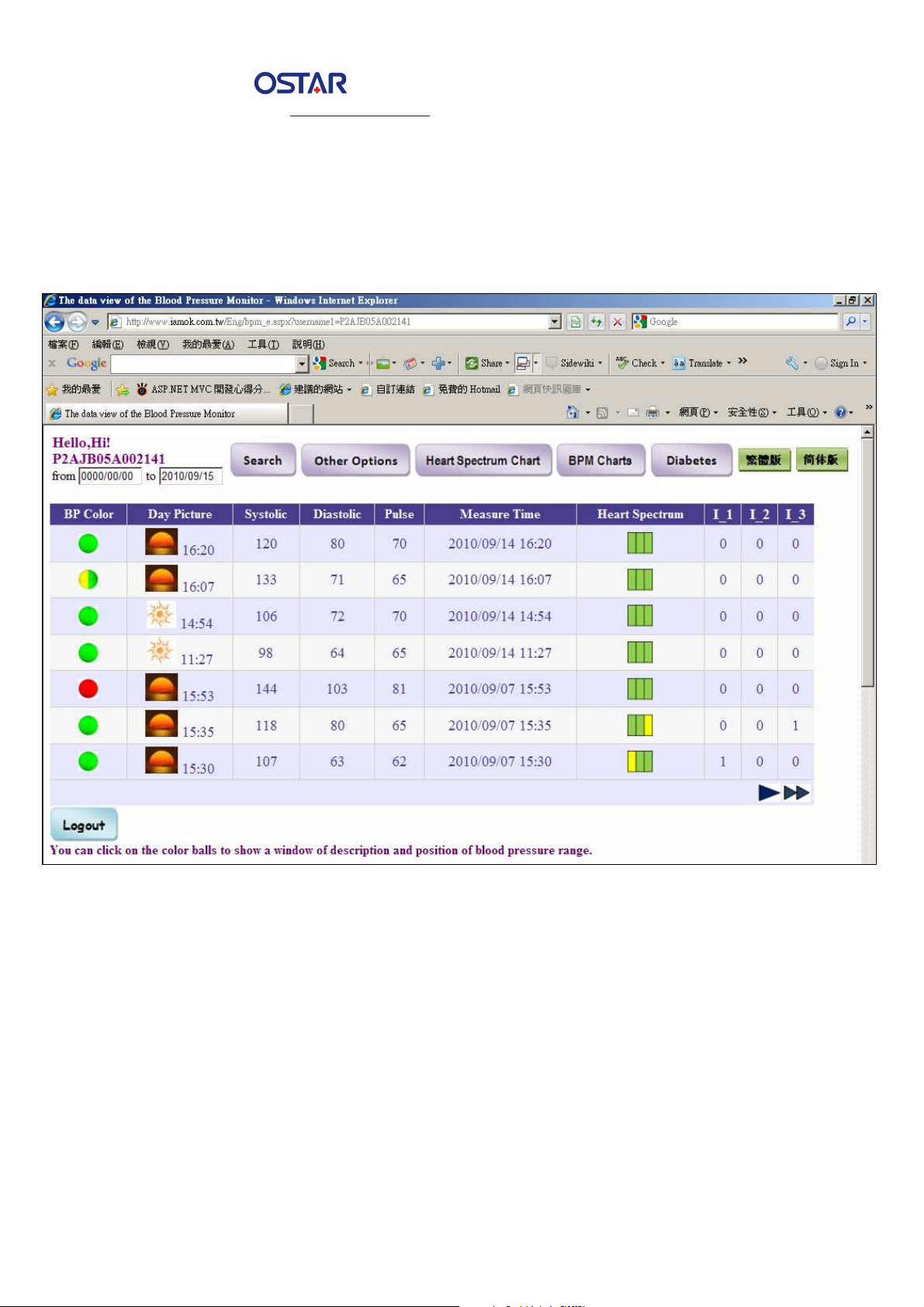

Fig. 5 the vital-sign data in the database

4

MEDITECH CORP.

E-Mail：[e-mail]

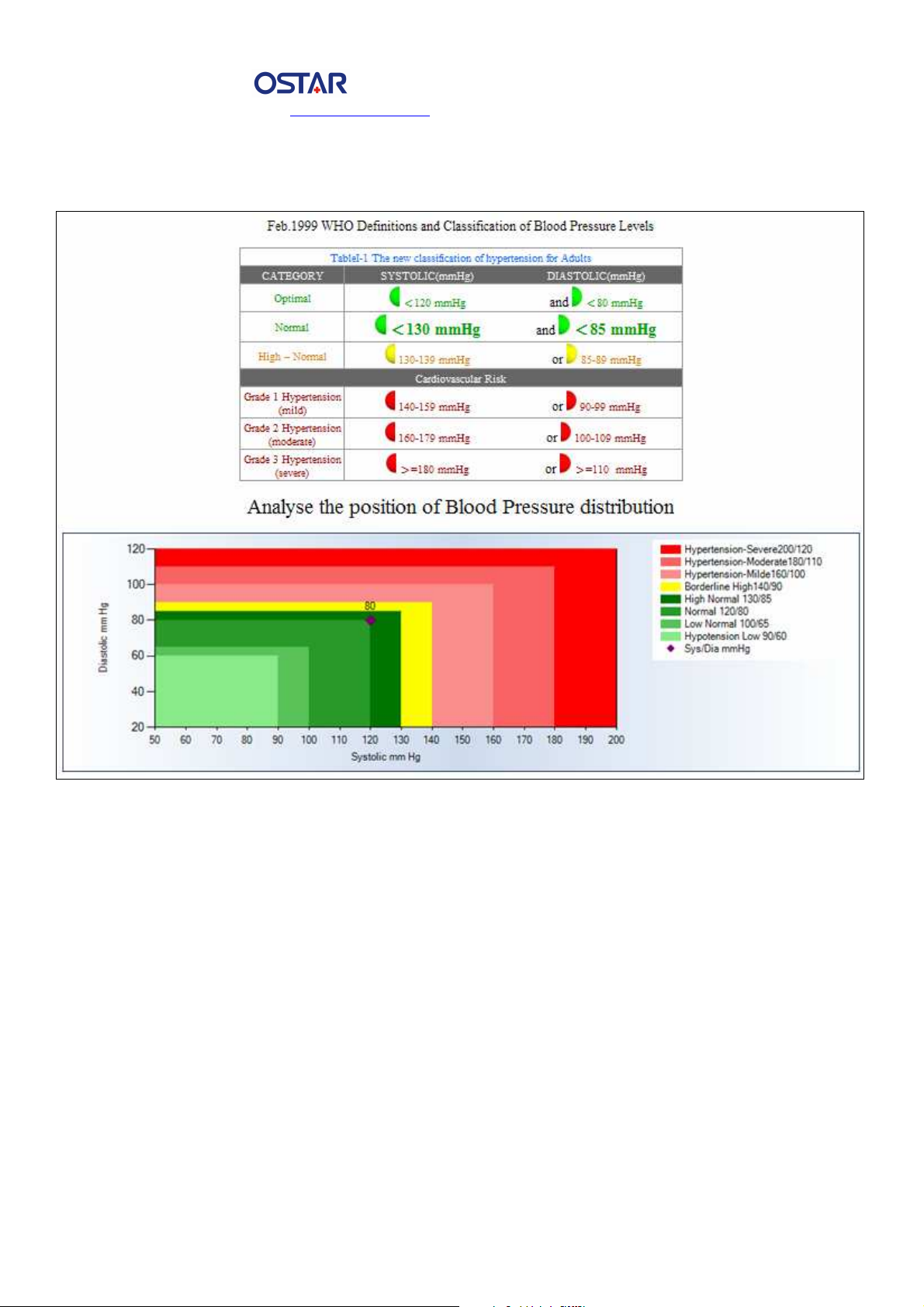

9. The user could press the colorful balls on Fig. 5, it will show the

detecting information and the placement distribution chart(Fig. 6).

Website: http://www.ostar.com.tw

Fig. 6 The blood pressure placement distribution chart

5

MEDITECH CORP.

E-Mail：[e-mail]

10. To press “BPM charts,” it will show the curves of systolic and

diastolic blood pressures and heart pulse (Fig. 7).

Website: http://www.ostar.com.tw

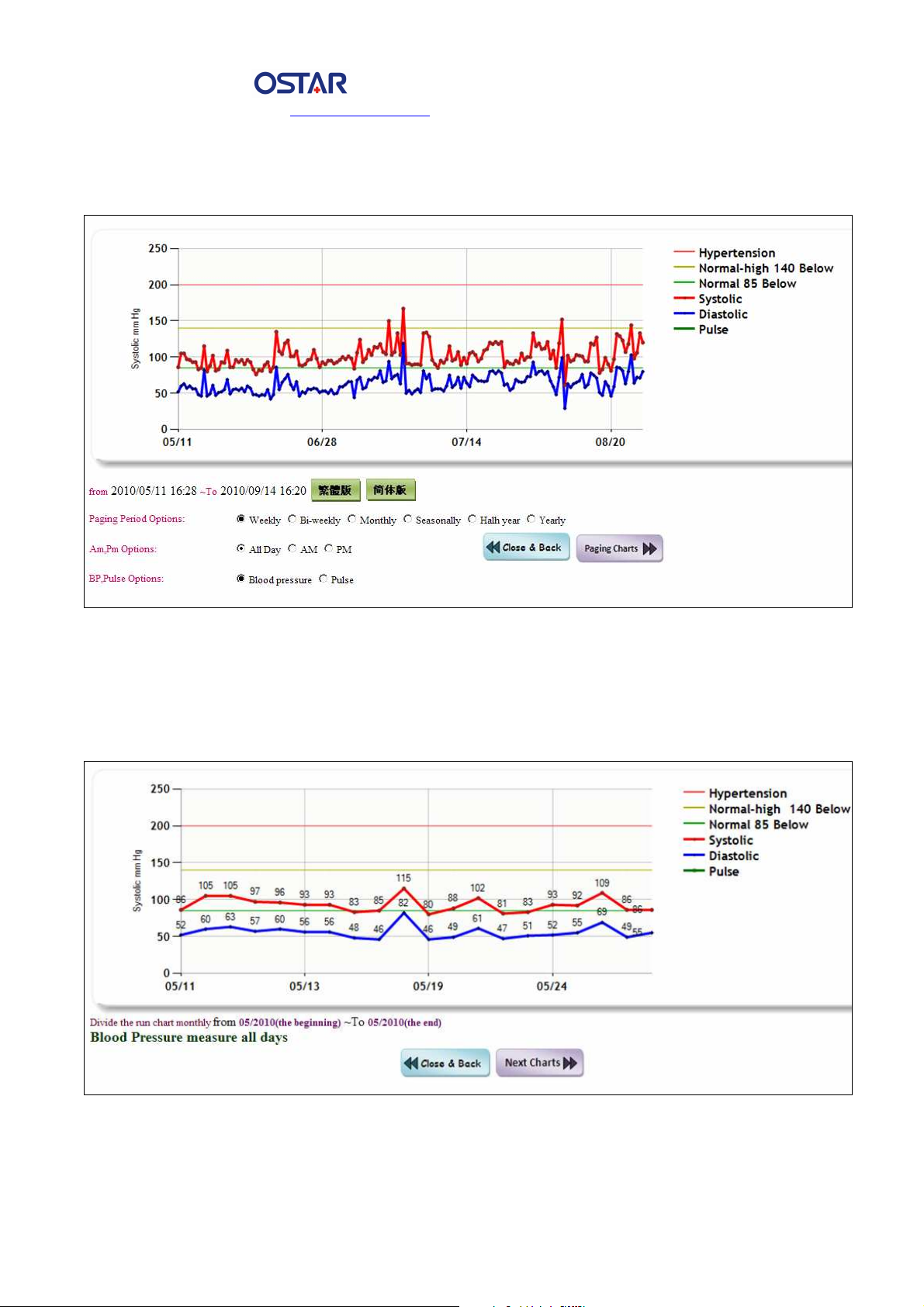

Fig. 7 The curves of vital signs

9. On Fig. 7, the user could select a time interval, for example,
monthly, and then press “Paging Charts” to view the data (Fig. 8).

Fig. 8 The paging charts of vital signs

6

MEDITECH CORP.

E-Mail：[e-mail]

10. To press “Hear Spectrum Chart” button, the system will show

spectrum charts of the user’s heart (Fig. 9).

Website: http://www.ostar.com.tw

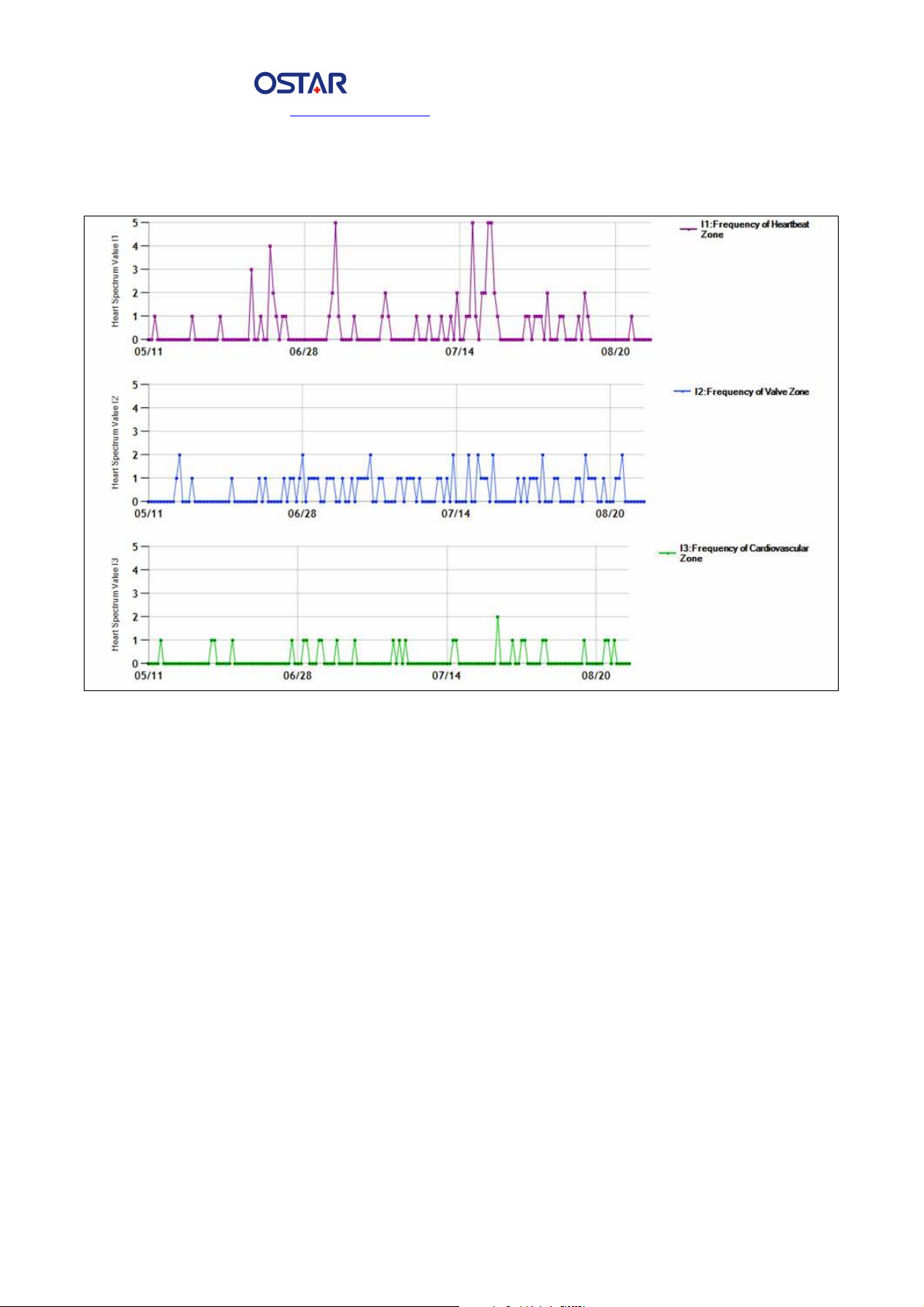

Fig. 9 Hear Spectrum Chart

7
