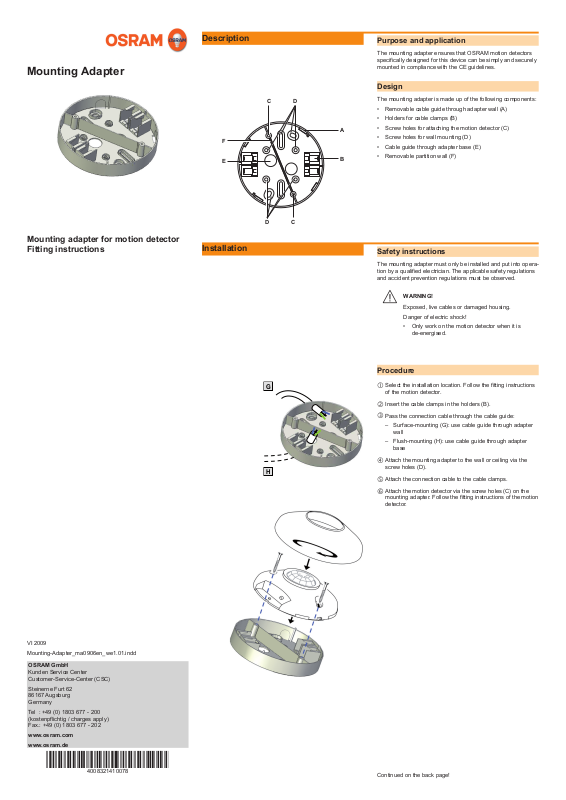

OSRAM Mounting adapters User Manual
Mounting Adapter
Mounting adapter for motion detector
Fitting instructions
Description
F
E
Installation
Purpose and application
The mounting adapter ensures that OSRAM motion detectors
specically designed for this device can be simply and securely
mounted in compliance with the CE guidelines.
Design
DC
A
B
CD
The mounting adapter is made up of the following components:
• Removable cable guide through adapter wall (A)
• Holders for cable clamps (B)
• Screw holes for attaching the motion detector (C)
• Screw holes for wall mounting (D)
• Cable guide through adapter base (E)
• Removable partition wall (F)
Safety instructions
The mounting adapter must only be installed and put into operation by a qualied electrician. The applicable safety regulations
and accident prevention regulations must be observed.
WARNING!
Exposed, live cables or damaged housing.
Danger of electric shock!
• Only work on the motion detector when it is
de-energised.
VI 2009
Mounting-Adapter_ma0906en_we1.01.indd
OSRAM GmbH
Kunden Service Center
Customer-Service-Center (CSC)
Steinerne Furt 62
86167 Augsburg
Germany
Tel : +49 (0) 1803 677 - 200
(kostenpichtig / charges apply)
Fax.: +49 (0) 1803 677 - 202
www.osram.com
www.osram.de
Procedure
Select the installation location. Follow the tting instructions
G
H
of the motion detector.
Insert the cable clamps in the holders (B).
Pass the connection cable through the cable guide:
– Surface-mounting (G): use cable guide through adapter
wall
– Flush-mounting (H): use cable guide through adapter
base
Attach the mounting adapter to the wall or ceiling via the
screw holes (D).
Attach the connection cable to the cable clamps.
Attach the motion detector via the screw holes (C) on the
mounting adapter. Follow the tting instructions of the motion
detector.
40083214100788
4008321410078
Continued on the back page!
Appendix
Dimensioned drawing
Conformity with the relevant EU directives is
conrmed by the CE symbol.
